Product type	Steam spot cleaner vacuum
Brand	Cecotec
Model	Conga 7000 CarpetSpot Clean Steam XXL
Power supply	Mains 220-240 V, 50/60 Hz
Power	850 W
Water tank	XXL 700 ml tank
Dirt recovery capacity	500 ml
Cable reach	6 m
Weight	5.5 kg
Dimensions	32 x 28 x 112 cm
Cleaning technology	Simultaneous water injection and suction
Steam function	Hot steam to remove set-in stains
Motorized brush	Rotating brush for deep cleaning
Included accessories	Wide nozzle, fabric nozzle, crevice tool
Filter	Washable filter with water separator
Safety	Unplug before maintenance, overheat protection
Maintenance	Removable and washable tanks, clean nozzles after use
Spare parts	Replaceable nozzles and brushes, available from Cecotec after-sales service
Use	Household use only
Warranty	2 years

Frequently Asked Questions - Conga 7000 Carpetspot Clean Steam Xxl CECOTEC

Can I use the Conga 7000 CarpetSpot Clean Steam XXL on thick carpets?

Yes, the motorized brush and suction power can handle thick carpets. It is advisable to test first on an inconspicuous area and not to saturate the carpet with water.

How do I descale the appliance?

Mix a solution of water and white vinegar (1/3 vinegar to 2/3 water) in the tank, run the appliance, then rinse with clean water. Do not use corrosive products.

Is the water tank removable?

Yes, the upper tank can be easily removed for filling and cleaning. The dirt recovery tank is also removable and washable with water.

What should I do if suction is weak?

Check that the filter is clean and that the nozzles are not blocked. Clean the tanks and make sure the water tank lid is properly closed.

Can I add cleaning products to the water?

It is recommended to use hot water without foaming detergent. If you wish to use a product, use a special steam cleaning solution in small amounts, but this may reduce the steam effectiveness.

How do I clean the brush after use?

Remove the brush if it is detachable, rinse it under lukewarm water and let it air dry before putting it back. Never put it in the dishwasher.

Can the appliance be used on a fabric sofa?

Yes, it is suitable for upholstery fabrics. Check the sofa's care label. Use the fabric nozzle and avoid over-wetting.

How long does it take to get steam?

Steam production generally starts within 30 seconds after turning on. The steam is continuous as long as the tank contains water.

Why does the appliance turn off during use?

The overheat protection may activate if the tank is empty or if the ventilation openings are blocked. Turn off the appliance, let it cool for 30 minutes and check the water level.

Where can I find spare parts for the Conga 7000?

Spare parts (nozzles, brushes, filters) are available from the official Cecotec customer service. See the manual for references and after-sales service contact details.

USER MANUAL Conga 7000 Carpetspot Clean Steam Xxl CECOTEC

CONGA 7000 CARPET&SPOT CLEAN STEAM XXL

Limpiatapicerías /Upholstery cleaner

cecòtec

Safety instructions 8

1. Parts and components 51
2. Before use 51
3. Operation 52
4. Using the appliance 53
5. Cleaning and maintenance 54
6. Troubleshooting 56
7. Technical specifications 57
8. Disposal of old electrical and electronic appliances 57
9. Technical support and warranty 58
10. Copyright 58

SOMMAIRE

Please, keep this instruction manual in a safe place for future reference or new users.

- Read these instructions carefully before assembling or using your carpet cleaner. These instructions contain important information that will help you get the best out of your equipment. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• The mains plug of the power cable must be removed from the base before cleaning or maintenance operations.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• WARNING: check that the upholstery cleaner and package are not damaged. Never use the appliance if damaged. Contact the official Cecotec Technical Support Service immediately.
• Packaging material may be dangerous to children. Remove it and place it out of their reach.
• The upholstery cleaner plug must be connected to a grounded socket. If you do not have an earthed socket, an earthed installation must be carried out by a licensed electrician. In case of ungrounded use, Cecotec shall not be liable for any malfunction or damage that this may cause.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• Always use the plug provided with the appliance. Do not modify the plug provided with the appliance if it does not match the power socket.

• Check the power cord regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service in order to avoid any type of danger.

• Do not operate the appliance if its cord, plug, or structure show visible damage, do not operate properly, or produce unusual sounds or odours.

• In case of malfunctioning, repairs must be carried out by the official Cecotec Technical Support Service; otherwise, the warranty will be void.
• To unplug the appliance, pull from the socket, never from the cord.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Disconnect the appliance from the electric circuit when it is not used.
• Disconnect the appliance from the power socket before carrying out any maintenance, cleaning, or transport.
• Do not use the appliance with pesticides, dyes, lubricants, or other liquids.
• Do not use the appliance to vacuum lit matches, cigarette ends, petrol gas, sources of heat, or hot ash.
• Do not use the appliance without installing the waste-water tank.
• The appliance is designed to clean carpets and upholstery, do not use it for any other purpose.
• This appliance is designed for personal use only and is not suitable for commercial use.
• Do not place the appliance near sources of heat, flammable substances, etc.
• If any strange object blocks any of the parts or you vacuum any strange object, stop using the appliance, empty it, and clean it to be able to use it again.
• This product is used to remove dirt through rinsing. Use tap

water or alkaline ionised water at a temperature below 40°C.

• This product cannot be used to clean arts and crafts, non-waterproof fibres (nets, acetic acid, rayon, etc.), non-waterproof products (furs, leather products, white wooden furniture, tea sets, etc.) and vulnerable surfaces (floors, tables).
• When the waste-water tank exceeds the maximum water level, stop operating the device immediately and empty the waste-water tank before using the product again.
• When using detergent, dilute a low-foaming detergent with water and spray it over the object to be cleaned.
• When using detergent, make sure it will not leave any stains before using it.
• If you use the appliance over a shag carpet, this will block the water outlet and the machine may stop working.
• If there is too much foam or wastewater in the lower part of the machine during operation, stop using it immediately and clean the tank before using it again.
• Do not use a detergent that foams.
• Do not try to vacuum the following objects:
  a. Large quantities of dust (extinguishing agent, etc.)
  b. Large quantities of sand and pebbles
  c. Large quantities of waste
  d. Metals like needles and pins, glass, etc.
  e. Large and medium plastic bags

Protective device

- If the appliance stops working correctly, the protective device will start running to prevent the motor overheating, and the appliance will not work for a short period of time, even if you turn it on.

- If the protective device is activated:

1. Press the power button and disconnect the appliance plug.
2. Store the appliance in a dry and cool place.
3. After 1 hour, the protective device will deactivate automatically, and you will be able to use the appliance again.

INSTRUCTIONS DE SÉCURITÉ

1. Suction nozzle
2. Clean-water tank
3. Handle
4. Control panel
5. Waste-water tank
6. Main body
7. Hose
8. Water/steam sprayer
9. Water/steam sprayer button
10. Handle
11. Bracket
12. Cord winder
13. Power switch
14. Locking piece

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the device if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

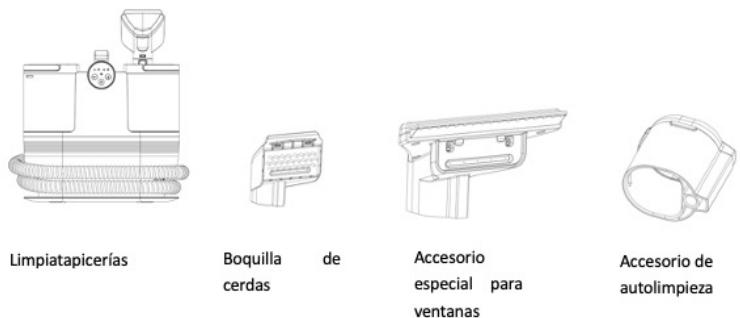

Box content

Fig. 2

• Upholstery cleaner
• Normal bristle nozzle

• Special accessory for windows

• Clean-water tank

• Waste-water tank
• Self-cleaning accessory
• Extra pack of sealing rings
• Hose
• Instruction manual

3. OPERATION

Control panel

Fig. 3

1. Power icon
2. Power setting icon
3. Normal power indicator light
4. Maximum power indicator light
5. Cold water indicator light
6. Hot water indicator light
7. Mode selection icon

8. Steam indicator light

9. Power icon ⏻ If you press the power icon ⏻, it will light up white and flash. If you press the icon again, the indicator light will remain fixed and the appliance will start (by default, the power will be normal ♂ and the water will be at room temperature). If you press this icon again, the device will enter standby mode and the white indicator light will flash again.

10. Power setting icon 📄 The default power on switch-on is normal ⚫. To select maximum power ⚫, press 📋. If you press it again, the upholstery cleaner will go back to normal speed. When selecting a power setting, the corresponding indicator light will light up.

11. Mode selection icon 🎨 By default, when the appliance is switched on, water will be discharged at room temperature 🔒. Press 🎨 to make hot water come out 🎨. If you press it again, the upholstery cleaner will release steam 🔊. If you press it a third time 🎨, the appliance will expel water at room temperature 🔒 again.

NOTE: when selecting a mode, the corresponding indicator light will light up.

Warning

You can only use the control panel when the power switch is in the on position.

4. USING THE APPLIANCE

1. Place the appliance on a flat surface before switching it on. Make sure that the voltage and socket match the required voltage and check that the hose is correctly connected.
2. Then, remove the clean-water tank, open it and fill it (the water temperature must not exceed 40° C).
3. Connect the appliance to the mains socket.
4. Make sure that the switch is set to the on position and wait 3 seconds.
5. Press the power icon ⏻, it will light up white and flash. If you press the icon again, the indicator light will remain fixed and the appliance will start (by default, power will be normal ♂ and water will be at room temperature ⏻). If you press this icon again, the device will enter standby mode and the white indicator light will flash again. If no operation is performed after 30 minutes, the white indicator light will go out.
6. The default power on switch-on is normal ♂. To select maximum power ♂, press ♂. If you press it again, the upholstery cleaner will go back to normal speed.
7. Press and hold the water/steam sprayer button to spray clean water. Spray clean water on the dirt to bring it to the surface. If you stop pressing it, the upholstery cleaner will stop releasing water/steam.
   NOTE: if you do not want to hold down the button during the entire cleaning process, slide it upwards so that it stays in position.
8. By default, when the appliance is switched on, water will be discharged at room temperature ☐. Press ☐ to make hot water come out ☐. If you press it again, the upholstery cleaner will release steam ☐. If you press it a third time, the appliance will expel water at room temperature again ☐. When selecting a mode, the corresponding indicator light will light up.
9. Press the suction inlet on the dirt to bring water and dirt to the surface and vacuum them.
10. Stop spraying clean water and vacuum the wastewater.
11. Switch off the appliance by pressing the power icon ⏻.
12. Unplug it from the power supply.
13. Empty the clean and wastewater from the tanks and clean the waste-water tank.

NOTE:

• Water/steam spraying is suitable for cleaning sofas, carpets, among others. When you have finished spraying, use the accessory to wipe away stains and soak up dirty water. Waste water shall be channelled to the corresponding tank.
• Use the different accessories according to your needs.

Before using the upholstery cleaner

1. Disassembly (Fig. 3)

Hold the hose near the end of the connector by hand. Next, press the hose locking piece with your thumb and pull it straight out in the direction of the arrow. Please note that after steam cleaning, the hose must not be removed until the machine cools down completely.

2. Fitting the hose (Fig. 4)

Hold the hose close to the connector and push it slightly in the direction of the arrow. After hearing a click, pull the hose in the opposite direction to make sure it does not come out.

3. Storage

After use, the hose can be coiled up in the cord winder, which is located at the bottom of the upholstery cleaner.

Warning

• It is normal for the surface to be wet after spraying.
• Do not spray water continuously over the same spot.
• Switch off the appliance before unplugging it.
• After use, hang the coiled power cable on the power cable holder.

5. CLEANING AND MAINTENANCE

Cleaning embedded dirt

Warning:

• You can add low-foam detergent in the clean-water tank or apply it directly on the stain.
• Make sure the detergent will not damage the soiled surface before using it.
• Do not use thinners, aniline, chloroform, or flammable detergents.

Recommended liquids

• Alkaline ionised water.
• Low-foam detergent to the clean water tank combined with water in a 5:10 proportion.
• Citric acid
• Water with hydrochloric acid.

Non-recommended liquids

• Neutral kitchen detergent
• Alkaline detergent

• Acid detergent.

• Apply detergent over the soiled surface, spray clean water, and scrub the dirt with a brush to bring it to the surface.

• Vacuum the dirt and do not let any detergent remain.

Warning:

• To know the detergent quantity and use, carefully read the manufacturer instructions.
• Stop using the appliance when the water or foam in the waste-water tank reaches the

maximum water level and clean the waste-water tank. Otherwise, water may enter the appliance.

Warning

• This appliance is designed to clean soft fabrics such as cloth and plush.
• It is not recommended for use on hard surfaces.
• When using the upholstery cleaner, water should first be sprayed on and then vacuumed up. Do not vacuum up dirt directly, as this appliance is not a vacuum cleaner.

Warning

• Stop the appliance and unplug it from the mains before cleaning it.
• Do not wet the appliance to avoid the risk of electric shock.
• Do not use detergents, thinners, benzene, or other chemical agents to clean the appliance.
• After every use, you must remove and clean the waste-water tank, the clean-water tank, and the suction nozzle to prevent humidity and dirt remains from emitting bad odours.

5.1 Cleaning the main body

• The most common dirt can be cleaned with a slightly damp cloth.
• The most stubborn dirt can be cleaned with a cloth slightly soaked in detergent and then a cloth slightly soaked in water.

5.2 Waste-water tank cleaning Fig. 5

1. When the wastewater reaches the maximum level, stop using the appliance and unplug it from the mains.
2. Remove the waste-water tank. To do so, slide the waste-water tank release tab and remove the waste-water tank.
3. Remove the upper cover of the waste-water tank and empty the wastewater.
4. Clean the tank, the top cover and the sealing strip.
5. Place the waste-water tank in the main body of the appliance.

Warning

• Do not lean or shake the waste-water tank when transporting or assembling it; otherwise, wastewater will easily leak.
• We recommend you empty the wastewater before it exceeds the maximum level on the tank; if you continue using the tank after the wastewater has exceeded the maximum water level, the appliance will automatically stop vacuuming up water.
• To maintain the performance of the upholstery cleaner, clean the waste-water tank regularly. If the water in the tank is too dirty, the suction power will decrease. In addition, the waste-water tank must be cleaned when the water level reaches the "MAX" mark.

5.3 Cleaning the clean-water tank. Fig. 6.

When the clean-water tank is empty, fill it up.

To fill the clean-water tank, turn off the appliance, remove the clean-water tank, open the cover and add water.

Cleaning the clean-water tank: tilt the tank slightly and pull it upwards to remove it. Then clean it.

5.4 Cleaning the suction nozzle. Fig. 7

1. Press the suction nozzle release button and separate it from the hose bracket
2. Rinse the suction nozzle.
3. Install the suction nozzle cover again. Make sure the pins are correctly placed in the holes and press these parts until they click.

When cleaning the suction nozzle, empty the water outlet if clogged.

Check the hose is not damaged and has no leaks.

5.5 Cleaning the hose

Replace the suction nozzle with the self-cleaning accessory and press the trigger to circulate water for 30 seconds.

6. TROUBLESHOOTING

Problem	Possible causes	Solution
The appliance does not expel water	The accessory nozzle is clogged.	Remove the obstruction with a fine needle.
	There is not enough water in the clean-water tank.	Add more water.
	The internal water pipe is clogged or broken.	Contact the official Cecotec Technical Support Service.
The appliance does not expel water	The accessory nozzle is clogged.	Remove the obstruction with a fine needle.
	There is not enough water in the clean-water tank.	Add more water.

The suction power is weak, or the appliance does not vacuum up water	There is too much water in the waste-water tank.	Clean the waste-water tank when it is full.
	There is too much dirt, which prevents the appliance from vacuuming normally.	Clean the dirt and prevent it from building up again.
The appliance is not working properly	The room temperature is too low or too high.	Keep the appliance at a suitable room temperature (0 °C- 50 °C).
		Contact the official Cecotec Technical Support Service.

For other problems that you cannot solve yourself, contact the official Cecotec Technical Support Service.

7. TECHNICAL SPECIFICATIONS

Product reference: A01_EU01_100075

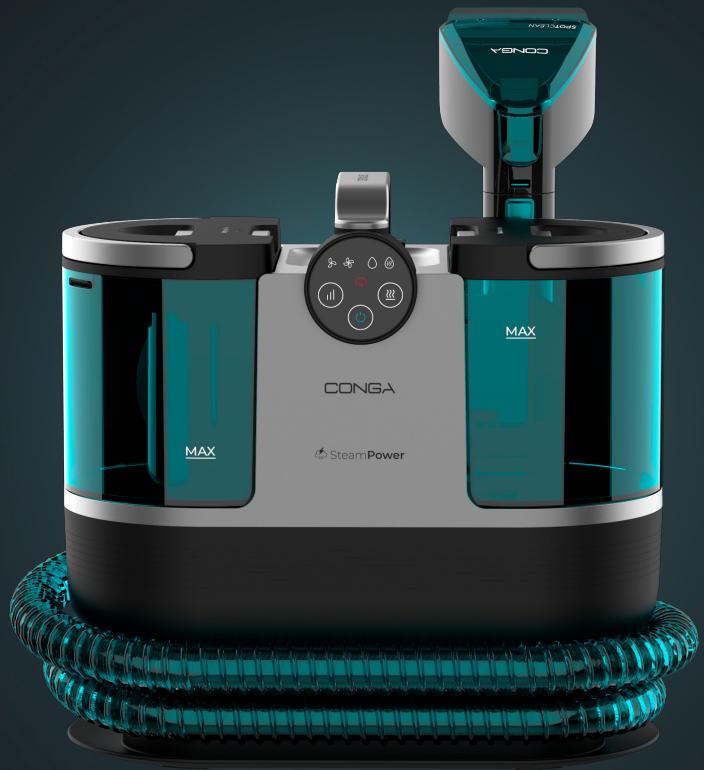

Product: Conga 7000 Carpet&Spot Clean Steam XXL

Voltage: 220-240 V\~

Frequency: 50/60 Hz

Rated motor power: 500 W

Rated heating power: 1200 W

IPX4

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

Product: Conga 7000 Carpet&Spot Clean Steam XXL

Voltage: 220-240 V\~

Frequentie: 50/60 Hz

Fig./Img./Abb./Afb./ Rys./Obr. 1

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

www.cecotec.es
