Product type	Spot cleaner vacuum for carpets and rugs
Brand	Cecotec
Model	Conga 3000 Carpetspot Clean Max
Power	1500 W
Power supply	Mains 220-240 V, 50/60 Hz
Clean water tank capacity	1 L
Dirty water tank capacity	1.2 L
Cable length	5 m
Weight	4.5 kg
Dimensions	30 x 25 x 40 cm
Main functions	Spraying cleaning solution, stain suction, rotating brush
Included accessories	Stain nozzle, cleaning brush, fabric adapter
Noise level	78 dB (A)
Maintenance and cleaning	Empty and rinse the tanks after each use, clean the filters regularly
Safety	Overheating protection, automatic shut-off in case of overheating
Spare parts and repairability	Parts available through the official Cecotec after-sales service
General information	Household use only, do not use in professional premises

Frequently Asked Questions - Conga 3000 Carpetspot Clean Max CECOTEC

How to prepare the device for stain cleaning?

Fill the clean water tank with hot water (max 60°C) and add the recommended cleaning solution. Plug the device into an earthed outlet. Press the trigger to spray the solution onto the stain, then use the suction to extract the dirty water.

Which cleaning solution should I use?

Use a cleaning solution specially designed for spot cleaner vacuums, or a mild non-foaming product. Never use solvents or flammable products.

How to clean the tanks after use?

Empty the dirty water tank, rinse it with clean water, and let it dry. Do the same with the clean water tank if you have used a solution. Also clean the filter.

What to do if the suction is weak?

Check that the dirty water tank is not full, that the nozzles are not clogged, and that the filters are clean. If the problem persists, contact after-sales service.

Can I use the device on all types of carpets?

It is ideal for rugs and carpets, but avoid delicate fabrics like silk. Always test on a discreet area. For upholstery, use the appropriate accessory.

How to descale the device?

Mix water and white vinegar (1/3) and circulate it through the system without vacuuming. Then rinse with clean water.

What does the indicator light on the device mean?

The indicator light can indicate the operating status. If the light flashes red, this may signal overheating or a tank problem. Check the manual or contact after-sales service.

How to store the cable?

Wind the cable around the hooks provided on the device or use an additional cable reel if available. Never pull on the cable.

Can I use cleaning products for tanks?

It is better to use products specially formulated for this type of device. Avoid acids or corrosive products that could damage the seals.

What to do in case of a water leak?

Check that the tanks are properly locked and that the seals are not damaged. Turn off the device immediately and unplug it before any inspection.

USER MANUAL Conga 3000 Carpetspot Clean Max CECOTEC

CONGA 3000 CARPET&SPOT CLEAN MAX

Limpiatapicerías con cable/ cCorded upholstery cleaner

cecòtec

Safety instructions 8

1. Parts and components 54

2. Before use 54

3. Installation 55

4. Operation 55

5. Cleaning and maintenance 56

6. Troubleshooting 57

7. Recycling of electrical and

electronic equipment 58

1. Copyright 58

2. Simplified EU Declaration of Conformity 58

SOMMAIRE

EU01_115423_Conga 3000 Carpet&Spot Clean Max

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Check the power cable regularly for visible damage. If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service or similar qualified personnel to avoid risks.
• The mains plug of the power cable must be removed from the base before cleaning or maintenance operations.
• WARNING: check that the upholstery cleaner and package are not damaged. Never use the appliance if it is damaged. Should it be the case, immediately contact the official Cecotec Technical Support Service.
• Packaging material may be dangerous to children. Remove it and place it out of their reach.

• The upholstery cleaner plug must be connected to a grounded socket. If you do not have an earthed socket, an earthed installation must be carried out by a licensed electrician. In case of ungrounded use, Cecotec shall not be liable for any malfunction or damage that this may cause.

• Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.

• Always use the plug provided with the appliance. Do not modify the plug provided with the appliance if it does not match the power socket.
• Do not operate the product if its cable, plug, or structure show visible damage, do not operate properly, or produce unusual sounds or odours.
• In case of malfunctioning, repairs must be carried out by the official Cecotec Technical Support Service; otherwise, the warranty will be void.
• To unplug the device, pull from the socket, never from the cord.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• Disconnect the appliance from the electric circuit when it is not used.
• Disconnect the device from the power socket before carrying out any maintenance, cleaning, or transport.
• Do not use the device with pesticides, dyes, lubricants, or other liquids.
• Do not use the appliance to vacuum lit matches, cigarette butts, petrol gas, heat sources or hot ashes.
• Do not use the appliance without installing the waste-water tank.
• The device is designed to clean carpets and upholstery, do not use it for any other purpose.

• This device is designed for personal use only and is not suitable for commercial use.

• Do not place the device near sources of heat, flammable substances, etc.

• If any strange object blocks any of the parts or you vacuum any strange object, stop using the device, empty it, and clean it to be able to use it again.
• When the waste-water tank exceeds the maximum water level, stop operation immediately and empty the waste-water tank before using the appliance again.
• If you want to use detergent, choose a low-foaming one and dilute it in water before spraying it on the object to be cleaned.
• When using low-foaming detergent, test it on a small inconspicuous area first to ensure it will not leave any marks.
• Using the appliance on a shag carpet may block the air outlet, causing the vacuum cleaner to stop working.
• If there is too much foam or waste water in the lower part of the appliance during operation, stop using it immediately and clean the tank before using it again.
• Do not use a foaming detergent.

INSTRUCTIONS DE SÉCURITÉ

1. Clean water tank
2. Main frame
3. Accessory holder
4. Brush
5. Water spray button
6. Handle
7. Dirty water tank
8. Hose
9. Liquid nozzle

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Upholstery cleaner
• Brush
• Liquid nozzle
• Clean water tank
• Dirty water tank
• Hose
• Accessory holder
• Screw
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Accessory holder installation

Fig. 2

1. Remove all accessories from both the clean and dirty water tanks.
2. Insert the hook into the appliance and secure it with a screw.

Stain brush installation

1. Insert the brush into the end of the extension hose until it clicks into place. Fig. 3
2. Wrap the hose around the appliance and insert it into the accessory holder. Fig. 4

4. OPERATION

Filling the clean water tank

Fig. 5.

1. Remove the clean water tank from the appliance.
2. Open the tank lid and fill with clean water up to the MAX line.

Starting operation

Connect the power cord to the mains socket and press the power switch to activate the appliance. Fig. 6.

Using the brush

1. Press the water spray button to dispense water. Fig. 7

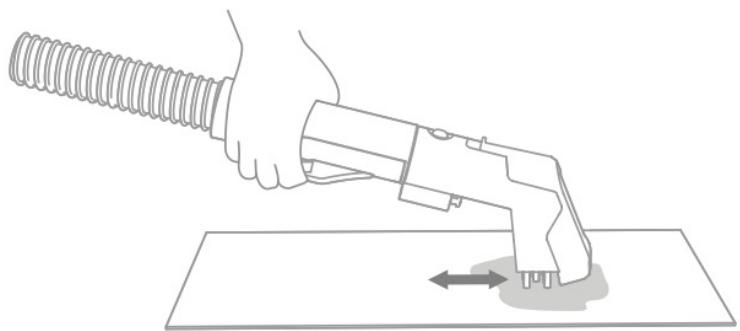

2. Move the brush from side to side to clean stains. Fig. 8

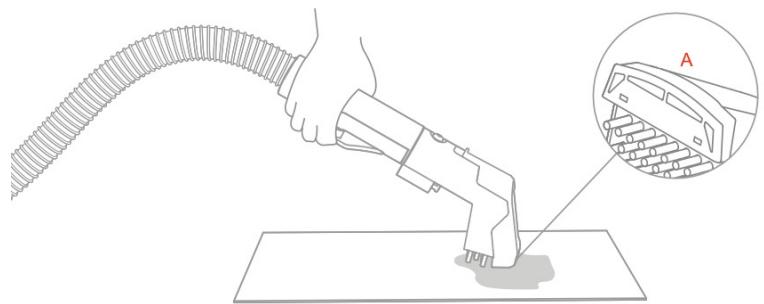

3. Press the brush firmly against the stained area to suction dirty water. Fig. 9

Figure 9 key

Suction inlet

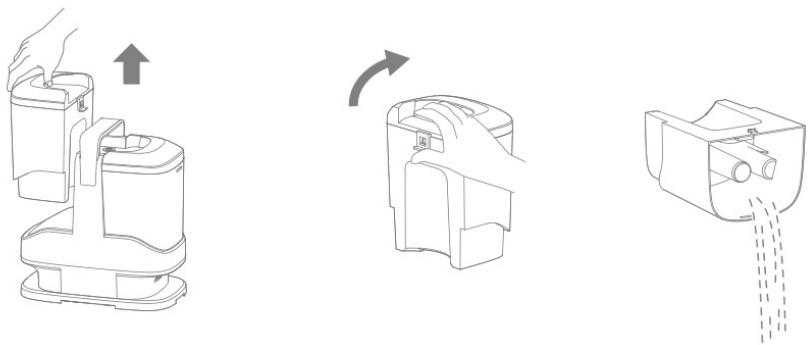

Emptying the dirty water tank

Fig. 10

1. Lift the tank lid and empty the used water.
2. Refit the lid and tank before further use.

Note: To ensure optimal performance, empty the dirty water tank when required or before it exceeds the MAX line.

Cleaning stubborn stains

- To remove tough stains, you may either add low-foaming detergent to the clean water tank

ENGLISH

or apply it directly to the stain. Allow the solution to penetrate the dirt for more effective suction.

• Do not use washing-up liquid in the clean water tank.
• When using low-foaming detergent, always perform a patch test first to check for any risk of discolouration or other adverse effects.
• Do not use thinners, volatile oils, chlorine bleach or flammable solvents.

• Using these products may cause discolouration, malfunction and fire hazards.

• Apply low-foaming cleaning detergent to the carpet or soiled surface and use the brush to treat the stain.

Note: For correct dosage and application of the low-foaming cleaning detergent, carefully read the manufacturer's instructions.

1. Apply the detergent and scrub the stain.
2. Spray water over the stain until thoroughly saturated. When the dirt begins to surface, suction the dirty water by pressing and pulling the nozzle.
3. For better stain removal, use warm water below 40° C.
4. Suction thoroughly to remove all dirt and low-foaming detergent residue.
5. Stop using the appliance when foam in the dirty water tank reaches the maximum water level; otherwise, water may enter the machine.

5. CLEANING AND MAINTENANCE

Tips:

• Switch off the appliance before maintenance.
• Do not touch the power switch.
• Replace parts when necessary. Only use genuine Cecotec replacement parts.

Cleaning the brush

Fig. 11

• Turn on the appliance and place the nozzle on a clean floor or table surface, press the water trigger to clean the pipe.
• Remove the brush cover and rinse with water.

Cleaning the dirty water tank

Fig. 12

• Remove the dirty water tank from the main body and empty it.
• Rinse the tank with clean water.

Cleaning the appliance

1. Remove the filter from the dirty water tank for cleaning. Fig. 13
2. Refit the lid and tank.
3. Clean the appliance with a dry cloth or damp wipe.

Storage

• Before storing, empty any remaining water from both tanks.
• Do not store in locations where freezing may occur.
• Keep in a dry place.
• When moving the cleaner, it is recommended to place the suction handle in the accessory holder and wrap the power cord around the hook.

6. TROUBLESHOOTING

If an error occurs, the appliance will stop working. Refer to the following table for troubleshooting. If the problem persists, contact Cecotec's Official Technical Support Service.

Problem	Possible cause	Possible solution
The appliance does not work.	The plug is not connected to a power socket.	Make sure that the plug is properly connected.
	The power cord is damaged.	Contact Cecotec's Official Technical Support Service.
No or little water comes out after pressing the spray button.	The nozzle of the standard stain brush is blocked.	Clean the standard stain brush.
	The handle or the pump is damaged.	Contact Cecotec's Official Technical Support Service.
No suction or weak suction.	The appliance is not switched on.	Switch on the appliance.
	The dirty water tank is full.	Empty the dirty water tank.
	The extension hose is not in good condition.	Check that the extension hose is in good condition.
	The filter in the dirty water tank is blocked.	Clean or replace the filter.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and

electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING
