USER MANUAL ADAPTATEUR USB BLUETOOTH #F8T009FR BELKIN

Bluetooth™ USB Adapter Connect your peripherals and computing devices, without cables

User Manual F8T008 - F8T009 Introduction Thank you for purchasing the Bluetooth USB Adapter (the USB Adapter) from Belkin. The USB Adapter features the breakthrough Bluetooth wireless technology that lets you create efficient communications between your USB desktop PC or notebook and devices using Bluetooth wireless technology—without physical connectors or cables. Before you install and start using your new USB Adapter, please take a few minutes to review some of the terms that you will be seeing throughout the document. You will find a brief Glossary on page 21 of this manual.

Product Features The USB Adapter is compliant with Bluetooth standard version 1.2 and provides:

• Compliancy with Bluetooth specification v1.2 devices
• USB bus powering: no external power supply necessary
• Support for Microsoft ® Windows® 98 SE, Me, 2000, and XP
• Compatible with Mac OS ® X v10.3 and higher*
• Operating distance of up to 10 meters (F8T009) or 100 meters (F8T008)**
• Point-to-multipoint connections
• Support for data rates up to 723/57.6Kbps
• Built-in security: up to 128-bit encryption and authentication
• Compatibility with USB desktop and notebook computers *Mac OS X driver and software provided by Apple ® . ** 10m/100m range is dependent upon environment, number of users, and other wireless devices within proximity.

System Requirements PC System Requirements

• PC-compatible computer, CPU speed of 200MHz or above
• Memory: 64MB or above, 128MB recommended
• One available USB port, USB 1.1 standard
• Windows 98 SE, Me, 2000, and XP Mac® System Requirements
• One available USB port, USB 1.1 standard
• Mac OS X v10.3 and higher* *Mac OS X driver and software provided by Apple.

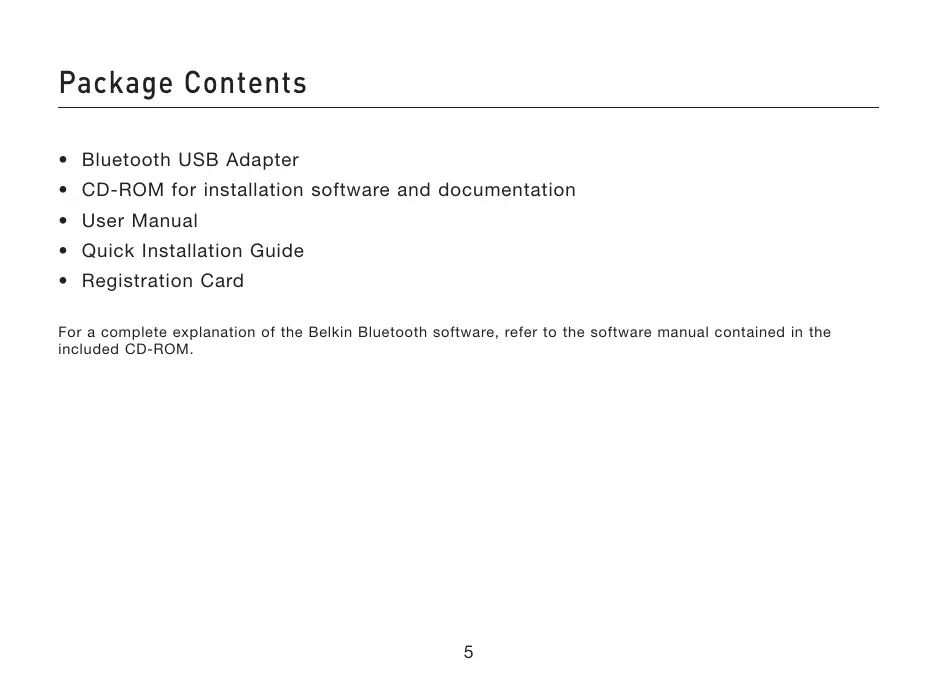

• Bluetooth USB Adapter
• CD-ROM for installation software and documentation
• Quick Installation Guide
• Registration Card For a complete explanation of the Belkin Bluetooth software, refer to the software manual contained in the included CD-ROM.

USB Adapter Specifications Bluetooth Compliance: Version 1.2 Dimensions: Physical Interface: USB UHCI/OHCI 1.2-compliant Weight: 0.2oz. (7g) Operating Frequency:

2.4 to 2.4835GHz

Operating Temp: 0 to 70 degrees Celsius Output Power: (F8T008) 4~20 dBm, Class I (F8T009) -6~4 dBm, Class II Storage Temp: -30 to 80 degrees Celsius 58mm (L) x 18mm (W) x 8mm (H) Humidity: 5-90% (non-condensing) Supply Voltage: 5.0V DC Nominal Current: 100mA Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum) Modulation: GFSK (Gussian Frequency Shift Keying) FCC, CE, ICES, C-Tick, BQB, WHQL for XP Network Topology: Point-to-Multipoint Warranty: Packet Support: 1/3/5 Slots Packet Manufacturer’s Lifetime Warranty Operation: Master/Slave Frequency Stability: +/- 10PPM LED Indicator: Power On/Data Traffic Antenna Type: Integrated, 0 +/- 1 dBi Sensitivity: Typical Power Consumption: Operating Range: indoors Supported Languages: English, German, Japanese, Spanish, French Specifications are subject to change without notice.

Supported Profiles The services supported by your USB Adapter are defined as “Profiles”. Available profiles include:

• Personal Area Network

• Hardcopy Cable Replacement

• Human Interface Device

• Generic Object Exchange

Supported Profiles Your USB Adapter gives you the ability to do the following—without cables:

• Access dial-up networks

• Send or exchange business cards

• Connect to local area networks
• Perform an ActiveSync ® session

• Connect to mice and keyboards

• Connect to serial ports The basic functions of the Bluetooth Neighborhood include:
• Establishing links with remote devices

Software Setup Software Setup for Windows 98 SE, Me, 2000, and XP To install the software for the USB Adapter, follow the instructions below: Note: The installation process for Windows XP may look slightly different from Windows 98 SE, Me, and 2000. Note: Do not insert the USB Adapter into the USB port prior to software installation.

1. Insert the software installation CD-ROM

into the PC’s CD-ROM drive.

2. The “Software InstallShield Wizard”

window appears. Click on “Next” to begin the installation process.

3. Choose “I accept the terms in the

4. Specify the location where the software

license agreement” to accept the license agreement. Click on “Next” to continue. files will be installed on your hard drive. It is recommended that you install the software in the default directory “C:\Program Files\belkin\Bluetooth\ Software\”. Click on “Next” to continue.

5. Confirm that the device software

6. The InstallShield Wizard will begin to

is ready to be installed and click on “Install”. install the Belkin Bluetooth Software. This may take several minutes.

7. During the installation process you may be prompted to insert your USB Adapter.

If your USB Adapter is not plugged into your computer at this time, you may insert it into an available USB 1.1-compliant port on your desktop or notebook computer, then click “OK” to continue. Click on “Cancel” to continue installation without the Bluetooth device inserted. Refer to the “Hardware Installation” section of this User Manual for instructions for installing the hardware. Note: If at any time during the installation process you receive a “Driver Signature Notice”, click “OK” to continue the installation process.

8. Confirm the completion of the software installation; click “Finish” and restart the

system if prompted to do so.

Hardware Setup Hardware Setup for Windows 98 SE, Me, 2000, and XP Follow these instructions to install your USB Adapter on your PC. Note: Your USB Adapter is sensitive to static electricity, which can damage its delicate electrical components. To protect your device, always touch the metal chassis of your computer before handing the USB Adapter. This will ground any potential electrostatic discharge. Avoid touching the metal connector when handling the USB Adapter. Dry weather conditions or walking across carpeted floors may cause you to acquire an electrostatic charge.

1. Connect the USB Adapter directly to an

available USB A-type connector on your desktop or notebook computer. Your system should register a new USB device found.

2. Choose “Install from a list or specific

location”; then click “Next”.

3. Browse for the location of the device

4. If you receive the following “Hardware

driver “:\Program Files\Belkin\ Bluetooth\Software\bin\” then click “Next”. installation notice”, click on “Continue Anyway” to continue with the installation process.

5. A window will appear that confirms the completion of the hardware installation; click

on “Finish” to complete the installation process.

Initial Configuration Wizard Configuring your computer for Windows 98 SE, Me, 2000, and XP

1. Once the installation process is complete you will be prompted by the “Initial

Bluetooth Configuration Wizard”. This Wizard will guide you through the initial setup of your Bluetooth device. Please follow the Wizard as prompted.

2. Name your computer with a friendly name. This is name will be made available when

your computer is discovered by other Bluetooth devices.

Initial Configuration Wizard

3. Choose the type of computer you have

4. Continue the Wizard to configure the

installed the USB Adapter to in the drop-down menu. Bluetooth services that this computer will make available of other Bluetooth devices to use. Click “Next”.

Initial Configuration Wizard

5. Choose the Bluetooth services your

6. If you have another Bluetooth device

computer will offer. The most common service for your computer type will be checked by default. and you want to configure the way this computer will use its services, click “Next”. Otherwise click “Skip”.

Uninstalling the Software Uninstalling the Software for Windows 98 SE, Me, 2000, and XP Follow these instructions to uninstall your USB Adapter on your PC.

1. Insert the CD-ROM included with your USB Adapter.

2. This “InstallShield Wizard” should automatically load.

If it does not load, explore the CD and run the “Setup.exe” file.

3. The “InstallShield” window should now appear.

Click “Next” to continue with the uninstall process.

Glossary Authentication Security feature that requires users to verify a numeric password before exchanging data. Authorization Security feature that requires user approval before another user is allowed to share data. Bluetooth Neighborhood A collection of Bluetooth devices. Bonded Device Recognized by your device so as not to require authentication or authorization. Device Device enabled with Bluetooth technology. Device Address Unique electronic address of a Bluetooth device. Device Discovery The location and recognition of one Bluetooth device by another.

Glossary Device Group Compilation of several Bluetooth devices into a group, normally to conduct related tasks. Device Name Name that a Bluetooth device provides when discovered by another device. Service Discovery Determines which applications other devices have in common with yours.

Information DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product, F8T008, F8T009 to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Exposure to Radio Frequency Radiation. The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such manner that the potential for human contact normal operation is minimized. When connecting an external antenna to the device, the antenna shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Information This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Modifications The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Belkin Corporation may void the users authority to operate the equipment. Canada-Industry Canada (IC) The wireless radio of this device complies with RSS 139 & RSS 210 Industry Canada. This Class B digital complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. Europe-European Union Notice Radio products with the CE alert marking comply with the R&TTE Directive (1995/5/EC) issued by the Commission of the European Community.

Information Compliance with this directive implies conformity to the following European Norms (in brackets are the equivalent international standards).

• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment. To determine the type of transmitter, check the identification label on your Belkin product. Products with the CE marking comply with the EMC Directive (89/336/EEC) and the Low Voltage Directive (72/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in brackets are the equivalent international standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11)- Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) - Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety Products that contain the radio transmitter are labeled with CE alert marking and may also carry the CE logo.

Information Manufacturer’s Lifetime Warranty Belkin Corporation warrants this product against defects in materials and workmanship for its warranty period. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required. This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced. THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty. BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN, OR USED WITH, BELKIN PRODUCTS. Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions of implied warranties, so the above limitations of exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

Belkin Corporation 501 West Walnut Street, Compton, CA 90220-5221, USA +1 310 898 1100 +1 310 898 1111 fax Belkin B.V. Starparc Building, Boeing Avenue 333 1119 PH Schiphol-Rijk, The Netherlands +31 (0) 20 654 7300 +31 (0) 20 654 7349 fax Belkin Ltd. Express Business Park, Shipton Way Rushden NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax Belkin Tech Support Europe: 00 800 223 55 460 © 2005 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc. and are used by Belkin Corporation under license. Mac, Mac OS, and Apple are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. 58 mm (L) x 18 mm (l) x 8 mm (H) (F8T008) 4~20 dBm, Classe I (F8T009) -6~4 dBm, Classe II Sensibilité : GFSK (Gussian Frequency Shift Keying) Belkin Corporation 501 West Walnut Street, Compton, CA 90220-5221, États-Unis +1 310 898 1100 +1 310 898 1111 fax 58mm (L) x 18mm (B) x 8mm (H) Feuchtigkeit: FHSS (Frequency Hopping Spread Spectrum) Modulation: GFSK (Gussian Frequency Shift Keying) Zertifikationen: Belkin Corporation 501 West Walnut Street, Compton, CA 90220-5221, USA +1 310 898 1100 +1 310 898 1111 fax 58 mm (l) x 18 mm (b) x 8 mm (h) Nominale spanning: 100mA Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum) Modulatie: GFSK (Gussian Frequency Shift Keying) Certificering: Point-to-multipoint Garantie: Levenslange fabrieksgarantie Pakketondersteuning:
