| Brand | Remington |
| Compatible models | F3800, F4790, F4800, F5800, F7800 |
| Product type | Rotary electric shaver |
| Power | Rechargeable battery (Li-Ion); can be used while plugged in |
| Full charge time | Approximately 1 hour |
| Battery life | Not specified; charge indicator on F5800, LCD screen on F7800 |
| Cutting system | 3 rotating heads with foils and blades |
| Integrated trimmer | Retractable Intercept trimmer |
| Cleaning | Rinseable under water (heads only); dry cleaning with brush |
| Lubrication | Every 6 months on trimmer teeth |
| Head replacement | Model SPF-300; replace foils and blades regularly |
| Indicators | Charge indicator (F5800); LCD screen (F7800); red light for low battery |
| Charging base | Included (models depending on reference) |
| Included accessories | Head guard, charging base, cleaning brush |
| Safety | Do not immerse; use on a heat-resistant surface; keep out of reach of children |
| Warranty | 2 years |
| Operating temperature | 15°C to 35°C |
| Battery maintenance | Full discharge every 6 months for F7800 |
Frequently Asked Questions - F3800, F4790, F4800, F5800, F7800 REMINGTON
User questions about F3800, F4790, F4800, F5800, F7800 REMINGTON
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric razor in PDF format for free! Find your manual F3800, F4790, F4800, F5800, F7800 - REMINGTON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. F3800, F4790, F4800, F5800, F7800 by REMINGTON.
USER MANUAL F3800, F4790, F4800, F5800, F7800 REMINGTON

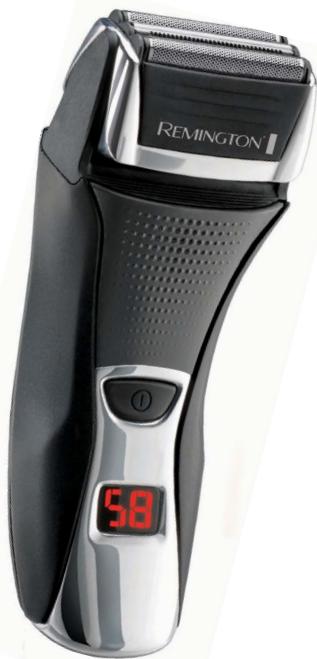

Titanium-X Foil Shaver


Thank you for choosing Remington*. Our products are designed to meet the highest standard of quality, functionality and design.
We hope you enjoy using your new Remington® product. Please read the instructions for use carefully and keep in a safe place for future reference.

CAUTION
- Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Remington*
- Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped in water.

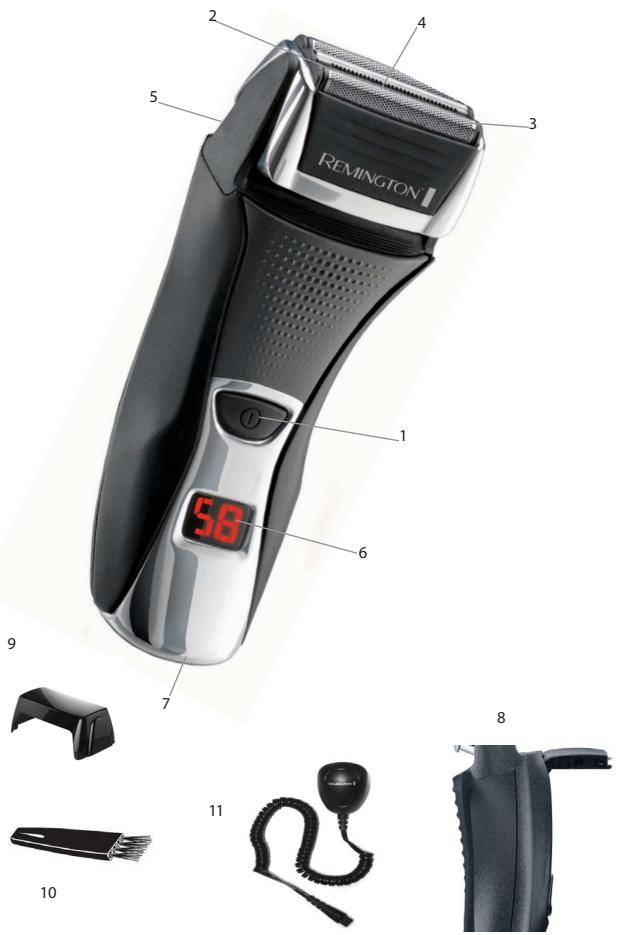

KEY FEATURES
1 On/off switch
2 Screens
3 Cutter assembly
4 Intercept trimmer
5 Hairpocket
6 LED fuel gauge (F5800) LCD display (F7800)
7 Power port
8 Pop-up trimmer
9 Head guard
10 Cleaning brush
11 Power cord
2 year guarantee

GETTING STARTED
For best shaving performance, it is recommended that you use your new shaver daily for up to four weeks to allow time for your beard and skin to become accustomed to the new shaving system.

CHARGING YOUR SHAVER
- Ensure that your hands, shaver and power cord are dry before charging your shaver.
- Turn the appliance off.
- Connect the shaver to the adapter, then to the mains and charge for at least 24 hours when using for the first time.
- F7800 - Place your shaver in the charging stand, connect the charging adaptor to the stand and then to the mains.
After the sahver batteries are fully charged the fuel gauge (F5800) or the LCD display (F7800) will indicate the shaver is fully charged.
- Use product until the battery is low. This is indicated by illuminated red light (F5800), or by the digital display (F7800).
- Fully recharge for 24 hours every 6 months to maintain battery condition.
- When empty, the battery will be fully charged within 2 hours.
- The shaver adapts automatically to a mains voltage between 100V and 240V.
CORDED USE
- Connect the shaver to the adaptor, then to the mains and recharge for 5 minutes before using.

CAUTION
Extended mains only use will result in the reduction of the battery life.
HOW TO USE

SHAVING
Make sure your shaver is properly charged
- Switch the shaver on.
- Stretch the skin with your free hand so the hairs stand upright
- Hold the shaving head so that the foils touch your face
Use short, circular strokes.

TRIMMING
- While your shaver is switched on, slide the on/off switch upwards to activate the trimmer.
- Push the trimmer release button.
- Hold the trimmer at a right angle to your skin
- To retract the trimmer push the top rear of the trimmer downward until it locks under the trimmer release button.

Tips for best results
- Ensure your skin is dry. Always hold the shaver at right angles to the skin so that all three heads are touching the skin with equal pressure.
- Use moderate to slow stroking movements. The use of short circular motions in stubborn areas may obtain a closer shave, especially along the neck and chin line.
- DO NOT press hard against the skin in order to avoid damage to the foil.

- Care for your appliance to ensure a long lasting performance.
We recommend you clean your appliance after each use. - The easiest and the most hygienic way to clean the appliance is by rinsing the appliance head after use with warm water.
- Keep the trimmer in the "off" position when the shaver is not in use.

DRY CLEANING
- Ensure the shaver is switched off and unplugged from the mains outlet.
Pull the foil assembly up to remove from hair pocket. - Thoroughly blow out the stubble from the foils and cutters.
- Tap out excess hair shavings and use a cleaning brush if necessary.
-
Do not clean the shaving foil with a brush.
-
Replace head assembly.

WASHABLE CLEANING
- Ensure the shaver is switched off and unplugged from the mains outlet.
- Pull the foil assembly up to remove from hair pocket.
- Foils – do not use the brush to clean the foils. Instead, blow the shavings out or rinse the foils under cold water or warm water.
- Cutters & Trimmers - Use the cleaning brush to sweep any loose hairs from the cutter and trimmer. Rinse them in cold or warm water. Do not use hot water.
After cleaning, replace the head assembly. - Replace head assembly.

CAUTION
Never submerge your shaver completely under water.

TRIMMER
Lubricate the teeth of the trimmer every six months with one drop of sewing machine oil.

PLACING THE FOILS & CUTTERS
To ensure the continued highest quality performance from your shaver, we recommend that foils and cutters are replaced regularly.

INS THAT YOUR FOILS AND CUTTERS NEED REPLACING:
Irritation: As foils get worn, you may experience skin irritation.
Pulling: As the cutters wear, your shave may not feel as close and you may feel your cutter pulling your hair.
Wear through: You may notice that the cutters have worn through the foils.

REPLACE THE FOIL
Pull the foil assembly up to remove from the hair pocket.
- Insert new foil assembly in hair pocket until it snaps into place.

REPLACE THE CUTTERS
- Grasp cutter between thumb and forefinger and pull forward.
- Snap both new cutter assemblies into top of oscillator tips.
DO NOT press on the cutter ends as this may cause damage.
Rotary heads replacement model: SPF-300

IMPORTANT SAFETY INSTRUCTIONS
WARNING - TO REDICATE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR INJURY TO PERSONS:
- An appliance should never be left unattended when plugged in to a power outlet, except when charging.
- Keep the power plug and cord away from heated surfaces.
- Make sure the power plug and cord do not get wet.
- Do not plug or unplug the appliance with wet hands.
- Do not use the product with a damaged cord. A replacement can be obtained via our International Service Centres.
Do not twist or kink the cable, and don't wrap it around the appliance.
- Store the product at a temperature between 15^ and 35^ .
- Only use the parts supplied with the appliance.
- The appliance, including its cord, must not be used, played with, cleaned or maintained by persons under eight years old and should at all times be kept out of their reach.
- Use, cleaning or maintenance of the appliance by children over eight or by anyone with a lack of knowledge, experience or with reduced physical, sensory or mental capabilities should only be undertaken after receiving appropriate instruction and under the adequate supervision of a responsible adult to ensure that they do so safely
and that the hazards involved are understood and avoided.
- Don't put the appliance in liquid, don't use it near water in a bath-tub, basin or any other vessel, and don't use it outdoors.


TROUBLESHOOTING
- If your shaver battery is completely empty or the shaver has not been used for an extended period of time, the shaver may not start when operated using the cord. If this occurs, charge the shaver for approximately 15 sec. before shaving.

ENVIRONMENTAL PROTECTION
To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol must not be disposed of with assorted municipal waste, but recovered, reused or recycled.


BATTERY REMOVAL
The battery must be removed from the appliance before it is scrapped.
- The appliance must be disconnected from the supply mains when removing the battery.
Using a small screwdriver, pry off the (2) side panels.
- Using Philips screwdriver remove the (4) screws from the front of shaver and remove the front housing.
- Using Philips screwdriver remove (8) screws from the front of the shaver.
- Remove and open the core from the shaver to expose the batteries.
- Cut the wires connecting the batteries to the circuit board and remove the batteries.
The battery is to be disposed of safety.

SERVICE AND GUARANTEE
This product has been checked and is free of defects.
We guarantee this product against any defects that are due to faulty material or workmanship for the guarantee period from the original date of consumer purchase.
If the product should become defective within the guarantee period, we will repair any such defect or elect to replace the product or any part of it without charge, provided there is proof of purchase.
This does not mean an extension of the guarantee period.
In the case of a guarantee simply call the Service Centre in your region.
This guarantee is offered over and above your normal statutory rights.
The guarantee shall apply in all countries in which our product was sold via an authorised dealer.
This guarantee does not include damage to the product by accident or misuse, abuse, alteration to the product or use inconsistent with the technical and/or safety instructions required.
This guarantee shall not apply if the product has been dismantled or repaired by a person not authorised by us.
If you call the Service Centre, please have the Model No. to hand, as we won't be able to help you without it.
It's on the rating plate which can be found on the appliance.
