DKP 2913 E - Hob CLATRONIC - Free user manual and instructions

Product type	Electric cooktop
Brand	CLATRONIC
Model	DKP 2913 E
Number of cooking zones	2 cooking zones
Approximate dimensions	50 x 60 x 6 cm
Approximate weight	5 kg
Power supply	230 V, 50 Hz
Estimated total power	4000 W (2 x 2000 W)
Control type	Rotary knobs with thermostatic adjustment
Indicator lights	Yes, turn on and off according to temperature
Cooking surface material	Enameled steel
Main functions	Cooking by radiant heat, continuous temperature adjustment
Care and cleaning	Clean with a slightly damp cloth; do not immerse in water
Safety	Turn off and unplug before cleaning; do not leave unattended
Warranty	24 months
Spare parts and repairability	Use only original accessories
Color	White
Power cord length	Approximately 1.2 m
General information	Household use only; do not use outdoors

Frequently Asked Questions - DKP 2913 E CLATRONIC

How to use the cooktop for the first time?

Before first use, heat the empty plates for 5 minutes at full power to remove the protective coating. A slight smoke may be emitted, ensure good ventilation. Then let it cool and clean with a damp cloth.

What type of pots and pans to use with the DKP 2913 E cooktop?

Use only pans with a flat bottom for better heat distribution. The diameter of the pan must not be smaller than the cooking zone to avoid energy loss and deformation of the plate.

How to clean the cooktop?

Make sure the cooktop is completely cool (wait at least 30 minutes). Unplug the appliance. Clean with a slightly damp cloth and soapy water. Never use abrasive cleaners or solvents, and never immerse the appliance in water.

What to do if the cooktop no longer heats up?

Check that the appliance is properly plugged into a 230 V/50 Hz outlet. Make sure the knobs are set to a position other than 'MIN'. If the problem persists, consult a qualified technician.

The cooktop is emitting excessive smoke, what should I do?

Turn off the appliance immediately and unplug it. Let it cool. Slight smoke is normal during first use, but if it persists, check that no residue is burning on the surface. If the problem continues, contact customer service.

Can I leave the cooktop unattended while it is on?

No, never leave the appliance running unattended. Always turn off the appliance or unplug the power cord when you leave, especially in the presence of children.

How to completely turn off the cooktop?

Turn all knobs to the 'MIN' (off) position. The indicator lights turn off. Then unplug the power cord from the outlet.

What is the warranty period and how to use it?

The warranty is 24 months from the date of purchase. To benefit from the warranty, return the complete appliance with its original packaging and your proof of purchase (receipt) to your retailer. The warranty covers material or manufacturing defects.

Where can I download the full manual for the DKP 2913 E?

You can download the manual for free in PDF format from notice-facile.com by searching for the model CLATRONIC DKP 2913 E. The manual is available in French and several other languages.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any hazard. Do not attempt to repair it yourself.

USER MANUAL DKP 2913 E CLATRONIC

Position 1: Garder chaud/cuire

Position 2: Cuire

Position 3: Faire revenir

Position 4: Saisir

Position MAX: Saisir, chauffer rapidement

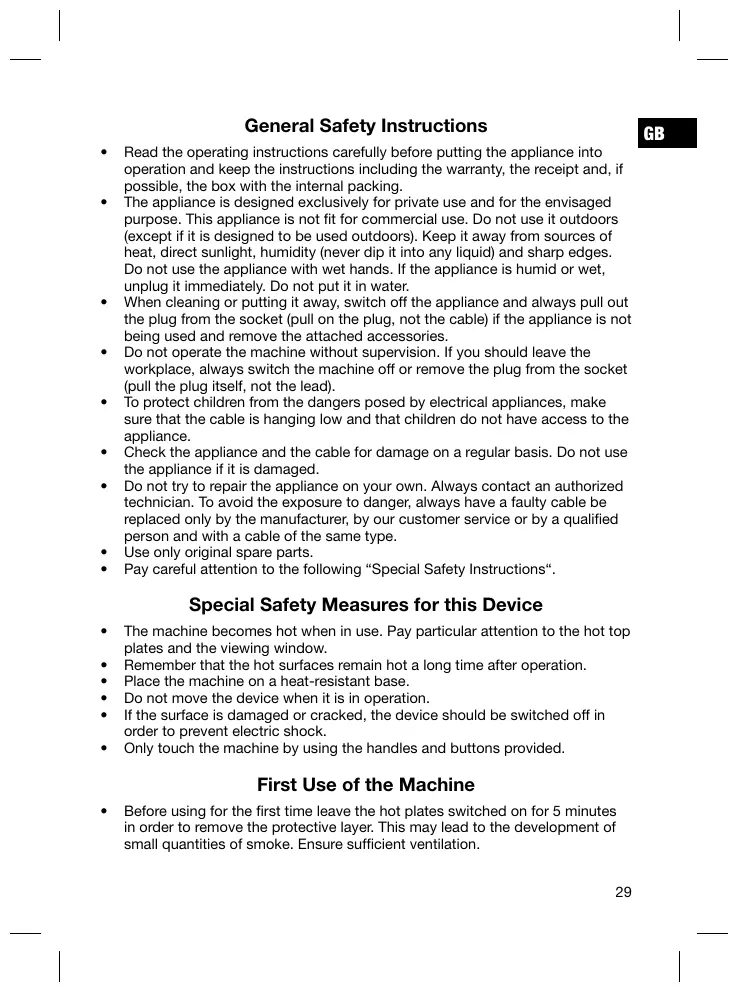

General Safety Instructions

GB

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Measures for this Device

• The machine becomes hot when in use. Pay particular attention to the hot top plates and the viewing window.
• Remember that the hot surfaces remain hot a long time after operation.
• Place the machine on a heat-resistant base.
• Do not move the device when it is in operation.
• If the surface is damaged or cracked, the device should be switched off in order to prevent electric shock.
• Only touch the machine by using the handles and buttons provided.

First Use of the Machine

• Before using for the first time leave the hot plates switched on for 5 minutes in order to remove the protective layer. This may lead to the development of small quantities of smoke. Ensure sufficient ventilation.

GB

Electrical Connection

• Ensure that the machine is switched off (all operating switches on „MIN“).
• Before inserting the mains plug into the socket check whether the voltage which you intend to use corresponds to that of the machine. Please see the label on the machine for details.
• Only connect the machine to a correctly installed safety socket, 230V / 50Hz
• Adjust the temperature control to the desired temperature. The red control lamps light up.
• Once the set temperature has been reached the control lamps go off. During operation the control lamp goes on from time to time to show that the correct temperature is being maintained.

Operation

Use of the Hot Plates

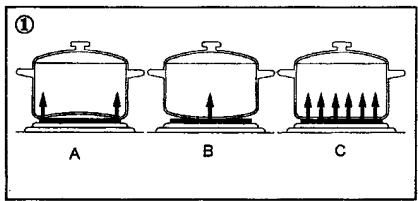

1. Only use saucepans with a flat bottom in order to make optimum use of the energy (see diagram 1).
2. The saucepan should never be smaller than the hot plate. This wastes energy. In extreme cases the hot plate may deform.

1. Set the temperature control according to what you intend to do:

Level MIN: Off

Level 1: Keeping warm/continued cooking

Level 2: Continued cooking

Level 3: Frying

Level 4: Parboiling, gentle roasting

Level MAX: Roasting, rapid heating

Switching-Off

The machine is switched off if all switches are in position „MIN“. Then remove the mains plug.

Cleaning

GB

Make sure that the plug is pulled out.
- Please wait until the hot plates have completely cooled down before you begin to clean them. You should always wait at least 30 minutes after using the hot plates in order to avoid burns.
- Please do not immerse the device in water.
- Clean the machine only with a slightly damp cloth. Do not use strong detergents or solvents. Rinsing water is suitable.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
