DKP 2540 E - Hob CLATRONIC - Free user manual and instructions

Product Type	Electric Cooktop
Brand	CLATRONIC
Model	DKP 2540 E
Supply Voltage	230 V ~ 50 Hz
Number of Cooking Zones	2
Control Type	Rotary Knobs
Cooking Levels	Continuous adjustment (off, keep warm, simmer, cook, sauté)
Recommended Use	Flat-bottomed Pans
First Use	Heat empty for 5 minutes, ensure good ventilation
Cleaning	Damp cloth, soapy water, no abrasive products
Safety Instructions	Disconnect before cleaning; do not immerse; hot surface
Residual Heat Indicator	No (the plates remain hot after switching off)
Warranty	24 months from date of purchase
Intended Use	Private Household
Accessories	Not supplied (spare parts available individually)
Repairability	Repairs by authorized specialist; wear parts not covered by warranty
Complete Shutdown	All knobs on "0"
Material	Not specified
Dimensions	Not specified
Weight	Not specified

Frequently Asked Questions - DKP 2540 E CLATRONIC

How to use the cooktop for the first time?

Before first use, heat the plates empty for 5 minutes to remove the protective coating. A slight smoke may appear, ensure good ventilation.

What type of pans to use?

Use pans with a flat bottom for better heat distribution. Never use a pan smaller than the plate, as this may damage it.

How to clean the cooktop?

Unplug the appliance and wait for it to cool down. Clean with a slightly damp cloth and soapy water. Do not use abrasive products or solvents.

How to adjust the temperature?

Use the rotary knobs for precise adjustment. Positions include: off (0), keep warm, simmer, cook, sauté. Turn the knob to the desired position.

What to do if the plate does not heat?

Check that the appliance is plugged into a functional 230 V / 50 Hz outlet and that the knobs are turned to a heating position (not '0'). If the problem persists, contact an authorized specialist.

The plate stays hot after use, is this normal?

Yes, the heating parts remain hot long after switching off. Do not touch the plates until completely cooled and always unplug the appliance.

Can I use a longer power cord?

No, use only the original cord. If damaged, have it replaced by the manufacturer, customer service, or a qualified technician to avoid any risk.

How to completely turn off the appliance?

Turn all knobs to the '0' position then unplug the plug from the mains socket. This ensures total shutdown.

Can I leave the cooktop unattended?

No, never leave the appliance running unattended. Unplug it even for a short absence.

What to do in case of failure during warranty?

Return the appliance in its original packaging with the receipt to your retailer. Defects in material or workmanship are covered for 24 months. Defective accessories are replaced individually.

USER MANUAL DKP 2540 E CLATRONIC

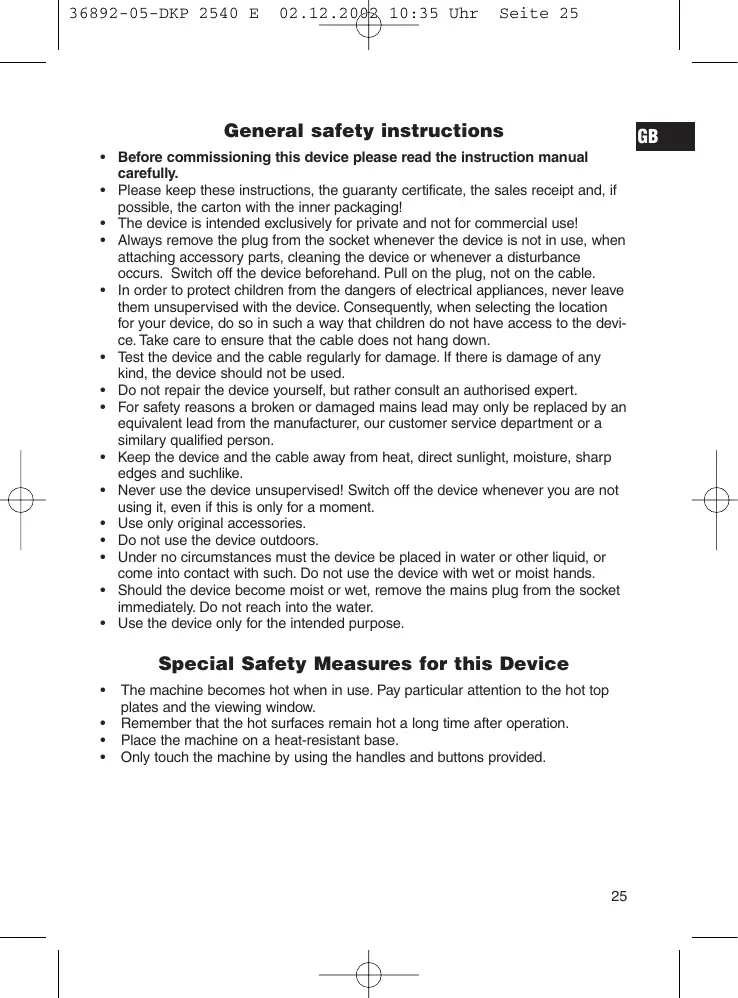

General safety instructions

GB

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use!
  Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.
• Do not repair the device yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Use only original accessories.
• Do not use the device outdoors.
• Under no circumstances must the device be placed in water or other liquid, or come into contact with such. Do not use the device with wet or moist hands.
• Should the device become moist or wet, remove the mains plug from the socket immediately. Do not reach into the water.
• Use the device only for the intended purpose.

Special Safety Measures for this Device

• The machine becomes hot when in use. Pay particular attention to the hot top plates and the viewing window.
• Remember that the hot surfaces remain hot a long time after operation.
• Place the machine on a heat-resistant base.
• Only touch the machine by using the handles and buttons provided.

GB

①

A Incorrect
B Incorrect
C Correct

(2)

A Switch position
B Working area
C Switch scale
D Off
E Keep warm
F Continue cooking
G Roasting
H Initial cooking, initial roasting

First Use of the Machine

• Before using for the first time leave the hot plates switched on for 5 minutes in order to remove the protective layer. This may lead to the development of small quantities of smoke. Ensure sufficient ventilation.

Electrical Connection

• Ensure that the machine is switched off (all operating switches on "0").
• Before inserting the mains plug into the socket check whether the voltage which you intend to use corresponds to that of the machine. Please see the label on the machine for details.
• Only connect the machine to a correctly installed safety socket, 230V / 50Hz .

Operation

Use of the Hot Plates

• Only use saucepans with a flat bottom in order to make optimum use of the energy (see diagram 1).
• The saucepan should never be smaller than the hot plate. Otherwise energy will be wasted. In extreme cases the hot plate may deform.
• The switch of the hot plates makes it possible to finely adjust the heating level to the cooking process (see diagram 2).

Switching-Off

The machine is switched off if all switches are in position "0". Then remove the mains plug.

Cleaning

• Before cleaning the machine always remove the mains plug and wait until the machine has cooled down.
• Clean the machine only with a slightly damp cloth. Do not use strong detergents or solvents. Rinsing water is suitable.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice!

GB

Warranty

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

During the life of the warranty we shall provide for the repair or replacement of the appliance owing to material or manufacturing defects absolutely free of charge.

Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

You are not entitled to the replacement of the appliance owing to broken glass parts and faulty accessories. However, said parts will be replaced free of charge. In this case only the faulty accessory needs to be ordered without sending back the whole appliance!

The cleaning, servicing and replacement of wear parts are not covered by this warranty and hence are to be paid for.

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.

PL

A Zle
B Zle
C Prawidfowo

②

Pa36HToe cTeKIO IINI DeEeKTHbIe npnHaJNeJXHOCTn HE ABJHOTc NOBOOM DnIa3MeHbI pIn6Oba, a 6yDyT 6ecrNtAHO npncIaNbI b3aMeHn Ha deEeKTHbIe. B tAKNXcUYaIX HeoXbIOIMO 3aKa3bIaBbT TOnbKO DeEeKTHbIe npnHaJNeJXHOCTn, a HneocBNaTb BeCb np6Op Ha 3aMeHy!

Iop rapaHTnIO He noJaIoT: uNCTKa, TeXOCMOT nIIN 3aMeHa TpyuXc8 DeTaJe np60pa, OHI dEIAOTc 3a DONoHInTeJbHyO ONIaTy.

TapaHTnTepaETc npBvBCpbITn pnp60pa nocToPOHHMn IuIaAMN.

IIO OKOHaHm rapaHTn

IIO nCTeueHn Cpoka rapaHTn npi6Op MOxHO cdaTb Ha peMOHT B CneuaJIIN3NPOBaHbMya3IN HJIN peMOHTHyO MaCTepCKyIO 3a ONIaTy.

Technische Daten

Model: DKP 2540 E
