USER MANUAL SCRUBTEC 343 NILFISK

The undersigned certify that the above mentioned model is produced in accordance with the following directives and standards.

O KATwI UTOyEvpaMpEvoc TIOToTIOei OI n TAPayWn Tou TPOaVApEeVToC MOvTeLou VYETAI OUmuWVA Ue TIC AOKoLooEs OOnyies KAI TPOTUTA.

GERÄT IN BETRIEB (WASCHEN/TROCKNEN) 11

TRANSPORT/PARKEN DES GERÄTS 12

TANKS ENTLEEREN. 12

GERÄT IN BETRIEB (WASCHEN/TROCKNEN)

CONSERVATION DU MANUEL 2

DECLARATION DE CONFORMITE 2

DONNEES D'IDENTIFICATION 2

STRUCTURE DE LA MACHINE 6

TABLEAU DE BORD 8

ACCESSIONS / OPTIONS 8

CHARACTERISTIQUES TECHNIQUES 8

SCHEMA ELECTRIQUE 9

UTILISATION 10

AVANT LA MISE EN MARCHE DE LA MACHINE 10

MISE EN MARCHE ET ARRET DE LA MACHINE 11

MACHINE AU TRAVAIL (LAVAGE / SECHAGE) 11

TRANSPORT / STATIONNEMENT DE LA MACHINE 12

VIDANGE DES RESERVOIRS 12

APRES L'UTILISATION DE LA MACHINE 13

DEPOSE DU RESERVOIR DE L'EAU DE RECUPERATION 13

INACTIVITE PROLONGEE DE LA MACHINE 13

PREMIERE PERIODE D'UTILISATION 13

ENTRETIEN 14

PLAN D'ENTRETIEN PROGRAMME 14

NETTOYAGE DE L'EMBOUCHURE 15

CONTROLE ET REMPLACEMENT DES LAMELLES EN CAOUTCHOUC DE L'EMBOUCHURE 15

NETTOYAGE DE LA BROSSE 16

NETTOYAGE DES RESERVOIRS ET DE LA GRILLE D'ASPIRATION 16

NETTOYAGE DU FILTRE DE LA SOLUTION 17

REGLAGE DE LA VITESSE D'AVANCE DE LA MACHINE 17

DEPISTAGE DES PANNES 18

MISE A LA FERRAILLE 18

INTRODUCTION

REMARQUE

CONSERVATION DU MANUEL

STRUCTURE DE LA MACHINE

STRUCTURE DE LA MACHINE (suite)

ACCESSIONS / OPTIONS

MANUAL PURPOSE AND CONTENTS 2

TARGET 2

HOW TO KEEP THIS MANUAL 2

DECLARATION OF CONFORMITY 2

IDENTIFICATION DATA 2

OTHER REFERENCE MANUALS 2

SPARE PARTS AND MAINTENANCE 2

CHANGES AND IMPROVEMENTS 3

ACCESSIONS/OPTIONS 8

TECHNICAL DATA. 8

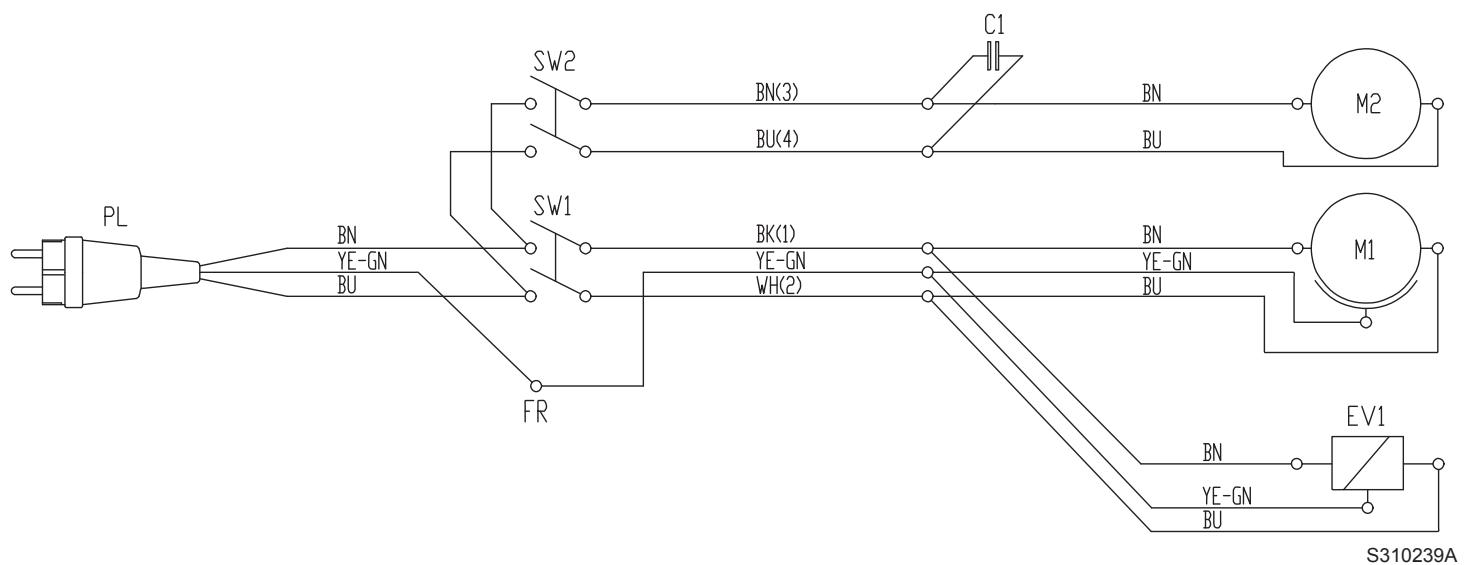

WIRING DIAGRAM 9

USE 10

BEFORE MACHINE START-UP 10

MACHINE START AND STOP 11

MACHINE OPERATION (SCRUBBING/DRYING) 11

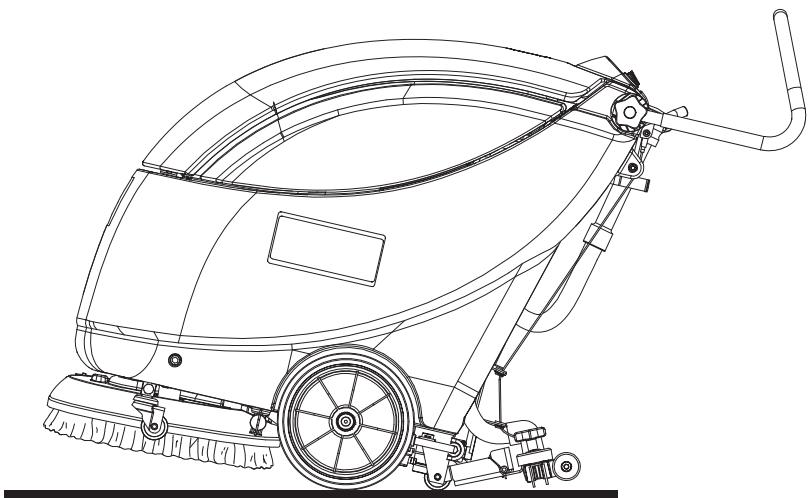

MACHINE TRANSPORT/PARKING 12

TANK EMPTYING 12

AFTER USING THE MACHINE 13

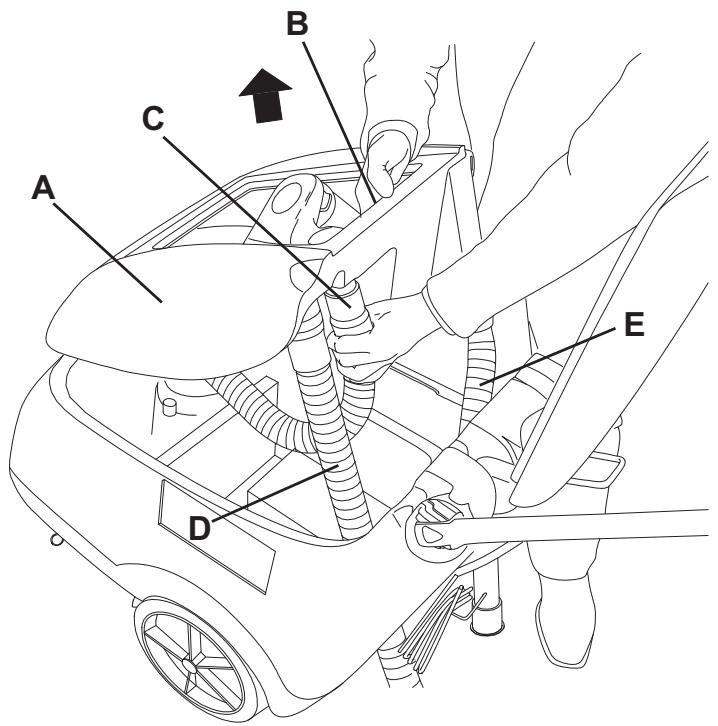

RECOVERY TANK REMOVAL 13

MACHINE LONG INACTIVITY 13

FIRST PERIOD OF USE 13

MAINTENANCE 14

SCHEDULED MAINTENANCE TABLE 14

SQUEEGEE CLEANING 15

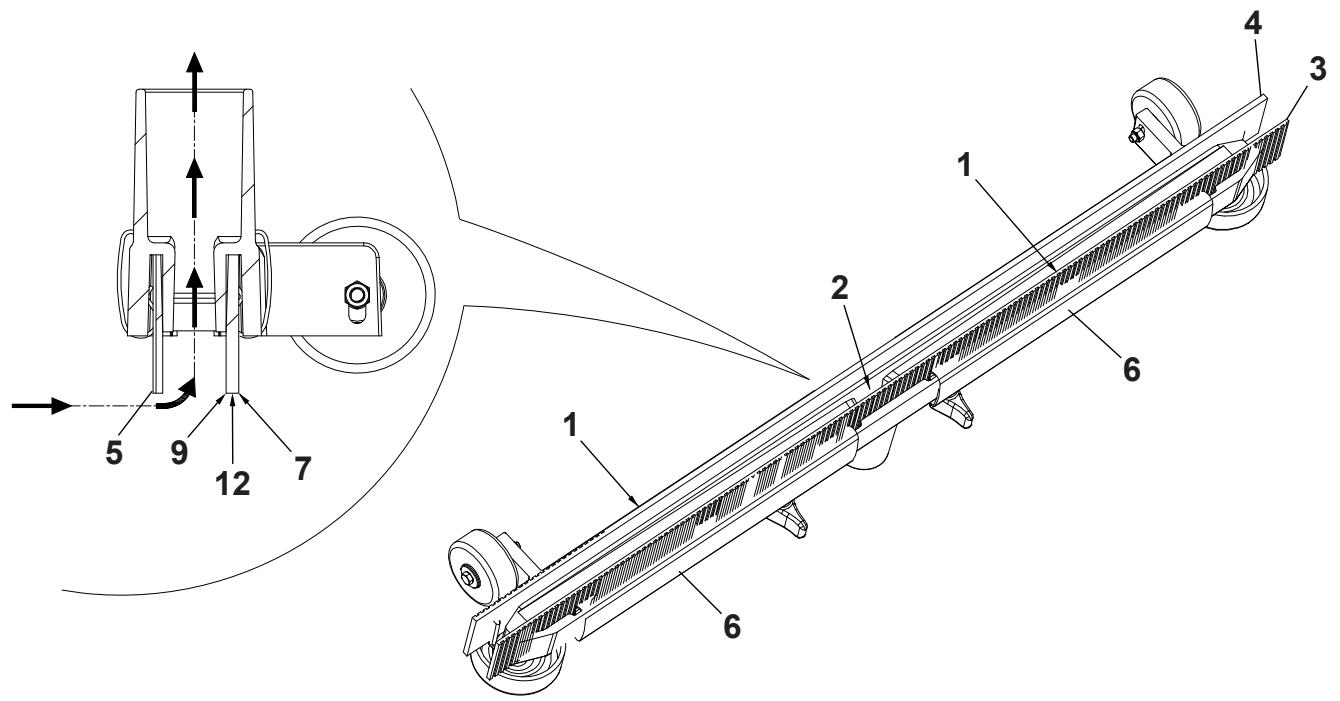

SQUEEGEE BLADE CHECK AND REPLACEMENT 15

BRUSH CLEANING 16

TANK AND VACUUM GRID CLEANING 16

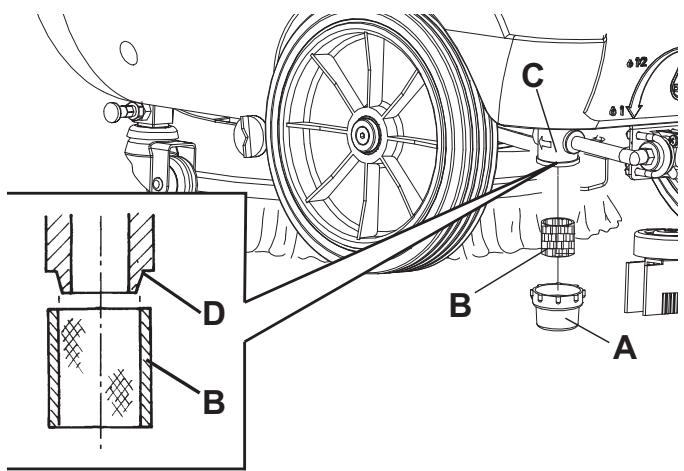

SOLUTION FILTER CLEANING 17

MACHINE SPEED ADJUSTMENT 17

TROUBLESHOOTING 18

SCRAPPING 18

INTRODUCTION

NOTE

The numbers in brackets refer to the components shown in Machine Description chapter.

MANUAL PURPOSE AND CONTENTS

The purpose of this Manual is to provide the operator with all necessary information to use the machine properly, in a safe and autonomous way. It contains information about technical data, safety, operation, storage, maintenance, spare parts and disposal. Before performing any procedure on the machine, the operators and qualified technicians must read this Manual carefully. Contact Nilfisk Alto in case of doubts concerning the interpretation of the instructions and for any further information.

TARGET

This Manual is intended for operators and technicians qualified to perform the machine maintenance.

The operators must not perform procedures reserved for qualified technicians. Nilfisk Alto will not be answerable for damages coming from the non-observation of this prohibition.

HOW TO KEEP THIS MANUAL

The User Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that can cause damage to it.

DECLARATION OF CONFORMITY

The Declaration of Conformity, supplied with the machine, certifies the machine conformity with the law in force.

NOTE

Two copies of the original declaration of conformity are provided together with the machine documentation.

IDENTIFICATION DATA

The machine model and serial number are marked on the plate (1).

The machine production year is written in the declaration of conformity and it is also indicated by the first two figures of the machine serial number.

This information is useful when requiring machine spare parts. Use the following table to write down the machine identification data.

MACHINE model

MACHINE serial number

OTHER REFERENCE MANUALS

• Spare Parts List (supplied with the machine)
  Service Manual (that can be consulted at Nilfisk Alto Service Centers)

SPARE PARTS AND MAINTENANCE

All necessary operating, maintenance and repair procedures must be performed by qualified personnel or by Alto Service Centers.

Only original spare parts and accessories must be used.

Contact Nilfisk Alto for service or to order spare parts and accessories, specifying the machine model and serial number.

CHANGES AND IMPROVEMENTS

Nilfisk Alto constantly improves its products and reserves the right to make changes and improvements at its discretion without being obliged to apply such benefits to the machines that were previously sold.

Any change and/or addition of accessories must be approved and performed by Nilfisk Alto.

These scrubber-dryers are used to clean (scrubbing and drying) smooth and solid floors, in civil or industrial environment, under safe operation conditions by a qualified operator.

The scrubber-dryers cannot be used for fitted carpet and carpet cleaning.

CONVENTIONS

Forward, backward, front, rear, left or right are intended with reference to the operator's position, that is to say in driving position with the hands on the handlebar (2).

UNPACKING/DELIVERY

To unpack the machine, carefully follow the instructions on the packing.

When the machine is delivered, check that the packing and the machine were not damaged during transportation. In case of visible damages, keep the packing and have it checked by the carrier that delivered it. Call the carrier immediately to fill in a damage claim. Please check that the following items have been supplied with the machine:

• Scrubber-dryer User Manual
• Scrubber-dryer Spare Parts List
  Supply cable extension

SAFETY

The following symbols indicate potentially dangerous situations. Always read this information carefully and take all necessary precautions to safeguard people and property.

The operator's cooperation is essential in order to prevent injury. No accident prevention program is effective without the total cooperation of the person responsible for the machine operation. Most of the accidents that may occur in a factory, while working or moving around, are caused by failure to comply with the simplest rules for exercising prudence. A careful and prudent operator is the best guarantee against accidents and is essential for successful completion of any prevention program.

SYMBOLS

DANGER!

It indicates a dangerous situation with risk of death for the operator.

WARNING!

It indicates a potential risk of injury for people.

CAUTION!

It indicates a caution or a remark related to important or useful functions.

Pay careful attention to the paragraphs marked by this symbol.

NOTE

It indicates a remark related to important or useful functions.

CONSULTATION

It indicates the necessity to refer to the Quick Start Guide before performing any procedure.

GENERAL INSTRUCTIONS

Specific warnings and cautions to inform about potential damages to people and machine are shown below.

DANGER!

Before performing any maintenance, repair, cleaning or replacement procedure disconnect the plug from the electrical mains.
- This machine must be used by properly trained operators only. Children or disabled people cannot use this machine.
- Do not wear jewels when working near electrical components.
- Do not work under the lifted machine without supporting it with safety stands.
- Do not operate the machine near toxic, dangerous, flammable and/or explosive powders, liquids or vapours: This machine is not suitable for collecting dangerous powders.

WARNING!

• The machine power supply cable is grounded and the relevant plug is grounded too. In case of machine malfunction or breakdown, grounding connection reduces the risk of electric shock.
• The power supply cable plug must be connected to an appropriate outlet, which is grounded according to law in force.
• Improper connection can cause electric shock. Consult a qualified technician to make sure that the outlet is properly grounded.
• Do not tamper with the power supply cable plug. If the power supply cable plug cannot be connected to the outlet, have new grounded outlet installed by a qualified technician, according to the law in force.
  Before connecting the power supply cable to the electrical mains, check that frequency and voltage, shown on the machine serial number plate (1), match the electrical mains voltage.
• Do not unplug the machine by pulling the supply cable. To unplug, grasp the plug, not the cable.
• Do not handle the plug or the machine with wet hands.
• Turn off all controls before unplugging.
• Regularly check the power supply cable for damages, cracks, cuts and wear. If necessary, replace it.
  If the power supply cable is damaged, it must be replaced by the Manufacturer or by an authorised Service Centre.
• To avoid any risk, if the power supply cable is damaged, contact Nilfisk Alto Service Center or a qualified technician.
• Do not pull or carry the machine by the power supply cable and never use the power supply cable as a handle. Do not close a door on the power supply cable, or pull the power supply cable around sharp edges or corners. Do not run the machine on the power supply cable.
• The brushes must not come into contact with the power supply cable.
• Keep the power supply cable away from heated surfaces.
• To reduce the risk of fire, electric shock, or injury, do not leave the machine unattended when it is plugged in. Disconnect the machine from the electrical mains when not in use and before performing maintenance procedures.
• Do not leave the machine unattended without being sure that it cannot move independently.
• Always protect the machine against the sun, rain and bad weather, both under operation and inactivity condition. Store the machine indoors, in a dry place: This machine must be used in dry conditions, it must not be used or kept outdoors in wet conditions.
  Before using the machine, close all doors and/or covers.
• Do not allow to be used as a toy. Close attention is necessary when used near children.
• Use only as shown in this Manual. Use only Nilfisk Alto's recommended accessories.
  Take all necessary precautions to prevent hair, jewels and loose clothes from being caught by the machine moving parts.

WARNING!

• Do not use the machine on incline.
• Do not use the machine in particularly dusty areas.
  While using this machine, take care not to cause damage to people or objects.
• Do not bump into shelves or scaffoldings, especially where there is a risk of falling objects.
• Do not put any can containing fluids on the machine.
• The machine working temperature must be between 0^ and +40^ .
• The machine storage temperature must be between 0^ and +40^ .
  The humidity must be between 30% and 95% .
• When using floor cleaning detergents, follow the instructions on the labels of the detergent bottles.
• To handle floor cleaning detergents, wear suitable gloves and protections.
• Do not use the machine as a means of transport.
• Do not allow the brush/pad to operate while the machine is stationary to avoid damaging the floor.
  In case of fire, use a powder fire extinguisher, not a water one.
• Do not tamper with the machine safety guards and follow the ordinary maintenance instructions scrupulously.
• Do not allow any object to enter into the openings. Do not use the machine if the openings are clogged. Always keep the openings free from dust, hairs and any other foreign material which could reduce the air flow.
• Do not remove or modify the plates affixed to the machine.
• This machine cannot be used on roads or public streets.
• Pay attention during machine transportation when temperature is below freezing point. The water in the recovery tank or in the hoses could freeze and seriously damage the machine.
• Use brushes and pads supplied with the machine and those specified in the User Manual. Using other brushes or pads could reduce safety.
  In case of machine malfunctions, ensure that these are not due to lack of maintenance. Otherwise, request assistance from the authorised personnel or from an authorised Service Center.
• If the machine

does not work properly
is damaged
has water or foam leaks
has been left outdoors exposed to bad weather conditions
- is wet or has been dropped into water turn it off immediately and contact Nilfisk Alto Service Center or a qualified technician.

If parts must be replaced, require ORIGINAL spare parts from an Authorised Dealer or Retailer.
To ensure machine proper and safe operation, the scheduled maintenance shown in the relevant chapter of this Manual, must be performed by the authorised personnel or by an authorised Service Center.
- Carefully read all the instructions before performing any maintenance/repair procedure.
- Do not wash the machine with direct or pressurised water jets, or with corrosive substances.
- The machine must be disposed of properly, because of the presence of toxic-harmful materials (electronic components, etc.), which are subject to standards that require disposal in special centres (see the Scrapping chapter).

MACHINE DESCRIPTION

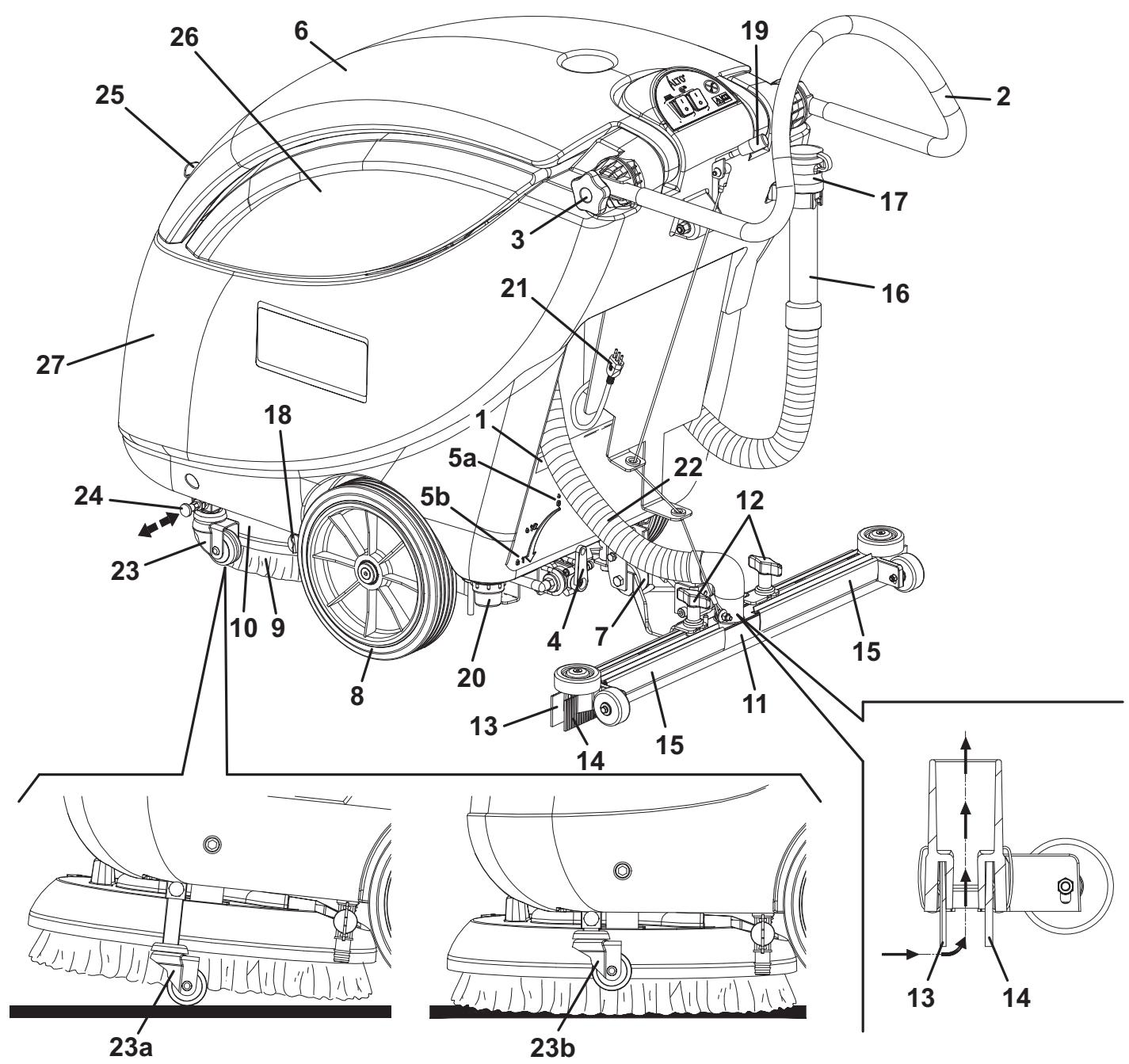

MACHINE STRUCTURE

1. Serial number plate/technical data/conformity certification
2. Handlebar
3. Handlebar inclination adjusting knob
4. Solution flow control lever
   5a. Minimum solution flow position
   5b. Maximum solution flow position
5. Recovery tank cover
6. Rear support wheel for transport/parking
7. Central wheels on fixed axle
8. Brush/pad
9. Brush/pad-holder deck
10. Squeegee
11. Squeegee mounting handwheels
12. Front squeezegee blade

13. Rear squeezegee blade

14. Squeegee blade mounting springs

15. Recovery water drain hose
16. Recovery water drain hose bracket
17. Solution drain valve
18. Squeegee lifting/lowering lever
19. Solution filter
20. Power supply cable
21. Squeegee vacuum hose
22. Transport/parking device
    23a. Transport/parking device (engaged)
    23b. Transport/parking device (disengaged)
23. Transport/parking device positioning pin
24. Brush/pad-holder support
25. Recovery tank
26. Solution tank

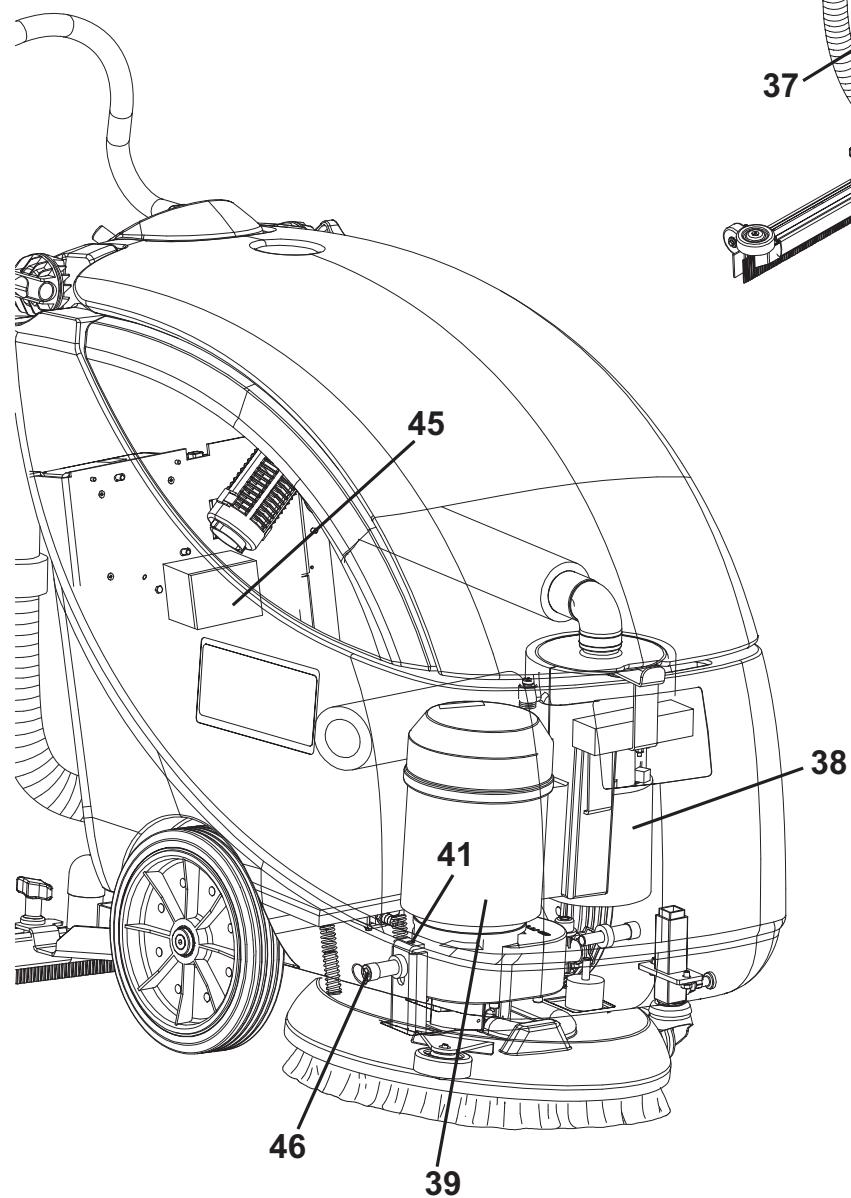

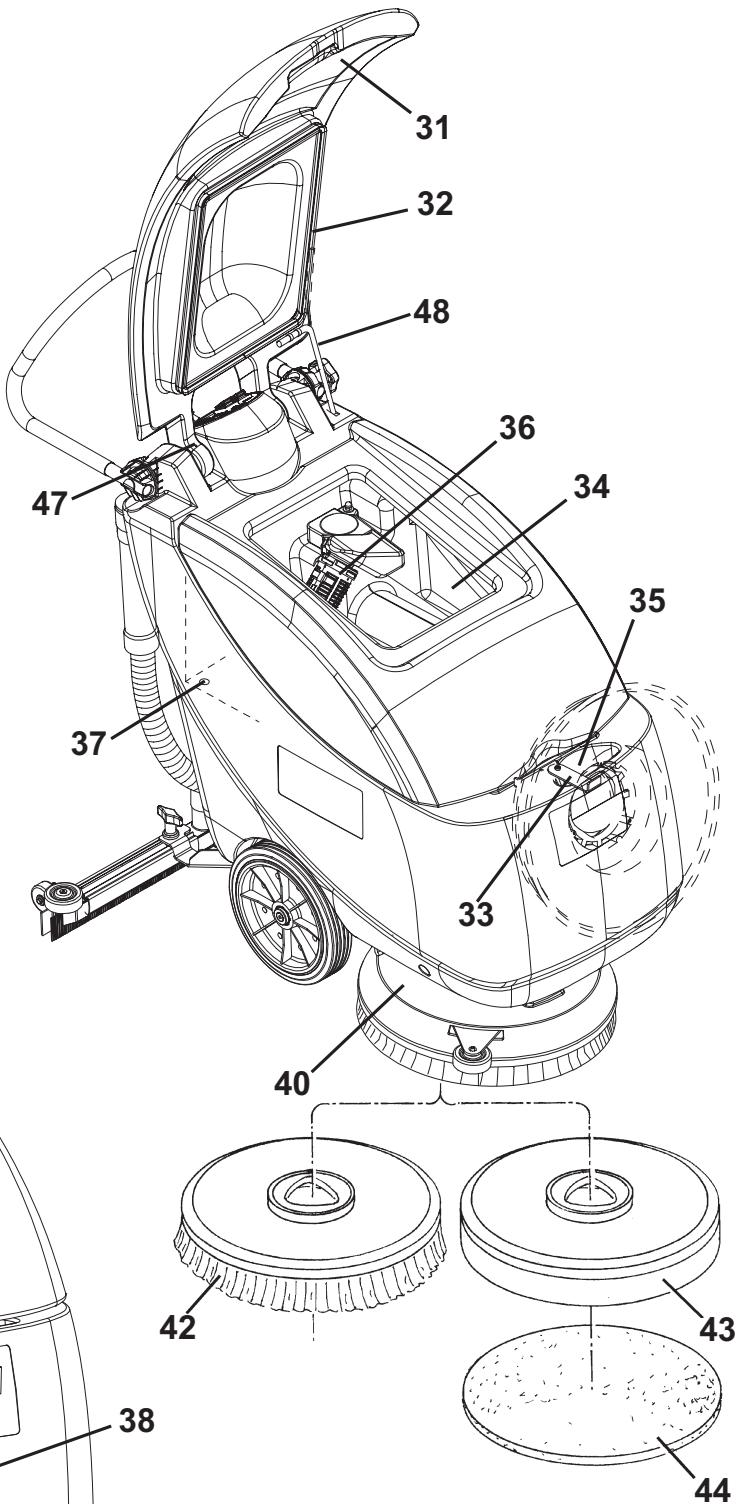

MACHINE STRUCTURE (Continues)

1. Recovery tank cover (open)
2. Recovery tank cover gasket
3. Brush/pad-holder support
4. Recovery tank compartment
5. Solution tank filler neck

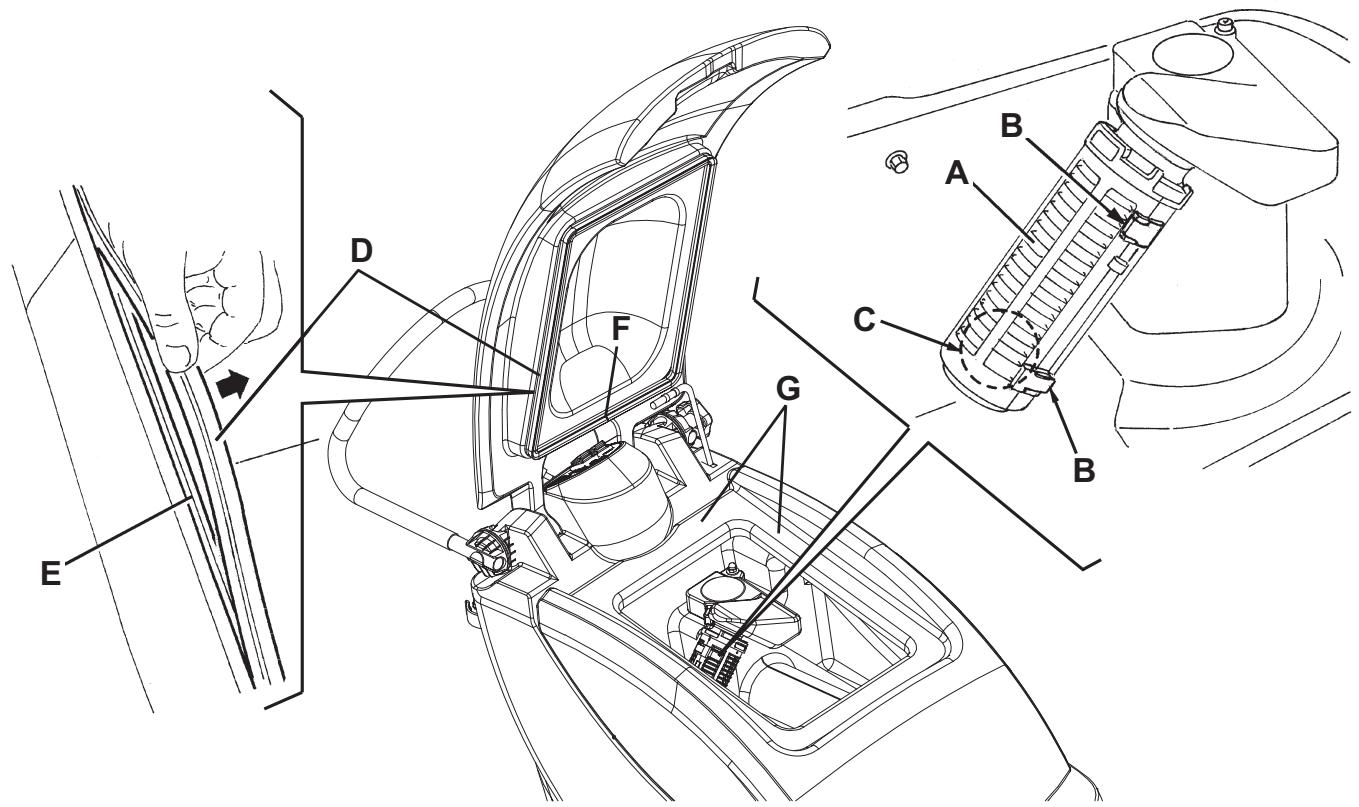

6. Vacuum grid with automatic shut-off float
7. Recovery water drain hole
8. Vacuum system motor
9. Brush/pad-holder motor
10. Brush/pad-holder deck
11. Machine speed adjusting screw
12. Brush
13. Pad-holder
14. Pad
15. Terminal board box
16. Screw
17. Compensation hole
18. Cover support rod (engaged)

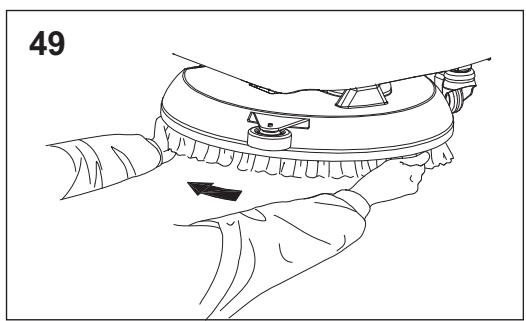

19. Brush/pad-holder engagement rotation direction

S311236A

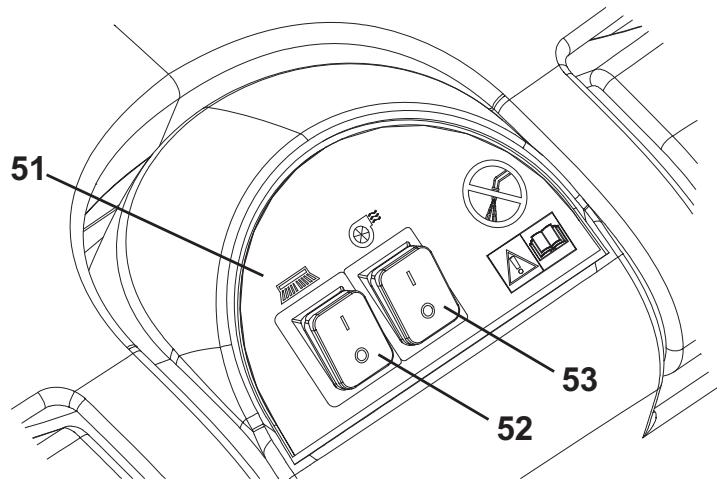

CONTROL PANEL

1. Control panel
2. Brush/pad-holder switch
3. Vacuum system switch

S311232A

ACCESSORIES/OPTIONS

In addition to the standard components, the machine can be equipped with the following accessories/options, according to the machine specific use:

Brushes/pads of different materials

For further information concerning the optional accessories, contact an authorised Retailer.

TECHNICAL DATA

General	SCRUBTEC 343E 230 Volts	SCRUBTEC 343E 115 Volts
Machine length	1,120 mm
Machine width with squeezegee	720 mm
Machine width without squeezegee	570 mm
Min/max machine height with adjustable handlebar	860 - 1,105 mm
Total machine weight	75 kg
Minimum turning radius	750 mm
Cleaning width	430 mm
Central wheel diameter	250 mm
Brush/pad diameter	430 - 432 mm
Rear wheel pressure on the floor	1.0 N/mm²
Front wheel pressure on the floor	1.9 N/mm²
Brush/pad pressure on the floor	28 kg

Performance	SCRUBTEC 343E 230 Volts	SCRUBTEC 343E 115 Volts
Vacuuming	1,316 mmH2O
Brush/pad-holder motor speed	150 rpm	170 rpm
Sound pressure level at workstation (ISO 11201, ISO 4871) (LpA)	70 dB(A) ± 3dB(A)
Machine sound pressure level (ISO 3744, ISO 4871) (LwA)	87 dB(A)
Vibration level at the operator's arms (ISO 5349-1)	< 2.5 m/s2
Vacuum system motor power	550 W
Brush/pad motor power	1,100 W	550 W
Gradeability	2%
System voltage	230 V - 50 Hz	115 V - 60 Hz
Clean water tank capacity	31 litres
Recovery tank capacity	30 litres

WIRING DIAGRAM
Key

C1	Suppressor
EV1	Water solenoid valve
FR	Frame
M1	Brush/pad-holder motor
M2	Vacuum system motor
PL	Plug
SW1	Brush/pad-holder switch
SW2	Vacuum system switch

Colour codes

BK	Black
BU	Blue
BN	Brown
GN	Green
GY	Grey
OG	Orange
PK	Pink
RD	Red
VT	Violet
WH	White
YE	Yellow

USE

WARNING!

On some points of the machine there are some adhesive plates indicating:

DANGER
WARNING
- CAUTION
CONSULTATION

While reading this Manual, the operator must pay particular attention to the symbols shown on the plates.

Do not cover these plates for any reason and immediately replace them if damaged.

BEFORE MACHINE START-UP

Brush or pad-holder installation

NOTE

Use either the brush (42) or the pad-holder (43) according to the type of floor to be cleaned.

1. Insert the positioning pin (24) and disengage the machine transport/parking device (23b).
2. Lift the brush/pad-holder deck (10) by prying the handlebar (2).
3. Place the brush (42) or the pad-holder (43) under the deck.
4. Lower the deck (10) by using the handlebar (2).
5. Connect the power supply cable (21) to the electrical mains.
6. Engage the brush/pad-holder by pressing the brush/pad switch (52) for a few seconds.

If the procedure is difficult, manually turn the brush/pad-holder counter-clockwise (49).

Brush/pad application guide (suggestions only)

Types of brushes available		Midlite Grit 180	Midgrit 240	Prolite	Union Mix
General cleaning	Concrete
	Terrazzo floor
	Ceramic tiles/quarrystones
	Marble
	Vinyl tiles
	Rubber tiles
Polishing	Rubber tiles
	Marble
	Vinyl tiles

Squeegee installation

1. Install the squeegee (11) and fasten it with the handwheels (12), then connect the vacuum hose (22) to the squeegee.

Solution tank filling

1. Open the recovery water tank cover (41) and engage the support rod (59).
2. Use the filler neck (35) to fill the tank (27) with a solution suitable for the work to be performed.

Do not fill the solution tank completely, leave a few centimetres from the edge.

Always follow the dilution instructions on the label of the chemical product used to prepare the solution.

The solution temperature must not exceed 40^ .

CAUTION!

Use only low-foam and non-flammable detergents, intended for automatic scrubber applications.

Adjustments

1. Adjust the handlebar (2) with the knobs (3) to reach a comfortable position.

MACHINE START AND STOP

Starting the machine

1. Prepare the machine as shown in the previous paragraph.
2. Drive the machine to the working place by pushing it with the hands on the handlebar (2).
3. Connect the power supply cable (21) to the electrical mains.

WARNING!

Before connecting the power supply cable to the electrical mains, check that frequency and voltage, shown on the machine serial number plate (1), match the electrical mains voltage.

1. Lower the squeegee (11) with the lever (19).
2. Turn the solution flow control lever (4) to a position between the minimum limit (5a) and maximum limit (5b). In no case it is possible to close completely the water flow to the brushes during operation.
3. While keeping the hand on the handlebar (2), start the machine by turning the brush/pad-holder switch and the vacuum system switch (52 and 53) to "l".

Stopping the machine

1. Turn the brush/pad-holder switch and the vacuum system switch (52 and 53) to "0".
2. Disconnect the power supply cable (21) from the electrical mains.
3. Lift the squeegee with the lever (19).
4. Insert the positioning pin (24) and lift the brush/pad-holder by engaging the transport/parking device (23a).

MACHINE OPERATION (SCRUBBING/DRYING)

1. Start the machine as shown in the previous paragraph.
2. While keeping both hands on the handlebar (2), move the machine and start scrubbing/drying the floor.

CAUTION!

To avoid damaging the floor surface, do not use the brushes without the solution and, when the machine is not operating, stop the brush/pad-holder by pressing the switch (52).

CAUTION!

Before lifting the brush/pad, turn it off by pressing the switch (52).

1. If necessary, adjust the solution quantity by using the lever (4).

NOTE

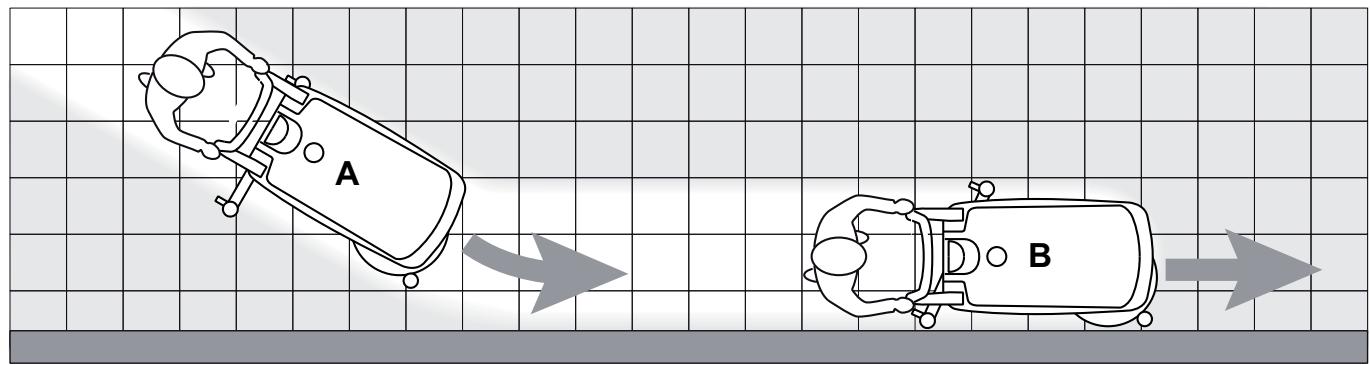

For correct scrubbing/drying of floors at the sides of the walls, Nilfisk Alto suggests to go near the walls with the right side of the machine as shown in figure 1.

Figure 1

P100160

Machine speed adjustment

1. The machine speed varies according to the type of floor to be cleaned and the choice of using the brush or the pad. If necessary, it is possible to adjust the machine speed, according to the procedure shown in Maintenance chapter.

MACHINE TRANSPORT/PARKING

To transport/park the machine, proceed as follows.

1. Turn the brush/pad-holder switch and the vacuum system switch (52 and 53) to "0".
2. Disconnect the power supply cable (21) from the electrical mains and place it on the holder.
3. Lift the squeegee with the lever (19).
4. Grasp the handlebar (2) and slightly lower it until the rear wheel (7) comes into contact with the floor (Fig. 2). While holding the machine in this position, drive it to the transport/parking area.
5. In order not to drag the brush/pad on the floor and leave wet marks, when finishing working, remove the brush/pad-holder from the deck by using the release device (see the procedure in After Using The Machine paragraph), then place it on the support (25).

Figure 2

S310234

TANK EMPTYING

An automatic float shut-off system (36) turns off the vacuum system when the recovery tank (26) is full.

The vacuum system shutdown, due to the recovery tank filling, is signalled by an increase in the vacuum system motor noise, moreover the floor is not dried.

CAUTION!

If the vacuum system turns off accidentally (for example, when the float is activated because of a sudden machine movement), to resume the operation: turn off the vacuum system by pressing the switch (53), then open the cover (6) and check that the float inside the grid (36) has gone down to the water level. Then close the cover (6) and turn on the vacuum system by pressing the switch (53).

When the recovery tank (26) is full, empty it according to the following procedure.

Recovery tank emptying

1. Start the machine by pressing the brush/pad-holder and vacuum system switches (52 and 53).
2. Disconnect the power supply cable (21) from the electrical mains and place it on the holder.
3. Lift the squeegee with the lever (19).
4. Drive the machine to the appointed disposal area.
5. Insert the positioning pin (24) and lift the brush/pad-holder by engaging the transport/parking device (23a).
6. Empty the recovery tank (26) with the drain hose (16). Then, rinse the tank with clean water.

Solution tank emptying

Perform steps 1 to 4.
7. Empty the solution tank (27) by using the drain valve (18).
8. Then, rinse the tank with clean water.

AFTER USING THE MACHINE

After working, before leaving the machine:

1. Remove the brush/pad-holder as follows:

2. With the brush/pad-holder lifted, turn the brush/pad-holder switch (52) to "1" and, after a few seconds, back to "0", thus releasing the brush/pad-holder.

3. Disconnect the power supply cable (21) from the electrical mains and place it on the holder.

4. Empty the tanks (26 and 27) as shown in the previous paragraph.
5. Perform the daily maintenance procedures (see the Maintenance chapter).
6. Store the machine in a clean and dry place, with the brush/pad-holder and the squeegee lifted or removed.

RECOVERY TANK REMOVAL

To perform check and maintenance procedures, it may be necessary to remove the recovery tank (26) as shown below.

1. Empty the recovery tank (26) as shown in the relevant paragraph.
2. Drive the machine on a level floor.
3. Make sure that the power supply cable (21) is disconnected from the electrical mains.
4. Disconnect the vacuum hose (22) from the squeegee (11).
5. Disconnect the recovery water drain hose (16) from the bracket (17).
6. Open the cover (6).
7. Grasp the recovery tank (A, Fig. 3) in the area (B) and slightly raise it.
8. Disconnect the vacuum hose (C) from the tank, then remove the tank (A) with the hoses (D) and (E).

Figure 3

S311229A

MACHINE LONG INACTIVITY

If the machine is not going to be used for more than 30 days, proceed as follows:

1. Perform the procedures shown in After Using the Machine paragraph.
2. Store the machine in a clean and dry place.

FIRST PERIOD OF USE

After the first 8 hours, check the machine fastening and connecting parts for proper tightening. Check the visible parts for integrity and leakage.

MAINTENANCE

The lifespan of the machine and its maximum operating safety are ensured by correct and regular maintenance.

The following chart provides the scheduled maintenance. The intervals shown may vary according to particular working conditions, which are to be defined by the person in charge of the maintenance.

WARNING!

Maintenance procedures must be performed with the machine switched off and the power supply cable disconnected from the electrical mains.

Moreover, carefully read the instructions in the Safety chapter.

All scheduled or extraordinary maintenance procedures must be performed by qualified personnel, or by an authorised Service Center.

This Manual describes only the easier and most common maintenance procedures.

NOTE

For other maintenance procedures shown in the Scheduled Maintenance Table, refer to the Service Manual that can be consulted at any Service Center.

SCHEDULED MAINTENANCE TABLE

Procedure	Daily, after using the machine	Weekly	Every six months	Yearly
Squeezegee cleaning
Brush cleaning
Tank and vacuum grid cleaning
Squeezegee blade check and replacement
Solution filter cleaning
Screw and nut tightening check			(1)
Vacuum system motor carbon brush check and replacement				(2)

(1) And after the first 8 working hours.
(2) This maintenance procedure must be performed by Nilfisk Alto authorised Service Center.

SQUEEGEE CLEANING

NOTE

The squeegee must be clean and its blades must be in good conditions in order to get a good drying.

CAUTION!

It is advisable to wear protective gloves when cleaning the squeegee because there may be sharp debris.

1. Drive the machine on a level floor.
2. Make sure that the power supply cable (21) is disconnected from the electrical mains.
3. Lower the squeegee with the lever (19).
4. Disconnect the vacuum hose (22) from the squeegee.
5. Loosen the handwheels (12) and remove the squeegee (11).
6. Wash and clean the squeegee. In particular, clean the compartments (A, Fig. 4) and the vacuum hole (B) from dirt and debris.
7. Check the front blade (C) and the rear blade (D) for integrity, cuts and tears; if necessary replace them (see the procedure in the following paragraph).
8. Assemble the components in the reverse order of disassembly.

SQUEEGEE BLADE CHECK AND REPLACEMENT

1. Clean the squeegee as shown in the previous paragraph.

2. Check that the front blade edges (E, Fig. 4) and the rear blade edges (I) lay down on the same level, along their length; if necessary adjust the height according to the following procedure:

3. Remove the mounting springs (F), then adjust the front blade (C) and the rear blade (D).
   Install the mounting springs on the front and rear blades.

4. Check the front blade (C) and rear blade (D) for integrity, cuts and tears; if necessary replace them as shown below. Also check the front corner (H) of the rear blade for wear; if it is worn, overturn the blade to replace the worn corner with the other one (I), if it is integral. If the other corner is worn too, replace the blade according to the following procedure:

5. Remove the mounting springs (F) and then replace (or overturn) the rear blade (D).
   Install the mounting springs on the front and rear blades.

6. Install the squeegee (11) and screw tighten the handwheels (12).

7. Connect the vacuum hose (22) to the squeezegee (11).

Figure 4

S310240

BRUSH CLEANING

NOTE

It is advisable to wear protective gloves when cleaning the brushes because there may be sharp debris.

1. Remove the brush, as shown in Use chapter.
2. Clean the brush with water and detergent.
3. Check the brush bristles for integrity and wear; if necessary, replace the brush.

TANK AND VACUUM GRID CLEANING

1. Drive the machine to the appointed disposal area.
2. Make sure that the power supply cable (21) is disconnected from the electrical mains.
3. Open the cover (6), then clean and wash the cover, the tanks (26 and 27) and the vacuum grid (36) with clean water.
   Drain the water from the tanks with the drain hose (16) and the valve (18).
4. If necessary, release the fasteners (B, Fig. 5) and open the grid (A); recover the float (C), clean all the components and then reinstall them.
5. Check the recovery tank cover gasket (D) for integrity.

NOTE

The gasket (D) creates vacuum in the tank that is necessary for vacuuming the recovery water.

If necessary replace the gasket (D) by removing it from its housing (E).

When assembling the new gasket, install the joint (F) in the rear central area, as shown in the figure.

1. Check the seating surface (D) of the gasket (G) for integrity and sealing capabilities.
2. Check the compensation hole (47) for clogging.

NOTE

The hole (47), allowing to compensate the air in the cover air gap, contributes to create vacuum in the tank.

1. Close the recovery tank cover (6).

Figure 5

S311227A

SOLUTION FILTER CLEANING

1. Empty the solution tank (27) as shown in the relevant paragraph.
2. Drive the machine on a level floor.
3. Make sure that the power supply cable (21) is disconnected from the electrical mains.
4. Remove the transparent cover (A, Fig. 6), then remove the filter strainer (B). Clean and install them on the support (C).

NOTE

The filter strainer (B) must be correctly positioned on the housing (D) of the support (C).

Figure 6

S310232A

MACHINE SPEED ADJUSTMENT

NOTE

The machine speed varies according to the type of floor to be cleaned and the choice of using the brush or the pad. If necessary, perform the following procedure.

1. Remove the recovery tank as shown in Use chapter.

2. Adjust the machine speed with the screw (41) as shown below:

3. Loosen the screw (46), on the right side of the machine, by turning it counter-clockwise.

4. Turn the adjusting screw (41) counter-clockwise to increase the machine speed.

5. Turn the adjusting screw (41) clockwise to decrease the machine speed.
   After adjusting, tighten the screw (46).

6. Install the recovery tank as shown in Use chapter.

7. With the machine ready to operate, perform hands-on tests of the machine and, if other adjustments are necessary, repeat steps 1 to 4.

TROUBLESHOOTING

Trouble	Possible Cause	Remedy
The motors do not turn on	The power supply cable (21) is faulty or disconnected from the electrical mains	Replace or connect the cable
The dirty water vacuuming is insufficient	The recovery water tank (26) is full	Empty
	The vacuum grid (36) is clogged or the float is closing	Clean the grid and check the float
	The vacuum hose (22) is disconnected from the squeezegee (11) or it is damaged	Connect
	The squeezegee (11) is dirty, or the squeezegee blades (13, 14) are worn or damaged	Clean the squeezegee or replace the blades
	The recovery water tank cover (6) is not properly closed, or the gasket (32) is damaged	Check and/or clean the seating surface or replace the gasket
	The recovery water tank (6) is dirty (clogged drain hole)	Clean
The solution flow is insufficient	The solution filter (20) is dirty	Clean
The squeezegee leaves marks on the floor	There is debris under the squeezegee blades (13, 14).	Remove the debris
	The squeezegee blades (13, 14) are worn, chipped or torn	Replace the blades

For further information refer to the Service Manual, available at any Nilfisk Alto Service Center.

SCRAPPING

Have the machine scrapped by a qualified scraper.

Before scrapping the machine, remove and separate the following materials, which must be disposed of properly according to the Law in force:

Brush
- Pad
- Electrical and electronic components (*)

(*) Refer to the nearest Nilfisk Alto Center especially when scrapping electrical and electronic components.

INHOUDSOPGAVE

INLEIDING 2

DOEL EN INHOUD VAN DEZE HANDLEIDING 2

BETREFFENDE PERSONEN 2

OPBERGEN VAN DE HANDLEIDING 2

CONFORMITEITSVERKLARING 2

IDENTIFICATIEGEGEVENS 2

ANDERE GEBRUKERSHANDLEIDENGIN 2

VERVANGINGSONDERDELEN EN ONDERHOUD 2

MODIFICATIES EN VERBETERINGEN 3

BEDRIJFSCAPACITEIT 3

ALGEMENE OPMERKINGEN 3

VERPAKKING VERWIJDEREN/AFLEVERING 3

VEILIGHEID 3

GEBRUIKTE SYMBOLEN 3

ALGEMENE INSTRUCTIONS 4

BESCHRIJVING VAN DE MACHINE 6

OPBOUW VAN DE MACHINE 6

CONTROLE- EN BEDIENINGSPANEEL 8

ACCESSIONS / OPTIES 8

Dornveld/Sphere Business Park

Industrie Asse 3, nr 11 - bus 41

1731 Zellik-Asse

Belgium

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

AUSTRIA

Nilfisk-Advance GmbH.

Nifisk-ALTO

Metzgerstrasse 68

Part of the Nilfisk-Advance Group

4080 B Sladeview Crescent, Unit 1

Mississauga, Ontario L5L 5Y5

Canada

Division of Nilfisk-Advance A/S

Industrivej 1

9560 Hadsund

Denmark

Tel.: [phone]

Fax: [phone]

Nifisk-ALTO Food Division

Division of Nilfisk-Advance A/S

Blytaekkervej 2,

9000 Aalborg Denmark

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

www.nilfisk-alto.com

FRANCE

Nilfisk-ALTO

ALTO France SAS

Aeroparc 1

19 rue lcare

67960 Entzheim

France

Tel.: [phone]

Fax: [phone]

E-mail: info@nilfisk-alto-fr

www.nilfisk-alto.com

GERMANY

Nilfisk-ALTO

Division of Nilfisk-Advance AG

Division of Nilfisk-Advance BV

Camastraat 9

NL-1322 BB Almere

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

www.nilfisk-alto.nl

HONG KONG

Nilfisk-Advance Ltd.

2001 HK Worsted Mills Ind'I Bldg.,

31-39 Wo Tong Tsui St.

Kwai Chung,

Hong Kong

Tel.: [phone]

Fax: [phone]

HUNGARY

Nilfisk-Advance Kereskedelmi Kft.

PEOPLE'S REPUBLIC OF CHINA

Nilfisk-Advance (Shenzhen) Ltd

Blok 3, Unit 130, 1001 Honghua Road

Int. Commercial & Trade Center

Fuitian Free Trade Zone

518038 Shenzhen

P.R. China

Tel.: [phone]

Fax: [phone]

POLAND

Nilfisk-Advance Sp. Z.O.O.

05-800 Pruszków

ul. 3-go MAJA 8

Poland

Tel.: [phone]

Fax: [phone]

[e-mail]

www.nilfisk-alto.pl

PORTUGAL

Nilfisk-ALTO

Division of Nilfisk-Advance Lda.

Sintra Business Park

Zona Industrial Da Abrunheira

Edificio 1, 10 A

P-2710-089 Sintra

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

www.nilfisk-alto.com

RUSSIA

Nilfisk-Advance LLC

127015 Moskow

Vyatskaya str. 27, bld. 7

Russia

Member of Nilfisk-Advance Group

Aminogatan 18, Box 4029

S-431 04 Molndal

Sweden

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

www.nilfisk-alto.se

TAIWAN

Nilfisk-Advance Taiwan Branch

No. 5, Wan Fang Road

Taipei

Taiwan, R.O.C.

Tel.: [phone]

Fax: [phone]

THAILAND

Nilfisk-Advance Co. Ltd.

89 Soi Chokechai-Ruammitr

Viphavadee-Rangsit Road

Ladyao, Jatuchak, Bangkok 10900

Thailand

Tel.: [phone]

Fax: [phone]

TURKEY

Nilfisk-Advance Professional Temizlik

Gilwilly Industrial Estate

Penrith Cumbria CA11 9BQ

Great Britain

Tel.: (+44) (0) 1768 868995

Fax: (+44) (0) 1768 864713

E-mail: [e-mail]

www.nilfisk-alto.co.uk

VIETNAM

Nilfisk-Advance Representative Office

No.46 Doc Ngu Str.

Ba Dinh Dist.

Hanoi

SR. Vietnam

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

USAALTO

Cleaning Systems Inc.

Part of the Nilfisk-Advance Group

12249 Nations Ford Road

Pineville, NC 28134

USA

Clarke American Sanders

2100 Highway 265

Springdale, AR 72764

USA

Bowling Green, OH 43402

USA

Tel.: [phone] option 2

Fax: [phone]

E-mail:

[e-mail]

www.AmericanLincoln.com
