Product type	Freestanding combi refrigerator
Brand	Cecotec
Model	Bolero Coolsilver Combi Fd Bi 427 Elite D
Dimensions (H x W x D)	185 x 60 x 65 cm
Net weight	62 kg
Net refrigerator volume	230 L
Net freezer volume	90 L
Climate class	N-ST (ambient temperature 16°C to 38°C)
Power supply	220-240 V ~ 50 Hz
Annual energy consumption	Approximately 235 kWh/year
Energy class	F
Noise level	40 dB(A)
Number of refrigerator shelves	4 glass shelves
Number of vegetable drawers	2 drawers
Number of door balconies	4 balconies
Interior lighting	LED
Cooling type	No Frost (fan assisted)
Water dispenser	No
Ice maker	No
Temperature display	Touch LED screen
Holiday function	Yes
Open door alarm	Yes
Refrigerant	R600a
Maintenance and cleaning	Clean with a soft cloth and mild detergent. Automatic defrosting thanks to the No Frost system.

Frequently Asked Questions - Bolero Coolsilver Combi Fd Bi 427 Elite D CECOTEC

How to adjust the refrigerator and freezer temperature?

Use the touch control panel to adjust the temperature. The refrigerator is generally set between 2 and 8 °C, the freezer between -18 and -24 °C.

What to do if the appliance is not cooling enough?

Check if the door is properly closed, if the ventilation is obstructed, or if the thermostat is set correctly. If the problem persists, contact Cecotec customer service.

How to clean the No Frost system?

The No Frost system automatically manages defrosting. Regularly clean the interior with a soft cloth and a non-abrasive product to avoid odors.

Can the door opening direction be reversed?

Yes, it is possible to reverse the hinges. Consult the manual or contact a professional to perform the operation.

What is the normal noise level of the appliance?

The noise level is approximately 40 dB(A), which corresponds to normal operation. Louder noises may indicate a problem.

How to use the holiday function?

Activate the holiday function via the control panel. It maintains a higher temperature in the refrigerator to save energy while keeping the freezer running.

What to do in case of a power cut?

Avoid opening the door. The freezer keeps frozen food for about 12 hours. After power is restored, check the condition of the food.

Where to find spare parts?

Contact Cecotec customer service or visit their website to order original parts. Repairability is facilitated by a high repairability index.

What is the climate class of this refrigerator?

The climate class is N-ST, which means it operates correctly at ambient temperatures from 16°C to 38°C.

How to interpret the indicator light on the panel?

The indicator light shows the operating status. Consult the manual for specific codes. In general, a flashing light indicates an anomaly (open door, high temperature).

USER MANUAL Bolero Coolsilver Combi Fd Bi 427 Elite D CECOTEC

Safety instructions 17

1. Parts and components 173
2. Before use 173
3. Installation 174
4. Operation 184
5. Food storage instructions 188
6. Cleaning and maintenance 192
7. Troubleshooting 195
8. Recycling of electrical and electronic equipment 198
9. Copyright 199
10. Simplified Declaration of Conformity 199

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

Symbol	Type	Meaning
	WARNING	Risk of serious injury or death
[0H6W]	RISK OF ELECTRIC SHOCK	Risk of dangerous voltage
	FIRE	Warning: Risk of fire/flammable materials
	WARNING	Risk of injury or damage to property
	IMPORTANT/ NOTE	Correct system use

• NOTE: Pay particular attention to the phrases contained in these icons, as they warn of a potential hazard that can cause serious injury to you and others. The instructions will tell you how to reduce the risk of injury and what can happen if you do not follow them.

• Read these instructions carefully before assembling or using the appliance, as they contain important information that will help you get the best out of your equipment. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.

• WARNING: These instructions for use are generic. This means that certain functions or components are valid for your refrigerator, while others are not.

• ⚠ When a malfunction occurs, it can seriously damage the refrigerator or cause death or injury to the user or create electrical or fire hazards.
• CAUTION: Check the appliance and its packaging for damage. Do not use the appliance if it is damaged, contact Cecotec's Official Technical Support Service immediately.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• ⚠️ Do not store flammable, explosive, volatile or highly corrosive substances such as aerosol cans with flammable propellant in this appliance, as they may cause damage, accidents or fire.
• Do not use the device for non-domestic purposes (storing laboratory material drugs, blood, use on a ship, etc.). It may cause unexpected hazards such as fire, electric shock, deterioration of the wired material or chemical reaction.
• Do not place any glass containers inside that are not designed for use in the refrigerator or freezer compartment. The glass could crack or break, which could cause injury.
• Do not place ice in a thin glass cup or ceramic container. They could break and cause injury.

Do not place flammable items near the refrigerator at fire.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Do not install the device outdoors.
• Avoid direct sunlight exposure.
• Do not install the refrigerator near heat sources such as stoves, ovens, etc.
• To avoid food contamination, please follow the instructions below:

A Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.
B Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.
C If the appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.
D Store raw meat and fish in suitable containers so that they do not come into contact with or drip onto other food items.
E The two-star frozen food compartments are suitable for storing pre-frozen food, ice cream and ice cubes*.
F The 1-, 2- and 3-star compartments are not suitable for freezing fresh food*.
G For appliances without a 4-star compartment: not suitable for freezing foodstuffs*.

*Please verify the applicability based on your product's compartment type. This feature varies according to the

model purchased.

* * * * "4-star" symbol: Freezer compartment at -18°C or below, capable of fast-freezing a specified quantity of food.

*** "3-star" symbol: Freezer compartment at -18°C or below.

** "2-star" symbol: Freezer compartment at -12°C or below.

^* "1-star" symbol: Freezer compartment with target temperature and storage conditions of -6^ .

• ⚠️ WARNING: when positioning the appliance, make sure that the power cable does not get trapped or damaged.
• ⚠️ WARNING: do not place multi-socket adaptors or portable power supplies on the rear of the appliance.
• WARNING: keep the ventilation grilles of the appliance enclosure (if any) or the cabinet where the appliance is located clear.
• ⚠️ WARNING: do not use mechanical devices or other means to speed up the defrosting process other than recommended by Cecotec.
• WARNING: do not use electrical devices inside the food storage compartments unless they are of a type recommended by Cecotec.
• ⚠️ WARNING: do not damage the cooling circuit.

• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service, or similarly qualified persons, to avoid any hazard.

• Do not use the appliance if the cord, plug or housing is damaged or malfunctioning, if it is partially disassembled or if components are missing or damaged.

• WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.
• In case of malfunctioning, repairs must be carried out by Cecotec's Technical Support Service; otherwise the warranty will be void.
• ⚠️! Before installing or repairing the refrigerator, unplug it from the mains.
• To unplug the appliance, pull from the socket, never from the cord.
• When installing or moving the appliance, be careful not to pinch, squeeze or damage the power cord. Do not bend the cable excessively, do not place heavy objects on it.
• Do not place carbonated or soft drinks in the freezer compartment, as this creates pressure in the can, which could explode and result in injury and/or damage to the appliance.
• Ice-cream “popsicles” can cause freezer burns. This can happen if they are ingested after removal from the freezer compartment.
• Do not remove items from the freezer compartment with wet hands as this may cause skin abrasions or freezer burns. Bottles and cans should not be placed in the freezer compartment, as they may burst when their contents freeze.
• See the storage times recommended by the manufacturer.
• Do not allow children to play with the controls or the refrigerator. The refrigerator is a heavy household appliance.

Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.

• WARNING: In the case of doors or covers equipped with locks and keys*, these must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside.
  *Depending on the refrigerator model.
• Be careful when closing the refrigerator door.
• WARNING: the refrigerant used in your appliance, and the insulation materials must be disposed of correctly.
• WARNING: Coolant can cause serious injury when in contact with skin or eyes. If this occurs, seek medical attention immediately.
• To avoid the risk of suffocation, keep the packaging material away from children.
• WARNING: If the interior light is damaged, contact Cecotec's Official Technical Support Service. Do not try to repair it yourself. The LED light source can only be replaced by Cecotec Technical Support or a qualified technician.

• Make sure the appliance plug is accessible after installation.
• Do not place food directly against the air outlet on the interior of the appliance.

• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.

• Do not use the appliance with an extension cable or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply. The plug must be inserted into a suitable power socket, which must be properly installed and earthed in accordance with local Standards and Regulations. If an electric shock occurs, grounding can provide a path of minimum current resistance, thus reducing the risk of electric shock.

• Do not modify the plug supplied with the refrigerator.
• ⚠️ ⚠️ Improper connection of the equipment grounding wires may result in a risk of electric shock. If you are in doubt as to whether the equipment is properly grounded, consult a qualified electrician.
• The power plug must be firmly in contact with the power outlet, otherwise a fire may result.
• ⚠️To ensure your safety, the plug and its cord must withstand a current greater than 10A.
• This product should be connected to a 220-240V\~/50Hz power supply.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• In the event of a gas leak, do not unplug the refrigerator or other electrical appliances, as sparks may cause a fire.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place any other appliance on top of the refrigerator and do not get it wet.

• To avoid hazards due to instability of the device, install it according to the instructions in this manual.

• This refrigerator is not designed for built-in or integrated installation.

• ⚠️ If any abnormal phenomenon occurs, such as burning smell, it is necessary to stop operation and cut off the power supply.
• It is advisable to wait for at least 2 to 4 hours before connecting the appliance to allow oil to flow through the compressor.
• Wait 5 minutes or more before reconnecting the power cord. Otherwise, the freezer compartment may fail.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.
• Cecotec is not responsible for any damage, accident, or incident resulting from the misuse of this appliance. It is the responsibility of the user to operate and maintain the appliance according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in personal injury, property damage, or loss of product warranty.
• We are constantly working on the development and improvement of our models and types of household appliances. Therefore, we reserve the right to make changes to the design, equipment and accessories of all models and types without prior notice.

Temperature range

- The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate class	Optimal room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16°C to +43°C

Notes:

• Taking into account the limiting values of the ambient temperature range for the climates for which the freezer is designed and that internal temperatures may be affected by factors such as freezer location, ambient temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.
• If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Free of Freon

- This refrigerator uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In case of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and sources of ignition and open the windows to ventilate the room where the appliance is located as soon as possible.

• This symbol (ISO 7010 W021) means: Warning, risk of fire/flammable materials.
• WARNING: The refrigerant and insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste disposal centre. Do not expose it to flames.
• WARNING: The appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.
• WARNING: Coolant can cause serious injury when in contact with skin or eyes. If this occurs, seek medical attention immediately.

INSTRUCTIONS DE SÉCURITÉ

A. Refrigerator compartment

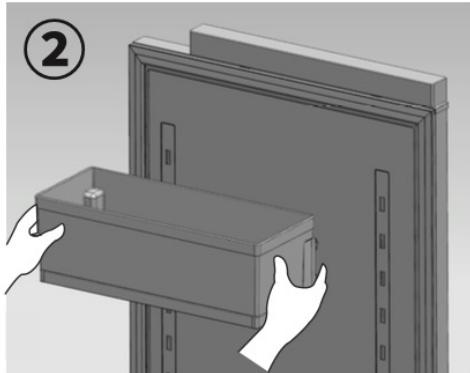

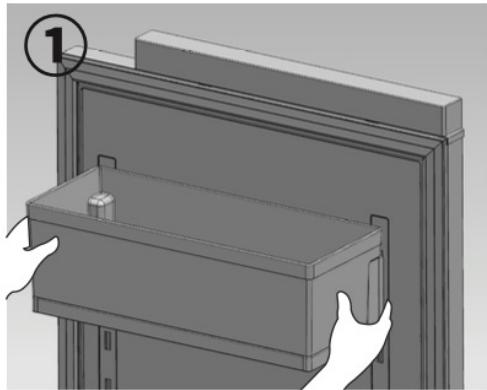

1. Door shelf

2. Tray

3. Water tank

4. Crisper drawer

B. Freezer compartment

1. Crisper drawer

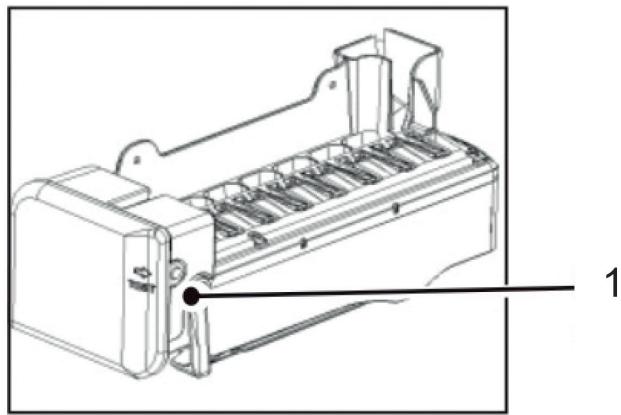

2. Indoor ice production device

3. Power switch (ON/OFF)

NOTE:

- The graphics in this manual are schematic representations and may not exactly match the product.

- To improve quality, our products are constantly updated, and their appearance and specifications may change.

- To ensure the most efficient energy usage, maintain all internal components such as trays, drawers, shelves, etc. in the position specified in this manual.

2. BEFORE USE

- This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.

- Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

- Refrigerator

- Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

3.1. Transport

• Do not transport the equipment horizontally or by resting it on the floor.
• Do not hold it by the door or by internal handles or accessories.
• It must be transported by lifting it by the lower part.
• Transport should never be carried out by a single person.

3.2. Accessories

- Figure 2 shows the list of included accessories.

Fig. 2 key:

1.- Lower air inlet/outlet grille
2.- Power cord

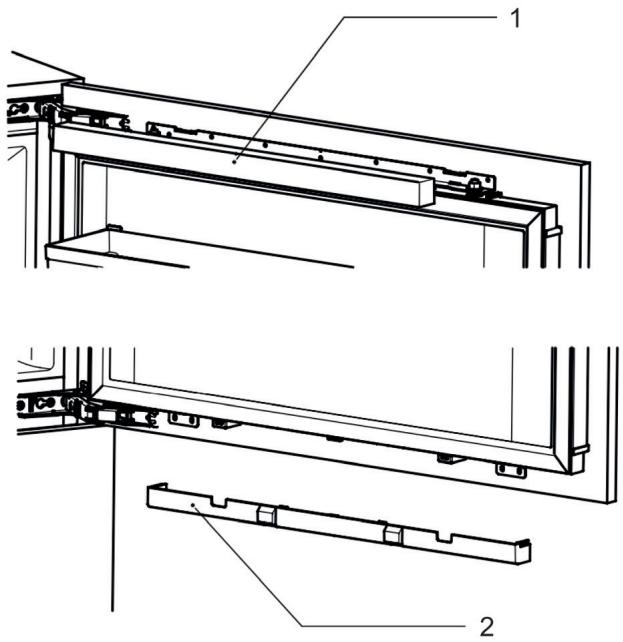

3.- Upper trim
4.- Lower trim
5.- Furniture fastening part
6.- Furniture fixing cover
7.- Mounting frame
8.- Fixing frame cover
9.- Guide limit piece
10.- Refrigerator mounting plate
11.- Flat-head cross screw
12.- Countersunk cross screw
13.- Screw cap
14.- Decorative freezer cover

NOTE: The lower air outlet cap is located in the upper foam of the packaging, the rest of the accessories are in bags.

3.3. Location

- Figure 3 shows the dimensions of the refrigerator plus cabinet (all dimensions in mm).

Width	764
Deep	>= 580
High	2000
Approx. dimensions of the refrigerator (width*depth*height)	759*572*1996

- Fig. 3 key:

1. Integration bar between refrigerator door and cabinet door (H100mm)
2. Bore diameter. The power cable and water supply pipe must pass through this hole.
3. Upper cabinet panel
4. Lower cabinet panel
5. 773 mm

NOTE: The figures above are a guide for installation. The actual dimensions of the appliance may vary slightly.
- After removing the packaging, the protective foam and the adhesive tape securing the interior elements, clean the outside of the refrigerator thoroughly with a soft, dry cloth and the inside with a cloth dampened with lukewarm water (neutral soap may be used). Then, dry the appliance thoroughly.
- The location you choose to install the appliance must be well ventilated. Do not place the refrigerator near heat sources such as a hob, avoid direct sunlight to ensure cooling performance and save on energy consumption. Do not place the appliance in a damp place to avoid rust or loss of power.

Note: The amount of refrigerant used by the appliance is specified on the rating plate.

• For efficient operation, adequate air circulation is necessary, since during operation, the appliance gives off heat, therefore, at least 4 mm of free space should be left at the top and on both sides and 8 mm at the rear.
• Place the appliance on a solid, flat floor to keep it stable, otherwise vibrations and noises will occur. Placing the appliance on soft, uneven or unstable surfaces such as carpets, straw or polyvinyl chloride mats, etc., may reduce the efficiency of the refrigerator, increase the risk of malfunction and potentially cause damage to the appliance or its surroundings.
• The place where the appliance is installed must be well ventilated. Do not cover or block the air grille on the rear cover plate of the compressor.
• The equipment should be kept away from humid places where water is present. Water should be removed from any surface of the appliance as soon as possible with a soft cloth. This will help prevent rust and help your appliance operate at maximum efficiency.
• WARNING: Do not hold on to the door or interior fittings to move the appliance. This could cause it to fall and cause serious injury.
  It is not recommended to install the equipment in a place where the temperature may drop below 0°C or exceed 43°C. The compressor would not be able to maintain the proper temperature inside.

3.4. Before installation

Thickness of refrigerator door panel A (mm)	Clearance (backlash) X (mm)	Ref. Width of door panel B (mm)
		Full overlap (Mode 1)	Full overlap (Mode 2)
16 - 22	4	796	794
23 - 25	4	796 (R >= 7)	794 (R >= 9)

• For example, the design clearance should be 4 mm when the thickness of the outer door panel is 20 mm.
• The width of the cabinet door panel is 796 mm in full overlap mode 1, or 794 mm in full overlap mode 2.
• Fig. 4 key:

1.- Full overlap (Mode 1)
2.- Full overlap (Mode 2)

A: Thickness of the refrigerator cabinet door panel
B: Width of the refrigerator cabinet door panel
X: Clearance (Free space)

Furniture requirements:

• The width of the upper door is "B"; the height depends on the cabinet.
• The door panel and the cabinet have a full overlap.
• The height of the plinth must be between 80 and 120 mm; otherwise, it may affect the cooling of the product.
• The hole for the power cable and water supply pipe can be drilled on one side only or on both sides, depending on the actual conditions.
• The socket outlet must be located in the adjacent cabinet.

3.4.1 Tools required for installation (NOT INCLUDED)

- It is recommended that the entire process be performed by professional installers.

Tools needed:

3.4.2 Furniture inspection

• Check that the dimensions of the cabinet and door panels meet the above requirements.
• Check the power cord.
• Check the power supply (220-240 V\~, 50 Hz). It should be located outside the refrigerator cabinet and close to the refrigerator opening for easy connection and disconnection.
• Check the grounding.
• Make sure that the above requirements are met before proceeding to the next step of the installation.

3.4.3 Unpacking of the refrigerator

• Remove the product box and top foam. The lower air inlet/outlet cover is located in the upper foam.
• Remove the protective foam from the sides and inside of the product.
• Lift the product (two or more people are recommended) and remove the bottom protective foam.
• Open the refrigerator door and remove the installation accessories.

WARNING: The product must be installed and fixed according to the specifications included in this manual, to avoid risks due to instability.

3.4.4 Attaching the refrigerator and cabinet

• Open the refrigerator door, insert two guide limit pieces into the two holes of the two hinges, upper and middle (Figure 5). Close the door.
  Fig. 5 key:
  1.- Guide limit piece
• On the other side, install a fastening piece on the cabinet using two countersunk head screws (Figure 6).
  Fig. 6 key:
  1.- Furniture
  2.- Furniture fastening piece
• Connect the power cord to the "Jack" connector located at the bottom rear of the refrigerator. Plug the power cord plug into the power outlet (through the hole in the cabinet).
• Push the refrigerator into the cabinet and carefully pull the power cord at the same time to prevent it from getting tangled or crushed.
• Position the refrigerator keeping in mind that the end of the bottom rear cover of the refrigerator should be flush with the face of the cabinet (Figure 7).

Fig. 7 key:

1.- Flush with the furniture here.

ENGLISH

- Turn the adjusting pin nuts with a hex wrench clockwise to raise the front of the product, or counterclockwise to lower it. The adjustment is made when the upper and intermediate limit guide pieces are positioned on the cabinet surface (Figure 8).

Fig. 8 key:

1.- Adjusting Pin Nut
2.- Hexagon wrench (not included)

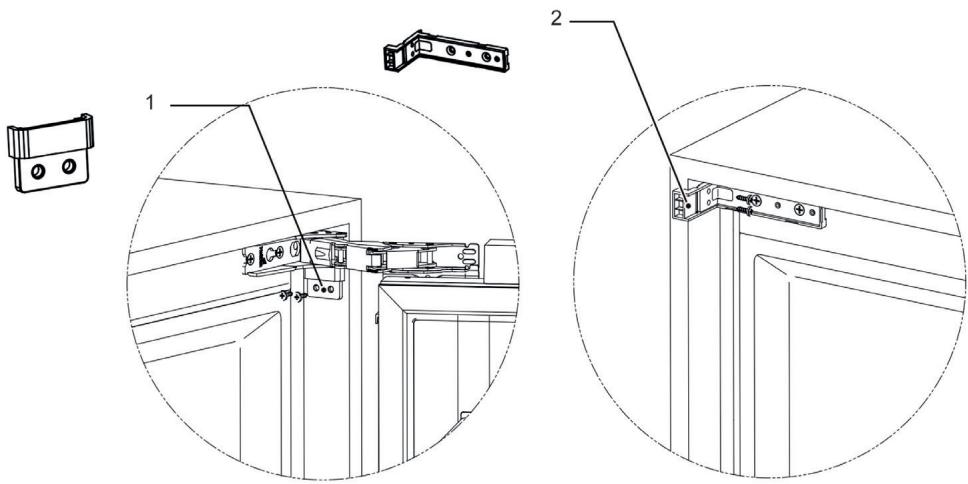

- Open the product door, remove the hinge guide limit piece and install the fixing frame with two self-tapping screws. Replace the guide limit piece of the other hinges one by one. On the other side, use two countersunk head Phillips screws to install a fastener on the cabinet. After installation, separate this part from the furniture fixture (Figure 9).

Fig. 9 key:

1.- Mounting frame
2.- Furniture fastening

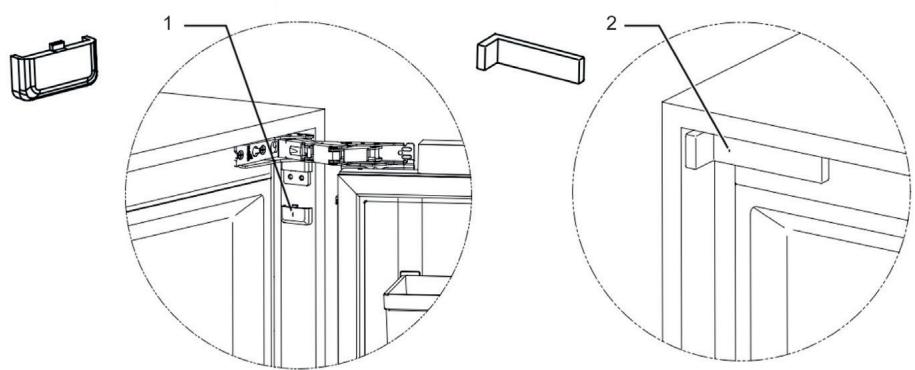

- Attach the cover of the fixing frame once it has been fixed. Cover the furniture fixture (Figure 10).

Fig. 10 key:

1.- Fixing frame cover
2.- Cover of the furniture fixture

3.5. Cabinet door and refrigerator door installation

• Install the door handle on the cabinet door.
• Measure the distance from the mounting plate to the top of the cabinet with a tape measure (not included).
• First, install the cabinet door over the refrigerator, loosen and remove the hex flange nuts. Remove the upper fixing plate from the refrigerator door (Figure 11).

Fig. 11 key:

1.- Hexagonal flange nut
2.- Refrigerator mounting plate

Attachment of top plate and cabinet door:

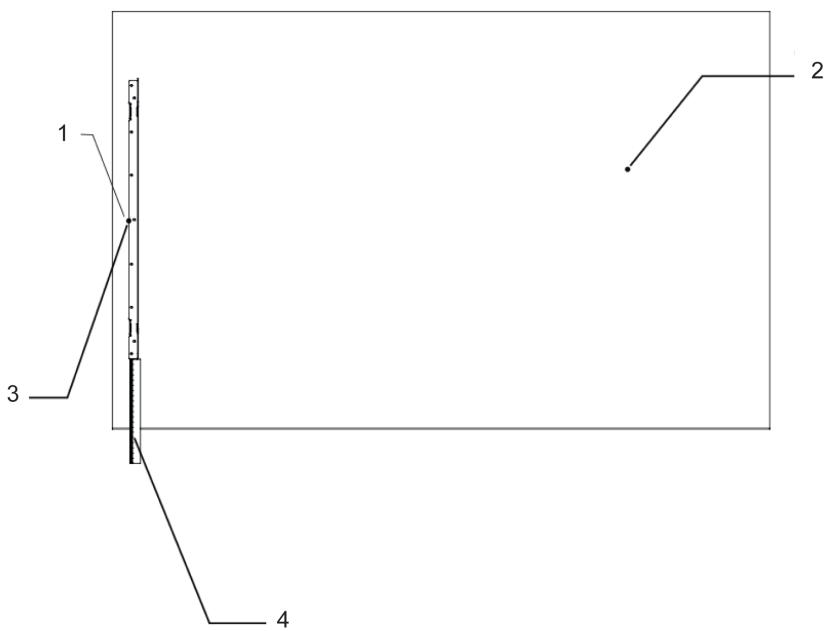

- Place the upper fixing plate on the cabinet door. Refer to the measurements obtained above. Align the center of the top mounting plate with the centre of the cabinet mounting plate and confirm its position on the door. Fasten the upper fixing plate and the cabinet door with the flat head self-tapping star screws (Figure 12).

Fig. 12 key:

1.- Centre
2.- Furniture door
3.- Centre the upper fixing plate in the middle of the cabinet.
4.- Measure the distance to the edge with a ruler or tape measure.

- Measure the distance from the top plate of the cabinet to the side. Adjust the size indicated on the slider "R" of the work plate to the measured position to lock the screw. The central boundary of the working plate is a section fixed to the top plate. Place the furniture plate in the corresponding slot of the work plate. Secure the cabinet plate and cabinet door with flat head self-tapping screws on both the left and right sides (Figure 13).

Fig. 13 key:

1.- Furniture door
2.- Centre the upper fixing plate in the middle of the cabinet.
3.- The size of the "R" slider is adjusted to the measured size.
4.- Furniture fixing plate

- Install the cabinet door on the refrigerator door and hang it (Figure 14).

Fig. 14 key:

1.- Hexagonal flange nut
2.- Refrigerator mounting plate

3.6. Refrigerator cabinet door adjustment

• Vertical adjustment of the cabinet door: Turn the refrigerator adjustment bolts clockwise/counterclockwise with an Allen wrench to move the door up or down.
• Horizontal adjustment of the cabinet door: Turn the side fixing screws of the refrigerator door clockwise/counterclockwise with an Allen key to move the door to the left or right.
• Front/rear adjustment at the top of the cabinet door: Move the top of the cabinet door to adjust it according to the clearance between the top fixing plate and the refrigerator.
• Front/rear adjustment in the central part of the cabinet door: Move the cabinet door forward/backward until it reaches the correct position and then tighten the hexagonal set screw on the sides of the refrigerator door.
• Front/rear adjustment at the bottom of the cabinet door: Make the adjustment according to the clearance between the lower clamping plate and the clamping plate screws. This setting must be calibrated repeatedly to reach an acceptable state.

3.7. Cabinet door and freezer door installation

- Placement of the handles on the cabinet doors: Using a tape measure, measure the distance between the bottom edge of the cabinet panel and the bottom of the notch in the end of the freezer drawer door (Figure 15).

Fig. 15 key:

1.- Measure the bottom edge of the cabinet top adjusted up to here.

- Loosen and remove the hex flange nut and the drawer door attachment plate (Figure 16).

Fig. 16 key:

1.- Hexagonal flange nut
2.- Freezer drawer door fixing plate (3 pcs.)

ENGLISH

- Drawer on fixed plate and fixed cabinet door: The working plate "F" is adjusted to the above measurements. The locking screw slides the drawer against the edge of the cabinet door. The centre of the work plate aligns with the middle of the cabinet top. The drawer door on the fixed plate is inserted into the corresponding slot. The flat head self-tapping screws are placed in the fixed drawer door plate and the fixed cabinet door (Figure 17).

Fig. 17 key:

1.- Slider "F" set to the measured size
2.- Central alignment of the worktops with the middle of the cabinet tops.
3.- Drawer door fixing plate (3 pcs.)

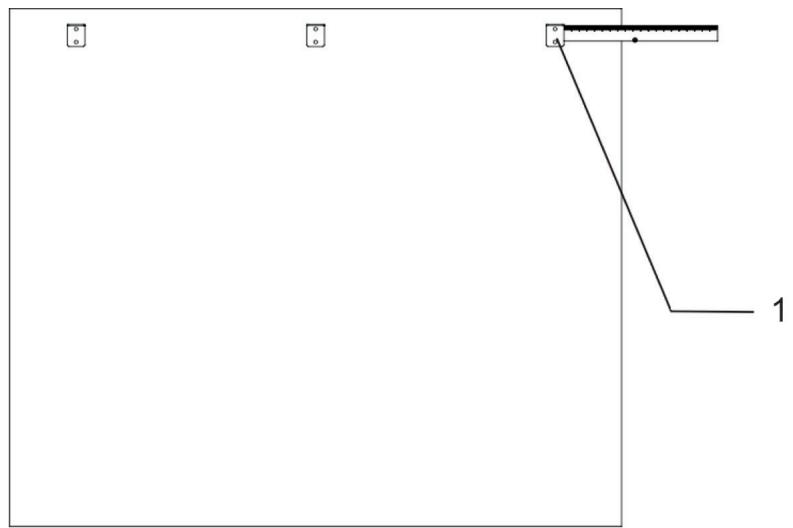

- Measure the distance from the fixed drawer door attachment plate to the side of the cabinet panel (Figure 18).

Fig. 18 key:

1.- Measure the distance from here to the edge.

- The limit slot of the working plate is located in the drawer door fixing plate. The slider rests against the side of the cabinet door. Place the cabinet fixing plate into the corresponding slot in the work plate and secure it to the cabinet door with the flat head self-tapping screw (left and right) (Figure 19).

Fig. 19 key:

1.- Place the corresponding notches of the fixing lever on the drawer mounting plate.
2.- Slider "D" adjusted to the measured size
3.- Furniture fixing plate

- Once all cabinet door mounting plates are attached, hang the cabinet door over the drawer door (Figure 20).

Fig. 20 key:

3.8. Cabinet drawer door adjustment

• Vertical adjustment of the cabinet door: Turn the refrigerator adjustment bolts clockwise/ counterclockwise with an Allen wrench to move the door up or down.
• Horizontal adjustment of the cabinet door: Turn the side fixing screws of the refrigerator door clockwise/counterclockwise with an Allen key to move the door to the left or right.
• Front/rear adjustment on the upper side of the cabinet door: Move the top side of the cabinet door to achieve a front/top fit according to the front/top gap between the top mounting plate and the refrigerator.
• Front/rear adjustment on the lower side of the cabinet door: Make the adjustment according to the front/rear clearance between the lower fixing plate and the fixing plate screws.
• The above setting must be calibrated repeatedly to reach an acceptable state.

3.9. Fastening of cabinet door and refrigerator

- Attach the hex flange nuts to the refrigerator door mounting plate (Figure 21).

Fig. 21 key:

1.- Hexagonal flange nut
2.- Refrigerator door mounting plate

- Attach the side set screws and hex head set screws to the side of the refrigerator door (Figure 22).

Fig. 22 key:

1.- Fixing screw with hexagonal head
2.- Fixing screw
3.- Allen key

- Slightly loosen the hexagon socket head cap screws on the lower fixing plate and the refrigerator door until the lower fixing can be moved in all directions. Then fasten the bottom mounting plate and the cabinet door with self-tapping flat head screws. Adjust the cabinet door to the correct position and tighten the socket head cap screws (Figure 23).

Fig. 23 key:

1.- Self-tapping flat head screws
2.- Furniture fixing plate (2 pcs.)

- Fasten the drawer door fixing plate and the cabinet door. Then tighten the hex flange nut on the door fixing plate (Figure 24).

Fig. 24 key:

- Attach the side set screws and hex set screws to the side of the drawer door (Figure 25).

Fig. 25 key:

1.- Hexagonal head fixing screws
2.- Fixing screw
3.- Allen key

3.10. Installation of refrigerator accessories

- Insert the top and bottom trims into the top and bottom external covers of the refrigerator (Figure 26).

Fig. 26 key:

1.- Upper trim
2.- Lower trim

- Place the trim on the top of the freezer drawer (Figure 27).

ENGLISH

Fig. 27 key:

1.- Freezer drawer trim

- Insert the bottom air inlet cover on the bottom of the product (Figure 28):

Fig. 28 key:

1.- Lower air inlet/outlet cover

2.- Press this switch (ON/OFF) when you need to turn on the product.

NOTE: The lower air inlet/outlet cover must not be obstructed.

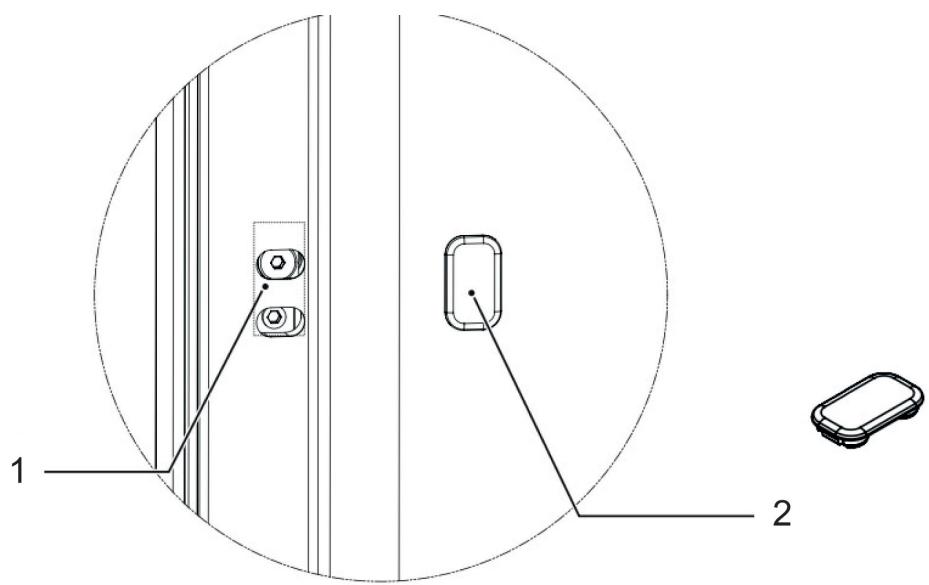

- Place the screw cap in the side notch of the refrigerator door (Figure 29).

Fig. 29 key:

1.- Lateral notch

2.- Screw cap

3.11. Placing the shelves

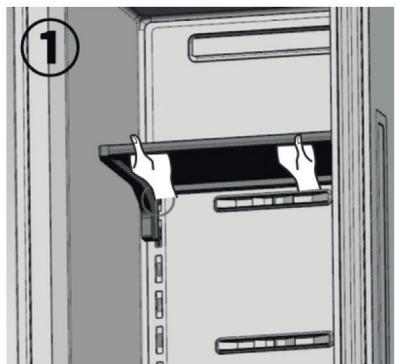

- Hold the front of the tray with both hands. Lift the tray completely. The rear end of the frame cannot be lifted (in the limit position). At this point, the tray fasteners are completely loose. Remove the slot and lift the tray during the process. The tray is approximately 7 mm thick (Figure 30).

Fig. 30 key:

1. Tray elevation limit block

- Simply pull the tray out (Figure 31).

3.12. Placing the door shelves

- Grasp both sides of the door shelf with both hands and lift it all the way up until the jammed rear end. The shelf fixture will completely disengage from the slot. The whole process requires lifting the door shelf about 7 mm.

- Simply pull the door shelf outward (Figure 32).

Tips

- The transparent part of the bottle holder* and the aluminium alloy holder can be separated. Pay attention when disassembling.

- The design of the bottle holder prevents accidental contact and accidental dropping. If during disassembly the lifting distance is too great, it is very likely that the bottle holder cannot be removed. In this case, it is recommended to remove the bottles. Move the bottle holder down slightly before attempting to remove it.

*Not included in all models.

3.13. Replacing the lighting source

• Any replacement or maintenance of the lamp must be carried out by Cecotec's Official Technical Support Service or a similar qualified professional.
• This product contains 4 light sources of energy efficiency class F and 1 light source of energy efficiency class E*.

*This data may vary depending on the refrigerator model.

3.14. Preparation

- Once the appliance is properly installed and cleaned, do not turn it on immediately, wait 4 to 6 hours before operating. This will ensure that the refrigerant is fully stabilized and that the compressor oil is properly seated, ensuring maximum cooling capacity while avoiding possible damage.

3.15. Refrigerator relocation

- If you need to move the device from one location to another, follow the steps below:

1.- Remove all items and unplug the appliance.
2.- Disconnect the plug.
3.- Tape all parts, accessories and the door to prevent them from falling off when moving the unit.
4.- The transport of the device must be carried out carefully by two or more persons. When transporting the device over long distances, keep it in an upright position.

NOTES:

• The refrigeration and freezing speed of the appliance depends on the amount of food stored and the ambient temperature. If too many room temperature foods are introduced at the same time, the temperature should be reduced.
• Large foods should be divided into small pieces for freezing, otherwise they may deteriorate.
• Check that all accessories are properly in place before connecting the equipment and inserting the food.

If the appliance is installed in a wet place, be sure to check if the earthed cable and the circuit breaker are working normally. If vibration noises occur due to contact of the appliance with the wall or if the wall becomes discoloured due to air convection around the compressor, keep the appliance further away from the wall. This appliance may cause interference in mobile phones, landline phones, radio receivers, or televisions near the refrigerator, so in this case, keep the appliance as far away from these objects as possible.

4. OPERATION

4.1. Refrigerator connection

• Connect the plug to the power socket and switch on the appliance using the power switch.
• IMPORTANT: Check that the voltage and electrical frequency match the data indicated on the nameplate of the refrigerator.
• The compressor will start, and the refrigerant gas will begin to flow through the piping, this will produce a soft humming sound. This indicates that the device is switched on.
• If the device makes unusual noises, check that it is level and stable and remove any objects that may be on top of it.
• When first switched on, the display will show the default temperature values.
• The initial default temperatures are as follows:

☐ +5°C in the refrigerator compartment*.

☐ -18°C in the freezer compartment*.

*These values may vary depending on the refrigerator model.

- The default mode is power saving mode: The display is shown for 30 seconds and then turns off. This mode is more efficient, saves energy and prolongs the life of the LED icons.

4.2. Control panel

- Figure 33 shows the control panel.

Fig. 33 key:

1.- Water storage tank light icon
2.- Ice tank full light icon
3.- Fast Freezing function indicator light
4.- Freezer compartment temperature display
5.- Refrigerator compartment temperature display
6.- Fast Cooling function indicator light
7.- Lock function light icon

Touch icon for activation of the "Lock/Unlock" function (Lock/Unlock).

9.- Fast Cooling function touch icon
10.- Touch icon for increasing the refrigerator compartment temperature.
11.- Touch icon to decrease the temperature of the refrigerator compartment.
12.- Press both touch icons simultaneously to switch off the refrigerator compartment.
13.- Touch icon of freezer compartment temperature increase
14.- Touch icon for decreasing the freezer compartment temperature
15.- Fast Freezing function touch icon
16.- Touch icon for activation of the ice making device

The actual control panel may vary from one refrigerator model to another.

4.3. Temperature settings

Temperature ranges set:

1.- Refrigerator compartment temperature range: 2\~8 °C (default value: 5°C)* 2.- 8 °C (default value: 5°C)* 2.- 8 °C (default value: 5°C)* 3.

Freezer compartment temperature range: -23\~-15 °C (default value: -18°C)* 2.- Freezer compartment temperature range: -23\~-15 °C (default value: -18°C)* 3.

*These values may vary depending on the refrigerator model.

• Let the appliance run idle (without introducing food) for at least 4 hours to allow the compartment to cool to the proper temperature. If food is introduced before the appliance has cooled down completely, it may spoil.
• Once the appliance has cooled down completely, insert the food and set the desired temperature.
  NOTE: In summer, when the temperature is high, food may take longer to cool completely (try to open the door as rarely as possible).
• To adjust the refrigerator compartment temperature, press the temperature increase and decrease touch icons (10 and 11 on the control panel).
• To adjust the freezer compartment temperature, press the temperature increase and decrease touch icons (13 and 14 on the control panel).

4.4.Fast Cooling function

• To activate this function, press the "Fast Cooling" function activation touch icon (9).
• The refrigerator compartment display will show 2°C and the light icon (6) will be activated.
• This function adjusts the temperature to 2^ C in the refrigerator compartment, ensuring rapid temperature reduction when storing large quantities of hot food or food at room temperature.
• The function will remain active until 2^ C is reached. If it does not reach the specified temperature after 2 hours and 30 minutes, the function will be deactivated. The device will then return to its original configuration.
• Both the "Fast Cooling" and "Fast Freezing" functions can operate simultaneously.
• To deactivate this function, press the "Fast Cooling" function activation touch icon (9) again and the illuminated icon (6) will go out.

4.5. Fast Freezing function

• To activate this function, press the "Fast Freezing" function activation touch icon (15).
• The freezer compartment display will show -23°C and the light icon (3) will be activated.
• This function quickly reduces the temperature when storing large quantities of hot or room temperature food in the freezer compartment.
• The function will remain active until -23^ is reached. If it does not reach the specified temperature after 2 hours and 30 minutes, the function will be deactivated. The device will then return to its original configuration.

ENGLISH

• Both the "Fast Cooling" and "Fast Freezing" functions can operate simultaneously.
• To deactivate this function, press the Fast Freezing activation touch icon (15) again and the illuminated icon (3) will go out.

NOTE: The "Fast Freezing" function is designed to preserve the nutritional value of the food in the freezer compartment. It allows to freeze them in a minimum time. If a large quantity of food is frozen at the same time, it is recommended to activate this function. This increases the freezing speed, which effectively preserves food nutrients and facilitates storage.

4.6. Memory function

- If there is a power failure, the current operating status will be locked. Once the power supply is restored, operation will continue as configured prior to the outage.

* Availability according to model.

4.7. Error codes

• If a fault occurs in the appliance, the control panel display will show its associated error code.
• Even if the device was capable of cold storage with these malfunctions, it is recommended to contact the Cecotec Technical Assistance Service as soon as possible.

Error code	Fault description
ER rS fS	Refrigerator compartment temperature sensor fault
ER ds	Refrigerator compartment defrost temperature sensor fault
ER CO	Electronic board (PCB) communication error
ER rH	Room temperature sensor fault
ER FF	Freezer compartment fan error
ER CF	Condensation fan error
ER dH	Defrost timeout error

NOTE: If any other error code appears, turn off the appliance and contact Cecotec's Official Technical Support Service.

4.8. Switching the refrigerator compartment on and off\*

• Press and hold the refrigerator compartment temperature increase (10) and decrease (11) touch icons for 10 seconds to turn the refrigerator compartment on or off.
• When switching off, the refrigerator compartment temperature display will turn off and the refrigerator compartment will disconnect.
• When the refrigerator compartment is switched off, do the same operation again to switch it back on.

*Only available on certain refrigerator models.

- When the refrigerator door remains open for more than 1 minute, an acoustic warning will sound to remind you to close the door.

4.10. Adding water to the storage tank

- Clean the water reservoir and fill it before turning on the ice maker (Figure 34).

Fig. 34 key:

1.- Water storage tank

- ⚠️ Fill with potable water only.

- Once the refrigerator is operating stably, the ice maker will start to operate. When turned on for the first time, ice cubes will be available after 12 hours*.

*This time may vary depending on multiple factors. In summer, with high temperatures, the time can increase significantly.

- When there is little water left in the tank, the light icon (1) will flash.

- Refill the reservoir with potable water to avoid affecting normal ice production.

- Do not exceed the maximum water level in the tank (2.5 litres).

4.11. Ice production device

- When the device is turned on, the ice maker switch is automatically turned on and the light icon (16) is activated on the control panel (Figure 33).

Fig. 35 key:

- When the switch is manually turned off, the illuminated icon (16) will go out.

- When the ice storage tank is full, the indicator light (2) will be activated on the control panel, and the ice maker will stop working.

- The device can produce approximately 2 kg of ice every 24 hours*.

*This value is approximate and may vary depending on multiple factors.

- When the freezer compartment reaches the set temperature, the device can produce the first batch of ice for several hours.

- When the device is producing ice cubes, you may hear a beeping sound coming from the water valve, the sound of flowing water and the sound of falling ice cubes.

4.12. Lock/Unlock function

- By pressing the "Lock/Unlock" function activation touch icon (8) for 3 seconds, the device will lock, and the illuminated icon (7) will be activated.

- While the refrigerator is in lock mode, the touch icons on the control panel will not function; when pressed, the light icon (7) will flash.

ENGLISH

- To unlock the device, repeat the operation again.

All touch icons must be pressed with the refrigerator in "Unlocked" state, except the door open alarm cancel; Otherwise, an acoustic warning will be emitted, the touch icons will be locked will flash.

5. FOOD STORAGE INSTRUCTIONS

5.1. Freezer compartment

• The freezer compartment is designed for low temperature freezing of food, long-term storage of frozen food and ice cubes.
• Pay attention to the ratings according to the number of stars in the freezer compartment and the resulting storage periods for frozen foods.
• Do not store fresh and frozen foods side by side. Frozen foods may thaw.
• When freezing large quantities of fresh foods, such as meat or fish, divide them into several small pieces before storing so that they can be quickly frozen and easily removed.
• Do not store poisonous or dangerous substances in the freezer compartment. Your freezer is designed to store only edible products.
• There should always be some space between the food inside to allow air to circulate.
• Food should be kept in airtight containers to avoid drying out or giving off odours.
• Let hot food cool down to room temperature before putting it in the freezer compartment.
• Reducing the frequency of door opening can reduce electricity consumption.
• Do not open the door frequently or leave it open longer than necessary.
• If the room temperature is high, the selected temperature is also low and the freezer compartment is full, the compressor may run continuously, causing frost or ice formation on the evaporator. If this happens, increase the freezer temperature.
• Ensure good ventilation.
• Before freezing, wrap and seal fresh food with aluminium foil, film, freezer bags, airtight containers, etc.
• It is advisable to label and date all frozen foods. This will help to identify foods and to know when they should be used before they spoil.
• Observe the storage times recommended by food suppliers.
• Food must be fresh when you freeze it (especially fruit and vegetables).
• Do not freeze bottles or cans containing liquids, particularly carbonated drinks, as they may explode during freezing.
• Do not put hot food in the freezer compartment. Cool them to room temperature before placing them.
• Do not use ice cubes or eat ice cream or popsicles immediately after removing them from the freezer.

• Do not refreeze thawed food. If the food has thawed, cook it, allow it to cool and then freeze it.

• Consume thawed food immediately.

• Too low a temperature setting may shorten the service life of the freezer compartment.
• The entire freezer compartment is suitable for the storage of frozen food products.
• Leave enough space around the food to allow air to circulate freely.
• For proper storage, refer to the label on the food package.
• It is important to wrap the food in such a way as to prevent water from entering.
• Before storing food, make sure that the packaging is not damaged as the food may deteriorate. If the container is swollen or damp, it may not have been stored under optimal conditions.
• To limit the defrosting process, place frozen food immediately in the freezer after purchase.
• If food has thawed, even partially, do not refreeze it. Consume them as soon as possible.
• In the event of a prolonged power failure or equipment breakdown, remove stored frozen foods and check if they are still edible. Then store them in a sufficiently cool place or in another freezer.
• To thaw foods, remove them from the freezer and let them thaw at room temperature or in the refrigerator compartment. For quick defrosting, you can use the microwave defrost function.
• If you only want to thaw part of a package, remove the portion you need and immediately close the rest. This will prevent freezer burn and reduce icing of the remaining food.
• CAUTION: Storing too much food during operation after initial connection may adversely affect the freezing effect.
• IMPORTANT: Prolonged storage at inadequate freezing temperatures can cause loss of quality or spoilage of food and may even cause food poisoning. The minimum temperature in most cases should be -18^ or lower.
• Observe the expiry date and the storage instructions on the package. The following table shows approximate storage time (Note: these times depend on many factors):

Food item	Storage time (months)
Bread	3
Fruit (except citrus)	6-12
Vegetables	8-10
Meatless leftovers	1-2
Daily food
Butter	6-9
Mild cheese (e.g. mozzarella)	3-4
Strong cheese (e.g. parmesan, cheddar)	6
Fish and seafood
Oily fish (e.g. salmon, mackerel)	2-3
White fish (e.g. cod, sole)	4-6
Shrimp	12
Shelled clams and mussels	3-4
Cooked fish	1-2
Meat
Poultry	9-12
Beef	6-12
Pork	4-6
Lamb	6-9
Sausages	1-2
Ham	1-2
Leftovers with meat	2-3

• The following foods are suitable for freezing: cakes, pastries, fish, seafood, meat, game, poultry, vegetables, fruit, aromatic herbs, shelled eggs, dairy products such as cheese and butter, prepared dishes and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
• The following foods are not suitable for freezing: vegetables that are usually eaten raw, such as lettuce or radishes, shell eggs, grapes, apples, whole apples, pears and peaches, hard-boiled eggs, yoghurt, sour milk, sour cream and mayonnaise.

5.2. Refrigerator compartment

• The refrigerator compartment is to be used primarily for storing food that will be consumed within a short time.
• Do not store poisonous or dangerous substances in the refrigerator compartment. Your refrigerator has been designed to store only edible products.
• To reduce moisture and subsequent ice buildup, never put liquids in an unsealed container. The scales tend to concentrate in the cooler areas of the evaporator. Storing liquids uncapped means more frequent thawing.
• Never place hot food in the refrigerator compartment. They should first be cooled to room temperature and then placed in such a way as to ensure adequate air circulation inside.
• Food and containers should not touch the rear wall of the refrigerator compartment, as they may freeze.

• Do not open the door too often.

• Dairy products and eggs: Store them in the refrigerator compartment and consume them before their expiration date.

• Butter can be spoiled by other strong-smelling foods, so it is best to store it in an airtight container.
• Red meat: Place fresh red meat in a dish and cover it loosely with cling film or aluminium foil. Store cooked and raw meat in separate dishes, this will prevent the juice from the raw meat from contaminating the cooked product.
• Chicken and poultry: Fresh whole poultry should be rinsed inside and out with cold clean water, dried and placed on a plate. Cover lightly with cling film or aluminium foil. Poultry pieces should also be stored in this manner. Whole poultry should never be stuffed until just before cooking, as food poisoning may occur.
• Fish and seafood: Whole fish should be consumed the same day they are purchased. Until use, refrigerate in a dish lightly covered with cling film or aluminium foil. If storing overnight or longer, take special care to select very fresh fish. The whole fish should be rinsed with cold water to remove loose scales and dirt and then dried with paper towels. Place whole fish in an airtight plastic bag. Keep seafood refrigerated at all times. Consume in 1 or 2 days.
• Precooked foods and leftovers: Store them in suitable containers with lids so that they do not dry out. Keep only 1 to 2 days. Reheat leftovers only once and until they are heated through.
• Crisper drawer: It is the most optimal place to store fresh fruits and vegetables. Be careful not to store the following foods at temperatures below 6°C for prolonged periods: citrus fruits, melons, pineapple, papaya, curry, passion fruit, cucumber, peppers and tomatoes. At low temperatures, undesirable changes will occur, such as pulp softening and browning or accelerated decomposition. Do not store avocados (until ripe), bananas or mangoes.

Food item	Storage place in the refrigerator compartment*
Butter, cheese	Upper door shelf
Eggs	Shelf
Fruits, vegetables, salads	Crisper drawer
Meat, sauces, milk, cheese	Lower area (lower tray)
Dairy products, canned foods	Upper area or door shelf
Drinks, bottles	Door shelf

*Location may change depending on refrigerator model.

Avoid direct contact of stored food, especially greasy food, with the interior wall covering. If the interior shows oil or grease stains, clean it immediately to avoid prolonged contact with the coating, as this can lead to corrosion and cracking.

ENGLISH

5.3. Energy saving recommendations:

• Close the door carefully and make sure that it is completely closed after use, otherwise the freezer will consume more energy and more ice will form.
• Do not place the freezer near stoves, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and longer, resulting in higher energy consumption.
• Ensure that there is sufficient ventilation at the base, sides and rear of the unit.
• The arrangement of drawers, shelves and trays as shown in the product overview provides the most efficient use of energy and should be maintained as much as possible.
• To obtain more storage space, e.g. for large refrigerated or frozen products, you can remove the central drawers and accessories. The top and bottom drawers and accessories should be removed at the end, if necessary. (IMPORTANT: the number of accessories depends on the refrigerator model).
• Arrange the interior space uniformly to contribute to optimal energy use.
• Let hot food items to cool before placing them inside. This will increase energy efficiency.
• Allow frozen foods to defrost in the refrigerator compartment. Chilling frozen food reduces energy consumption in the refrigerator compartment
• Open the door only as far as necessary to minimize cold loss. Opening the door promptly and closing it properly reduces energy consumption.
• Set the temperature no colder than necessary to contribute to optimal energy use.
• The door seals must be in perfect condition in order for the doors to close properly.

Freezer compartment:

• Prepare the fresh food you want to freeze in small portions to ensure rapid freezing.
• Wrap all food in aluminium foil or plastic freezer bags and make sure to remove air.

6. CLEANING AND MAINTENANCE

Before cleaning the appliance, disconnect it from the mains. Wait at least 5 minutes before restarting, as frequent starting may damage the compressor. Do not touch the plug with wet hands; doing so may result in electric shock. Avoid spilling water on the appliance, so that it does not rust or cause an accident.

6.1 Cleaning the interior and exterior

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended in this instruction manual.
• Food residues can produce unpleasant odours, so you should clean the interior of the appliance on a regular basis.
• Use a soft cloth or sponge to clean the inside of the product. You can use two tablespoons of baking soda and one liter of warm water. Then rinse with clean water and dry thoroughly.

After cleaning, open the door and allow it to air dry before turning it on.

• For hard-to-reach areas, such as corners, a soft-bristled cloth or brush is recommended to ensure that contaminants and bacteria do not accumulate.
• Clean the dust that accumulates on the rear panel frequently to avoid fire hazards as well as increased power consumption. It is recommended at least once a year.
• If you have used mild soap, be sure to rinse it with clean water. Next, dry it with a dry cloth.
• Do not use any abrasive materials or corrosive products to clean the unit, hard or wire brushes, organic solvents (alcohol, acetone, benzene, isoamyl acetate, etc.), boiling water, acidic or alkaline products, as they may damage the surface or the interior and deform or damage plastic parts.
• Clean the exterior surface with a soft cloth dampened with soapy water, neutral detergent, etc., and then wipe dry.
• Check the door gasket regularly to ensure that there is no debris. Clean the gasket with a soft cloth lightly dampened with soapy water or diluted mild soap. Carefully dry the door seal.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affecting the electrical insulation.
• Do not spray or spray water on the outside or inside of the device.
• Do not use mechanical means, such as dryers, to dry the interior.
• It is recommended that the refrigerator be operated continuously after start-up. As a general rule, its operation should not be interrupted, otherwise its service life could be affected.

6.2 Interruption of use of the appliance for a long period of time

If the appliance is not to be used for several months, first switch it off and disconnect the plug from the mains socket.

Remove all the food.

• Clean and dry the interior completely. To avoid mould or unpleasant odours, leave the door slightly open.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• Keep the appliance out of the reach of children, so that they do not play with it.

6.3 Power failure or cooling system fault

• Generally, a brief power failure does not significantly affect the temperature of the refrigerator.
• If the appliance stops working for a prolonged period of time, food may spoil.
• Try to open the appliance door as little as possible, this way you will be able to preserve the food in good condition for a while.

• If you know that a power cut is going to occur in advance:

• Select the lowest temperature in advance or activate the "Fast Freezing" function. Do not introduce new food. Adjust the temperature back to the original setting when power is restored.

ENGLISH

Note: It is best not to interrupt the operation of the appliance; this could affect its lifespan. If the ambient temperature is too low during shutdown, the remaining water in the system may freeze.

6.4 Defrosting

- Although your appliance defrosts automatically, over time, a layer of frost may form on the inside walls of the freezer compartment if the door is opened frequently or kept open too long. If frost build-up becomes excessive, choose a time when food storage levels are low and proceed as follows:

1.- Disconnect the appliance from the mains.
2. Remove all food items and internal accessories, leaving the doors open. Ventilate the room well to speed up the defrosting process.
3.- After defrosting is complete, clean the freezer compartment as described above.
4. Thoroughly dry the interior before replacing accessories and food items.

CAUTION! Do not use sharp objects to remove frost from the freezer compartment.

Do not reconnect the appliance to the mains until the interior is completely dry.

6.5 Cleaning door shelves

• Disassemble the shelves as explained in this manual.
• After washing the shelf with warm water, dry it thoroughly and return it to its original position.

6.6 Cleaning of the trays

• You can remove the trays from their guides for cleaning.
• Clean the trays with lukewarm water and replace them once they are thoroughly dry.

6.7 Cleaning of refrigerator compartment drawers

• Remove the contents of the drawer.
• Grasp the drawer handle (if any) and pull it all the way out as far as it will go.
• Lift the drawer and remove it by pulling it out
• Clean the drawer with lukewarm water and replace it once it is completely dry.

WARNING! Due to technical changes and different models, some of the illustrations cations in this manual may differ from those of your refrigerator model.

6.8 Safety check after maintenance

• Check that the power cable is not broken or damaged.
• Check that the plug is correctly inserted into the socket.
• Check that the plug does not overheat.

Note: If the power cord and plug are damaged or dusty, electric shock and fire may occur.

If there is any malfunction, disconnect the power cable and contact the official Cecotec Technical Support Service.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Fault	Possible causes	Possible solutions
The appliance does not work.	The appliance is not plugged into the mains.	Unplug the cable and plug it in again.
	Circuit breakers or fuses are damaged.There is no electricity.	Check the electrical panel of your electrical installation
The light does not work.	The appliance is not connected to the mains	Plug the device in
	The lamp is burned out	The lamp must be replaced by Cecotec's Official Technical Support Service or a qualified technician.
Fruits and vegetables are frozen	Are they placed at the rear of the refrigerator compartment? The area near the rear wall is where the temperature is lowest.	Do not place food that can easily freeze in the back of the refrigerator compartment.Store fruits and vegetables in their corresponding drawer.
Refrigerator/freezer cools down too much	The temperature control is not set correctly	Set a higher temperature
The appliance makes noise	The appliance is not stable.	Place the freezer on a level surface.
	The appliance touches the wall.	Move the appliance away from the wall.
The appliance has low cooling efficiency.	The food inside is hot or there is too much food.	Introduce food in the appliance when it is at room temperature.
	You open the door too often.	Keep the door closed.
	Something is caught in the door gasket.	Remove the object obstructing the door gasket.
	The appliance receives direct sunlight or is close to a heat source.	Remove the appliance from the heat source.
	The place where the appliance is placed is not well ventilated.	Ventilate the room.
	The selected temperature is too high.	Adjust the temperature.
The appliance gives off unpleasant odours.	There is spoiled food inside.	Dispose of food which is spoiled. Clean the interior of the appliance.
	There is food with a strong odour inside.	Pack the strong-smelling foods.
Compressor runs for a long time	High ambient temperature results in extended operating time	This is normal
	Too many foods are introduced at the same time	Do not put in too much food at the same time
	Food is introduced while still hot	Wait for the food to cool before putting it in the freezer.
	The door is opened too often	Open the door only when it is absolutely necessary
	The layer of frost on the inside is too thick	Needs defrosting
The door does not close properly	Some object jams the door	There is too much food, or it is not placed in the correct way.
	There is too much food in storage	Do not overload the refrigerator with food
	Door seal is deformed.	Heat the gasket with an electric dryer or hot water, then let it cool and replace it. If the problem persists, contact Cecotec's Official Technical Support Service
The external part is hot	When the unit is in operation, the heat is dissipated to the outside through the metal tubes inside the unit	It is normal for the outside temperature to be higher.
	Higher ambient temperature in summer causes an increase in the outside temperature	Increase the heat dissipation space or place the unit in a cooler, more ventilated location.
Condensation forms on the outside	Condensation may form when the humidity in the room is high or during the rainy season.	This is normal. Wipe off condensation with a dry cloth
Condensation forms inside the refrigerator compartment	Refrigerator compartment maintains high humidity to keep vegetables and other foods fresh	Wipe off condensation with a dry cloth
	The humidity in the room is too high and the appliance doors have been opened frequently	Do not open the doors too often or keep them open for too long.
	The door gasket is not maintaining airtightness	Check door seal
It is difficult to open the door	The difference in air pressure between the inside and outside of the freezer can sometimes make it difficult to open the door.	Wait a few moments and then try to open the door slowly.
Frost around the ventilation louvers	The door is not closed properly	Make sure that food does not block the door.
	Door gasket not tightened properly	Check the door gasket
Actual temperature differs from set temperature	When hot foods are introduced, the temperature will temporarily rise.	This is normal
	After setting a new temperature, it will take some time to reach the new temperature.	Wait for some time before checking the actual temperature.
	After temperature stabilization, the actual temperatures at the different points in the compartments vary, with an approximate deviation of +/- 3°C.

ENGLISH

Note: If none of these situations match your problem, do not attempt to disassemble or repair the appliance yourself. All repairs must be carried out by qualified personnel. Contact Cecotec's Official Technical Support Service. Repairs must be carried out by an authorised technician and only original spare parts must be used.

When the appliance is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

These instructions are intended for qualified technicians, do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by an incorrect repair will void the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

NOTE:

• Certain sounds during normal operation are expected and do not affect proper operation.

• Avoidable sounds:

• Noise from unlevelled appliance: adjust position using front adjustable feet (not available on all models).
  • Noise from contact with adjacent furniture or cabinet: move appliance away.
  • Creaking from drawers or shelves: remove and reinsert.
  • Clinking bottle sounds: separate bottles.

• Normal operating sounds are primarily due to compressor operation (start-up) and the cooling system (thermal expansion and contraction caused by refrigerant flow).

• When operating the appliance for the first time, it will run at high speed to cool quickly, and the compressor noise may seem louder. When the internal temperature drops below a certain level, the noise will decrease.
• Normal sounds will occur when the compressor starts up or shuts down, when various components expand or contract, when control devices are operating, when temperature changes occur within the refrigerator.
• △During operation, the external temperature of the compressor is above 80°C. Do not touch it, as this could cause serious injury.
• If room temperature is too high, compressor start-up time may be extended. This is a normal phenomenon.

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality

standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Vriezercompartiment:

7. PROBLEEMOPLOSSING

ت Connectivity Engineering, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG, RFG

1. -Discounted coverage coverage: 2\~8% coverage of the first 5% coverage of the second 5% coverage of the third 5% coverage of the fourth 5% coverage of the fifth 5% coverage of the sixth 5% coverage of the seventh 5% coverage of the eighth 5% coverage of the sixth 5% coverage of the seventh 5% coverage of the eighth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 5% coverage of the sixth 30%.

2-Discounted coverage coverage (in %) - 15% - 23% - 18% - 18% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 23% - 20

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./ Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./Rys. 15

Fig./Img./Abb./Afb./ Rys. 16

Fig./Img./Abb./Afb./ Rys. 17

Fig./Img./Abb./Afb./Rys. 18

Fig./Img./Abb./Afb./Rys. 19

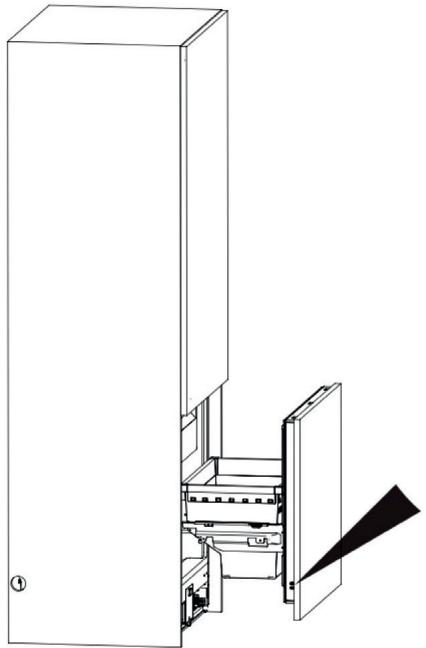

Fig./Img./Abb./Afb./Rys. 20

Fig./Img./Abb./Afb./Rys. 21

Fig./Img./Abb./Afb./Rys. 22

Fig./Img./Abb./Afb./Rys. 23

Fig./Img./Abb./Afb./Rys. 24

Fig./Img./Abb./Afb./Rys. 25

Fig./Img./Abb./Afb./Rys. 26

Fig./Img./Abb./Afb./Rys. 27

Fig./Img./Abb./Afb./ Rys. 28

Fig./Img./Abb./Afb./Rys. 29

Fig./Img./Abb./Afb./Rys. 30

Fig./Img./Abb./Afb./ Rys. 31

Fig./Img./Abb./Afb./Rys. 32

Fig./Img./Abb./Afb./Rys. 33

Fig./Img./Abb./Afb./Rys. 34

Fig./Img./Abb./Afb./Rys. 35

www.cecotec.es
