WHUD03HE51 - Air-conditioner PANASONIC - Free user manual and instructions

Product type	Reversible air conditioner (heating and cooling)
Brand	Panasonic
Model	WHUD03HE51
Power supply	230 V ~ 50 Hz
Nominal heating power	Approximately 3.5 kW
Nominal cooling power	Approximately 3.0 kW
Indoor unit dimensions (W x H x D)	Approximately 800 x 280 x 220 mm
Indoor unit weight	Approximately 12 kg
Outdoor unit dimensions (W x H x D)	Approximately 800 x 600 x 300 mm
Outdoor unit weight	Approximately 35 kg
Refrigerant	R32
Main functions	Heating, cooling, dehumidification, ventilation, Turbo mode, Silent mode, weekly scheduling
Control	Remote control with display, child lock
Maintenance and cleaning	Regular air filter cleaning (approximately every 2 weeks)
Safety	Overcurrent protection, automatic shutdown in case of fault, remote control lock
Spare parts and repairability	Filters, remote control, electronic boards available from after-sales service
General information	User manual of 88 pages available in multiple languages

Frequently Asked Questions - WHUD03HE51 PANASONIC

How to activate Turbo mode for quick heating?

Select the Turbo Heating icon in the quick menu. The powerful mode starts about 1 minute after activation. It is disabled when operation is stopped.

How to use silent mode?

Select the Silent mode icon in the quick menu. Silent mode starts about 1 minute after activation.

How to force the backup resistance for domestic hot water (DHW)?

Select the Force DHW backup icon in the quick menu. Activation is indicated by the operation icon. Note: this function is disabled if Force heating is active.

How to program the week (Weekly schedule)?

In the quick menu, select Weekly schedule. You can choose up to 6 programs per day, set the time, mode (heating/cooling) and temperature. Use the ▲ ▼ buttons to navigate.

How to force defrosting of frozen pipes?

Select the Force defrosting icon in the quick menu. Confirm with the ↓ key. A message 'Request accepted' is displayed.

How to reset error codes?

Select Initialize error codes in the quick menu. Make sure all units are stopped before confirming. This restores previous settings.

How to lock the remote control?

Select Remote lock in the quick menu, then confirm with 'Yes'. To unlock, press any key and enter a 4-digit code (default 0000). To reset the password, on the stopped screen, press and hold , and for 5 seconds and select 'Reset'.

How to clean the indoor unit filters?

Open the front panel of the indoor unit, remove the filters, clean them with a vacuum cleaner or with warm soapy water, dry them completely before putting them back. Recommended frequency: every 2 weeks.

What to do if the appliance displays an error code?

Consult the manual for the meaning of the code. In the quick menu, use Initialize error codes to clear the error after resolving the cause. If the problem persists, contact after-sales service.

How to use the 'Force backup heating' mode?

Select the Force backup heating icon in the quick menu. The backup electric resistance activates about 1 minute later. Note: this function is disabled when the system is in normal operation.

USER MANUAL WHUD03HE51 PANASONIC

Shah Alam Industrial Site, 40300 Shah Alam,

Selangor Darul Ehsan, Malaysia.

Quick Menu Guide

Air-to-Water Hydromodule + Tank

Installation Instructions attached.

Serial number and production year please refer to name plate.

Please read the Operating Instructions thoroughly before using the Quick Menu.

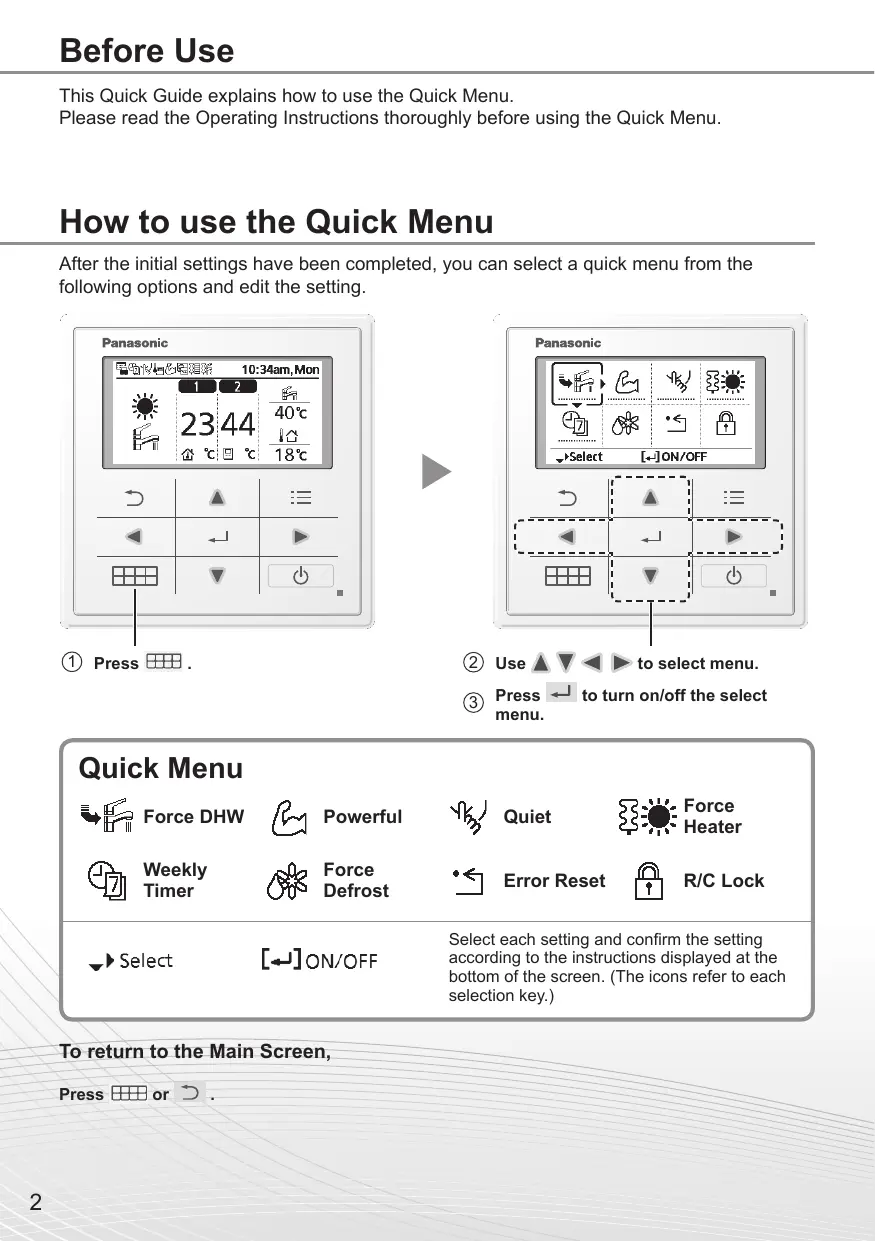

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

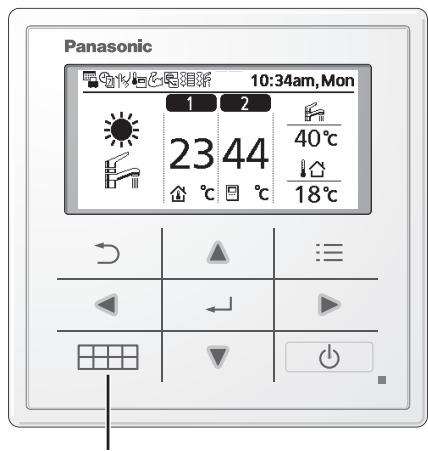

① Press .

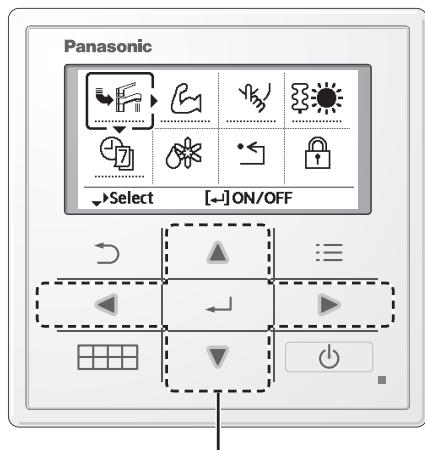

② Use ▲ ▼ ▶ ▷ to select menu.
③ Press ← to turn on/off the select menu.

Quick Menu
Force DHW	Powerful	Quiet	Force Heater
Weekly Timer	Force Defrost	Error Reset	R/C Lock
Select	[←]ON/OFF	Select each setting and confirm the setting according to the instructions displayed at the bottom of the screen. (The icons refer to each selection key.)

To return to the Main Screen,

Press or

Notes on operation icon

Example:

Operation icon indicate with "..........." = OFF

Operation icon indicate with “——” = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.
• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

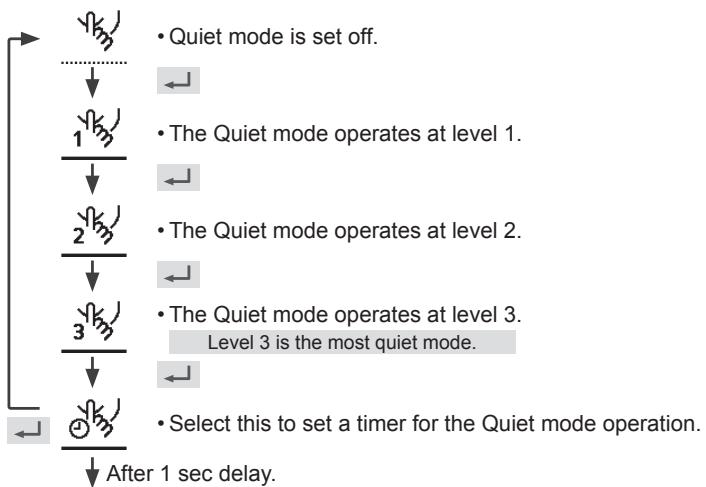

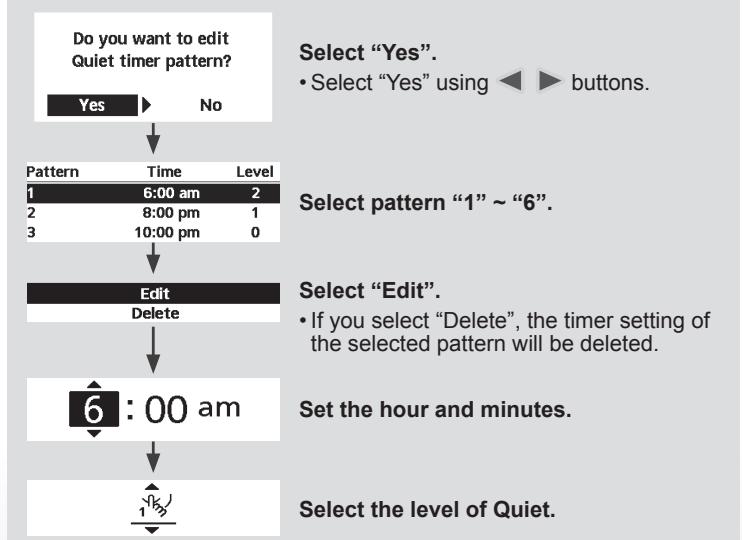

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

Note:

• If the time overlaps with another pattern, "Set time is overlapped!" will appear on the screen.

Force Heater

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is pressed.)

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to operation ON!

[Close

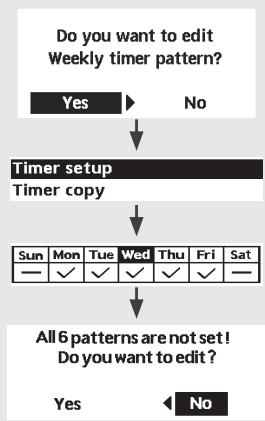

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.

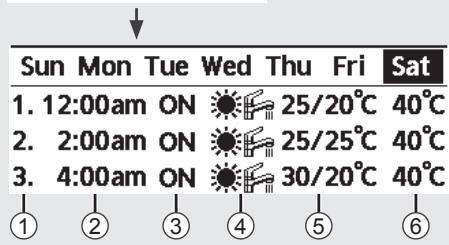

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

① Select pattern “1” ~ “6”.
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.
④ Select the operation mode.

A/A/（//）/

• Select mode using buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
  If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Force Defrost

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[ ] Close

Error Reset

Select to restore the previous settings when error has occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[ ] Close

• Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

R/C Lock

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control?

Yes No

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1 Password is reset to 0000

2.Remote control is unlocked

(The screen will be off after 3 seconds.)

Disabled due to operation ON!

[Close

Week-timer

Do you want to lock remote control?

Yes

No

-EvOeIgN eikovoiou λειούργiας με"……" = OFF

Eveiŋ eiovioiu λeitoupyiaε" = ON

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C	45°C

Do you want to lock remote control?

Yes

No

ETIIAEETE "Yes".

1.Password is reset to 0000

2.Remote control is unlocked

Zone1		Zone2
ON	25°C	ON	25°C

Disabled due to operation ON!

[Close

Kraftfull inaktiveras nar driften stangs AV.

Tystläge

Väljennaikonforattdravystyst.

Disabled due to operation ON!

[Close

Viikkoajastin

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Aseta sällön lämpötila.

Huomautus:

Do you want to lock remote control?

Yes No

Vaelg dette ikon for at stille drift.
