UTTING EDGE: ANOTHER WORLD FIRST FROM METABO!

With a choice of 4 blade options the tool-less Metabo Quick blade change system is

a world first for hedge trimmers. lt offers two distinct advantages from the off: on one hand, you can replace your blunt blade yourself without having to bring the whole machine in for servicing; on the other, you can cover several uses with one machine - trim large surfaces with a long blade, cover all your general jobs with a

medium blade or choose a shorter blade for more delicate, intricate work. Metabo.

METABO IS SIMPLY A CUT ABOVE THE REST.

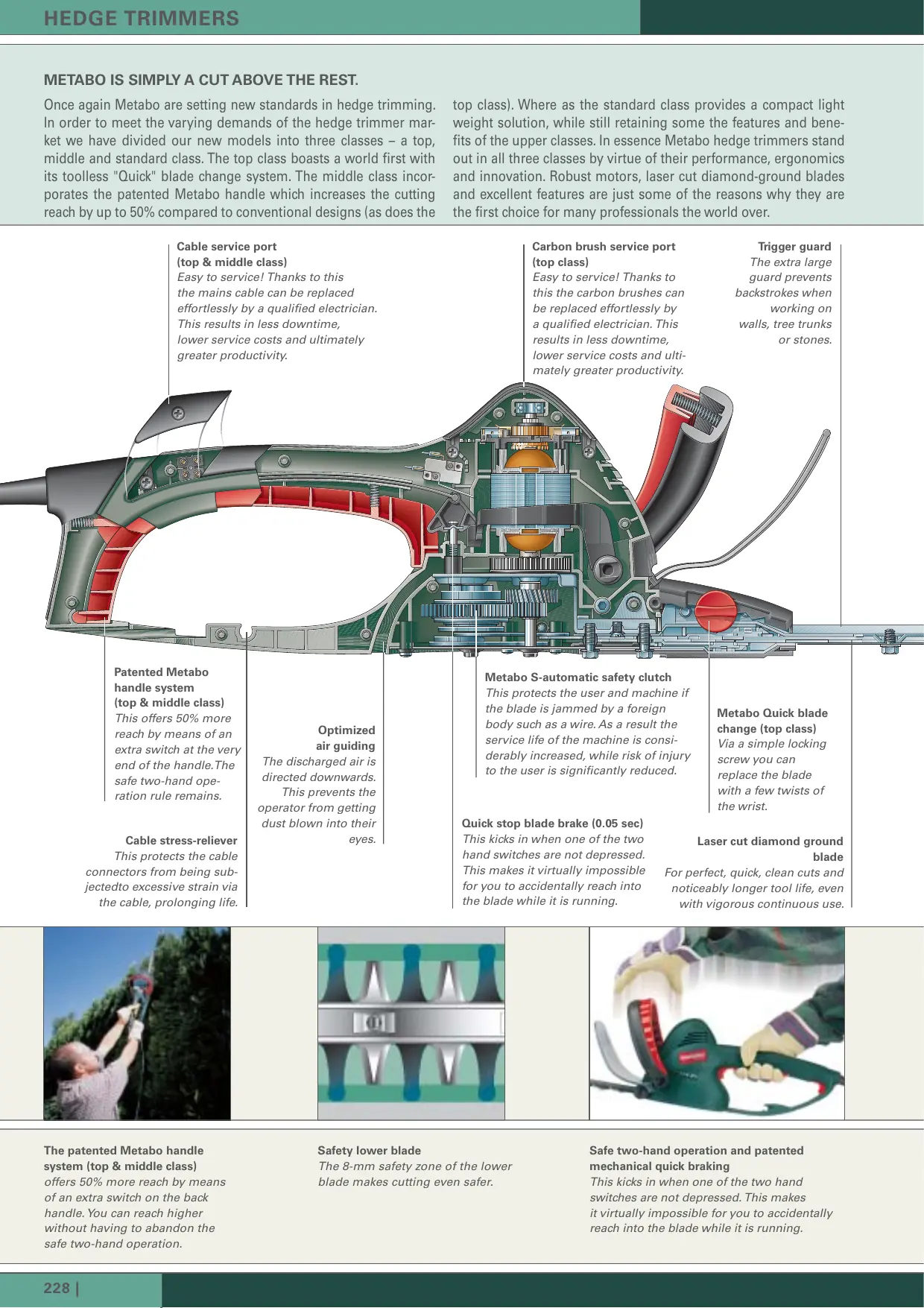

Once again Metabo are setting new standards in hedge trimming. In order to meet the varying demands of the hedge trimmer mar- ket we have divided our new models into three classes — a top, middle and standard class. The top class boasts a world first with its toolless "Quick" blade change system. The middle class incor- porates the patented Metabo handle which increases the cutting reach by up to 50% compared to conventional designs (as does the

top class). Where as the standard class provides a compact light weight solution, while still retaining some the features and bene- fits of the upper classes. In essence Metabo hedge trimmers stand out in all three classes by virtue of their performance, ergonomics and innovation. Robust motors, laser cut diamond-ground blades and excellent features are just some of the reasons why they are the first choice for many professionals the world over.

Cable service port top & middle class) Easy to service! Thanks to this

the mains cable can be replaced effortlessiy by a qualitied electrician. This results in less downtime,

lower service costs and ultimately greater productivity.

Patented Metabo handle system {top & middle class) This offers 50% more reach by means of an extra switch at the very end of the handle. The safe two-hand ope- ration rule remains.

Optimized air guiding

The discharged air is directed downwards. This prevents the operator from getting dust blown into their Cable stress-reliever eyes. This protects the cable connectors from being sub- jectedto excessive strain via the cable, prolonging life.

Carbon brush service port Trigger guard {top class) The extra large Easy to servicel Thanks to guard prevents this the carbon brushes can backstrokes when be replaced effortlessly by working on a qualified electrician. This walls, tree trunks results in less downtime, or stones.

lower service costs and ulti- mately greater productivity.

Metabo S-automatic safety clutch This protects the user and machine if the blade is jammed by a foreign body such as a wire. As a result the service life of the machine is consi- derably increased, while risk of injury to the user is significantly reduced.

Metabo Quick blade change (top class) Via a simple locking screw you can replace the blade with a few twists of the wrist.

Quick stop blade brake (0.05 sec) This kicks in when one of the two hand switches are not depressed. This makes it virtually impossible for you to accidentally reach into

the blade while it is running.

Laser cut diamond ground blade

For perfect, quick, clean cuts and noticeably longer tool life, even with vigorous continuous use.

The patented Metabo handle system (top & middle class) offers 50% more reach by means of an extra switch on the back handle. You can reach higher without having to abandon the safe two-hand operation.

The 8-mm safety zone of the lower blade makes cutting even safer.

Safe two-hand operation and patented mechanical quick braking

This kicks in when one of the two hand switches are not depressed. This makes

it virtually impossible for you to accidentally reach into the blade while it is running.

= Safety two-handed operation and patented mechanical quick braking (blade quick stop in 0.05 seconds)

Cleaner cut due to double ground blade teeth at 30° angle Especially sharp diamond-ground blade teeth

Metabo S-automatic torque limiting clutch Quiet running and very good ergonomy Cable strain relief

Trigger-guard with twig feed

SAWS SPECIAL-PURPOSE MACHINES

z 2° 2e 22% EE Hz 5< 20 ü

Q Z $3 450 Watt Hedge Trimmer 450 Watt Hedge Timmer 450 Watt Hedge Trimmer 48 HS 45 HS 55 HS 65 Sa 22 rE Ê£ Comparative device characteristics 45 Cutting strength 18 mm 18 mm 18 mm sr Cutting length 450 mm 550 mm 650 mm = Blade clearance 28 mm 28 mm 28 mm Number of cuts at no load 3.100 /min 3.100 /min 3.100 /min Rated input power 450W 450 W 450W Weight (without mains cable) 34kg 3,6 kg 3,8 kg 83 Q 20 Standard equipment Trigger guard, container Trigger guard, container Trigger guard, container & 2 È 8 2e Type HS 45 HS 55 HS 65 Order no. 6.20016 6.20017 620018" > Accessories Order CE no. ZA ÉË £ Cable strain relief 631070 à Ordi un 3 £ er = For attaching between the 5% no. Ë machine power plug and Hedge trimmer maintenance oil spray 6.320475 the extension lead socket = Vegetable-based {prevents the plug of the = Also suitable for the cordless hedge power tool from accidentally trimmer Hs À 8043 being pulled out of the socket) Maintenance, pump-spray-can, with 0.3 litre capacity Hedge tri int il, 6.30474 cege trmmer maintenance of Full-view safety goggles 6.31071

= Very comfortable full-view safety goggles. UV protection 2-1, coating on the lens: scratch-free on the outside and mist-free on the inside.

COMPRESSED AIR SYSTEMS

= Also suitable for the cordless hedge trimmer Hs À 8043

Titre = Vegetable-based

= Up to 50% range increase due to patented Metabo handle system

= Safety two-handed operation and patented mechanical quick braking (blade quick stop in 0.05 seconds)

= Safety lower blade

= Cleaner cut due to double ground blade teeth at 30° angle = Fatigue-proof operation due to ergonomic full grip bow-type handle design and optimum centre of gravity position

= Quite running due to shear blades running

in opposite direction

Metabo S-automatic torque limiting clutch Quiet running and very good ergonomy

User-friendly guidance of machine exhaust in all

working situations Cable strain relief Trigger-guard with twig feed

Comparative device characteristics

Trigger guard, container

Type HS 8545 HS 8555 HS 8565 Order no. 6.08545 6.08555 6.08565 Accessories Orcen no. Order a & Cable strain relief 6.31070 = For attaching between no. the machine power plug Hedge trimmer maintenance 6.30475 and the extension lead oil spray socket (prevents the = Vegetable-based plug of the power tool = Also suitable for the cordless from accidentally being hedge trimmer Hs À 8043 pulled out of the socket) Maintenance, pump-spray-can, with 0.3 litre capacity Hedge trimmer maintenance oil, 6.30474 Titre Full-view safety goggles 6.31071

= Vegetable-based = Also suitable for the cordiess hedge trimmer Hs À 8043

= Very comfortable full-view safety goggles. UV protection 2-1, coating on the lens: scratch-free on the outside and mist-free on the inside.

= Metabo "Quick": patented quick change of cutter bar without tools = Quite running due to shear blades running

= Up to 50% range increase due to patented Metabo handle system in opposite direction

= Especially high cutting output due to two-level reduced gear = Metabo S-automatic torque limiting clutch

= Safety two-handed operation and patented mechanical *_ Quiet running and very good ergonomy quick braking (blade quick stop in 0.05 seconds) = User-friendiy guidance of machine exhaust in

= Safety lower blade all working situations

= Cleaner cut due to double ground blade teeth at 30° angle = Cable strain relief

= Especially sharp diamond-ground blade teeth = Trigger-guard with twig feed

= Fatigue-proof operation due to ergonomic full grip bow-type

handle design and optimum centre of gravity position = Large hand guard

HS 8655 Quick HS 8665 Quick

FIRST OF ITS KIND IN THE WORLD ——N THE WORLD reddot … With Metabo "quick"-blade design award Le change, patented keyless quick winner 2007 change system. 650 Watt Hedge Trimmer 650 Watt Hedge Timmer 650 Watt Hedge Timmer HS 8655 Quick HS 8665 Quick HS 8675 Quick Comparative device characteristics Cutting strength 26 mm 26 mm 26 mm Cutting length 460 mm 560 mm 660 mm Blade clearance 26 mm 26 mm 26 mm Number of cuts at no load 3.000 /min 3.000 /min 3.000 /min Rated input power 650 W 650 W 650 W Weight (without mains cable) 42kg 44kg 4,6kg Standard equipment Trigger guard, container Trigger guard, container Trigger guard, container Type HS 8655 Quick HS 8665 Quick HS 8675 Quick Order no. 6.08655 6.08665 6.08675

Hedge trimming blade

= For quick replacement of blunt blades with sharp blades

= For trimming hedges with different blade lengths: large surfaces with long cutter bars: filigree profile cuts with short cutter bars

= All cutter bars fit on all hedge trimmers with "Quick blade change

Blade length Order mm no. Alalajal [vw] 450 6.24575 rene Dew] 550 6.24576 ET ln LOLTAICIOC NE Fe] 650 6.24577 750 6.24578 alaiaiah
