USER MANUAL 260 KERO

DIMENSIONS (HxLxP) (mm) 44x47x31 50x47x31 POIDS NET 8,2 kg 9,2 kg POIDS BRUT 9,2 kg 11 kg PAYS D'ORIGINE CHINA CHINA OUI OUI RESERVOIR AMOVIBLE RESERVOIR AMOVIBLE

J NOTES D'INFORMATION

TYPE VERWARMING VERMOGEN

VERBRUIK 200glh 250g/h AUTONOMIE +/- 13h +/- 13,4h TANKINHOUD 3,21 4,01 Correct peil Petroleumpeil brandstof voor té hoog

KAPAZITÀT DES HANDTANKS

PORTABLE RADIANT TYPE

FUEL TANK CAPACITY

DIMENSIONS (HxWXD) (mm) CHINA CHINA BUILT-IN BUILT-IN LIFT-OUT CARTRIDGE LIFT-OUT CARTRIDGE BUILT-IN BUILT-IN

YES YES REGULATION 10% YES YES Technlcal data is subject to change by the LNE without notice.

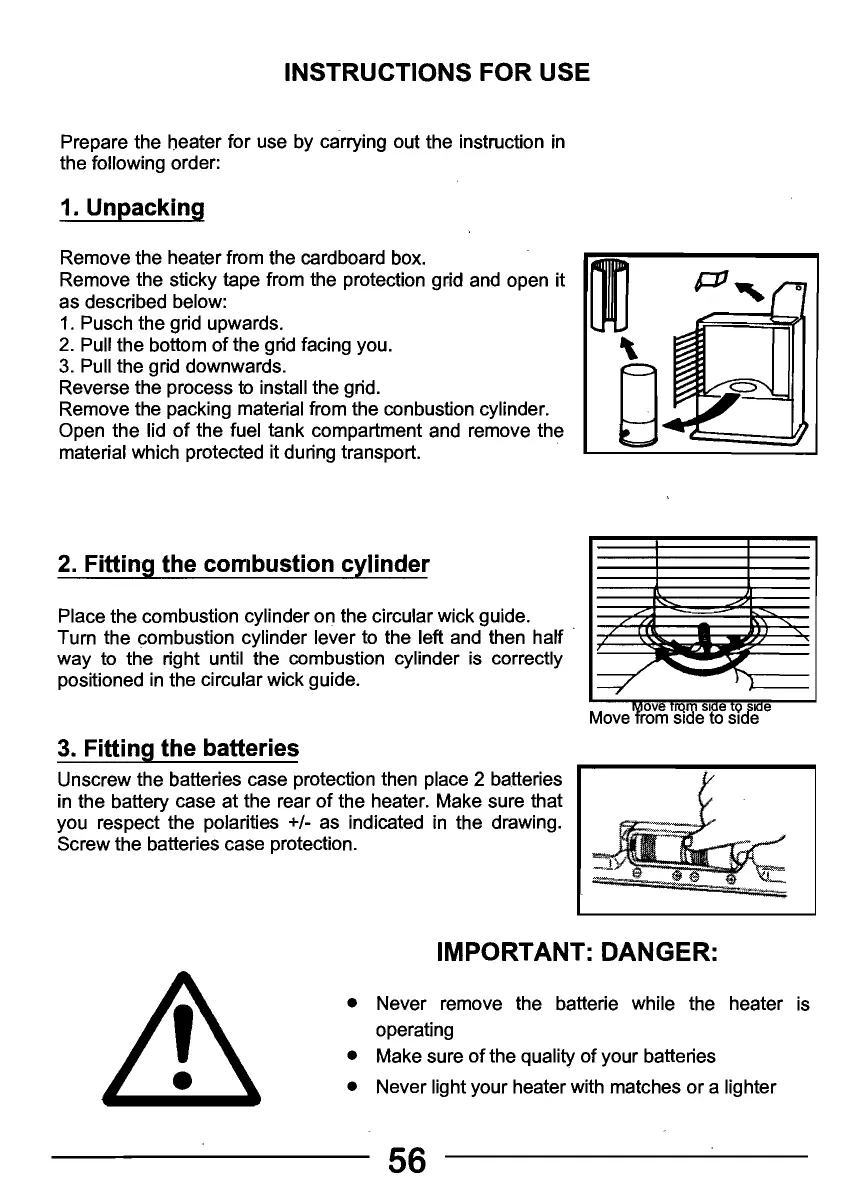

INSTRUCTIONS FOR USE

Prepare the heater for use by carrying out the instruction in the following order:

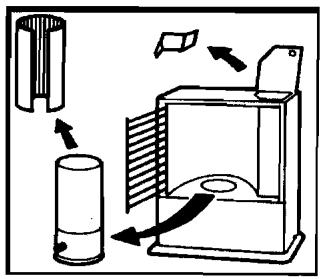

1. Unpacking

Remove the heater from the cardboard box. Remove the sticky tape from the protection grid and open it as described below:

1. Pusch the grid upwards.

2. Pull the bottom of the grid facing you.

3. Pull the grid downwards.

Reverse the process to install the grid. Remove the packing material from the conbustion cylinder. Open the lid of the fuel tank compartment and remove the material which protected it during transport.

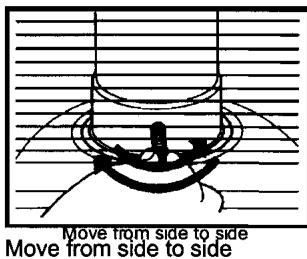

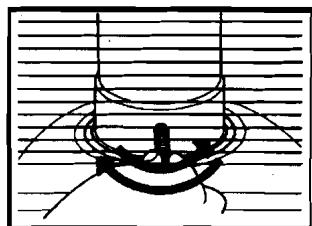

2. Fitting the combustion cylinder

Place the combustion cylinder on the circular wick guide. Turn the combustion cylinder lever to the left and then half . way to the right until the combustion cylinder is correctly positioned in the circular wick guide.

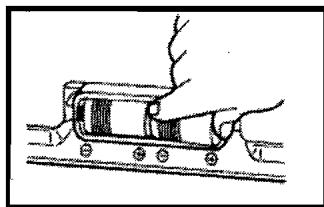

3. Fitting the batteries

Unscrew the batteries case protection then place 2 batteries in the battery case at the rear of the heater. Make sure that you respect the polarities +/- as indicated in the drawing. Screw the batteries case protection. IMPORTANT: DANGER:

Never remove the batterie while the heater is operating Make sure of the quality of your batteries

Never Iight your heater with matches or a Iighter

UQUID COMBUSTIBLE FOR MOBILE HEATER

Type of Iiquid combustible for mobile heater Tosaïne Tosaïne.p/us We advise you to use the or betterthe More than 95 % of problems are due to using a wrong type of liquid combustible for mobile heater. Those problems are not covered by our warranty. Only top-quality liquid combustible for mobile heater, with the aromatics removed and totally free of impurities (max 1 % of aromatics and a flash-point above 61°). Never use contaminated liquid combustible for mobile heater, or which has been chemically treated, contains water or petrel. Your container should be clean and empty when you fill it at a stations-service. No impurities or other Iiquids (water, diesel, gazoline, etc.) should remain. Vou ought to keep a container specifically for filling your heater. Storage of the Iiquid combustible for mobile heater Store your liquid combustible for mobile heater away from the sun and from other heat sources. Liquid combustible for mobile heater which has been stored too long loses its purity and thus its efficiency. Filling with Iiquid combustible for mobile heater Fillirig procedure and precautions: Do not put your container on or near the heater while filling the tank. Lift the lid of the tank compartment and open il. Use a pump to fill the tank with liquid combùstible for mobile heater. Keep on filling until the level of fuel reaches the middle of the fuel gauge. Tank removed, your heater will automatically shutt off.

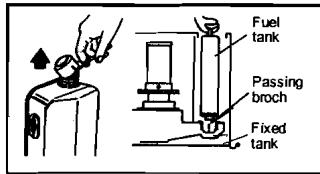

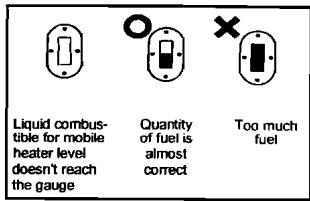

Reading the fuel gauge Presence of Iiquid combustible for mobile heater will make move the reading on the gauge into the black.

Stop filling when the uqutd combustible for mobile heater Liquid combus- Quantity tible for mobile of fuet level reaches the middle of the gauge. heatertevel almesl doesn'treacn correct XLiJ c!J T00 much

fuel the gauge Close the tank securely, and wipe away any spills. Turn the tank over, so that the filler orifice is facing downwards, and carefully put it back into its place.

Obtaining the right quantity of liquid combustible for mobile heater When the level of fuel in the tank goes down, the fuel gauge will indicate this. The fuel in the tank will be completely used about three hours burning after the fuel gauge reached the halfway level.

F uel tank Passing broch Fixed tank ~Fuell_1 ~(Black) Fuel gauge PREPARING TO LlGHT THE HEATER Levelling the heater Make sure that the heater is standing on a level surface. If the heater is not level, the automatic shut-off device maybe prevented from working. Automatic shut·off device in case of knocks Push the ignition lever downwards untill it stops. The automatic shut-off device (in case of knocks) is ready to work If the knob does not remain downwards, the automatic shut-off device is working. Do not try again and" ventilate the room. Wick The first time you use a wick, let it absorb liquid combustible for mobile heater for about one hour. Only use liquid combustible for mobile heater with the aromatics removed, with a flashpoint above 61 and free of any impurities, in order to ensure that your wick lasts for a long time. If you find that the wick ls abnormally hard, if it is blocked or burning is abnormal, have it replaced by a qualified specialist, for example, the supplier of your heater.

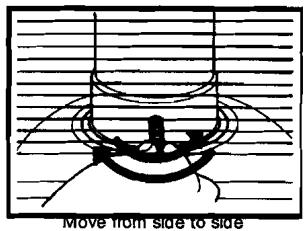

Before you Iight the heater, check the following points: The combustion cylinder must be proprely positioned. Make it rotate pushing the lever from left to right and make sure it is correctly fitted. When you use the heater for the first time, odours may persist for a certain time after lighting. This is normal, as oil and protective grease in the heater have to be burnt off. Slowly push the ignition lever downwards until it stops and keep the knob downwards. The wick will rise and the heater ignites automatically. Check visually that the heater is alight. After having carried out the ignition procedure, there may be some white smoke coming out of the ignition zone, without the heater being lit. In this case, move up the ignition lever part way through its travel and the heater will start to operate. This operation must be done slowly and gently.

Adjusting the height of the flamme Combustion can be optimized within a range of 10% by adjusting the height of the flame (cf hereafter). Bad combustion Good combustion Insufficient heating of the upper part of the system. Check the qua lity of the fuel Bad combustion Flame is dangerously high If despite the regulation, the flame is too high or if the heater unevenly (its colour is not uniform), take the lever on the combustion cylinder and shake it gently once or twice. If the problem subsists, stop the heater and contact your retailer. If you continue using your heater with bad combustion, soot and/or CO emission will result.

For a shut-off push the "STOP button". The automatic shut-off device against knocks will automatically be activated, it wililower the wick very quickly and also put out the f1ame. It is possible that an excess accumulation of carbon and other deposits on the wick will prevent proper operation of the automatic shut-off device. Make always sure to visually check that the automatic shut-off device has operated proprely. When Iighting the heater again Precautions: After tuming off the heater, wait at least five minutes before lighting the heater again. If the combustion cylinder has not had time to cool down, Iighting the heater again may result in odours being given off.

TROUBLE SH0011NG GUIDE

ln case of problems, check here before you take your heater to your dealer. Possible cause Batteries may be fiat orweak Ignition plug filament may be bent or broken Wick ls toc low, too high or incorrectly installed Solution Bumer is not operly positioned

Liquid combustible for mobile heater is of poor quality or contaminated with water Wick may be dirty Replace the batteries.

Wick guide assembly may be damaged Wick is not correctly seated in wick assembly

Use wick adjustment knob to adjust wick for proper exposure. If adjusting the wick fails, reinstall wick to proper height. Rotate bumer right and left to position properly. Replace contaminated or poor quality Iiquid combustible for mobile heater supply.

• • • • • • • • Check wick assembly for proper seating and general condition. Replace if necessary.

Reinstall wick correctly in wick assembly. SPECIFICATIONS KERO MARCA RADIADOR PORTATIL DEP6sITO AMOVÎVEL TANKVOLUM MAL (m/m) FueileIEi doesn't reach thegaL\le

Quartity of fLS ls amost conect Tao much fuel

.,. 1 tank broch Fixed tank Ffc?JR OVNEN TENNES Plant und~rlag Flame is dangerously high Insufficient heating of the upper part of the system

Veken for hlllyllav Feil montert FLI!I_ clJesnl reach Quartity of lJl!I the gauge is a1mostconecl b~ndstofniveau INDEN KAMINEN TA:NDES: V~r Vaegen for lav Wick too low Korrekt flamme Correct flame Vaegenfor he] Flame is dangerously Flammen for he]
