USER MANUAL 360 KERO
Technical data is subject to change by the LNE without notice.

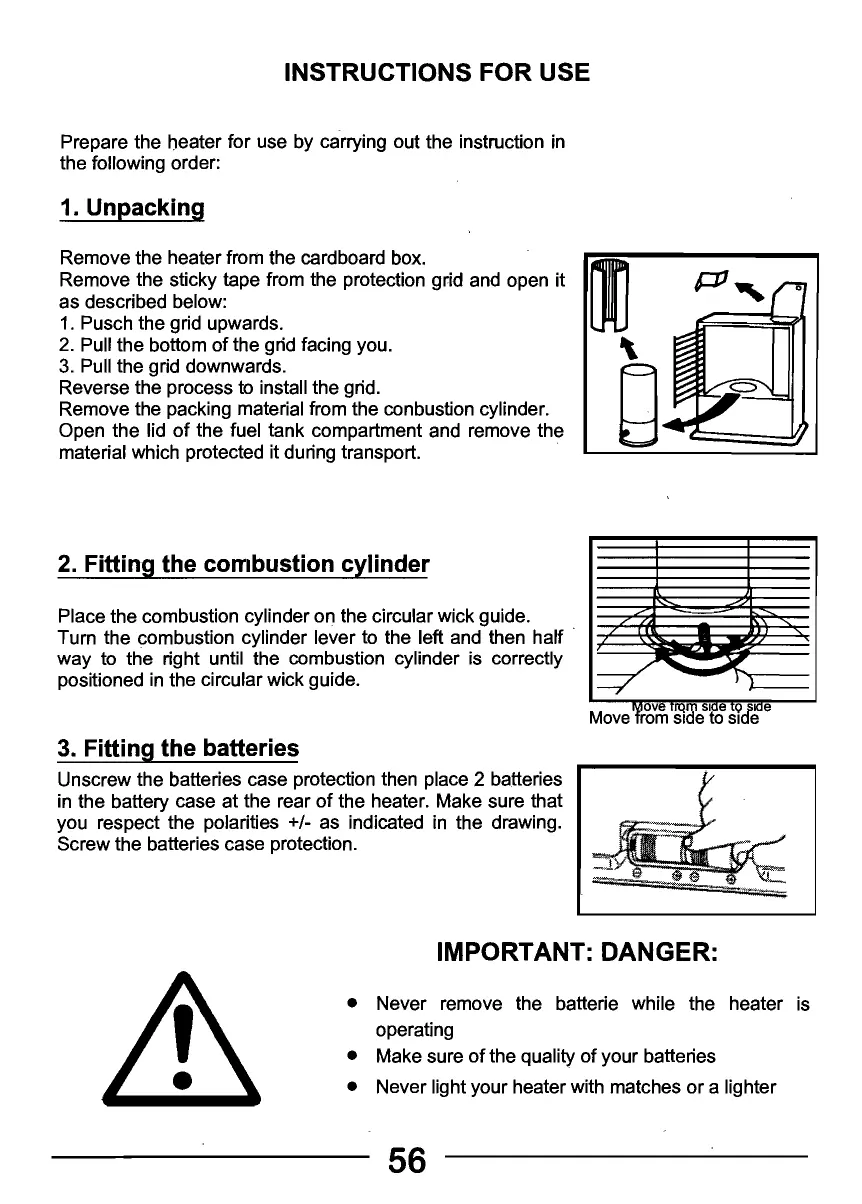

INSTRUCTIONS FOR USE
Prepare the heater for use by carrying out the instruction in the following order:
1. Unpacking
Remove the heater from the cardboard box.
Remove the sticky tape from the protection grid and open it as described below:
- Pusch the grid upwards.
- Pull the bottom of the grid facing you.
- Pull the grid downwards.
Reverse the process to install the grid.
Remove the packing material from the conbustion cylinder.
Open the lid of the fuel tank compartment and remove the material which protected it during transport.
2. Fitting the combustion cylinder
Place the combustion cylinder on the circular wick guide.
Turn the combustion cylinder lever to the left and then half way to the right until the combustion cylinder is correctly positioned in the circular wick guide.

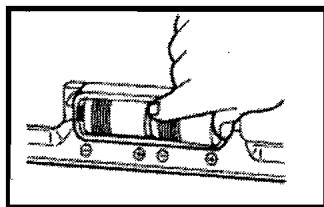

3. Fitting the batteries
Unscrew the batteries case protection then place 2 batteries in the battery case at the rear of the heater. Make sure that you respect the polarities +/- as indicated in the drawing. Screw the batteries case protection.
IMPORTANT: DANGER:
- Never remove the batterie while the heater is operating
Make sure of the quality of your batteries
- Never light your heater with matches or a lighter
LIQUID COMBUSTIBLE FOR MOBILE HEATER
Type of liquid combustible for mobile heater
We advise you to use the Tosaine or better the Tosaine·plus
More than 95% of problems are due to using a wrong type of liquid combustible for mobile heater. Those problems are not covered by our warranty.
Only top-quality liquid combustible for mobile heater, with the aromatics removed and totally free of impurities (max 1% of aromatics and a flash-point above 61^ ).
Never use contaminated liquid combustible for mobile heater, or which has been chemically treated, contains water or petrol.
Your container should be clean and empty when you fill it at a stations-service. No impurities or other liquids (water, diesel, gazoline, etc.) should remain. You ought to keep a container specifically for filling your heater.
Storage of the liquid combustible for mobile heater
Store your liquid combustible for mobile heater away from the sun and from other heat sources.
Liquid combustible for mobile heater which has been stored too long loses its purity and thus its efficiency.
Filling with liquid combustible for mobile heater
Filling procedure and precautions:
Do not put your container on or near the heater while filling the tank.
Lift the lid of the tank compartment and open it.
Use a pump to fill the tank with liquid combustible for mobile heater. Keep on filling until the level of fuel reaches the middle of the fuel gauge.
Tank removed, your heater will automatically shut off.

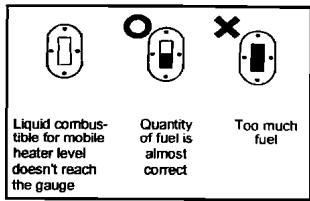

Reading the fuel gauge
Presence of liquid combustible for mobile heater will make move the reading on the gauge into the black.
Stop filling when the liquid combustible for mobile heater level reaches the middle of the gauge.
Close the tank securely, and wipe away any spills.
Turn the tank over, so that the filler orifice is facing downwards, and carefully put it back into its place.
Obtaining the right quantity of liquid combustible for mobile heater
When the level of fuel in the tank goes down, the fuel gauge will indicate this. The fuel in the tank will be completely used about three hours burning after the fuel gauge reached the halfway level.
PREPARED TO LIGHT THE HEATER
Levelling the heater
Make sure that the heater is standing on a level surface. If the heater is not level, the automatic shut-off device maybe prevented from working.
Automatic shut-off device in case of knocks
Push the ignition lever downwards until it stops. The automatic shut-off device (in case of knocks) is ready to work
If the knob does not remain downwards, the automatic shut-off device is working. Do not try again and ventilate the room.
Wick
The first time you use a wick, let it absorb liquid combustible for mobile heater for about one hour.
Only use liquid combustible for mobile heater with the aromatics removed, with a flashpoint above 61^ and free of any impurities, in order to ensure that your wick lasts for a long time.
If you find that the wick is abnormally hard, if it is blocked or burning is abnormal, have it replaced by a qualified specialist, for example, the supplier of your heater.
As the wick and replacement of the wick are not covered by the guarantee, follow the instructions for use, in order to obtain optimal performance from your wick.
A non original wick that does not have the original adjustments causes damage to the combustion quality with risk of release of carbone monoxide.
Guarantee is not valid without the use of original or PETROWICK wicks
Before you light the heater, check the following points:

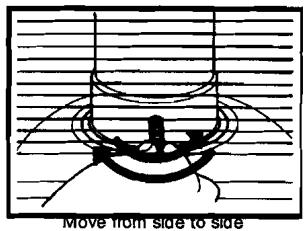

The combustion cylinder must be properly positioned. Make it rotate pushing the lever from left to right and make sure it is correctly fitted.
When you use the heater for the first time, odours may persist for a certain time after lighting. This is normal, as oil and protective grease in the heater have to be burnt off.
Slowly push the ignition lever downwards until it stops and keep the knob downwards. The wick will rise and the heater ignites automatically. Check visually that the heater is alight. After having carried out the ignition procedure, there may be some white smoke coming out of the ignition zone, without the heater being lit. In this case, move up the ignition lever part way through its travel and the heater will start to operate. This operation must be done slowly and gently.
CAUTION: NEVER LIGHT YOUR HEATER WITH MATCHES OR A LIGHTER
Combustion can be optimized within a range of 10% by adjusting the height of the flame (cf hereafter).
Bad combustion
Insufficient heating of the upper part of the system. Check the quality of the fuel
Good combustion
Bad combustion
Flame is dangerously high
If despite the regulation, the flame is too high or if the heater unevenly (its colour is not uniform), take the lever on the combustion cylinder and shake it gently once or twice. If the problem subsists, stop the heater and contact your retailer.
If you continue using your heater with bad combustion, soot and/or CO emission will result.
For a shut-off push the "STOP button". The automatic shut-off device against knocks will automatically be activated, it will lower the wick very quickly and also put out the flame.
It is possible that an excess accumulation of carbon and other deposits on the wick will prevent proper operation of the automatic shut-off device. Make always sure to visually check that the automatic shut-off device has operated properly.
When lighting the heater again
Precautions:
After turning off the heater, wait at least five minutes before lighting the heater again. If the combustion cylinder has not had time to cool down, lighting the heater again may result in odours being given off.
Airsensor Detector
This heater has been designed with an Airsensor device. Abnormal conditions of use of your heater (bad ventilation or too small a room) will automatically provoke the shut-off of your heater. If the know does not remain downwards, the security device is working.
IMPORTANT
Any tampering with or modification to the safety system is prohibited. Apart from invalidating the guarantee, this would risk causing a failure of the system which is there for your safety.
RESTRICTION ON USE
This heater may not be used in rooms which are hermetically sealed, such as caravans, boats, passengers' compartments of vehicles etc.
IMPORTANT
Always preserve a minimum clearance of 1 metre from other objects.
- Use your heater in a room which is properly ventilated and free of inflammable vapours.
Ensure that the room to be heated has an efficient air outlet (see standard health regulations).
Do not use your heater in too small a room. Heater of 2400 W: Min. 37 m3 Heater of 3000 W: Min. 46 m3
DO NOT USE YOUR HEATER IN ROOMS SITUATED UNDER THE FLOOR LEVEL.
TROUBLE SHOOTING GUIDE
In case of problems, check here before you take your heater to your dealer.
| Heater will not light |
| Burns with red flame and gives off smoke |
| Flame burns too high |
| Burns with kerosene odour |
| Flame appears only on one side of burner |
| Flame does not appear |
| Wick will not lower |
| Flame spreads too slowly |
| Burner cylinder does not glow red |
| Burner cylinder takes too long to glow red |
| Flame goes out |
| Possible cause | Solution |
| Batteries may be flat or weak | Replace the batteries. |
| flammation plug bent or broken | Replace ignition plug. |
| Wick is too low, too high or incorrectly installed | Use wick adjustment knob to adjust wick for proper exposure. If adjusting the wick tails, reinstall |
| Burner is not operatively positioned | Adjust wick for proper exposure. Adjust wick to proper height. |
| Liquid controllable for mobile heater is contaminated with water | Rotate burner right and left to position properly. |
| Wick may be dirty | Replace contaminated or poor quality liquid controllable for mobile heater supply. |
| Wick guide assembly may be damaged | Clean wick, replace if necessary. |
| Wick is not reinstalled | Check wick assembly for proper sealing and general condition. Replace if necessary. |
| Wick assembly may be reinstalled | Reinstall wick correctly in wick assembly. |
SPECIFICATIONS
| MARCA | KERO |
| TIPO DE APARELHO | RADIADOR PORTÁTIL |
| POTÉNCIA DE AQUECIMENTO | 2400 | 3000 |
| CONSUMO | 200 g/h | 250 g/h |
| AUTONOMIA | +/- 13 h | +/- 13,4 h |
| CAPACIDADE DO DEPÓSIDO | 3,2 I | 4,0 I |
| DIMENSONES (AxlxP) (mm) | 44x47x31 | 50x47x31 |
| PESO LÍQUIDO | 8,2 kg | 9,2 kg |
| PESO BRUTO | 9,2 kg | 11 kg |
| PAís DE ORIGEM | CHINA | CHINA |
| CONTROLO AIRSENSOR | INCLUIDO | INCLUIDO |
| TIPO DE DEPÓSITO | DEPÓSITO AMOVÍVEL | DEPÓSITO AMOVÍVEL |
| SISTEMA DE EXTINÇÃO AUTOMÁTICA | INCLUIDO | INCLUIDO |
| CE | SIM | SIM |
| REGULACAÇÖ 10% | SIM | SIM |
INSTRUÇÉS DE UTILIZAZão
ACCENSIONDELLA STUFA
Conditions are used to evaluate the application of a new technology. To facilitate comparison in the market technologies, Theorem 10 presents distribution discovery rules per Thera Technologies. This is a useful combination of technology and the material
Tae 1
UNA GARANZIA TECNO AIR SYSTEM
Move from side to side
3. Monter batterier
Darlig forbrenning
Insufficient heating of the upper part of the system
God forbrenning
Darlig forbrenning
Flame is dangerously high
I tilfelle flammen er for hoy, aller hvis ovenen brenner ujevnt (med ulike farger pa flammen), ta tak i handtaket pa brenneren og vri / rist forsiktig et par ganger. Hvis problemet fremdeles er der, slukk ovenen og kontakt forhandleren.
Bruk likewise oynen i for sma rom
Ovn pa 2400 W; Min. 37 m3
Ovnpa 3000W:Min.46m3
BRUK IKKE OVNEN I ROM UNDER BAKKENIVA.
FEILSØKING
| Heater will not light |
| Burns with red flame and gives off smoke |
| Flame burns too high |
| Burns with kerosene odour |
| Flame appears only on one side of burner |
| Flame does not appear |
| Wick will not lower |
| Flame spreads too slowly |
| Burner cylinder does not glow red |
| Burner cylinder takes too long to glow red |
| Flame goes out |
| Mullige asaker | |
| Svake aller
utlodee batterier | |
| Glodespiralen
adelag. | |
| Veken for hoy/lay | |
| Fell montert | |
| Brenneren star | |
| Brenneren starr | |
| Brenneren star | |
| Brenneren starr | |
| Brennstoff | |
| Skitten, kokset | |
| veke. | |
| Vekerelegueringen
kan staat adelag. | |
| Veken feil monnet. | |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
ADVARSEL!
LES N°YE IGJENNOM HELE INSTRUKSJONSBOKEN FØR DU TAR PARAFINOVENI BRUK.
