USER MANUAL PAWP 18 A1 PARKSIDE

Co CORDLESS POLISHING MACHINE Operation and Safety Translation of original

cn Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Introduction Intended Uïilisation … Page 6 Operating elements Page 6 ltems supplied... Page 6 Technical Data … Page 7

General safety advice for electrical power tools 1. Workplace safety Page 7 2. Electrical safety Page 8 3. Personal safety. Page 8 4. Carelul handling and use of electrical power tools. Page 8 5. Use and handling of the cordless electrical power tool . Page 9 Safety advice for waxer / polishers . Page 9 Original ancillaries / accessories . Page 10 Understood everything? .Page 10

Operation Charging the battery pack … Inserting / removing the battery pack into /from the appliance . Placing the bonnet on the buffing plate. Applying wax / polish with the terry bonnet

Page 10 Page 10 Page 10 Page 10

Switching on the device and waxing / polishing the paintworl .Page 11

Polishing or removing wax with the synthetic polishing bonnet .Page 11 Cleaning and Maintenance. Page 11 Service centre. Page 11 Warranty. Page 12 Disposal.… Page 12 Declaration of Conformity /Manufacturer... Page 13

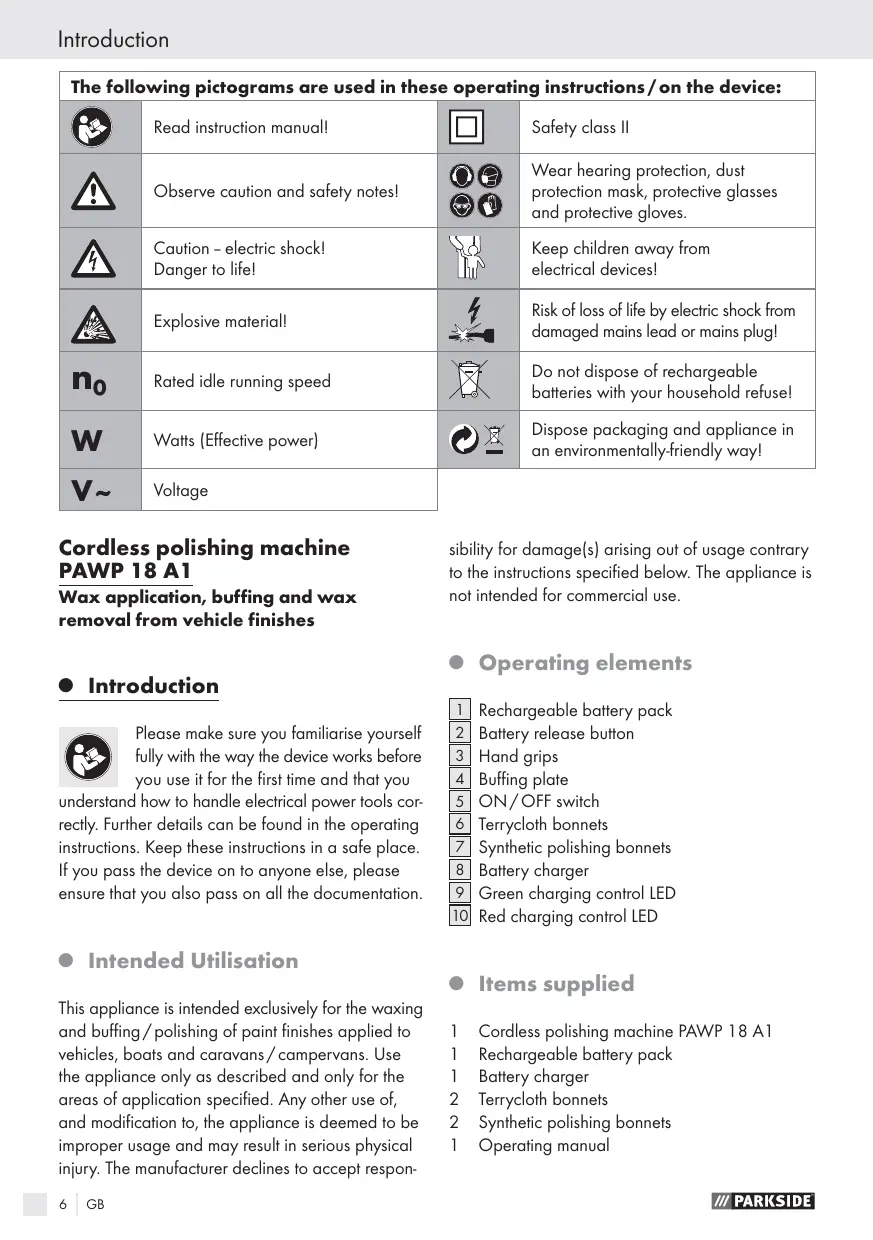

The following pictograms are used in these operating instructions / on the devici

Read instruction manuall

Observe caution and safety notes!

Wear hearing protection, dust protection mask, protective glasses and protective gloves.

Caution - electric shockl Danger to lifel

Keep children away from electrical devices!

4 Risk of loss of life by electric shock from SZ | damaged mains lead or mains plugl

Rated ide running speed

Do not dispose of rechargeable batteries with your household refusel

Watis (Effective power]

Dispose packaging and appliance in an environmentallÿ-riendly way!

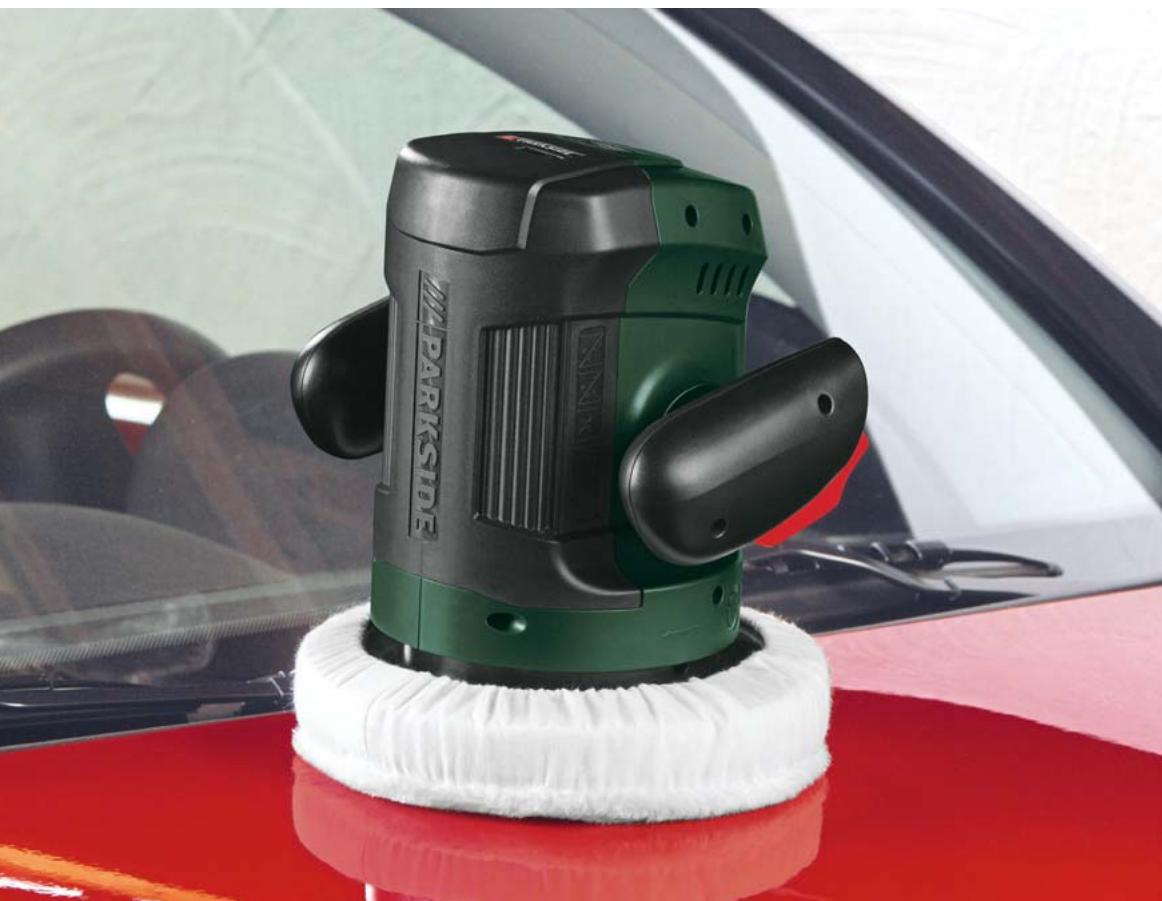

Cordless poli PAWP 18 A1 Wax application, buffing and wax removal from vehicle finishes

© Introduction Please make sure you familiarise yourself (és) fully with the way the device works before you use it for the first time and that you

understand how to handle electrical power tools cor- rectly. Further details can be found in the operating instructions. Keep these instructions in a safe place. IF you pass the device on to anyone else, please

ensure that you also pass on all the documentation.

© Intended Utilisation

This appliance is intended exclusively for the waxing and buffing / polishing of paint finishes applied to vehicles, boats and caravans / campervans. Use the appliance only as described and only for the areas of application specified. Any ofher use of, and modification to, the appliance is deemed to be improper usage and moy result in serious physical injury. The manufacturer declines to accept respon-

sibility for damage(s) arising out of usage contrary to the instructions specified below. The appliance is not intended for commercial use.

© Operating elements

[1] Rechargeable battery pack Battery release button Hand grips

[6] Terrycloth bonnets Synthetic polishing bonnets Battery charger

[9] Green charging control LED Red charging control LED

Cordless polishing machine PAWP 18 A1 Rechargeable battery pack

Synthetic polishing bonnets

Cordless polishing machine

Rated voltage: 18V=—= Idle speed no = 3000 min! Sound pressure level: 60 dB (A) Buffing plate: 220cm

Rechargeable battery pack:

Rated voltage: 18V=—= Capacity: 1,5Ah

Energy content: 27Wh Battery charger:

Rated voltage: 230V- 50Hz Rated power 75W Secondary:

Rated voltage: 18V=—

Charging current 2600 mA Charging time: approx. 60 min Protection class: [ei]

Noise / vibration data:

Measured values for noise are determined in accord- ance with EN 60745. The A-weighted noise level of the electrical power tool are typically:

Sound pressure level: 60 dB[A) Sound power level: 71 dB(A)

Uncertainty K: 3dB Evaluated acceleration, typical: Hand / arm vibration a, = 2,6m/s? Uncertainty K = 1,5m/s°

FN LAINE 1he vibration level given in these

instructions has been measured in accordance with a standardised measurement procedure specified in EN 60745 and can be used to compare devices. Different uses of the device give rise to different vibra- tion levels and in many cases they may exceed the values given in these instructions. lt is easy to under- estimate the vibration load if the electrical power tool is used regularly in particular circumstances.

A PARKSIDE Note: If you wish to make an accurate assessment ofthe vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working

EN LAINE Read all the safety advice

and instructions! Failure to observe the safety advice and instructions may result in electric shock, fire and/or serious injury.

General safety advice for electrical power tools

Keep all the safety advice and instructions in a safe place for future reference!

The term “electrical tool” used in the safety advice refers to electrical tools powered by mains electrici- ty (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead)

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.

b) Do not work with the device in potentially explosive envi- ronments in which there are

inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.

c) ÿ Keep children and other

people away while you are

operating the electrical tool. Distractions can cause you to lose control of the device.

General safety advice for electrical power tools

2. Electrical safety b) O1) Wear personal protective equipment and always wear a) The mains plug onthe device must match OO :afety glasses. The wearing of the mains socket. The plug must not personal protective equipment such as dust be modified in any way. Do not use masks, nonslip safety shoes, safety helmets or an adapter plug with devices fitted ear protectors, appropriate to the type of elec- with a protective earth. Unmodified trical power tool used and work undertaken, plugs and matching sockels reduce the risk of reduces the risk of injury. electric shock. c) Avoid unintentional operation of the b) Avoid touching earthed surfaces such device. Check that the electrical power as pipes, radiators, ovens and refrig- tool is switched off before you connect erators with any part of your body. it to the mains, pick it up or carry it. There is an increased risk of electric shock if Accidents can happen if you carry the device your body is earthed. with your finger on the ON/OFF switch or with c) Keep the device away from rain or the device switched on. moisture. Waler entering an electrical device d) Remove any setting tools or spanners increases the risk of electric shock. before you switch the device on. À tool d) Do not use the mains lead for or spanner left attached to a rotating part of a ,.£ any purpose for which it was device can lead to injury. TÆ notintended, e.g. to carrythe _e) Avoid placing your body in an unnat- device, to hang up the device or to pull ural position. Keep proper footing the mains plug out of the mains socket. and balance at all times. By doing this Keep the mains lead away from heat, you will be in a better position to control the oil, sharp edges or moving parts ofthe device in unforeseen circumstances. device. Damaged or tangled mains leads f. Wear suitable clothing. Do not wear increase the risk of electric shock loose clothing or jewellery. Keep your e] When working outdoors with an hair, clothing and gloves clear of mov- electrical power tool always use ex- ing parts. Loose clothing, jewellery or long tension cables that are also approved hair can become trapped in moving parts. for use outdoors. The use of an extension g) If vacuum dust extraction and collection cable suitable for outdoor use reduces the risk devices are fitted do not forget to check of electric shock. that they are properly connected and f] Use a residual current device (RCD) correctly used. The use of these devices for protection if operating the electri- reduces the hazard presented by dust. cal power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock. 4. Careful handling and use of electrical power tools 3. Personal safety a) Do not overload the device. Always use an electrical power tool that is a] Remain alert at all times, watch what intended for the task you are under- you are doing and always proceed taking. By using the right electrical power with caution. Do not use the device if tool for the job you will work more safely and you are tired or under the influence of achieve a better result. drugs, alcohol or medication. One moment b}_ Do not use an electrical power tool if of carelessness when using the device can lead its switch is defective. An electrical power

General safety advice for electrical power tools

tool that can no longer be switched on and off is dangerous and must be repairedl

Pull the mains plug out of the socket and/ or remove the rechargeable bat- tery before you make any adjustments to the device, change accessories or when the device is put away. This pre- caution is intended to prevent the device from unintentionally starting

When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not fami with it or has not read the instructions and advice. Electrical power tools are dan- gerous when they are used by inexperienced people.

Look after the device carefully. Check that moving parts are working prop- erly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have dam- aged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools. Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

Use the electrical power tool, accesso- ries, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this par- ticular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those in- tended can lead to dangerous situations.

Use and handling of the cord- less electrical power tool

Charge a rechargeable battery unit

using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable

battery unit. There is the danger of fire if other types of rechargeable battery units are used. Only the rechargeable battery units supplied are to be used with an elec- trical power tool. The use of other recharge- able battery units may lead to the danger of injury or fire.

When they are not being used, store rechargeable battery units away from paperclips, coins, keys. nails, screws or other small metal objects that could cause the contacts to be bridged. Short circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact oceurs, flush the affect- ed area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns

Safety advice for waxer /polishers

Avoiding the danger of injury, fire and damage to your health:

Always pull the plug out of the mains socket before cleaning or maintaining the device. Ensure that the bonnet is well secured to the buffing plate.

Do not touch any rotating parts!

Before switching on check to ensure that the buffing plate is not blocked and can start up without problem

Check to ensure that the bonnet and the buffing plate are complete and undamaged. Immedi- ately exchange torn or damaged bonnets / buffing plates.

Wait until the polishing disc is flat on the surface to be polished before switching on the waxer / polisher.

Do not use any abrasives; these can destroy the paint finish.

Children or persons who lack the knowledge or experience to use the device or whose physical,

General safety advice for electrical power tools / Operation

sensory or intellectual capatcities are limited must never be allowed to use the device without supervision or instruction by a person responsi- ble for their safety. Children must never be allowed to play with the device.

© Original ancillaries / accessories

= Use only the ancillaries and accessories that are detailed in the operating in- structions. The use of parts other than those recommended in the operating instructions, or other accessories, can put you at risk of injury.

© Understood everything?

= When you have become familiar with these general safety instruction for electrical appli- ances, and, with the help of the appropriate operating instructions, know all about the func- tions and handling of your electrical appliance, then you can start working with it. You will work at your safest only with careful attention to all of the declarations and instructions of the manufacturer.

© Operation © Charging the battery pack

Note: À new baïtery pack, or one that has not been in use for an extended period, must be charged up before the first /renewed usage. The battery pack attains its full capacity after ca. 3:5 charging cycles.

À CAUTION! DANGER OF INJURY! Always unplug the appliance before you remove /'insert the rechargeable battery pack from /into the

charger [8] (see Fig. A). 10 GB

2. Insert the plug into the power socket. The now glowing red charging control LED [10] indicates the start of the charging process. The red charging control LED [10] extinguishes as soon as the battery pack [1]is fully charged.

3. The green charging control LED [9] indicates that the charging process is complete and the battery pack [1 Jis ready for use.

mn Never recharge a battery pack for a second time immediately after a charging process. There is a risk of overcharging the rechargea- ble battery pack and, as a result, reducing the life span of the rechargeable battery and the charger.

o Switch the battery charger [8 off for at least 15 minutes between iwo consecutive battery charging processes. To do this, remove the power plug.

© Inserting/removing the battery pack into /from the appliance

Inserting the battery pack: © Insertthe battery pack [1] into the appliance until it engages.

Removing the battery pack: ï Slide the battery release button and pull the battery pack [1] upwards.

© Placing the bonnet on the buffing plate

1. Turn the waxer / polisher over so that the poli- shing disc [4] is pointing upwards.

2. Place the bonnet [6][7] over the buffing plate [4] Ensure that the bonnet[6][7]is placed centrally and taughily onto the buffing plate.

© Applying wax/polish With the terry bonnet

1. Always use high quality products for waxing.

1 PARKSIDE Operation / Cleaning and Maintenance / Service centre

Follow the working methods given on the packaging.

2. Apply the wax/polish directly on the working surface of the terry bonnet [6]. Spread the wax / polish so that it forms a thin, even, complete coating over the terry bonnet [6] Note: Too much wax does not necessarily achieve a better finish and you will have to spent more time later removing the coating.

3. Spread the wax evenly right up to the edge of the terry bonnet [6].

© Switching on the device and waxing / polishing the paintwork

Note: The paintwork to be polished must be care- fully cleaned and completely dry. lfnecessary, use a paintwork cleaner. Use products that are appro- priate for the demands on and condition of your paintwork. Heavily oxidised paintwork will require the use of a special cleaner. For this use a combined product (cleaner + wax].

1. Place the waxer / polisher on the surface to be polished. Note: To avoid the splattering of wax or polish, do not switch the appliance on yet. Dab the appliance a few times at various points on the area to be buffed. In this way you can ensure that excess wax/ polish is once more distributed

evenly over the terrycloth bonnet and the area to be buffed.

2. Take both appliance grips hands and switch the appliance on by pressing the ON/OFF switch [5] (see also Fig. B).

3. Guide the waxer/polisher evenly over the paintwork [see Fig. C].

Note: Do not press on the waxer/polisher! The selfweight of the waxer / polisher alone applies sufficient pressure for the waxing / polishing process.

4. Switch the appliance off before you remove it from the area being buffed. To do this, release the ON/OFF switch Any difficult to reach corners or recesses may have to be completed later by hand. Take the

terry bonnet [6] off the waxer / polisher and use the bonnet for the corners and recesses.

© Polishing or removing wax with the synthetic polishing bonnet

Note: The wax/polish must be allowed to dry on sufficiently to produce the best polishing performance. Otherwise any polish that is still uid will be smeared by the polishing bonnet.

Use the synthetic polishing bonnet polishing or removing the wax. When working, always follow the instructions for use of the wax/ polish.

© Cleaning and Maintenance

FN LAINE DANGER OF INJURY!

Switch the device off and pull the plug out of the mains socket before carrying out any work on the device.

Note: Before cleaning, first remove the battery pack from the appliance.

CAUTIONI! Ensure that no fluids can permeate into the appliance, this could lead to the destruction of the product.

The appliance is maintenance-free. Use a slighily moist cloth to clean the housing, if necessary with a mild detergent.

When cleaning the housing, under no circum- stances should you use strong detergents, solvents or abrasives.

Clean the bonnet by washing by hand in soapy water.

= FDA Have your device

repaired only by qualified specialist personnel using original manufactur- er parts only. This will ensure that your device remains safe to use.

Service centre / Warranty / Disposal

= EN CZRINE the plug or mains

lead needs to be replaced, always have the replacement carried out by

the manufacturer or its service centre. This will ensure hat your device remains safe

The warranty for this appliance is for 3 years from the date of purchase. The ap- pliance has been manufactured with care and meticulously examined before deliv- ery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone With our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and maufacturing defects, but not for transport damage, for wearing parts or for damage to fragile compo- nents, e.g. buttons or batteries. This product is for pri- vate use only and is not intended for commercial use.

The warranty is void in the case of abusive and im- proper handling, use of force and internal tamper- ing not carried out by our authorized service branch Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration ofthe warranty period are subject to payment.

GB DES UK LTD Tel: 0871 5000 700 (£ 0.10/minute)

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance with European Directive 2002 /96/EC (covering waste electrical and electronic equipment) and its transposition into national legislation, worn

out electrical power tools must be collected separately and taken for environmentally compatible recycling

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Do not dispose of rechargeable batteries with your household refuse!

Faulty or used rechargeable batteries must be recy- cled in accordance with Directive 2006 / 66 / EC Return the appliance with integrated rechargeable battery via the available collection facilities.

Please contact your local council office to find out

about disposal facilities for your worn-out electrical tools or discarded battery packs

© Declaration of Conformity / Manufacturer C€

We, KompernaB GmbH, the person responsible for documents: Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006/42/EC)

EU Low Voltage Directive (2006/95/EC)

Electromagnetic Compatibility (2004/ 108/EC)

Applicable harmonized standards

Type/Appliance Designation: Cordless polishing machine PAWP 18 A1

Hans KompernaB - Managing Director-

We reserve the right to make technical modifications in the course of further development.

A PARKSIDE Declaration of Conformity / Manufacturer

PAWP 18 AT Akumulator

Smërnice o strojich (2006/42/EC)
