USER MANUAL XQ90 PARKSIDE

æ Before reading, unfold the page containing the illustrations and familiarise yourself with al functions of the device.

Introduction Intended Ufilisation Page 6 Operating elements Page 6 ltems supplied... Page 6 TEChNIGAl DAHQnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnPOUe 7

General safety advice for electrical power tools

1. Workplace safety Page 7 2. Electrical safety. Page 7 3. PETSONGl SQf@Hy nn Page 8 4. Carelul handling and use of electrical power tools Page 8 Safety advice for car polisher.… Page 9 Original ancillaries / accessories . Page 9 Understood everything? … Page 9 Operation Placing the bonnet on the buffing plate. Page 9 Applying wax / polish with the terry bonnet Page 10 Switching on the device and waxing / polishing the paintwork. Page 10 Polishing or removing wax with the synthetic polishing bonnet. ….Page 10 Cleaning and Maintenance ………………….Poce 10 Service centre... FPotc 10 WarrantyÿPage 11 Disposal... Page 11 Declaration of Conformity / Manufacturer Page 12

1 PARKSIDE GB/IE/CY 5

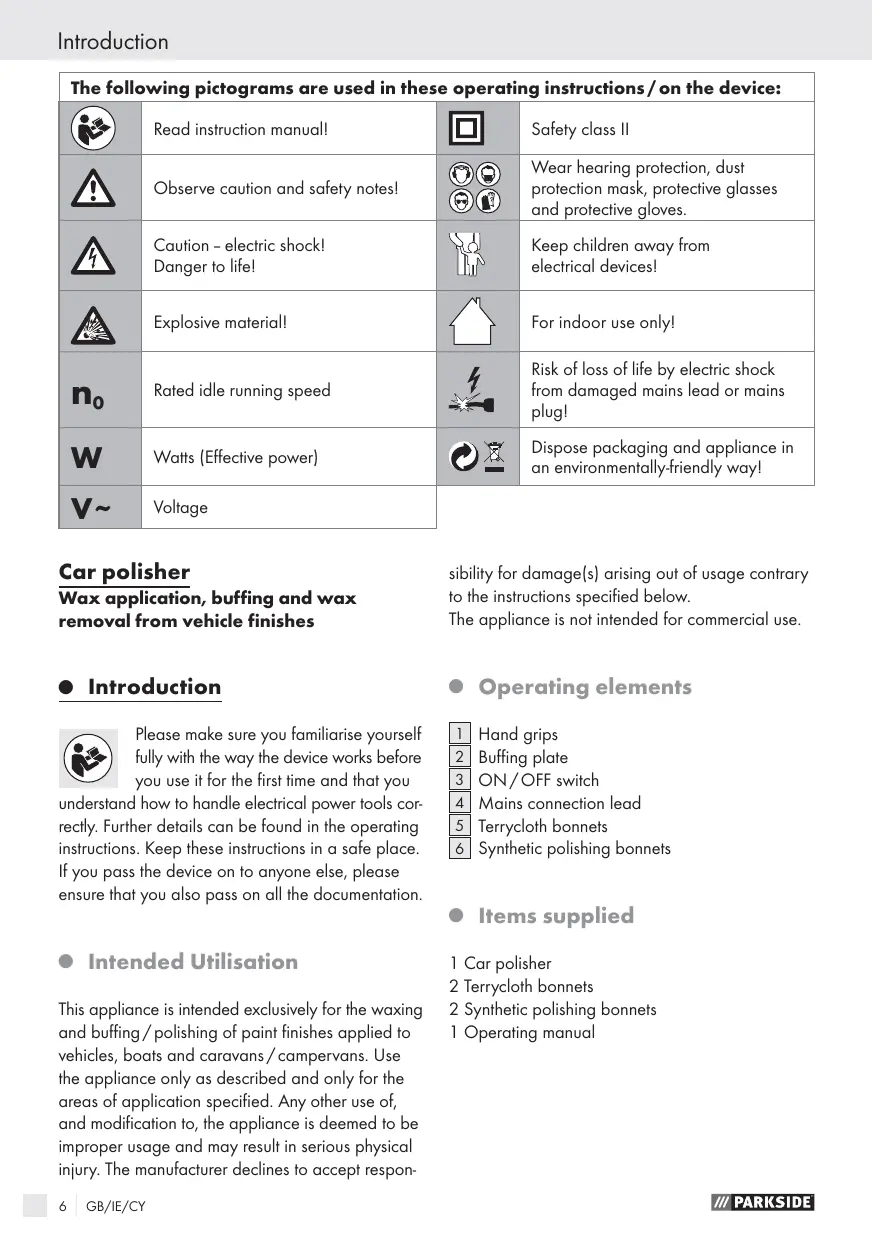

The following pictograms are used in these operating instructions / on the devic

Read instruction manuall

Safety class II Observe caution and safety notes!

Wear hearing protection, dust protection mask, protective glasses and protective gloves.

Caution - electric shock! Danger to life!

Keep children away from electrical devices!

For indoor use onlyl

Rated idle running speed

Risk of loss of life by electric shock from damaged mains lead or mains plug!

Watts (Effective power]

Dispose packaging and appliance in an environmentallÿ-friendly way!

Car polisher Wax application, buffing and wax removal from vehicle finishes

Please make sure you familiarise yourself fully with the way the device works before you use it for the first time and that you understand how to handle electrical power tools cor- rectly. Further details can be found in the operating instructions. Keep these instructions in a safe place. IF you pass the device on to anyone else, please ensure that you also pass on all the documentation.

© Intended Utilisation

This appliance is intended exclusively for the waxing and buffing / polishing of paint finishes applied to vehicles, boats and caravans / campervans. Use he appliance only as described and only for the areas of application specified. Any ofher use of, and modification to, the appliance is deemed to be improper usage and may result in serious physical injury. The manufacturer declines to accept respon-

sibility for damagel{s) arising out of usage contrary to the instructions specified below. The appliance is not intended for commercial use.

© Operating elements

Hand grips Buffing plate

Mains connection lead Terrycloth bonnets

[6] Synthetic polishing bonnets

1 Car polisher 2 Terrycloth bonnets 2 Synthetic polishing bonnets 1 Operating manual

Rated voltage: 230V-, 50Hz Rated power 90w

No-load rotational speed: nç = 3300 min! Polishing disc: 9250mm Protection class 1/7

Noise and vibration data:

Measured values for noise are determined in ac- cordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:

Sound pressure level: 60 dB[A] Sound power level 71 dB[A]

Uncertainty K: 3dB Wear ear protection!

Evaluated acceleration, typical: Hand / arm vibration a, = 2,6m/s° Uncertainty K = 1,5m/s°

EN CZ The vibration level given in these

instructions has been measured in accordance with a standardised measurement procedure specified in EN 60745 and can be used to compare devices. Different uses of the device give rise to different vibra- tion levels and in many cases they may exceed the values given in these instructions. lt is easy to under- estimate the vibration load if the electrical power tool is used regularly in particular circumstances.

Note: If you wish to make an accurate assessment ofthe vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working

1 PARKSIDE General safety advice for electrical power tools

FN LAINE Read all the safety advice

and instructions! Failure to observe the safety advice and instructions may result in electric shock, fire and / or serious injury.

KEEP ALL THE SAFETY ADVICE AND INSTRUC- TIONS IN A SAFE PLACE FOR FUTURE REFER- ENCE! THE TERM “ELECTRICAL TOOL" USED IN THE SAFETY ADVICE REFERS TO ELECTRICAL TOOLS POWERED BY MAINS ELECTRICITY (BY MEANS OF À MAINS LEAD) AND ELECTRICAL TOOLS POWERED BY RECHARGEABLE BATTER- IES (WITHOUT A MAINS LEAD).

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.

b) Do not work with the device

À in potentially explosive envi:

ronments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.

c) \K 4 Keep children and other peo-

YA ple away while you are op- erating the electrical tool.

Distractions can cause you to lose control of

2. Electrical safety

To avoid danger to life from electric shock:

a) The mains plug on the device must match the mains socket. The plug must not be mod in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.

General safety advice for electrical power tools

Avoid touching earthed surfaces such as pipes, radiators, ovens and refrig- erators with any part of your body. There is an increased risk of electric shock if your body is earthed Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

n Do not use the m lead for

any purpose for which it was

ie not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts ofthe device. Damaged or tangled mains leads increase the risk of electric shock. When working outdoors with an electri- cal power tool always use extension ca- bles that are also approved for use out. doors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock. Use a residual current device (RCD) for protection if operating the electri- cal power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One mo- ment of carelessness when using the device can lead to serious injury.

Wear personal protective

‘equipment and always wear OÙ safety glasses. The wearing of

personal protective equipment such as dust masks, nonsslip safety shoes, safety helmets or ear protectors, appropriate to the type of elec- trical power tool used and work underiaken, reduces the risk of injury.

Avoid unintentional operation of the device. Check that the electrical pow- er tool is switched off before you con- nect it to the mains, pick it up or carry it, Accidents can happen if you carry

the device with your finger on the ON / OFF switch or with the device switched on. Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.

Avoid placing your body in an unnat- ural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.

Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of mov- ing parts. Loose clothing, jewellery or long hair can become trapped in moving parts.

1f vacuum dust extraction and collec- tion devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devic- es reduces the hazard presented by dust

Careful handling and use of electrical power tools

Do not overload the device. Always use an electrical power tool that is intended for the task you are under- taking. By using the right electrical power tool for the job you will work more safely and achieve a better result.

Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired

Pull the mains plug out of the socket before you make any adjustments to the device, change accessories or when the device is put away. This pre- caution is intended to prevent you from uninten- tionally starting the device.

Avoiding the danger ol

General safety advice for electrical power tools / Operation

When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not famil- t or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.

Look after the device carefully. Check that moving parts are working prop- erly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have dam- aged parts repaired before you use the device. Many accidents have their ori- gins in poorly maintained electrical power tools. Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

Use the electrical power tool, accesso- ries, inserted tools etc. in accordance with these instructions and

advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

Safety advice for car polisher

damage to your health:

Always pull the plug out of the mains socket before cleaning or maintaining the device. Ensure that the bonnet is well secured to the buffing plate.

Do not touch any rotating parts!

Before switching on check to ensure that the buffing plate is not blocked and can start up without problem.

Check to ensure that the bonnet and the buffing plate are complete and undamaged. Immedi-

ately exchange torn or damaged bonnets / buffing plates.

Wait until the polishing disc is flat on the surface to be polished before switching on the waxer / polisher.

Do not use any abrasives; these can destroy the paint finish.

Original ancillaries / accessories

Use only the ancillaries and accessories that are detailed in the operating instructions. The use of parts other than those recommended in the operating instructions, or other accessories, can put you at risk of injury.

Understood everything?

When you have become familiar with these general safety instruction for electrical appli- ances, and, with the help of the appropriate operating instructions, know all about the func- fions and handling of your electrical appliance, then you can start working with it. You will work at your safest only with careful attention to all of the declarations and instructions of the manufacturer.

Placing the bonnet on the buffing plate

Turn the car polisher over so that the polishing

centrally and taughily onto the buffing plate.

Operation / Cleaning and Maintenance / Service centre

© Applying wax/polish With the terry bonnet

1. Always use high quality products for waxing.

n Follow the working methods given on the packaging.

2. Apply the wax/polish direcily on the working surface of the terry bonne

D Spread the wax/ polish so that it forms a thin, even, complete coating over the terry bonnet Note: Too much wax does not necessarily achieve a better finish and you will have to spent more time later removing the coating.

3. Spread the wax evenly right up to the edge of the terry bonnet

© Switching on the device and waxing/polishing the paintwork

Note: The paintwork to be polished must be care- fully cleaned and completely dry. lf necessary, use a paintwork cleaner. Use products that are appro- priate for the demands on and condition of your paintwork. Heavily oxidised paintwork will require the use of a special cleaner. For this use a combined product [cleaner + wax].

1. Place the car polisher on the surface to be pol ished. Note: To avoid the splattering of wax or polish, do not switch the appliance on yet. Dab the appliance a few times at various points on the area to be buffed. In this way you can ensure that excess wax/ polish is once more distributed evenly over the terrycloth bonnet and the area to be buffed.

2. Take both appliance grips [I] firmly in your hands and switch the appliance on by pressing the ON/OFF switch [3] (see also Fig. B).

3. Guide the waxer/polisher evenly over the paintwork [see Fig. C). Note: Do not press on the waxer /polisherl The sel£weight of the car polisher alone applies sufficient pressure for the waxing / pol- ishing process.

4. Switch the appliance off before you remove it from the area being buffed. To do this, release the ON//OFF switch

cn Any difficult to reach corners or recesses may have to be completed later by hand. Take the terry bonnet [5] off the car polisher and use the bonnet for the corners and recesses.

© Polishing or removing wax with the synthetic polishing bonnet

Note: The wax/ polish must be allowed to dry on sufficiently to produce the best polishing performance. Otherwise any polish that is still fluid will be smeared by the polishing bonnet.

oi Use the synthetic polishing bonnet [6] for final polishing or removing the wax.

o When working, always follow the instructions for use of the wax/ polish.

© Cleaning and Maintenance

FN CAIN] DANGER OF INJURY! Switch the device off and pull the plug out of the mains socket before carrying out any work on the device. CAUTION! Ensure that no fluids can permeate into the appliance, this could lead to the destruction of the product.

The appliance is maintenance-free.

on Use a slighily moist cloth to clean the housing, ifnecessary with a mild detergent.

© When cleaning the housing, under no cireum- stances should you use strong detergents, solvents or abrasives.

© Clean the bonnet by washing by hand in soapy water.

= FN DZ Have your device re-

paired only by qualified specialist personnel using original manufactur-

er parts only. This will ensure that your de- vice remains safe to use.

»: PNR the plug or mains lead needs to be replaced, always have the replacement carried out by the manu- facturer or its service centre. This will en sure that your device remains safe to use.

This appliance is guaranteed for 3 years from the date of purchase. lt has been carefully produced and meti-culously checked before delivery. Please keep your receipt as proof of purchase. Contact your service centre by telephone in case of questions pertaining to the warranty. Your goods can be transmitted free of cost only in this manner. This warranty applies only to the 1 purchaser and is non-transferable.

The warranty covers only material or manufactur- ing faulis, not normal wear or damage to fragile parts such as switches or rechargeable batteries. The appliance is intended solely for private, not

IFthis product has been subjected to improper or in-

appropriate handling, abuse, or interventions not carried out by one of our authorised sales and service outlets, the warranty will be considered void. This warranty does not affect your statutory rights.

GB DES UK LTD Tel: 0871 5000 700 (£ 0,10/minute) e-mail: support.uk@kompernass.com

=. Do not dispose of electrical K power tools with the household =— rubbish!

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

In accordance with European Directive 2002/96/EC {covering waste electrical and electronic equipment) and its transposition into national legislation, worn

out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for

more details of how to dispose of your worn out electrical devices.

Declaration of Conformity / Manufacturer
