Product type	Pool cleaning robot
Brand	Edenea
Model	CF350CL
Dimensions (L x W x H)	43 x 38 x 25 cm
Weight	8.5 kg
Power cable length	15 m
Power supply voltage	230 V / 50 Hz
Motor power	150 W
Filtration flow rate	12 m³/h
Filtration system	Washable filter cartridge
Cleaning type	Floor, walls and waterline
Timer	Yes, programmable daily cycles
Running time	2 hours per cycle
Built-in battery	No, wired power supply
Pool type	Above-ground and in-ground
Maximum depth	8 m
Maximum water temperature	35 °C
Special functions	Obstacle detection, wall climbing
Maintenance	Clean filter cartridge after each use
Safety	Automatic shutdown in case of overload
Spare parts available	Cartridges, cables, wheels, brushes
Warranty	2 years

Frequently Asked Questions - CF350CL Edenea

How to install the Edenea CF350CL robot?

Connect the transformer to a 230 V outlet, unroll the cable into the water and submerge the robot. Make sure the filter cartridge is properly in place.

What is the duration of a cleaning cycle?

The standard cycle lasts about 2 hours. You can program daily cycles via the built-in timer.

How to clean the filter cartridge?

Remove the cartridge after each use and rinse it with clean water. Replace it every 6 months or depending on use.

Does the robot climb walls?

Yes, the CF350CL is designed to clean the floor, walls and waterline thanks to its brushes and climbing system.

What to do if the robot stops during cleaning?

Check that no obstacle is blocking the wheels or brush. Clean the filter cartridge if it is clogged. The robot will restart automatically after cooling down.

Can I use the robot in an above-ground pool?

Yes, it is suitable for above-ground and in-ground pools. Make sure the depth does not exceed 8 m.

How to program cleaning cycles?

Use the built-in timer: set the time and frequency of cycles (e.g., one cycle per day). Refer to the manual for details.

What type of power cable is supplied?

The robot is supplied with a 15 meter cable and a safety transformer (230 V / 24 V).

What to do if the robot does not detect the waterline?

Make sure the sensors are clean and the water level is sufficient (at least 10 cm below the edge). If the problem persists, contact customer service.

Where can I buy spare parts for the CF350CL?

Spare parts (cartridges, brushes, wheels, cables) are available on the manufacturer's website or from authorized retailers. Use Edenea original parts.

USER MANUAL CF350CL Edenea

GEBRAUCHSANWEISUNG / NOTICE D'UTILISATION / INSTRUCTION MANUAL / ANVÄNDARMANUAL / INSTRUKTÁŽNÍ PŘÍRUČKA / INŠTRUKTÁŽNA PŘÍRUČKA / NAVODILA ZA UPORABO / PRIRUČNIK ZA UPORABU

PFLEGE-/ WARTUNGS-/ SICHERHEITSHINWEISE - ENTRETIEN / MAINTENANCE / CONSEILS DE SÉCURITÉ - SERVICING/ MAINTENANCE/ SAFETY INSTRUCTIONS - SERVICE/ UNDERHÅLL/ SÄKERHETSINSTRUKTIONER - SERVIS/ ÚDRŽBA/ BEZPEČNOSTNÍ POKYNY - SERVIS/ ÚDRŽB / BEZPEČNOSTNÉ POKYNY - SERVISIRANJE/ VZDRŽEVANJE/ VARNOSTNA NAVODILA - SERVISIRANJE/ ODRŽAVANJE/ SIGURNOSNE UPUTE

TRUST THE POOL EXPERTS

CF 350 CL

AKKU-POOLROBOTER / NETTOYEUR DE PISCINE ELECTRIQUE SANS FIL / ELECTRICAL CORDLESS POOL CLEANER/ POOLROBOT / ROBOTICKÝ BAZÉNOVÝ VYSAVAČ / ROBOTICKÝ BAZÉNOVÝ VYSÁVAČ / BREZŽIČNI ČISTILEC BAZENA / ROBOTSKI SESALEC ZA BAZEN

CE

DE ......p. 3
FR ......p. 24
EN ......p. 42
SE ...... p. 60
CZ ...... p. 79
SK ......p. 98
SI ...... p. 117
HR p. 136

INHALT

Benutzerhandbuch

Gerät x 1

Filter x 2

Kurzanleitung x 1

Ladegerät x 1

Klebeblöcke

BESCHREIBUNG

Robot x 1

Filtres x 2

Chargeur x 1

Blocs flottants

DESCRIPTION

INFORMATIONS TECHNIQUES

2 Retirez les filtres.

EXCLUSIONS DE GARANTIE

PRODUCT EXTERNAL OVERVIEW 45

PRODUCT INTERNAL OVERVIEW 46

PACKING LIST 47

TECHNICAL SPECIFICATIONS 48

3 / GET STARTED 49

CHARGE THE CLEANER 49

LED LIGHTS 50

SETUP THE CLEANER 51

CONNECT TO YOUR APP 49

CHOOSE YOUR CLEANING MODE 52

RUN YOUR CLEANER 53

4 / CLEAN THE FILTER 54
5 / MAINTENANCE 56
6 / FAQ & TROUBLE SHOOTING 57
7 / CERTIFICATION....59
8 / WARRANTY 59

THANK YOU FOR PURCHASING OUR CF 350 CLELECTRIC POOL CLEANER. PLEASE READ THE MANUAL CAREFULLY BEFORE INSTALLATION & OPERATION AND KEEP IT FOR FUTURE REFERENCE AFTER INSTALLATION

Thank you for choosing CF products, your support means a lot to us. Continuous providing the best solution to free you up from pool cleaning and enjoy your family time is always our pursuit. CF Robotic Pool Cleaner is dedicated to serving you high efficiency, low power consumption, easy operation and thorough pool cleaning work. Its unique appearance and reliable functions as one-button activation, powerful suction and scrubbing, fine filtration, smart navigation, remote control, and high compatibility with various pool shapes and constructions materials assure you a convenient, intelligent, and optimal pool cleaning. Feel free to contact us by Email or visit our website with any questions. We are very glad to hear your advice on our continuous improvement.

GENERAL WARNINGS

Read the manual carefully before you use the cleaner. Your safety is the most important thing. Please read through and operate the device as per instructions, CF Group is not held liable for any loss or injury caused by improper use.

Failure to operate the device as per the warnings can result in serious injury, electrocution or death.

1. Use only the accessories recommended or sold by CF Group.
2. Use only the original and authorized charger. Avoid charging any other types of devices with this charger. Improper use may result in overheating or corrosive liquid leakage from the battery.
3. Power off the robot when doing any maintenance or removing it from the pool.
4. Ensure the charging port is dry before plugging in the charger end.
5. Make sure the electrical outlet is protected by a ground fault circuit interrupter (GFCI) and an earth leakage interrupter (ELI).
6. Do not use a cord-damaged charger to avoid any electrical shock.
7. Do not try to use no nauthorized extension cord to connect the charger to the robot.
8. Never allow children to ride on the cleaner/or play with it as a toy.
9. Do not allow child to operate or maintain the device.
10. Do not enter the pool when the robot is working in it.
11. Never expose or charge the device in flammable environments.
12. Only licensed professionals can disassemble the sealed parts of the robot.

CAUTIONS

Failure to operate the device as per the cautions can cause a damage to the device.

1. Charge the unit before first use.
2. Do not over charge the cleaner, which will reduce the battery life.
3. Charge the cleaner prior to being stored for a long time (over 6 months) to maintain an optimal battery life.
4. Do not operate the cleaner while pool filter is running.
5. Remember to wash and clean the filter basket and HEPA after each use.
6. Store the cleaner in a cool and ventilated place, away from direct sunshine or any heat source.
7. Use only the pool cleaner in the following water conditions:

Chlorine	Max 4 mg/L
pH	7.0 - 7.8
Temperature	41 - 95°F (5 - 35°C)
NaCl	Maximum 5000 PPM

DESCRIPTION

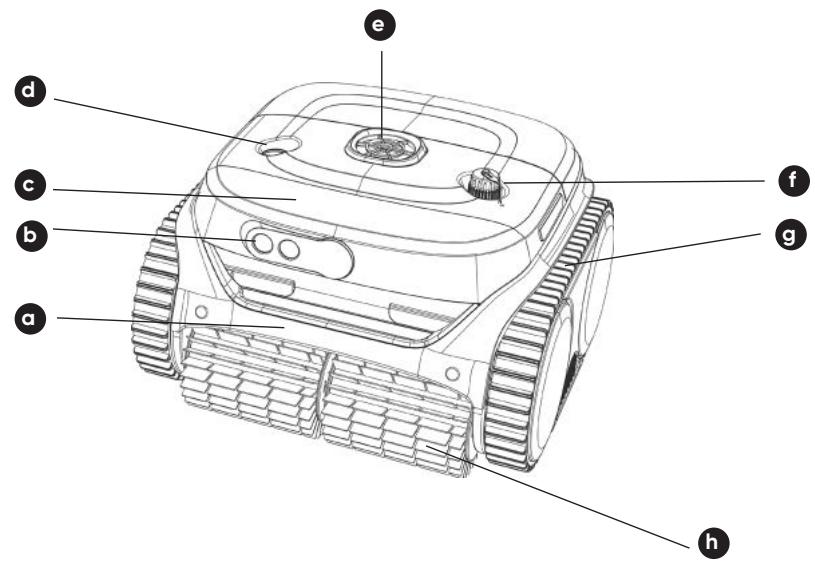

PRODUCT EXTERNAL OVERVIEW

Handle

Remove and transport the device with it

Sonar Sensors

Detect and avoid obstacles in the pool

LED Indicator

Different light colors to indicate device status and current cleaning mode

On/off Button

Turn on/ turn off the device

Pump

Pump out water through the outlet

Charging Port

Connect the charger to the cleaner

Track

Enhance device's capability in climbing walls and various obstacles

Scrubbing Brush

Knock loose all dirt and roll them all into the device

DESCRIPTION

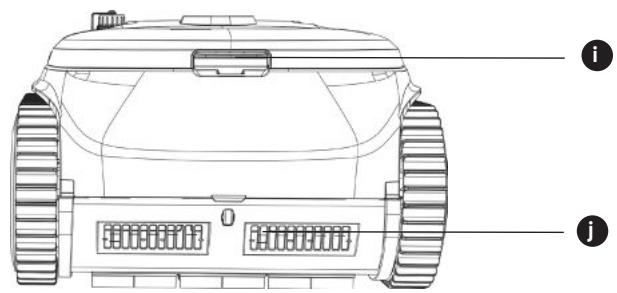

PRODUCT EXTERNAL OVERVIEW

Lid Open Button

Open the cover to take out the filters

Water Outlet

Quick release of the water.

Ultra-fine Filter

An auxiliary filter to help trap the fine dirty particles on the floor. Recommended to use it in 'turbo floor mode' only. Please do not install it when the floor is heavily soiled, it may influence the operation of the cleaner.

DESCRIPTION

PACKING LIST

Cleaner x 1

Filters x 2

Quick Start Guide x 1

User Manual x 1

Hook

Charger x 1

Floating Blocks

DESCRIPTION

TECHNICAL SPECIFICATIONS

Model	CF 350 CL
Pool Size	120 m^2
Min Water Depth	9.8ft (3m)
Device Dimension	360(L)*360(W)*240(H) mm
Weight	8kg
Runtime	3 hours (Eco Floor)
Charging Time	3 hours
Power	65W
Charger Input	100-240V, 50-60Hz
Charger Output	25.2V/1.78A
Battery Capacity	4600mAh
Filtration	180μm+Ultra-fine HEPA filter
Moving Speed	10m/min
Water Resistance	IPX8
OTA upgrading	Available
App Connection	Available

GET STARTED

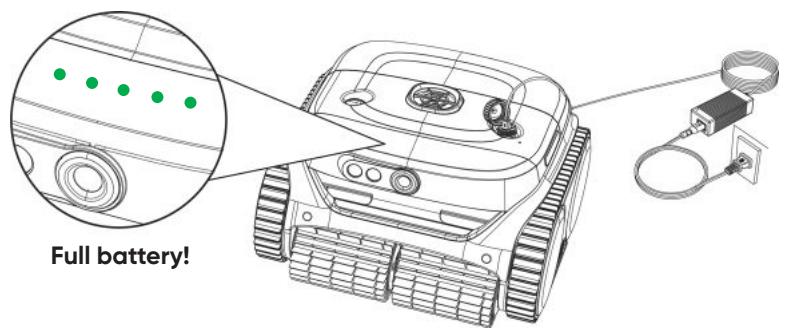

CHARGE YOUR CLEANER

The device has a lithium-ion rechargeable battery, and you need to charge the battery before first use and when the battery is low.

Connect your device to a power outlet using the included cable and adaptor.

Note:

1. When charging, you should ensure your device is positioned at least 3m (appr. 10ft) away from the edge of the pool.
2. For reducing fire risk, keep your device and adaptor away from direct sunshine or water when charging.
3. For your important safety, you need to double check that the device is powered off and the charging port is dry before charging.
4. The best charging environment is temperature at 0^ C - 35^ C ( 32^ F- 95^ F), RH at 5%-95%.

The adaptor has an indicator, which will display blue light indicating the power supply status.

The LED indicators on the top of the cleaner turn to a fix green light when fully charged.

GET STARTED

LED LIGHTS

Below is the indication of the LED lights, you may refer to it to know different device status.

LED Light	Indication	Status
	Fix	Power On
	Flashing	In operation
	Fix	Connecting to App & Current cleaning mode
	Flashing	Low battery or under self-parking in the pool
	Flashing	Charging in progress
	Fix	Fully charged
	Fix or flashing	Default

GET STARTED

SETUP YOUR CLEANER

Turn on the device by pressing the on/off button. The LED indicator on the top will display a fix green ● to display current battery level and then a fix blue ● when the device is on. If the battery level is too low to start cleaning, the LED lights will show a flashing ●.

Note:

1. When yellow light flashes, you should charge the device immediately.
2. If red LED light is on, please refer to the trouble shooting section in this manual or call for service.

CONNECT TO YOUR APP

You can download the "AI bot" App to your smartphone by scanning QR code below, or from Google Play or App Store.

iOS	Android
iOS 15.0 or later	Android 8.0 or later

GET STARTED

CHOOSE YOUR CLEANING MODE

You can choose a cleaning mode for your cleaner through the app after connecting to your App or by pressing the 'on/off' button.

Cleaning Mode	Icon (Robot)	Cleaning Coverage
Standard full pool		Wall+ Floor+Waterline
Floor only		Pool floor
Wall only		Pool walls
Wall then floor (Combo)		Wall *1+ Floor *1
Turbo floor		Powerful cleaning mode (floor cleaning only)
Eco floor		Eco mode (floor cleaning only)

Note:

1. You should modify your cleaning modes when out of pool. The default mode is Wall then floor
2. If the device restarts, it will automatically enter the cleaning mode you set last time.

GET STARTED

RUN YOUR CLEANER

Hold the handle of the robot, and put it into the pool vertically.

Let it drain to the ground to empty the trapped air inside.

Note:

To achieve an optimal cleaning performance, you should ensure the water depth of the pool is at least 50 cm high from the top of the device.

After a 20 seconds of self-calibration, the indicator light will turn to flashing blue. The cleaner is ready to clean.

The cleaner begins to clean walls, floor and waterline as default or according to your settings through App.

GET STARTED

RUN YOUR CLEANER

5 The device will automatically move to stop by the edge of wall when finishing its cleaning cycle or when its battery is low.

6 Insert the included hook into a pool pole and lift the cleaner out of the pool.

7 Take the cleaner out of the pool vertically to drain inside water out quickly.

CLEAN THE FILTER

RUN YOUR CLEANER

1 Push up the lid button to open the cover.

2 Push the lid open button up to open the cover.

③ Empty all debris and rinse the filters with clean water.

4 After rinsing, put the filter basket and HEPA cartridge into the cleaner and close the cover.

Note:

1. Due to electric components inside the cleaner, store the cleaner in a cool and ventilated place, away from direct sunshine or any heat source.
2. Charge the cleaner prior to long time storage (over 6 months) to maintain an optimal battery life.

MAINTENANCE

You should follow these steps to store your cleaner and maintain good performance.

1. Ensure the device is powered off.
2. Dry out the cleaner and filter drawer.
3. Fully charge the battery.
4. Store the cleaner in a cool and ventilated place, away from direct sunshine, heat source, frost and pressure changes, at an ambient temperature between 5^ C/ 41^ C and 45^ F / 113^ F.
5. Charge the cleaner every three months to ensure an optimal battery life.

Note:

If your device does not work after a long-term low battery life or being off, please contact after-sale team for help. For your safety, do not try to disassemble it without authorization.

FAQ & TROUBLE SHOOTING

FAQ

Q: What pool shapes and construction materials is the cleaner suitable for?

A: The machine can be applied to rectangle, oval, or irregular shapes of in-ground swimming pools. Applicable construction materials include PVC, gunite, tile and other materials. (Slippery materials such as tiles, mosaics, and acrylic may not work well, and you need to do some modification.)

Q: Will obstacles such as steps, shallow water areas, drains, slopes etc. in the swimming pool affect the running?

A: The machine can climb steps, drains, and shallow water areas. The above obstacles may influence its cleaning path, but will not affect the operation of the machine.

If you encounter the following situations when using the cleaner, you can check the table and solve them by yourself.

Note:

If you can not find a solution from the table, please contact after-sale team.

FAQ & TROUBLE SHOOTING

No.	Issues	Details	Possible Causes	Suggested Solution
1	Device does not work	Steady red light	Impeller is stuck	Check the impeller and clean debris
		Flashing red light	Motor protection	Restart
		Flashing red light	Device out of water or the pool water is too shallow	Restart and put cleaner into the pool immediately. Be sure the water depth is over 0.5m.
		Flashing yellow light	Battery low	Fully charge the device and restart
2	Unable to charge	Charger light flashes	Poor contact	Re-plug the charger
3	Does not climb walls		Slippery construction materials	Stick adhesive blocks (Contact after-sale team for instruction)
			Filter is full / clogged	Clean the filter basket
4	Abnormal wall climbing	Climbing slowly	Filter is full / clogged	Clean the filter basket
		Sinking down away from wall or floating on the water	Intake air	Stick adhesive blocks (Contact after-sale team for instruction)
			Filter is full / clogged	Clean the filter basket
5	Only cleans a part area, and cannot clean the entire pool		Wrong cleaning mode	Connect to the App and re-choose a suitable cleaning mode
			Firmware not updated	Connect to the App and update the firmware
6	Front side up when on the floor		Filter basket blocked	Connect to the App and change cleaning path
7	Does not clean as set cleaning path		Encounter Obstacles	Clean the filter basket
	Stuck at water drains		Drain height is over 3cm	Help the machine away from the obstacle
	Unable to connect to the App		Device powered off	Restart
8	The APP cannot be connected		Cleaner is in the pool	Take cleaner out of the pool and connect it on the shore

CERTIFICATION

CF robotic pool cleaners have passed all performance and reliability tests and also has obtained relevant certifications from the countries in which they are sold.

Due to the need for continuous products improvement, the products in the manual are subject to the real products, and CF Group. Reserves the right to update products. If you encounter any problems during use, please contact after-sale team.

LIMITED WARRANTY

1. All CF pool cleaners in the market have been inspected and licensed to be sold as per local laws.
2. The warranty applies only to original buyers, and not valid to resale and any other kinds of transfer.
3. Any damages to the unit caused by improper use, unauthorized repair or disassembly are not covered by CF Group.
4. The order number or record must be presented for any claim or repair within the warranty period.

RECYCLING

The robot contains a Lithium-ion battery, which should be recycled by qualified battery electronics recyclers. Recycling of batteries and battery-containing products benefits the environment and human health.

Do NOT disassemble or dispose of the battery in the rubbish or municipal recycling bins.

INNEHÅLL

Användarhandbok

1 / SÄKERHETSANVISNINGAR 61
2 / BESKRIVNING 63

EXTERN PRODUKTÖVERSIKT 63

INTERN PRODUKTÖVERSIKT 64

LEVERANSOMFÅNG 65

TEKNISKA SPECIFIKATIONER 66

3 / ANVÄNDNING 67

LADDA POOLROBOTEN 67

DISPLAYFÖRKLARING 68

STARTA POOLROBOTEN 69

APP-ANSLUTNING 69

INSTÄLLA RENGÖRINGSLÄGE 70

DRIFTSÄTTNING 72

4 / RENGÖRING AV FILTER....73
5 / UNDERHÅLL....74
6 / FELSÖKNING....75
7 / CERTIFIERING.... 77
8 / GARANTI 77

TACK FÖR ATT DU KÖPT DENNA CF 350 CL AKKU POOLROBOT. LÄS IGENOM HANDBOKEN NOGGRANT INNAN DU INSTALLERAR ELLER ANVÄNDER PRODUKTEN. SPARA DENNA HANDBOK FÖR SENARE REFERENS.

EXTERN PRODUKTÖVERSIKT

Handtag

INTERN PRODUKTÖVERSIKT

Enhet x 1

Filter x 2

Snabbguide x 1

Användarhandbok x 1

Användarhandbok x 1

Laddare x 1

Klisterblock

BESKRIVNING

TEKNISKA SPECIFIKATIONER

Anmärkning:

Zařízení x 1

Filtr x 2

Stručný návod x 1

Nabíječka x 1

Lepicí bloky

POPIS

TECHNICKÉ ÚDAJE

② Nechte jej klesnout na dno, aby mohl uniknout zachycený vzduch.

Poznámka:

i Tlačidlo na otvorenie veka

Zariadenie x 1

Filtry x 2

Nabíjačka x 1

Lepiace bloky

POPIS

TECHNICKÉ ŠPECIFIKÁCIE

Nechajte ho klesnút na zem, aby mohol uniknút uzavretý vzduch.

Poznámka:

Približne 20 sekúnd po samokalibrácii kontrolka začne blikat' modrou farbou. Čistič je pripravený na čistenie.

5 Akonáhle je čistenie ukončené alebo je stav batérie nízky, zariadenie sa automaticky zastaví pri okraji steny.

4 Po opláchnutí vložte filtračný kôš spät do čističa a uzavrite viečko.

Poznámka:

Naprava x 1

Filter x 2

Kratka navodila x 1

Polnilnik x 1

Lepilni bloki

OPIS

TEHNIČNE SPECIFIKACIJE

Oznaka	CF 350 CL
Velikost bazena	120 m^2
Globina	9,8 ft (3 m)
Dimenzije naprave	360 (D) * 360 (Š) * 240 (V) mm
Teža	8 kg
Čas delovanja	3 ure (Eco Floor)
Čas polnjenja	3 ure
Električna moč	65 W
Vhodni tok polnilca	100–240 V, 50–60 Hz
Izhodni tok polnilca	25,2 V/1,78 A
Kapaciteta baterije	4600 mAh
Filter	180 μm + ultrafin filter HEPA
Hitrost gibanja	10 m/min
Vodotesnost	IPX8
OTA- posodobitev	Na voljo
Povezava z aplikacijo	Na voljo

UPORABA

POLNJENJE ROBOTSKEGA SESALCA

LED lučka	Prikaz	Stanje
	Luč gori	Vklopljen
	Luč utripa	V delovanju
	Luč gori	Povezava z aplikacijoTrenutni način čiščenja
	Luč utripa	Nizka raven baterije ali samodejno parkiranje v bazenu.
	Luč utripa	Polnjenje v teku
	Luč gori	Popolnoma napolnjeno
	Luč gori ali utripa	Napaka

UPORABA

VKLOP ROBOTSKEGA SESALCA

Način	Symbol	Površina čiščenja
Standardni Celoten bazen		Dno + stene + vodna linija
Samo tla		Dno bazena
Samo stene		Stene bazena
Stena, nato tla (kombinacija)		Stena *1 + tla *1
Turbo tla		Močno čiščenje, samo čiščenje tal
Eko tla		Eko-način, samo čiščenje tal

Opomba:

1 Sesalec primite za ročaj in ga postavite navpično v bazen.

7 Sesalec morate odstraniti navpično, da se voda, ki je v robotu, hitro izlije.

ČIŠČENJE FILTRA

1 Pritisnite gumb za odpiranje pokrova filtra in pokrov dvignite.

2 Vzemite ven košaro filtra in ultrafini filter.

4 Po izpiranju ponovno vstavite filter v sesalec in zaprite pokrov.

Opomba:

CF Group - ADRIA D.O.O.

Kolodvorska ulica 25/a

2310 Slovenska Bistrica

SLOVENIJA

Tel: [phone]

www.stotinka.sl / www.cfadria.com

SADRŽAJ

Izvorni priručnik

1 / OPĆA UPOZORENJA 137
2 / OPIS....139

VANJSKI PREGLED PROIZVODA 139

UNUTARNJI PREGLED PROIZVODA 140

POPIS PAKIRANJA.... 141

TEHNIČKE SPECIFIKACIJE 142

3 / POČNITE S RADOM.... 143

PUNJENJE USISAVAČA 143

LED SVJETLA 144

POSTAVLJANJE USISAVAČA 145

POVEZIVANJE S APLIKACIJOM 145

ODABIR NAČINA ČIŠĆENJA 146

POKRETANJE USISAVAČA 147

4 / ČIŠĆENJE FILTERA 149
5 / ODRŽAVANJE 150
6 / ČESTA PITANJA I OTKLANJANJE POTEŠKOĆA 151
7 / CERTIFIKACIJA 153
8 / JAMSTVO 153

HVALA VAM ŠTO STE KUPILI NAŠ CF 350 ELEKTRIČNI USISAVAČ ZA BAZEN. MOLIMO VAS DA PAŽLJIVO PROČITATE OVAJ PRIRUČNIK PRIJE INSTALACIJE I UPORABE TE GA SAČUVATE ZA BUDUĆU UPORABU NAKON INSTALACIJE.

i Gumb za otvaranje poklopca

Usisavač × 1

Filteri × 2

Vodič za brzi početak × 1

Punjač × 1

Plutajući blokovi

OPIS

TEHNIČKE SPECIFIKACIJE

Model	CF 350 CL
Veličina bazena	120 m^2
Minimalna dubina vode	9.8ft (3m)
Dimenzije uređaja	360(L)*360(W)*240(H) mm
Težina	8kg
Vrijeme rada	3 heures (Fond Éco)
Vrijeme punjenja	3 heures
Snaga	65W
Ulaz punjača	100-240V, 50-60Hz
Izlaz punjača	25.2V/1.78A
Kapacitet baterije	4600mAh
Filtracija	180 m + Filtre ultra-fin HEPA
Brzina kretanja	10m/min
Otpornost na vodu	IPX8
OTA nadogradnja (ažuriranje soft-vera putem interneta)	Dostupno
Povezivanje s aplikacijom	Dostupno

POČNITE S RADOM

PUNJENJE USISAVAČA

Uređaj ima litij-ionsku punjivu bateriju, koju je potrebno napuniti prije prve uporabe te svaki put kada je baterija pri kraju.

iOS	Android
iOS 15.0 or later	Android 8.0 or later

POČNITE S RADOM

ODABERITE NAČIN ČIŠĆENJA

Način čišćenja	Icon (Robot)	Pokrivenost čišćenja
Standardno – cijeli bazen		Zidovi + dno + vodena linija
Samo dno		Dno bazena
Samo zidovi		Zidovi bazena
Zidovi pa dno(kombinirani način)		Zidovi ×1 + dno ×1
Turbo dno		Snažan način čišćenja(samo čišćenje dna)
Eko dno		Eko način(samo čišćenje dna)

Napomena:

Držite ručku robota i spustite ga okomito u bazen.

Usisavač započinje s čišćenjem zidova, dna i vodene linije prema zadanim postavkama ili prema postavkama koje ste odabrali u aplikaciji.

POČNITE S RADOM

POKRENITE SVOJ USISAVAČ

5 Uređaj će se automatski zaustaviti uz rub zida nakon što završi ciklus čišćenja ili kada je baterija pri kraju.

6 Umetnite priloženu kuku u teleskopsku šipku za bazen i podignite usisavač iz bazena.

1 Pritisnite gumb za otvaranje poklopca kako biste otvorili poklopac.

2 Izvadite dva filtera iz robota.

3 Ispraznite svu prljavštinu i ispržite filtre čistom vodom.

4 Nakon ispiranja vratite košaricu filtra i HEPA uložak u usisavač te zatvorite poklopac.

Napomena:

CF GROUP DEUTSCHLAND GMBH

Bahnhofstrasse 68

73240 Wendlingen

GERMANY

[e-mail]

Dreams, health & care with water

A brand by CF group / Une marque CF group / Een merk van CF group / Un marchio di CF group / Un brand al CF Group / Marka CF Group

Dreams, health and care with water / Concilier rêves, santé et soin grâce à l'eau / Water is wellness: goed voor lichaam en geest / Sogni, salute e cura con l'acqua / Echilibrul benefic al apei, sursa viselor și sănătății tale / Marzenia, zdrowie i opieka dzięki wodzie
