Product type	LED pool light
Model	LEDINPOOL A5 KPL RGB 500699
Brand	Edenea
Category	Pool
Dimensions	Diameter 5 inches (12.7 cm)
Weight	0.5 kg
Power supply	12 V DC
Power	12 W
Waterproof rating	IP68 (submersible)
Colors	RGB (multicolor)
Control	Remote control
Functions	Color change, fade mode, strobe mode
Material	Stainless steel and tempered glass
Installation	Recessed or wall-mounted
Maintenance	Clean with a soft cloth and clean water, avoid abrasive products
Safety	Use with a low-voltage transformer (12 V), comply with electrical standards
Repairability	Spare parts available (gaskets, LED, transformer)
Warranty	2 years
General information	Suitable for above-ground and in-ground pools, outdoor use

Frequently Asked Questions - LEDINPOOL A5 Edenea

How to install the LEDINPOOL A5 KPL RGB light in my pool?

Installation must be carried out by a qualified professional. The light is fixed in a recessed niche or on a wall mount. Make sure to cut off the power before any handling. Use a suitable 12V transformer.

Is the light waterproof?

Yes, the light has an IP68 certification, meaning it is fully protected against prolonged immersion in water.

Which transformer to use?

Use a 12V DC transformer with a minimum power of 12W. Do not connect directly to 230V mains.

How to maintain the light?

Clean the glass regularly with a soft cloth and clean water. Avoid abrasive or chemical products that could damage the sealing gasket.

What is the lifespan of the LED?

The LEDs have an average lifespan of 30,000 hours, which is about 10 years of daily evening use.

How to change colors?

Use the provided remote control to switch between modes: fixed color, fade, strobe. Maximum range is 10 meters.

Does the light consume a lot of electricity?

No, with a power of 12W, consumption is very low. For example, 8 hours of use per day costs about €0.03 per day (based on €0.25/kWh).

Can I use this light in an above-ground pool?

Yes, the light is suitable for above-ground and in-ground pools. Make sure the wall can support the installation and that the cable is protected.

What to do if the light no longer turns on?

First check the power supply and transformer. If everything is correct, the problem may be with the LED or the driver. Contact after-sales service for replacement.

Is the warranty valid in case of water damage?

The warranty covers manufacturing defects, but not damage caused by improper installation or non-compliant use. Make sure to follow installation instructions and use a 12V transformer.

USER MANUAL LEDINPOOL A5 Edenea

# 500699

RGB

MANUEL D'UTILISATION & D'ENTRETIEN

Contenu fourni - Content provided - Contenuto fornito - Contenido incluido - Verpackungsinhalt - Conteúdo fornecido - Geleverde inhoud - Комплект поставки :

FR

(installation multiple)

6. AVERTISSEMENTS DE SECURITE

IMPORTANT: this instruction manual contains highly

important information about safety measures to be taken

when installing and commissioning the device. It is therefore important for you to read these instructions before assembling and operating the product. Please keep this manual for later use. Lack of compliance with the instructions stated in this manual during the installation, operating and maintenance phases shall relieve the manufacturer or distributor of any liability in the face of damages caused to people, to the product or to the installation site, and will result in you losing the warranty.

1. GENERAL INFORMATION

This projector was designed for immersed use in freshwater. It is a class III lighting system with Safety Extra Low Voltage of 12V. The light source of this luminaire is not replaceable. When the light source reaches its end of life, the whole luminaire shall be replaced. This projector has an IP68 protection level and must be installed at a maximum immersed depth of 1 metre. The projector's cable cannot be replaced. If damaged, the projector may be deteriorated. This projector complies with international light safety standards, in particular standard EN 60598-2-18 pertaining to swimming pool lights.

2. INSTALLATION

Correct installation requires for the plug powering the projector to be protected by a residual current device, with a maximum intensity of 30 mA. This projector can only be connected to a two-coil insulated safety transformer with a maximum output voltage of 12V. Any other type of transformer is prohibited. This transformer's power must always be higher than that of the connected projector. Installation requires there to be an outlet fitting with a 1.5" female thread. The manufacturer can in no way be held responsible for the assembly, installation or operation of the product if it was manipulated or if non-provided electrical components were added.

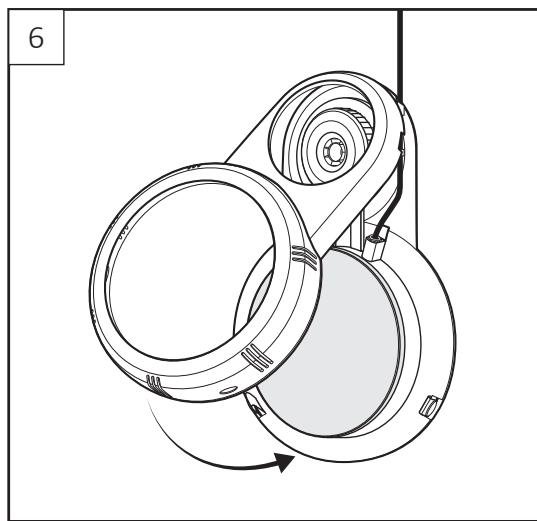

3. ASSEMBLY AND REPLACEMENT

Recommendations:

• Make sure no one is swimming during the installation process.
• After use, we recommend unplugging the transformer from the socket. Refer to the instructions in this manual.

4. MAINTENANCE

This LED light does not require any form of maintenance. When the red LED on the remote control no longer lights up, its 12V MN23 battery needs to be replaced. If the product malfunctions, please contact either our customer service department, or that of your retailer.

5. USAGE

The system offers 10 programmes with 7 set colours and 3 automatic colour splashes. Manual control is possible using the remote control or by cutting the power supply.

<3 s: switch to the following programme

15s: switch back on to the programme selected prior to the power cut

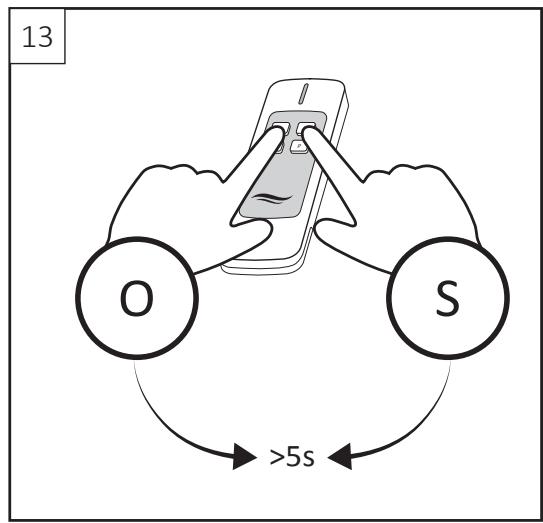

To use the remote control, position yourself facing the light and stand maximum 10 metres away. The presence of metal near the projector, or deep immersion, can restrain the use of the remote control to a much shorter distance (1 to 2 metres). When first using the remote control, you will need to configure it with its receiver- already integrated in the system. (Refer to the instructions in this manual)

On/Off (O): Switched on/Standby

Colors (C): Access to 7 set colours

Programs (P): access to 3 colour splashes

Synchro (S): light synchronisation

(multiple installations)

6. SAFETY WARNINGS

- Before working on the light, it must be unplugged from the electrical network

• All electrical connections must be done outside the water
• Never work on the device with wet feet
• All prevention standards currently in force must be complied with
• IEC 364-7-702 standards in particular must be complied with: ELECTRICAL INSTALLATIONS INSIDE BUILDINGS. SPECIAL POOL INSTALLATIONS

- Those in charge of assembly must be suitably qualified for this type of work

• Switching the device off with the remote control will simply put it on standby
• If the device stays off for more than 24h, we recommend using the switch located just before the transformer.

7. WARRANTY

This LED light is guaranteed against any material and/or manufacturing defects (electronic components) for 2 years starting from the date of delivery. (Substantiating documents must be preserved) This light is not guaranteed against breakage caused by an external impact, a short circuit or excessive screwing, nor against power surges caused by the main power network. (In this case, the home insurance policy will kick in). This warranty is valid under the strict condition that the assembly and maintenance instructions are complied with. Within the framework of this warranty, the manufacturer or distributor's only obligation will be to have their after-sales service replace or repair the product or component recognised as defective for free (the choice is theirs to make). Any other costs are to be covered by the purchaser. To benefit from this warranty, products must first be sent in to the manufacturer or distributor's after-sales service; their consent is mandatory if the product is to be replaced or repaired. The warranty shall not apply in the case of a visible defect. Defects and deteriorations caused by normal wear, malfunctions resulting from non-compliant assembly and/or usage, and product modifications made without the manufacturer's prior written consent are also excluded from the warranty.

8. ENVIRONMENTAL INFORMATION

In accordance with European Directive 2002/96/EC, pertaining to waste electrical and electronic equipment (WEEE), the consumer must return any used products to suitable collection points.

IT
