USER MANUAL MINI TRIM AUTO ST FLYMO

1. Switch Lever
2. Safety Lock-off Lever
3. Upper Shaft
4. Lower Shaft
5. Safety Guard
6. Plant and Tree Guard
7. Instruction Manual
8. Warning Label
9. Product Rating Label
   10.Steady Handle

DE - INHALT

Mini Trim Auto ST/Mini Trim Auto XT/Mini Trim Auto Plus XT

Safety

If not used properly this product can be dangerous! This product can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this product. The operator is responsible for following the warning and safety instructions in this manual and on the product.

Explanation of Symbols on your product

Warning

Read the user instructions carefully to make sure you understand all the controls and what they do.

Keep bystanders away. Do not operate whilst people especially children or pets are in the area.

The use of eye protection is recommended to protect against objects thrown by the cutting parts.

Do not operate in the rain or leave the product outdoors while it is raining.

Switch off! Remove plug from mains before adjusting, cleaning or if cable is entangled or damaged.

Warning

The cutting line continues to rotate after the machine has been switched off.

General

1. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety. Children should be supervised to ensure that they do not play with the product. Local regulations may restrict the age of the operator.
2. Only use the product in the manner and for the functions described in these instructions.
3. Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or hazards occurring to other people or their property.
5. Keep bystanders away. Do not operate whilst people, especially children or pets are in the area. Electrical

AVOID ACCIDENTAL STARTING, REMOVE PLUG FROM MAINS AND KEEP FEET AWAY FROM THE SWITCH LEVER WHEN:- CLEANING AROUND THE INSIDE OF THE SAFETY GUARD, REMOVING OR REFITTING SPOOL CAP, MANUALLY FEEDING OR REPLACING NYLON LINE

1. The use of a Residual Current Device (R.C.D.) with a tripping current of not more than 30mA is recommended. Even with a R.C.D. installed 100% safety cannot be guaranteed and safe working practice must be followed at all times. Check your R.C.D. every time you use it.
2. Before use, examine cable for damage, replace it if there are signs of damage or ageing.
3. Do not use the product if the electric cables are damaged or worn.
4. Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is damaged. Do not touch the electric cable until the electrical supply has been disconnected. Do not repair a cut or damaged cable. Replace it with a new one.
5. Your extension cable must be uncoiled or unwound, coiled or wound cables can overheat and reduce the efficiency of your mower.

6. Keep the cable clear of the cutting area and obstacles at all times.

7. Do not pull cable around sharp objects.

8. Always switch off at the mains before disconnecting any plug, cable connector or extension cable.
9. Switch off, remove plug from mains and examine electric supply cable for damage or ageing before winding cable for storage. Do not repair a damaged cable, replace it with a new one. Use only Flymo replacement cable.
10. Always wind cable carefully, avoiding kinking.
11. Never carry the product by the cable.
12. Never pull on the cable to disconnect any of the plugs.
13. Use only on AC mains supply voltage shown on the product rating label.
14. Our products are double insulated to EN60335. Under no circumstance should an earth be connected to any part of the product.

Cables

Use only 1.00mm^2 size cable up to 40 metres length maximum.

Maximum rating:

1.00mm^2 size cable 10 amps 250 volts AC

1. Mains cables and extensions are available from your local Husqvarna UK Ltd. Approved Service Centre.
2. Only use extension cables specifically designed for outdoor use.

Preparation

1. While using your product always wear substantial footwear and long trousers.
2. Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.
3. Inspect the area to be cut before each use. Remove all objects such as stones, broken glass, nails, wire, string etc, which can be thrown or become entangled in the trimmer head.

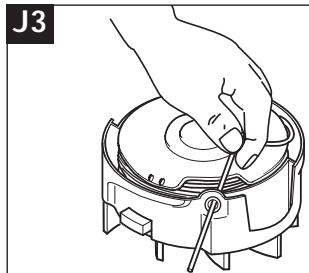

4. Check that the cutting head, spool and cap are fitted correctly.

Use

1. Use the trimmer only in daylight or good artificial light.
2. Avoid operating your trimmer in wet grass, where feasible.
3. Take care in wet grass, you may lose your footing.

Safety

1. On slopes, be extra careful of your footing and wear non-slip footwear.
2. Do not walk backwards when trimming, you could trip. Walk, never run.
3. Switch off before pushing the trimmer over surfaces other than grass.
4. Never operate the trimmer with damaged guards or without guards in place.
5. Never fit metal cutting elements.
6. Keep hands and feet away from the cutting means at all times and especially when switching on the motor.
7. Keep cutting head below waist level.
8. Do not lean over the trimmer guard whilst trimming or edging - objects may be thrown by the cutting line.
9. Beware of cut-off pieces of nylon line ejected during use.
10. Never pick up or carry a trimmer by the cable.
11. Remove the plug from the mains:
12. before leaving the trimmer unattended for any period;
13. before clearing a blockage;

14. before checking, cleaning or working on the appliance;

15. if you hit an object. Do not use your trimmer until you are sure that the entire trimmer is in a safe operating condition;

16. if the trimmer starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury. Maintenance and storage

17. Keep all nuts, bolts and screws tight to be sure the trimmer is in safe working condition.

18. Replace worn or damaged parts for safety.

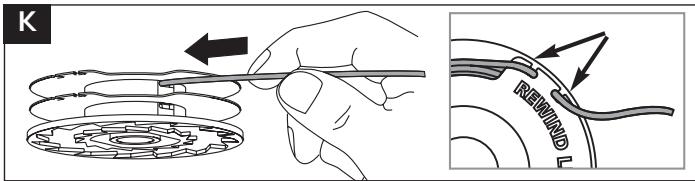

19. Only use the replacement cutting line specified for this product.
20. Only use replacement parts and accessories recommended by Husqvarna UK Ltd.
21. After any maintenance in dealing with the cutting line, always return the product to its normal operating position before switching on.

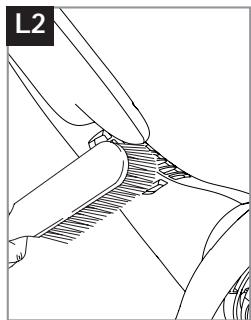

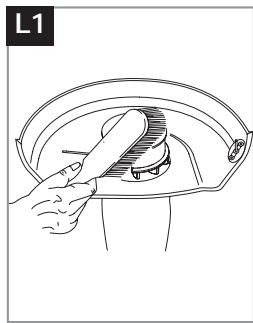

22. Clean unit with a dry cloth. Never use metal objects to clean the unit.
23. Inspect and maintain the trimmer regularly. Any repairs must be carried out by an authorised repairer.
24. Store in a cool dry place and out of reach of children. Do not store outdoors.

Environmental Information

• Awareness of the environment must be considered when disposing of 'end-of-life' product.
• If necessary, contact your local authority for disposal information.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.

Service Recomendations

• Your product is uniquely identified by a silver and black product rating label.
  We strongly recommend that your product is serviced at least every twelve months, more often in a professional ap

Guarantee and Guarantee Policy

If any part is found to be defective due to faulty manufacture within the guarantee period, Husqvarna UK Ltd., through its Authorised Service Repairers will effect the repair or replacement to the customer free of charge providing:

(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or faulty adjustment by the user.
(d) The failure has not occurred through fair wear and tear.
(e) The machine has not been serviced or repaired, taken apart or tampered with by any person not authorised by Husqvarna UK Ltd..
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used commercially.

• This guarantee is additional to, and in no way diminishes the customers statutory rights.

Failures due to the following are not covered, therefore it is important that you read the instructions contained in this Operator's Manual and understand how to operate and maintain your machine:

Failures not covered by guarantee

• Failures as a result of not reporting an initial fault.
• Failures as a result of sudden impact.
• Failures as a result of not using the product in accordance with the instructions and recommendations contained in this Operator's Manual.
• Machines used for hire are not covered by this guarantee.
• The following items listed are considered as wearing parts and their life is dependent on regular maintenance and are, therefore not normally subject to a valid warranty claim: Nylon Line, Spool & Line
• Caution!

Husqvarna UK Ltd. does not accept liability under the warranty for defects caused in whole or part, directly or indirectly by the fitting of replacement parts or additional parts that are not either manufactured or approved by Husqvarna UK Ltd., or by the machine having been modified in any way.

EC DECLARATION OF CONFORMITY

Husqvarna UK Ltd., Aycliffe Industrial Park

Newton Aycliffe, Co. Durham, DL5 6UP, England

Declare under our sole responsibility that the product(s);

Category.....Electric Lawn Trimmer

Type(s) MST21,MAST23,MAXT25,MA+XT25

Identification of Series....See Product Rating Label

Year of Construction......See Product Rating Label

Conforms to the essential requirements & provisions of the following EC Directives:

98/37/EC (until 31.12.09), 2006/42/EC (from 01.01.10), 2004/108/EC, 2000/14/EC

based on the following EU harmonized standards applied:

EN60335-1, EN60335-2-91, EN786, EN50366, EN55014-1, EN61000-3-2, EN61000-3-3

The maximum A weighted sound pressure level L_pA at the operator's position, recorded on a sample of the above product(s) corresponds to the Level given in the table.

The maximum hand / arm vibration weighted value measured according to EN ISO 5349 on a sample of the above product(s) corresponds to the Value given in the table.

2000/14/EC: The Measured Sound Power LWA & Guaranteed Sound Power LWA values are according to the tabulated figures.

Conformity Assessment Procedure.. Annex VI

Notified Body. Intertek, Cleeve Road

Leatherhead, Surrey

KT22 7SB, England

Newton Aycliffe 01/07/2008

M.Bowden

Research & Development Director

Husqvarna UK Ltd.

Type	MST21	MAST23	MAXT25	MA+XT25
Width of Cut (cm)	21	23	23	25
Speed of Rotation of Cutting Device (rpm)	13,000	11,500	11,500	10,500
Power (W)	230	250	250	300
Measured Sound Power LWA (dB(A))	91	91	91	94
Guaranteed Sound Power LWA (dB(A))	93	93	93	95
Level (dB(A))	77.4	82.9	82.9	82.3
Value (m/s²)	4.59	4.85	4.85	4.5
Weight (Kg)	2.0	2.0	2.3	2.3
