Product Type	Freestanding Cooker
Brand	Point
Model	POBO780I4B
Fuel Type	Electric
Oven Type	Multifunction Electric Oven
Oven Capacity	Approx. 70 Liters
Number of Hob Zones	4
Hob Type	Ceramic or Induction (likely ceramic)
Dimensions (H x W x D)	90 cm x 60 cm x 60 cm
Weight	Approx. 55 kg
Power Supply	220-240 V, 50/60 Hz
Energy Efficiency Class (Oven)	A+
Oven Functions	Fan assisted, conventional, grill, defrost
Hob Controls	Knobs
Main Features	Digital timer, interior light, easy-clean enamel
Cleaning	Wipe with damp cloth; use mild detergent for stubborn stains
Safety Features	Child lock, auto shut-off, cool-touch door
Spare Parts Availability	Contact Point customer service
Repairability Index	7.5 / 10

Frequently Asked Questions - POBO780I4B Point

How do I install the Point POBO780I4B cooker?

Installation should be carried out by a qualified electrician. Ensure the cooker is connected to a suitable power supply and that the ventilation requirements are met. Refer to the manual for detailed installation instructions.

What is the energy efficiency of the oven?

The oven is rated A+ for energy efficiency, ensuring lower energy consumption compared to standard models.

How do I clean the hob?

Allow the hob to cool completely. Wipe with a damp cloth or use a ceramic hob cleaner for stubborn residues. Avoid abrasive cleaners.

Can I use aluminium foil in the oven?

Yes, but avoid covering the oven floor entirely as it may hinder heat circulation. Do not let foil touch the heating elements.

What are the oven functions available?

The oven offers multiple functions including fan-assisted, conventional, grill, and defrost settings.

How do I activate the child lock?

Press and hold the child lock button (usually indicated by a key symbol) for 3 seconds until the indicator light turns on. Repeat to deactivate.

What type of cookware is recommended for the hob?

For ceramic hobs, use flat-bottomed cookware made of stainless steel, enamel, or glass-ceramic. Avoid rough bases.

Why is the oven not heating up?

Check if the oven is properly connected to power and the timer is set. If the problem persists, a heating element may be faulty; contact service.

How do I set the clock on the cooker?

Press the clock button and use the +/- buttons to adjust the time. Some models require holding the button for a few seconds.

Where can I buy spare parts for this cooker?

Spare parts are available through Point customer service or authorized dealers. Provide the model number POBO780I4B for accurate parts.

USER MANUAL POBO780I4B Point

Thank you for purchasing your new POINT product.

These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Thank you for purchasing your new POINT product.

Please read the following instructions carefully before using the appliance.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any maintenance work on it.
• Connection to a good earth wiring system is essential and mandatory.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care; panel edges are sharp. - Failure to use with caution could result in injury or cuts. - The razor-sharp blade of the hob scraper is exposed when the protective cover is pulled off. - Use it with extreme caution and store it safely and out of the reach of children.

- Failure to follow this instruction may result in injury or cuts. Important safety instruction

- Read these instructions carefully before installing or using this appliance.

- No combustible material or products should be placed on the appliance at any time.

- Please make this information available to the person responsible for installing the appliance as it may reduce your installation costs.

- In order to avoid a hazard, the appliance must be installed according to these instructions for installation.

• The appliance is to be properly installed and earthed only by a suitably qualified person.
• The appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• WARNING: Use only the hob guards incorporated in the appliance or indicated in the instructions by the manufacturer, any inappropriate use may cause accidents.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
• Regarding the details of installation, refer to the section .

Operation and maintenance

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface is broken or cracked, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance complies with electromagnetic safety standards.

Hot Surface Hazard

• During use, all accessible parts of the appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Children younger than 8 years of age shall be kept away unless continuously supervised.
• Handles of saucepans may be hot to touch. Check saucepan handles, do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Important safety instructions

- Never leave the appliance unattended when it is in use. Boiling over may cause smoking and greasy spillovers may ignite.

- Never use your appliance as a work or storage surface.

- Never leave any objects or utensils on the appliance.

- Never use your appliance for warming or heating the room.

- After use, always turn off the cooking zones on the cooktop as described in this manual (i.e., by using the touch controls).

- Do not allow children to play with the appliance or sit, stand, or climb on it.

- Do not store any items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

- Do not leave children alone or unattended in the area where the appliance is in use.

- Children or persons with a disability that limits their ability to use the appliance should have a responsible and competent adult to instruct them during its use.

- Do not repair or replace any part of the appliance unless it is specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not use pans with jagged edges or drag pans across the glass surface as this may scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as they may scratch the ceramic glass.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in a domestic household environment only! Commercial use of any kind is not covered under the manufacturer’s warranty!
• WARNING: The appliance and its accessible parts become hot during use.
• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless they are continuously supervised.
• This appliance can be used by children who are 8 years or older and by people who have reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch the appliance off and then cover flame with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: Switch off the appliance to avoid the possibility of electric shock, If the surface is cracked, for hob surfaces of glass-ceramic or similar material which protect live parts.
• A steam cleaner should not be used.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• CAUTION: The cooking process has to be supervised continuously.
• Power cord cannot be accessible after installation.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

Fitting - installing:

The cut-out sizes are: Flushed:

	Glass size Cut-out size Rear				Side Radius Cut size Deep
	A1 B1	C D E F	H A2 B2 G
POB0780I4BFAS	520	770	495	745	50	40	10	526	776	5

Under any circumstances, make sure the Induction cooker hob is well ventilated, and the air inlet and outlet are not blocked. To ensure the induction hob is working in the good status. As shown below.

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

A(mm)	B(mm) C(mm)		D	E
760	20 MIN	20 MIN Air intake Air exit 5mm

Before you install the hob, make sure that

• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a heat-resistant material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).
• The isolating switch will be easily accessible to the customer with the hob installed.
• You are suggested to consult local building authorities and by-laws if in doubt regarding installation.
• You use heat-resistant and easy-to-clean finished items (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of fresh air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection barrier should be installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Installation

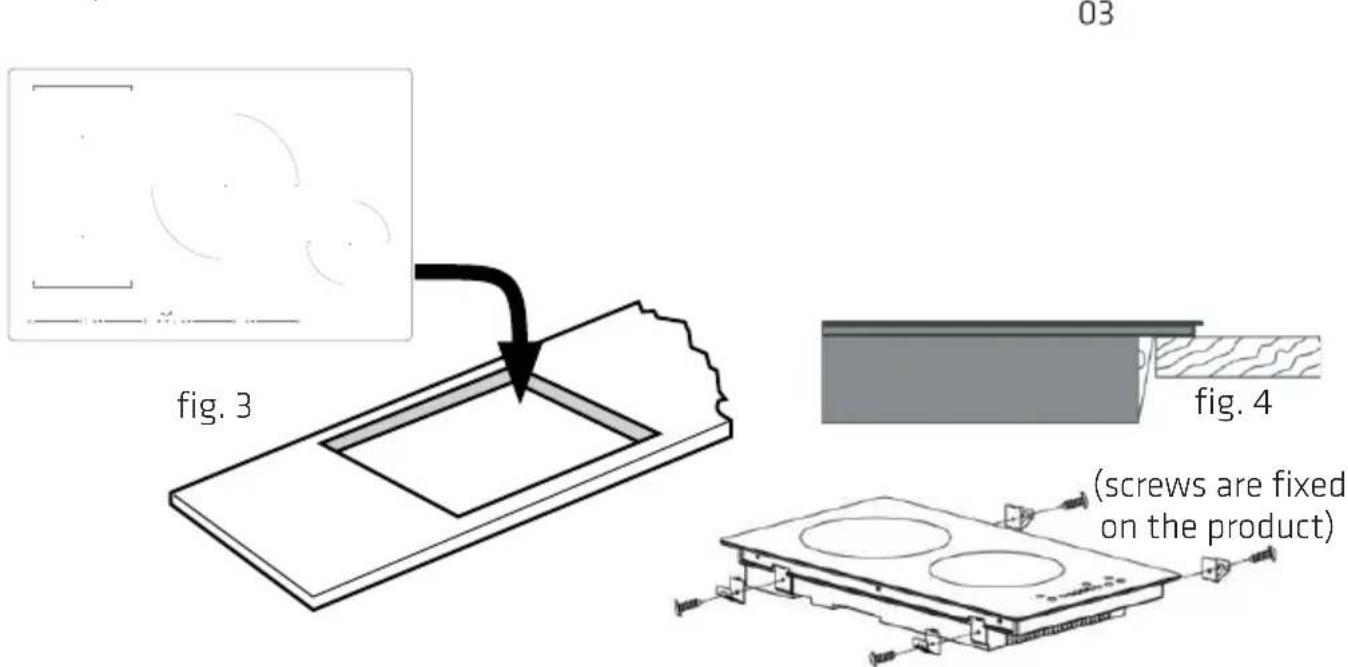

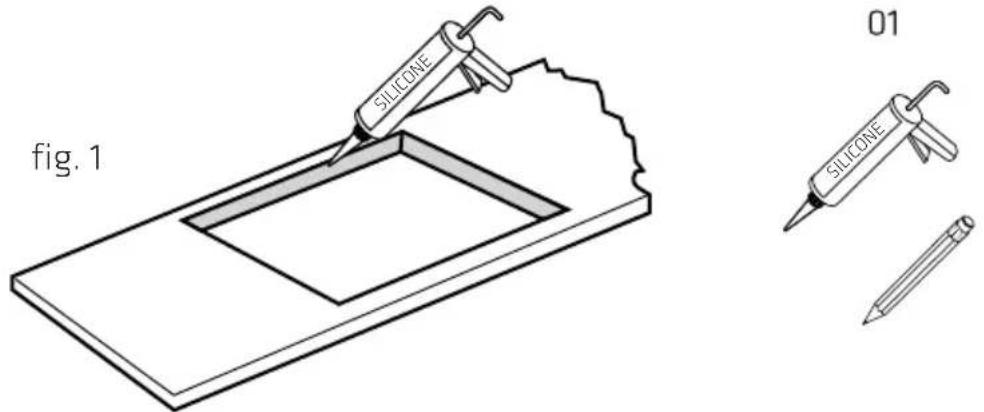

Cut out worktop according to supplied dimensions shown (as fig. 1 for reference) with suitable equipment. Seal the cut edge of the worktop using silicone or PTFE and allow it to dry prior to fitting the hob.

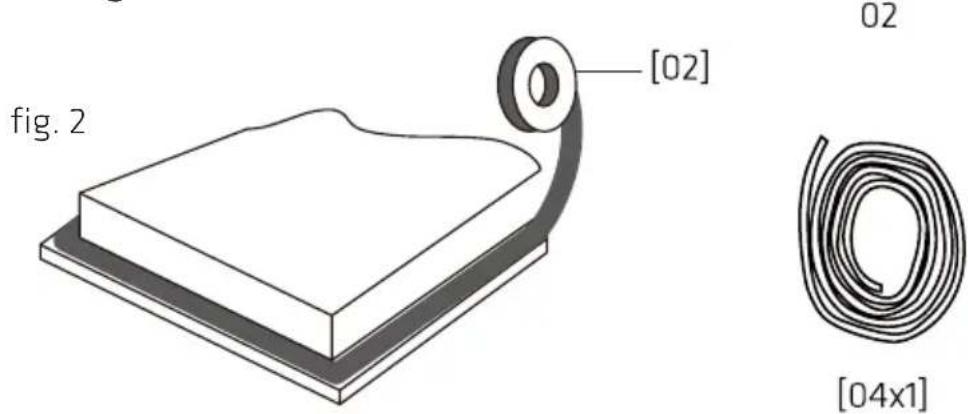

Stretch out the supplied seal along the underside edge of the hob, ensuring the ends overlap.

Do not use adhesive to fix the hob into the worktop. Once the seal is fitted and the hob put into the cutout, apply gentle downwards pressure onto the hob to push it into the worktop, ensuring a good seal around the outer edge (fig. 4)

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
3. The induction hotplate shall be installed in a way that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. The power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75°C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

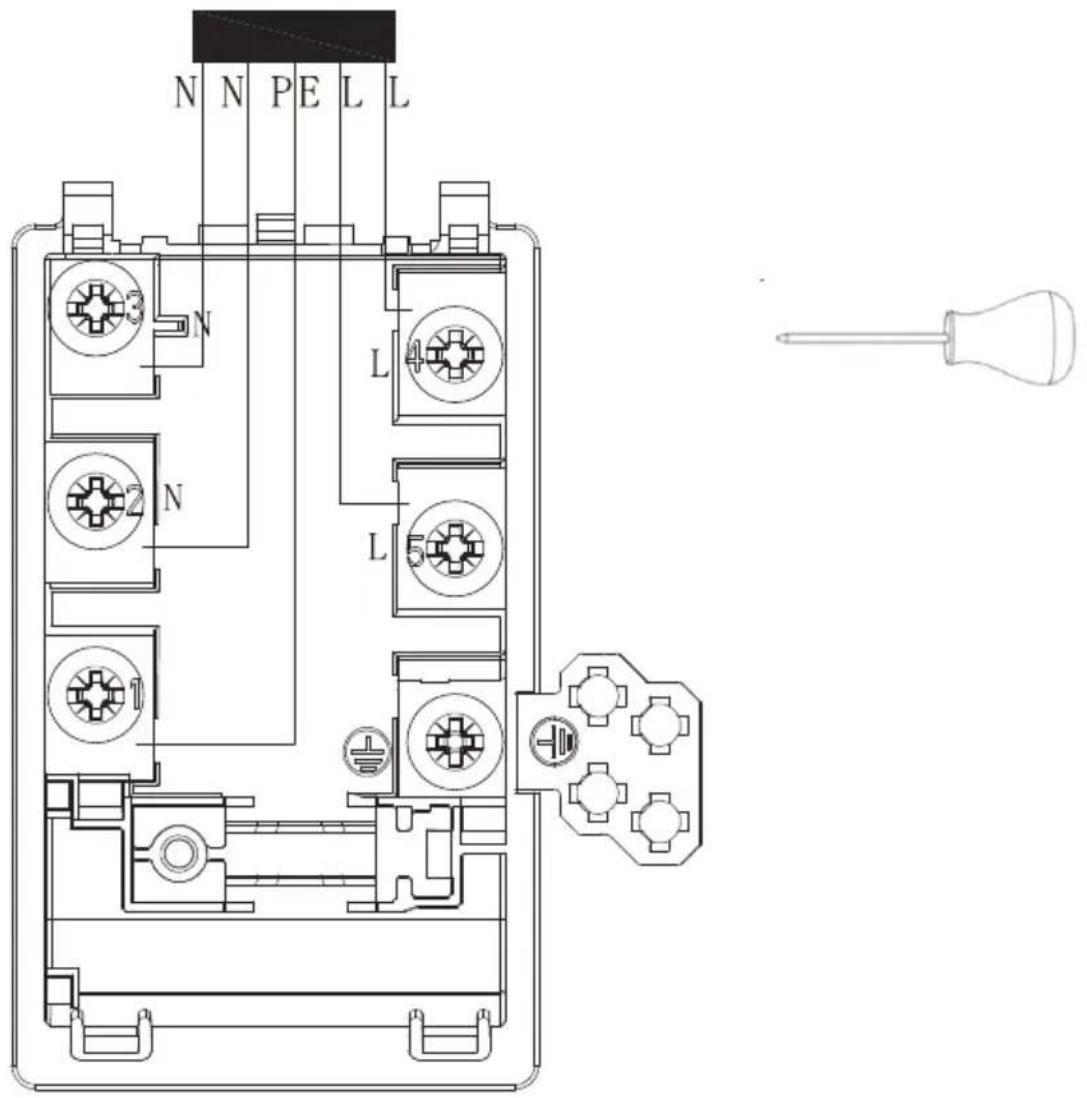

Double Phases: 380 - 415 V2N~ Single Phase: 220-240V~
5x1.5 mm2 or 4x2.5 mm2	5x1.5 mm2 or 3x4 mm2
Green/Yellow Green/Yellow
N Blue and Gery Blue and Gery N
L1 Black Black and Brown L
L2 Brown

• If the cable is damaged or to be replaced, the operation must be carried out by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains, an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorized technicians only.

Warning

If the power cable is not long enough for you, here are the instructions as below to change the new longer power cable. All the instructions as below MUST BE followed by the professional electrician.

1. Prepare the screwdriver to take the screws out.

1. Take out the power cable, and change to the new power cable.

Product Overview

User interface

Reference Description
A	Zone select key
B	ON/OFF key
C	Timer key
D	Power regulating key
E	Boost control key (double boosters)
F	Timer indication serigraph (not button)
G	Cooking function
H	Child lock key
I	Pause key
J	Flex Zone function
K	Timer regulating key

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Before using your New Induction Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your Induction hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Choosing the right Cookware

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

• If you do not have a magnet:

1. Put some water in the pan you want to check.
2. If it does not flash in the display and the water is heating, the pan is suitable.

- Cookware made from the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot slightly wider, the induction energy will be used at its maximum efficiency. If you use a smaller pot, efficiency could be less than expected. A pot less than 140 mm could be undetected by the hob. Always center your pan on the cooking zone.

Always lift pans off the Induction hob - do not slide, or they may scratch the glass.

Using your Induction Hob

To start cooking

1. Touch the ON/OFF control for a while. After powering on, the buzzer beeps once, all displays show “-”, indicating that the induction hob has entered standby mode.
2. Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
3. According to the heating zone where the pan is placed, select a relevant zone select key by pressing zone selection key (A) or power regulating key (D).

- The first time to touch the slider bar is to activate the power level adjusting mode of the corresponding zone. Touch it again to adjust the power level you want. (Or you can follow the AUTO Pan Detection as below, then you do not need to activate it manually.)

- If you don't choose a heat setting within 1 minute, the induction hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

1. AUTO Pan Detection: during on status, put the pan on the heating zone, and the corresponding heating zone can be activated automatically, you do not need to activate the heating zone by touching the slider bar.

If the display flashes alternately with the heat setting

This means that:

- you have not placed a pan on the correct cooking zone or;

- the pan you're using is not suitable for induction cooking or;

- the pan is too small or not properly centered on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it.

When you have finished cooking

1. Touching the relevant zone power regulating key (D) that you wish to switch off.
2. Touch the slider bar to decrease the power to "0" level.
3. Beware of hot surfaces. "H" will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function: if you want to heat further pans, use the hotplate that is still hot.

Using the Boost function

Activate the Boost function

1. Touch the boost control key (E) once, the zone indicator shows "b". Touch the boost control key (E) twice, the zone indicator shows "P".
2. Boost function will last for 5 minutes and then the corresponding zone power will be back to power level 9 automatically and keep working.

Cancel the Boost function

1. Touch the power regulating key (D) for the relevant zone you wish to cancel.
2. Notes:
3. The function is available in any cooking zone.
4. After 5 minutes, the cooking zone will automatically return to power level 9 without requiring any manual adjustments.

Using Cooking Functions

You can choose 5 handy cooking functions by pressing the cooking functions key (G), each time moves from one function to the other.

"" - Melt or defrost (about 50°C)

" Heating or keeping warm (about 70°C)

"Simmering, temperature close to boiling.

"F" - Auto Oil frying, maintain oil temperature around 210 ± 15°C

"A" - Auto boiling function, with pot size same as heating zone, it will auto heat the water till boiling temperature and maintain for 15 minutes then burner will be turned off automatically.

Using the Pause function - Stop & Go

Pause function can be used at any time during cooking. It allows to stop the induction hob and recall the settings.

1. Make sure that the cooking zone is working.
2. Touch the Pause key (I). All the cooking zone displays will show " ". The operation of the induction hob will be deactivated except the Pause key (I), ON/OFF (B) and Child lock (H).
3. To cancel the pause status, touch Pause key (I), and touch again any other key except Pause key and ON/OFF key, it can return back to the cooking status you set before.

Using Child Lock Function

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the OFF control are disabled.

To lock the controls

Touch the Child lock control key (H) for 3 seconds. The timer indicator will show "Lo".

To unlock the controls

1. Make sure the induction hob is turned on.
2. Touch and hold the Child lock control key (H) for a while.
3. You can now start using your induction hob.

When the hob is in lock mode, all controls are disabled except OFF. You can always turn the hob off with the OFF control in an emergency, but you have to unlock the hob first before the next operation.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure at least one cooking zone is turned on. (Note: you can use the minute minder function when the corresponding zone indicator is steady.)
2. Touch the “-” or “+” key (K) near the timer icon. The timer indicator will start flashing and “00” will show in the timer display.
3. Set the time by touching the “-” or “+” control key (K) of the timer. After regulating the time, the timer indicator will keep flashing for 5 seconds and the hob will confirm the timer setting automatically, then the timer indicator will stop flashing.

Hint: Touch the “-” or “+” control key (C) of the timer once to decrease or increase by 1 minute.

Touch and hold the “-” or “+” control key (C) of the timer to decrease or increase by 10 minutes.

When the time is set, it will begin to count down immediately. The display will show the remaining time.

The buzzer will beep for 30 seconds and the timer indicator will turn off when the set time finishes.

Setting the timer to turn one or more cooking zones off

If the timer is set on one zone:

1. Touch the power regulating key (D) of the relevant cooking zone which is working. The corresponding zone indicator will flash.
2. Use the "+" and "-" keys (K) near the timer icon to set the timer from 1 to 99 minutes.

When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

Hint: The dot next to the power level indicator will illuminate indicating the selected zone.

Once the cooking time expires, the selected cooking zone will turn off automatically. Other zones will continue operating if they were previously on. When using "the timer as an alarm" and "the timer to switch off the zones" at the same time, the display will show the remaining time of the alarm as the first priority. Press the zone power regulating key (D) to view the remaining switch-off time.

Using Flex-Zone Function

• This area can be used as a single zone, according to the cooking needs.
• It consists of two independent inductors that can be controlled separately. When used as a single zone, cookware can be moved from one zone to the other within the area, maintaining the same power level. The parts of the zone not covered by cookware will automatically turn off.

- To activate the flex zone mode, touch the button, and use the slider to adjust to your desired power level.

- Important:

Make sure to place the cookware centered on the front/rear single cooking zone. Ideal cookware includes oval or rectangular saucepans, or a grill pan.

Examples of good pot placement and bad pot placement.

Smart Flex Function:

To activate the smart flex function:

1. When the hob is ON, touch the flex zone key (J) once to activate the flex zone function.
2. Once activated, the hob enters smart flex mode, operating automatically without manual control.
3. If the smart flex function is accidentally deactivated, repeat step 1 to reactivate it. A) With only one pan/pot placed on the flex area:

Placing a pan/pot on the front flex zone area turns the hob on automatically, setting the power to level 9 for fast heating.

Placing a pan/pot on the rear flex zone area turns the hob on automatically, setting the power to level 2 for keeping warm.

B) With two pans/pots on the flex area.

Place one pan/pot in the front or rear flex zone first.

If a second pan/pot is placed within 5 seconds, the hob will turn on automatically, setting power to level 9 for the front area and level 2 for the rear area.

To deactivate the smart flex function:

When the smart flex function is on, touch the bottom burner zone power regulating key (D) and adjust the power manually to deactivate it. The hob will then work under the normal flex zone function with the same power level for all zones.

Alternatively, double-press or long-press the flex zone key (J) to deactivate it. The hob will function on individual burners, and the flex function will be off.

Normal Flex Zone Function:

To activate the normal flex zone function:

Press flex zone function key (J) to activate the flex zone function. Press the bottom zone power regulating key (D), and adjust the power manually, the hob will work under normal flex zone function with same power level for the entire flex zone area.

Over-Temperature Protection

The induction hob is equipped with a temperature sensor that monitors its internal temperature. If excessive heat is detected, the Induction hob will stop operation automatically.

Memory Function

If you accidentally touch the ON/OFF key during cooking, and press it again within 10 seconds, the hob will resume with its previous settings. However, if more than 10 seconds pass, the memory function is disabled, and you cannot recover the previous settings. If the hob loses power, the memory function cannot be activated.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminum), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically goes on to standby mode in 1 minute. The fan will keep cooling down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It turns the hob off automatically after a set time. The default working times for various power levels are shown in the below table:

Power level 1~3 4~6 7~8 9
Default working time (min) 360	180 120 90

When the pot is removed, the hob stops heating immediately and will auto shut off after 2 minutes.

People with a pacemaker should consult with their doctor before using this unit.

Power Management Function

You can limit your hob's max power output to save energy or use it under special electrical environment.

1. Turn on the hob by touching ON/OFF key (B), without any further control, the hob will enter standby mode for 1 minute.
2. When the hob is at standby mode, touch zone B cooking function key (G) and Child lock control key(H) simultaneously for 3 seconds, now the hob will enter setting mode and timer indicator will show "S S
3. Touch the Pause Key (I) | now and timer indicator will show " " SE
4. Now repeat the control method in step 2, and the timer indicator will show the current max power setting: 28/45/60/72, default setting will be 72 (7200W).
5. Use timer regulating key (K) to change max power limit setting, you can choose 28 (2800W), 45 (4500W), 60 (6000W) and 72 (7200W).
6. Once you set the max power limit, touch Pause Key (I) to confirm the setting and the hob will return to standby mode automatically.
7. If the hob has been shut off during the setting process, the change will not be saved and need to start from the step 1 again.

Failure Display and Inspection

If an abnormality occurs, the induction hob will enter the protective state automatically and display corresponding error codes:

Error Message	Possible Cause What to do
	No pot or pot not suitable Replace the pot.
ER03 Wa	Water or pot on the control glass Clean	the user interface.
F1E	Connection failure between display board and mainboard (the cooking zone indicator shows “E”)	1. Connection cable not correctly plugged or defective;2. Replace the Mainboard.
F3E	Coil temperature sensor failure.(the cooking zone indicator shows “E”)	Replace the coil sensor.
F4E	Mainboard temperature sensor failure. (the cooking zone indicator shows “E”)	Replace the mainboard.
E1E	High temperature on ceramic glass plate	Please restart after the induction hob cools down.
E2E	High temperature on the IGBT sensor	Please restart after the induction hob cools down.
E3E Abnormal supply voltage (too high)		Please inspect whether power supply is normal; Power on after the power supply is normal.
E4E Abnormal supply voltage (too low)		Please inspect whether power supply is normal; Power on after the power supply is normal.
E5E	Temperature sensor failure (the cooking zone indicator show “E”)	Connection cable is not correctly plugged or assembled defectively.

These are common diagnoses and solutions for typical issues. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact the supplier.

Technical Specification

Model No. POBO780I4BFAS
Cooking Zones 4 Zones
Rated Voltage 220-240V~
Rated Frequency 50/60Hz
Total Power 6800-7400W
Product Size L×W×H(mm) 770X520X60
Building-in Dimensions A×B(mm) 745X495

Weight and Dimensions are approximate. Because we continually strive to improve our products, we may change specifications and designs without prior notice.

ENERGY CONSUMPTION

Product information for power consumption and maximum time to reach applicable low power mode.

Off mode 0.37 W
Standby mode N/A
The maximum time needed to automatically reach the applicable low power mode or condition.	N/A

DISPOSAL:

Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Power International AS, PO Box 523, N-1471 Lørenskog, Norway

Power Norge: https://www.power.no/kundeservice/ T: 21 00 40 00

Power Danmark: https://www.power.dk/kundeservice/ T: 70 33 80 80

Punkt 1 Danmark: https://www.punkt1.dk/kundeservice/ T: 70 70 17 07

Power Finland: https://www.power.fi/tuki/asiakaspalvelu/ T: 0305 0305

Power Sverige: https://www.power.se/kundservice/ T: 08 517 66 000

Safety warnings

Product overview

User interface

Choosing the right cookware

SmartFlex function:

How to activate the SmartFlex function:

DISPOSAL:

DISPOSAL:

Assembly - installation:

Product overview

User interface

Smart flexible function:

DISPOSAL:

	Glasetsstorlek		Utskärningensstorlek		Baksida	Sida Radie		Utskurenstorlek		Djup
	A1 B1	C D E	F H A2	B2 G
POB0780I4BFAS	520	770	495	745	50	40	10	526	776	5

Product overview

User panel

Choose the right cooking vessel

DISPOSAL:
