Congratulations on your purchase of this Zibro Kamin heater, the number one brand amongst portable heaters. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure maximum lifetime for your heater.

Your heater comes with a 24-month manufacturer's warranty on all defects in materials or workmanship.

We wish you a warm and comfortable time with your Zibro Kamin.

Yours sincerely,

PVG International b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

3 BEFORE YOU START READING, FOLD OUT THE LAST PAGE.

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 41 ff.).

1 Remove all packaging materials (refer to Section A, Fig. A).
2 Fill the removable tank ⑧ and wait 30 minutes before you ignite the heater (refer to Section B, Fig. H).
3 Insert the batteries into the battery holder (refer to Section A, Fig. F).
4 Check whether the combustion chamber 3 is fully upright (refer to Section A, Fig. E).
5 Ignite the heater by pushing down both slide controls 2 at the same time (refer to Section C, Fig. J).
6 After igniting the heater it will take 10 to 15 minutes before you can check if the heater burns well (refer to Section D).
7 Switch off the heater (refer to Section E).

• The first time you ignite your heater it will smell like 'new' for a short time.
• Store your fuel in a cool and dark place.
• Fuel has a limited shelf life. Start every heating season with new fuel.
• The right quality of fuel will be assured, when you use Zibro Plus for your heater.
• If you change to another brand and/or type of paraffin oil, you must first finish up all the remaining fuel in the heater.

MAIN COMPONENTS

OFF-button
Ignition (slide controls)
3 Combustion chamber
Combustion chamber handle
Fuel gauge removable tank
6 Grill
7 Lid for removable tank
8 Removable tank
9 Ignition coil
10 Battery holder

WHAT YOU NEED TO KNOW IN ADVANCE

Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

The fuel cap cover can be found at the rear of the heater. This cover allows you to keep your hands clean when opening the fuel tank.

This transportation cap is packed separately in the box. Only this cap ensures trouble-free transportation of the heater after use. Store it well!

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

For each model the minimum size of space is specified in which you can use the heater safely, without additional ventilation (refer to Section J). If a particular room is smaller than the specified space, always leave a window or door slightly ajar (± 2.5cm) . We also recommend doing this in highly insulated or draught-free rooms and/or at altitudes above 1,500 metres. However, if there is insufficient ventilation (i.e. oxygen), the heater will automatically switch off. Do not use your heater in cellars or other underground areas.

SAFE TOP

The heater is supplied with a safe top. This application decreases the temperature of the top plate. In this way, the risk of harmful accidents at accidentally touching the top plate is considerably decreased. However, be aware that the top plate still becomes hot.

Avoid any contact with the top plate and grille.

THE RIGHT FUEL

Only use Class C1 paraffin fuel in accordance with BS2869 Part two, or equivalent. Your heater has been designed for use with high-quality water-free pure paraffin oil, such as Zibro Plus. Only fuels of this kind will ensure clean and proper burning.

Lower quality fuel may result in:

excessive tar deposits on the glass fibre wick
incomplete burning
reduced heater lifetime
smoke and/or smells
deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Always refer to your local dealer for the right fuel for your heater.

A INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:

a manual fuel pump
a transportation cap
a fuel cap cover
these directions for use

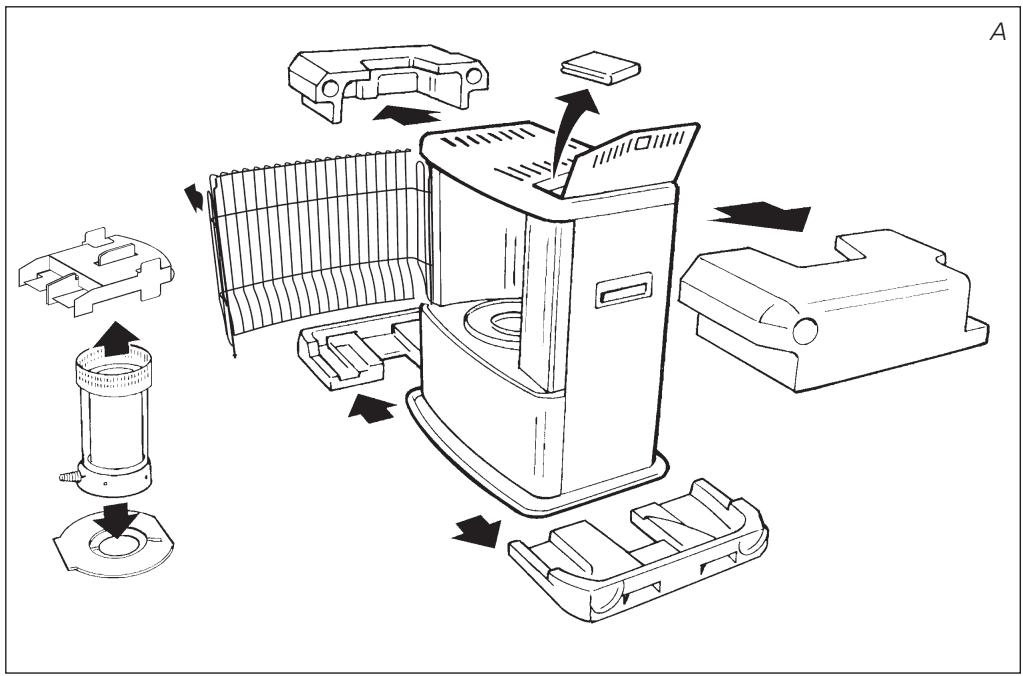

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

2 Remove the other packaging materials:

Lift the grill from the slot (Fig. B) and pull it forward.
- Push the packing material on top of the combustion chamber ③ slightly down and remove it (Fig. C). Remove the packaging materials from under the combustion chamber as well (Fig. D).
Put the combustion chamber back into its place. The combustion chamber is positioned correctly when it can be smoothly moved a little to the left and to the right by its handle (Fig. E). Close the grill: Slightly lift it to reposition it in its slot.
Open the lid of the removable tank 7 and remove the piece of cardboard.

3 Fill the removable tank as indicated in Section B.
4 Insert the batteries into their holder 10 at the back of the heater (Fig. F). Ensure that the positive and negative poles match the + and - marks indicated on the battery housing.
The floor should be firm and completely level. Please refer to the separate instructions in the carton box for fixing of the heater.
6 Your heater is now ready for use.

B FILLING FUEL

Do not fill the removable tank in the living room, but in a more suitable place (there can always be some spillage). Follow the procedure below:

1 Make sure that the heater is switched off.
2 Open the lid 7 and lift the removable tank 8 out of the heater (Fig. G). Note: Some drops may leak from the tank. Put down the removable tank (cap pointing upwards) and screw off the fuel cap using the fuel cap cover (Fig. G1).

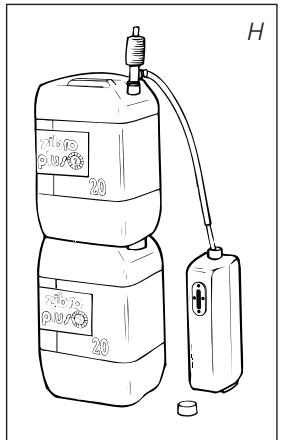

3 Take the manual fuel pump and insert the smooth, most rigid tube into the jerrycan. Make sure that it is in a higher position than the removable tank (Fig. H). Insert the ribbed hose into the opening of the removable tank.
4 Lock the valve on top of the pump (turn clockwise).
Squeeze the pump a few times, until fuel starts flowing into the removable tank. As soon as this happens, there is no need to press any longer.
6 Check the removable tank fuel gauge ⑤ while filling the tank (Fig. l). Stop filling by loosening the valve on top of the pump (turn anti-clock-wise), once the gauge indicates that the tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands when it heats up).
7 Let the remaining fuel in the pump flow back into the jerrycan and carefully remove the pump. Carefully screw the fuel cap back on the tank using the fuel cap cover. After use, re-store the cover at the rear of the heater. Clean off any spilled fuel.
8 Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid.

C IGNITING THE HEATER

A new heater may give off some smells for a short while, when it is used for the first time. You should therefore provide extra ventilation or ignite the heater outside the living room.

When you use the heater for the first time, first put the filled removable tank into place, and then wait approximately 30 minutes before you ignite the heater. This allows the glass fibre wick to soak up the fuel. Follow the same procedure when you have completely burnt up all fuel from the tank, and after the glass fibre wick has been replaced.

Always ignite the heater with the electrical igniter. Never use matches or cigarette lighters.

Follow the procedure below:

Push down both slide controls 2 at the same time (fig. J). This will also activate the safety device.
As soon as you can see a small flame in the combustion chamber ③, you can let go of the controls. The upper slide control will return to the original position.

After having ignited the heater, always check whether the combustion chamber ③ is level, by sliding it slightly to the left and the right by its handle ④ (Fig. E). This should be a smooth movement. If the combustion chamber is not level, this will cause smoke and soot to develop.

D THE BURNING OF THE HEATER

After you have ignited the heater, it will take 10 to 15 minutes before you can check whether the heater is burning well. Too high a flame may cause smoke and soot, whereas too low a flame causes smells. The page opposite the folding page shows the minimum and maximum permissible burning heights of the flame (Fig. M).

Burning that is too low may be caused by:

insufficient fuel (fill the tank)
poor fuel quality (contact your dealer)
insufficient ventilation (put window or door ajar)
wastage of the wick (contact your dealer or replace the wick, refer to section L)

This heater is fitted with a safety system that ensures that it switches off if you lift the exchange tank out of the heater for more than 5 seconds. To switch the heater on again, put the exchange tank back and follow the steps in chapter C.

E SWITCHING OFF THE HEATER

Push the OFF-button ①. The flame will extinguish after a little while.

F MALFUNCTION, CAUSES AND SOLUTIONS

If any malfunctioning cannot be solved from the directions below, please contact your dealer.

broken ignition coil

THE HEATER DOES NOT IGNITE

The batteries are not positioned correctly in the holder. Check (Fig. F).
There is not enough power left in the batteries for the ignition. Replace (Fig. F).
You have run out of fuel from the tank or the wick has been replaced. After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.
You are pushing down the slide controls ② with too much force. Push them down less forcefully (Section C).
The ignition coil is defective. Contact your dealer.

IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS

The combustion chamber 3 has not been positioned correctly. Use the handle 4 to put it level, until you can easily slide it slightly to the left and to the right and the chamber is level.
The flame height is not right. See chapter D and ask your dealer.
You are using fuel which is past its 'use by' date. Start every heating season with fresh fuel.
You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
Dust has gathered in the lower part of the heater. Contact your dealer.

THE HEATER SLOWLY EXTINGUISES

The removable tank is empty. Refer to Section B.
The fuel filter is contaminated by water. Dry the filter (Section G, Fig. K).
The lower reservoir is contaminated by water. Contact your dealer.
The wick has hardened on the upper side. Burn the heater until all fuel is used (Section G). Use the right fuel.
You are using fuel which is past its 'use by' date. Start every heating season with fresh fuel.

THE HEATER REMAINS BURNING LOW

Wick position too low. Contact your dealer.
Before you refilled the tank, the heater had burnt up almost all the fuel. After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.
You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
The room is insufficiently ventilated. Leave a window or a door wide open for a while.

THE HEATER BURNS TOO HIGH.

You are using an incorrect, too volatile type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
Wick position too high. Contact your dealer.

G MAINTENANCE

Your heater needs hardly any maintenance. It is, however, important that you remove dust and stains in time with a damp cloth, because otherwise these may cause stains that are hard to remove. Under normal conditions, only two components are subject to wear:

ignition coil

1. THE WICK

To extend the glass fibre wick life, you must occasionally let the heater burn until the tank is completely emptied and the heater extinguishes by itself. Do this when you notice that the flame is weakening. The burn-out will cause some smells, so it is recommended that you take the heater outside of the living room.

2. THE IGNITION COIL

The ignition coil will last longer if you ignite in the right way. Replace the batteries on time and make sure you do not push down the slide controls too forcefully. If the filament is broken, you should replace the coil.

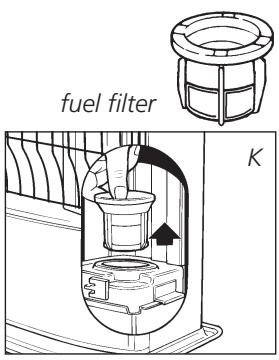

THE FUEL FILTER

Check the fuel filter regularly as well.

Remove the removable tank ⑧ from the heater and take out the fuel filter (Fig.K). Some drops of fuel may spill from the filter; keep a cloth at hand. Turn the fuel filter upside down and clean it from all dirt deposits by tapping it on a hard surface. (Never clean it with water!) Reposition the fuel filter in the heater.

Do not remove any heater components yourself. Always contact your dealer for repairs.

Let the heater cool down first, before you start any maintenance or service work.

H

STORAGE (END OF THE HEATING SEASON)

We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the procedure on the next page:

1 Ignite the heater outside the living room and let it burn until all fuel is used.
2 Let the heater cool down.
3 Clean the heater with a damp cloth and then dry it with a dry cloth.
4 Remove the batteries from the holder 10 and store them in a dry place.
5 Clean the fuel filter (Section G).
Store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used for the next heating season. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste. Always start the new heating season with fresh fuel. When you start re-using the heater, follow the instructions again (starting from Section A and as specified).

Transportation cap

TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down.
2 Remove the removable tank 3 from the heater and remove the fuel filter (Fig. K). Some drops may leak from the filter; keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.
3 Place the transportation cap into the position of the fuel filter (Fig. L). Press it tight.
4 Always move the heater in an upright position.

J SPECIFICATIONS

Ignition	electrical	Dimensions (mm)	width	428
Fuel	paraffin	(including base plate)	depth	295
Capacity (kW)*	3.0		height	513
Suitable space (m3)**	85-110	Accessories:	manual fuel pump
Fuel consumption (l/hr)*	0.313		fuel cap cover
Fuel consumption (g/hr)*	250		transportation cap
Burning time per tank (hr)*	13	Required batteries	2x R20kG, MN 1300
Capacity removable tank (litres)	4.0		1.5V, size D
Weight (kg)	9.0	Wick type	F

• At maximum setting
  ** Specified values are indicative

WARRANTY PROVISIONS

Your heater comes with a 24-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages.
2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty.

3 The warranty will no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties.

GB

4 The warranty will not apply to parts that are subject to normal wear, such as the ignition coil, the wick and the manual fuel pump.
The warranty will only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.
The warranty will not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
7 Transportation costs and the risks involved during the transportation of the heater or heater components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

• Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this happen, never try to move the heater, but always switch off the heater immediately (refer to Section E). In cases of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.

10 TIPS FOR SAFE USE

1 Make sure that children are always aware of the presence of a lit heater.
2 Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.

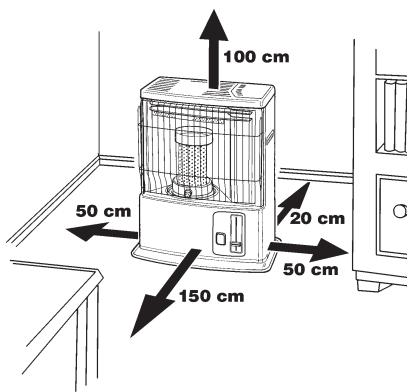

3 Position the front of the heater at a minimum distance of 1.5 metres from walls, curtains, and furniture.
4 Do not use the heater in dusty rooms or in very draughty places. In both cases you will not have optimum burning.
5 Switch off the heater, before you go to sleep.
Store and move fuel only in suitable tanks and jerrycans.
7 Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).
8 Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).
9 The top plate of the heater becomes hot. Do not cover the heater (there is a risk of fire). Avoid any concact with the top plate and grille.
10 Always make sure that there is sufficient ventilation.

REPLACING THE WICK

L ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOLED BEFORE STARTING TO REPLACE THE WICK.

1 Open the lid and remove the removable tank.
2 Remove the batteries from the battery holder.
3 Check that both the ignition slides are in the uppermost position. Pull off the plastic covers of the slides.
4 Open the front grill. Remove the combustion chamber from the heater. Close the grill.
5 Unscrew the screws on the back and sides of the heater. Pull the cabinet forward slightly and remove it from the base plate. Unscrew the wing nuts from the wick holder chassis.
6 Lift the wick holder chassis up until the wick is visible. Place the wick holder chassis next to the heater. (Ensure that the wiring does not become disconnected).
7 Push the lowest slide down to adjust the wick mechanism to its highest setting.
Turn the wick holder (with wick) to the left until it is released and then remove it from the heater.
9 Remove the wick from the wick holder.

10 Place the new wick in the wick holder and press the wick pins firmly into the holes in the wick holder.
11 Put the wick holder (with wick) back into position by pushing the two large pins on the outside of the wick holder into the rebate in the wick mechanism. Turn the wick holder clockwise until it is firmly in place.
12 Put the wick holder chassis back into position.
13 Screw opposite wing nuts in succession until they are hand tight.
14 Check that the wick mechanism works by sliding the lowest slide all the way down and pushing on the OFF button.
15 Check that the tip-over-mechanism works by pushing the lowest slide all the way down and tilting the small piece of lead.
16 Put the cabinet back into position and tighten the cabinet screws. Now put the combustion chamber back into position. Check that it is level by sliding it slightly to the left and the right by its handle. Close the grill.
Put the filled removable tank back into position.
Put the batteries into the battery holder (ensure that the positive and negative poles match the + and - marks indicated on the battery housing). Wait 30 minutes after placing the removable tank and batteries before using the heater.

Egregio Signore, Gentile Signora,

C ACCENSIONE DELLA STUFA

LA COMBUSTIONE DELLA STUFA

WAT U VOORAF MOET WETEN

ALTIJD VOLDOENDE VENTILEREN

Holloway Bank, Wednesbury

West Midlands WS10 0AW

Tel.: [phone]

Fax: [phone]

email: [e-mail]

ITALIA

PVG Italy SRL

Via Niccolò Copernico 5

50051 CASTELFIORENTINO (FI)

tel: [phone]

fax: [phone]

email: [e-mail]

N NORGE

Sunwind - Gylling A/S

Rudsetta 71-75 / P.O. Box 64

N-1309 RUD

tel: [phone]

fax: [phone]

email: [e-mail]

NEDERLAND

PVG International b.v.

P.O.Box 96

5340 AB OSS

tel: [phone]

fax: [phone]

email: [e-mail]

PORTUGAL

Gardena, Lda
