Notes on this manual 3
Purpose of use 3
Included in the box 3
Safety instruction 4
Operating Safety 4
Point of use 4
Repair 4
Intended Environment 5
Power Supply. 5
FCC Compliance Statement 5
Batteries and Proper Treatment 6
Get to know the device 7
Control elements 19" and 22" 7
Control elements 20^ 7
Connections 8
Examples of connections 9
Video recorder 9
DVD Player 9
Receiver (SAT, DVB-T, decoder, etc.), DVD recorder 10
Computer 10
Remote Control 11
Setting Up 12
Unpacking 12
Installing the batteries 12
Connecting an antenna 12
Connecting the power supply 12
Basic functions 13
Turning the LCD TV on and off. 13
Navigating within the Menu 13
Language setting. 13
Automatic channel search (RF IN aerial connection) 14
Channel selection 14
Sound settings 14
Volume 14
Mute 14
Sound output 14
Sound pre-setting 14
Setting the picture. 15
Picture format 15
Picture setting 15
Displaying information 15
Selecting the signal source 15
Teletext 16
To operate Teletext. 16
Select Teletext pages 16
Number keys [20] 16
PGUP / PGDW buttons [12] 16
SUBPAGE [12] 16
Colour buttons [13] / Fastext 16
Useful features for Teletext 16
INDEX [12] 16
SIZE [12] 16
REVEAL [12] 16
CANCEL [12] / Concealed search 17
HOLD [16] 17
Teletext-television picture mix [17] 17

The OSD menu 18

MenuPICTURE 18
Menu SOUND 18
Menu CHANNEL 18
Video recorder manual storage 19
Menu ADVANCE 19
Menu FUNCTION 19

The OSD in the PC mode 20

Menu PC 20
Menu SOUND 20
Menu FUNCTION 20
Menu PC 20

Troubleshooting 21

Do you require additional Support? 21

Maintenance. 22

Recycling 22

Specifications 23

Pixel errors with LCD TVs. 23

Copying this manual. 24

Notes on this manual

Read these instructions carefully under all circumstance and follow all the instructions listed. You will guarantee the reliable operation and a long life expectancy of your LCD TV in this way. Always keep these instructions at hand, close to your LCD TV. In the event that you transfer ownership of this LCD TV, please provide these instructions to the new owner.

Service

Contact us (cf. the service address on the back of these Instructions for Use) if problems with your LCD TV arise. Furthermore, you will find useful information regarding troubleshooting on page 21 of this manual.

Purpose of use

• This device serves to receive and transmit television channels. The different connection possibilities (receiver, DVD player, DVD recorder and VCR, etc.) will enable an additional expansion of the sources of reception and transmission (Receiver, DVD-Player, DVD-Recorder, Videorecorder etc.).
• This device is only suitable for using in dry, internal rooms.
• This device is not suitable as a data monitor for office workstations.
• This device is intended for personal use only. It not intended for commercial use in a heavy industry environment. Use under extreme environmental conditions can result in damage to your device.

Included in the box

LCD Television
- Connection cable
Supply unit (Model: KSAFH1200500T1M2)
- Remote control incl. 2 batteries type R03 (AAA) 1,5V
- Documentation

Note!

Use the mains (power supply) and the mains connection cable supplied with the device exclusively.

Safety instruction

Operating Safety

• Do not allow children to play unattended on electrical equipment. Children may not always correctly recognize danger.
• Keep the packing materials, such as foil away from children. The danger of suffocation could arise in the case of misuse.
• Never open the housing of the TFT display (electric shock, short-circuit and the danger of fire)!
• Do not insert any objects through the slots and openings into the inside of the TFT (electrical shock, short-circuit and the danger of fire)!
• Slots and openings in the TFT display are for ventilation purpose. Do not cover these openings, as otherwise this may lead to overheating (overheating, danger of fire)!
• Never exert pressure on the display. This could damage the display.
• An injury hazard exists when the display breaks. Wear protective gloves to pack the broken parts and send them into your service center for proper disposal. Then wash your hands with soap, because it is possible for chemicals to escape.
• Do not touch the display with your fingers or with sharp objects to avoid damage.

Please proceed as outlined in the service center section:

• if the AC cable overheats or is damaged
• if liquid has gotten into the display
• if the device does not work properly
• if the device is dropped or the housing damaged

Point of use

• In the first hours of operation, new devices may emit a typical, unavoidable but completely harmless smell, which will decline increasingly in the course of time.
  We recommend you to ventilate the room regularly, in order to counteract the formation of the smell. During the development of this product, we have made sure that the applicable limits are clearly fallen below.
• Keep your LCD TV and all units connected to it away from moisture and avoid dust, heat and direct sunlight. Failure to observe these instructions can lead to malfunctions or damage to the LCD TV.
• Do not operate your device in the open air, because external influences, such as rain, snow, etc. could damage the device.
• Do not subject the device to drops or splashes of water and do not place any vessels filled with water, such as vases, on the device. Water penetrating the device can impair its electrical safety.
• Do not place any open sources of fire (candles or similar objects) on the device.
• Pay attention to sufficiently large clearances in the wall cupboard. Maintain a minimum clearance of 10cm around the device for sufficient ventilation.
• Place and operate all units on a stable, level and vibration-free surface in order to avoid the LCD TV from falling.
• Avoid dazzle, reflections, extreme light/dark contrast in order to save your eyes and ensure a pleasant, ergonomic work station.
• The optimum viewing distance is approx. 3-5 times the screen diagonal.

Repair

• Leave all repairs of your LCD TV to authorized and qualified personnel only.
• Should a repair be necessary, please contact one of our authorized service center only.

Intended Environment

• The device can be operated at an ambient temperatures of between +41^ and +95^ ( 5^ to 35^ ).
• Provide an interval of at least one meter from high-frequency and magnetic sources of interference (television sets, loudspeakers, mobile telephones, etc.) in order to avoid malfunctions and data loss.
• After transporting your LCD TV please wait until it has assumed the ambient temperature before connecting and switching it on. Extremely high variations in the temperature or humidity may result in condensation forming on the inside of the LCD TV which could cause an electrical short-circuit.
• Pull the plug out of the socket and the aerial cable from the aerial socket during a thunderstorm or if the television will not be used for a longer period.

Power Supply

Please pay attention: Pats of the device are still live, even if the mains switch is switched off. Pull the mains plug out of the socket, to interrupt the power supply to your LCD TV or to release the device from voltage completely.

• Only connect the mains (power supply) supplied with the device to an earthed 230 V 50 Hz mains socket.
• Only use the mains (power supply) supplied with the device to operate it.
• For additional safety we recommend use of an excessive voltage protection device to protect your LCD TV from damage resulting from voltage surges or lightning.
• To interrupt the display from mains (power supply) disconnect the plug from the socket.
• Do not cover the mains (power supply), in order to avoid damage caused by undue heating.
• Do not use the mains (power supply) any longer, if the casing or the feed line to the device is damaged. Replace it by mains supply(power supply) of the same type.
• The power socket must be in the vicinity of your LCD TV and within reach of the power cables.
• You should lay the TFT Display cables in a manner that no one can trip or step on it.
• To avoid damage of cable do not place any objects or furniture on the cable.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cables, if any, must be used in order to comply with the emission limits.

Batteries and Proper Treatment

Batteries may contain combustible materials. By misuse, this may cause battery leakage, heat, explosion or ignition, bringing about injury or damage to the device. Please observe strictly the following matters:

• Keep children away from batteries. If by any chance, the batteries are swallowed, consult a doctor immediately.
• Do not charge batteries (except rechargeable batteries).
• Do not forcibly discharge batteries.
• Do not short-circuit batteries.
• Do not heat or dispose off in fire.
• Do not disassemble or deform batteries. Your hands and fingers may be injured, or the liquid of the battery may get into your eyes or adhere to your skin. If this happens, rinse with a large quantity of water immediately and consult a doctor.
• Do not expose batteries to strong impact by dropping or throwing the batteries.
• Do not reverse the positive (+) and negative (-) terminals to avoid short-circuit.
• Do not mix used and new or different types of batteries together.
• Remove promptly the used batteries from the device.
• Remove the batteries from your device if it is not to be used for a longer period.
• Clean the battery and device contacts, if necessary, before inserting batteries.
• Replace all batteries with new batteries of the same type at the same time.

Get to know the device

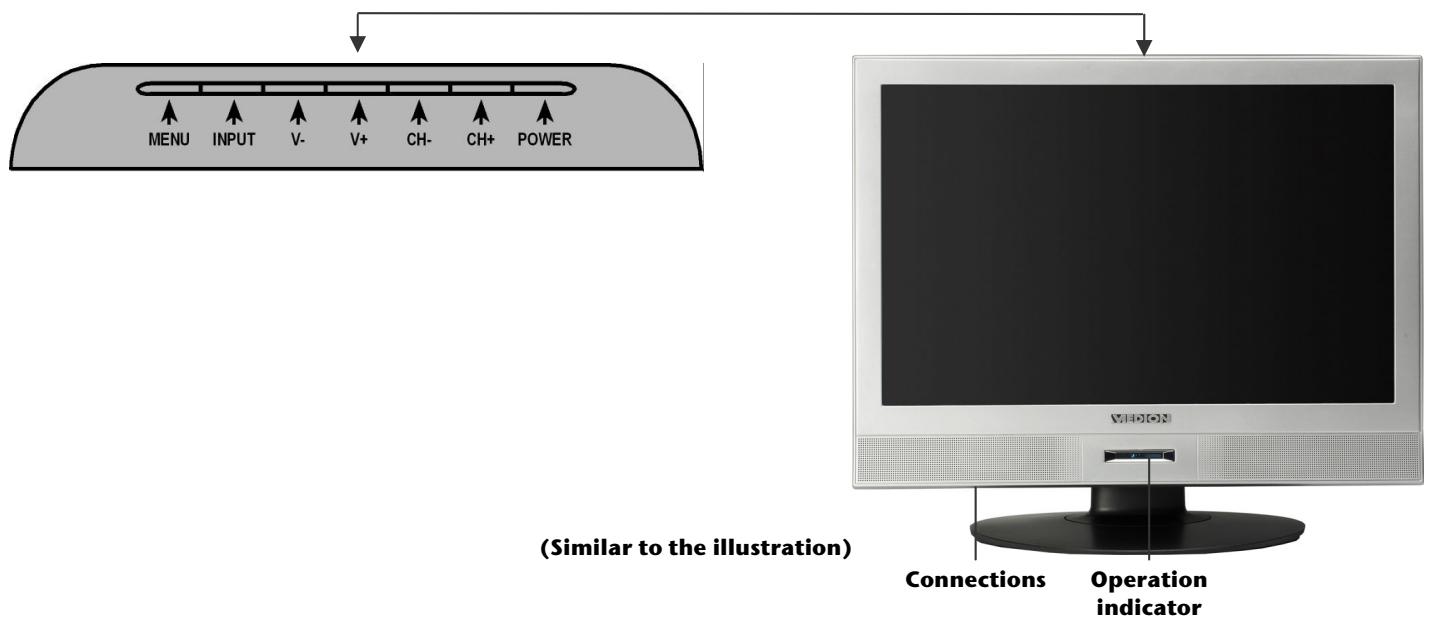

Control elements 19" and 22"

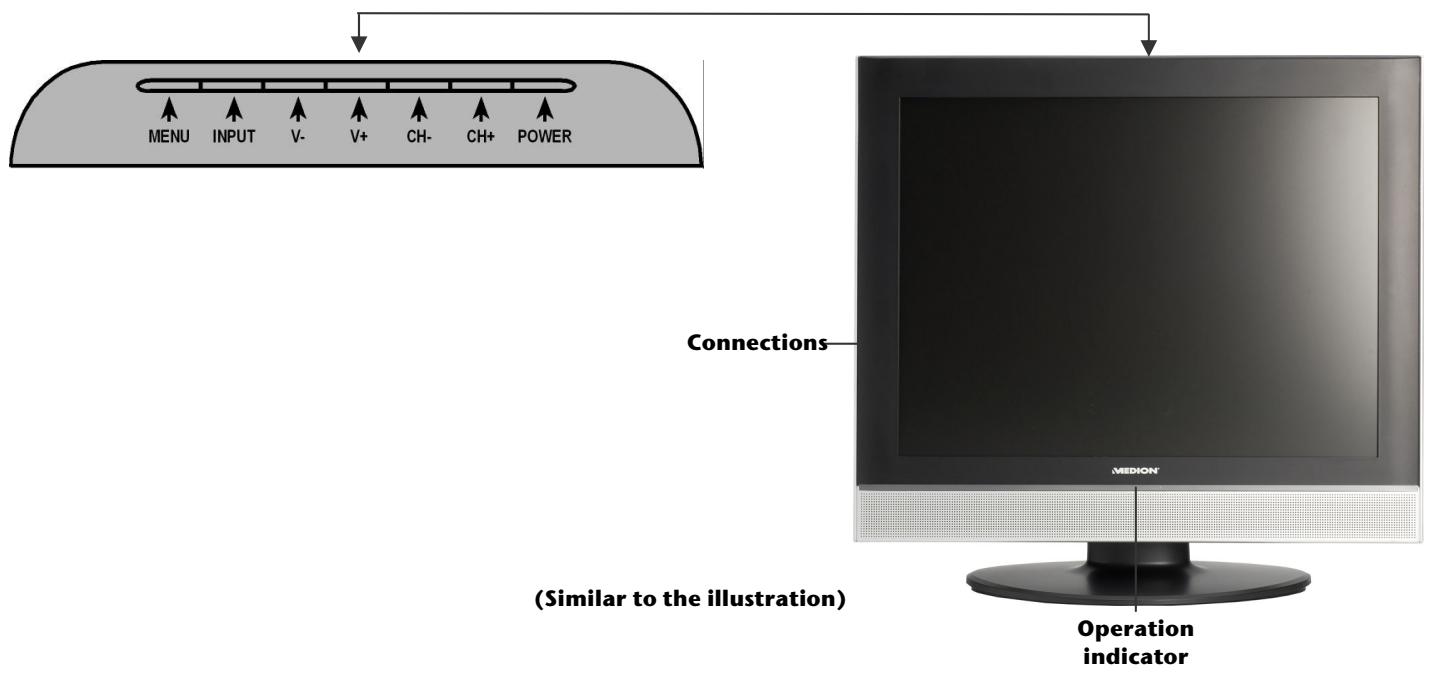

Control elements 20''

Control	Function
MENU	Call up the OSD1 menu with this button, in order to make changes on your device.
INPUT	Call up the list of the sources available with this button. You will change between the TV, AV, SVIDEO, SCART and PC reception sources with the CH+/CH- buttons.
V+/V-	Press to turn up or turn down the volume.
CH+/CH-	Change the channel by means of these buttons.
POWER	Put the device into operation while switched off; While switched on: switch to the Standby Mode.
Operation indicator	Shines red, if the device is in the Standby Mode. Shines green, if the device is switched on.

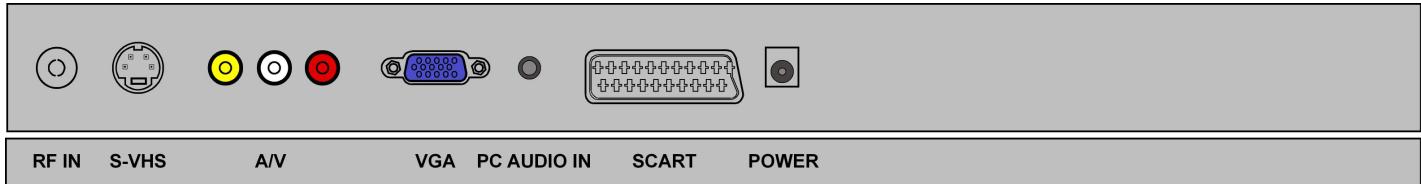

Connections*

Connection	Possible connections
RF IN	Aerial connection Connect the aerial cable (not in the scope of the delivery) here.
S-VHS	S-VHS input S-VHS input for the connection of devices with an S-VHS output, e. g. DVD player, SAT or DVB-T receiver, computer, etc. You will need an S-VHS cable (not in the scope of the delivery) for this connection.
A/V	A/V input A/V input for the connection of devices with a composite output, e. g. DVD player, SAT or DVB-T receiver, video camera, computer, etc. You will need a component cable (not in the scope of the delivery) for this connection.
VGA	VGA input VGA input for the connection of devices with a VGA output, e. g. computer, etc. You will need a SCART cable (not in the scope of the delivery) for this connection.
PC AUDIO IN	Audio input Connect the left and the right audio channel of the source (e.g. camcorder), the sound of which you want to transmit through the LCD TV, here.
SCART	SCART connection SCART input for the connection of devices with a SCART input, e. g. DVD player, video recorder, SAT or DVB-T receiver, games consoles, etc. You will need a SCART cable (not in the scope of the delivery) for this connection.
POWER	Connect the mains connection cable supplied with the device here.

Examples of connections

Video recorder

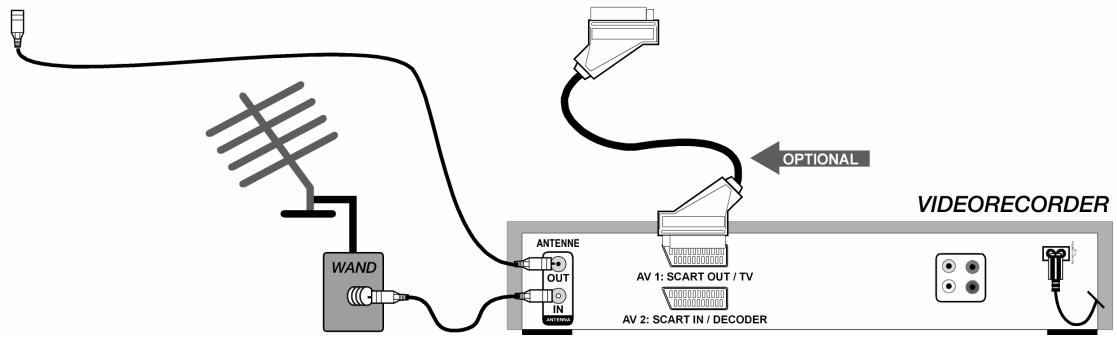

Connect an aerial cable to the aerial socket of the LCD TV and the aerial output of the video recorder, if you want to connect a video recorder to the LCD TV. Connect another aerial cable to the aerial input of the video recorder and the aerial socket on the wall.

Alternatively, you can connect the LCD-TV and the video recorder with a SCART cable. This is advisable for a high picture and sound quality.

DVD Player

Connect a DVD player with a SCART cable.

Receiver (SAT, DVB-T, decoder, etc.), DVD recorder

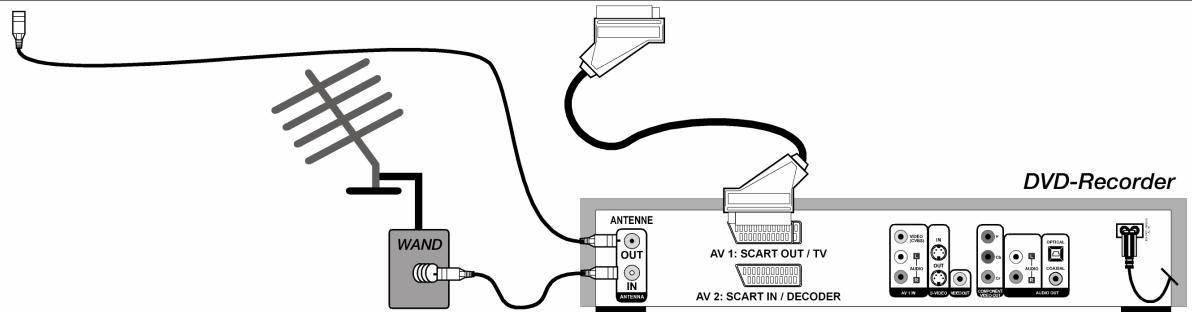

Connect a device that is intended to be used as a receiver for the LCD TV (e. g. SAT receiver, DVB-T receiver, decoder, set-top box) or a DVD recorder to the SCART socket, with a SCART cable.

Apart from this, connect the aerial cable as described in the 'Video recorder' section (see above).

Computer

Connect a computer with a VGA cable. If your computer has a SCART, or Video output, you will be able to transmit the computer display by means of one of these connections.

Note

Only choose one possibility, in order to avoid problems with the signal allocation, even if your computer offers several connection possibilities.

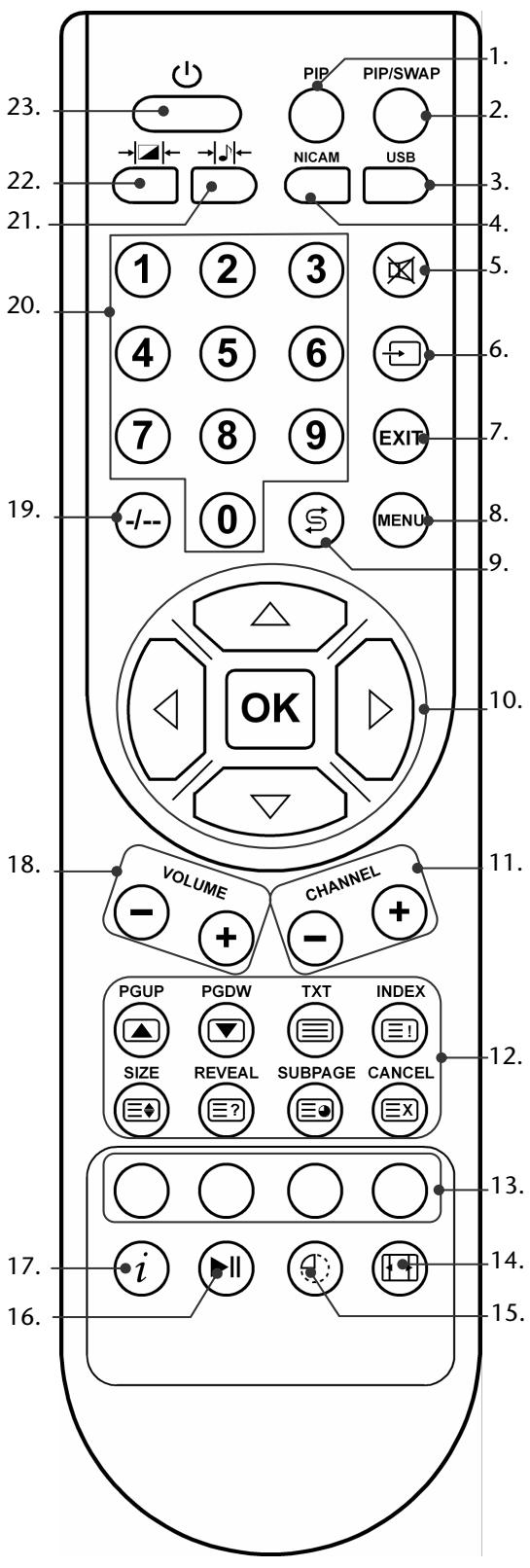

Remote Control

1. no function
2. no function
3. no function
4. Mono / Stereo / Dual sound
5. Mute
6. Input selection Call up the list of the sources available with this button. You will shift between the TV, AV, SVIDEO, SCART and PC sources of reception with the directional keys.
   7.Exit menu
7. Call up the Menu; back to the previous Menu
8. Previous channel Switch back to the channel displayed previously.
9. directional keys for navigation within the Menus OK - You will have to confirm your selection with this button in some Menus.
   11.CHANNEL + / - You will select the next (+) or the previous (-) channel in the Televi sion Mode.
10. Teletext buttons:
    PGUP = Teletext previous page
    PGDW = Teletext next page
    TXT = Switch video text on/ off
    INDEX = index page
    SIZE = Enlarge video text
    REVEAL = Show concealed text
    SUBPAGE = sub-page
    CANCEL = Fade video text out
11. Teletext: Coloured buttons for navigation within video text
12. Select picture format: AUTO, FULL, ZOOM1, ZOOM2, 4:3, PANorama
13. SLEEP function: time setting for switching the device off automatically
14. Teletext: hold teletext page
15. INFO: For displaying information, such as the current channel number and the picture format.
16. VOLUME + / - For increasing (+) or decreasing (-) the volume.
17. Select double-digit channels
18. Number keys Television mode: channel selection; Teletext mode: Entry of the three-digit numbers, with which the page is selected.
19. Select audio mode: FILM, MUSIC, USER, STANDARD
20. Select picture mode: FILM, VIVID, USER, STANDARD
21. STANDBY button, for switching the LCD TV on/off.

Note

Read the Safety Information Chapter from Page 1 ff under all circumstances before bringing the device into operation.

Unpacking

• Please keep the packaging material well and use it exclusively to transport the television.

Installing the batteries

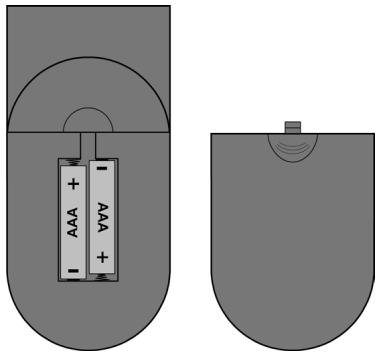

1. Open the battery compartment of the remote.
2. Install two AAA size, type R03 batteries according to the correct polarity (marked in the battery compartment).
3. Close the battery compartment.

Attention!

Remove the batteries from the remote, if the device will not be used for a longer period. The remote could be damaged by leaking batteries.

Connecting an antenna

• Connect the aerial socket and the television device to the RF IN connection with a doubly screened aerial cable (not in the scope of the delivery) for the connection to the external aerial or the cable plant.

Connecting the power supply

1. Connect the plug of the mains (power supply) supplied with the device to the electrical terminal on the device.
2. Connect the mains connection cable supplied with the device to a well accessible 230V 50Hz mains socket. The device will go into the standby mode and the display on the front will shine red.

Basic functions

Turning the LCD TV on and off

1. Press either the STANDBY button on the device or on the remote to switch the device on.
2. You will switch the device back to the Standby Mode with the STANDBY button.

Navigating within the Menu

1. Press the MENU button [8], in order to activate the OSD.
2. Select the options from the Main Menu with the / directional buttons.
3. Confirm the option selected from the Main Menu and open the sub-menu with the / directional buttons.
4. Select the options from the sub-menu with the / directional buttons.
5. Confirm the option selected from the sub-menu in which you want to make changes or settings with the / directional buttons.
6. Set the required vale or make a different selection with the / directional buttons.
7. You will return to the superordinate Menu with the MENU button [8].
8. You will close the Menu and confirm the selection at the same time with the EXIT button [7].

Language setting

The OSD of your LCD TV is set to English in the delivery status. Set the OSD to the language that you require as follows:

1. Press the MENU button [8] on the remote control.
2. Select the FUNCTION Menu point with the directional button.
3. Confirm with the directional button. The LANGUAGE entry will be emphasized.
4. Select the language that you require with the directional buttons.
5. Confirm your selection with the OK button. The OSD will appear.
6. Press the button EXIT [7], to exit the OSD menu.

Automatic channel search (RF IN aerial connection)

1. Press the MENU button [8] on the remote control].
2. Select the CHANNEL Menu point with the directional button.
3. Confirm with the directional button. The AUTO TUNE entry will be emphasized.
4. Confirm with the direction button. A new menu with the selection of the colour norm (BG/DK/I or SECAM L/LL) will appear.
5. Select the colour corresponding to corresponding to your country with the direction button.
6. Select the YES menu point with the direction button.
7. Press the directional button, in order to start the automatic channel search. A bar showing the course of the search will appear on the screen. Wait for the search to finish. It will take several minutes. Press the MENU button to interrupt the process.
8. The channels will be deposited in channel positions in a country-specific sequence. 100 channels can be stored.

Note

You will be able to change the sequence of the channel positions according to your requirements. Read how you can sort the channels under the CHANNEL SWAP Menu point in the in the 'CHANNEL Menu' section from Page 18.

The channel search will be made by means of the respectively connected device, in the case of devices connected through SCART or Composite. Use the Instructions for Use of the signal source connected (e.g. DVB-T receiver or SAT receiver) as an aid.

Channel selection

• Press either one of the CH + / CH -buttons on the device or one of the CHANNEL buttons [11] on the remote, or select the channel directly by means of a number key, in order to select a channel. Press the (^- - ) [19] button for a two-digit number.
• You will select the channel broadcast most recently with the button [9].

Sound settings

Volume

• You will increase or reduce the volume with the VOLUME buttons [18] on the remote or V + /V - on the device.

Mute

• Press the button [5] to switch the sound off or on again completely. The MUTE message will appear on the screen.

Sound output

• You will choose between MONO and STEREO output with the NICAM button [4]; DUAL A and DUAL B. DUAL A and DUAL B will only be able to appear if the current broadcast supports the DUAL Mode (e.g. in the case of dual-language broadcasts).

Sound pre-setting

• You will select the sound mode with the [21] button: NEWS, MOVIE, USER, NORMAL.

Setting the picture

Picture format

You will be able to switch between the following picture formats with the Picture Format button [14]:

• AUTO: The format transmitted will be set to the input signal automatically or the full picture will be presented.
• FULL: The picture will be presented in the 16:9 format.
• ZOOM1/ZOOM2: Enlarged presentation.
  4:3: The picture will be presented in the 4:3 format.
• PANorama: The 4:3 picture will be stretched at its left and right edges, in order to fill the screen; the upper and lower edges will be rather reduced at the same time.

Picture setting

• You will choose between the SOFT, VIVID, USER and NORMAL Picture Modes with the button [22].

Displaying information

• Press the i button [17], in order to have the channel position and name displayed.
• You will receive the same information if you switch to a different channel.

Selecting the signal source

• You will call up the list of the available sources with the TV/AV / INPUT button on the device or the button [6] on the remote. The following sources of a signal will be available to you:

TV: TV or aerial operation
- AV: Device at the Composite connection
- SVIDEO: Device at the S-VHS socket
SCART: Device at the SCART connection
PC: Device at the VGA socket

• You will switch between to sources of input with the CH +/CH - buttons or the / directional buttons on the remote.

Teletext

Teletext is a free service that is broadcast by the majority of television stations and offers current information in relation to news, the weather, television programs, share prices, subtitles and other subjects. Your LCD TV offers many useful functions for operating Teletext and multi-page text, storing sub-pages or fast navigation.

To operate Teletext

1. Select a TV station on which Teletext is being transmitted.
2. Press the TXT [12] once to appear the Teletext screen.
3. The device will be switched back to the TV Mode by pressing the TXT button [12] again.

Select Teletext pages

Number keys [20]

• Enter the video text page required directly as three-digit number with the number keys.
• The page number selected will be displayed in the upper left corner of the screen. The video text counter will search until the page number selected has been found.

PGUP / PGDW buttons [12]

• Switch backwards and forwards through the video text pages with PGUP and PGDW [12].

SUBPAGE [12]

• Some video text pages contain sub-pages. For example, 1/3 will be displayed at the lower edge of the screen. The sub-pages will be faded in successively at intervals of approx. 30 seconds.

You will also be able to call up the sub-pages yourself by pressing the SUBPAGE button. A four-digit entry field, into which you will be able to enter the number of a sub-page (e.g. 0002), will appear.

Colour buttons [13] / Fastext

• You will be able to select the content directly, by pressing the corresponding RED, GREEN, YELLOW and BLUE colour buttons, if coloured text entries have been inserted at the lower edge of the picture.

Useful features for Teletext

INDEX [12]

• Press this button to select the index page that displays the list of Teletext contents.

SIZE [12]

Select double height text.

• Press the SIZE button to enlarge the top half of the page.
• Press the SIZE button again to enlarge the bottom half of the page.
• Press the SIZE button once more to return to the normal display.

REVEAL [12]

• Press the REVEAL button once to display concealed information, such as solutions of riddles, puzzles, or a quiz.
• Press the REVEAL button again to conceal the revealed answers.

CANCEL [12] / Concealed search

In the Teletext mode, pressing the CANCEL button, will switch the screen to the TV mode while waiting for the next text page.

• Select required page number in Teletext mode.
• Press the CANCEL button to switch to TV mode while waiting for the text page. A field with the page number searched for and hyphens that will rotate as long as the search lasts will appear in the left upper corner.
• The page number will replace the hyphens as soon as the page required has been found.
• Press the CANCEL button again to display the required page.

HOLD [16]

The video text page that you have selected will possibly contain more information than will fit on the screen. The information will be divided between several sub-pages in this case. The sub-pages will succeed each other at regular intervals.

• Press the button [16], in order to prevent the page changing automatically. A symbol will be displayed at the left lower corner of the screen and the automatic page change will be interrupted.
• Press the button [16] again, to permit the automatic page change again.

Teletext-television picture mix [17]

• Press the [17] button, to represent the teletext transparently (the television picture will appear in the background).
• Press the [17] button again, in order to return to the full screen mode.

The OSD menu

The OSD in the LCD TV Mode will be described in the following. Other options, which you can look up from Page 20, will be available to you in the PC Mode.

Note

The Menu described here can deviate from those on your screen because of possible technical changes.

Menu PICTURE

Menu point	Setting
PICTURE MODE	NORMAL: Standard setting SOFT: Setting in the case of a dark environment VIVID: Setting for a reproduction rich in contrast USER: The picture mode set by the user in the PICTURE menu.
BRIGHTNESS	Reduce or increase the brightness (0 – 100).
CONTRAST	Reduce or increase the contrast (0 – 100).
SATURATION	Reduce or increase the saturation (0 – 100).
HUE	Reduce or increase the colour intensity (0 – 100). (only in the case of NTSC)
SCALE	AUTO: The format transmitted will be set to the input signal automatically or a full picture will be presented. FULL: The picture will be presented in the 16:9 format. ZOOM1/ZOOM2: Enlarged presentation. 4:3: The picture will be presented in the 4:3 format. PANorama: The 4:3 picture will be stretched at the left and right edges, in order to fill the screen; the upper and/or the lower edge will be rather cut off at the same time.

Menu SOUND

Menu point	Setting
SOUND MODE	USER: the sound mode set by the user in the 'SOUND Menu. MOVIE: Increases the film sound. NEWS: The optimized setting for music. NORMAL: Standard setting.
VOLUME	Setting the volume (0 – 100).
BASS	Setting the bass tones (0 – 100).
TREBLE	Setting the high tones (0 – 100).
BALANCE	Setting the balance between the left and the right loudspeakers (0 – 100).

Menu CHANNEL

Menu point	Setting
COLOR SYSTEM	Auto, PAL, NTSC, SECAM, PAL M, PAL N, NTSC 4.42
AUTO TUNE	Automatic channel search
MANUAL TUNE	You will be able to carry out a manual channel search here. 1. Select the channel position under the CHANNEL point. 2. Go to the SEARCH option and start a search of the frequency band downwards or upwards with the ↓ > directional buttons. The search will stop each time that a channel is found. 3. Go to the STORE entry and save the channel with OK. You will be able to make a further fine tuning in the FINE TUNE Menu point (see below).
FINE TUNE	You will be able to make a fine adjustment to the channel currently selected with ↓ >
	here.
SKIP	Set the individual channels that you want to jump over with the CH-/CH+ buttons when clicking through here. The channels can continue to be called up with the number buttons.
SOUND SYSTEM	B/G, I, D/K, L, L'
CHANNEL SWAP	Select the channel positions that you want to change for each other with CHANNEL 1 and CHANNEL 2.

Video recorder manual storage

For example, you can use the manual search to set a video recorder to the LCD TV.

Set your video recorder to the test signal after the LCD TV and the video recorder have been connected to each other by means of the aerial (compare Page 8).

• Carry out the manual search with the LCD TV.
• Store the test signal on channel position 0 (this channel position will not be occupied by a television channel), when the signal has been found.

Menu ADVANCE

Menu point	Setting
3D NR	Switch the noise suppression on/off.
AUTO FORMAT	ON / OFF
SCART2 OUT	Set the output signal of SCART2

Menu FUNCTION

Menu point	Setting
LANGUAGE	Select the language of the OSD Menu. It will change immediately.
BLUE SCREEN	A blue screen will be displayed, if no signal is received in the case of a channel, if this option is set to ON.
TXT LANGUAGE	The presetting is WEST. You will be able to change the language setting to EAST, RUSSIAN, ARABIC or FARSII if you live in a language area with a different alphabet.
COLOR TEMP.	NORMAL, WARM, COOL, USER The colour intensity can be set individually by means of the RGB values in the case of USER.
RESET	You will reset the factory setting by means of this Menu point. All settings made manually will be deleted. The values will now be in the status at delivery. The list of channels will be retained.

The OSD in the PC mode

Menu PC

Menu point	Setting
CONTRAST	Increase or reduce the contrast (0 – 100).
BRIGHTNESS	Increase or reduce the brightness (0 – 100).

Menu SOUND
Menu FUNCTION

Menu point	Setting
SOUND MODE	USER: the sound mode set by the user in the SOUND Menu. MOVIE: Increases the film sound. NEWS: The optimized setting for music. NORMAL: Standard setting.
VOLUME	Setting the volume (0 – 100).
BASS	Setting the bass tones (0 – 100).
TREBLE	Setting the high tones (0 – 100).
BALANCE	Setting the balance between the left and the right loudspeakers (0 – 100).

Menu point	Setting
LANGUAGE	Select the language of the OSD Menu. It will change immediately.
BLUE SCREEN	A blue screen will be displayed, if no signal is received in the case of a channel, if this option is set to ON.
TXT LANGUAGE	The presetting is WEST. You will be able to change the language setting to EAST, RUSSIAN, ARABIC or FARSII if you live in a language area with a different alphabet.
COLOR TEMP.	NORMAL, WARM, COOL, USER The colour intensity can be set individually by means of the RGB values in the case of USER.
RESET	You will reset the factory setting by means of this Menu point. All settings made manually will be deleted. The values will now be in the status at delivery. The list of channels will be retained.

Menu PC

Menu point	Setting
CLOCK	Set the cycle of the TFT screen. The higher the value, the broader the display will appear. The lower the value, the more the display will be compressed.
PHASE	Set the phase, in order to optimize the display of your TFT screen.
H - POSITION	Set the horizontal picture of the LCD display.
V - POSITION	Set the vertical picture of the LCD display.
AUTO	Automatic control

Troubleshooting

Many times, problems have simple causes. We would like to give you some tips to solve some common problems. Should these tips not help, please call us!

There is no picture or sound.

• Check whether the mains cable has been connected to the socket and the mains adapter correctly.
• Check whether the signal reception has been set to TV.
• Check whether the mains switch of the device on the upper side of the device has been switched on.

There is no picture. There is no picture from AV.

• Make sure the Contrast/Brightness is properly adjusted.
• Make sure all external devices are connected properly.
• Check whether the correct AV setting has been selected.

There is no sound.

• Make sure the volume is not set to minimum.
• Make sure the sound is not set to mute.

There is no picture or sound, just noise.

• The reception may be weak. Make sure the aerial is not disconnected.

The picture is not clear.

The reception may be weak.
- Make sure the aerial is not disconnected.

The picture is too bright or too dark.

• Check the settings of CONTRAST / BRIGHTNESS / BACKLIGHT in the PICTURE Menu.

The remote control does not work.

• Check whether the batteries in the remote are operational and have been inserted correctly.
• Make sure the remote sensor window is not under strong lighting.
• Switch the device off and on again with the mains switch.

The picture is not sharp.

The reception may be weak.
- Make sure the aerial is not disconnected.
- Check the settings of the picture sharpness in the PICTURE Menu.

The picture is spotted.

• There may be interference from automobiles, trains, high voltage lines, neon light, etc.
• There may be interference between the antenna cable and power cable. Try moving them further apart.

There are stripes on the screen or colors fade.

Is the unit receiving interference from other devices?
Transmission antennas of radio broadcasting station and transmission antennas of amateur radio and cellular phones may also cause interference.
- Place the unit as far apart as possible from device that may cause possible interference.

Do you require additional Support?

If the suggestions in the above section have not solved your problem, please contact the hotline. We will try and help you over the telephone. However, before you contact your Service Center, please keep the following information available:

If you have already been given a customer number, please keep this available.
What external devices have been connected?
What messages appear on your display?
During which operating step has the problem arisen?
- What steps have you already undertaken to solve the problem?

Maintenance

• Before cleaning, always remove the power adapter plug and all connecting cables.
• Do not use any solvents, corrosive or gaseous cleaning agents.
• Clean the display with a soft, lint-free cloth.
• Ensure that no water droplets remain on the screen. Water can cause permanent discoloration.
• Do not expose the screen to bright sunlight.
• Please keep the packaging material well and use it exclusively to transport the device.

Attention!

There are no user-serviceable or user-cleanable parts inside the device.

Recycling

Packaging

Your device is packaged to protect it against damage during transportation. The packaging is manufactured from materials that can be sent to a specialist recycling facility and disposed of in an environmentally-friendly way.

Device

At the end of its life, the appliance must not be disposed of in household rubbish. Enquire about the options for environmentally-friendly disposal.

Batteries

Do not dispose of used batteries in the household rubbish! They must be deposited at a collection point for used batteries.

Specifications

	MD 30016	MD 30039	MD 30034
Visible display size	20" (50,80 cm)	19" (48,26 cm)	22" (55,88 cm)
Input voltage	AC 230V~ 50Hz
Power consumption	ca. 50 W	ca. 42 W	ca. 45 W
Power consumption standby	ca. 3 W
Input voltage mains (power supply)	100-240V ~ 50/60Hz 1,2 A
Output voltage mains (power supply)	12V --- 5,0 A
TV-System	PAL/SECAM, BG/DK/I/L/LL
Audio	Multi, Stereo, Nicam
Channel positions	200 + AV
Antenna interface	75 Ω
Connections	1 x RF, 1 x D-SUB (VGA), 1 x SCART, 1 x A/V
Reaction time	8 ms	5 ms
Viewing angle h/v	160°/120° (typ.)	170°/160° (typ.)
Contrast	500:1 (typ.)	850:1 (typ.)	700:1 (typ.)
Brightness	450 cd/m2	300 cd/m2
Physical resolution	800 x 600	1440 x 900	1680 x 1050
Dimensions (W x H x D) (incl. stand)	490 x 465 x 186 mm	465 x 415 x 195 mm	533 x 460 x 210 mm
Weight (incl. stand)	approx. 5,7 Kg	approx. 4,6 Kg	approx. 5,4 Kg

Subject to change without notice!

Pixel errors with LCD TVs

Individual pixels or groups of them can fail in rare cases, in spite of the most up-to-date manufacture, because of the highly complex technology.

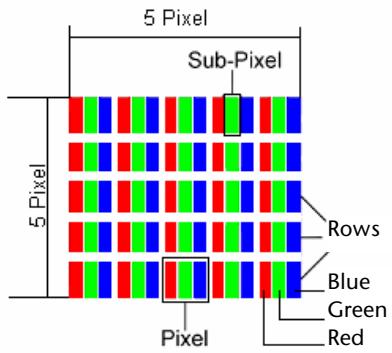

Active matrix LCDs (TFT) with a resolution of 1366 × 768 pixel, (WXGA) which are in turn composed of three sub-pixels each (red, green, blue), contain about 3.1 million addressable transistors. Because of this very high number of transistors and their extremely complex production process occasionally defective or incorrectly addressed pixels or sub-pixels may occur.

Description		Acceptable Number
Bright Sub Pixel	1 Sub-pixel	Max. 1
	Two lying next to each other (horizontally/vertically)	0
Distance	Minimum distance between light and dark sub-pixels	Min. 10 mm
Dark Sub Pixel	Individual	Max. 3
	Two lying next to each other	Max. 1
Distance	Minimum distance between light and dark sub-pixels	Min. 10 mm
Total number of bright and dark sub pixel		Max. 5

The Table describes the maximum number of pixel faults that are permitted to arise on the screen, without involving a guarantee case. Under certain circumstances, a guarantee case will be present if the number of faults given above is exceeded in one category.

Copying this manual

This document contains legally protected information. All rights reserved. Copying in mechanical, electronic and any other form without the written approval of the manufacturer is prohibited.

Copyright © 2007

All rights reserved.

This manual is protected by copyright. All rights reserved. Copying mechanically, electronically and any other way is prohibited unless written permission from the manufacturer is obtained.

The company MEDION* owns the copyright.

Subject to technical and optical changes as well as printing errors.

Indhold

Anvendelse of TEKST-TV 14

Talknapperne [20] 14

PGUP / PGDW knappen [12] 14

SUBPAGE [12] 14

Farveknapper [13] / Fastext. 14
