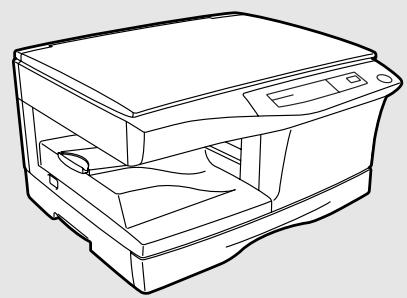

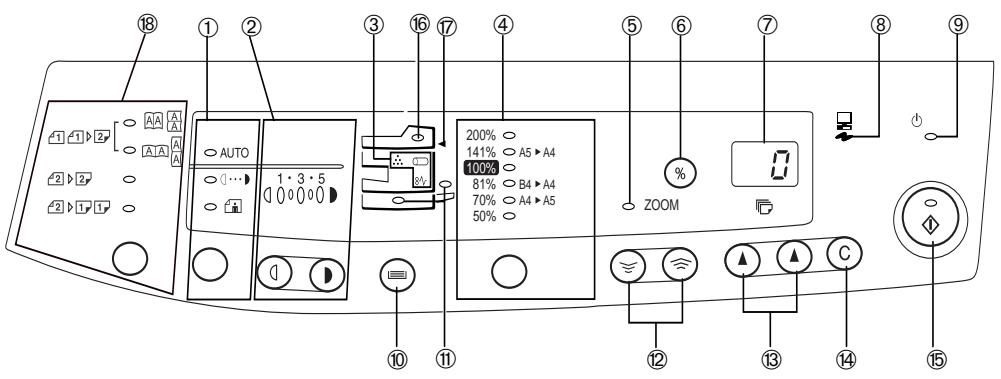

1 Exposure mode selector key and indicators Use to sequentially select the exposure modes: ). SelectAUTO, MANUAL (=) or PHOTO ( ed mode is shown by a lit indicator. (p.1-12) q Paper feed location indicator Light up to show the selected paper feed station. Two paper trays may be available depending on the model. 2 Light ({) and dark (}) keys and exposure indicators Use to adjust the MANUAL (=) or PHOTO ) exposure level. Selected exposure level is shown by a lit indicator. (p. 1-12) Use to start and terminate user program setting. (p. 1-20) w Zoom keys (N, L) Use to select any reduction or enlargement copy ratio from 50 to 200% in 1% increments. (p. 1-14) 3 Alarm indicators w: Drum replacement required indicator (p.1-23) t : Misfeed indicator (p. 1-26) : TD cartridge replacement required indicator (p. 1-21)

4 Copy ratio selector key and copy ratio indicators Use to sequentially select preset reduction/ enlargement copy ratios. Selected copy ratio is shown by a lit indicator. (p. 1-14)* 5 Zoom indicator (p. 1-14) 6 Copy ratio display (%) key (p. 1-14) 7 Display Displays the specified copy quantity, zoom copy ratio, user program code, and error code. 8 ON LINE indicator Lights up when the machine is used as a printer (optional). To use this machine as a printer, an optional printer upgrade kit is needed. 9 Power save indicator Lights up when the copier is in a power save mode. (p. 1-18) e Copy quantity keys ( <, <)

• Use to select the desired copy quantity (1 to 99). (p. 1-11)
• Use to make user program entries. (p. 1-20) r Clear key (>)
• Press to clear the display, or press during a copy run to terminate copying. (p. 1-11)
• Press and hold down during standby to display the total number of copies made to date. (p.1-32) u Print key and ready indicator ( )
• Copying is possible when the indicator is on.
• Use to set a user program. i SPF indicator (

R-SPF misfeed indicator ( (Duplex model only) p One sided / Two sided mode (Duplex model only)

• Use the two sided copy feature to make one or two-sided copies from one or two-sided originals (p. 1-38).

N.B.: Different copy ratios are defined for the 120 V model (see the specifications) 0 Tray select (M) key and indicators Use to manually select a paper tray. VII first_8languages.p65

27/05/99, 11.52 3 io

200% 141% 100% 81% 70% 50%

first_8languages.p65

200% 141% 100% 81% 70% 50%

first_8languages.p65

27/05/99, 11.52 3 io

200% 141% 100% 81% 70% 50%

XII first_8languages.p65

200% 141% 100% 81% 70% 50%

A5 A4 100% B4 A4 A4 A5

XIII first_8languages.p65

27/05/99, 11.52 3 io

200% 141% 100% 81% 70% 50%

Required in Appendix ZB of BS 7002 (En 60 950) – United Kingdom

MAINS PLUG WIRING INSTRUCTIONS

The mains lead of this equipment is already fitted with a mains plug which is either a nonrewireable (moulded) or a rewireable type. Should the fuse need to be replaced, a BSI or ASTA approved fuse to BS1362 marked

and of the same rating as the one removed from the plus must be used. Always refit the fuse cover after replacing the fuse on the moulded plug. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied either cut-off the moulded plug (If this type is fitted) or remove by undoing the screws if a rewireable plug is fitted and fit an appropriate type observing the wiring code below.

DANGER: The fuse should be removed from the cut-off plug and the plug destroyed immediately

and disposed of in a safe manner. Under no circumstances shold the cut-off plug be inserted elsewhere into a 13A socket outlet as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below: IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: GREEN-AND-YELLOW: Earth BLUE: Neutral BROWN: Live As the colours of the wires in this mains lead may not correspond with coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E, or by the safety earth symbol , or coloured green or greenand-yellow. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. first_8languages.p65

27/05/99, 11.52 Copyright © 1999, Olivetti All rights reserved Cautions the user that damage to the copier or one of its components may result if the contents of the caution are not properly followed. Notes provide information relevant to the copier regarding specifications, functions, performance, operation and such, that may be useful to the user. A letter shown in the display indicates a problem with the copier. (Please refer to

section 1-26 for a detailed explanation).

• CONTENTS INHALT Unpacking I Part names III Operation panel
• VII Introduction p. 1
• -1 A word on copier installation p. 1
• -2 Cautions p. 1
• -4 Set-up p. 1
• -6 Installing the TD cartridge p. 1
• -7 Loading copy paper p. 1
• -8 Normal copying p. 1
• -10 Exposure adjustment/Photo copying p. 1
• -12 Automatic exposure adjustment p. 1
• -13 Reduction/Enlargement/Zoom p. 1
• -14 Bypass feed (special paper) p. 1
• -15 Two-sided copying p. 1
• -17 Descriptions of special functions p. 1
• -18 Toner save mode p. 1
• -19 User programs p. 1
• -20 TD cartridge replacement p. 1
• -21 Drum cartridge replacement p. 1
• -23 User maintenance p. 1
• -25 Misfeed removal p. 1
• -26 Misfeed in the lower paper feed area p. 1
• -28 Misfeed removal from SPF p. 1
• -29 Copier trouble p. 1
• -30 Status indicators p. 1
• -32 Specifications p. 1
• -34 Specifications for 120 V version p. 1
• -35 Supply part numbers and storage p. 1
• -37 Moving instructions p. 1
• -38 Making copies on the Reverse Single Pass Feeder (R-SPF) (Duplex model only) p. 1
• -39 Manual two-sided copying (Duplex model only) -41 Warns the user that injury to the user or damage to the copier may result if the contents of the warning are not properly Warning followed. This copier has been designed to provide intuitive operating ease while requiring a minimum amount of space. To get full use of all copier features, be sure to familiarize yourself with this manual and the copier. For quick reference during copier use, keep this manual in a handy location. Depending on the model purchased, your copier can be equipped with a Single Pass Original Feeder (SPF), a Reverse Single Pass Feeder (R-SPF), two paper trays. The copier can also be used as a laser printer if an optional printer is installed. This manual describes only the copier features. For description of the printer features, see the printer manual. Conventions used in this manual In this manual, the following icons are used to provide the user with information pertinent to the use of the copier. p. 1

A WORD ON COPIER INSTALLATION

RICHTIGE INSTALLATION DES KOPIERERS

Improper installation may damage the copier. Please note the following during initial installation and whenever the copier is moved.

If the copier is moved from a cool place to a warm place, condensation may form inside the copier. Operation in this condition will cause poor copy quality and malfunctions. Leave the copier at room temperature for at least 2 hours before use. 20 cm 10 cm 10 cm 20 cm

1. Do not install your copier in areas that

• damp, humid, or very dusty
• exposed to direct sunlight
• subject to extreme temperature or humidity changes, e.g., near an air conditioner or heater.

2. Be sure to allow the required space

around the machine for servicing and proper ventilation.

3. Do not expose the drum cartridge to

direct sunlight. Doing so will damage the surface (green portion) of the drum cartridge, causing smudges on copies.

4. Store spare supplies such as drum

cartridges and TD cartridges in a dark place without removing from the package before use. If they are exposed to direct sunlight, smudges on copies may result.

5. Do not touch directly the surface

(green portion) of the drum cartridge with a hand. Doing so will damage the surface of the cartridge, causing smudges on copies.

6. Ensure that the power switch of the

copier is in the OFF position. Insert the attached power cord into the power cord socket at the rear of the copier. If you use the copier in a country other than the country where the copier was purchased, you will need to make sure that your local power supply is compatible with your model. If you plug the copier into an incompatible power supply, severe damage to the copier may result. Turn the power switch on the left side of the copier to the "ON" position. The ready ( ) indicator will light up and other indicators which show the initial settings of the operation panel will also light up to indicate the ready condition. For the initial settings, see the "Initial settings of operation panel" described below. The copier will enter a power save mode once the set time has elapsed without any copier operation after the last copy of a run is made or power is turned on. The settings of the power save modes can be modified. See page 1-20, USER PROGRAMS. The copier will return to the initial settings a preset amount of time after the last copy is made. The preset amount of time (auto clear time) can be changed. See page 1-20, USER PROGRAMS.

INITIAL SETTINGS OF OPERATION PANEL

ANFÄNGLICHE EINSTELLUNGEN DES BEDIENFELDS

The copier assumes the initial settings when the copier is turned on or a preset time (auto clear time) elapses after the last copy is made. 200% 141% 100% 81% 70% 50% A5 A4 100% B4 A4 A4 A5 Only insert the power cord into a properly grounded wall socket.

7. Plug the other end of the power cord

into the nearest outlet.

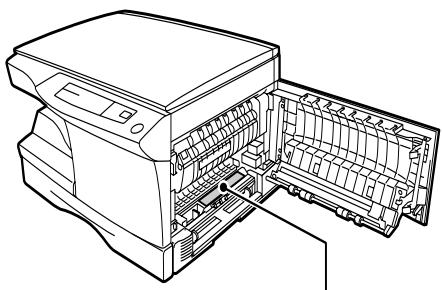

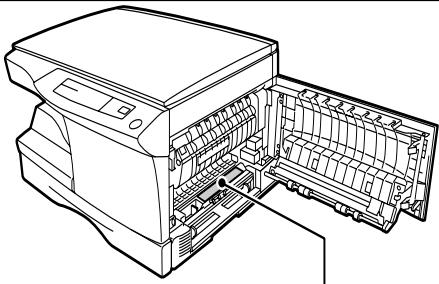

CAUTIONS WARNHINWEISE Follow the cautions below when using this copier.

• The fusing area is hot. Exercise care in this area when removing misfed paper.
• Do not look directly at the light source. Doing so may damage your eyes.
• Do not switch the copier rapidly on and off. After turning the copier off, wait 10 to 15 seconds before turning it back on.
• Copier power must be turned off before installing any supplies.
• Place the copier on a firm, level surface.
• Do not install the copier in a humid or dusty location.
• When the copier is not used for long time, for example during prolonged holidays, turn the power switch off and remove the power cord from the outlet.
• When moving the copier, be sure to turn the power switch off and remove the power cord from the outlet.
• Do not cover the copier with a dust cover, cloth or plastic film while the power is on. Doing so may prevent heat radiation, damaging the copier. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Caution This product contains a low power laser device. To ensure continued safety do not remove any cover or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA

ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1

YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. VARNING OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASER-STRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1. Class 1 Laser Product Laser Klasse 1 Laserstrahl MAIN FEATURES HAUPTFUNKTIONEN 1 High-speed laser copying

• Since warm-up time is zero, copying can be started immediately after the power switch is turned on.
• First-copy time is only 9.6 seconds (normal mode).
• Depending on the model, copying speed is 10 copies/min.,12 copies/min., or 15 copies/min., which adapts to business use, allowing improvement of working efficiency. 2 Digital high-quality image
• High-quality image copying with 600 dpi can be performed.
• In addition to the automatic exposure mode, the manual exposure can be adjusted in five steps.
• The photo mode copying function which allows clear copying of delicate halftone original images such as monochrome photos and color photos can be used. 3 Substantial copying functions
• Zoom copying from 50% to 200% in 1% increments can be performed.
• A maximum of 99 copies can be selected.
• Automatic document feeding through the single pass feeder (SPF) can be performed (depending on the model).
• Toner save mode for reducing toner consumption by approximately 10% can be set.
• User programs which allow setting/modification of functions for customer’s needs are provided. 4 Scan once/Print many
• This copier is equipped with a 1-page memory buffer. This memory allows the copier to scan an original one time only and make up to 99 copies. This feature allows for improved workflow, reduced operating noise from the copier and reduced wear and tear on the scanning mechanism. This feature provides for a higher reliability. 5 Environmentally friendly design
• Exit tray is housed in the copier to allow space saving.
• Preheat mode and auto power shut-off mode are provided to reduce power consumption in standby mode. 6 Printer feature
• Depending on the model, this copier can be used as a laser printer. Cautions on laser Class 1 Laser product Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam. At the production line, the output power of the scanner unit is adjusted to 0.6 MILLIWATT PLUS 13.4 PCTS and is maintained constant by the operation of the Automatic Power Control (APC). This product contains a low power laser device. To ensure continued safety do not remove any cover or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

1. Be sure to hold the handles on both

sides of the copier to unpack the copier and carry it to the installation location.

2. Remove pieces of tape a, b, c, d

and e and protective cover f.

3. Then open the original cover and remove protective materials g and

4. Remove all pieces of tape from the

copier. Remove protective material a..

5. Then open the original cover and remove protective materials b and c .

6. Remove protective material d.

7. Use a coin (or suitable object) to

remove the screw. Store the screw in the paper tray because it will be required if the copier has to be moved. (p. 1-38)

INSTALLING THE TD CARTRIDGE

INSTALLIEREN DER ENTWICKLEREINHEIT

1. Open the bypass tray and then open

the side cover whilst pressing the side cover open button.

2. Remove the CAUTION tape from the

front cover and remove the two protective pins from the fusing unit by pulling the strings upward one at a time.

3. Push gently on both sides of the front

cover to open the cover.

4. Remove the TD cartridge from the

bag. Remove the protective paper. Hold the cartridge on both sides and shake it horizontally four or five times.

5. Hold the tab of the protective cover

and pull the tab towards you to remove the cover.

6. Gently insert the TD cartridge until it

7. Close the front cover and then the

side cover by pressing the round projections near the side cover open button. When closing the covers, be sure to close the front cover securely and then close the side cover. If the covers are closed in the wrong order, the covers may be damaged. If your model is equipped with two paper trays, load copy paper into the two paper trays.

1. Raise the handle of the paper tray and

pull the paper tray out until it stops.

2. Remove the pressure plate lock.

Whilst holding down the pressure plate, rotate the lock in the direction of the arrow as shown, lift and remove.

3. Store the pressure plate lock (removed in step 2) together with the

screw (removed during unpacking) in the front of the paper tray in the locations shown. Secure the lock in the position by rotating in the direction of the arrow.

4. Adjust the paper guides on the paper

tray to the copy paper width and length. Squeeze the lever of paper guide a and slide the guide to match with the width of the paper. Move paper guide b to the appropriate slot as marked on the tray.

5. Fan the copy paper and insert it into

the tray. Make sure the edges go under the corner hooks. Do not load paper above the maximum height line ( Exceeding the line will cause a paper misfeed.

6. Gently push the paper tray back into

the copier. After loading copy paper, to cancel the blinking "P" without restarting copying, press the clear (>) key. The "P" in the display will go out and the ready ( ) indicator will light up. Manual bypass Standard paper and thick paper Special media Size Weight

Letter Legal Invoice 56 to 80 g/m²

Letter Legal Invoice 52 to 128 g/m²** Transparency A4 film Letter Envelope* International DL International C5 Commercial 10 Monarch

• Do not use envelopes that have metal clasps, plastic snappers, string closures, windows, linings, self-adhesive, patches or synthetic materials. These will cause physical damage to the copier. ** For paper weighing from 110 to 128 g/m², A4 is the maximum size that can be fed through the manual bypass.
• Special papers such as transparency film and labels must be fed one sheet at a time through the manual bypass.
• Bypass tray can not be used for duplex copying (Duplex model only). PAPIER

Letter Legal Invoice 56 bis 80 g/m² Manueller Einzug

Letter Legal Invoice 52 bis 128 g/m²** Type of paper Type of media feeding

PAPER Depending on your model: this copier has two document input stations – a single pass feeder (SPF) for automatic document feeding (available on some models) and an original table for manual handling of documents. The SPF is designed to hold up to 30 originals measuring from A5 to B4 and weighing from 52 to 90 g/m².

1. Ensure that paper of the desired size

is set in the paper tray. See page 1-8, LOADING COPY PAPER. When copying onto paper larger than A4 size, pull the paper output tray extension out.

2. Turn the power switch on.

3. Open the original cover.

4. Place the original face down on the

original table. Align it with the original scale and the centering ( ) mark. Place the original(s) in the document feeder tray or on the original table. B. When using the SPF (1) Make sure that no original is left on the original table. (2) Adjust the original guides to the size of original. (3) Set the originals face up in the document feeder tray. Go to step 7.

• Before feeding originals in the document feeder tray, be sure to remove any staples or paper clips from them.
• The SPF ( ) indicator on the operation panel will light up. If this indicator does not light up, the originals are not properly set or the SPF is not properly closed.
• Badly damaged originals may misfeed in the SPF. It is recommended that such originals be copied from the original table.
• Special originals such as transparency film should not be fed via the SPF, but should be placed directly on the original table.

5. Gently close the original cover. When

copying a book or an original which has been folded or a creased original, press down the original cover lightly.

• A single copy can be made with the initial setting, i.e., when “0” is displayed.

• Press the left copy quantity key to set the tens digit from 1 to 9.

7. Press the print (

• Press the right copy quantity key to set the unit digit from 0 to 9. This key will not change the tens digit. ) key. To display the number of copies made in a continuous run, press the left copy quantity key. To stop copying in the middle of a run, press the clear (>) key. Copying will stop and the number in the display will be reset to “0”. Stream feeding mode If the stream feeding mode has been enabled using user program No.4, the SPF ( ) indicator will blink approximately 5 seconds after printing of all copies from the SPF is complete. While this indicator is blinking, any new originals placed in the document feeder tray will be fed and copied automatically. See page 1-20, USER PROGRAMS. Setting a large original The original cover can be removed to allow copying of bulky objects.

1. Simply lift the original cover straight

2. To reattach the original cover, reverse the above procedure.

• Press the clear (>) key to clear an entry if a mistake is made.

6. Set the number of copies using the

two copy quantity (<,<) keys. ZOOM Copy density adjustment is not required for most originals in the automatic exposure mode. To adjust the copy density manually or to copy photographs, the exposure level can be adjusted in five steps manually.

1. Set the original and check the copy

2. Press the exposure mode selector

key to select the manual (=) or photo ( ) mode.

3. Use the light ({) and dark (}) keys to

adjust the exposure level. If exposure level 2 is selected, the two left-handmost indicators for that level will light up simultaneously. Also, if level 4 is selected, the two right-handmost indicators for that level will light up simultaneously.

4. Set the number of copies using the

copy quantity (<,<) keys and press the print ( ) key.

1. Press the exposure mode selector

key to select the photo ( ) mode.

2. Press and hold down the exposure

mode selector key for approximately 5 seconds. The photo ( ) indicator will go out and the AUTO indicator will begin to blink. One or two exposure indicators corresponding to the automatic exposure level which has been selected will light up.

3. Press the light ({) or dark (}) key to

lighten or darken the automatic exposure level as desired. If exposure level 2 is selected, the two left-handmost indicators for that level will light up simultaneously. Also, if level 4 is selected, the two right-handmost indicators for that level will light up simultaneously.

4. Press the exposure selector key. The

AUTO indicator will stop blinking and light up steadily.

• This automatic exposure level will remain in effect until you change it again by this procedure. The automatic exposure level can be adjusted to suit your copying needs.

REDUCTION/ENLARGEMENT/ZOOM

VERKLEINERUNG/VERGRÖSSERUNG/ZOOM

Three preset reduction ratios and two enlargement ratios can be selected. The zoom function enables copy ratio selection from 50% to 200% in 1% increments.

2. Use the copy ratio selector key and/or

zoom (N,L) keys to select the desired copy ratio.

• To verify a zoom setting without changing the zoom ratio, press and hold down the copy ratio display (%) key. When the key is released, the display will return to the copy quantity display.

1. Set the original and check the copy

• To reset the ratio to 100%, press the copy ratio selector key repeatedly until the 100% indicator lights up. 200% 141% 100% 81% 70% 50% A5 A4 100% B4 A4 A4 A5 ZOOM To select a zoom ratio: When a zoom (N or L) key is pressed, the ZOOM indicator will light up and the zoom ratio will be displayed in the display. In order to quickly change the zoom ratio, press and hold down the (N or L) key. The displayed setting will stop on any preset reduction or enlargement setting. To further reduce or raise the zoom ratio, firstly release the key and then press and hold down.

3. Set the number of copies using the

copy quantity (<,<) keys and press the print ( ) key.

1. Place the original face down on the

original table. Align it with the original scale and close the original cover. The original image must be smaller than the paper or media for copying. If the original image is bigger than the paper or media, this may cause smudging on the edges of the copies.

2. Set the paper guides to the copy paper width. Insert a single sheet of

copy paper (print face down) into the feed slot of the manual bypass. Copying will begin automatically.

• Paper must be fed narrow side into the feed slot.

• When copying onto transparency film, remove each copy promptly. Do not let copies stack up.
• When loading an envelope, make sure that it is straight and flat. The bypass tray automatically feeds up to 50 sheets of standard copy paper (available with some models only). The single-sheet manual bypass and the bypass tray can be used to feed standard paper, transparency film, labels and other special purpose papers measuring from A6 to A4 and in the weight range of 52 to 128 g/m². (For paper weighing from 110 to 128 g/m², A4 is the maximum size). To close the bypass tray, perform step1 and then step 2 in the illustration and push the round projections at the right of the tray until they click.

2. Set the paper guides to the copy paper

width. Insert the copy paper (print face down) all the way into the bypass tray.

1. Open the bypass tray and extend the

• Paper must be fed narrow side into the feed slot.
• Transparency film, labels, and other special purpose papers must be fed individually.
• When copying onto transparency film, remove each copy promptly. Do not let copies stack up.

3. Press the tray select (M) key to select

the bypass tray. Set the number of copies if using standard copy paper. Press the print ( ) key. After loading copy paper, to cancel the blinking “P” without restarting copying, press the clear (C) key. The “P” in the display will go out and the ready ( ) indicator will light up. TWO-SIDED COPYING ZWEISEITIGES KOPIEREN Two-sided copying can be made on this copier using the manual bypass. Example: The following two originals will be copied onto two sides of copy paper.

1. Place the first original face down on

the original table with the TOP toward the LEFT. Make a copy. The first copy can be made using either the paper tray or the manual bypass. N.B : 60g/m2 copy paper is not recommended for two-sided copying.

2. Replace the first original with the second original face down on the original table with the TOP toward the

RIGHT and close the original cover. Make sure that the first and second originals are oriented in the same way on the original table. Both the first and second originals can be set in the SPF but they must be set separately. If the stream feeding mode for the SPF has been enabled, set the second original after the SPF ( ) indicator goes out. See page VII.

3. For tablet binding, turn the first copy

over left to right as shown below. For booklet binding, turn the first copy over top to bottom (not shown). Feed the first copy into the manual bypass or into the bypass tray. Copying will begin automatically.

4. Press the tray select (M) key to select

the bypass tray and press the print ( ) key. Be sure to feed the copy paper one sheet at a time.

DESCRIPTION OF SPECIAL FUNCTIONS

BESCHREIBUNG SPEZIELLER FUNKTIONEN

Toner save mode (page 1-19) Reduces toner consumption by approximately 10%. Power save modes (page 1-20) The copier has two power save modes of operation: preheat mode and auto power shut-off mode. Preheat mode When the copier enters the preheat mode, the power save (i) indicator will light up and other indicators will remain on or off as before. In this condition, the fuser in the copier is maintained at a lower heat level, thereby saving power. To copy from the preheat mode, make desired copier selections and press the print ( ) key using the normal copying procedure. Auto power shut-off mode When the copier enters the auto power shut-off mode, the power save (i) indicator will light up and other indicators will go out. The auto power shut-off mode saves more power than the preheat mode but requires a longer time before starting copying. To copy from the auto power shut-off mode, press the print ( ) key. Then make desired copier selections and press the print ( ) key using the normal copying procedure. Auto clear (page 1-20) The copier returns to the initial settings a preset amount of time after the last copy is made. This preset amount of time (auto clear time) can be changed. Stream feeding mode (page 1-20) For description of the stream feeding mode, see page 1-11.

2. Press and hold down the exposure

mode selector key for approximately 5 seconds. The manual (=) indicator will go out and the photo ( ) indicator will begin to blink. The exposure indicator marked “5” will light up, indicating the standard toner mode is active.

3. To enter the toner save mode, press

the light ({) key. The exposure indicator marked “1” will light up, indicating the toner save mode is selected.

4. Press the exposure mode selector

key twice. The photo ( ) indicator will stop blinking and the AUTO indicator will light up steadily. The toner save mode is now active. To return to the standard mode, repeat the procedure but use the dark (}) key to select exposure level “5” in step 3.

1. Press the exposure mode selector

key to select the manual (= ) mode.

USER PROGRAMS BEDIENERPROGRAMME The user programs allow the parameters of certain functions to be set, changed, or cancelled as desired. Setting the power save modes and auto clear time, and stream feeding mode.

1. Press and hold down the light ({) and

dark ( }) keys simultaneously for more than 5 seconds until all the alarm indicators (w, t, s) blink and “– – ” appears in the display.

2. Use the left copy quantity (<) key to

select a user program number. The selected number will blink in the left side of the display.

3. Press the print ( ) key. The entered

program number will be steadily lit and the currently selected parameter number for the program will blink on the right side of the display.

Auto clear time 0➯OFF 1➯30 sec.

• 2➯60 sec. 3➯90 sec. 4➯120 sec.

Automatische Rückstellzeit

• 0➯30 sec. 1➯60 sec. 2➯90 sec.

Auto power shut-off timer 4 Stream feeding mode 0➯OFF

• 1➯ON 5 Auto power 0➯OFF shut-off mode
• 1➯ON Factory default settings are indicated with an asterisk (*).

4. Select the desired parameter using

the right copy quantity (<) key. The entered parameter number will blink on the right of the display.

5. Press the print ( ) key. The righthand number in the display will be

steadily lit and the entered value will be stored. To change the setting or to set another mode, press the clear (>) key. The copier will return to step 2.

6. Press the light ({) or dark (}) key to

return to the normal copy mode. Be sure to use only genuine parts and supplies.

• After the copier stops, it may be possible to make a few more copies by taking the TD cartridge out of the copier, shaking it horizontally, then reinstalling it. If copying is not possible after this operation, replace the TD cartridge.
• During a long copy run of a dark original, the ready ( ) indicator may blink, the s indicator light up, and the copier stop, even though toner is left. The copier automatically replenish the toner level for up to 2 minutes and then the ready ( ) indicator will light up. Press the print ( ) key to restart copying.

1. Ensure that the bypass tray is open

and then open the side cover while pressing the side cover open button. Then, push gently on both sides of the front cover to open the cover. The TD cartridge replacement required (s) indicator will light up when toner is needed. For more information on purchasing the TD cartridge, see SUPPLY PART NUMBERS AND STORAGE on page 1-37. If copying is continued while the indicator is lit, copies will gradually become lighter until the copier stops and the indicator begins blinking. Replace the old TD cartridge by following the procedure given below.

3. Install a new TD cartridge. To install the

new cartridge, see page 1-7, INSTALLING THE TD CARTRIDGE.

4. Close the front cover and then the side

cover by pressing the round projections near the side cover open button. The s indicator will go out and the ready ( ) indicator will light up. When closing the covers, be sure to close the front cover securely and then close the side cover. If the covers are closed in the wrong order, the covers may be damaged.

DRUM CARTRIDGE REPLACEMENT

AUSWECHSELN DER TROMMELEINHEIT

Do not remove the protective cover on the drum portion (black paper) of a new drum cartridge before use. The cover protects the drum against external light.

1. Ensure that the bypass tray is open

and then open the side cover while pressing the side cover open button. Then, push gently on both sides of the front cover to open the cover.

2. Gently pull the TD cartridge out whilst

pressing the lock button. To remove the TD cartridge, see page 1-22, step 2.

3. Hold the handle of the drum cartridge

and gently pull the cartridge out. Dispose of the old drum cartridge in accordance with local regulations.

4. Remove the new drum cartridge from

the protective bag and remove the protective cover from the cartridge. Then gently install the new drum cartridge. Do not touch the surface of the drum (green portion) of the cartridge. Doing so may cause smudges on the copies. The useful life of the drum cartridge is approximately 18,000 copies. When the internal counter reaches approximately 17,000 copies, the drum replacement required (w) indicator will light up indicating that replacement of the drum cartridge will be needed soon. For more information on purchasing the drum cartridge, see SUPPLY PART NUMBERS AND STORAGE on page 1-37. When the indicator begins to blink, the copier will stop operating until the cartridge is replaced. Replace the drum cartridge at this time.

5. Gently install the TD cartridge. To

install the TD cartridge, see page 1-7, INSTALLING THE TD CARTRIDGE.

6. Close the front cover and then the

side cover by pressing the round projections near the side cover open button. The drum replacement required (w) indicator will go out and the ready ( ) indicator will light up.

When closing the covers, be sure to close the front cover securely and then close the side cover. If the covers are closed in the wrong order, the covers may be damaged. Drum cartridge life To find out how many more copies can be made before the 18,000 maximum is reached, follow the procedure described below.

1. Press and hold down the light ({ )

and dark ( } ) keys simultaneously for more than 5 seconds until all the alarm indicators (w , t, s ) blink and “– –” appears in the display.

2. Press and hold down the clear (>)

key for more than 5 seconds to find out how many more copies can be made. Example: 500 copies can be made before the next drum cartridge replacement.

3. Press the light ({) or dark (}) key.

The ready ( ) indicator will light up.

• Do not use thinner, benzene or other volatile cleaning agents.
• Before cleaning, be sure to turn the power switch off and remove the power cord from the outlet. Cabinet Wipe the cabinet with a soft, clean cloth. Original table and original cover Stains on the glass cover or SPF rollers will also be copied. Wipe the glass cover and SPF rollers with a soft, clean cloth. If necessary, dampen the cloth with or a glass cleaner. Transfer charger If copies start becoming streaky or blotchy, the transfer charger may be dirty. Clean the charger using the following procedure.

1. Turn the power switch off.

2. Open the side cover whilst pressing

the side cover open button.

3. Take the charger cleaner out by holding the tab.

4. Set the charger cleaner onto the right

end of the transfer charger, gently slide the cleaner to the left end, and then remove it. Repeat this operation two or three times. Slide the charger cleaner from the right end to the left end along the groove of the transfer charger. If the cleaner is stopped on the way, smudges on copies may occur.

5. Return the charger cleaner to its

original position. Close the side cover by pressing the round projections near the side cover open button. Proper care is essential in order to get clean, sharp copies. Be sure to take a few minutes to regularly clean the copier. MISFEED REMOVAL PAPIERSTAUBESEITIGUNG When the misfeed (t) indicator blinks or Q blinks in the display, the copier will stop because of a misfeed. If a misfeed occurs when using the SPF, a number may appear in the display after a minus sign. This indicates the number of the originals that must be returned to the document feeder tray after a misfeed. Return the required number of originals. Then this number will disappear when copying is resumed or the clear (>) key is pressed. When the SPF misfeeds an original sheet, the copier will stop and the SPF misfeed ( ) indicator will blink, while the misfeed (t) indicator will remain off. For a misfeed of originals in the SPF, see “D Misfeed in the SPF” on page 1-29. If the copier is turned on with the lower side cover open, the misfeed (t) indicator will blink. In this case, close the lower side cover. The misfeed (t) indicator will go out.

1. Ensure that the bypass tray is open

and then open the side cover whilst pressing the side cover open button.

2. Check the misfeed location. Remove

the misfed paper following the instructions for each location in the illustration below. If Q blinks in the display, proceed to “A Misfeed in the paper feed area”.

1 If the misfed paper is seen from this side, proceed to “C Misfeed in the transport area”. (p.1-28) 2 If paper is misfed here, proceed to “B Misfeed in the fusing area”. (p.1-27) 3 If paper is misfed here, proceed to “A Misfeed in the paper feed area”.

4 If paper is misfed here, proceed to “D Misfeed in the lower paper area” (p. 1-28). A Misfeed in the paper feed area

1. Gently remove the misfed paper from

the paper feed area as shown in the illustration. When Q blinks in the display and the misfed paper is not seen from the paper feed area, pull out the paper tray and remove the misfed paper. The fusing unit is hot. Do not touch the fusing unit when removing misfed paper.

2. Close the side cover by pressing the

round projections near the side cover open button. The misfeed (t) indicator will go out and the ready ( ) indicator will light up. B Misfeed in the fusing area

1. Lower the fusing unit release lever.

2. Gently remove the misfed paper from

under the fusing unit as shown in the illustration. The fusing unit is hot. Do not touch the fusing unit when removing misfed paper. Do not touch the surface of the drum (green portion) of the drum cartridge when removing the misfed paper. Do not remove the misfed paper from above the fusing unit. Unfixed toner on the paper may stain the paper transport area, resulting in smudges on copies.

3. Raise the fusing unit release lever

and then close the side cover by pressing the round projections near the side cover open button.

• Do not touch the surface of the drum (green portion) of the drum cartridge when removing the misfed paper.
• If the paper has been fed through the manual bypass, do not remove the misfed paper through the manual bypass. Toner on the paper may stain the paper transport area, resulting in smudges on copies. C Misfeed in the transport area

1. Lower the fusing unit release lever.

2. Push gently on both sides of the front

cover to open the cover.

3. Rotate the feeding roller in the direction of the arrow and gently remove

the misfed paper from the exit area.

4. Raise the fusing unit release lever,

close the front cover and then close the side cover by pressing the round projections near the side cover open button. The misfeed (t) indicator will go out and the ready ( ) indicator will light up. When closing the covers, be sure to close the front cover securely and then close the side cover. If the covers are closed in the wrong order, the covers may be damaged. D Misfeed in the lower paper feed area

1. Open the lower side cover (under the

bypass tray) and remove the misfed paper. If Qblinks and the misfed paper is not seen from the area of the lower side cover, pull out the lower paper tray and remove the misfed paper. Then close the lower paper tray.

2. Close the lower side cover.

3. Close the side cover by pressing the

round projections near the side cover open button. The misfeed (t) indicator will go out and the ready ( ) indicator will light up. (A) Open the feeding roller cover and pull the original gently to the left and out from the document feeder tray. Close the feeding roller cover. Open and close the original cover to clear the SPF misfeed ( ) indicator. If the misfed original cannot be easily removed, proceed to (C) under the feeding roller without pulling the original forcibly from the document feeder tray. (B) Open the original cover and rotate the roller rotating knob to remove the misfed original from the exit area. If the misfed original cannot be easily removed, proceed to (C) under the feeding roller without pulling the original forcibly. (C) Open the original cover and rotate the roller rotating knob to remove the misfed original from the document feeder tray or exit area. If it is difficult, remove the misfed original from under the feeding roller. A number may appear in the display after a minus sign, indicating the number of the originals that must be returned to the document feeder tray. Clear the misfeed and return the required number of originals. Then press the print ( ) key to resume copying. E Misfeed in the SPF An original misfeed may occur at one of three locations: if the misfed original is seen from the document feeder tray, (A) in the document feeder tray; if the misfed original is not seen from the document feeder tray, (B) in the exit area or (C) under the feeding roller. Remove the misfed original following the instructions for each location.

If any problem occurs, check the list below before contacting the Service Center. In the cases described below, the copier does not malfunction. Possible cause Problem Copier plugged in? Plug the copier into a grounded outlet. p. 1-3 Turn the power switch on. p. 1-3 Side cover closed securely? Gently close the side cover. p. 1-7 Front cover closed? Gently close the front cover and then close the side cover. p. 1-7 Blank copies Is the original placed face down on the original table or face up in the SPF? Place the original face down on the original table or face up in the SPF. p. 1-10 Power save (i) indicator on. Is the copier in the preheat mode? Press any key to cancel the preheat mode. p. 1-18 Is the copier in the auto power shutoff mode? Press the print ( ) key to cancel the auto power shut-off mode. p. 1-18 Is original image too dark or too light? Adjust the exposure manually. p. 1-12 Is the copier in the automatic exposure mode? Adjust the automatic exposure level. p. 1-13 Is the copier in the photo exposure mode? Cancel the photo exposure mode. p. 1-12 Dust, dirt, smudges appear on copies. Original table or original cover dirty? Clean regularly. p. 1-25 Original smudged or blotchy? Is transfer charger clean? Clean the transfer charger. p. 1-25 Excessive paper curl after copying Quality of paper Try turning the paper over in the cassette. p. 1-8 Non-standard paper used? Use standard paper. If using special papers, feed the paper through the manual bypass. p. 1-15 Paper curled or damp? Store copy paper flat in the wrapper in a dry location. p. 1-38 Pieces of paper inside copier? Remove all pieces of misfed paper. p. 1-26 Paper guides in the paper tray not set properly? Set the guides properly depending on the paper size. p. 1-8 Too much paper in the paper tray or badly placed in the cassette? Remove excessive paper from the paper tray or follow advice. p. 1-8 Is the copy paper too heavy? Use copy paper within the specified range. p. 1-9 Paper damp? Replace with dry copy paper. If the copier is not used for a long time, remove the paper from the paper tray and store it in its wrapper in a dry location. p. 1-38 Copier does not operate.

Solution Copies are too dark or too light. Paper misfeeds frequently. Images rub off the copy easily. 1 – 30 2nd_part_d_gb.p65

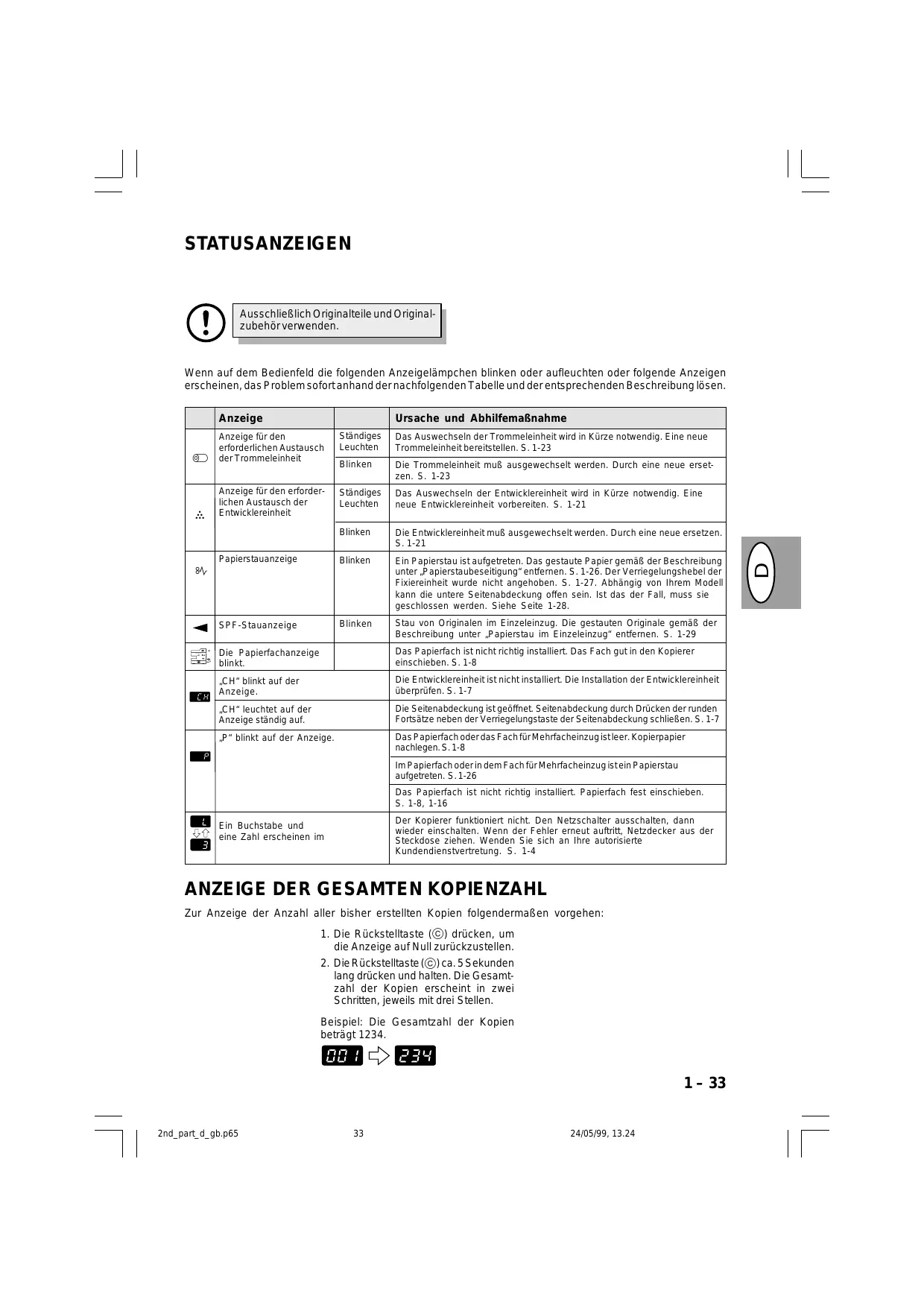

24/05/99, 13.23 FEHLERSUCHE Be sure to use only genuine parts and supplies. When the following indicators light up or blink on the operation panel or the following symbols appear in the display, solve the problem immediately referring to both the table below and the relevant page. Cause and remedy Indication

Steadily lit Replacement of drum cartridge will be needed soon. Prepare a new cartridge. p. 1-23 Blinking Drum cartridge must be replaced. Replace it with a new one. p. 1-23 Steadily TD cartridge replacement required indicator lit Replacement of TD cartridge will be needed soon. Prepare a new cartridge. p. 1-21 Blinking TD cartridge must be replaced. Replace it with a new one. p. 1-21 Misfeed indicator Blinking A misfeed has occurred. Remove the misfed paper referring to the description of „Misfeed removal.“ p. 1-26. Lever of fusing area is not raised. p. 1-27. Depending on your model, the lower side cover may be open. If so, close it. p. 1-28. An original misfeed has occurred in the SPF. Remove the misfed originals referring to the description of "Misfeed in the SPF". p. 1-29. The paper tray is not installed properly. Push the tray into the copier securely. p.1-8. The TD cartridge is not installed. Check if the cartridge is installed. p. 1-7 Side cover is open. Close the side cover securely by pressing the round projections near the side cover open button. p. 1-7

Drum replacement required indicator The paper tray indicator is blinking. „CH“ is blinking in the display. „CH“ is steadily lit in the display. „P“ is blinking in the display. Paper tray or bypass tray is empty. Load copy paper. p. 1-8

A misfeed has occurred in the paper tray or bypass tray. Remove the misfed paper. p. 1-26 Paper tray is not securely installed. Push the tray in securely. p. 1-8, 1-16 A letter and a number appear alternately. The copier will not function. Turn the power switch off and then switch it on, and if there is again an error, remove the power cord from the outlet, and contact your authorized Service representative p. 1-4.

DISPLAYING TOTAL NUMBER OF COPIES

Use the following procedure to display the total number of copies.

1. Press the clear (>) key to reset the

2. Press and hold down the clear (>)

key for approximately 5 seconds. The total number of copies will appear in two steps, each with three digits. Example: Total number of copies is 1,234. 1 – 32 2nd_part_d_gb.p65

24/05/99, 13.23 STATUSANZEIGEN SPECIFICATIONS Digital copying machine, desk-top type Copy system Dry, electrostatic transfer Originals Sheets, bound documents Original size Max. B4 (Max. A4 for SPF) Copy sizes A6 to A4 (Feed copy paper lengthwise only.) Image loss: Max. 4 mm (leading and trailing edges) Max. 3 mm (either of the other edges) Copy speed COPIA 9910/DC 100: COPIA 9912/DC 120, Dual paper tray models: COPIA 9915/DC 150, COPIA 9915C/DC 150C: Max. 99 copies; subtractive counter First-copy time

9.6 sec. (normal copying mode)

Copy ratio Moving optical source, slit exposure (stationary platen) with automatic exposure/SPF: Moving original Copy paper feed One or two paper trays with automatic feed (250 sheets); one single-sheet manual bypass or one bypass tray with 50-sheet automatic feed capability (depending on the model). Fusing system Heat rollers

Type Development system Magnetic brush development Light source Xenon lamp Resolution Scan: 256 levels Output: 2 levels Power supply For this copiers power supply requirements, see the name plate located on the back of the unit. Power consumption Max. 1000 W Overall dimensions 607 mm (W) x 445 mm (D) 809 mm (W) x 445 mm (D) with multi bypass Weight Approx. 18 kg Models with SPF: 21.5 kg / Dual paper tray models: 24.5 Kg Duplex model: 22 Kg TD and drum cartridges included Copier dimensions 518 mm (W) x 445 mm (D) x 293 mm (H) 518 mm (W) x 477 mm (D) x 379 mm (H) Models with SPF / Duplex models 518 mm (W) x 477 mm (D) x 464 mm (H) Dual paper tray models Operating conditions Temperature: 10°C to 30°C Humidity: 20% to 85% Noise level Sound Power Level LWA (1B=10dB) Copying: 6.6 [B (A)], Standby: Background noise level Copying: 7.1 [B (A)] models with SPF Sound Pressure Level LPA (bystander positions) Copying: 40 [dB (A)], Standby: Background noise level Noise emission measurement in accordance with ISO 7779. First-copy time may differ depending on operating conditions, such as power-supply voltage and room temperature. The values for copy speed are rounded to the nearest whole number. As a part of our policy of continuous improvement, the manufacturer reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviation from these values in individual units. 1 – 34 2nd_part_d_gb.p65

SPECIFICATIONS FOR 120 V VERSION

Digital copying machine, desk-top type Copy system Dry, electrostatic transfer Originals Sheets, bound documents Original size Max. 10” x 14” Copy sizes 8-1/2” x 14” to 3-1/2” x 5-1/2” (Feed copy paper lengthwise only) Image loss: Max. 5/32” (4 mm) (leading and trailing edges) Max. 1/8” (3 mm) (either of the other edges) Copy speed COPIA 9910: COPIA 9912, Dual paper tray models: COPIA 9915, COPIA 9915C: Continuous copying Max. 99 copies; subtractive counter First-copy time

9.6 sec. (normal copying mode)

Copy ratio Moving optical source, slit exposure (stationary platen) with automatic exposure/SPF: Moving original Copy paper feed One or two paper trays with automatic feed (250 sheets); one single-sheet manual bypass or one bypass tray with 50-sheet automatic feed capability (depending on the model). Fusing system Heat rollers Development system Magnetic brush development Light source Xenon lamp Resolution Scan: 256 levels Output: 2 levels Power supply For this copiers power supply requirements, see the name plate located on the back of the unit. Power consumption Max. 1000 W Overall dimensions Approx. 18 kg (39.7 lbs) Models with SPF: 21.5 kg (47.3 lbs) Dual paper tray models: 24.5 Kg (54.4 lbs)/Duplex model: 22 Kg (48.9 lbs) TD and drum cartridges included Copier dimensions Temperature: 10°C to 30°C (50°F to 86°F) Humidity: 20% to 85% Noise level Sound Power Level LWA (1B=10dB) Copying: 6.6 [B (A)], Standby: Background noise level Copying: 7.1 [B (A)] models with SPF Sound Pressure Level LPA (bystander positions) Copying: 40 [dB (A)], Standby: Background noise level Noise emission measurement in accordance with ISO 7779. First-copy time may differ depending on operating conditions, such as power-supply voltage and room temperature. The values for copy speed are rounded to the nearest whole number. As a part of our policy of continuous improvement, the manufacturer reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviation from these values in individual units. 1 – 35 2nd_part_d_gb.p65

SUPPLY PART NUMBERS AND STORAGE

AUFBEWAHRUNG UND ARTIKELNUMMERN VON ZUBEHÖR

UND VERBRAUCHSMATERIALIEN When ordering supplies and option, please use the correct part numbers as listed below. Be sure to use only genuine parts and supplies. Supply list Olivetti B0265Q T.A. M1920S Olivetti B0266R T.A. M1921P Approx. 18,000 sheets Trommeleinheit Ca. 18000 Blatt*

• Based on copying onto A4 or letter size paper at 5% toned area. Proper storage

1. Store the supplies in a location that is:

• at a stable temperature,
• not exposed to direct sunlight.

2. Store copy paper in the wrapper and lying flat.

• Paper stored out of the wrapper or in packages standing on end may curl or get damp, resulting in paper misfeeds. Olivetti B0266R T.A. M1921P Lebensdauer

Artikelnr. MOVING INSTRUCTIONS TRANSPORTANWEISUNGEN When moving this copier, follow the procedure below. When moving this copier, be sure to remove the TD cartridge in advance.

1. Turn the power switch off and disconnect the power cord.

2. 1 Ensure that the bypass tray is open

and then open the side cover whilst pressing the side cover open button. 2 Push gently on both sides of the front cover to open the cover.

3. Gently pull the TD cartridge out while

pressing the lock release button. See page 1-21, TD CARTRIDGE REPLACEMENT.

4. Close the front cover and then the side

cover. When closing the covers, be sure to close the front cover securely and then close the side cover. If the covers are closed in the wrong order, the covers may be damaged.

5. Raise the handle of the paper tray and

pull the paper tray out until it stops.

6. Push the center of the pressure plate

down until it locks in place and secure the plate using the pressure plate lock which has been stored in the front of the paper tray.

7. Use a coin (or suitable object) to attach to the left side of the copier the

screw that has been stored in the front of the paper tray. When shipping the copier, the screw must be reinstalled to prevent shipping damage.

8. Push the paper tray back into the

9. Close the bypass tray and close the

paper output tray extension, and attach the packing materials and tape which were removed during installation of the copier. See page 1-6,

REMOVING PROTECTIVE PACKING

10. Pack the copier into the carton.

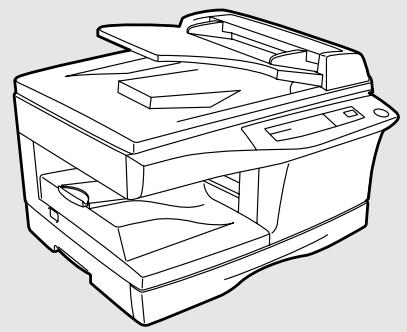

MAKING COPIES ON THE REVERSE SINGLE PASS FEEDER (R-SPF) (Duplex model only) KOPIEREN ÜBER DEN EINZELEINZUG MIT WENDEVORRICHTUNG (R-SPF) (Nur bei Duplexmodell) The Reverse Single Pass Feeder (R-SPF) allows you to automatically make single sided or two-sided copies. The R-SPF is designed to hold up to 30 originals measuring from A5 to A4 and weighing from 52 to 90g/m2. The available options are: Two-sided Single sided Max. quantity 1 set Symbol Max. Menge 99 Kopien

• Before feeding originals in the document feeder tray, be sure to remove any staples or paper clips from them.
• Badly damaged originals may misfeed in the R-SPF. It is recommended that such originals becopied from the original table.
• When feeding originals which have closely spaced binding holes punched along an edge, place the originals so that the punched edge is positioned to the left or along the side guides.
• Special originals such as transparency film should not be fed via the R-SPF, but should be placed on the original table 1-sided original to 2-sided copies

1. Adjust the original guides to the size

of the originals and set the originals face up in the document feeder tray.

2. Ensure that the 1-sided to 2-sided

) copying mode is selected. According to the file you want to make, you can either choose portrait ( , ) or landscape ( , ) mode.

3. Press the print (

) key. The maximum copy quantity is 1. Reinsert the originals into the R-SPF for each set required. einseitig

Single sided Two-sided

Icon 2-sided originals to 2-sided copies

1. Adjust the original guides to the size

of the originals and set the originals face up in the document feeder tray.

2. Ensure that the 2-sided to 2-sided

) copying mode is selected. 2-sided originals to 1-sided copies

1. Adjust the original guides to the size

of the originals and set the originals face up in the document feeder tray.

2. Ensure that the 2-sided to 1-sided

) copying mode selected.

3. Set the number of copies using the

two copy quantity (<,<) keys.

3. Press the print ( ) key.

The maximum copy quantity is 1. Reinsert the originals into the R-SPF for each set required. beidseitig

• Press the clear (>) key to clear an entry if a mistake is made.

4. Press the print ( ) key.

The copier will produce the requested number of uncollated (1,1...2,2...3,3...) single sided copies.

1. Place side 1 original face down on

the original table with the TOP toward the LEFT. Lower the document cover. N.B.: 60g/m2 copy paper is not recommended for two-sided copying.

2. Select the desired 1-sided / 2-sided

copying mode. According to the file you want to make, you can either choose portrait ( , ) or landscape ( , ) mode.

3. Enter the desired number of copies.

4. Press the print (

1 copies. Kopienzahl ) key to make side

• After scanning side 1, the light next to the selected mode will flash to let you know that the copier is ready to scan side two.

5. Remove the side 1 original and place

the side 2 original face down on the original table with the TOP toward the LEFT. Lower the document cover.

6. Press the print (

Manual two-sided copying can be made on this copier. INDLEDNING INTRODUÇÃO

CLASS 1 LASER PRODUCT

LASER KLASSE 1 LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT Class 1 Laser Product Laser Klasse 1 Laserstrahl

Letter Legal Invoice 56 til 80 g/m² Manual indføring

Letter Legal Invoice 52 til 128 g/m²** Special medier Transparent folie Letter

Envelope* International DL International C5 Commercial 10 Monarch Energispareindikator (i) on Olivetti B0265Q T.A. M1920S Ca. 6.000 ark* Cartucho TD Olivetti B0265Q T.A. M1920S Olivetti B0266R T.A. M1921P Ca. 6.000 ark Olivetti B0266R T.A. M1921P ) for at kopiere Class 1 Laser Product Laser Klasse 1 Laserstrahl International DL International C5 Commercial 10 Monarch 0➯Désactivé 1➯30 sec.

• 2➯60 sec. 3➯90 sec. 4➯120 sec.

• 0➯30 sec. 1➯60 sec. 2➯90 sec. 0➯UIT 1➯30 sec.
• 2➯60 sec. 3➯90 sec. 4➯120 sec. 26/05/99, 13.18 Is de coronabedraging schoon? 607 mm (B) x 445 mm (D) 809 mm (B) x 445 mm (D) met multi bypass. Gewicht Model Duplex: 22 Kg Olivetti B0265Q T.A. M1920S ca. 6.000 bladen* Olivetti B0266R T.A. M1921P ca. 18.000 bladen Fourniture Num. de Réf. Olivetti B0266R T.A. M1921P

CLASS 1 LASER PRODUCT

LASER KLASSE 1 LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

Class 1 Laser Product Laser Klasse 1 Laserstrahl 0➯OFF 1➯30 sec.

• 2➯60 sec. 3➯90 sec. 4➯120 sec.

Modo precalentamiento

• 0➯30 sec. 1➯60 sec. 2➯90 sec.

DISTURBI ALLA COPIATRICE

Copie in bianco 607 mm (An.) x 445 mm (F) 809 mm (An.) x 445 mm (F) con bypass. Peso Olivetti B0265Q T.A. M1920S Olivetti B0265Q T.A. M1920S Circa 6,000 fogli*
