USER MANUAL LCDDVD2SP LEXIBOOK

Balayage avant/arrive 10

Menu de lecture DVD 10

CLASSE 1 - PRODUIT LASER

Balayage Avant/Arriere

©2008 Marvel Characters, Inc.

©2008 LEXIBOOK®

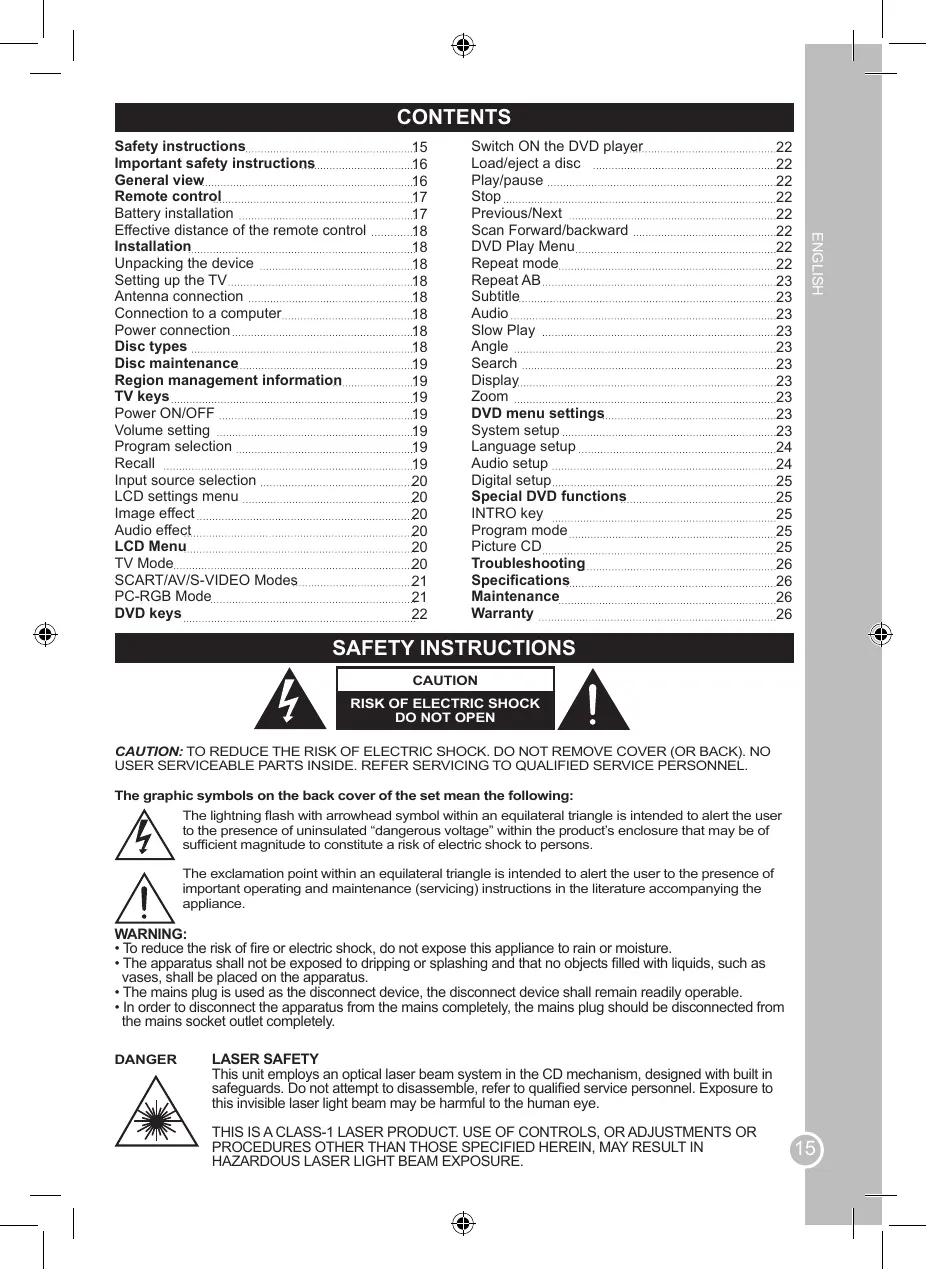

Safety instructions 15

Important safety instructions 16

General view 16

Remote control 17

Battery installation 17

Effective distance of the remote control 18

Installation 18

Unpacking the device 18

Setting up the TV 18

Antenna connection 18

Connection to a computer 18

Power connection 18

Disc types 18

Disc maintenance. 19

Region management information 19

TV keys 19

Power ON/OFF 19

Volume setting 19

Program selection 19

Recall 19

Input source selection 20

LCD settings menu 20

Image effect 20

Audio effect 20

LCD Menu 20

TV Mode 20

SCART/AV/S-VIDEO Modes 21

PC-RGB Mode 21

DVD keys 22

Switch ON the DVD player 22

Load/eject a disc 22

Play/pause 22

Stop 22

Previous/Next 22

Scan Forward/backward 22

DVD Play Menu 22

Repeat mode 22

Repeat AB 23

Subtitle. 23

Audio 23

Slow Play 23

Angle 23

Search 23

Display 23

Zoom 23

DVD menu settings 23

System setup 23

Language setup 24

Audio setup 24

Digital setup 25

Special DVD functions 25

INTRO key 25

Program mode 25

Picture CD 25

Troubleshooting 26

Specifications 26

Maintenance 26

Warranty 26

SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The graphic symbols on the back cover of the set mean the following:

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

DANGER

LASER SAFETY

This unit employs an optical laser beam system in the CD mechanism, designed with built in safeguards. Do not attempt to disassemble, refer to qualified service personnel. Exposure to this invisible laser light beam may be harmful to the human eye.

THIS IS A CLASS-1 LASER PRODUCT. USE OF CONTROLS, OR ADJUSTMENTS OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS LASER LIGHT BEAM EXPOSURE.

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to laser beam.

CLASS 1

LASER PRODUCT

Manufactured under license from Dolby Laboratories "Dolby,"Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.

This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent numbers 5,315,448 and 6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must be authorized by Macrovision. Reverse engineering or disassembly is prohibited.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the unit.
11. Only use attachments/ accessories specified by the manufacturer.
12. Unplug this unit during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as the following: the power-supply cord or plug has been damaged; liquid has been spilled or objects have fallen into the unit; and/or the unit has been exposed to rain or moisture, does not operate normally, has changed its performance or has been dropped.
14. Do not overload wall outlet. Use only power source as indicated.
15. Use replacement parts as specified by the manufacturer.
16. The product may be mounted to a wall only if recommended by the manufacturer.
17. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.

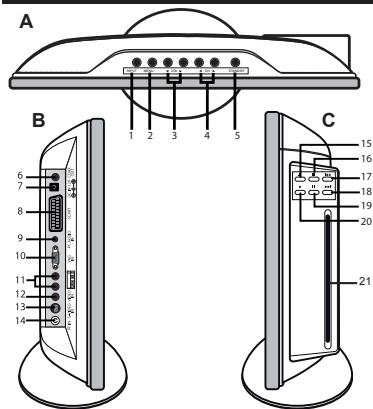

GENERAL VIEW

A

1. INPUT key
2. MENU key
3. VOL+/VOL- keys
4. CH+/CH- keys
5. STANDBY key

B

1. COAX OUT
   7.DC IN 12V
2. SCART
3. PC AUDIO IN
4. VGA IN
5. AUDIO IN (Left and Right)
   12.VIDEO IN
6. S-VIDEO IN
7. RF IN

C

1. EJECT key
2. Stop key
3. Previous key
4. Next key
5. Pause key
6. Play key
7. DVD player slot

PRECAUTION WITH THE LCD SCREEN WHEN DISPLAYING A STILL IMAGE

A still image may cause permanent damage to the LCD screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Watching the LCD TV in 16:9 format for a long period of time may leave traces of borders displayed on the top, bottom and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the "brightness" and "contrast" when displaying still images.

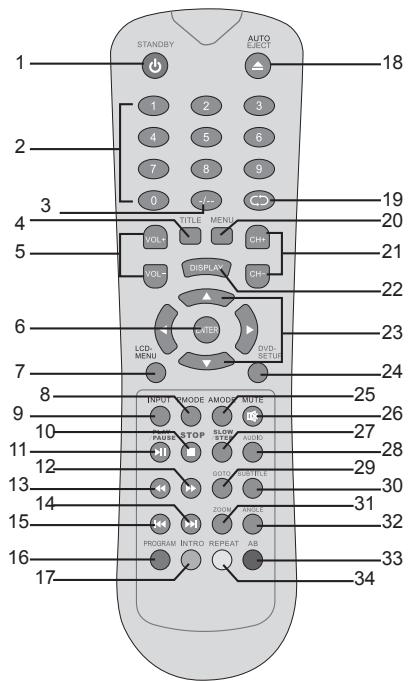

REMOTE CONTROL

1. STANDBY key
2. Numeric keys
3. +10/2 programs key
4. TITLE key
5. VOL+/VOL- keys
6. ENTER key
7. LCD-MENU key
8. PMODE key
9. INPUT key
10. STOP key
11. PLAY/PAUSE key
12. Fast forward key
13. Fast rewind key
14. Next key
15. Previous key
    16.PROGRAMkey
16. INTRO key
    18.AUTO EJECT key
17. RECALL key
18. MENU key
19. CH+/CH- keys
20. DISPLAY key
21. Direction keys
    24.DVD-SETUPkey
    25.AMODE key
22. MUTE key
23. SLOW/STEP key
24. AUDIO key
25. GOTO key
26. SUBTITLE key
27. ZOOM key
    32.ANGLEkey
    33.AB key
28. REPEAT key

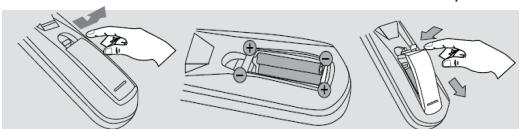

Battery installation

1. Open the battery compartment cover.
2. Insert 2 AAA 1.5V batteries --- as illustrated and replace the battery cover.

Corrosion, oxidation, battery-leakage and any other gradually acidic defect of this nature will invalidate the guarantee.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the toy before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the toy. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the game for a long period of time.

WARNING: If the unit malfunctions or receives an electrostatic shock, remove the batteries and insert them again.

Effective distance of the remote control: within 7 metres.

Note: when there is an obstacle between the TV and the transmitter, the transmitter may not operate. When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the remote sensor of the unit, the remote operation may be unstable.

INSTALLATION

Unpacking the device

When unpacking, ensure that the following elements are included:

1 x LCD screen with integrated DVD player
1 x Remote control
2 x AAA/LR03 batteries
1 x AC/DC adapter
1 x User guide

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this TV set and should be discarded.

Setting up the TV

Place the unit on a sturdy, horizontal, vibration-free surface. The set must not be subjected to vibrations or shocks. Please observe the conditions in the safety instructions.

To operate the TV, you can use the keys on the right side and on the top of the LCD screen, or the remote control's keys. Use the input and output connections on the left side of the screen to connect other devices to the unit.

Antenna connection

Connect your antenna to the antenna socket located on the left side of the unit.

Connection to a computer

You can use the LCD screen as a monitor/speaker for your computer. Connect the computer's interface to the S-Video or VGA connections of the TV.

Power connection

Do not connect the appliance to the mains until you have made all the other connections. Insert the device's plug into a mains socket (CA 220-240V~50Hz) that is close to the place where you have set up the device.

DISC TYPES

Disc types	Disc size (diameter)	Recorded time
DVD VIDEO	12cm	Single sided: 120mn approx. Double sided: 240mn approx.
Super VCD (MPEG2)	12cm	45mn approx.
VCD (MPEG1)	12cm	74mn approx.
COMPACT DISG DIGITAL AUDIO	12cm	74mn approx.
HD-CD	12cm	74mn approx.
MP3/JPEG	12cm	600mn approx.
DivX	12cm	74mn approx.

Note: the DVD player is also compatible with DVD-R, CD-R and CD-RW.

WARNING: DO NOT INSERT 8CM DISCS. THEY MAY DAMAGE THE SYSTEM!

DISC MAINTENANCE

Caring for discs (A)

• Never use solvents such as benzene or other strong chemical cleaners since these could damage the unit's finish. (A)
• It is important that no liquid reaches the inside of the unit.
• Remove the disc from the case by holding it at the edges while pressing the centre hole lightly.
• Do not touch the shiny surface of the disc or bend the disc.
• A dirty disc may not play correctly. If a disc becomes dirty, wipe it with a soft cloth in a straight line from centre to edge.
• Avoid exposure to direct sun light, temperature extremes, and moisture.
• CAUTION: Do not use any solvent (e.g.: record sprays, thinner, benzene, etc.) to clean a disc.
• Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to contact with the shiny, unprinted side of the disc.

Clean the discs (B)

• Do not attach adhesive tape, stickers, etc. to the disc label.
• Clean the disc periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit.
• If a disc skips or gets stuck on a section of the disc, it is probably dirty or damaged (scratched).
• When cleaning the disc, wipe in straight lines from the centre of the disc to the outer edge of the disc. Never wipe in circular motions.

(B)
Correct

Incorrect

• Discs should be stored in their cases after each use to avoid damage.
• Do not expose discs to direct sunlight, high temperatures or dust, etc.
• Prolonged exposure or extreme temperatures con warp the disc.
• Do not stick or write anything on either side of the disc. Sharp writing instruments, or ink, may damage the surface.

REGION MANAGEMENT INFORMATION

This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD player cannot play that disc.

This Region number of this DVD player is (Japan, Europe, South Africa and Middle-East).

TV KEYS

Power ON/OFF

Once connected to the mains power, the unit automatically enters into standby mode and the power indicator on the front panel of the LCD screen turns red.

1. Press the STANDBY key on the LCD screen or on the remote control to switch on the TV.
2. The power indicator turns green and after a few seconds, the LCD screen will light up.
3. Press one of the STANDBY keys once again to put the TV into standby mode.

Note: the unit will automatically enter into standby mode after a few minutes of inactivity.

Volume setting

1. Press the VOL VOL keys on the TV or the VOL + VOL- keys on the remote control to turn the volume up or down.
2. To turn the sound off completely, press MUTE on the remote control.
3. Press MUTE again or a volume key to turn the sound back on.

Program selection

1. Press the CH /CH keys on the TV or the CH+/CH- on the remote control to toggle the channels upwards or downwards.

2. The numeric keys of the remote control can be used to enter the channel number directly:

3. For a 1-digit program number, simple enter the required number.

4. For a 2-digit program number, press the key, then the program number.

RECALL

Press the RECALL key to toggle between the last viewed channel and the current channel.

Input source selection (DVD/TV/SCART/AV/S-VIDEO/PC-RGB)

Press the INPUT key on the LCD screen or on the remote control to toggle between the different modes as below:

Note: make sure all audio/video cables are connected.

LCD settings menus

In DVD, TV, SCART, AV, S-VIDEO or PC-RGB mode, press repeatedly the LCD-MENU key to enter the different settings menus : "TV MENU", "AUDIO MENU", "VIDEO MENU", "GENERAL MENU", "PC MENU" (for detailed information, refer to the "LCD MENU" section p.20).

Image effect (PMODE key)

Press repeatedly the PMODE key on the remote control to select an image effect as below:

Audio effect (AMODE key)

Press repeatedly the AMODE key on the remote control to select a sound effect as below:

LCD MENU

TV Mode

Press repeatedly the INPUT key on the LCD screen or the remote control to select "TV".

Video menu

1. Press repeatedly the LCD-MENU key to enter the "VIDEO MENU".
2. Use the and keys to select an option: "BRIGHTNESS", "CONTRAST", "COLOUR" or "SHARPNESS". Press the and keys to choose the desired level (from 0 to 100).
3. When you have finished your settings, press repeatedly the LCD-MENU key to exit the menu Note: after a few seconds of inactivity, you will automatically exit the menu.

Audio menu

1. Press repeatedly the LCD-MENU key to enter the "AUDIO MENU".
2. Use the and keys to select an option: "VOLUME" "BALANCE", "AUDIO PRESET" (select an audio effect between "VOICE", "MUSIC", "THEATRE" or "PERSONAL"), "TREBLE", "BASS". Press the and keys to adjust the settings.
3. When you have finished your settings, press repeatedly the LCD-MENU key to exit the menu Note: after a few seconds of inactivity, you will automatically exit the menu.

TV Menu

Channel

The number of the currently viewed channel is displayed on screen. Use the and keys to change TV channels.

Audio system ("SYSTEM")

Use the and keys to select the "SYSTEM" option, then press the and keys to select the TV sound system ("I", "BG" or "DK").

Skip channel ("SKIP" and "SWAP")

1. Use the and keys to select the "SKIP" option. This feature allows you to skip the currently viewed channel when you're browsing through the programs with the CH+/CH- keys.

2. Use the and keys to select "ON" or "OFF" and enable or disable the skip function.

OR

1. Use the and keys to select the "SWAP" option and then press the key to display the "SWAP" menu.
   4.Use the , , and keys to select the channel you want to skip.
2. Use the and keys to select "SWAP", then press key to confirm and go back to the "TV MENU".

Program setting

Automatic TV station search

1. Use the and keys to select the "AUTO SEARCH" option and press to start the auto search process.

Note: to cancel the auto search function, press on the LCD-MENU key at any time.

1. If the received station is not clear due to some interference:

2. Use the and keys to select "AFC" then press the and keys to select "OFF".

3. Use the and keys to select "FINE TUNE" then press the and keys to set the station until the picture is clear.

Manual search

1. Use the and keys to select the "MANUAL SEARCH" option and press to start the manual search process.
2. Use the and keys to select a search direction ("DOWN" or "UP"), then press the key to launch the scan.

Note: to cancel the manual search function, press on the LCD-MENU key at any time.

General menu

1. Press repeatedly the LCD-MENU to enter the "GENERAL MENU".
2. Use the and keys to select an option, then press the and keys to adjust the settings:
3. "LANGUAGE": select the OSD language.
4. "BLUE SCREEN": enable or disable the screen blue background.
5. "NOISE REDUCE": adjust the "noise reduce" level between "OFF", "LOW", "MID" and "HIGH".
6. "INPUT SOURCE": select the video source input between: "DVD", "TV", "SCART", "AV", "S-VIDEO" or "PC-RGB".
7. "SLEEP": to program the automatic stand-by mode between 0 and 240 minutes.
8. "RESET": to go back to all the default settings.
9. When you have finished your settings, press repeatedly the LCD-MENU key to exit the menu.

Note: after a few seconds of inactivity, you will automatically exit the menu.

SCART/AV/S-VIDEO modes

Press repeatedly the INPUT key on the LCD screen or the remote control to select "SCART", "AV" or "S-VIDEO".

Video menu (same as the video menu in TV mode)

Audio menu (same as the audio menu in TV mode)

General menu (same as the general menu in TV mode)

PC-RGB mode

Press repeatedly the INPUT key on the LCD screen or the remote control to select "PC-RGB".

PC Menu

1. Press repeatedly the LCD-MENU key to enter the "PC MENU".
2. Use the and keys to select an option, then press the and keys to adjust the settings:
   "BRIGHTNESS": to adjust the brightness of the picture.
3. "CONTRAST": to adjust the contrast of the picture.
4. "COLOUR SETTING": to adjust the colour temperature. Select "USER", "93000K" or "6500K". If you select "USER", a sub-menu will open. Use the , , and keys to adjust the settings and press ENTER to confirm.
5. "AUTO CONFIG": press the key to start the automatic configuration process of the parameters.
   -H-POSITION": to adjust the horizontal position of the picture.
6. "V-POSITION": to adjust the vertical position of the picture.
7. "PHASE": to adjust the clarity of the screen image.
8. "CLOCK": to reduce the vertical-line noise.
9. When you have finished your settings, press repeatedly the LCD-MENU key to exit the menu. Note: after a few seconds of inactivity, you will automatically exit the menu.

Audio menu (same as the audio menu in TV mode)

General menu (same as the general menu in TV mode)

DVD keys

Switch ON the DVD player

1. Press the STANDBY key on the LCD screen or on the remote control to switch on the TV.
2. The power indicator turns green and after a few seconds, the LCD screen will light up.
3. Press repeatedly the INPUT key on the LCD screen or the remote control to select "DVD".

Load/eject a disc

1. Insert a disc in the disc slot with the label facing towards the back panel of the LCD screen. After a few seconds it will start playing automatically. If it is a DVD disc, the Menu/Title page will be displayed. If it is a CD, the first track will play automatically.

2. To eject the disc, press the EJECT key on the LCD screen or on the remote control.

Note:

• Hold the disc without touching either of its surfaces.
• Some discs may not start automatically. In that case, press the key on the LCD screen or on the remote control.
• Make sure to insert the disc with the printed side facing the back of the LCD screen. Otherwise, you may damage the DVD mechanism.

Play/pause

1. During playback, press the key on the LCD screen or on the remote control to pause playback.
2. Press once again to resume playback.

WARNING: the Pause function may cause permanent damage to the LCD screen. Do not display still images for a long moment (see p.17).

Stop

1. Press the key on the LCD screen or on the remote control to stop the disc playback.
2. You can resume playback by pressing .Playback will resume at the location where you have pressed (Resume Play).
3. Press twice to completely stop the disc.

Previous/Next

1. During playback, press the key to return to the beginning of the previous chapter or track.
2. During playback, press the key to move to the beginning of the next chapter or track.

Scan Forward/backward

1. During playback, press the on the remote control to search forward. Press this key repeatedly to change the search speed: "FORWARD x 2" "FORWARD x 4" "FORWARD x 8" "FORWARD x 20" "PLAY".
2. Press on the remote control to search backward. Press this key repeatedly to change the search speed: "PLAY" "BACKWARD X 20" "BACKWARD X 8" "BACKWARD X 4" "BACKWARD X 2".
3. Press at any time to resume normal playback. Note: the sound is turned off when scanning forward or backward.

DVD Play Menu

Press the MENU key during playback to return to the Menu/Title page.

Note: this function is only applicable for a DVD disc.

Title

1. During a DVD disc playback, press the TITLE key and use the / / / keys to select a title.
2. Press ENTER to access directly the desired title.

Repeat mode

This function is applicable for DVD and CD audio but with different effects.

1. For DVD disc playback, press the REPEAT key once to repeat the current chapter; twice to repeat the current title, and 3 times to repeat the entire disc. Press the same key repeatedly to display "REP: OFF" and turn off the repeat function.
2. For CD playback, press the REPEAT key once to repeat the current track, and press twice to repeat the whole disc (Repeat All).

Repeat AB

You can specify the repeating interval by marking the starting point and the end point.

1. Press the AB key to mark the starting point (playback will continue).

2. Press the AB key to mark the end point (the marked part will be repeated automatically).

Note: Pressing the AB key during repetition will disable the Repeat mode.

Subtitle

Press the SUBTITLE key on the remote control to change the subtitle language shown onscreen.

Note:

• Number of subtitles available depends on the DVD disc.

• This function is available only for DVD and super VCD discs.

Audio

1. During DVD playback, press the AUDIO key on the remote control to change the audio language of the DVD disc (if the disc offers that function).
2. During audio CD playback, press the AUDIO key on the remote control to change the audio channel between "MONOL", "MONOR" and "STEREO".

Slow Play

1. Press the SLOW/STEP key on the remote control to use the slow play function.
2. Press repeatedly the key to change the speed level: "SF1/2", "SF1/3", "SF1/4", "SF1/5", "SF1/6", "SF1/7", "PLAY".
3. Press to resume normal playback. Note: The sound turns to mute in SLOW mode.

Angle

If a DVD disc contains multi-angle feature, viewing angles may be selected.

During playback, press the ANGLE key on the remote control repeatedly to select the desired viewing angle.

Note: the number of angle of view depends of the disc.

Search

You can jump to a specific time location, track, chapter or title.

1. Press the GOTO key on the remote control.
2. Use the or keys to select the chapter, title or time.
3. Use the number keys to enter the desired chapter number, title number or target time, and then press ENTER.
4. The player will access the desired parameter immediately.

Display

Press the DISPLAY key on the remote control once or twice to show information on the screen (disc type, time, audio language, subtitle language...). Press repeatedly to exit the information display mode.

Zoom

This function enlarges or reduces a still picture or a moving picture. Press the ZOOM key on the remote control to select the zooming levels: "ZOOM 2", "ZOOM 3", "ZOOM 4", "ZOOM 1/2", "ZOOM 1/4", "ZOOM: OFF".

Note: Use the direction keys (▲/▼/▲/▶) to navigate within the image.

DVD MENU SETTING

To enter the setup menu of the integrated DVD player, press the DVD-SETUP key on the remote control when you are in DVD mode. Use the and keys on the remote control to select the available options: "SYSTEM SETUP", "LANGUAGE SETUP", "AUDIO SETUP", and "DIGITAL SETUP".

System setup

Use the and keys on the remote control to select "SYSTEM SETUP". Then use the / / keys to select the menu options.

Note: To exit the menu, select "EXIT SETUP" and press ENTER or press the DVD-SETUP key at any moment.

TV system

You do not need to change this setting. In the event you need to change the TV system output (moving the TV to another country etc...), you can select "NTSC", "PAL" (default setting), or "AUTO".

TV type

You have the option to change the TV type setting between: "4:3PS ("Pan Scan) / "4:3LB" (Letter Box) / "16:9" (Wide screen).

Password

This option allows you to enable the parental control feature.

1. To change the password, use the numeric keys of the remote control to enter the code (the default code is 0000), then press the ENTER key to confirm. The open lock icon will be displayed on screen.
2. Key in the new password and press ENTER. The closed lock icon will be displayed on screen to confirm that the new code has been stored. When the "password" function is enabled, you can not change the settings in the "RATING" option.

Rating (parental control)

The parental control feature allows parents to prevent their children from watching inappropriate material on a DVD. They can choose the ratings for programming, and the player will deny access to the DVD contents. There are 8 different rating categories. To use the parental control function:

1. Select the "password" option, enter the 4-digit code (the default password is 0000), then press ENTER to unlock the ratings.

2. KID SAFE.
   G: all ages admitted.

3. PG: Parental Guidance Suggested - Some material may be inappropriate for younger children.
4. PG-13: Parents Strongly Cautioned - Some material may be inappropriate for children under 13.
5. PGR: Parents Strongly Cautioned – Material for Mature Audiences.
   R: Restricted - No Children 17 or Under without Parent or Guardian admitted.
6. NC-17: No Children 17 or Under Admitted - No One 17 or Under Admitted.

7. ADULT.

8. Select the "RATING" option, then use the and keys on the remote control to select the desired rating. Press ENTER to confirm.

Default (restore original settings)

To return all the setup options to their default settings, select "DEFAULT". Then, press the key followed by ENTER.

Language setup

Use the and keys on the remote control to select "LANGUAGE SETUP". Then use the / / to select the menu options.

Note: To exit the menu, select "EXIT SETUP" and press ENTER or press the DVD-SETUP key at any moment.

Selecting the OSD language

The menu language used in these instructions is English. You can also set the OSD (on-screen display) to other languages.

1. Use the and keys on the remote control to highlight "OSD LANGUAGE", then press .
2. Use the and keys on the remote control to select the desired on-screen display language. Press ENTER to confirm your selection. The languages available are: English, German, Spanish, French, Portuguese, Italian or Dutch.

Other language settings

In the "LANGUAGE SETUP" menu, you can also set the default language for the audio ("AUDIO LANG"), subtitles ("SUBTITLE LANGUAGE") and the menu language of your DVD player ("MENU LANGUAGE"). These settings will only take effect if the DVD disc being played supports the language selected. If so, the language selected will be displayed first during audio, subtitle and menu language settings. Use the / / and ENTER keys to adjust the settings.

Audio setup

Use the and keys on the remote control to select "AUDIO SETUP". Then use the / / keys to select the menu options.

Note: To exit the menu, select "EXIT SETUP" and press ENTER or press the DVD-SETUP key at any moment.

Audio output

You can change the "AUDIO OUT" setting between: "SPDIF / OFF", "SPDIF / RAW" and "SPDIF / PCM".

- SPDIF / RAW

Choose this setting if your DVD player is connected to a power amplifier with a coaxial cable or an optical cable. When playing a disc recorded with Dolby Digital, DTS and MPEG audio formats, the corresponding digital signals will be output from the Coaxial Output jack. This player's digital output jacks are designed for a connection to a Dolby Digital, DTS or MPEG receiver or decoder.

- SPDIF / PCM

Choose this setting if your DVD player is connected to a 2-channel digital stereo amplifier. When playing a disc recorded with Dolby Digital and MPEG audio formats, audio signal will be modulated into a 2-channel PCM signal and it will be output from the Coaxial Output jack or Optical Output jack.

Tone

Use the and keys to adjust the tone.

Digital setup

Use the and keys on the remote control to select "DIGITAL SETUP". Then use the / / keys to select the menu options.

Note: To exit the menu, select "EXIT SETUP" and press ENTER or press the DVD-SETUP key at any moment.

Dynamic range

When "SPDIF / RAW" is selected, you can set the line out ratio to get a different effect. Use the and keys on the remote control to adjust the settings. If adjusting to "FULL," the audio signal peak volume will be the minimum; while adjusting to "OFF", the volume will be at its maximum. You can also select "6/8", "4/8" or "2/8".

Dual mono

Use this option to select the audio output type: "STERO", "MONO L", "MONO R" or "MIX MONO".

SPECIAL DVD FUNCTIONS

INTRO key

When listening to an audio CD, press the INTRO key on the remote control to playback the first 15 seconds of each track.

Note: this function is available only for audio CD.

Program mode

This function is applicable for DVD and CD audio discs. You may assign the playback sequence according to your preference.

CD/CDG

1. Press the PROGRAM key on the remote control. The program sequence table will be shown on screen.
2. With the numeric keys (0-9) of the remote control, enter the track numbers according to your preference.
3. After assigning the playback sequence, move the highlight cursor to the "PLAY" option by using the / / keys. Press the ENTER or keys to confirm and launch the sequence.

DVD

1. Press the PROGRAM key on the remote control. The program sequence table will be shown on screen.
2. Enter the title number using the numeric keys.
3. Enter the chapter number of the title selected in the last step.
4. Repeat the last 2 steps to input the sequence.
5. After assigning the playback sequence, use the / / keys to select "PLAY". Press the ENTER or keys to confirm and launch the sequence.
6. To cancel a program, move the cursor to "CLEAR" and press ENTER. Note: press the PROGRAM key on the remote control at any time to exit the program mode.

Picture CD

1. Insert a picture CD into the tray. If the disc is identified, the player will display a list of the pictures (JPG) stored on the CD.
2. Use the / / keys to select a picture and press the ENTER key to display the image.
3. Press the key to launch/pause/resume a slide show of the pictures.
4. Press the key to display the next picture. Press the key to display the previous picture. Note: depending on the files size, it may take a few seconds before the pictures are displayed on the LCD screen.
5. Press the PROGRAM key to select one of the 17 transition effects for the slide show.
6. You can use the / / / keys to flip or rotate the pictures.
7. Press the key to stop the slide show and go back to the photo list.

TROUBLESHOOTING

Problem	Solution
No sound and no picture	- Check that the main plug is connected to an outlet. - Check that the LCD screen is powered ON (press the STANDBY key on the LCD screen or on the remote control). - Check the brightness and contrast settings.
Normal picture but no sound	- Sound level may be too low or muted, increase the sound level. - Try other channels. - Make sure the audio cables are properly connected.
The remote control doesn't operate properly	- Make sure there are no obstacles between the LCD screen and the remote control. - Check if the batteries were installed according to the polarity (+/- signs). - Try to install new batteries.
No picture, low quality picture, low quality colour	- Try to adjust the colour setting in the video menu. - Try other channels. - Make sure the video cables are properly connected.
Picture with snow/noise	- Make sure there are no electronic appliances near the LCD screen. They could cause interferences. - Check the antenna connection.
No audio output from one of the speakers	- Try to adjust the audio balance in the audio menu.

SPECIFICATIONS

TV SECTION

Receiving Channels

VHFLCH2-4

VHFH CH 5-12

UHF CH 21-69

Tuner Type 100 Channel, VS TUNING

DVD SECTION

Laser Wave length 650mm

Laser power: Class 1

Signal System: PAL

Audio in, RF in, Coax in, S-video in, VGA in, Video in, PC Audio in, Scart

Stereo in DVD mode

Mono in TV mode

GENERAL SECTION

Power Input: DC12V

DC Power Consumption: less than 48W

Speaker 2.5" 4ohm x 2

Audio Output: 2.6 W + 2.6 W

Dimensions: H: 345mm x W: 380mm x D: 70mm (without stand) / H: 345mm x W: 380mm x D: 175mm (with stand)

Net Weight: 2.5kg

MAINTENANCE

To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning. The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use a soft, clean cloth moistened with plain, lukewarm water to clean the exterior of the unit. Use caution when cleaning and wiping the plastic parts. Mild soap and a damp cloth may be used on the front panel.

WARRANTY

This product is covered by our 2-year warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observation of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

LEXIBOOK UK Ltd.

Unit 10 Petersfield Industrial Estate.

Bedford Road, Petersfield, Hampshire,

GU32 3QA, United Kingdom

Helpline: 0808 100 3015, http://www.lexibook.com

Reference: LCDDVD2SP

©2008 Marvel Characters, Inc.

©2008 LEXIBOOK®

Designed and developed in Europe - Made in China

m = 311 ;

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

CONTENIDO

Lexibook Iberica S.L.

C/de las Hileras 4, 4^ dpcho 14

28013 Madrid, España

Servicio consumidos: 902 102 191, http://www.lexibook.com

©2008 Marvel Characters, Inc.

©2008 LEXIBOOK®

Audio in, RF in, Coax in, S-video in, VGA in, Video in, PC Audio in, Scart (21 pinos)

©2008 Marvel Characters, Inc.

©2008 LEXIBOOK®

Audio in, RF in, Coax in, S-video in, VGA in, Video in, PC Audio in, Scart

©2008 Marvel Characters, Inc.

©2008 LEXIBOOK®

Designed and developed in Europe - Made in China

©2008 Marvel Characters, Inc.

©2008 LEXIBOOK®

Stroom ON/OFF (AAN/UIT) 79

Volume setting (Volume-installing) 79

Program selection (Programmakeuze) 79

Recall (Herinnering) 79

Audio effect (Audio-effect) 80

LCD Menu 80

TV Modus 80

SCART/AV/S-VIDEO Modi 81

PC-RGB Modus 81

DVD knoppen 82

Audio setup (Audio-installing) 84

Digital setup (Digitale instelling) 85

Stroom ON/OFF (AAN/UIT)

Audio effect (Audio-effect) (AMODE knop)

Audio setup (Audio-installing)

Audio in, RF in, Coax in, S-video in, VGA in, Video in, PC Audio in, Scart

Stereo in DVD modus

Mono in TV modus

ALGEMENE SECTIE

Inqaand vermogen: DC12V

©2008 Marvel Characters, Inc.

©2008 LEXIBOOK®
