PHILIPS 1000 Series XB1012 - Vacuum Cleaner
📄 422 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice PHILIPS 1000 Series XB1012 - page 6
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Bagless canister vacuum cleaner
Brand Philips
Model 1000 Series XB1012
Nominal power 1600 W
Filtration type HEPA 13 (washable)
Container capacity 1.5 L
Cable length 6 m
Cleaning radius 8 m
Noise level 78 dB(A)
Dimensions (L × W × H) 40 × 25 × 30 cm
Weight 4.5 kg
Included accessories Crevice tool, upholstery brush, crevice nozzle
Brush type Combined floor/carpet brush
Power adjustment Electronic, 2 positions
Bag full indicator No (bagless, empty indicator)
Filter maintenance Wash with water every 3 months
Energy class A
Country of origin China
Warranty 2 years

Frequently Asked Questions - 1000 Series XB1012 PHILIPS

How do I empty the vacuum cleaner's dust container?
Press the container release button (located on top, near the handle) to detach the cyclone unit. Hold it over a trash can, pull the lid latch towards you to open it, then empty the dust. Close the lid until it clicks shut.
How often should I wash the HEPA filter?
The washable HEPA filter should be cleaned approximately every 3 months. To do so, remove it from the appliance, rinse it with cold water without detergent, and let it dry completely in the open air for at least 24 hours before reinserting it.
What should I do if the vacuum loses suction power?
Check that the container is not full, the filter is not clogged, and that the hose and brush are not blocked. Clean or replace the filter if necessary. Also ensure that the power setting is correctly adjusted.
Can I use the vacuum to pick up cold ashes?
No, this vacuum is not designed to pick up ashes, construction dust, or any other fine and hot material. This could damage the filter and the motor.
How do I put the combined brush back in carpet position?
On the combined floor/carpet brush, you will find a sliding selector. For hard floors (parquet, tile), slide the selector to the 'hard floor' position (brushes out). For carpets, push it to the 'carpet' position (brushes retracted).
Does the power cord not retract automatically?
Yes, the vacuum has an automatic cord rewinder. To retract the cord, hold the plug with one hand and press the rewinding pedal located on top of the appliance. Guide the cord to prevent tangling.
Where can I find spare parts such as the hose or brush?
You can order original Philips spare parts directly from the official website www.philips.com/support or from authorized retailers. Use the model number (XB1012) to identify the correct parts.
The vacuum emits a burning smell, what should I do?
Immediately stop the appliance and unplug it. Check if the filter is very dirty or if debris is blocking the motor. Clean the filter, empty the container, and inspect the hose for blockages. If the smell persists, contact Philips customer service.
Can I use a bag for this vacuum since it is bagless?
No, the XB1012 model is a bagless vacuum. It uses a plastic container and a cyclone system. Do not attempt to insert a bag, as this would block the mechanism and could damage the appliance.
How do I clean the transparent cyclone unit?
If dust remains stuck inside the container or cyclone cone, you can wash it with warm water and a little dish soap. Let it dry completely before reassembling. Never put the parts in the dishwasher.

User questions about 1000 Series XB1012 PHILIPS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual 1000 Series XB1012 - PHILIPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 1000 Series XB1012 by PHILIPS.

USER MANUAL 1000 Series XB1012 PHILIPS

English 6

Czech 20

Danish 34

German 48

Estonian 64

Spanish 78

French 92

Croatian 107

Italian 121

Latvian 136

Lithuanian 150

Hungarian 164

Dutch 178

Norwegian 193

Polish 207

Portuguese 222

Romanian 236

Albanian 250

Slovenian 264

Slovak 278

Serbian 292

Finnish 306

Swedish 320

Turkish 334

Greek 348

Bulgarian 363

Macedonian 378

Ukrainian 393

408

6 English

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/MyVacuumCleaner.

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

Danger

Never vacuum up water or any other liquid, flammable substances or hot ashes.

Warning

  • Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
  • Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
  • If the mains cord is damaged, you must have it replaced by us, a service center authorized by us or similarly qualified persons in order to avoid a hazard.
  • Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth.
  • Do not use the appliance in combination with a transformer, as this could cause hazardous situations.
  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
  • This vacuum cleaner is designed for household use only. Do not use this vacuum cleaner to vacuum up building waste, cement dust, ashes, fine sand, lime and similar substances. Never use the vacuum cleaner without any of the filters. This could damage the motor and shorten the life of the vacuum cleaner. Always clean all parts of the vacuum cleaner as shown in the user manual. Do not clean any parts with water and/or cleaning agents if this is not specifically shown in the user manual.

Caution

  • Never use the appliance without any of the filters. This could damage the motor and shorten the life of the appliance.
  • Always clean all parts as shown in the user manual. Do not clean any parts with water and/or cleaning agents if this is not particularly shown in the user manual.
  • If you clean a washable filter with water, make sure it is completely dry before you put it back into the appliance. Do not dry the filter in direct sunlight, on a radiator or in a tumble dryer. Replace a washable filter if it can no longer be cleaned properly or if it is damaged.
  • To guarantee optimal dust retention and performance of the vacuum cleaner, always replace the filters with original Philips filters of the correct type.
  • Maximum noise level: Lc = 84 dB(A)

Electromagnetic fields (EMF)

This appliance complies with the applicable standards and regulations regarding exposure to electromagnetic fields.

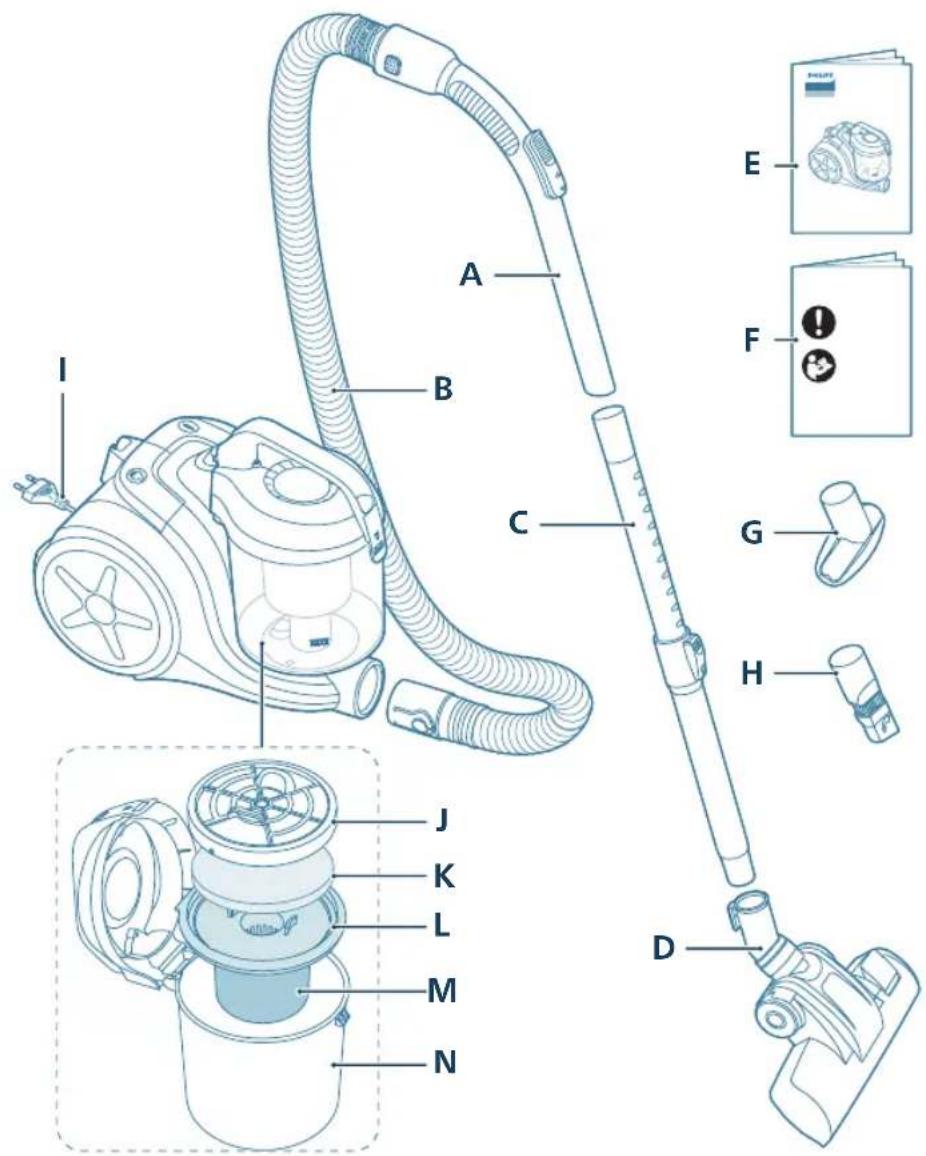

General description

A B C D E F G H I J K L M N

8 English

A Bend assy H 2-in-1 Crevice tool

B Hose assy I Power cord

C 2-piece telescopic metal tube J Inlet filter assy

D Multi-purpose nozzle K Foam filter

E Quick start guide L Vortex finder

F Important information leaflet M Vortex finder cover

G Furniture nozzle (only available for XB1042 & XB1142)

N Dust bucket

Preparing for use

Connecting and disconnecting the hose

Illustration of a hand using a handheld device to lift a cylindrical object with orange spray (no text or symbols)

1 To connect the hose, insert it into the hose connection opening until it snaps into place.

Diagram showing a hand holding a blue object with numbered annotations indicating parts of the device's handle and movement.

2 To disconnect the hose, press the easy-release buttons on either side of the hose connector (1) and pull the hose out of the hose connection opening (2).

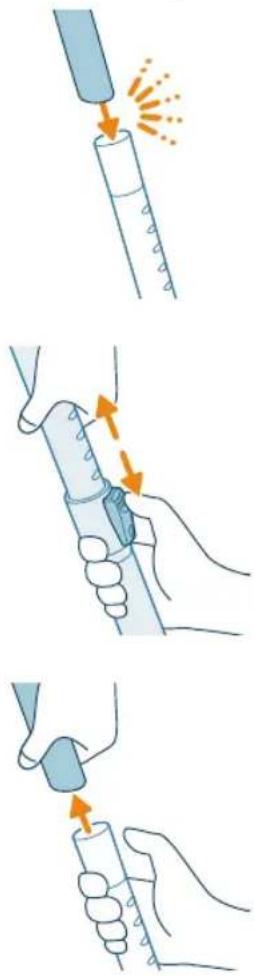

Connecting and adjusting the telescopic tube

PHILIPS 1000 Series XB1012 - Connecting and adjusting the telescopic tube - 1

1 To connect the telescopic tube to the handgrip of the hose, align the hole in the end of the handgrip with the metal tube and push the tube into place.

2 To adjust the telescopic metal tube to the length you find most comfortable during vacuuming, push the length adjustment button and push or pull one of the tube parts upwards or downwards.

3 To disconnect the tube from the handgrip, pull the handgrip out of the tube.

Connecting and disconnecting the nozzles

Multi-function nozzle

The Multi-function nozzle is a multipurpose nozzle for effective cleaning of carpets and hard floors. The air gap at the front of the nozzle lets large crumbs in and the brushes at the sides clean closely along furniture and walls.

1 To connect the nozzle, align the hole on the end of the tube with the nozzle and push the tube into the nozzle.

Illustration of a precision tool tip dispensing orange powder onto a mechanical component (no text or symbols)

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols)

2 To clean hard floors, push the rocker switch on top of the nozzle backwards with your foot. The brush strip for cleaning hard floors comes out of the nozzle housing.

Illustration of a hand cleaning a small mechanical component with an arrow indicating rotation (no text or symbols)

3 To clean carpets, push the rocker switch on top of the nozzle forwards with your foot. The brush strip disappears into the nozzle housing.

Line drawing of a handheld device with a pipette inserted, no text or symbols present

4 To disconnect the nozzle from the tube, push the nozzle with one hand and pull the tube out of the nozzle with the other hand.

Illustration of a tool injecting into a plug with an orange spark (no text or symbols)

Furniture nozzle (for XB1042/XB1142 only)

This nozzle is especially suitable for cleaning furniture.

1 Connect the furniture nozzle with the metal tube.

Diagram showing a tool interacting with a mechanical component, with an inset close-up of a mechanical part (no text or symbols present)

2 Clean your furniture.

2-in-1 Crevice tool

You can use the crevice tool to clean around tricky edges and into hard-to-reach narrow spaces.

Diagram illustrating a step-by-step process of a pen or tool, labeled with numbers ① and ②, showing motion and rotation.

1 To connect the crevice tool, insert the tube to the Crevice tool. You can turn the head over to use it as a brush.

Illustration of a pipette dispensing liquid into stacked books, with an inset showing a cylindrical object (no text or symbols present)

2 Use it to clean some narrow spaces.

Using the appliance

Illustration of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols visible)

1 Pull the mains cord out of the appliance.

Illustration of a blue electrical plug inserted into a white socket, with an orange arrow indicating direction (no text or symbols)

2 Put the plug in the wall socket.

Illustration of a mechanical device with an orange arrow pointing to a component (no text or symbols)

3 Press the on/off button on top of the appliance with your foot to switch on the appliance.

Tip: Regularly check the dust bucket to see if it is full. Regularly clean the filters to ensure optimal performance.

Adjusting the suction power

Diagram showing a person using a mobile phone to clean or install a floor plan, with an inset highlighting the device's height difference.

You can adjust the suction power during vacuum cleaning with the suction power control slide on the handgrip.

  • Suction control slide in upwards direction for low suction power to clean curtains, rugs and furniture.
  • Suction control slide in downwards direction for maximum suction power to clean hard floors.

Pausing while vacuuming

If you want to pause for a moment, insert the ridge on the multi-purpose nozzle into the parking slot to park the telescopic tube in a convenient position.

Maintenance

Warning: The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

Caution: Do not clean any part of the appliance in the dishwasher.

MAX

Note: For optimal performance, empty the dust bucket after use. Always empty the dust bucket when the dust reaches the maximum indication.

1 Switch off and unplug the appliance.

Illustration of a vacuum cleaner with orange arrows indicating airflow direction.

2 Press the dust bucket release button to unlock the dust bucket. Lift the dust bucket out of the appliance.

Illustration of a hand pouring liquid into a container with an open lid, showing a hand gesture.

3 Open the cover of the dust bucket.

Illustration of a hand pouring liquid into a container with an arrow indicating direction.

4 Grab the two holders with your hands and pull the Vortex finder straight up from the dust bucket.

Illustration of a hand pouring liquid into a container with granular material.

5 Empty the dust bucket in a waste bin.

Diagram illustrating a spray gun mechanism with labeled components and directional arrows indicating motion or movement.

6 Properly install the Vortex finder by ensuring it fits securely against the edge of the dust bucket, as shown in the illustration.

Note: Pull the Vortex finder out of the dust bucket to prevent the filter from getting wet if you only want to clean the dust bucket.

Caution: You can also clean the inside and outside of the dust bucket with a moist cloth. Make sure the dust bucket is dry before you place the dust bucket back in the appliance.

Illustration of a container with an open lid and a curved arrow indicating rotation.

7 Close the cover of the dust bucket.

Illustration of a mechanical device with a highlighted component and an arrow indicating force.

8 Place the dust bucket back in the appliance.

Cleaning the dust bucket

To guarantee optimal performance, clean the dust bucket every xx weeks.

1 Switch off and unplug the appliance.

2 Open the cover of the dust bucket.

Illustration of a container with lid and arrow indicating rotation, showing hand positioning.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

3 Hold the handles of filter housing and twist anti-clockwise to release.

Note: Do not clean the sponge with a brush. Rinsing it with running water does not restore its original color, but it does restore its filtration power.

4 Separate the inlet sponge from filter assy. Wash the sponge and keep to dry for 24 hours. Once sponge is dry, reinsert it into filter housing.

Illustration of a container with a lid and an upward arrow.

5 Pull the Vortex finder out from the dust bucket.

Diagram illustrating a mechanical or fluidic process with labeled components and directional arrows indicating flow or movement.

6 Twist anti-clockwise to release the cover from the Vortex finder.

Illustration of a hand pouring liquid into a container with granular material.

7 Empty the dust bucket in a waste bin.

Illustration of a cleaning tool with a bucket, handle, and cleaning board.

8 Wash the dust bucket and Vortex finder.

Illustration of a hand cleaning a container with a cloth, showing a lid and an ear (no text or symbols)

9 Use a soft cloth to thoroughly dry all parts.

Diagram illustrating a mechanical or electrical system with two components, labeled ① and ②, showing directional arrows and circular motion.

10 Twist clockwise to install the cover back to the Vortex finder.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including a magnified inset showing internal components.

11 Properly install the Vortex finder by ensuring it fits securely against the edge of the dust bucket, as shown in the illustration.

Diagram illustrating a cleaning or packaging process with labeled steps and directional arrows indicating steps 1, 2, and 3.

12 Align the locking pins on the filter housing to the slots on the Vortex finder housing. Make sure the edge of the filter housing "activates" the filter missing detection mechanism. Twist the filter housing clockwise to lock it in position.

Diagram showing two mechanical components with labeled parts, including a lid and a valve assembly.

13 Close the cover and put the dust bucket back into the appliance.

Note: Do not use the appliance without the filter.

Replacing the filter

Our allergy system captures 99.9% of fine dust – including pollen, pet hair and dust mites – for allergy sufferers and anyone demanding a higher level of hygiene.

Note: You can dispose of the old filter with the normal household waste.

Illustration of a hand inserting a component into a device, showing the next step with an arrow (no text or symbols present)

1 Switch off and unplug the appliance.

2 Press the cover release button to open the cover of the filter.

XV1210 PHILIPS XV1210

3 Pull the used filter out and dispose it properly. Remove the packing materials of the new filter (XV1210).

Diagram of a mechanical component with a grid-patterned housing and directional arrows indicating motion (no text or symbols)

4 Insert the two clips of the filter into the upper rim of the filter compartment and push the bottom end of the filter into the compartment.

Technical illustration of a mechanical component with a blue internal grid and orange rotation arrow (no text or symbols)

5 Close the filter compartment.

Storage

1 Switch off the appliance and remove the mains plug from the wall socket. 2 Press the cord rewind button to rewind the mains cord. 3 After use, store the crevice tool on the accessory holder. 4 Insert the ridge on the TriActive nozzle into the storage slot.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The vacuum cleaner does not start when I press the on/off button.The dust bucket is not locked in the appliance properly.Make sure that the filter is installed properly.
The suction power is insufficient.The dust container is full. Empty the dust container.
The filters are dirty. Clean or replace the filters.
The suction power is set to a low setting.Increase the suction power with the regulator on the appliance or on the handgrip.
The nozzle, tube or hose is blocked up.To remove the obstruction, disconnect the blocked-up item and connect it (as far as possible) the other way around. Switch on the vacuum cleaner to force the air through the blocked-up item in opposite direction.
When I use my vacuum cleaner I sometimes feel electric shocks.Your vacuum cleaner builds up static electricity. The lower the air humidity, the more static electricity the appliance builds up.Discharge the appliance by frequently holding the tube against other metal objects in the room (for example the legs of a table or chair, a radiator etc.). You can also raise the air humidity level in the room.

Recycling

PHILIPS 1000 Series XB1012 - Recycling - 1

  • This symbol means that electrical products shall not be disposed of with normal household waste.
  • Follow your country's rules for the separate collection of electrical products.

Warranty and support

Versuni offers a two-year warranty after purchase on this product. This warranty is not valid if a defect is due to incorrect use or poor maintenance. Our warranty does not affect your rights under law as a consumer. For more information or for invoking the warranty, please visit our website www.philips.com/support.

Order parts or accessories

If you have to replace a part or want to purchase an additional part, go to your Philips dealer or visit www.philips.com/support.

If you have problems obtaining the parts, please contact the Philips Consumer Care Center in your country.

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols)

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

Illustration of a vacuum cleaner with an orange arrow indicating rotation.

Clean your furniture.

Empty the dust container into the trash bin.

Illustration of a spray gun with a hand holding a lid, showing internal components and a magnified view of the gun's handle.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

Empty the dust container into the trash bin.

Illustration of a cleaning tool with a bucket, handle, and cleaning board.

Wash the dust container and the vortex finder.

Illustration of a hand cleaning a container with a cloth, showing a lid and an ear.

Close the filter compartment.

Storage

A Cleaning kit H Two-in-one crevice nozzle

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols)

Furniture nozzle (available only for model XB1042/XB1142)

2-in-1 crevice nozzle

3 Open the dust container lid.

Illustration of a hand pouring liquid into a container with an arrow indicating direction.

5 Empty the dust container contents into a trash bin.

72 Estonian

Diagram illustrating a spray gun mechanism with labeled components and directional arrows indicating motion or movement.

7 Close the dust container lid.

Illustration of a mechanical device with a highlighted component and arrow indicating motion.

8 Put the dust container back into the appliance.

7 Empty the dust container contents into a trash bin.

74 Estonian

Illustration of a cleaning tool with a bucket, handle, and cleaning board, no text or symbols.

5 Close the filter compartment.

Storage

82 Spanish

Illustration of a vacuum cleaner with an orange arrow indicating rotation.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

2 To detach the hose, press the release buttons on each side of the hose connector (1) and pull the hose out of the hose connection opening (2).

Connecting and adjusting the telescopic tube

Illustration of a precision tool tip dispensing orange powder onto a mechanical component (no text or symbols).

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols).

Furniture nozzle (only for models XB1042/XB1142)

This nozzle is particularly suitable for cleaning furniture.

1 Pull the power cord out of the appliance.

Diagram showing a person using a mobile phone to clean or brush, with an inset highlighting the device's position.

2 Press the dust container release button to unlock it. Remove the dust container from the appliance.

Illustration of a hand pouring liquid into a container with an open lid, showing a hand gesture.

3 Open the dust container lid.

Illustration of a hand pouring liquid into a container with an arrow indicating direction.

5 Empty the dust container into a waste bin.

Illustration of a spray gun with a hand holding a lid, showing internal components and a magnified view of the gun's handle.

7 Close the dust container lid.

Illustration of a mechanical device with a highlighted component.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

7 Empty the dust container into a waste bin.

Illustration of a cleaning tool with a bucket, lid, and brush.

4 Insert the two filter clips into the top edge of the filter compartment and push the bottom end of the filter into the compartment.

Technical illustration of a mechanical component with a blue internal grid and orange rotation arrow.

Furniture nozzle (only for XB1042/XB1142)

2 Clean the furniture.

Diagram illustrating a step-by-step process of a mechanical or electrical component, labeled with numbers 1 and 2.

2-in-1 lance accessory

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols)

4 To detach the nozzle from the tube, press the tip with one hand and pull the tube out of the tip with the other hand.

Illustration of a medical or laboratory procedure showing a tool injecting into a device with an orange arrow indicating motion (no text or symbols present)

2 Move the furniture.

2 Insert the plug into the socket.

Illustration of a mechanical device with an orange arrow pointing to a component (no text or symbols).

5 Empty the dust container into a waste bin.

Latvian

Diagram illustrating a spray gun mechanism with labeled components and directional arrows indicating motion or movement.

8 Put the dust container back into the device.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

5 Pull the vortex cylinder out of the dust container.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

7 Empty the dust container into a waste bin.

Latvian

Illustration of a cleaning tool with a bucket, lid, and tray (no text or symbols).

5 Close the filter compartment.

Storage

152 Lithuanian

154 Lithuanian

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols).

Furniture nozzle (only in models XB1042 / XB1142)

2 Clean the furniture.

Diagram illustrating a step-by-step procedure for inserting a plug into a container, labeled with arrows and numbered components.

Narrow nozzle "two in one"

2 Do not use it to clean narrow spaces.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

Illustration of a vacuum cleaner with an orange arrow indicating rotation.

2-in-1 crevice nozzle

A Bocht H 2-in-1 crevice nozzle

B Hose I Power cord

C 2-piece metal telescopic tube J Inlet filter

D Multi-function nozzle K Foam rubber filter

Dutch

Illustration of a container being filled with liquid, showing a lid and a hand inserting a curved arrow (no text or symbols)

1 When connecting the telescopic tube to the handle on the hose, align the hole at the end of the handle with the metal tube and push the tube into place.

Illustration of a hand holding a pen with arrows indicating motion or force direction (no text or symbols)

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols)

Furniture nozzle (only for XB1042/XB1142)

2 Clean the furniture.

2-in-1 crevice nozzle

5 Empty the dust container into the trash.

Illustration of a spray bottle being poured into a container with a lid, showing internal components and a close-up view, no text or symbols.

202 Norwegian

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

7 Empty the dust container into the trash.

Illustration of a cleaning tool with a bucket, handle, and cloth.

8 Wash the dust container and the Vortex finder.

Illustration of a hand cleaning a small container with a cloth, accompanied by an inset showing a lid and droplet.

5 Close the filter compartment.

Storage

Furniture nozzle (only for models XB1042/XB1142)

2 Clean the furniture.

Diagram illustrating a step-by-step process of a mechanical or electrical component with labeled parts and motion arrows.

226 Portuguese

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols).

Furniture nozzle (only for XB1042/XB1142)

2 Clean the furniture.

7 Close the dust container lid.

Illustration of a mechanical device with a blue component and an orange arrow indicating force or motion (no text or symbols)

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

238 Romanian

240 Romanian

Illustration of a vacuum cleaner with an orange arrow indicating rotation.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

252 Albanian

254 Albanian

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols)

2 Clean your furniture.

Diagram illustrating a step-by-step procedure for inserting a plug into a container, labeled with arrows and numbered components.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

1 Turn off and unplug the appliance.

5 Close the filter compartment.

Storage

A Flexible hose assembly H Narrow 2-in-1 nozzle

266 Slovenian

B Flexible hose assembly I Power cord

C 2-piece telescopic metal tube J Inlet filter assembly

D Multi-purpose nozzle K Foam filter

1 To connect this nozzle, align the hole at the end of the tube with the nozzle and push the tube into the nozzle.

Illustration of a hand-operated vacuum cleaner with a yellow arrow indicating rotation, no text or symbols.

3 When cleaning carpets, press the foot switch on top of the nozzle forward with your foot. The brush retracts into the nozzle housing.

Line drawing of a mechanical device with a tool inserted, no text or symbols present.

Furniture nozzle (only for model XB1042/XB1142)

2 Clean the furniture.

Narrow 2-in-1 nozzle

1 Pull the power cord out of the appliance.

Illustration of a blue electrical plug inserted into a white socket with an orange arrow indicating direction, no text or symbols.

3 To switch on the appliance, press the on/off button on top of the appliance with your foot.

7 Close the dust container lid.

Illustration of a mechanical device with a highlighted component.

8 Insert the dust container back into the appliance.

1 Switch off and unplug the appliance.

6 Turn anticlockwise to release the cover from the vortex director.

Illustration of a hand pouring granular material into a container.

9 Wipe all parts thoroughly dry with a soft cloth.

Diagram illustrating a mechanical or fluid system with two components, labeled ① and ②, showing rotational flow arrows.

10 Turn clockwise to fit the cover back onto the vortex director.

Diagram illustrating a cooking process with labeled steps and directional arrows, including a magnified inset showing step 1 with checkmark and cross.

13 Close the cover and insert the dust container back into the appliance.

Note: Do not use the appliance without the filter.

Replacing the filter

4 Insert the filter lug into the top edge of the filter compartment and push the bottom end of the filter into the compartment.

Diagram of a mechanical component with a grid-like structure and a directional arrow.

5 Close the filter compartment.

Storage

1 Switch off the appliance and unplug the power cord from the outlet. 2 Press the cord rewind button to rewind the power cord. 3 Store the crevice nozzle in the accessory holder after use. 4 Insert the edge of the TriActive nozzle into the storage slot.

Troubleshooting

A Hose assembly H 2-in-1 crevice nozzle

1 Connect the hose by inserting it into the hose connection opening until it clicks into place.

Diagram showing a hand holding a device with labeled parts 1 and 2, indicating a procedure or step in a medical or laboratory setting.

2 To disconnect the hose, press the quick release buttons (1) on either side of the hose connector (1) and pull the hose connector out of the hose connection opening (2).

Illustration of a vacuum cleaner with an orange arrow indicating rotation.

3 To clean carpets, press the rocker switch on the top of the nozzle forward with your foot. The brush strip will retract into the nozzle housing.

Line drawing of a handheld device with a pipette inserted.

Upholstery nozzle (only for model XB1042/XB1142)

1 Pull the power cord out of the device.

Illustration of a blue electrical plug inserted into a white socket with an orange arrow indicating direction.

3 Open the dust container lid.

Illustration of a hand pouring liquid into a container with an arrow indicating direction.

4 Hold the two holders with your hands and pull the cyclone unit straight up out of the dust container.

Illustration of a hand pouring liquid into a container with granular material.

8 Place the dust container back into the device.

Cleaning the dust container

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

5 Pull the cyclone unit out of the dust container.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

10 Install the lid back onto the cyclone unit by turning it clockwise.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including a magnified inset showing internal components.

13 Close the lid and insert the dust container back into the device.

1 Turn off the device and unplug it from the power supply.

2 Press the release button and open the filter cover.

XV1210 PHILIPS XV1210

4 Insert the two filter tabs into the top edge of the filter compartment and push the bottom of the filter into the compartment.

Technical illustration of a mechanical component with a blue internal grid and orange rotation arrow (no text or symbols).

5 Close the filter compartment.

Storage

A Hose assembly H 2-in-1 crevice tool

B Hose assembly I Power cord

1 To connect the hose, insert it into the hose connection opening until it clicks into place.

Diagram showing a hand holding a blue object with numbered annotations indicating parts of the device's handle and movement.

2 To disconnect the hose, press the release buttons on both sides of the hose connector (1) and pull the hose out of the connection opening (2).

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols)

2 To clean hard floors, push the switch on top of the foot pedal backward with your foot. The hard floor brush will extend from the foot pedal housing.

Illustration of a hand cleaning a small mechanical component with an arrow indicating rotation (no text or symbols)

3 To clean carpets, push the switch on top of the foot pedal forward with your foot. The brush will retract into the foot pedal housing.

Line drawing of a handheld device with a pipette inserted, no text or symbols present

4 To detach the foot pedal from the tube, push the foot pedal with one hand and pull the tube out with the other hand.

Illustration of a medical or laboratory procedure showing a tool injecting into a device with an orange arrow indicating motion (no text or symbols present)

1 To attach the crevice tool, insert the tube into the crevice tool. You can rotate the head to use it as a brush.

Illustration of a pipette dispensing liquid into stacked books, with an inset showing a cylindrical object (no text or symbols present)

3 Now press the on/off button on the top of the appliance to turn it on.

Tip: Regularly check the dust container to see if it is full. Regularly clean the filters to ensure optimal performance.

Adjusting the suction power

Diagram showing a person using a mobile phone to interact with a hand, with an inset highlighting the device's position.

During vacuuming, you can adjust the suction power using the suction power control slider on the handle.

  • Set the suction control slider upward for low suction power for cleaning curtains, carpets, and furniture.
  • Set the suction control slider downward for maximum suction power for cleaning hard floors.

Pausing during vacuuming

If you want to take a short break, insert the protrusion on the multi-purpose nozzle into the parking slot and place the telescopic tube in the appropriate position.

Maintenance

Warning: Before cleaning or maintaining the appliance, always unplug it from the power outlet.

Caution: Do not wash parts of the appliance in a dishwasher.

MAX

Note: For optimal performance, empty the dust container after use. Always empty the dust container when the dust reaches the maximum level mark.

1 Turn off the appliance and unplug it from the power supply.

Illustration of a vacuum cleaner with orange arrows indicating airflow direction (no text or symbols)

2 Press the dust container release button to unlock the dust container. Remove the dust container from the appliance.

Illustration of a hand pouring liquid into a container with an open lid, showing a hand gesture (no text or symbols)

3 Open the lid of the dust container.

Illustration of a hand pouring liquid into a container with an arrow indicating direction (no text or symbols)

4 Hold the two handles and pull the vortex finder straight up out of the dust container.

Illustration of a hand pouring granular material into a container with particles.

5 Empty the dust container into a trash can.

Diagram illustrating a spray gun mechanism with labeled components and directional arrows indicating motion or movement.

6 Properly install the vortex finder by making sure it fits securely on the edge of the dust container, as shown in the figure.

Note: Pull the vortex finder out of the dust container to prevent the filter from getting wet if you only want to clean the dust container.

7 Close the dust container lid.

Illustration of a mechanical device with a highlighted component.

8 Put the dust container back into the appliance.

Cleaning the dust container

To guarantee optimal performance, clean the dust container every xx weeks.

1 Turn off the appliance and unplug it from the electrical outlet.

2 Open the dust container lid.

Illustration of a container being filled with liquid, showing a hand inserting a pencil into it.

Diagram showing two steps of a container with labeled parts, indicating step 1 and step 2.

3 Hold the filter housing handles and turn counterclockwise to release it.

5 Pull the vortex finder out of the dust container.

Diagram illustrating a mechanical or fluidic process with labeled components and directional arrows indicating flow or movement.

6 Turn counterclockwise to release the lid from the vortex finder.

Illustration of a hand pouring granular material into a container.

7 Empty the dust container into a trash can.

Illustration of a cleaning tool with a bucket, handle, and cleaning kit.

8 Wash the dust container and the vortex finder.

Illustration of a hand cleaning a container with a cloth, showing a lid and an ear.

9 Dry all parts thoroughly with a soft cloth.

Diagram illustrating a mechanical or electrical system with two components, labeled ① and ②, showing directional arrows and circular motion.

10 Turn counterclockwise to replace the lid on the vortex finder.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including a magnified inset showing internal components.

11 Properly position the vortex finder by ensuring it fits securely on the edge of the dust container, as shown in the figure.

Diagram illustrating a cleaning or packaging process with labeled steps and directional arrows indicating steps 1, 2, and 3.

12 Align the fixing pins on the filter housing with the slots on the vortex finder housing. Make sure the edge of the filter housing 'activates' the missing filter detection mechanism. Turn the filter housing clockwise to secure it in place.

Diagram showing two mechanical components with labeled parts, including a lid and a base device with internal structure.

13 Close the lid and return the dust container to the appliance.

Note: Do not use the appliance without the filter.

Replacing the filter

Our allergy protection system retains 99.9% of fine dust – including pollen, pet dander, and dust mites – for allergy sufferers and anyone seeking a higher level of hygiene.

Note: You can dispose of the old filter with household waste.

Illustration of a mechanical device with a close-up view showing a hand inserting a component into a grid (no text or symbols present)

1 Turn off the appliance and unplug it from the electrical outlet.

2 Press the lid release button to open the filter cover.

XV1210 PHILIPS XV1210

3 Pull out the used filter and dispose of it properly. Remove the packaging material from the new filter (XV1210).

Diagram of a mechanical component with a grid-like component and directional arrows indicating motion (no text or symbols)

4 Insert the two filter clips into the upper edge of the filter compartment and push the lower end of the filter into the compartment.

Technical illustration of a mechanical component with a blue internal grid and orange rotation arrow (no text or symbols)

5 Close the filter compartment.

Storage

1 Switch off the appliance and remove the plug from the wall socket. 2 Press the cord rewind button to rewind the power cord. 3 After use, store the crevice tool in the accessory holder. 4 Insert the protrusion on the TriActive nozzle into the storage slot.

Troubleshooting

This chapter summarizes the most common problems you may encounter while using the appliance. If you cannot solve the problem with the list of possible problems below, visit www.philips.com/support for a list of frequently asked questions or contact the customer care center in your country.

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols)

5 Close the filter compartment.

Storage

Illustration of a vacuum cleaner with an orange arrow indicating rotation (no text or symbols).

2 Clean the furniture.

2-in-1 crevice nozzle

1 Pull the mains cord out of the appliance.

Illustration of a blue electrical plug inserted into a white socket with an orange arrow indicating direction (no text or symbols).

While vacuuming, you can adjust the suction power using the suction power control on the handle.

Diagram showing a container with two labeled parts, one open and one filled, with arrows indicating flow or movement.

Illustration of a vacuum cleaner with an orange arrow indicating rotation. No text or symbols.

2 Plug the plug into the socket.

Illustration of a mechanical device with an orange arrow pointing to a component. No text or symbols.

Line drawing of a hand using a tool to lift a mechanical component (no text or symbols).

2-in-1 crevice tool

Illustration of a container being filled with liquid, showing a lid and a magnified view of the lid's internal structure (no text or symbols)

Illustration of a hand using a pipette to lift a cylindrical device, no text or symbols visible.

Diagram showing a tool interacting with a mechanical component, with an inset close-up of a mechanical part, no text or symbols present.

2 Clean the furniture.

The plug must be removed from the socket-outlet before cleaning or

maintaining the appliance

Diagram showing a hand holding a device with labeled parts 1 and 2, indicating a step in the process.

Illustration of a hand holding a white spray gun with an orange arrow indicating rotation (no text or symbols)

4

Illustration of a medical procedure with a tool and a magnified view of a mechanical component (no text or symbols).

  1. מְקַרָה אַל

תְרָה-שִׁבָרָה

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

הכלה 413

  1. כְרָה כְרָה

Illustration of a pen tip inserting into a stack of books, with an inset showing a rolled document (no text or symbols present).

אַרְשָׁה

  1. כרְרָה 71

Illustration of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols visible).

  1. מַרְשָׁ בִיַעֹ

Illustration of a blue electrical plug inserted into a white socket with an orange arrow indicating direction (no text or symbols).

Illustration of a mechanical device with an orange arrow pointing to a component (no text or symbols present).

3071997

278 17287 17

בִרָה לְרַעֹן.

הכלה 415

  1. 728777

Illustration of a container being filled with liquid, showing a lid and a magnified view of the lid's interior (no text or symbols).

Illustration of a hand pouring liquid into a container with an arrow indicating direction (no text or symbols).

Illustration of a hand pouring granular material into a container (no text or symbols).

Illustration of a cleaning or packaging device with a lid and handle, showing internal components and a close-up view of the lid (no text or symbols).

Illustration of a container with an open lid and a curved arrow indicating rotation (no text or symbols).

4'77'77'77'77'

.7287

5. הכלה

6

  1. מַרְשָׁת בִּרְשָׁת
  1. מַרְשׁה

2. אקוסלוב

Diagram showing two steps of a container with an open lid and a hand holding a lid, labeled with numbers ① and ②.

  1. מַרְשָׁתִי

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating motion or flow.

Illustration of a hand pouring granular material into a container (no text or symbols).

Illustration of a cleaning tool with a bucket, lid, and brush (no text or symbols).

Illustration of a hand cleaning a container with a cloth, showing a lid partially open (no text or symbols).

6. הכלה

  1. בַרִשָׁה אַבְרִשָׁה

8. הכלה

  1. מְקַרָהוֹתִים:

418

Diagram illustrating a mechanical or electrical system with two components, labeled ① and ②, showing rotational motion arrows.

Diagram illustrating a container being filled with liquid, showing a lid, container, and labeled parts including 'room' and 'cup'.

Diagram illustrating a food cleaning or packaging process with labeled steps and directional arrows indicating steps 1 and 2.

Diagram showing two mechanical components with labeled parts, including a lid and a container with arrows indicating motion or assembly.

10. הכלה

בִרָרְשָׁה, בַרְשָׁה, אַרְשָׁה, אַרְשָׁה, אַרְשָׁה, אַרְשָׁה, אַרְשָׁה, אַרְשָׁה, אַרְשָׁה, אַרְשָׁה

11. תַלְרָה בִּוֹם

XV1210 PHILIPS XV1210

Diagram of a mechanical device with a grid component and orange rotation arrow (no text or symbols).

www.philips.com/support

Philips 77, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84, 86, 88, 90, 92, 94, 96, 98, 100.

www.philips.com/support 970

Philips 77-10-17-17-17-17-17-17-17-17-17-17-17-17-17-17-17-17-17-17-17-17-17

PHILIPS 1000 Series XB1012 - אַרְשָׁה - 21

2025 © Versuni Holding B.V.

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

3000.031.3658.1 (02/2025)

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PHILIPS

Model : 1000 Series XB1012

Category : Vacuum Cleaner
