USER MANUAL 6705DW MAKITA

6705D/DW (illust) 1 (’100. 3. 17)

Set plate Charging light Battery charger Bit

Explanation of general view

Switch trigger Reversing switch Clockwise rotation Counterclockwise rotation

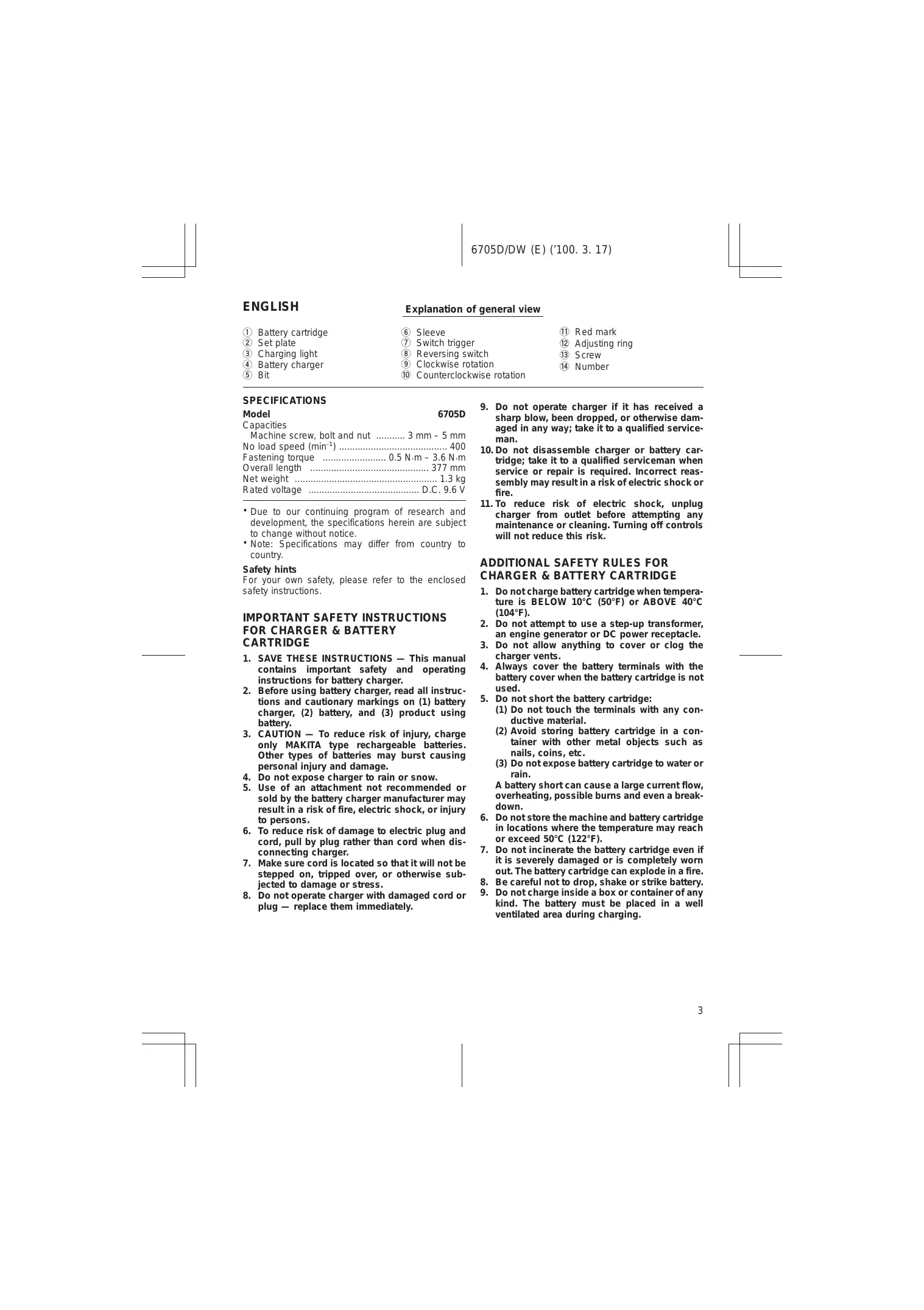

SPECIFICATIONS Model

6705D Capacities Machine screw, bolt and nut 3 mm – 5 mm No load speed (min-1) 400 Fastening torque 0.5 N.m – 3.6 N.m Overall length 377 mm Net weight 1.3 kg Rated voltage D.C. 9.6 V • Due to our continuing program of research and development, the specifications herein are subject to change without notice. • Note: Specifications may differ from country to country. Safety hints For your own safety, please refer to the enclosed safety instructions.

IMPORTANT SAFETY INSTRUCTIONS FOR CHARGER & BATTERY CARTRIDGE

1. SAVE THESE INSTRUCTIONS — This manual contains important safety and operating instructions for battery charger. 2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery. 3. CAUTION — To reduce risk of injury, charge only MAKITA type rechargeable batteries. Other types of batteries may burst causing personal injury and damage. 4. Do not expose charger to rain or snow. 5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. 6. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger. 7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. 8. Do not operate charger with damaged cord or plug — replace them immediately.

Adjusting ring Screw Number

9. Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

10. Do not disassemble charger or battery cartridge; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire. 11. To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning. Turning off controls will not reduce this risk.

ADDITIONAL SAFETY RULES FOR CHARGER & BATTERY CARTRIDGE

1. Do not charge battery cartridge when temperature is BELOW 10°C (50°F) or ABOVE 40°C (104°F). 2. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle. 3. Do not allow anything to cover or clog the charger vents. 4. Always cover the battery terminals with the battery cover when the battery cartridge is not used. 5. Do not short the battery cartridge: (1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. 6. Do not store the machine and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). 7. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire. 8. Be careful not to drop, shake or strike battery. 9. Do not charge inside a box or container of any kind. The battery must be placed in a well ventilated area during charging.

ADDITIONAL SAFETY RULES FOR MACHINE

1. Be aware that this machine is always in an operating condition, because it does not have to be plugged into an electrical outlet. 2. Always be sure you have a firm footing. Be sure no one is below when using the machine in high locations. 3. Hold the machine firmly. 4. Keep hands away from rotating parts. 5. When driving into walls, floors or wherever ‘‘live’’ electrical wires may be encountered, DO NOT TOUCH ANY METAL PARTS OF THE MACHINE! Hold the machine only by the insulated grasping surfaces to prevent electric shock if you drive into a ‘‘live’’ wire.

SAVE THESE INSTRUCTIONS.

OPERATING INSTRUCTIONS Installing or removing battery cartridge (Fig. 1) • Always switch off the machine before insertion or removal of the battery cartridge. • To remove the battery cartridge, pull out the set plate on the machine and grasp both sides of the cartridge while withdrawing it from the machine. • To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Snap the set plate back into place. Be sure to close the set plate fully before using the machine. • Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

1. Plug the battery charger into your power source. 2. Insert the battery cartridge so that the plus and minus terminals on the battery cartridge are on the same sides as their respective markings on the battery charger. Insert the cartridge fully into the port so that it rests on the charger port floor. 3. When the battery cartridge is inserted, the charging light color will flash in red color and charging will begin. 4. When charging is completed, the charging light goes out. The charging time is as follows: Battery 9100 and 9100A: approx. 60 minutes. 5. If you leave the battery cartridge in the charger after the charging cycle is complete, the charger will switch into its ‘‘trickle charge (maintenance charge)’’ mode. 6. After charging, remove the battery cartridge from the charger and unplug the charger from the power source. Battery type 9100

• The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other manufacturer’s batteries. • When you charge a new battery cartridge or a battery cartridge which has not been used for a long period of time, it may not accept a full charge. This is a normal condition and does not indicate a problem. You can recharge the battery cartridge fully after discharging it completely and recharging a couple of times. • When you charge a battery cartridge from a justoperated machine or a battery cartridge which has been left in a location exposed to direct sunlight or heat for a long time, let it cool off. Then re-insert it and try to charge it once more. • When you charge a new battery cartridge or a battery cartridge which has not been used for a long period, sometimes the charging light will go out soon. If this occurs, remove the battery cartridge and re-insert it. If the charging light goes out within one minute even after repeating this procedure a couple of times, the battery cartridge is dead. Replace it with a new one.

Trickle charge (Maintenance charge)

If you leave the battery cartridge in the charger to prevent spontaneous discharging after full charge, the charger will switch into its ‘‘trickle charge (maintenance charge)’’ mode and keep the battery cartridge fresh and fully charged.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop machine operation and charge the battery cartridge when you notice less machine power. 2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life. 3. Charge the battery cartridge with room temperature at 10°C – 40°C (50°F – 104°F). Let a hot battery cartridge cool down before charging it.

Installing or removing bit (Fig. 3 & 4)

Important: Always be sure that the machine is switched off and the battery cartridge is removed before installing or removing the bit. Use only the driver bit or socket bit shown in Fig. 3. Do not use any other driver bit or socket bit. To install the bit, pull the sleeve in the direction of the arrow and insert the bit into the sleeve as far as it will go. Then release the sleeve to secure the bit. To remove the bit, pull the sleeve in the direction of the arrow and pull the bit out firmly.

Switch action (Fig. 5)

CAUTION: Before inserting the battery cartridge into the machine, always check to see that the switch trigger actuates properly and returns to the ‘‘OFF’’ position when released. To start the machine, simply pull the trigger. Release the trigger to stop.

Reversing switch action (Fig. 5)

CAUTION: • Always check the direction of rotation before operation. • Use the reversing switch only after the machine comes to a complete stop. Changing the direction of rotation before the machine stops may damage the machine. This machine has a reversing switch to change the direction of rotation. Slide the reversing switch up for clockwise rotation or slide it down for counterclockwise rotation.

The overload protector automatically cuts out to break the circuit whenever heavy work is prolonged. Wait 20 – 30 seconds before resuming operation.

Adjusting the fastening torque (Fig. 6)

The fastening torque can be adjusted infinitely from approx. 5 kg·cm to 37 kg·cm. To adjust it, loosen the two screws and turn the adjusting ring. Then tighten the screws to secure the adjusting ring. Refer to the table below for relation between the numbers on the adjusting ring and the fastening torque to be obtained. Numbers on adjusting ring 1 2 3 4 5

Fastening torque to be obtained

5 kg·cm 10 kg·cm 18 kg·cm 27 kg·cm 37 kg·cm

10 kg·cm of fastening torque can be obtained when the number 2 is aligned to the red mark.

• Always tighten the two screws to secure the adjusting ring after adjusting the fastening torque. • The fastening torque may differ depending upon the kind of screws, the type of materials to be fastened, etc. Before starting your job, always perform a test operation to verify the adequate fastening torque.

The proper fastening torque may differ depending upon the kind or size of screws, the type of materials to be fastened, the condition of the threads, etc. Before starting your job, always perform a test operation to verify adequate fastening torque. As soon as the screw becomes tight, the clutch will cut in and the motor will stop automatically. Release the switch trigger. NOTE: • Make sure that the driver bit is inserted straight in the screw head, or the screw and/or bit may be damaged. • If the motor will not start even after you pull the trigger, release the trigger. Then pull the trigger again after turning the socket slightly with your fingers.

MAINTENANCE CAUTION:

Always be sure that the machine is switched off and the battery cartridge is removed before carrying out any work on the machine. To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by a Makita Authorized Service Center.

GUARANTEE We guarantee Makita machines in accordance with statutory/country-specific regulations. Damage attributable to normal wear and tear, overload or improper handling will be excluded from the guarantee. In case of complaint, please send the machine, undismantled, with the enclosed GUARANTEE CERTIFICATE, to your dealer or the Makita Service Center.

6705D/DW (It) (’100. 3. 15)

6705D/DW (It) (’100. 3. 27)

6705D/DW (It) (’100. 3. 17)

6705D/DW (Sw) (’100. 3. 15)

6705D/DW (Sw) (’100. 3. 15)

6705D/DW (Sw) (’100. 3. 17)

Reversbryteren (Fig. 5)

6705D/DW (Accessories) (’100. 3. 17)

GB ACCESSORIES CAUTION:

These accessories or attachments are recommended for use with your Makita machine specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. The accessories or attachments should be used only in the proper and intended manner.

6705D/DW (Accessories) (’100. 3. 17)

6705D/DW (Accessories) (’100. 3. 17)

• • • • • • • • • • •

6705D/DW (Accessories) (’100. 3. 17)

6705D/DW (Accessories) (’100. 3. 17)

6705D/DW (Accessories) (’100. 3. 17)

• • • • • • • • • • •

Anjo, Aichi, Japan Made in Japan 884199B994
