LS 5560 - Epilator BRAUN - Free user manual and instructions

USER MANUAL LS 5560 BRAUN

Exterior view of a Bruun Silk-épil electric shaver (no text or symbols on the device body)

Type 5328

www.braun.com

Legs & Body

LS 5560

Braun Infolines

Deutsch 6,9

English 10, 13

Français 14, 17

Español 18, 21

Português 23, 26

Italiano 27,30

Nederlands 31, 34

Dansk 35, 38

Norsk 39,42

Svenska 42, 45

Suomi 46, 49

Polski 49,53

Český 54, 57

Slovenský 58, 61

Magyar 62, 65

Slovenski 66, 69

Hrvatski 70, 73

Ελληνικά 74, 78

Lietuvių 79, 82

Latviski 83, 86

Eesti 87,90

Русский 91, 95

Braun GmbH

(Audio Supplies Company Ltd.)

Illustration of a small electronic device with a perforated top and base (no text or symbols)

a 6

b

2 a b c d e e f

3D model of a car grille component with no visible text or symbols

4 88Run Silk digital 5

Illustration of a cable with a plug and terminal connector (no text or symbols)

A

Illustration of a hand performing a medical or therapeutic procedure on a patient's abdomen, with an arrow indicating direction (no text or symbols present)

B

Illustration of a person receiving a medical or cosmetic procedure, showing hands performing a procedure (no text or symbols present)

C1

Simple line drawing of a tool pressing down on grass (no text or symbols)

Illustration of a handheld electric shaver with airflow arrows (no text or symbols)

Diagram showing a foot pressing down on a surface with a curved arrow indicating direction (no text or symbols)

D1 → → → → → → → →

D2 E

F 1. 2. 3. G

H1 ① ② ① H2 ① ②

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. The Braun Silk-épil has been developed for a perfect and comfortable shave, offering you the perfect choice for legs, underarms and the bikini area. We hope you entirely enjoy your new Braun Lady shaver.

Important

This appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock.

For hygienic reasons, do not share this appliance with other persons.

This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician:

– eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins
- around moles
– reduced immunity of the skin, e.g. diabetes mellitus, Raynaud's disease
– haemophilia or immune deficiency.

Description

1 OptiShave attachment
2 Shaver head
a Shaver foil

b SoftStrip
c EasyGlide cushion
d Long hair trimmer
e Release buttons
f TrimLock « 📁/ ↗ »

3 Cutter block

4 On/off switch

5 Charging light

6 Exfoliation attachment (for use on legs only)

a Detachable exfoliation pad
b Push button for pad release

7 Bikini zone trim attachment

8 Special cord set

Charging

The best environmental temperature for charging is between 15 °C and 35 °C.

• Using the special cord set, connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time, leave the shaver to charge continuously for 4 hours. Subsequent charges will only take about 1 hour.
• The charging light (5) shows that the shaver is being charged. When the batteries are fully charged, the green light goes off. If it comes on again while connected to an electrical outlet, this indicates the shaver is recharging to maintain its full capacity.
• A full charge provides up to 40 minutes cordless operation depending on your hair type and usage behaviour. Frequent use of the exfoliation attachment will reduce the cordless operation time.

• Once the shaver is completely charged, discharge it through normal use. Then recharge to full capacity. Maximum battery capacity will only be reached after several charging/discharging cycles.

• Thanks to the convenient 2-way feature your Braun Silk-épil may also be used even if the rechargeable batteries are discharged, connecting it to an electrical outlet via the special cord set.

• The special cord set automatically adapts to any worldwide AC voltage (from 100 to 240 V).

Shaving

For radiant skin, the Silk&Soft system captures even problem hairs, the integrated SoftStrip stretches the skin to ensure a closer reach and the floating shaver foil and the floating longhair trimmer hug the skin, all to ensure a perfectly close shave. For a gentle shave, the EasyGlide cushion ensures smoother gliding and reduces skin irritation. The additional OptiShave attachment (1) allows an extra close and comfortable shave of legs.

• Press and slide up the on/off switch to turn the shaver on. Make sure that the TrimLock is in the « 🔊 » position.
• For optimum shaving results, place the OptiShave attachment onto the shaver head (A). It ensures perfect closeness and the optimum usage angle so that both, the shaver foil and the long hair trimmer are in contact with the skin.
• Move the appliance slowly against the direction of hair growth. Adjusting to the body contours, the long hair trimmer first raises all long hairs and cuts them off. Then the shaver foil follows to smooth away any stubble.
• If you have not shaved for a long period of time, remove the OptiShave attachment to allow a faster pre-cutting of longer hairs (B).
• Always ensure that both, the shaver foil and the long hair trimmer are in contact with the skin.

Shaving your legs with the exfoliation attachment

Instead of the OptiShave attachment, you may want to use the exfoliation attachment (6) that helps enhancing the general look of the skin surface thanks to its exfoliation pad. The exfoliation pad gently scrubs the skin to remove dead skin particles, thus revitalizing the skin and giving it a radiant lode.

Proceed as follows:

• Remove the OptiShave attachment (1) and replace it with the exfoliation attachment (6).
• When guiding the appliance slowly against the direction of hair growth, make sure that the long hair trimmer, the shaver foil and exfoliation pad are in contact with the skin.

Shaving and styling the underarm and bikini area

In these sensitive areas, make sure that you always shave on stretched skin in order to avoid injuries (B). Please take special care if the skin surface is uneven or provided with skin tags. Make sure not to touch them with the long hair trimmer.

Shaving the underarm and bikini area: Remove the OptiShave attachment for a perfect reach. Always stretch your skin when shaving.

Bikini area styling:

For trimming precise lines and contours, lock the long hair trimmer by sliding the TrimLock to the position «®» (C1). To trim hair to a uniform length, lock the long hair trimmer and place the bikini zone trim attachment (7) onto the shaver head (C2). For optimum results, move the appliance slowly against the direction of hair growth.

When you are finished

After shaving, you may want to smooth on a little body cream or lotion. However, avoid using irritating substances like deodorants with alcohol right away.

Cleaning

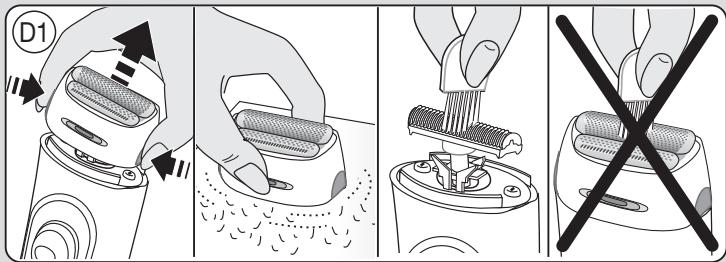

Cleaning the shaver head with the brush (D1)

• Press the release buttons to remove the shaver head. Tap the bottom of the shaver head gently on a flat surface (not on the foil).
• Brush out the cutter block and the inside of the shaver head. However, do not clean the shaver foil with the brush as this may damage the foil.

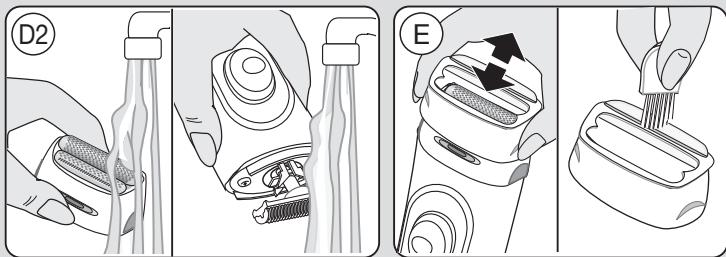

Cleaning the shaver head under running water (D2)

The shaver head is suitable for cleaning under running tap water. Warning: Detach the shaver from the power supply before cleaning the shaver head in water.

• Press the release buttons to remove the shaver head.
• Rinse the shaver head and the cutter block separately under warm running water. A natural based soap may also be used provided it contains no particles or abrasive substances. Rinse off all foam.
• Leave the cutter block and the shaver foil to dry separately.

How to clean and maintain the exfoliation attachment

To clean the exfoliation attachment (6), first remove it (E), then thoroughly brush out the exfoliation pad (6a). From time to time, you may also clean it with soapy water. Let it dry before using it again.

Keeping your Braun Silk·épil in top shape

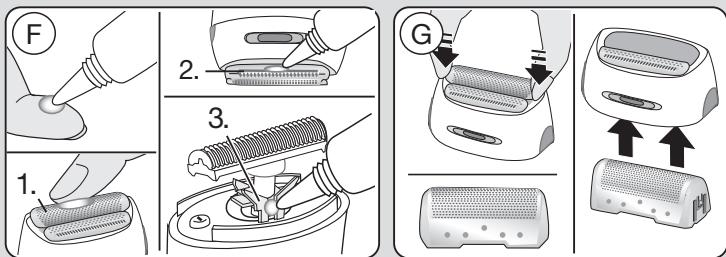

• The shaving parts need to be lubricated regularly every 3 months (F). If you clean the shaver head under running water, lubricate it after each cleaning.
  Apply some light machine oil or vaseline to the shaver foil and the metal parts of the long hair trimmer. Then remove the shaver head and also apply a tiny amount of vaseline as shown in picture section (F).

- The shaver foil and the cutter block are precision parts that wear out with time. To maintain optimum shaving performance, replace your foil and cutter block when you notice a reduced shaving performance.

- Do not shave with a damaged foil or cord.

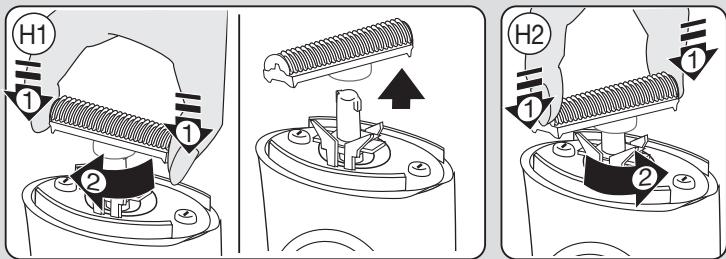

- How to replace the shaving parts Shaver foil: Press the release buttons to remove the shaver head. To remove the shaver foil, press the blue plastic frame (G). To mount a new one, insert it from inside the shaver head. Cutter block: To remove the cutter block, press and turn it 90° (H1), then take it off. To put on a new cutter block, press it onto the cutter block holder and turn 90° (H2).

- Replacements parts (shaver foil, cutter block, exfoliation pad) can be obtained from your retailer or Braun Customer Service Centres.

Preserving the rechargeable batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) approximately every 6 months.

Then recharge the shaver to full capacity. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre at appropriate collection points provided in your country.

For electric specifications, see printing on the special cord set.

Subject to change without notice

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.
