USER MANUAL DB3H DOMETIC

DB3H, DB3Y

EN

Pleated roller blind

Installation and Operating Manual.....9

DE

Plissérollo

13

14

Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Content

1 Scope of delivery 9 2 Intended use ....10 3 Fitting the roller blind ....10 4 Using the roller blind....11 5 Troubleshooting....11 6 Cleaning and care....12 7 Warranty ....12 8 Technical data....13

1 Scope of delivery

Item in fig. 1, page 2

Quantity Description

11 Pleated roller blind 2 2 Cover for the corners 3 2 Cover for the ends 41 Bracket for the cassettes (only for widths over 1 m) 51 Countersunk screw 3.5 mm x 16 mm (only for widths over 1 m) 6 6 Oval-head screw 3.5 mm x 20 mm 7 2 End piece of guide rails for inward mounting (front window)

2 Intended use

The pleated roller blind is suitable for windows in mobile homes or camper vans. It has an insect screen and a blackout pleated blind.

3 Fitting the roller blind

3.1 Fixing the roller blind

The fastening of the roller blind is different for roller blinds that are under 1 m in width and those that are 1 m in width or wider. Wide roller blinds must have an additional bracket for the cassette fixed at the top.

NOTICE!

• If the screws supplied do not hold in the wall, you must use plugs suitable for the wall construction. • Make sure you do not drill through the wall.

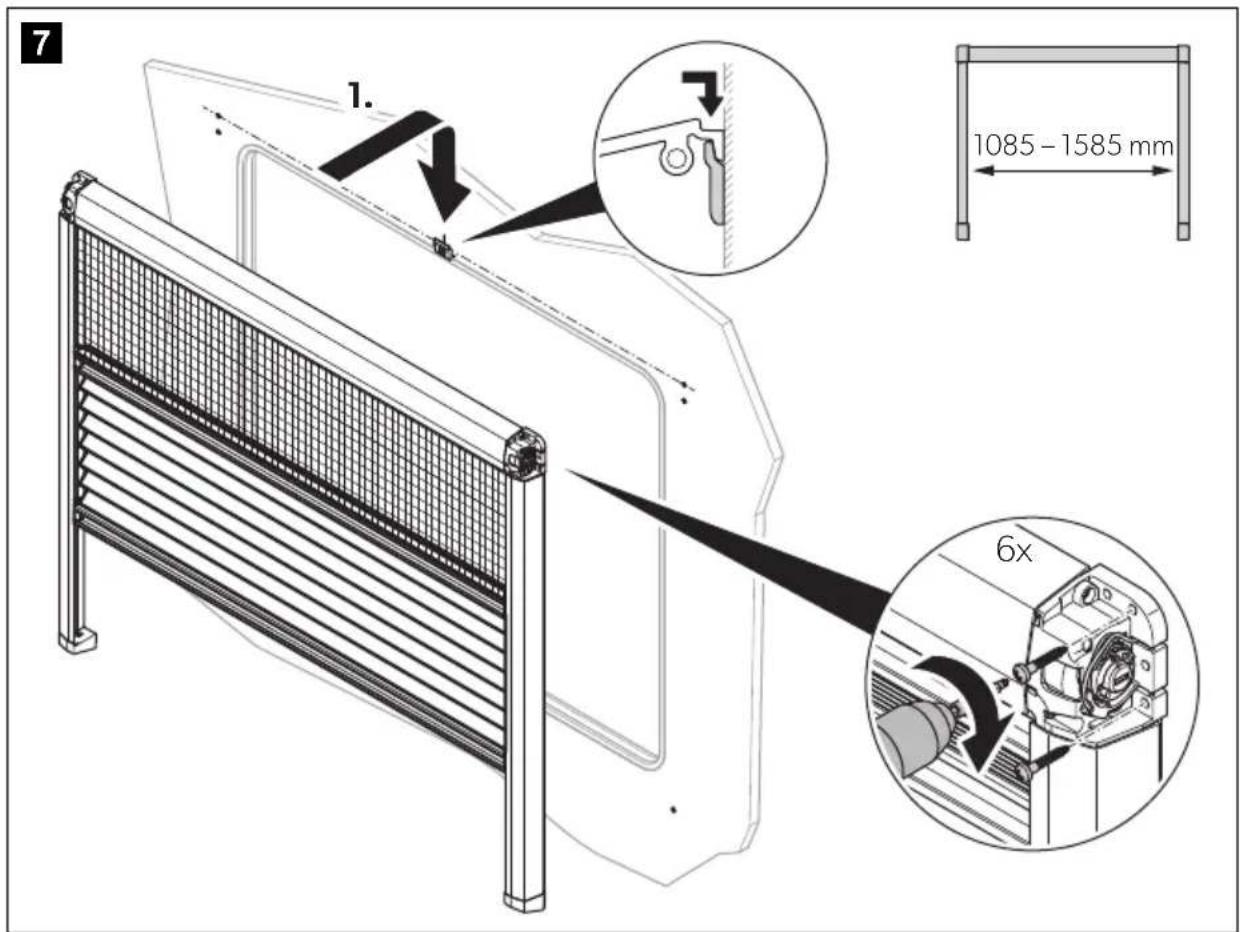

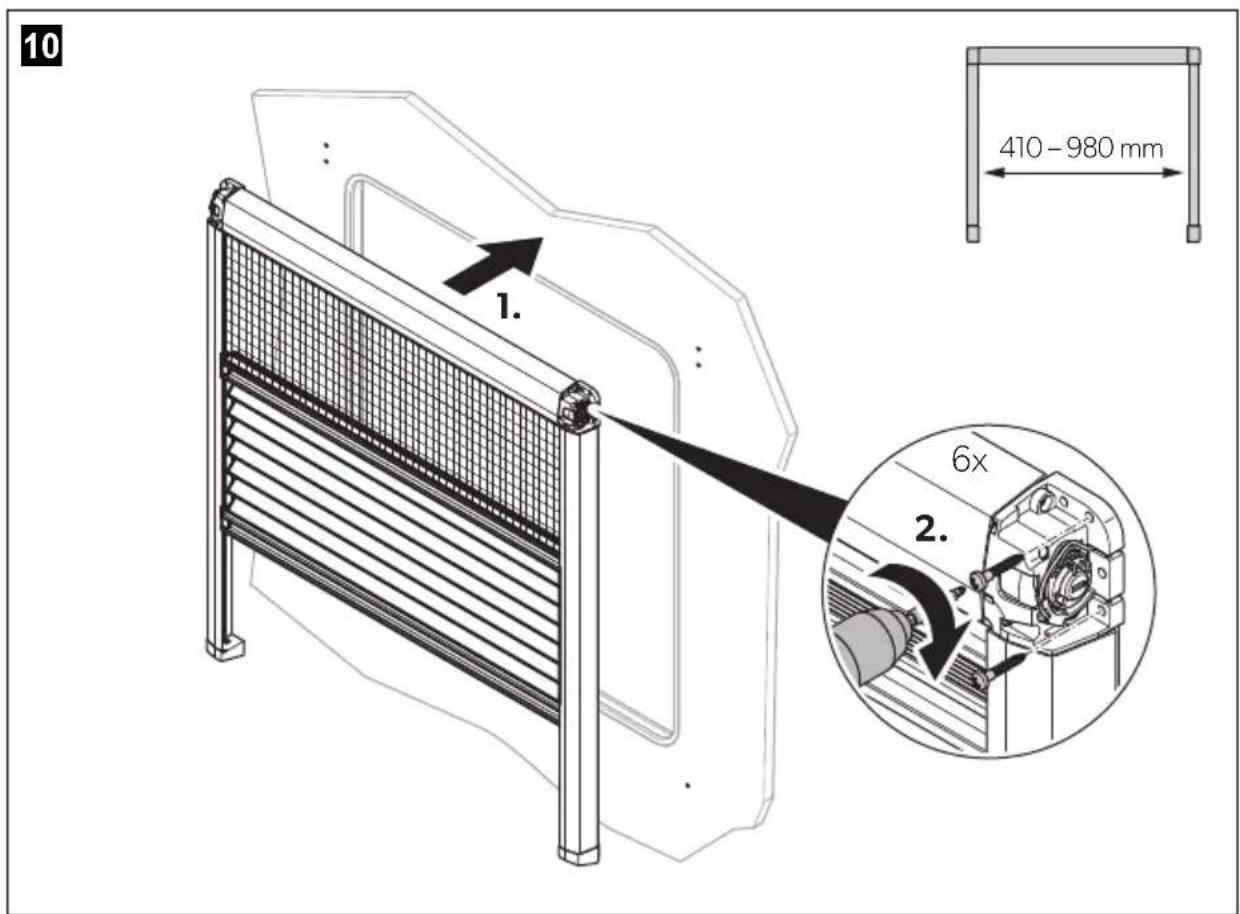

▶ Proceed as illustrated (fig. 2, page 2 to fig. 11, page 7). ▶Align the blind with the window cut-out. ▶Pre-drill if the wall construction requires this. ▶Fasten the blind to the wall with the screws. ▶ Fasten the guide rails to the wall with the screws, at right-angles to the cassette.

All steps with width specifications must only be performed for roller blinds with the corresponding width of over 1 m or under 1 m. For roller blinds with a width over 1 m, the top cassette must be fixed with an additional bracket. Determine the position for fastening the bracket as illustrated (fig. 5, page 4).

3.2 Adjusting the tension of the roller blinds

NOTICE!

Always adjust the tension on the right and left in parallel. Otherwise, damage may be caused to the roller blind in the long term.

Tensioning the insect screen

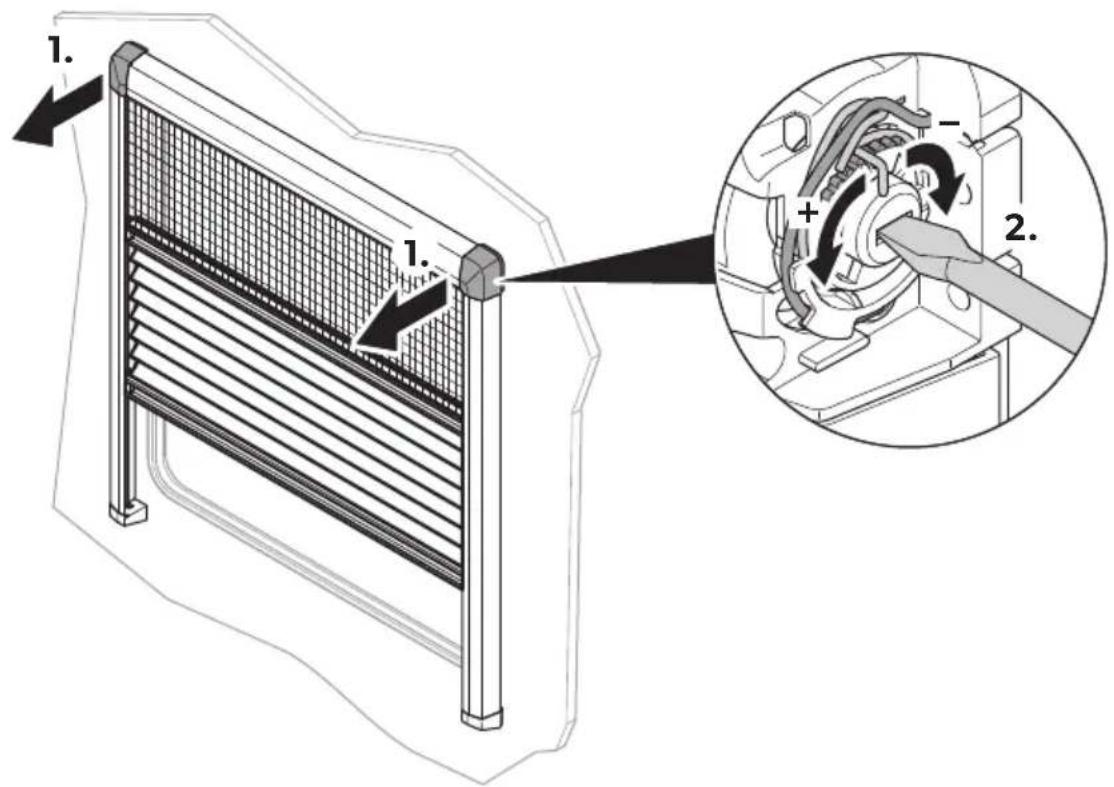

▶ Rotate the central part of the tensioning fitting to increase or decrease the tension of the insect screen (fig. 13, page 8).

Tensioning the blackout pleated blind

Tension the blackout pleated blind as follows:

- to a certain extent by tensioning the cords (fig. 12 1, page 7) with springs (fig. 12 2, page 7), that are located on the right and left of the cassette

or

- at the endpiece of the guide rail (fig. 2, page 2 and fig. 3, page 3)

4 Using the roller blind

4.1 Closing the roller blind

NOTICE! Risk of damage due to a build-up of heat between the roller blind and the window!

In strong sunlight, only close the blackout roller blind two thirds of the way.

Pull the blackout roller blind and the insect screen by the handle strip to the desired position. When the tension has been set correctly the roller blinds stay in the closed position.

4.2 Opening the roller blind

NOTICE! Risk of damage

Never let the blackout roller blind spring back.

Pull the blackout roller blind and the insect screen by the handle strip to the desired, open position. The handle strips of the roller blinds hold firm in every position.

5 Troubleshooting

The insect screen or blackout roller blind cannot be moved.

▶ Check the guide rails for dirt. ▶ Clean the guide rails if necessary.

The tension of the roller blind is insufficient.

▶ Tension the cords at the end of the guide rails or at the springs located on the right and left of the cassette.

6 Cleaning and care

NOTICE!

Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the product.

▶ Occasionally clean the product with a damp cloth. ▶ To prevent material fatigue, do not keep the blind closed for long periods of time. ▶ If the vehicle is stationary for long periods of time, pull up the blackout roller blind until the individual honeycombs are pulled apart slightly. So the honeycomb system is ventilated on both sides to prevent the formation of mildew.

7 Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see the back of the instruction manual for the addresses).

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date • A reason for the claim or description of the fault

8 Technical data

Item in fig. 14, page 8 Description

A Order dimension, width (length of cassette): E – 15 mm

B Order dimension, height (length of guide rail): F + G – 30 mm

C Width above everything: A + 74 mm

D Height above everything: B + 75 mm

E Width of window cut-out (clearance dimensions)

F Height of window cut-out (clearance dimensions)

G Distance between top of the roller blind and window cut-out: approx. 115 mm

8.1 Order dimensions

The product is available in the following order dimensions:

Ref. no.	Order sizeWidth A x height B	C D E F	Weight
9104121246	485 x 700 mm	559 mm	775 mm	500 mm	615 mm	1.10 kg
9104121247	535 x 700 mm	609 mm	775 mm	550 mm	615 mm	1.15 kg
9104121248	585 x 700 mm	659 mm	775 mm	600 mm	615 mm	1.20 kg
9104121249	635 x 700 mm	709 mm	775 mm	650 mm	615 mm	1.25 kg
9104121250	685 x 700 mm	759 mm	775 mm	700 mm	615 mm	1.30 kg
9104121251	735 x 700 mm	809 mm	775 mm	750 mm	615 mm	1.35 kg
9104121252	785 x 700 mm	859 mm	775 mm	800 mm	615 mm	1.45 kg
9104121253	885 x 700 mm	959 mm	775 mm	900 mm	615 mm	1.55 kg
9104121254	985 x 700 mm	1059 mm	775 mm	1000 mm	615 mm	1.65 kg
9104121255	1085 x 700 mm	1159 mm	775 mm	1100 mm	615 mm	1.75 kg
9104121256	1185 x 700 mm	1259 mm	775 mm	1200 mm	615 mm	1.85 kg
9104121257	1285 x 800 mm	1359 mm	875 mm	1300 mm	715 mm	2.01 kg
9104121258	1385 x 800 mm	1459 mm	875 mm	1400 mm	715 mm	2.09 kg
9104121260	1485 x 800 mm	1559 mm	875 mm	1500 mm	715 mm	2.25 kg
9104121262	1585 x 800 mm	1659 mm	875 mm	1600 mm	715 mm	2.41 kg

4.2 Opening the blinds

4.2 Opening the roller blinds

CAUTION! Risk of injury

Never let the blind snap back.
