K8N Neo4 Series MS-7125 (v1.X) ATX Mainboard English / French / German Version G52-M7125X6

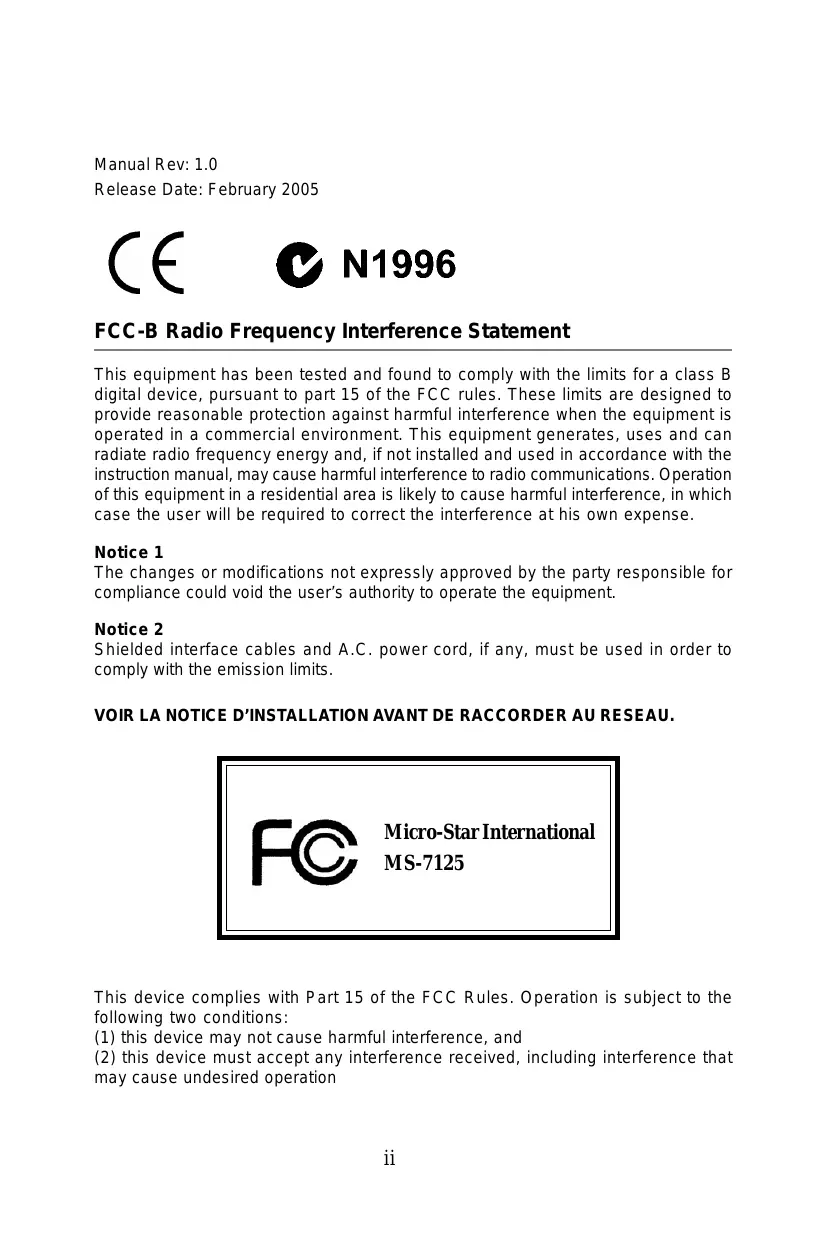

Manual Rev: 1.0 Release Date: February 2005 FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Notice 1 The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Notice 2 Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits. VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU. Micro-Star International MS-7125 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Copyright Notice The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice. Trademarks All trademarks are the properties of their respective owners. AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered trademarks of AMD Corporation. Intel® and Pentium® are registered trademarks of Intel Corporation. PS/2 and OS ®/2 are registered trademarks of International Business Machines Corporation. Microsoft is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/ XP are registered trademarks of Microsoft Corporation. NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the United States and/or other countries. Netware® is a registered trademark of Novell, Inc. Award ® is a registered trademark of Phoenix Technologies Ltd. AMI® is a registered trademark of American Megatrends Inc. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Revision History Revision V1.0 V1.0 Revision History First release of PCB 1.0 with nVIDIA nForce4 Ultra First release for PCB 1.0 with nVIDIA nForce4 Ultra For European manuals Date December 2004 February 2005 iii Technical Support If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. h Visit the MSI homepage & FAQ site for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com.tw & http://www.msi. com.tw/program/service/faq/faq/esc_faq_list.php h Contact our technical staff at: support@msi.com.tw Safety Instructions

Always read the safety instructions carefully. Keep this User’s Manual for future reference. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not cover the openings. 6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical

11. If any of the following situations arises, get the equipment checked by a service

personnel: h The power cord or plug is damaged. h Liquid has penetrated into the equipment. h The equipment has been exposed to moisture. h The equipment has not work well or you can not get it work according to User’s Manual. h The equipment has dropped and damaged. h The equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage

temperature above 60 0 C (140 0 F), it may damage the equipment. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Started Getting Started Thank you for choosing the K8N Neo4 Platinum (MS-7125) v1.X ATX mainboard. The K8N Neo4 Platinum mainboard is based on nVIDIA® nForce™4 Ultra chipset for optimal system efficiency. Designed to fit the advanced AMD® K8 Athlon 64 FX / Athlon 64 processor, the K8N Neo4 Platinum mainboard delivers a high performance and professional desktop platform solution. E-1-3 MS-7125 M-ATX Mainboard Mainboard Specifications CPU h Supports Socket-939 for AMD K8 Athlon 64 FX / Athlon 64 (Socket939) processor h Supports up to Athlon64 3500+, 3800+, or higher CPU (For the latest information about CPU, please visit http://www.msi.com.tw/program/ products/mainboard/mbd/pro_mbd_cpu_support.php) Chipset h nVIDIA nForce4 Ultra - HyperTransport link to the AMD Athlon 64/Athlon 64 FX CPU - HyperTransport supporting speed up to 1GHz (2000MT/s) - Supports PCI Express x16/x1/x2 interface - Two independent SATA controllers, for four drives - Dual Fast ATA-133 IDE controllers - IEEE802.3 nVIDIA MAC for 1000BASE-T Main Memory h Supports dual channel, eight memory banks DDR 266/333/400, using four 184pin DDR DIMMs h Supports a maximum memory size up to 4GB h Supports 2.5v DDR SDRAM DIMM (For the updated supporting memory modules, please visit http://www.msi.com.tw/ program/products/mainboard/mbd/pro_mbd_trp_list.php.) Slots h One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant) h One PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant) h One PCI Express x4 slots (supports PCI Express x2 device only ) h Four 32-bit Master PCI Bus slots, includes one orange slot which is reserved as a communication slot. h Support 3.3V/5V PCI bus Interface On-Board IDE h An IDE controller on the nVIDIA® nForce4 Ultra chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes h Can connect up to 4 IDE devices On-Board SATA h NV RAID supports 4 SATA ports(SATA1-4). SATAII Transfer rate is up to 300MB/s. h Silicon Image’s SATARAID5TM supports another 4 SATA ports(SATA5-8). SATA Transfer rate is up to 150MB/s. (Optional) E-1-4 Getting Started USB Interface h 10 USB ports - Controlled by nForce4 Ultra chipset - 4 ports in the rear I/O, 6 ports via the external bracket NV RAID (Software) h Supports up to 4 SATA and 4 ATA133 Hard drives - RAID 0 or 1, 0+1, JBOD is supported - RAID function available for PATA+SATA H/D drives Silicon Image’s SATARAID5TM (Software) (Optional) h RAID 0 or 1, RAID5, RAID10, and JBOD groups are supported h Support up to 4 SATA devices connected to a single controller Dual LAN (Optional) h Supports dual LAN jacks - 1st LAN supports 10/100/1000 Fast Ethernet by Marvell 88E1111 - 2nd LAN supports 10/100/1000 Fast Ethernet by Marvell 88E8053 IEEE 1394 (Optional) h Supports up to two 1394 ports (rear panel x 1, pinheader x 1). Transfer rate is up to 400Mbps Audio h Chip integrated by Realtek ALC850 - Direct Sound AC97 audio - 7.1 Channel output On-Board Peripherals h On-Board Peripherals include: - 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port - 1 parallel port supporting SPP/EPP/ECP mode - 1 Audio jack(5-in-1), coaxial/fiber SPDIF out - 1 IrDA pinheader - 1 CD-In pinheader - 1 D-Bracket2 pinheader - 2 IEEE1394 ports (Rear * 1 / Front * 1)(Optional) - 10 USB1.1/2.0 ports (Rear * 4 / Front * 6) E-1-5 MS-7125 M-ATX Mainboard BIOS h The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically. h The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. h Supports boot from LAN, USB Device 1.1 & 2.0, and SATA HDD. Dimension h ATX Form Factor (30.4 cm X 24.4 cm) Mounting h 9 mounting holes MSI Reminds You...

1. Now the nVidia nForce4 system driver is only available for Windows

2000 and Windows XP.

2. To create a bootable RAID volume for a Windows 2000 environment,

Microsoft’s Windows 2000 Service Pack 4 (SP4) is required. As the end user cannot boot without SP4, a combination installation CD must be created before attempting to install the operating system onto the bootable RAID volume. To create the combination installation CD, please refer to the following website: http://www.microsoft.com/windows2000/downloads/ servicepacks/sp4/HFdeploy.htm E-1-6 Getting Started DIMM 4 JCI1 Winbond W83627THF DIMM 3 SFAN1 DIMM 2 JPW1 Top : mouse Bottom: keyboard DIMM 1 Mainboard Layout JIR1 Top : Parallel Port FDD1 ATX1 Bottom: COM Port 1394 Port (Optional)

Chapter 2. Hardware Setup

Hardware Setup This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to setup the jumpers on the mainboard. Also, it provides the instructions on connecting the peripheral devices, such as the mouse, keyboard, etc. While doing the installation, be careful in holding the components and follow the installation procedures. E-2-1 MS-7125 M-ATX Mainboard Quick Components Guide CPU, p.2-3 JPW1, p.2-10 CPUFAN1, p.2-16 DDR DIMMs, p.2-7 SFAN1, p.2-16 JCI1, p.2-7 ATX1, p.2-10 JIR1, p.2-20 FDD1, p.2-16 Back Panel I/O, p.2-12 PCI_E3, p.2-26 IDE1/2, p.2-17 PCI_E2, p.2-26 PCI_E1, p.2-26 NBFAN1, p.2-16 SATA1~4, p.2-18 J1394_1, p.2-21 (Optional) PCI Slots 1~4, p.2-26 SW1, p.2-25 JFP2, p.2-19 JAUD1, p.2-20 JCD1, p.2-18 JFP1, p.2-19 SFAN2, SATA5~8, p.2-16 p.2-18 JDB1, p.2-22 E-2-2 JUSB1~3, p.2-19 Hardware Setup Central Processing Unit: CPU The mainboard supports AMD ® Athlon64 processor. The mainboard uses a CPU socket called Socket-939 for easy CPU installation. When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent overheating. If you do not have the heat sink and cooling fan, contact your dealer to purchase and install them before turning on the computer. For the latest information about CPU, please visit http://www.msi.com.tw/program/ products/mainboard/mbd/pro_mbd_cpu_support.php. MSI Reminds You... Overheating Overheating will seriously damage the CPU and system, always make sure the cooling fan can work properly to protect the CPU from overheating. Replacing the CPU While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power cord from grounded outlet first to ensure the safety of CPU. Overclocking This motherboard is designed to support overclocking. However, please make sure your components are able to tolerate such abnormal setting, while doing overclocking. Any attempt to operate beyond product specifications is not recommended. We do not guarantee the damages or risks caused by inadequate operation or beyond product specifications. E-2-3 MS-7125 M-ATX Mainboard CPU Installation Procedures for Socket 939

1. Please turn off the power and

Open Lever unplug the power cord before installing the CPU. Sliding Plate 90 degree

2. Pull the lever sideways away

from the socket. Make sure to raise the lever up to a 90-degree angle. Gold arrow

3. Look for the gold arrow on the

CPU. The gold arrow should point as shown in the picture. The CPU can only fit in the correct orientation. Correct CPU placement Gold arrow

4. If the CPU is correctly installed,

the pins should be completely embedded into the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your mainboard.

5. Press the CPU down firmly into

the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to make sure the CPU is properly and completely embedded into the socket. E-2-4 Gold arrow

Hardware Setup Installing AMD Athlon64 CPU Cooler Set When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent overheating. If you do not have the heat sink and cooling fan, contact your dealer to purchase and install them before turning on the computer.

3. Turn over the mainboard again, and

place the mainboard on the flat surface. Locate the two screw holes of the mainboard.

2. Turn over the mainboard, and install

the backplate to the proper position.

4. Align the retention mechanism and

the backplate. Fix the retention mechanism and the backplate with two screws. retention mechanism E-2-5 MS-7125 M-ATX Mainboard

5. Position the cooling set onto the retention mechanism.

7. Fasten down the lever.

Hook one end of the clip to hook first, and then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism.

8. Make sure the safety hook completely

clasps the fixed bolt of the retention mechanism.

6. Locate the Fix Lever, Safety Hook

and the Fixed Bolt. Lift up the intensive fixed lever.

9. Attach the CPU Fan cable to the CPU

fan connector on the mainboard. Safety Hook Fixed Lever Fixed Bolt MSI Reminds You... While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly. E-2-6 Hardware Setup Memory The mainboard provides 4 slots for 184-pin DDR SDRAM DIMM (Double In-Line Memory Module) modules and supports the memory size up to 4GB. You can install DDR266/ 333/400 modules on the DDR DIMM slots (DDR 1~4). For the updated supporting memory modules, please visit http://www.msi.com.tw/ program/products/mainboard/mbd/pro_mbd_trp_list.php. DIMM1~4 (from left to right) Introduction to DDR SDRAM DDR (Double Data Rate) SDRAM is similar to conventional SDRAM, but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM modules rather than 168-pin DIMM modules used by SDR SDRAM. High memory bandwidth makes DDR an ideal solution for high performance PC, workstations and servers. DIMM Module Combination Install at least one DIMM module on the slots. Each DIMM slot supports up to a maximum size of 1GB. Users can install either single- or double-sided modules to meet their own needs. Please note that each DIMM can work respectively for singlechannel DDR, but there are some rules while using dual-channel DDR (Please refer to the suggested DDR population table below). Users may install memory modules of different type and density on different-channel DDR DIMMs. However, the same type and density memory modules are necessary while using dual-channel DDR, or instability may happen. Please refer to the following table for detailed dual-channel DDR. Other combination not listed below will function as single-channel DDR. E-2-7 MS-7125 M-ATX Mainboard DIMM Module Combination Install at least one DIMM module on the slots. You can install either single- or doublesided modules in any order to meet your own needs. Memory modules can be installed in any combination as follows: Slot DDR 1 (Bank 0 & 1) DDR 2 (Bank 2 & 3) Memory Module Total Memory S/D 64MB~1GB S/D 64MB~1GB Maximum System Memory Supported S: Single Side 64MB~2GB D: Double Side Installing DDR Modules

The DDR DIMM has only one notch on the center of module. The module will only fit in the right orientation. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the socket. The plastic clip at each side of the DIMM slot will automatically close. Volt Notch MSI Reminds You... You can barely see the golden finger if the module is properly inserted in the socket. E-2-8 Hardware Setup Power Supply The mainboard supports ATX power supply for the power system. Before inserting the power supply connector, always make sure that all components are installed properly to ensure that no damage will be caused. ATX 24-Pin Power Connector: ATX1 This connector allows you to connect an SSI power supply. To connect the SSI power supply, make sure the plug of the power supply is pin 13 inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector. You may use the 20-pin ATX power supply or 24-pin SSI power supply as you like. If you’d like to use the ATX power supply, please plug your power supply along with pin 1 & pin 13 (refer to the image at the right hand). There is also a foolproof design on pin 11, 12, 23 & 24 to avoid wrong installation. pin 12 Pin Definition

GND GND 12V 12V MSI Reminds You...

1. These two connectors connect to the ATX power supply and have to

work together to ensure stable operation of the mainboard.

2. Power supply of 350 watts (and above) is highly recommended for

3. For ATX 12V power connection, it should be greater than 18A.

E-2-9 MS-7125 M-ATX Mainboard Important Notification about Power Issue NForce chipset is very sensitive to ESD (Electrostatic Discharge), therefore this issue mostly happens while the users intensively swap memory modules under S5 (power-off) states, and the power code is plugged while installing modules. Due to several pins are very sensitive to ESD, so this kind of memory-replacement actions might cause system chipset unable to boot. Please follow the following solution to avoid this situation. Unplug the AC power cable (shown in figure 1) or unplug the ATX1 & JPW1 power connectors (shown in figure 2 & figure 3) before the 1st installation or during system upgrade procedure. Figure 1: Unplug the AC power cable Figure 2: Unplug the ATX1 power connector E-2-10 Figure 3: Unplug the JPW1 power connector Hardware Setup Back Panel The back panel provides the following connectors: LAN LAN (Optional) (Optional) Parallel Mouse Keyboard COM Port 1394 Port SPDIF (Optional) Out (Coaxial) USB Ports L-In RS-Out L-Out CS-Out Mic SPDIF Out (Optical) Mouse Connector (Green) / Keyboard Connector (Purple) The mainboard provides a standard PS/2® mouse/keyboard mini DIN connector for attaching a PS/2® mouse/keyboard. You can plug a PS/2® mouse/keyboard directly into this connector. The connector location and pin assignments are as follows: Pin Definition

PS/2 Mouse / Keyboard (6-pin Female) PIN SIGNAL

Mouse/Keyboard Data Mouse/Keyboard data No connection GND Ground VCC +5V Mouse/Keyboard Clock Mouse/Keyboard clock No connection DESCRIPTION IEEE1394 Port (Optional) The back panel provides one standard IEEE 1394 port. The standard IEEE1394 port connects to IEEE1394 devices without external power. The IEEE1394 high-speed serial bus complements USB by providing enhanced PC connectivity for a wide range of devices, including consumer electronics audio/video (A/V) appliances, storage peripherals, other PCs, and portable devices. IEEE1394 Port E-2-11 MS-7125 M-ATX Mainboard Serial Port Connector The mainboard offers one 9-pin male DIN connector as the serial port. The port is a 16550A high speed communication port that sends/receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector. Pin Definition

Data Carry Detect Serial In or Receive Data Serial Out or Transmit Data Data Terminal Ready) Ground Data Set Ready Request To Send Clear To Send Ring Indicate USB Connectors The mainboard provides two OHCI (Open Host Controller Interface) Universal Serial Bus roots for attaching USB devices such as keyboard, mouse or other USB-compatible devices. You can plug the USB device directly into the connector. USB Port Description

D1P Differential Pair 1+

D1N Differential Pair 1-

D3P Differential Pair 3+

D3N Differential Pair 3- Audio Port Connectors The left 3 audio jacks are for 2-channel mode for stereo speaker output: Line Out is a connector for Speakers or Headphones. Line In is used for external CD player, Tape player, or other audio devices. Mic is a connector for microphones. However, there is an advanced audio application provided by Realtek ALC850 to offer support for 7.1-channel audio operation and can turn rear audio connectors from 2-channel to 4-/5.1-/7.1 channel audio. S/PDIF Out-Coaxial Line In ( in 7.1CH / 6CH) Line Out MIC Rear Speaker Out (in 7.1CH / 6CH / 4CH) Center/Subwoofer Speaker Out ( in 7.1CH / 6CH) S/PDIF Out-Optical (in 7.1CH / 6CH) E-2-13 MS-7125 M-ATX Mainboard Parallel Port Connector: LPT1 The mainboard provides a 25-pin female centronic connector as LPT. A parallel port is a standard printer port that supports Enhanced Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.

The CPUFAN1 (processor fan), SFAN1 (system fan 1), SFAN2 (system fan 2) and NBFAN1 (NorthBridge Chipset fan) support system cooling fan with +12V. It supports three-pin head connector. When connecting the wire to the connectors, always take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control. +12V SENSOR SFAN1 SFAN2 GND +12V Sensor NBFAN1 MSI Reminds You...

1. Always consult the vendors for proper CPU cooling fan.

2. CPUFAN1 supports fan control. You can install Core Center utility that will automatically control the CPU fan speed according to the actual CPU temperature.

3. Please refer to the recommended CPU fans at AMD ® official

website. E-2-15 MS-7125 M-ATX Mainboard Hard Disk Connectors: IDE1 / IDE2 The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 function. You can connect up to four hard disk drives, CD-ROM, or other devices. IDE2 IDE1 IDE1 (Primary IDE Connector) The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive. You must configure second hard drive to Slave mode by setting the jumper accordingly. IDE2 (Secondary IDE Connector) IDE2 can also connect a Master and a Slave drive. MSI Reminds You... If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting instructions. Chassis Intrusion Switch Connector: JCI1 This connector is connected to a 2-pin chassis switch. If the chassis is opened, the switch will be short. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record. E-2-16 GND CINTRU

JCI1 Hardware Setup Serial ATA/Serial ATA RAID Connectors controlled by nForce4 Ultra: SATA1 / SATA2 / SATA3 / SATA4; Serial ATA/Serial ATA RAID Connectors controlled by Silicon Image’s SATARAID5TM: SATA5 / SATA6 / SATA7 / SATA8 (Optional) The Southbridge of this mainboard is nForce4 Ultra which supports four serial ATA connectors SATA1~SATA4. Silicon Image’s SATARAID5TM of this mainboard supports another four serial ATA connectors SATA5~SATA8. SATA1~SATA8 are dual high-speed Serial ATA interface ports. Each supports 1st generation serial ATA data rates of 300MB/s(SATA1-4)/150 MB/s(SATA5-8). Both connectors are fully compliant with Serial ATA 1.0 specifications. Each Serial ATA connector can connect to 1 hard disk device. Please refer to the nVidia RAID Introduction & Silicon Image RAID Introduction for detail software installation procedure. SATA2 SATA1~ SATA8 Pin Definition SATA6

SATA3 Serial ATA cable (Optional) Take out the dust cover and connect to the hard disk devices Connect to serial ATA ports MSI Reminds You... Please do not fold the serial ATA cable in a 90-degree angle, which will cause the loss of data during the transmission. CD-In Connector: JCD1 The connector is for CD-ROM audio connector. JCD1

E-2-17 MS-7125 M-ATX Mainboard Front Panel Connectors: JFP1 / JFP2 The mainboard provides two front panel connectors for electrical connection to the front panel switches and LEDs. JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide. JFP1 Pin Definition Power Power LED Switch JFP1

Hard disk LED pull-up MSG LED pull-up

RSVD_DNU Hard disk active LED MSG LED pull-up Reset Switch low reference pull-down to GND Power Switch high reference pull-up Reset Switch high reference pull-up Power Switch low reference pull-down to GND Reserved. Do not use. Speaker JFP2

BUZ+ BUZSPK+ Front USB Connectors: JUSB1 / JUSB2 / JUSB3 The mainboard provides three standard USB 2.0 pin headers JUSB1 & JUSB2 & JUSB3. USB 2.0 technology increases data transfer rate up to a maximum throughput of 480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting highspeed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like. JUSB1 & JUSB2 & JUSB3 Pin Definition

(USB 2.0) Connected to JUSB1, JUSB2, or JUSB3 (the USB pinheader in YELLOW color) PIN SIGNAL PIN SIGNAL

USBOC USB 2.0 Bracket (Optional) MSI Reminds You... Note that the pins of VCC and GND must be connected correctly, or it may cause some damage. E-2-18 Hardware Setup Front Panel Audio Connector: JAUD1 The JAUD1 front panel audio connector allows you to connect to the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide. Pin Definition JAUD1

Front panel microphone input signal Ground used by analog audio circuits Microphone power Filtered +5V used by analog audio circuits Right channel audio signal to front panel Right channel audio signal return from front panel Reserved for future use to control headphone amplifier No pin Left channel audio signal to front panel Left channel audio signal return from front panel MSI Reminds You... If you don’t want to connect to the front audio header, pins 5 & 6, 9 & 10 have to be jumpered in order to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on the back panel will not function.

IrDA Infrared Module Header: JIR1 The connector allows you to connect to IrDA Infrared module. You must configure the setting through the BIOS setup to use the IR function. JIR1 is compliant with Intel® Front Panel I/O Connectivity Design Guide. JIR1 Pin Definition

JIR1 Pin Signal Pin Signal

Ground Connected to J1394 (the 1394 pinheader in GREEN color) IEEE1394 Bracket (Optional) Foolproof design E-2-20 Hardware Setup D-Bracket™ 2 Connector: JDB1 The mainboard comes with a JDB1 connector for you to connect to D-Bracket™ 2. DBracket™ 2 is a USB Bracket that supports both USB1.1 & 2.0 spec. It integrates four LEDs and allows users to identify system problem through 16 various combinations of LED signals. Pin Definition Pin

Signal DBG1 (high for green color) DBR1 (high for red color) DBG2 (high for green color) DBR2 (high for red color) DBG3 (high for green color) DBR3 (high for red color) DBG4 (high for green color) DBR4 (high for red color) Key

Connected to JDB1 Connected to JUSB1, JUSB2 or JUSB3 (the USB pinheader in YELLOW color) D-Bracket™ 2 (Optional) LEDs E-2-21 MS-7125 M-ATX Mainboard D-Bracket™ 2 is an external USB bracket integrating four Diagnostic LEDs, which use graphic signal display to help users understand their system. The LEDs provide up to 16 combinations of signals to debug the system. The 4 LEDs can debug all problems that fail the system, such as VGA, RAM or other failures. This special feature is very useful for the overclocking users. These users can use the feature to detect if there are any problems or failures. D-Bracket™ 2 supports both USB 1.1 & 2.0 specification.

Description System Power ON The D-LED will hang here if the processor is damaged or not installed properly. Early Chipset Initialization Memory Detection Test Testing onboard memory size. The D-LED will hang if the memory module is damaged or not installed properly. Decompressing BIOS image to RAM for fast booting. Initializing Keyboard Controller. Testing VGA BIOS This will start writing VGA sign-on message to the screen. E-2-22 Hardware Setup D-Bracket™ 2

Description Processor Initialization This will show information regarding the processor (like brand name, system bus, etc...) Testing RTC (Real Time Clock) Initializing Video Interface This will start detecting CPU clock, checking type of video onboard. Then, detect and initialize the video adapter. BIOS Sign On This will start showing information about logo, processor brand name, etc... Testing Base and Extended Memory Testing base memory from 240K to 640K and extended memory above 1MB using various patterns. Assign Resources to all ISA. Initializing Hard Drive Controller This will initialize IDE drive and controller. Initializing Floppy Drive Controller This will initialize Floppy Drive and controller. Boot Attempt This will set low stack and boot via INT 19h. Operating System Booting E-2-23 MS-7125 M-ATX Mainboard Button The motherboard provides the following button for you to set the computer’s function. This section will explain how to change your motherboard’s function through the use of button. Clear CMOS Button: SW1 There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the SW1 (Clear CMOS Button ) to clear data. Press the button in the middle of the connector top side to clear the data. SW1 E-2-24 Hardware Setup Slots The mainboard provides one PCI Express x16 slot, one PCI Express x1 slot, one PCI Express x4 slot and four 32-bit PCI bus slots. PCI Express Slots The PCI Express slots, as a high-bandwidth, low pin count, serial, interconnect technology. You can insert the expansion cards to meet your needs. When adding or removing expansion cards, make sure that you unplug the power supply first. PCI Express architecture provides a high performance I/O infrastructure for Desktop Platforms with transfer rates starting at 2.5 Giga transfers per second over a PCI Express x1 lane for Gigabit Ethernet, TV Tuners, 1394 controllers, and general purpose I/O. Also, desktop platforms with PCI Express Architecture will be designed to deliver highest performance in video, graphics, multimedia and other sophisticated applications. Moreover, PCI Express architecture provides a high performance graphics infrastructure for Desktop Platforms doubling the capability of existing AGP8x designs with transfer rates of 4.0 GB/s over a PCI Express x16 lane for graphics controllers, while PCI Express x1 supports transfer rate of 250 MB/s. PCI Express x16 slot PCI Express x1 slot PCI Express x4 slot (supports PCI-E x2 device only) PCI (Peripheral Component Interconnect) Slots The PCI slots allow you to insert the expansion cards to meet your needs. When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to make any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration. The orange PCI slot (PCI4) also works as a communcation slot, which allows you to insert the communcation card. PCI Slots E-2-25 MS-7125 M-ATX Mainboard PCI Interrupt Request Routing The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus INT A# ~ INT D# pins as follows: Order 1 Order 2 Order 3 Order 4 PCI Slot 1 INT A# INT B# INT C# INT D# PCI Slot 2 INT B# INT C# INT D# INT A# PCI Slot 3 INT C# INT D# INT A# INT B# PCI Slot 4 INT D# INT A# INT B# INT C# E-2-26 BIOS Setup

Chapter 3. BIOS Setup

BIOS Setup This chapter provides information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when: ” An error message appears on the screen during the system booting up, and requests you to run SETUP. ” You want to change the default settings for customized features. MSI Reminds You...

1. The items under each BIOS category described in this chapter are

under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only. 2. While booting up, the BIOS version is shown in the 1st line appearing after the memory counting. It is usually in the format: example: W7125NMS V1.0B32 061704 where: 1st digit refers to BIOS maker as A=AMI(R); W=AWARD(R) 2nd - 5th digit refers to the model number. 6th digit refers to nVIDIA chipset. 7th - 8th digit refers to the customer, MS=all standard customers. V1.0 refers to the BIOS version. 061704 refers to the date this BIOS is released. E-3-1 MS-7125 M-ATX Mainboard Entering Setup Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> key to enter Setup. Press DEL to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. Selecting the First Boot Device You are allowed to select the 1st boot device without entering the BIOS setup utility by pressing <F11>. When the same message as listed above appears on the screen, press <F11> to trigger the boot menu. The POST messages might pass by too quickly for you to respond in time. If so, restart the system and press <F11> after around 2 or 3 seconds to activate the boot menu similar to the following. Select First Boot Device Floppy IDE-0 CDROM : 1st Floppy : IBM-DTLA-307038

: ATAPI CD-ROM DRIVE 40X M

[Up/Dn] Select [RETURN] Boot [ESC] cancel The boot menu will list all the bootable devices. Select the one you want to boot from by using arrow keys, then press <Enter>. The system will boot from the selected device. The selection will not make changes to the settings in the BIOS setup utility, so next time when you power on the system, it will still use the original first boot device to boot up. MSI Reminds You... The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only. E-3-2 BIOS Setup Control Keys

<Enter> <Esc> <+/PU> <-/PD> <F5> <F7> <F10> Move to the previous item Move to the next item Move to the item in the left hand Move to the item in the right hand Select the item Jumps to the Exit menu or returns to the main menu from a submenu Increase the numeric value or make changes Decrease the numeric value or make changes Previous Values Load Optimized Defaults Save all the CMOS changes and exit Getting Help After entering the Setup menu, the first menu you will see is the Main Menu. Main Menu The main menu lists the setup functions you can make changes to. You can use the arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted setup function is displayed at the bottom of the screen. Sub-Menu If you find a right pointer symbol (as shown in the right view) appears to the left of certain fields that means a sub-menu can be launched from this field. A sub-menu contains additional options for a field parameter. You can use arrow keys ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. General Help <F1> The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen. E-3-3 MS-7125 M-ATX Mainboard The Main Menu Once you enter Phoenix-Award® BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from twelve setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. Standard CMOS Features Use this menu for basic system configurations, such as time, date etc. Advanced BIOS Features Use this menu to setup the items of AWARD® special enhanced features. Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system’s performance. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. Power Management Setup Use this menu to specify your settings for power management. PNP/PCI Configurations This entry appears if your system supports PnP/PCI. H/W Monitor Use this menu to specify your settings for hardware. Cell Menu Use this menu to specify your settings for CPU/AGP frequency/voltage control and overclocking. E-3-4 BIOS Setup Load Optimized Defaults Use this menu to load the BIOS values for the best system performance, but the system stability may be affected. BIOS Setting Password Use this menu to set the password for BIOS. Save & Exit Setup Save changes to CMOS and exit setup. Exit Without Saving Abandon all changes and exit setup. E-3-5 MS-7125 M-ATX Mainboard Cell Menu The items in Cell Menu includes some important settings of CPU, AGP, DRAM and overclocking functions. MSI Reminds You... Change these settings only if you are familiar with the chipset. Current CPU / DDR Clock These two items show the current clocks of CPU & DDR. Read-only. High Performance Mode This field allows you to select the DDR timing setting. Setting options: [Manual], [Optimized]. Aggressive timing This item allows you to enable or disable the memory clock. When [Enabled] is selected, the timing delay of memory will be shorten to increase the performance. Setting options: [Enabled], [Disabled]. E-3-6 BIOS Setup Dynamic Overclocking Dynamic Overclocking Technology is the automatic overclocking function, included in the MSITM’s newly developed CoreCellTM Technology. It is designed to detect the load balance of CPU while running programs, and to adjust the best CPU frequency automatically. When the motherboard detects CPU is running programs, it will speed up CPU automatically to make the program run smoothly and faster. When the CPU is temporarily suspending or staying in the low load balance, it will restore the default settings instead. Usually the Dynamic Overclocking Technology will be powered only when users' PC need to run huge amount of data like 3D games or the video process, and the CPU frequency need to be boosted up to enhance the overall performance. Setting options: [Disabled] [Private] [Sergeant] [Captain] [Colonel] [General] [Commander] Disable Dynamic Overclocking function. 1st level of overclocking, increasing the CPU frequency by 1%. 2nd level of overclocking, increasing the CPU frequency by 3%. 3rd level of overclocking, also the default value of "Load High Performance Defaults", increasing the CPU frequency by 5%. 4th level of overclocking, increasing the CPU frequency by 7%. 5th level of overclocking, increasing the CPU frequency by 9%. 6th level of overclocking, increasing the CPU frequency by 11%. MSI Reminds You... Even though the Dynamic Overclocking Technology is more stable than manual overclocking, basically, it is still risky. We suggest user to make sure that your CPU can afford to overclocking regularly first. If you find the PC appears to be unstable or reboot incidentally, it's better to disable the Dynamic Overclocking or to lower the level of overclocking options. By the way, if you need to conduct overclocking manually, you also need to disable the D.O.T Ranger first. Adjust CPU FSB Frequency This item allows you to select the CPU Front Side Bus clock frequency (in MHz). Select the number between [200]~[400] for needed frequency. HT Frequency This setting specifies the maximum operating frequency of the link’s transmitter clock. Setting options: [1x], [1.5x], [2x], [2.5x], [3x], [4x], [5x]. HT Width This field allows you to set the HT Width between CPU & Chip.↑ mark means Chip to CPU HT Width. And ↓ mark means CPU to Chip HT Width. Setting options: [ ↓ 8 ↑ 8], [ ↓ 16 ↑ 8], [↓ 8 ↑16], [ ↓16 ↑16]. CPU Spread Spectrum This setting is used to enable or disable the CPU Spread Spectrum feature. When overclocking the CPU, always set it to [Disabled]. Setting options: [Center Spread], [Disabled]. E-3-7 MS-7125 M-ATX Mainboard SATA Spread Spectrum This setting is used to enable or disable the SATA Spread Spectrum feature. Setting options: [Disabled], [Down Spread]. PCIE Spread Spectrum This setting is used to enable or disable the CPU Spread Spectrum feature. When overclocking the CPU, always set it to [Disabled]. Setting options: [Disabled], [Down Spread]. PCIE Clock The system board designer selects whether the PCIE clock is tightly synchronized with the CPU clock or is asynchronous. Setting options: [100MHz]~[145MHz]. SSE/ SSE2 Instructions This setting disables/enables the SSE/SSE2 Instructions. The Streaming SIMD Extensions (SSE) were introduced in the Pentium III processor. The SSE extensions consist of a new set of instructions and a new set of registers. These instructions and registers are designed to allow Single-Instruction Multiple-Data (SIMD) computations to be made on single-precision floating-point numbers. The Streaming SIMD Extensions 2 (SSE2) were introduced in the Pentium 4 and Intel Xeon processors. They consist of a new set of instructions that operate on the XXM and MXCSR registers and perform SIMD operations on double-precision floating-point values and on integer values.Several of these new SSE/SSE2 instructions also operate in the MMX registers. Setting options: [Enabled], [Disabled]. Cool’n’Quiet control This feature is especially designed for AMD Athlon processor, which provides a CPU temperature detecting function to prevent your CPU’s from overheating due to the heavy working loading. Setting options: [Disabled], [Enabled]. E-3-8 BIOS Setup Adjust CPU Ratio This item lets you adjust the CPU ratio. Setting to [Startup] enables the CPU running at the fastest speed which is detected by system. Setting options are: [Startup], [x4]~ [x12]. Adjust CPU VID This item lets you adjust the CPU VID. Setting to [Startup] enables the CPU running at the default VID which is detected by system. Setting options are: [Startup], [0.825V], [0. 850V],[0.875V],~, [1.550V]. CPU Voltage This feature allows you to trim the voltage of CPU. Setting options are: [By CPU VID], [Over VID 3.3%], [Over VID 5.0%],[Over VID 8.3%]. Memory Voltage Adjusting the DDR voltage can increase the DDR speed. Any changes made to this setting may cause a stability issue, so changing the DDR voltage for long-term purpose is NOT recommended. Setting options are: [Auto], [2.50V]~[2.85V]. NF4 Voltage NV4 voltage is adjustable in the field. Setting options are: [1.50V]~[1.85V]. MSI Reminds You... The settings shown in different color in CPU Voltage, Memory Voltage and NF4 Voltage help to verify if your setting is proper for your system. Gray: Default setting. Yellow: High performance setting. Red: Not recommended setting and the system may be unstable. Changing CPU VID, CPU Voltage, Memory Voltage and NF4 Voltage may result in the instability of the system; therefore, it is NOT recommended to change the default setting for long-term usage. E-3-9 Manuel d’Utilisation K8N Neo4 Platinum (MS-7125 v1.X) Carte Mère ATX Français F-1
