USER MANUAL KH-9I39CS00-EU SHARP

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local city offices, your household waste disposal service or the shop where you purchased the product.

Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Energy saving

Installation warnings

DESCRIPTION OF THE COOKTOP

Dear customer,

Energy saving

Appliance description.

Cooking surface and control panel of heaters

Operation of the appliance

Switching the appliance on and off

Switching the cooking zones on and off

Smart Pause

Residual heat indicator.

Safety switch off function

Child Lock

Timer function

Buzzer

Boost Function

Special Cooking Function

Special Cooking Modes

Boiling Function

Frying Function

Keep-Warm Function

Chocolate-Melting Function

Smart Pause

Bridge Zone

Hints and tips

Installation of the appliance

Installation safety

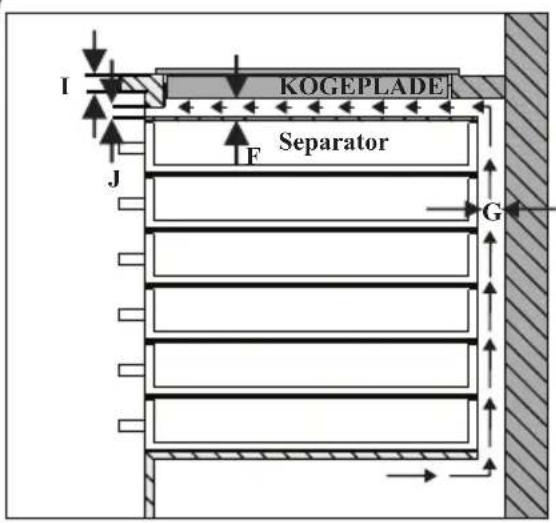

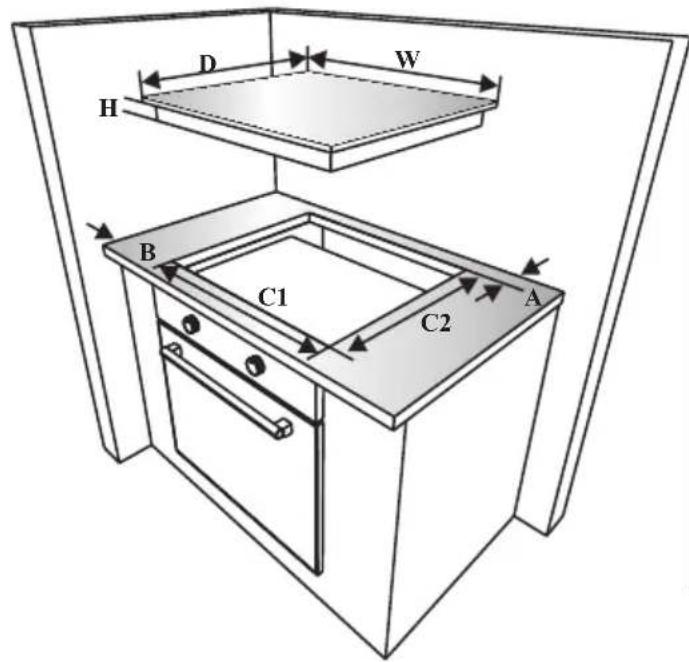

Fitting the hob into a worktop

Making an electrical connection

Electrical connection diagram

Error codes

SAFETY WARNINGS

READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP THEM IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.

THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. WHILE YOU ARE READING THE OPERATING MANUAL, PAY SPECIAL ATTENTION TO THE EXPRESSIONS THAT HAVE IMAGES.

General Safety Warnings

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user

maintenance shall not be done by children without supervision.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under the age of 8 should stand away from the appliance unless continuously supervised.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water. Switch off the appliance and cover the flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: If the surface is cracked, switch the appliance off to avoid the possibility of electric shock.

- WARNING: If the surface is cracked, switch the appliance off to avoid the possibility of electric shock.

- For induction hobs, metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can become hot.

- For induction hobs, after use, switch off the hob element by using its control and do not rely on the pan detector.

- For hobs incorporating a lid, any spillage should be removed from the lid before opening. Additionally, the hob surface should be allowed to cool before closing the lid.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surfaces since they can scratch the surface, which can cause the glass to shatter or cause damage to the surface.

- Do not use steam cleaners to clean the appliance.

- Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work must be carried out only by authorized service technicians. Installation and repair work that is carried out by unauthorized technicians may endanger you. Altering or modifying the specifications of the appliance in any way is hazardous.

- Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the requirements of the appliance are compatible. The requirements for this appliance are stated on the label.

- CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment or room heating.

- CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment or room heating.

• All possible security measures have been taken to ensure your safety. Since the glass may break, you should be careful while cleaning it to avoid scratching. Avoid hitting or knocking on the glass with accessories.
• Ensure that the supply cord is not wedged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to prevent a hazard.

Installation Warnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorized technician and put into use. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorized persons.
• When you unpack the appliance, make sure that it was not damaged during transportation. In the event of any defect, do not use the appliance and contact a qualified service agent immediately. As the materials used for packaging (nylon, staplers, styrofoam, etc.) may cause harmful effects to children, they should be collected

and disposed of immediately.

• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow, etc.
• The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of a minimum of 100°C. The temperature of the bottom surface of the hob may increase during operation. Therefore, a board must be installed underneath the product.

- During use

• Do not put flammable or combustible materials in or near the appliance when it is in operation.
• Do not leave the cooker while cooking with solid or liquid oils. They may catch fire as a result of extreme heating. Never pour water on flames that are caused by oil. Cover the saucepan or frying pan with its cover to choke the flame that has arisen in this case and turn the cooker off.
• Always position pans over the centre of the cooking zone, and turn the handles to a safe position so they cannot be knocked or grabbed.
• If you are not going to use the appliance for a long time, remove the plug from the socket. Keep the main control switched off. Additionally, when not using the appliance, shut the gas valve off.
• Make sure the appliance control knobs are always in the "0" (stop)

position when it is not being used.

During cleaning and maintenance

• Always turn the appliance off before operations such as cleaning or maintenance. You can do this by unplugging the appliance or turning off the main switches.
• Do not remove the control knobs to clean the control panel. To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and only call our authorized service agents should such a need arise.

DESCRIPTION OF THE HOB

Dear Customer,

Please read the instructions in this user guide before using the hob and keep them for future reference.

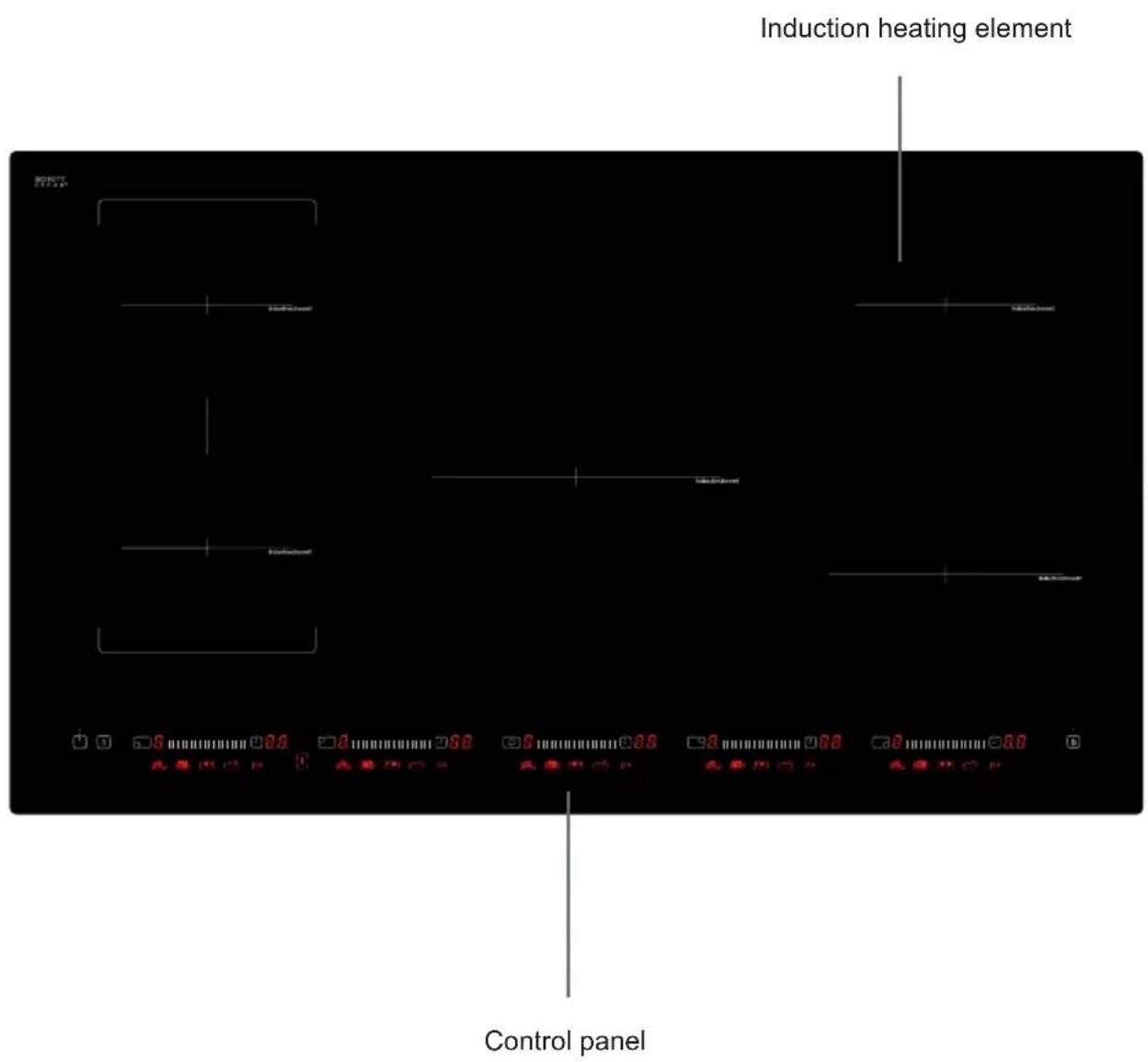

Cooking Surface for 5 heaters:

Note: The appearance of your hob may differ from the model shown above due to its configuration.

Control Panel heaters:

1- On/off key 2- Smart pause selection 3- Heater display 4- Sliding button 5- Timer selection 6- Timer display 7- Chocolate melting function selection

8- Frying function selection 9- Keep warm function selection 10- Boiling function selection 11- Boost 12- Bridge function selection 13- Key lock 14- Key lock indicator

Use the induction cooking zones with suitable cookware.

After the power supply is turned on, all displays light up for a moment. When this time is over, the hob goes into stand-by mode and is ready for operation.

The hob is controlled with electronic sensors which are operated by touching the related sensors. Each sensor activation is followed by a sound signal (buzzer).

Switching the appliance on:

Switch the hob on by pressing the ON/OFF key (A). The heater displays show a static "0", the mode function and bridge function indicators illuminate, and the bottom right dots blink. (If no cooking zone is selected within 20 seconds, the hob will automatically turn off.)

Switching the appliance off:

Switch the hob off at any time by pressing the ON/OFF key.

The ON/OFF key always has priority in the switch off function.

The mode function and bridge function indicators will no longer illuminate.

Switching the cooking zones on:

Set the heat level by touching

the related heater sliding button. A static dot will be shown on the selected heater display, and the blinking dots on all other heater displays will no longer illuminate.

Now the element is ready to use. For fast boil times, select the desired cooking level, then press the "P" button to activate the Boost function.

Switching the Cooking Zones Off

Use the related heater sliding button, turn the temperature down to "0". (Pressing the right and left of the slider button simultaneously also turns the temperature to "0").

If the cooking zone is hot, "H" will be displayed instead of "0".

Switching all the cooking zones off:

To turn all the cooking zones off at once, press the lock key.

In stand-by mode, an "H" appears on all cooking zones which are hot.

Residual heat indicator:

The residual heat indicator shows that the ceramic glass has a dangerous touch temperature in the area of the cooking zone.

After switching off the cooking zone, the corresponding display shows an "H" until the assigned cooking zone temperature reaches a safe level.

Safety switch-off function:

Each cooking zone will be switched off after a defined maximum operating time if the heat setting is not changed. Any change in the cooking zone resets the maximum operating time to the initial value of the operating time limit. The maximum operating time depends on the selected temperature level.

Heat setting Safety switch off after
1 - 2 6 Hours
3 - 4 5 Hours
5 4 Hours
6 - 9 1,5 Hours

Child Lock

The child lock function can be activated after switching the control on. To activate the child lock, use the front left heater timer button and rear left heater timer button. Simultaneously press the front left heater timer button and rear left heater timer button for at least 2 seconds until 'L' is displayed.

"L" meaning LOCKED will appear in all heater displays and the control cannot be changed. (If a cooking zone is hot, "L" and "H" will be displayed alternately.)

The hob will remain locked until it is unlocked, even if the control has been switched on and off.

To deactivate the child lock, use the front left heater timer button and rear left heater timer button. Simultaneously press the front left heater timer button and rear left heater timer button for at least 2 seconds until 'L' disappears from the display and the hob switches off.

Key Lock

The key lock function is for blocking and setting the appliance into safe mode during operation. Touch modifications such as increasing heat settings and others should not be possible. Only switching the appliance off is possible.

The lock function becomes active if the Key Lock button 🔒 is pressed for at least 2 seconds. This operation is acknowledged by a buzzer. After a successful operation of more than 2 seconds, the Key Lock Indicator flashes and the heater becomes locked.

Timer function:

The timer function is carried out in two versions:

Minute minder timer (1 to 99 minutes):

The minute minder timer can be adjusted on the center timer settings button 🏠 and operated if the cooking zones are switched off. The timer display shows "00" and a blinking indicator.

Use the Timer and Sliding Buttons to increase or decrease the time. The adjustment range

is between 0 and 99 minutes. If there is no operation within 10 seconds, the minute minder timer will be set, and the blinking dot will disappear in cases where a center cooking zone timer is set and the center cooking set time is less than the minute minder. After the timer is set, the time counts down according to the adjustment.

When the time is over, a signal sounds and the timer display blinks. The sound signal will stop automatically after 30 seconds and/or by operating any key.

The minute minder timer can be changed or switched off at any time by using the Timer Sliding Buttons 🔊

Switching off the hob by touching at any time will also switch off the minute minder timer.

Cooking zone timer (1 to 99 minutes):

When the hob is switched on, an independent timer can be programmed for every cooking zone.

Select the temperature setting and activate the related heater timer setting button; the timer can be programmed to switch off a cooking zone. 10 seconds after the last operation, the timer display will change to the timer that will run out next (in cases where a Minute-minder timer is set for the center heater).

When the timer has run down, a signal will sound, the timer display will show "00" and

Buzzer:

While the hob is in operation, the following activities will be signalled by means of a buzzer:

Normal key activation with a short sound signal

Continuous operation of keys over a longer period of time (10 seconds) with a longer, intermittent sound signal.

Boost Function:

To use this function, set the desired cooking level, then press the "P" (Boost) button. The Boost function indicator will illuminate brighter than at the beginning.

The Boost function can only be activated if it is applicable to the selected cooking zone. If the Boost Function is active, a "P" is shown on the corresponding display.

Activating the booster can exceed the maximum power, in which case the integrated power management will be activated.

The necessary power reduction is shown by the corresponding cooking zone display blinking. Blinking will be active for 3 seconds to allow for further adaptations of the settings before power reduction.

Special Cooking Function

Press the boiling, frying, keep-warm, and chocolate-melting buttons to activate the special cooking functions. Boiling and frying functions cannot be selected simultaneously (for the right side of the hob) until after one beep is heard from the hob.

Smart Pause and timer function cannot be activated when the mode function is selected.

Special Cooking Modes - Boiling Function

This function is used to boil water and keep the temperature close to boiling point. To activate the boiling function, press the boiling function button. When the boiling function has been activated, the corresponding display will show 'b' and the boiling function indicator will illuminate brighter than at the beginning. The hob will beep to indicate when the water has boiled and the water will then simmer.

The above image shows the center heater display indicating the boiling function.

Frying Function

This function will fry oil at around 160°C.

To activate this function, press the frying function button. When the frying function has been activated, the corresponding display will show 'F' and the frying function indicator will illuminate brighter than at the beginning. The hob will beep when the oil is ready for frying.

The above image shows the center heater display indicating the frying function.

Keep-Warm Function

This function allows the temperature of food to be kept at around 50°C. To activate the keep-warm function, press the keep-warm function button. When the keep-warm function has been activated, the corresponding display will show ‘u’ and the keep-warm function indicator will illuminate brighter than before.

The above image shows the center heater display indicating the keep-warm function.

Chocolate-Melting Function

This function melts chocolate or similar foods at around 40°C. To activate the chocolate-melting function, press the chocolate-melting function button. When the chocolate-melting function has been activated, the corresponding display will show ‘c’ and the keep-warm function indicator will illuminate brighter than before.

Performance and time may vary according to the quantity of food in the pan and the quality of the pan. 1.5 litres of water or 0.5 litres of oil gives the best cooking performance with these functions.

Smart Pause

The Smart Pause, when activated, reduces the power of all burners that have been switched on.

If you then deactivate the Smart Pause, the heaters will automatically return to the previous level.

If the Smart Pause is not de-activated, the cooktop will turn off after 30 minutes.

Press (☐) to activate Smart Pause. The power for the activated heater(s) will reduce to level 1 and "II" will appear on all the displays.

Press (☐) again to deactivate Smart Pause. "II" will disappear and the heaters will now run at the level previously set.

Bridge Zone

Switching the Bridge Zone On

Touch the bridge function button to activate the bridge zone. When the bridge zone function has been activated, the two zone displays

will show 'b,r' and the bridge function button LED will illuminate brighter than before.

Select the temperature setting by using the sliding button. Increase the heat setting by pressing the right side of the sliding button or decrease the heat setting by pressing the left side of the sliding button.

The bridge element will be ready to use. For the fastest boil time, select the desired cooking level, then press the "P" key to activate the Boost function.

Switching the Bridge Zone off

Touch the bridge function button, then the heater level automatically drops to "0". If the bridge cooking zone is hot, "H" will be displayed.

HINTS AND TIPS

Cookware

- Use thick, flat, smooth-bottomed cookware that has the same diameter as the element. This will help reduce cooking times.

- Cookware made of steel, enamelled steel, cast iron, and stainless steel (if appropriately labelled by the manufacturer) will give you the best results.

- Cookware made of enamelled steel, or with aluminium or copper bottoms, can cause a metallic residue to remain on the hob. If left, this becomes difficult to remove. Clean the hob after every use.

- Cookware is suitable for induction if

a magnet sticks to the bottom of the cookware.

· The cookware must be placed centrally on the cooking zone. If it is not placed correctly, is displayed. - When using certain pans, you may get various noises from the pans. This is due to the design of the pans and does not affect the performance or safety of the hob.

Energy saving

• Induction cooking zones adapt automatically to the size of the cookware bottom up to a certain limit. However, the magnetic part of the cookware bottom must have a minimum diameter depending upon the size of the cooking zone.
• Place the cookware on the cooking zone before it is switched on. If it is switched on before putting any cookware on it, the cooking zone will not operate and the control display shows.
• Use a lid to reduce cooking time.
• When liquid comes to the boil, reduce the temperature setting.
• Minimize the amount of liquid or fat to reduce cooking times.
• Select the proper temperature setting for the cooking applications.

Examples of cooking applications

The information given in the following table is for guidance only.

Settings Use for
0	Element off
1-3	Delicate warning
4-5	Gentle simmering, slow warning
6-7	Reheating and ra-pid simmering
8	Boiling, sauté and searing
9	Maximum heat
P	Boost function

Cleaning tips

· Do not use abrasive pads, corrosive cleaners, aerosol cleaners or sharp objects to clean the surfaces of the hob. · To remove burnt food, soak it off with a damp cloth and washing-up liquid. - You may use a scraper for cleaning food or residues. Sticky foods must be cleaned immediately when they spill, before the glass has cooled down. - Be careful not to scratch the silicon adhesive placed on the edges of the glass whilst using a scraper. · The scraper has a razor, therefore, it must be kept away from children.

- Use a special ceramic hob cleaner on the hob while it is warm to touch. Rinse and wipe dry with a clean cloth or paper towel.

INSTALLATION OF THE APPLIANCE

WARNING:

The electrical connection of this hob should be carried out by a qualified electrician, according to the instructions in this guide and in compliance with the current regulations. In the event of any damage that occurs as a result of improper connection or installation, the warranty will not be valid. This appliance must be grounded.

Installation safety

• Any overhanging surface should be at least 65cm above the hob.
• Extractor fans must be fitted in accordance with the manufacturer's instructions.
• The wall in contact with the rear of the hob must be made of flameproof material.
• The power cable length should not exceed 2 metres.

Fitting the hob into a work surface

- The hob can be inserted into any worktop provided it is heat resistant up to at least 90°C.

- Create an opening with the dimensions shown in the picture below

and on the next page.

- The induction hob may be built in 25 to 40 mm thick worktops.

W (mm) 890 min. A (mm) 50
D (mm) 520 min. B (mm) 50
H (mm) 56 E (mm) 10
C1 (mm) 860 min. F (mm) 10
C2 (mm) 490 G (mm) 20
I (mm) 38	J (mm) 5

• Apply the supplied one-sided self-adhesive sealing tape all the way around the lower edge of the cooktop. Do not stretch it.

• Screw the 6 worktop mounting brackets on to the side walls of product.
• Insert the appliance into the aperture.

Making an electrical connection

Before making a connection, check that:

The voltage power supply is the same as that quoted on the rating plate which is situated at the back of your hob.

The circuit can support the appliance load (see the rating plate).

The power supply has a grounded connection, which complies with the provisions of current regulations and is in good working order.

The fused switch is easily accessible once the hob has been installed.

If there is no dedicated hob circuit and fused switch, they must be installed by a qualified electrician before the hob is connected.

An approved suitable cable must be connected from the Consumer Unit (main fuse box) and be protected by its own 50amp fuse or Micro Circuit Breaker (MCB). The electrician must provide a fused all pole switch, which disconnects both the line (live) and neutral conductors with a contact separation of at least 3.0 mm.

The fused switch should be fitted to the

kitchen wall, above the work surface and to the side of the hob, not above it, in accordance with IEE regulations. Connect the fused switch to a junction box which should be fitted on the wall about 61cm (24 inches) above floor level and behind the hob. The hob's power supply cable can then be connected. Connect one end to the junction box and connect the other end to the hob's power connection box which is located at the back of the hob. Remove the cover of the power connection box and install the cable, in accordance with the connection diagram.

The power supply cable must be positioned away from direct heat sources. It should not be subjected to a temperature rise of more than 50°C above room temperature.

For the induction hob, the cable must be H05VV-F 3X4 mm² or 5X1.5 mm² 60227 IEC 53 ••. You will find the connection diagram shown on the bottom of your appliance.

ERROR CODES

If there is an error, error code will be shown on the heater displays.

E1 : Cooling Fan is disabled. Call an authorised

E2 : Induction coil is too hot, switch the hob off by pressing on/off button and let the coil cool down

E3: Supply voltage is other than the rated values. Switch the hob off by pressing the on/off button, wait until "H" disappears for all zones, switch the hob on by pressing the on/off button and continue to use. If the same error is displayed again, call an authorized service agent.

E4: Supply frequency is different from the rated values. Switch the hob off by pressing, wait until "H" disappears from all zones, switch the hob on by pressing and continue to use. If the same error is displayed again, switch the plug for the appliance off and on. Switch the hob on by pressing and continue to use. If the same error is displayed again, call an authorized service agent.

E5: Internal temperature of the hob is too high. Switch the hob off by pressing the on/off button and let the heaters cool down.

E6: Communication error between the touch control and heater. Call an authorized service agent.

E7: Coil temperature sensor is disabled. Call an authorized service agent.

E8: Cooler temperature sensor is disabled. Call an authorized service agent.

EA: Large Coil Saturation Error. Switch the hob off by pressing the on/off button, switch the hob on by pressing the on/off button and continue to use. If the same error is displayed again, call an authorized service agent.

EC: Supply Voltage Error. Switch

the hob off by pressing the on/off button, switch the hob on by pressing the on/off button and continue to use. If the same error is displayed again, call an authorized service agent.

C1-C8: Microprocessor alert. Switch the hob off by pressing the on/off button, switch the hob on by pressing the on/off button and continue to use. If the same error is displayed again, call an authorized service agent.

Service & Support

Visit Our Website

sharphomeappliances.com

52281516
