USER MANUAL GTA 2 SPECIAL BLAUPUNKT

Tiefpassfilter (Low Pass) Hochpassfilter (High Pass)

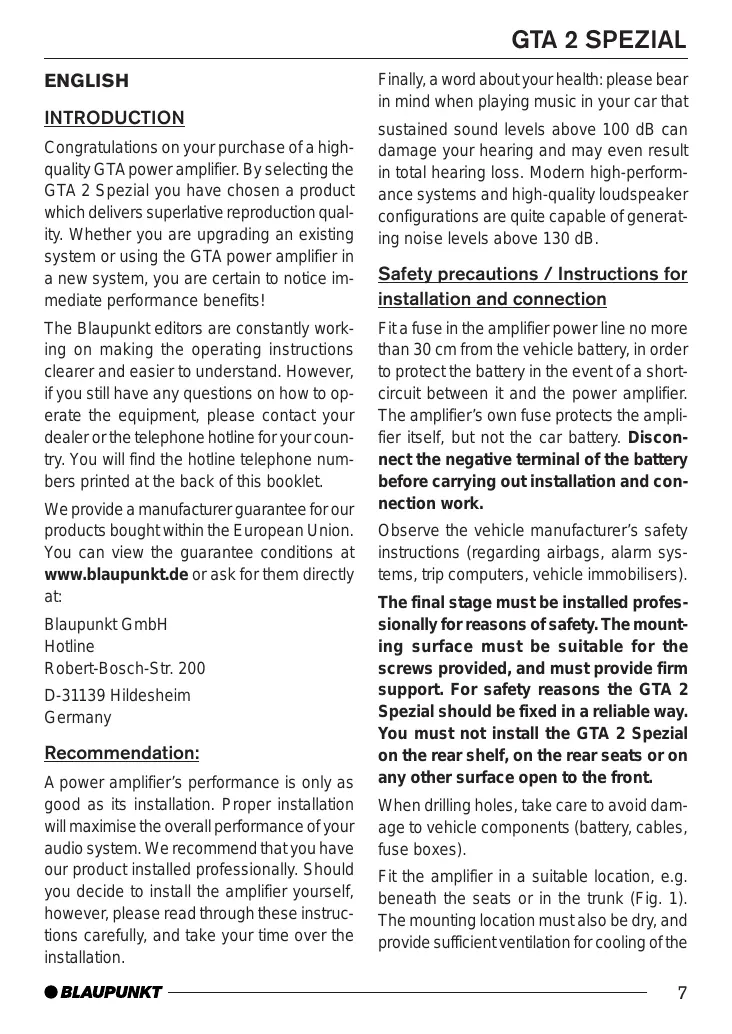

GTA 2 SPEZIAL ENGLISH INTRODUCTION Congratulations on your purchase of a highquality GTA power amplifier. By selecting the

GTA 2 Spezial you have chosen a product which delivers superlative reproduction quality. Whether you are upgrading an existing system or using the GTA power amplifier in a new system, you are certain to notice immediate performance benefits! The Blaupunkt editors are constantly working on making the operating instructions clearer and easier to understand. However, if you still have any questions on how to operate the equipment, please contact your dealer or the telephone hotline for your country. You will find the hotline telephone numbers printed at the back of this booklet. We provide a manufacturer guarantee for our products bought within the European Union. You can view the guarantee conditions at www.blaupunkt.de or ask for them directly at: Blaupunkt GmbH Hotline Robert-Bosch-Str. 200 D-31139 Hildesheim Germany

A power amplifier’s performance is only as good as its installation. Proper installation will maximise the overall performance of your audio system. We recommend that you have our product installed professionally. Should you decide to install the amplifier yourself, however, please read through these instructions carefully, and take your time over the installation.

Finally, a word about your health: please bear in mind when playing music in your car that sustained sound levels above 100 dB can damage your hearing and may even result in total hearing loss. Modern high-performance systems and high-quality loudspeaker configurations are quite capable of generating noise levels above 130 dB.

Safety precautions / Instructions for installation and connection

Fit a fuse in the amplifier power line no more than 30 cm from the vehicle battery, in order to protect the battery in the event of a shortcircuit between it and the power amplifier. The amplifier’s own fuse protects the amplifier itself, but not the car battery. Disconnect the negative terminal of the battery before carrying out installation and connection work. Observe the vehicle manufacturer’s safety instructions (regarding airbags, alarm systems, trip computers, vehicle immobilisers). The final stage must be installed professionally for reasons of safety. The mounting surface must be suitable for the screws provided, and must provide firm support. For safety reasons the GTA 2 Spezial should be fixed in a reliable way. You must not install the GTA 2 Spezial on the rear shelf, on the rear seats or on any other surface open to the front. When drilling holes, take care to avoid damage to vehicle components (battery, cables, fuse boxes). Fit the amplifier in a suitable location, e.g. beneath the seats or in the trunk (Fig. 1). The mounting location must also be dry, and provide sufficient ventilation for cooling of the

GTA 2 SPEZIAL amplifier. Use cable grommets when passing cables through holes with sharp edges.

Use loudspeakers with an impedance of 2 to 4 Ω (see table or installation drawing). Observe the max. power handling specifications (music output). Do not connect the loudspeakers to ground; only use the terminals provided. The cross-section of the positive and negative cable must be at least 6 mm2.

GTA 2 Spezial amplifier

The amplifier is suitable for connection to car radios with Cinch connector. Use the Blaupunkt ISO Cinch adapter to connect the amplifier to car radios with ISO connector (7 607 893 093/ 7 607 855 094).

Applications and loudspeaker connection

Stereo-Mode Max Power Fig. 4, 5

RMS Power Fig. 4, 5 Frequency response

Signal-to-noise ratio

0,1 - 8 V Low-pass filter

Dimensions W x H x D (mm)

Positive/negative connection

We recommend a cable cross-section of not less than 6 mm2. Run a standard commercial positive cable to the battery and connect to the fuse holder. Use cable grommets when passing cables through holes with sharp edges. Bolt a standard commercial negative cable to a ground point free of induced noise (car body bolt, body panel) not to the negative battery pole. Clean the contact surface of the ground point down to bare metal and coat with antiseize graphite petroleum.

The integral fuses within the amplifier protect the final stage and the entire electrical system in the event of a fault. Never bridge fuses or replace fuses with a higher current rating.

Power supply connection Connection of car radio with cinch output Loudspeaker connections

Connect remote amplifier connection to switchable +12 V power source.

This enables the amplifier to be switched on and off with the radio’s On/Off switch.

nel must also be connected to the left-hand loudspeaker and the right-hand amplifier channel to the right-hand loudspeaker.

Bridged loudspeaker connections

The Level control enables the input sensitivity of the final stage to be matched to the output voltage of your car radio preamp output.

The GTA can also be bridged in a mono configuration. This enables you to use the amplifier for one or more subwoofer(s) or a midrange speaker. In this configuration the amplifier sums the right-hand and left-hand channels, delivering a single channel (mono) output.

The range of adjustment extends from 0.1 V to 8 V.

Adjust the input sensitivity in accordance with the manufacturer’s specifications when connecting the amplifier to other radios.

Turning the Level control clockwise increases the input sensitivity of the amplifier, and thereby also the volume. The Level control is however not a volume control; an increase in volume is not achieved in the maximum position, even if this subjectively appears to be the case. The system merely increases the volume more quickly when the volume is turned up on the radio.

Loudspeaker connections

(If the amplifier is to be connected in a bridged mode, proceed with the section “Bridged loudspeaker connections”.) As with any audio component, connection of the amplifier and speakers with the correct polarity is essential for good bass reproduction. Ensure therefore when connecting that the positive (+) amplifier terminal is connected to the positive (+) loudspeaker terminal. The same applies to the negative (-) terminals. The left-hand amplifier chan-

The amplifier can sum the right- and left-hand signal information only if both the right- and left-hand RCA connections have been made.

The amplifier must be presented with a load of 4 Ohms or higher in bridged mode. A lower load will cause the amplifier to overheat or switch off. This can lead to permanent damage of the unit.

Adjustment of the type and range of the cross-over frequencies

The type of crossover (i.e. “low-pass” or “hipass”) and the desired crossover frequency can be selected on the GTA 2 Spezial. If, for example, you wish to drive a pair of subwoofers, connect in accordance with the lowpass diagram (fig. 3). The crossover frequency is dependent upon the loud-speaker frequency range (consult the loudspeaker manufacturer’s data for the recommended frequency range).

At a frequency of 80 Hz , the loudspeaker has a frequency range of 80 Hz to 26.000 Hz.

“Low-pass” frequency control This control is active when the switch is set to “Low-pass” and permits selection of the desired crossover frequency. Example: at a setting of 150 Hz, the loudspeaker has a frequency range of 10 Hz to 150 Hz.

You can adjust the bass output of the amplifier using the bass boost control. The settings range covers 0 dB to +12 dB.

(POWER / PROTECTION) Green lamp: Power amp on, regular operating condition Red lamp: Power amp has been switched off electronically, due to a fault or failure.

Recycling and disposal

Our products are made from materials that can be disposed of in an environmentally sensitive manner and are suitable for appropriate recycling. Products that are to be scrapped must be collected separately from household waste. To dispose of the product, please use the available waste return and collection systems. This information is subject to change without notice!

Dimensions L x A x P (mm)

Abmessungen L x A x P (mm)

Dimensiones A x A x P (mm)

+12V GROUND/ REMOTE/ SUPPLY FUSE

BRIDGE MODE L R LOW PASS BASS PROTECT

+12V GROUND/ REMOTE/ SUPPLY FUSE BRIDGE MODE L R

+12V GROUND/ REMOTE/ SUPPLY FUSE BRIDGE MODE L R

+12V GROUND/ REMOTE/ SUPPLY FUSE BRIDGE MODE L R
