S-M53 - Pregnant DENON - Free user manual and instructions

Product type	Floor-standing / bookshelf speaker
Brand	DENON
Model	S-M53 (SC-M53)
Speaker type	2-way, 2 speakers, bass-reflex with low magnetic leakage
Woofer/midrange driver	1 x 12 cm cone
Tweeter	1 x 2.5 cm dome
Impedance	6 Ω
Maximum power	60 W (IEC), 120 W (peak)
Crossover frequency	3 kHz
Frequency response	45 Hz – 40 kHz
Dimensions (W x H x D)	141 x 191 x 249 mm
Weight	3.4 kg
Supplied accessories	Power cord (3 m), anti-slip pads (8), foam bungs (2), instruction manual, service center list
Maintenance and cleaning	Dry cloth; avoid benzene, thinner, insecticides
Installation precautions	Avoid direct light, humidity, heat sources; do not obstruct ventilation
Safety	Do not expose to water or naked flames; do not place liquid objects on the appliance
Repairability	Contact DENON service center in case of problems

Frequently Asked Questions - S-M53 DENON

How to connect the S-M53 speakers to the amplifier?

Turn off the amplifier before connection. Use the supplied cables: connect the red (+) terminal of the speaker to the red terminal of the amplifier, and the black (-) terminal to the black terminal. Respect polarities and left/right channels. Tighten the knobs well.

What cables to use for the speakers?

Use the cables supplied with the speaker. The smooth core wire connects to the red (+) terminal, the ribbed core wire to the black (-) terminal. Do not short-circuit the wires.

Where to place the speakers for optimal sound?

Avoid walls or corners too close to avoid exaggerating bass. If the sound is too strong, insert the foam bungs into the rear ports. Place the speakers on stable surfaces and use the supplied anti-slip pads.

How to clean the speakers?

Use a dry, soft cloth to remove dust. Do not use benzene, thinner, insecticides, or chemically treated cloths without precautions. Avoid touching the speaker cones.

What to do if the bass is too strong?

Insert the supplied foam bungs into the bass-reflex ports on the back of the speakers. Adjust the depth according to your preference. Do not push them beyond the flat surface.

How to avoid magnetic interference with the television?

The speakers have low magnetic leakage, but if color spots appear, turn off the TV for 15 to 30 minutes and then turn it back on. Move the speakers away if necessary. Avoid placing magnets nearby.

Can I use these speakers with any amplifier?

Yes, but check the impedance (6 Ω) and maximum power (60 W IEC). Consult your amplifier's manual for settings. Do not exceed the speakers' maximum input power.

How to install the anti-slip pads?

Turn the speaker over and stick the anti-slip pads (supplied, about 1 mm thick) under the cabinet as shown in the manual. This prevents the speaker from sliding.

What to do if the foam bungs fall inside the speaker?

Stop using the speaker immediately and contact the store or a DENON service center. Do not attempt to remove them yourself to avoid damaging the speaker.

How to remove the speaker grille?

Grasp both sides of the grille and pull forward. To reattach, align the bumps at the four corners of the grille with the holes in the cabinet and press.

USER MANUAL S-M53 DENON

Line drawing of a speaker grille with four mounting holes (no text or symbols)

(SC-M53)

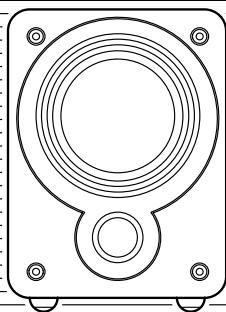

Line drawing of a speaker grille with concentric rings and mounting holes (no text or symbols)

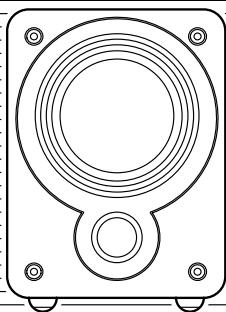

Line drawing of a speaker with concentric circles and mounting holes (no text or symbols)

Line drawing of a speaker with concentric circles and mounting holes (no text or symbols)

(SC-M73)

IMPORTANT TO SAFETY

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

• DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product, to which this declaration relates, is in conformity with the following standards: EN55013 and EN55020. Following the provisions of 89/336/EEC and 93/68/EEC Directive.

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Please be care the environmental aspects of battery disposal.
• The apparatus shall not be exposed to dripping or splashing for use.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

ACHTUNG:

Cartoon illustration of a sun with angry expression and two broken containers with water droplets (no text or symbols)

• Avoid high temperatures.
  Allow for sufficient heat dispersion when installed on a rack.
  • Vermeiden Sie hohe Temperaturen.
  Beachten Sie, daß eine ausreichend Luftzirkulation gewährleistet wird, wenn das Gerät auf ein Regal gestellt wird.
• Éviter des températures élevées
  Tenir compte d'une dispersion de chaleur suffisante lors de l'installation sur une étagère.
• Evitate di esporre l'unità a temperature alte.
  Assicuratevi che ci sia un'adeguata dispersione del calore quando installate l'unità in un mobile per componenti audio.
• Evite altas temperaturas
  Permite la suficiente dispersión del calor cuando está instalado en la consola.
  • Vermijd hoge temperaturen
  Zorg voor een degelijk hitteafvoer indien het apparaat op een rek wordt geplaatst.
• Undvik höga temperaturer.
  Se till att det finns möjlighet till god värmeavledning vid montering i ett rack.

• Handle the power cord carefully.
  Hold the plug when unplugging the cord.
• Gehen Sie vorsichtig mit dem Netzkabel um. Halten Sie das Kabel am Stecker, wenn Sie den Stecker herausziehen.
• Manipuler le cordon d'alimentation avec précaution. Tenir la prise lors du débranchement du cordon.
• Manneggiate il filo di alimentazione con cura. Agite per la spina quando scollegate il cavo dalla presa.
• Maneje el cordón de energía con cuidado.
  Sostenga el enchufe cuando desconecte el cordón de energía.
• Hanteer het netsnoer voorzichtig.
  Houd het snoer bij de stekker vast wanneer deze moet worden aan- of losgekoppeld.
• Hantera nätkabeln varsamt.
  Håll i kabeln när den kopplas från el-uttaget.

Cartoon illustration of a sad rectangular object with water droplets and a bird-like face, surrounded by small rocks (no text or symbols)

• Keep the set free from moisture, water, and dust.
• Halten Sie das Gerät von Feuchtigkeit, Wasser und Staub fern.
• Protéger l'appareil contre l'humidité, l'eau et lapoussière.
• Tenete l'unità lontana dall'umidità, dall'acqua e dalla polvere.
• Mantenga el equipo libre de humedad, agua y polvo.
• Laat geen vochtigheid, water of stof in het apparaat binnendringen.
• Utsätt inte apparaten för fukt, vatten och damm.

Cartoon illustration of a book character with eyes and tears, standing beside a stack of books (no text or symbols)

* (For sets with ventilation holes)

• Do not obstruct the ventilation holes.
  • Die Belüftungsöffnungen dürfen nicht verdeckt werden.
• Ne pas obstruer les trous d'aération.
  • Non coprite i fori di ventilazione.
• No obstruya los orificios de ventilación.
• De ventilatieopeningen mogen niet worden beblokkeerd.
• Täpp inte till ventilationsöppningarna.

Diagram illustrating nail damage technique with labeled components and a cross symbol indicating failure or failure.

• Do not let foreign objects in the set.
• Keine fremden Gegenstände in das Gerät kommen lassen.
• Ne pas laisser des objets étrangers dans l'appareil.
• E' importante che nessun oggetto è inserito all'interno dell'unità.
• No deje objetos extraños dentro del equipo.
• Laat geen vreemde voorwerpen in dit apparaat vallen.
• Se till att främmande föremål inte tränger in i apparaten.

Cartoon illustration of a spray bottle pouring liquid into a container with a smiling face (no text or symbols)

• Do not let insecticides, benzene, and thinner come in contact with the set.
• Lassen Sie das Gerät nicht mit Insektiziden, Benzin oder Verdünnungsmitteln in Berührung kommen.
• Ne pas mettre en contact des insecticides, du benzène et un diluant avec l'appareil.
• Assicuratevvi che l'unità non venga in contatto con insetticidi, benzolo o solventi.
• No permita el contacto de insecticidas, gasolina y diluyentes con el equipo.
• Laat geen insektenverdelgende middelen, benzine of verfverdunner met dit apparaat in kontakt komen.
• Se till att inte insektsmedel på spraybruk, bensen och thinner kommer i kontakt med apparatens hölje.

Cartoon illustration of a car with expressive eyes and motion lines, no text or symbols present

• Never disassemble or modify the set in any way.
• Versuchen Sie niemals das Gerät auseinander zu nehmen oder auf jegliche Art zu verändern.
• Ne jamais démonter ou modifier l'appareil d'une manière ou d'une autre.
• Non smontate mai, né modificate l'unità in nessun modo.
• Nunca desarme o modifique el equipo de ninguna manera.
• Nooit dit apparaat demonteren of op andere wijze modifiëren.
• Ta inte isär apparaten och försök inte bygga om den.

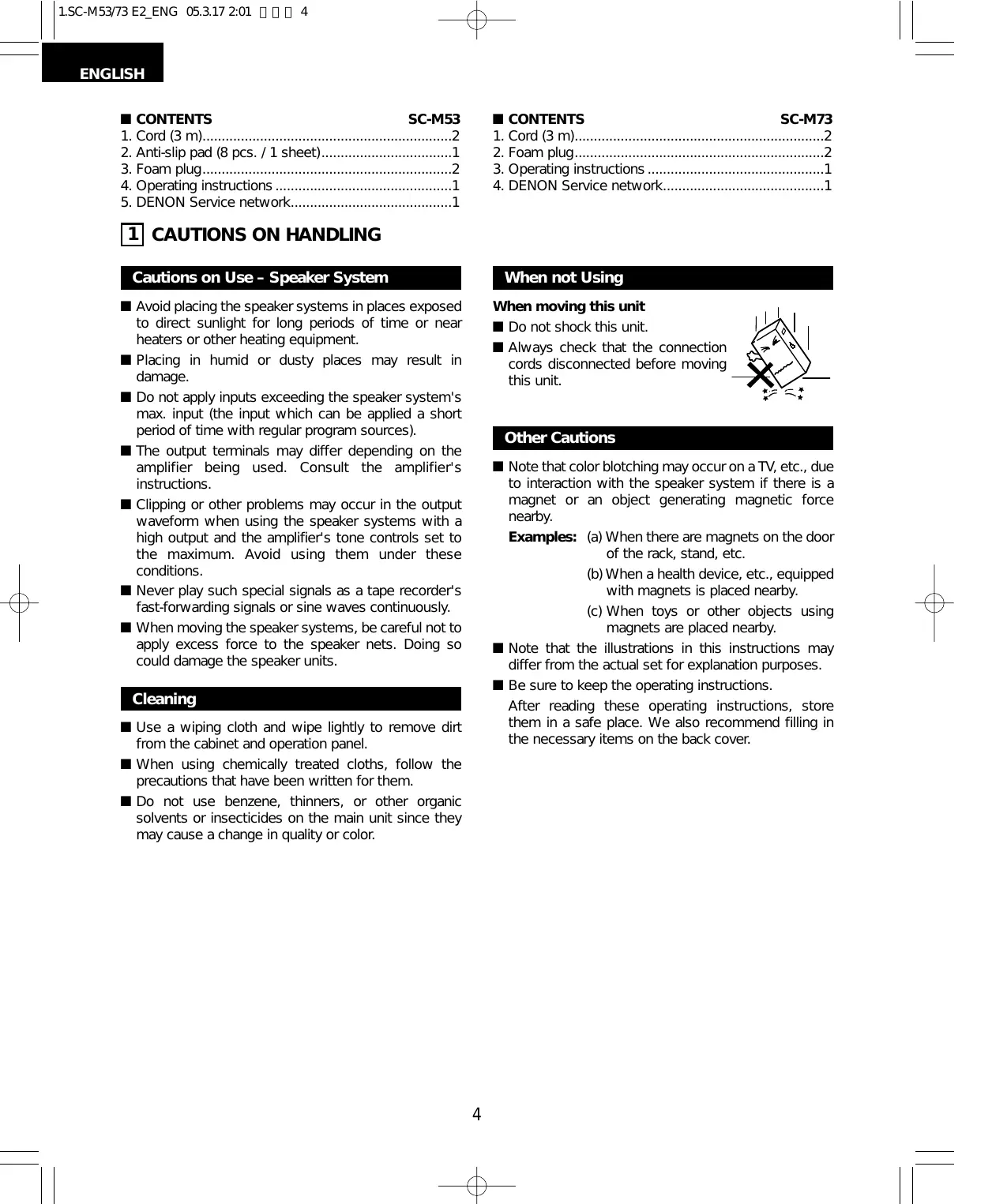

■ CONTENTS SC-M53

1. Cord (3 m).....2
2. Anti-slip pad (8 pcs. / 1 sheet)....1
3. Foam plug....2
4. Operating instructions ....1
5. DENON Service network....1

1 CAUTIONS ON HANDLING

Cautions on Use – Speaker System

■ Avoid placing the speaker systems in places exposed to direct sunlight for long periods of time or near heaters or other heating equipment.
■ Placing in humid or dusty places may result in damage.
■ Do not apply inputs exceeding the speaker system's max. input (the input which can be applied a short period of time with regular program sources).
■ The output terminals may differ depending on the amplifier being used. Consult the amplifier's instructions.
■ Clipping or other problems may occur in the output waveform when using the speaker systems with a high output and the amplifier's tone controls set to the maximum. Avoid using them under these conditions.
■ Never play such special signals as a tape recorder's fast-forwarding signals or sine waves continuously.
■ When moving the speaker systems, be careful not to apply excess force to the speaker nets. Doing so could damage the speaker units.

Cleaning

■ Use a wiping cloth and wipe lightly to remove dirt from the cabinet and operation panel.
■ When using chemically treated cloths, follow the precautions that have been written for them.
■ Do not use benzene, thinners, or other organic solvents or insecticides on the main unit since they may cause a change in quality or color.

■ CONTENTS SC-M73

1. Cord (3 m).....2
2. Foam plug....2
3. Operating instructions ....1
4. DENON Service network....1

When not Using

When moving this unit

■ Do not shock this unit.
■ Always check that the connection cords disconnected before moving this unit.

Illustration of a cardboard box with stars and a cross symbol, no text or symbols present

Other Cautions

Note that color blotching may occur on a TV, etc., due to interaction with the speaker system if there is a magnet or an object generating magnetic force nearby.

Examples: (a) When there are magnets on the door of the rack, stand, etc.
(b) When a health device, etc., equipped with magnets is placed nearby.
(c) When toys or other objects using magnets are placed nearby.

■ Note that the illustrations in this instructions may differ from the actual set for explanation purposes.

■ Be sure to keep the operating instructions.

After reading these operating instructions, store them in a safe place. We also recommend filling in the necessary items on the back cover.

CAUTIONS ON HANDLING (continued)

When installing, carefully examine the place and method of installation for safety.

When using a stand, etc., follow the instructions included with the stand and check for safety before installing and using. DENON will accept no responsibility for damages or accidents caused by the unit falling.

Cautions on Installation – Speaker System

The quality of the sound produced from the speaker system is affected by the size and type (Japanese or Western) of the room, as well as by the method of installation. Consider the points listed below before installing the speaker system.

If the bass sound is overemphasized when the speaker systems are installed directly on the floor, set them on concrete blocks or other hard stands.
■ Placing the speakers on a shelf or in a corner can boost the bass level of the speaker. If you want to reduce it, please place the foam plugs in the reflex port tubes that you can find on the back of the speakers.

CAUTION:

• The sound quality can be adjusted by changing the depth of the foam plugs in the ducts.
• Set the foam plugs to the desired depth.
• Never insert the foam plugs deeper than the plate surface.
• If this is done, it may not be possible to get them out and they may fall inside the set.
• If the foam plugs should get stuck or fall inside the set, stop using the set immediately and contact your store of purchase or one of the service centers listed on the included “DENON Service Network”.

■ Note that placing the speaker system on the same stand or shelf as a record player may result in howling.
If there is a wall, glass door, etc., directly in front of or behind the speaker system, cover the wall or door with a thick curtain to prevent resonance and reflection.
The speaker systems are of the low-leakage-flux type and can be used near televisions, but depending on the TV there may be color blotching on the picture. If this happens, turn off the TV's power, wait 15 to 30 minutes, then turn the TV's power back on. The TV's automatic degaussing circuit should reduce the blotching on the picture. If blotching persists, move the speaker further away.
■ Also note that if there is a magnet or any device generating magnetic force nearby, interaction between this device and the speaker systems can cause the colors on the TV to become blotchy.

■ Please stick the included anti-slip pads (cork, approximately 1mm thick) at bottom of the cabinet as below to prevent slipping. (SC-M53 only)

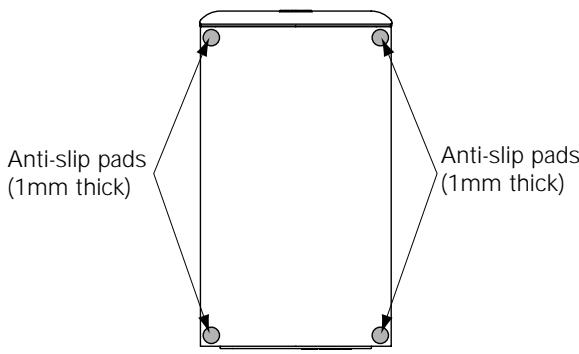

[ Speaker System (SC-M53 only) Bottom view ]

Anti-slip pads (1mm thick) Anti-slip pads (1mm thick)

CAUTION:

• To ensure safety, do not place any objects on top or lean objects against the speaker system.
• The speaker may topple down or fall if force is applied to the sides. Be particularly careful to avoid this, as this could cause injury or other serious accidents.
• Fix connection cord to prevent being caught on it and making loudspeakers topping down.

WARNING:

• Be sure to fasten the speaker cords to a wall, etc., to prevent people from tripping over them or otherwise pulling on them accidentally, causing the speaker systems to fall.
• Be sure to check for safety after installing the speaker systems. Afterwards, perform safety inspections at regular intervals to make sure there is no danger that the speaker systems will fall. DENON will accept no responsibility for damages or accidents caused by inappropriate choice of the place of installation or improper installation procedures.

2 CONNECTIONS

Connecting the speaker terminals

* Read the amplifier's operating instructions carefully before connecting, and be sure to use properly.

Be sure to turn the amplifier's power off when connecting the speaker systems.

• Use the included cords to connect the input terminals on the back of the speaker systems (see diagram) to the amplifier's speaker output terminals.
• Connect the speaker system for the left channel amplifier's "L" terminals, the one for the right channel to the amplifier's "R" terminals, matching the polarities ("+" and "-" marks).
• Inverting the polarities will result in unnatural sound, with the phase off or no low bass sound. Also check that all two terminal knobs are tightly fastened.

Connections

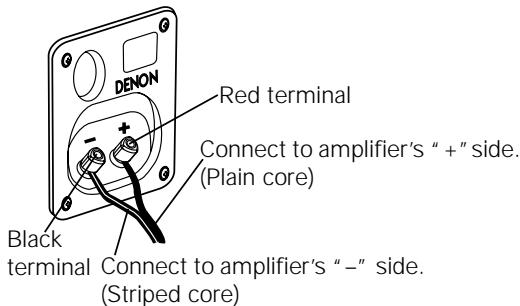

(The red terminals on the right side are the “+” terminals, the black ones on the left side the “-” terminals.)

Loosen the terminal knobs, insert the cords core wires, then tighten the knobs.

DENON Red terminal Connect to amplifier's "+" side. (Plain core) Black terminal Connect to amplifier's "-" side. (Striped core)

CAUTION:

• Be careful to interconnect the positive (red(+)) and negative (black(-)) sides and the left and right speakers properly.
• Connect the side of the included connection cord with the plain core wires to the red speaker terminal.
• To prevent circuit problems, never short-circuit striped and plain core wires or the left and right cords.

Simple line drawing of a pipe with a leaf and a cross symbol below (no text or labels)

3 REMOVING THE SPEAKER NET

* The net on the front of the speaker systems can be removed.
- To remove, grasp both sides of the net and pull forward.
- To mount, line up the bosses in the four corners of the speaker net with the holes in the four corners of the cabinet and press in.

4 SPECIFICATION

Speaker system (SC-M53)

Type:	2-way, 2-speakers
	Reflex box / Low-leakage-flux
Speakers:	12 cm cone bass-mid x 1
	2.5 cm dome-high range x 1
Input impedance:	6 Ω/ohms
Max. input:	60 W (IEC)
	120 W (peak)
Crossover frequency:	3 kHz
Frequency range:	45 Hz ~ 40 kHz
Dimensions:	141(W) x 191 (H) x 249 (D) mm
Mass:	3.4 kg

Speaker system (SC-M73)

Type:	2-way, 2-speakers
	Reflex box / Low-leakage-flux
Speakers:	13 cm cone bass-mid x 1
	2.5 cm dome high range x 1
Input impedance:	6 Ω/ohms
Max. input:	60 W (IEC)
	120 W (peak)
Crossover frequency:	3 kHz
Frequency range:	43 Hz ~ 40 kHz
Dimensions:	156 (W) x 213 (H) x 249 (D) mm
Mass:	3.9 kg

* For improvement purpose, specifications and design are subject to change without notice.

INHALT

SC-M53

Illustration of a cube with stars and arrows indicating motion, no text or symbols present

Simple line drawing of a pipe with a leaf and a cross symbol below (no text or labels)

3 ENTFERNEN DES LAUTSPRECHERGITTERS

Illustration of a cube with stars and a cross symbol, no text or symbols present

Autres Précautions

Simple line drawing of a pipe with a leaf and a cross symbol below (no text or labels)

3 DEMONTAGE DU FILET D'ENCEINTE

Illustration of a cardboard box with stars and motion lines, no text or symbols present

Altre precauzioni

Simple line drawing of a pipe with a leaf and crossed lines, marked with an 'X' symbol below (no text or labels)

Illustration of a cube with stars and a cross symbol, no text or symbols present

Otras precauciones

Pure diagram of a pipe with a cross mark below, no text or symbols present

3 QUITAR LA RED DEL ALTAVOZ

Illustration of a cube with stars and a cross symbol, no text or symbols present

Simple line drawing of a pipe with a leaf and a cross mark below (no text or symbols)

Illustration of a cube with stars and a cross symbol, no text or symbols present

Simple line drawing of a pipe with a leaf and a cross symbol below (no text or labels)

3 BORTTAGNING AV HÖGTALARNÄTET
