Thank you for purchasing this DENON Super Audio CD Player. Please read the operation instructions thoroughly in order to acquaint yourself with the Super Audio CD player and achieve maximum satisfaction from it.

Be sure to keep these instructions for future reference, should any questions or problems arise.

CAUTION:

1. Handle the power supply cord carefully

Do not damage or deform the power supply cord. If it is damaged or deformed, it may cause electric shock or malfunction when used. When disconnecting the power supply cord from the wall outlet, hold the plug and do not pull on the cord.

2. Do not open the top cover

In order to prevent electric shock, do not open the top cover.

If problems occur, contact your DENON dealer.

3. Do not place anything inside

Prevent metal objects from entering the Super Audio CD player and avoid spilling liquids on it.

Electric shock or malfunction may result.

NOTE:

This Super Audio CD player uses a semiconductor laser. To ensure stable operation, it is recommended to use the set indoors at a temperature of 5^ (41^) 35^ (95^)

Please, record and retain the Model name and serial number of your set shown on the rating label.

Model name: DCD-SA1

Serial No.

TABLE OF CONTENTS

1 CONNECTIONs 6,7
2 PART NAMES AND FUNCTIONS 8,9
3 CAUTIONS ON HANDLING DISCS 9
4 REMOTE CONTROL UNIT 10, 11
5 OPENING AND CLOSING THE DISC HOLDER AND LOADING DISCS. 11
6 NORMAL PLAYBACK 12
7 VARIOUS PLAYBACK FUNCTIONS. 13 ~ 15
8 TIMER-CONTROLLED PLAYBACK 15
9 USING AS A D/A CONVERTER 15
10 TROUBLESHOOTING 16
11 MAIN SPECIFICATIONS 16

■ ACCESSORIES

Please check to make sure the following items are included with the main unit in the carton:

① Remote control unit (RC-997) 1
② R03/AAA batteries 2
③ RCA pin-plug cord. 1
④ Power supply cord 1
⑤ Operating instructions. 1
⑥ Service station list. 1

1 CONNECTIONS

(1) Connections to the analog output jacks

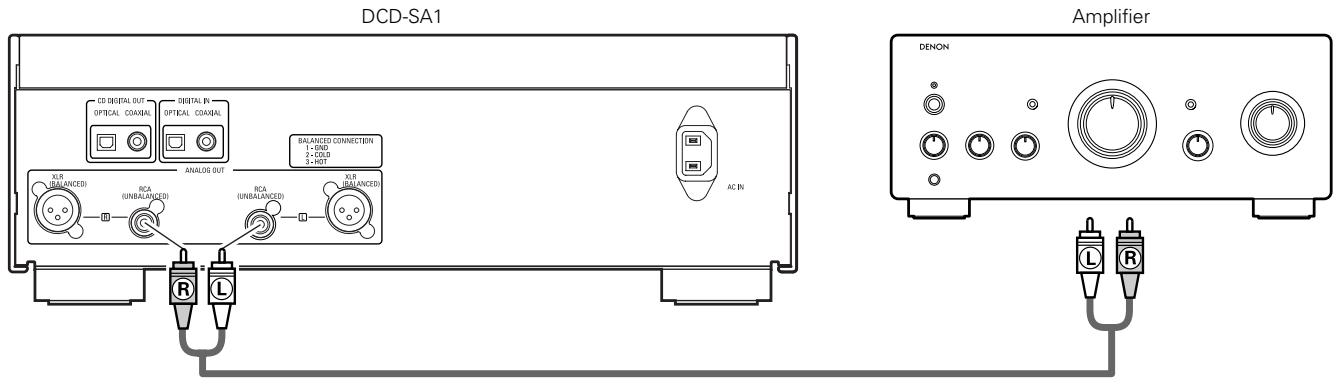

1 UNBALANCED

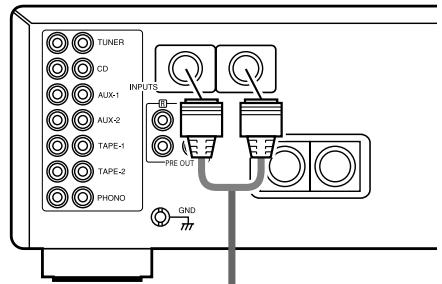

• Use the included RCA pin-plug cord to connect the left (L) and right (R) output jacks (ANALOG OUT) of the DCD-SA1 to the CD, AUX or TAPE PLAY left (L) and right (R) input jacks of the amplifier.

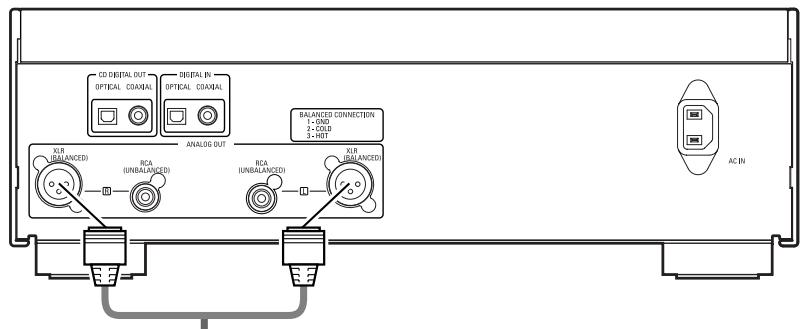

2 BALANCED

• Connect as shown in the figure using a Cannon connector (XLR-3-32 type) cord. (commercially available)
• Cannon connector signal layout

1: GND

2:COLD

3: HOT

Line up the protruding part of the connector with this slot.

NOTE:

• Do not short-circuit the hot or cold pin with the GND pin.

DCD-SA1

Amplifier

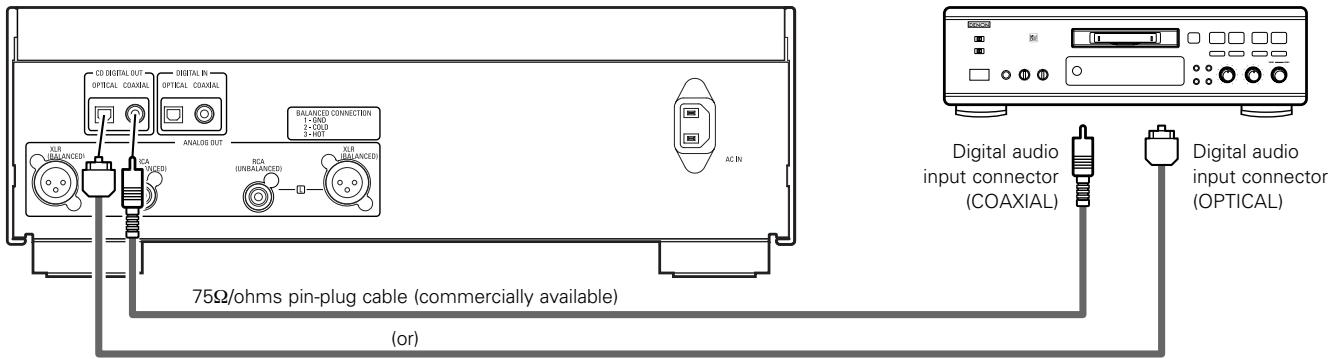

(2) Connections to the digital output jack (COAXIAL/OPTICAL)
DCD-SA1

Optical fiber cable (commercially available)

NOTE:

• With Super Audio CDs, no digital signals are output.

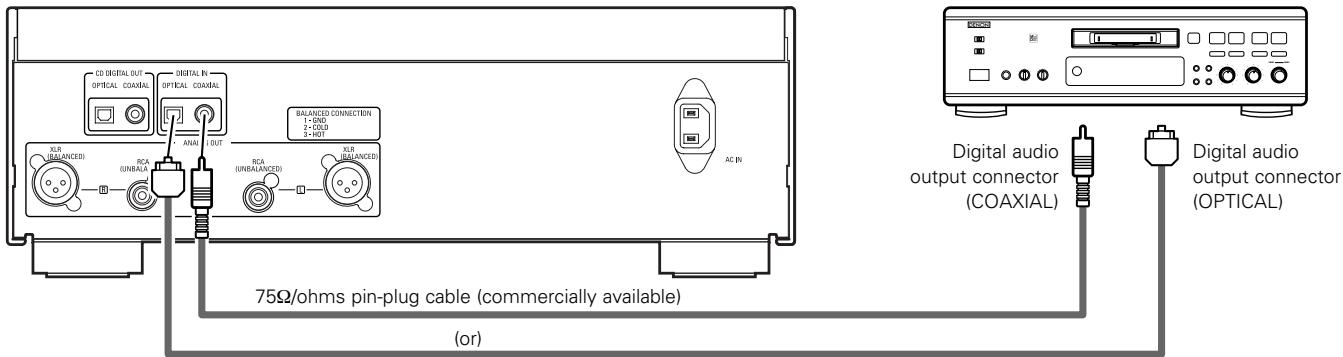

(3) Connections to the digital input jack (COAXIAL/OPTICAL)
DCD-SA1

Optical fiber cable (commercially available)

NOTE:

• Only linear PCM signals with a sampling frequency of 32kHz , 44.1kHz , 48kHz , 88.2kHz , 96kHz , 176.4kHz or 192kHz can be played on this set. Do not input any signals other than linear PCM signals (CD-ROM, Dolby Digital, DTS signals, etc.). Doing so will generate noise that could damage the speakers.

2 PART NAMES AND FUNCTIONS (See page 3.)

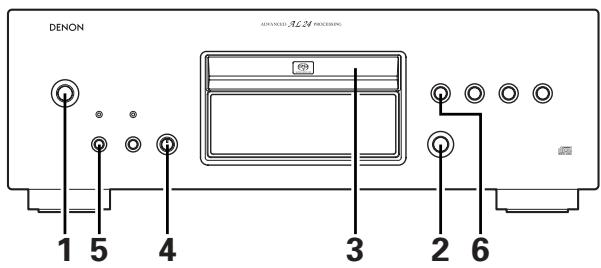

(1) Front Panel

1 POWER switch

• Press once to turn the power on.
• If a disc is loaded when the power is turned on, playback starts automatically.
• Press again to set to the "OFF" position and turn the power off.

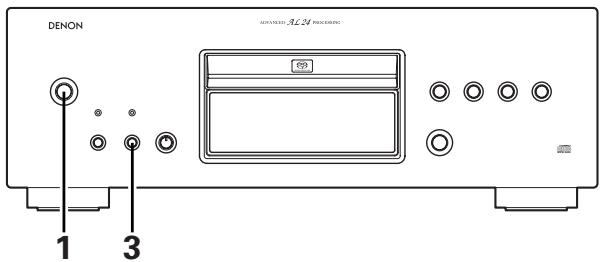

2 SUPER AUDIO CD SETUP button

• Use this button to switch the layer of the Super Audio CD and to set the top priority playback layer.
• The name of the newly set layer is shown on the display each time the button is pressed.

STEREO:

The Super Audio CD's layer (stereo) is played.

PCM CONV.:

The Super Audio CD's (stereo) DSD signals are converted into PCM format and played.

CD:

The CD layer is played.

• For details on "Setting the Top Priority Playback Layer for Super Audio CDs" (page 12).

3 DIGITAL OUT button

• Use this to turn the digital output on and off.

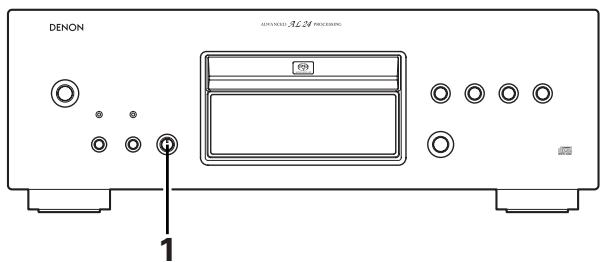

4 MODE knob

• Use this to select the program source to be output.

NORMAL:

The source played on the set is output.

PURE DIRECT:

Both the digital output and the display are turned off. In the PURE DIRECT mode, neither the DIGITAL OUT button on the main unit nor the DISPLAY button on the remote control unit function.

EXT. IN COAXIAL:

The program source connected to the digital input jack (COAXIAL) is output.

EXT. IN OPTICAL:

The program source connected to the digital input jack (OPTICAL) is output.

Remote control sensor

• This sensor receives the infrared light transmitted from the wireless remote control unit.

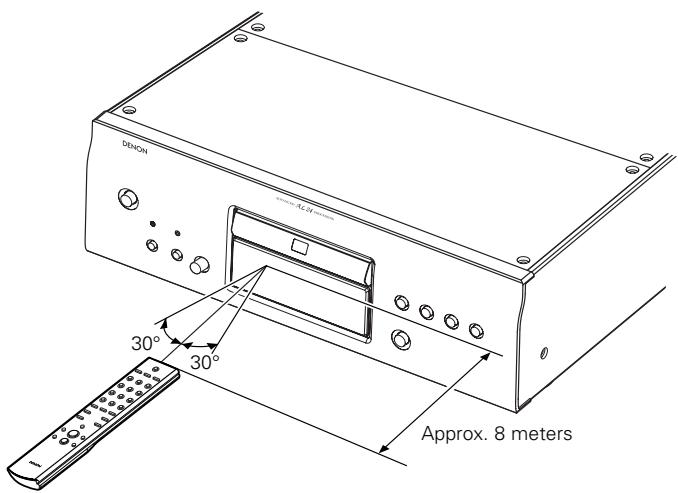

• For remote control, point the supplied remote control unit RC-997 towards this sensor.

6 Display

Refer to page 9.

Disc holder open/close button ()

• Press this button to open and close the disc holder.

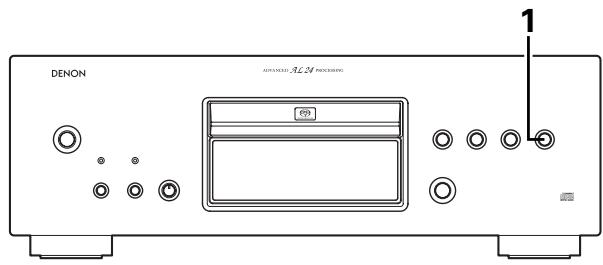

Automatic search forward button (▶▶I)

• Press this button to move the pickup forward to the beginning of the next track. Press again to move ahead to other tracks.

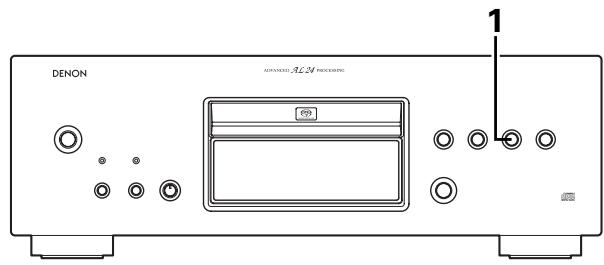

Automatic search reverse button (I<

• Press this button to return the pickup to the beginning of the present track. Press again to return to other tracks.

10 Stop button (■)

• Press this button to stop playback.

1 Play/Pause button (▶/II)

• Press this button to start playback the disc.
• When pressed while the disc holder is open, the disc holder closes and playback starts.
• Press this button to stop playback temporarily.

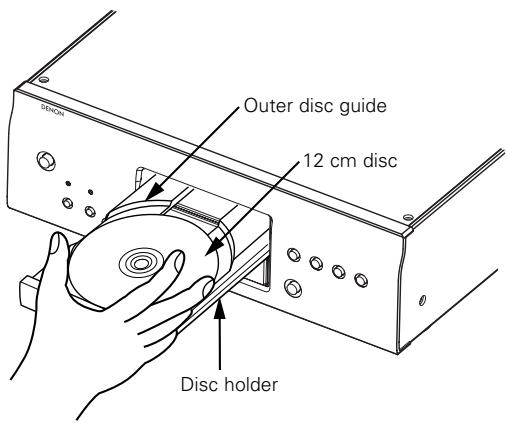

12 Disc holder

• Load discs here. (See page 11.)
• Press the disc holder open/close button ⑦ to open and close the disc holder.
• The disc holder can also be closed by pressing the play/pause button 11.

13 Super Audio CD indicator

• This indicator lights when playing a Super Audio CD.

14 Advanced AL24 Processing indicator

• When a CD is loaded or the Super Audio CD's CD layer mode is set, the Advanced AL24 Processing circuit (which reproduces analog waveforms) is activated and this lights. This also lights when digital data is input from one of the external inputs (OPTICAL or COAXIAL).

(2) Rear Panel

Digital output jack (OPTICAL)

• Digital data is output in optical form from this jack.
• Connect using an optical fiber cable (commercially available).
• With Super Audio CDs, no digital signals are output.

Digital output jack (COAXIAL)

• This jack outputs digital data.
• Connect using a commercially available 75 Ω/ohms coaxial pin-plug cord intended for digital audio connections.
• With Super Audio CDs, no digital signals are output.

Digital input jack (OPTICAL)

• Digital data is input in optical form to this jack.

18 Digital input jack (COAXIAL)

• Digital data is input to this jack.

19 Power input (AC IN)

• Connect to an AC power supply using the included power supply cord.

20 Analog output jacks (XLR BALANCED)

• Use these jacks for connection to the amplifier's balanced input jacks.
• Connect using a Cannon connector (XLR-3-32 type) cord (commercially available).

21 Analog output jacks (RCA UNBALANCED)

• Connect these to the amplifier's input jacks.
• Connect using the included RCA pin-plug cord or a commercially available connection cord.

(3) Display

This lights when a CD is loaded or the Super Audio CD's CD layer mode is set.
This lights when the track number is displayed.
This lights to indicate the time display mode.
There light to indicate the currently playing audio.

L : Front left channel
R : Front right channel

This lights in the random play mode.

3 CAUTIONS ON HANDLING DISCS

Discs

Super Audio CD

Only Super Audio CD discs containing one of the logos shown at the right can be played on this set.

SUPER AUDIO CD

Stereo

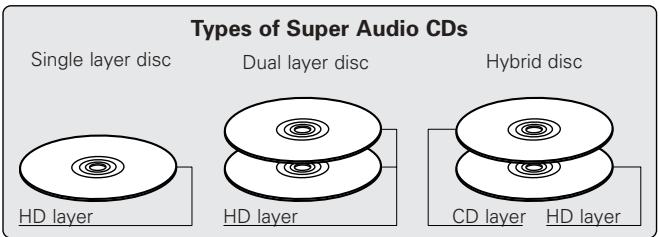

There are three types of Super Audio CDs.

① Single layer disc

Single layer Super Audio CD with only an HD layer.

② Dual layer disc

Super Audio CD with a double HD layer, offering extended playing time and high sound quality.

③ Hybrid disc

Two-layer Super Audio CD with an HD layer and a CD layer. The signals on the CD layer can be played on a regular CD player.

• About the HD layer

All Super Audio CDs contain an HD (High Density) layer with high density Super Audio CD signals. This layer can contain a stereo channel area, a multi-channel area, or both a stereo channel and multi-channel area.

NOTE:

• This set is not equipped for multi-channel playback.

Compact Disc

Only CD discs containing the logo shown at the right can be played on this set.

CD-R/-RW Disc

It may not be possible to play CD-R or CD-RW discs, due to scratches, dirt, the recording condition or the recorder's properties. Discs that have not been finalized cannot be played.

27 Lights in the repeat play mode.

REPEAT ALL : This lights when the all-track repeat play mode is set.

REPEAT 1: This lights when the one-track repeat play mode is set.

23 Displays the title, track number and elapsed time during playback.
29 This lights in the pause mode.
30 This lights in the programmed play mode.
This lights in the playback mode.

Holding Discs

Avoid touching the surface of discs when loading and unloading them.

Be careful not to get fingerprints on the signal surface (the side which shines in rainbow colors).

Cleaning Discs

• Fingersprints or dirt on the disc may lower sound and picture quality or cause breaks in playback. Wipe off fingerprints or dirt.
• Use a commercially available disc cleaning set or a soft cloth to wipe off fingerprints or dirt.

Wipe gently from the middle outwards.

Do not wipe with a circular motion.

NOTE:

• Do not use record spray or antistatic. Also do not use volatile chemicals such as benzene or thinner.

Record spray
Thinner
Benzene

4 REMOTE CONTROL UNIT

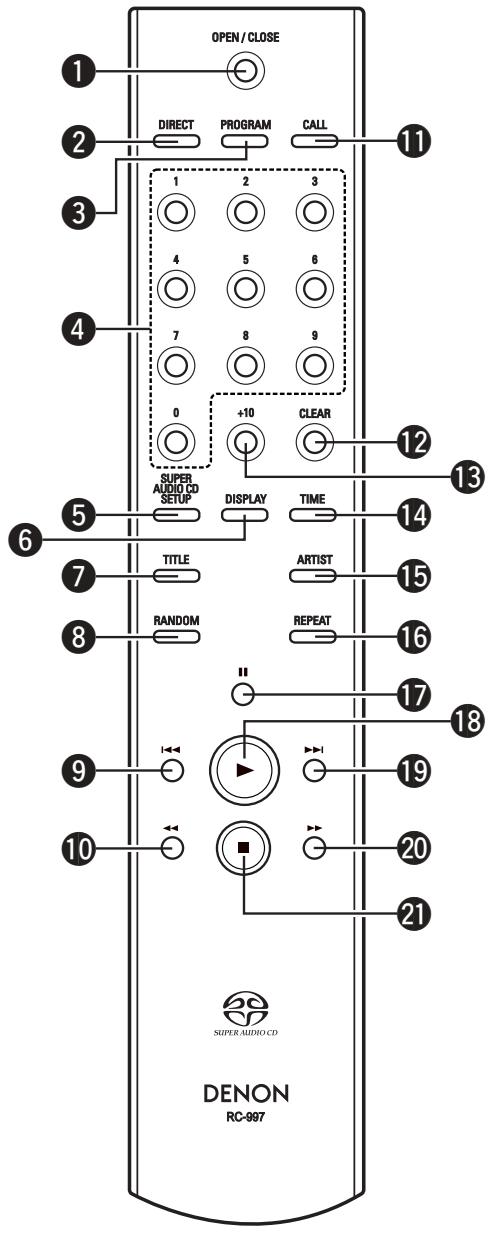

The DCD-SA1 can be controlled from a distance using the included remote control unit (RC-997).

(1) Inserting Batteries

① Remove the remote control unit's rear cover.

② Place 2 R03/AAA batteries in the battery compartment in the direction indicated by the marks.

③ Close the rear cover.

Cautions on Batteries

• Use R03/AAA batteries in this remote control unit.
• Replace the batteries with new ones approximately once a year, though this depends on the frequency with which the remote control unit is used.
• If the remote control unit does not operate from close to the main unit, replace the batteries with new ones, even if less than a year has passed.
• The included batteries are only for verifying operation. Replace it with a new battery as soon as possible.
• When inserting the batteries, be careful to do so in the proper direction, following the and marks in the remote control unit's battery compartment.

• To prevent damage or battery fluid leakage:

• Do not use a new battery with an old one.

• Do not use two different types of batteries.
• Do not short-circuit, disassemble, heat or dispose of batteries in flames.
• Remove the batteries when not planning to use the remote control unit for a long period of time.
• If the batteries should leak, carefully wipe off the fluid from the inside of the battery compartment, then insert new batteries.

(2) Using the Remote Control Unit

• When operating the remote control unit, point it at the remote control sensor as shown in the figure.
• The remote control unit can be used from a direct distance of approximately 8 meters. This distance will be shorter, however, if there are obstacles in the way or if the remote control unit is not pointed directly at the remote control sensor.
• The remote control unit can be operated at a horizontal angle of up to 30^ with respect to the remote control sensor.

NOTES:

• It may be difficult to operate the remote control unit if the remote control sensor is exposed to direct sunlight or strong artificial light.
• Do not press the buttons on the main unit and on the remote control unit at the same time. Doing so will result in malfunction.

(3) Names of the Remote Control Unit Buttons

1 Disc holder open/close button (△)
2 DIRECT button
3 PROGRAM button
Number buttons (0 9)
5 SUPER AUDIO CD SETUP button
6 DISPLAY button
7 TITLE button
8 RANDOM button
Automatic search reverse button (I<
10 Manual search reverse button (▲)
11 CALL button
12 CLEAR button
13 +10 button
TIME mode button
15 ARTIST button
16 REPEAT button
17 Pause button (II)
13 Play button (▶)
Automatic search forward button (▶▶I)
20 Manual search forward button (▶▶)
21 Stop button (■)

* Continuous Button Operation

If the automatic search forward button (▶▶I), automatic search reverse button (I▶I) or +10 button are held in, the function of these button will be repeated.

5 OPENING AND CLOSING THE DISC HOLDER AND LOADING DISCS

(1) Opening and Closing the Disc Holder

① Turn on the power.
② Press the button.

(2) Loading Discs

• Pick up the disc carefully so as not to touch the signal surface and hold it with the labeled side facing up.
• With the disc holder fully open, set the disc in the disc holder.
• Set 12 cm discs in the outer disc guide, 8 cm discs in the inner disc guide.
• Press the button. The disc is automatically loaded.
• The disc holder closes automatically if the / II button is pressed.
• If your finger should get caught in the disc holder when it closes, press the button.

6 NORMAL PLAYBACK

(1) Setting the Top PriorityPlayback Layer for Super Audio CDs

The layer for top priority playback after the disc is loaded can be set.
* The layer set for top priority playback upon shipment from the factory (default setting) is the Super Audio CD (stereo) layer.

1. Press the POWER switch to turn on the power.

2. Check that no disc is loaded.

3. If the layer is switched while the disc is being loaded, the playback layer switches for that disc, but the top priority playback layer setting itself does not change.

4. Press the SUPER AUDIO CD SETUP button and switch to the layer you want to set.

5. When a disc is loaded after the setting has been made, the contents recorded on the set layer are displayed.

6. If a disc that does not contain the layer set for top priority playback is loaded, the contents recorded on another layer are displayed automatically.
7. This setting is stored in the memory and is not cleared even when the disc holder is opened or closed or the power is turned off. To change the setting, repeat the procedure above.

(2) Starting Playback

1. Press the POWER switch to turn on the power.
2. Press the button.

The disc holder opens.

1. Load the disc you want to play.

2. For instructions on loading discs, refer to "OPENING AND CLOSING THE DISC HOLDER AND LOADING DISCS". (See page 11.)

3. Set the MODE knob to "NORMAL".

4. For Super Audio CDs, use the SUPER AUDIO CD SETUP button to set the layer to be played, as necessary.

5. To check the currently playing layer, press the SUPER AUDIO CD SETUP button once. "STEREO", "PCM CONV." or "CD" is displayed. Press the button again while one of these is displayed to switch the layer to be played.

6. Press the / 口 button.

7. Playback starts.

8. Playback stops automatically after the last track on the disc has been played.

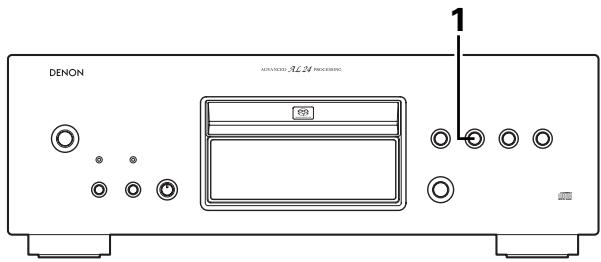

(3) Stopping Playback

1. During playback, press the button.
2. Playback stops.

7 VARIOUS PLAYBACK FUNCTIONS

(1) Playing a specific track (Remote control unit only)

[Direct Play]

1. Use the number buttons and the +10 button to select the desired track.

2. Ex.: To select track 4 : 4

To select track 12 : +10 , 2

To select track 30 : +10, +10, +10, 0

Playback starts from the selected track.

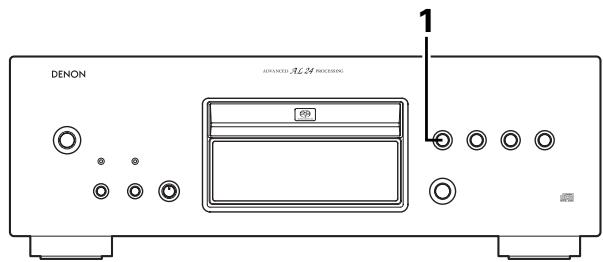

(2) Stopping playback temporarily

[Pause]

Use this function to stop playback temporarily, and later resume playback from that point.

1. During playback, press the / 串 button (or the I button on the remoto control unit).

2. Playback pauses.

3. To resume playback from the position at which the disc is paused, press the button (or the button on the remote control unit).

(3) Automatic Search

Moving ahead to the beginning of the next track

Moving back to the beginning of the current track

1. Press the button. (Operable with the remote control unit)

2. Press the button more than once to move ahead to the beginning of subsequent tracks.

3. When the▶按钮 is pressed during random playback, the next track is selected at random and played.

4. Press the 1 button. (Operable with the remote control unit)

5. Press the button more than once to move back to the beginning of previous tracks.

(4) Finding the desired spot while listening to the sound (Remote control unit only)

[Manual Search]

Use this function to skip forward or backward while listening to the sound.

This function comes in handy for finding the desired spot in the middle of long tracks.

Searching forward

1. During playback, press and hold in the button.

2. When the button is released, normal playback resumes from that point.

Searching backward

1. During playback, press and hold in the button.

2. When the button is released, normal playback resumes from that point.

NOTE:

• The sound may be interrupted momentarily when resuming normal playback from the manual search mode. This is not a malfunction.

(5) Playing the tracks in the desired order (Remote control unit only)

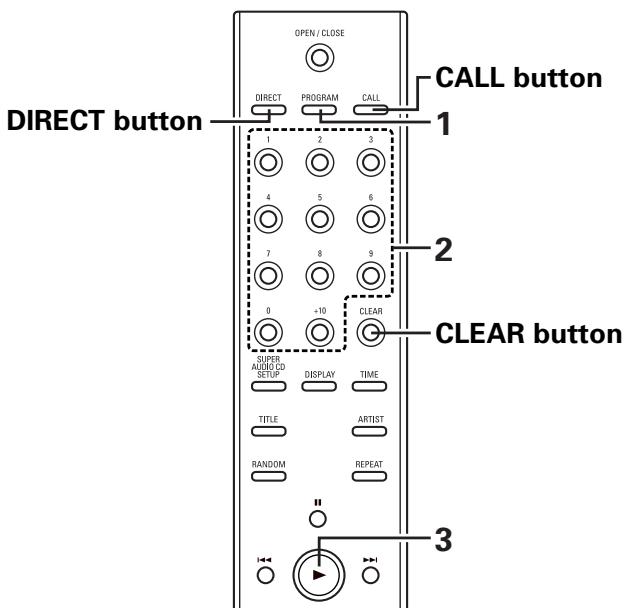

[Programmed Play]

Use this function to select the desired tracks on the disc and play them in the desired order.
Up to 30 tracks can be programmed.

1. In the stop mode, press the PROGRAM button.

2. The "PROGRAM" indicator lights.

3. Press the number and +10 buttons to select the track to be programmed.

4. For example, to program the 3rd track and the 12th track, press PROGRAM, 3, +10 and 2.

5. Press the button.

6. The tracks are played in the programmed order.

7. To confirm the programmed playing order, press the CALL button in the stop mode. The programmed playing order appears in the display.

8. To cancel the entire program, press the DIRECT button or the button in the stop mode.
9. If you program the wrong track, press the CLEAR button, and then program the right track. (The last track in the program is erased each time the CLEAR button is pressed.)

Use this function to play all the tracks on the disc once in random order.

(6) Playing the tracks in random order (Remote control unit only)
[Random Play]

1. In the stop mode, press the RANDOM button.

2. The "RANDOM" indicator lights.

3. If pressed during playback, random play starts from that track.

4. Press the button.

5. A track is selected automatically and playback starts.

6. During programmed playback:

The programmed tracks are played in random order.

• During repeat playback:

The tracks are played once in random order, then played again in a different order, and this is repeated.

• To cancel random playback, press the RANDOM button in the stop mode. Normal playback resumes.

(7) Repeat Play (Remote control unit only)
1 Playing all the tracks repeatedly
[All-track Repeat]

1. In the stop mode, press the REPEAT button once.
2. The "REPEAT ALL" indicator lights.

3. Press the button.

4. The all-track repeat mode can also be set by pressing the REPEAT button during playback.

5. The one-track repeat mode is set if the REPEAT button is pressed again during repeat playback.
6. If the REPEAT button is pressed during programmed playback, the programmed tracks are played repeatedly.
7. To cancel the all-track repeat mode, press the REPEAT button twice.

Playing a single track repeatedly
[One-track Repeat]

1. During playback, press the REPEAT button twice.

2. The "REPEAT 1" indicator lights.

3. When the REPEAT button is pressed twice while in the stop mode, the set is readied for playback of the first track. Press the▶ button to start playback.

4. Press the REPEAT button once again to cancel the one-track repeat mode. The display and playback return to normal.

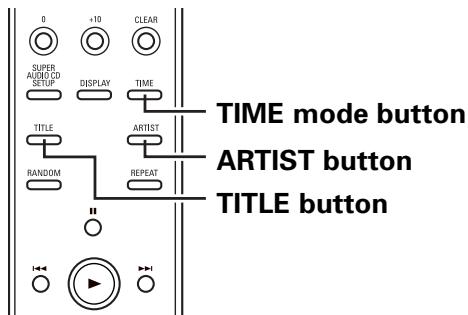

(8) To display text (Super Audio CD only)

■ With Super Audio CDs that contain text information, the text information included on the disc can be displayed while in the stop or play mode.
The album title, artist name and track titles can be displayed.
Displayable characters are capital and small letters, numbers and some symbols.

Text display in the stop mode

• When the TITLE button is pressed, the album title scrolls on the display.
• When the ARTIST button is pressed, the album's artist name scrolls on the display.

2 Text display in the play mode

• When the TITLE button is pressed, the title of the currently playing track scrolls on the display.

• To switch to the display of the recorded time while text information is being displayed, press the TIME mode button.

• When the TITLE or ARTIST button is pressed, the text scrolls once, then only the first 13 characters of the text are displayed.
• When the track is switched while the track title is being displayed, the title of the new track is scrolled.
• "NO TEXT" is displayed if the TITLE or ARTIST button is pressed when a disc that does not contain text information is loaded.

8 TIMER-CONTROLLED PLAYBACK

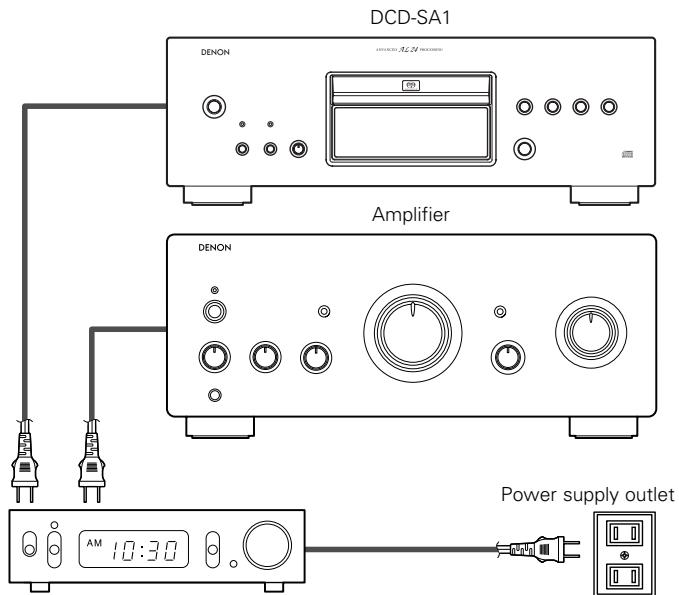

Audio Timer (commercially available)

1. Turn on the power of all system components.
2. Set the input selector on the amplifier to correspond to the inputs the CD player is connected to.
3. Make sure a disc has been loaded in the disc holder.
4. Check the time on the timer and then set the desired turn-on time.
5. Turn the audio timer ON.

Power is turned off automatically in all components connected to the timer.

1. When the preset turn-on time is reached, power is turned on in the system components and CD playback starts from the first track.

9 USING AS A D/A CONVERTER

1. Select "OPTICAL" or "COAXIAL" with the MODE knob.

2. “- -” first appears on the track number display, then the external input's sampling frequency appears (ex. “EXT IN 192k”). (Only “- -” is displayed if the sampling frequency cannot be detected.)

NOTES:

• Signals can be output in analog format only.
• Only linear PCM signals with a sampling frequency of 32kHz , 44.1kHz , 48kHz , 88.2kHz , 96kHz , 176.4kHz or 192kHz can be played on this set. Do not input any signals other than linear PCM signals (CD-ROM, Dolby Digital, DTS signals, etc.). Doing so will generate noise that could damage the speakers.
• When the sampling frequency is switched, the muting circuit is activated for 1 or 2 seconds, so the sound may be interrupted.

10 TROUBLESHOOTING

Check again before assuming the player is malfunctioning

Are all the connections correct?
Are you following the instructions in the operating instructions?
Are the amplifier and speakers operating properly?

If the DCD-SA1 does not seem to be functioning properly, check the table below. If this does not solve the problem, the DCD-SA1 may be defective. Turn off the power, unplug the power cord from the power outlet, and contact your store of purchase or nearest Denon sales office.

Disc holder does not open or close.

Is the power on? .See page 11.

When a disc is loaded, "NO DISC" is displayed.

Is the disc loaded properly? .See page 11.
- Are you attempting to play a disc other than a CD or Super Audio CD? .See page 9.

When the button is pressed, playback does not start.

Is the disc dirty or scratched? .See page 9.

There is no sound or it is distorted.

Is the output cord properly connected to the amplifier? See pages 6, 7.
- Have the amplifier controls been set correctly?

No data is output from the digital output jack (OPTICAL/COAXIAL).

• With Super Audio CDs, no digital signals are output. See page 7.
• Is the DIGITAL OUT button off? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See page 8.

A specific section of the disc will not play.

Is the disc dirty or scratched? .See page 9.

Programmed playback does not work.

• Has programming been properly done?......See page 14.

CD-R and CD-RW discs cannot be played.

• For CD-R/-RW discs, has the disc been finalized?....See page 9.

Incorrect operation when buttons on the remote control are pressed.

• Is the remote control unit being operated too far from the CD player? .See page 10.
• Are there obstacles blocking the ray?
  Is the remote control sensor exposed to strong light?
• Are the batteries exhausted?

11 MAIN SPECIFICATIONS

Audio

• Analog output
Number of channels:	2 channels	2 channels
Frequency response:	2 ~ 100,000 Hz	2 ~ 20,000 Hz
Frequency response range:	2 ~ 50,000 Hz (-3 dB)	2 ~ 20,000 Hz
Signal-to-noise ratio:	117 dB	120 dB
Dynamic range:	110 dB	100 dB
Harmonic distortion:	0.0005 %(1 kHz)	0.0015 %(1 kHz)
Wow and flutter:	Below measurable limit	Below measurable limit
Output voltage (UNBALANCED):	2.0 V (10 kΩ/ohms)	2.0 V (10 kΩ/ohms)
Output voltage (BALANCED):	2.0 V (10 kΩ/ohms)	2.0 V (10 kΩ/ohms)
Signal system:	1-bit DSD	16-bit linear PCM
Sampling frequency:	2.822 MHz	44.1 kHz
Discs:	Super Audio CD format	Compact Disc format
• Digital output
Coaxial:	-	0.5 Vp-p/75 Ω/ohms
Optical:	-	-15 ~ 21 dBm
Light emission wavelength:	-	660 nm
• Digital input
Format:	Digital audio interface (Linear PCM)
Coaxial:	0.5 Vp-p/75 Ω/ohms
Optical:	Light emission input: -27 dBm or more
	Light emission wavelength: 660 nm

General characteristics

Power supply:	AC 230 V, 50 Hz
Power consumption:	35 W
Maximum external dimensions:	434 (width) x 150 (height) x 410 (depth) mm (including protruding parts)
Mass:	21.8 kg

Remote control unit:

Type:	Infrared pulse system
Power supply:	DC 3 V, 2 R03/AAA batteries
Maximum external dimensions:	44 (width) x 233 (height) x 22 (depth) mm
Mass:	165 g (including batteries)

3 Touche DIGITAL OUT

General characteristics

Alimentation:

Rispostain frequency:

7 DIVERSE WEERGAVEFUNCTIONS
