USER MANUAL C910 LOGITECH

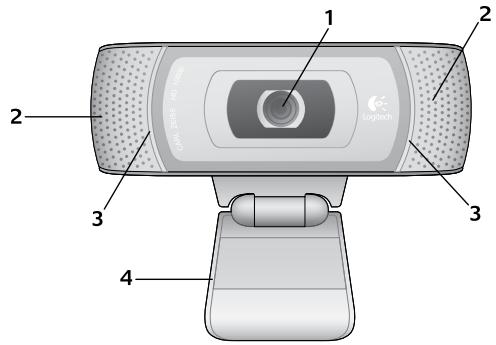

Getting started with

1. Carl Zeiss® autofocus HD 1080p lens
2. Microphones
3. Activity light
4. Flexible clip/base
5. Logitech® Webcam Software for Windows (Download the Mac version of this software from www.logitech.com/support-downloads.)
6. Product documentation

Thank you for buying a Logitech webcam!

Use this guide to set up your Logitech webcam and to begin making video calls.

If you have questions before you start, please visit the websites listed below to learn more about Logitech webcams and video calling.

http://www.logitech.com/support

http://www.logitech.com/webcam_howto

http://www.logitech.com/whatisvid

http://www.logitech.com

Setting up your webcam

1 Place your webcam

2

Install the software

For Mac, download and install the software from www.logitech.com/support-downloads.

3

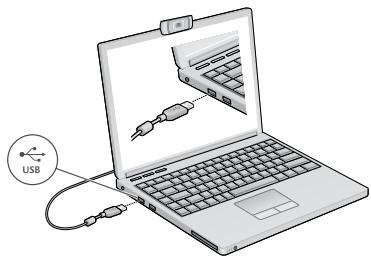

When prompted, connect your webcam

Getting started with video calling

Your webcam comes with Logitech Vid™ HD

With Logitech Vid HD, video calling live over the Internet takes only a few, easy steps:

Install Logitech Vid HD
- Create an account
- Add a friend and make a video call

Learn more: http://www.logitech.com/whatisvid

Setting up Logitech Vid HD

1

Install Logitech Vid HD

For Windows, we recommend that you install both the Logitech Webcam and Logitech Vid HD software.

For Mac, both the Logitech Webcam and Logitech Vid HD software are installed together automatically.

Tip: If you prefer another video-calling application, you will need to download and install third-party software.

Learn more: http://www.logitech.com/webcam-howto

2

Create an account

Follow the on-screen instructions to create your Logitech Vid HD account and to set up your webcam for video calling.

To make video calls with any application, both you and the person you call must have:

A webcam
- A computer with speakers and a microphone (or a headset with a microphone; many Logitech webcams have a built-in microphone)
- A broadband Internet connection (e.g., DSL, T1, or cable)

• The same video-calling application (e.g., Logitech Vid HD)
  Video calling accounts

3

Add a friend or make a practice call

Click on the Practice Call tile to test your settings.

Tip: The Practice Call tile is always available on your Contact List so you can test your settings.

To add a friend, click on the Add a Friend tile and enter your friend's e-mail when prompted.

After your friend has accepted your invitation, click on your friend's picture to make a call.

Accessing account settings and starting applications

Logitech Vid HD

Logitech automatically detects and adjusts the best settings for your webcam. If you would like to re-take your profile picture or update any of your settings, click the Settings icon.

For Windows

Double-click the icons to launch the applications.

1. Logitech Webcam Software
2. Logitech Vid HD

Tip: The Logitech Vid HD icon is only present if you chose to install Logitech Vid HD. To learn about third-party video calling, please visit: www.logitech.com/webcam_howto

For Mac

Your software will be installed to the Applications folder. For easy access, drag and drop the software icons to the Dock. Double-click the icons to launch the applications.

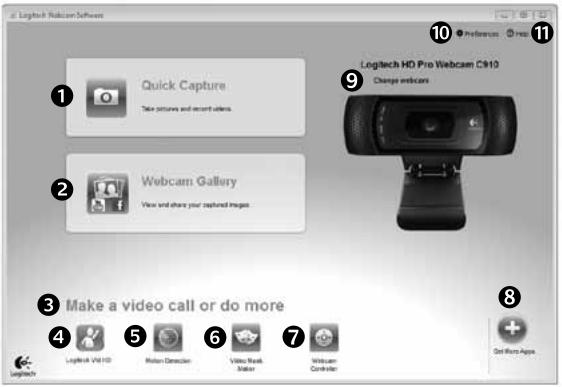

For Windows only: Navigating the Logitech Webcam Software

1. Capture pictures and videos
2. View captured images and share via e-mail, Facebook, or YouTube.
3. An area for easy access to your installed webcam-related applications

4. Launch Logitech Vid HD (if installed)

5. Capture videos triggered by detected motion

6. Create your own custom video mask (for webcams that support this feature)
7. Control your video effects and webcam while on a video call

8. Download additional webcam applications

9. Change webcams (when you have more than one)

10. Open Logitech Webcam Software settings
11. Open help dashboard (manuals and how-to videos)

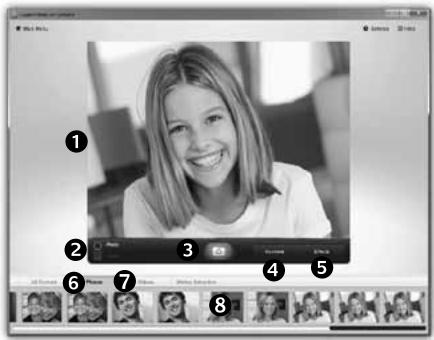

For Windows and Mac: Capturing video and snapping pictures

Quick Capture allows you to take photos or record videos easily.

You have easy access to webcam controls and settings as well as video effects to personalize your images and recordings.

1. Preview window
2. Capture mode: photo/video
3. Capture button
4. Webcam controls
5. Video effects and fun filters are for

Windows only and for webcams that support this feature)

1. Photo thumbnails
2. Video thumbnails
3. Click a thumbnail to enter the gallery

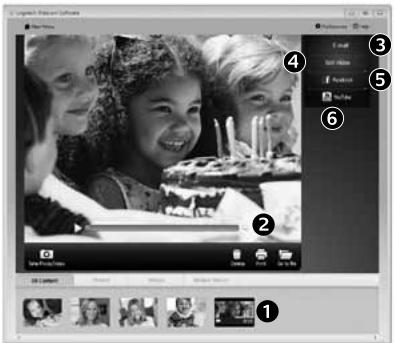

For Windows and Mac: Viewing and sharing using the Gallery

Clicking on an image thumbnail in the gallery (1) opens the video or photo in the review window (2).

• Attach a video or picture file to an e-mail (3)
• Edit a photo or splice together video (4)
• Upload a picture or video to Facebook (5)
• Upload a video to YouTube (6)

You may also drag and drop a gallery image onto one of the function tiles (items 3-6) to launch an editing application or to attach or upload.

For Mac: If you need more information, refer to "Getting help". The rest of this section is for Windows users.

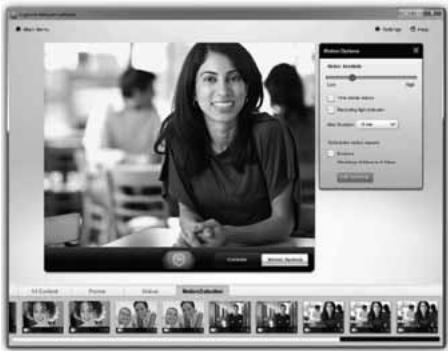

For Windows only: Using motion detection

• Set up your webcam to record video when it detects movement.
• Adjust captured video duration and detection sensitivity.
• Captured video is automatically saved to your computer.
  View content in the Gallery or upload it using the One-touch Upload window.

For Windows only: Personalizing videos and pictures

Your webcam offers Video Effects™, including avatars, face accessories (mustache, glasses, hats, etc.), fun filters, and video masks.

Want to create your own video mask?

Simply open the Video Mask Maker on the Main

Menu and follow the on-screen instructions.

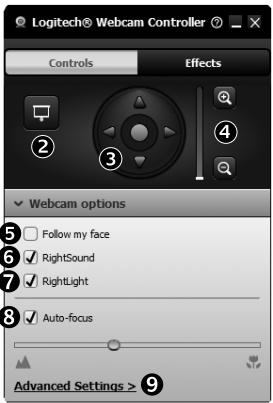

For Windows only: Fine tuning your webcam during a video call

Webcam Controller

1. Launch the webcam controller when on a video call.
2. Hide your video image with a photo while your webcam stays connected.
3. Use pan and tilt to find the best angle.
4. Zoom in or out to include/exclude your surroundings.
5. Use Follow my face so you're always in the picture.
6. Enjoy clear conversations without annoying background noise.
7. Correct for poor lighting environments using RightLight.
8. Choose between auto- or manual focus.
9. Specify webcam operating characteristics.

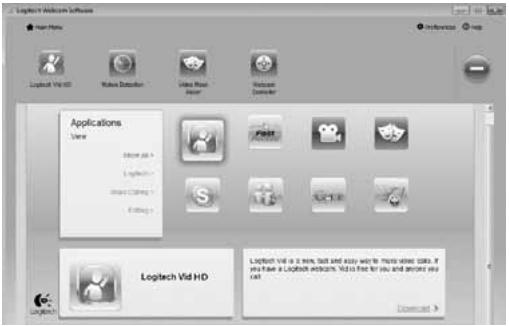

For Windows only: Get more applications for your webcam

Download and install additional applications for your webcam, like video calling, photo and video editing, and other value-added programs.

Getting help

Click on the help icon to access a complete user manual, or watch how-to videos that show you how to get the most out of your Logitech webcam and software.

Tip: If you are not sure about a feature, click the help icon, and our manual will open to the right place.
