Product Type	Rechargeable/AC Beard Trimmer
Brand	Panasonic
Model	ER-SB40
Power Supply	AC adapter (RE7-87) or built-in rechargeable battery
Battery Type	Rechargeable lithium-ion
Charging Time	Approximately 1 hour
Battery Life	Approximately 60 minutes of continuous use
Adjustable Cutting Height	From 1 mm to 10 mm (via dial, with comb)
Cutting Height Without Comb	Approximately 0.5 mm
Blade Type	Moving blade + fixed blade in stainless steel
Water Cleanability	Yes (body, blade and accessory washable under running water)
Lubrication	Oil supplied (apply before and after each use)
Safety Lock	Lock of the power button (press 2 seconds to unlock)
Battery Level Indicator	LOW/MID/HIGH indicators
Included Accessories	Size comb, cleaning brush, oil, storage pouch
Intended Use	Household – beard trimming (not for animals)
Blade Life (estimate)	Approximately 3 years (depending on usage frequency)
Battery Life (estimate)	Approximately 3 years (if charged once a month)
Recommended Charging Temperature	10 °C to 35 °C
Warranty	See manufacturer's terms

Frequently Asked Questions - ERSB40 PANASONIC

How to recharge the Panasonic ER-SB40 trimmer?

Turn the trimmer off. Plug the AC adapter into an outlet. The charge status indicator lights up. Charging takes about 1 hour. Once finished, unplug the adapter.

How to clean the ER-SB40 trimmer?

Remove the accessory and blade if necessary. Rinse the body, blade and accessory under running water through the front water inlet. Shake off excess water, then let dry. Apply a few drops of oil to the blade after drying.

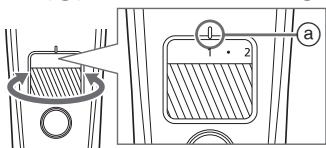

How to adjust the cutting height?

Use the included size comb. Turn the dial on the comb to align the height indication mark with the desired value (from 1 to 10 mm). The actual cutting height is slightly higher than the indicated value.

What to do if the trimmer does not start?

Make sure the power button lock is deactivated: press the button for more than 2 seconds. If the lock indicator flashes, the trimmer is locked. Also check that the battery is charged.

How to replace the blade?

The blade is removed by pushing with the thumb while catching it with the other hand. To install the new one, attach the installation hook into the blade holder on the body, then press until it clicks. Lubricate after replacement.

Why is the trimmer making a loud noise?

A loud noise may indicate that the blade is dull or lacks lubrication. Clean and oil the blade. If the noise persists, replace the blade.

Can the trimmer be used while plugged in?

Yes, you can use the trimmer while plugged into the mains. However, if the battery is very low, the blades may slow down; charge for at least 1 minute before use.

How to maintain the blade to extend its life?

Apply a drop of oil to the blade before and after each use. Clean regularly under running water. Replace the blade if cutting efficiency decreases despite proper maintenance.

Is the trimmer waterproof?

Yes, the body, blade and accessory can be cleaned under running water. However, the device is not designed for full immersion. Water cleaning is only possible when the AC adapter is unplugged.

How to dispose of the used battery?

Remove the built-in rechargeable battery only for disposal. Follow the steps in the manual: fully discharge it, then disassemble the body. Insulate the terminals with tape and recycle it according to local regulations.

USER MANUAL ERSB40 PANASONIC

Operating Instructions

(Household) AC/Rechargeable Beard Trimmer

Model No. ER-SB40

English 3

Francais 19

Espanol. 35

Panasonic®

4566

Operating Instructions

(Household) AC/Rechargeable Beard Trimmer

Model No. ER-SB40

Contents

Safety precautions. 4 Troubleshooting 15

Intended use 8 Blade life. 15

Parts identification. 9 Battery life. 15

Preparation 9 Removing the built-in rechargeable How to use 10 battery 16

Cleaning 13 Specifications 16

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions are required to always be followed, including the following.

Read all instructions before using (this appliance)

DANGER To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Do not use while bathing or in a shower.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. Unplug this appliance before cleaning.

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is required when this appliance is used by, on, or near children or invalids.

2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

3. Never operate this appliance when it has a damaged cord or plug, when it is not working properly, after it has been dropped or damaged, or after it has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken comb, as it has the potential to result in facial injury.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "off" then remove plug from outlet.

SAVE THESE INSTRUCTIONS

WARNING

Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.
- Doing so may cause electric shock or injury.

Do not immerse the AC adaptor in water or wash with water.

Do not clean with water when the AC adaptor is attached.

Do not place the AC adaptor over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage, modify, or forcibly bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.

• Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

• Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Do not use anything other than the supplied AC adaptor for any purpose.

Also, do not use any other product with the supplied AC adaptor. (See page 9.)
- Doing so may cause burn or fire due to a short circuit.

WARNING

Always ensure the appliance is operated on an

electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

• Failure to do so may cause fire or electric shock.

Always unplug the adaptor from a household outlet when cleaning.
- Failure to do so may cause electric shock or injury.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

• Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

• The main unit, adaptor or cord is deformed or abnormally hot.
• The main unit, adaptor or cord smells of burning.
• There is an abnormal sound during use or charging of the main unit, adaptor or cord.
• Immediately request inspection or repair at an authorized service center.

This product

This product has a built-in rechargeable battery.

Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

• Doing so may cause fluid leak, overheating, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury.

Contact an authorized service center for repair (battery change, etc.).

Never disassemble except when disposing of the product.

• Doing so may cause fire, electric shock, or injury.

Preventing accidents

Do not place within reach of children or infants.

Do not let them use it.
- Putting parts or accessories in the mouth may cause an accident or injury.

If the oil is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact a physician.

If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician.

• Failure to do so may result in physical problems.

WARNING

Take care of the following precautions as well

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Failure to do so may cause an accident or injury.

The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• Failure to do so may cause an accident or injury.

CAUTION

Protecting the skin

Do not press the blade against your lip or the skin.

Do not use this product for any purpose other than trimming beard.

Do not directly apply the blades on ears or rough skin (such as swellings, injuries or blemishes).

• Doing so may cause skin injury.

Check that the blades are not damaged or deformed before use.

• Failure to do so may cause skin injury.

Note the following precautions

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

• Doing so may cause electric shock or fire due to a short circuit.

Do not drop or hit against other objects.

• Doing so may cause injury.

Do not wrap the cord around the adaptor when storing.

• Doing so may cause the wire in the cord to break with the load, and may cause fire due to short circuit.

Disconnect the adaptor from the household outlet when not using.

• Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

• Failure to do so may cause electric shock or injury.

Handling of the removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.

• Do not hit, disassemble, modify, or puncture with a nail.

• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.

• Never peel off the tube.

• Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

• The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

If the battery fluid leaks out, do not touch the battery with your bare hands.

• The battery fluid may cause blindness if it comes in contact with your eyes.

Do not rub your eyes. Wash immediately with clean water and consult a physician.

• The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

• Before using an attachment, check that it has been installed correctly. Failure to do so may cause hair to be cut too short.
• The appliance should not be used on animals.
• Apply the oil to the blade before and after each use. (See page 14.)

Failure to apply the oil may cause the following problems.

• The appliance has become blunt.

• Shorter operating time.

• Louder sound.

• Do not use thinner, benzine, alcohol or other chemicals. Doing so may cause failure, cracking or discoloration of the main body. Clean the main body only with a soft cloth slightly dampened with tap water or soapy tap water.

• Be sure to mount the attachment after each use. Otherwise, infants may remove the blade and accidentally swallow it, or the blade may be deformed.
• Store the appliance in a place with low humidity after use. Failure to do so may cause malfunction due to condensation or rust.
• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

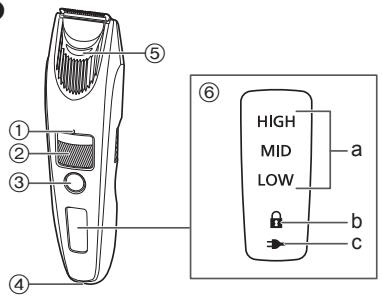

Parts identification

A

B

C

D

E

G

A Main body

① Trimming height indication mark
② Dial (Height adjustment control)
③ Power switch

④ Appliance socket
⑤ Water inlet
⑥ Lamp display

a. Battery capacity lamp
b. Switch lock lamp (B)
c. Charge status lamp ()

Blade

⑦ Cleaning lever
(8) Moving blade
(9) Stationary blade
⑩ Mounting hook

Trimming height comb attachment

AC adaptor (RE7-87)

(The shape of the power plug differs depending on the area.)

⑪ Adaptor

⑫ Power plug

③ Cord

⑭ Appliance plug

Accessories

E Cleaning brush
Oil
G Pouch

Preparation

Charging

• Turn the appliance off.
• Wipe off any water droplets on the appliance socket.

1 Connect the appliance plug to the appliance socket.
2 Plug in the adaptor into a household outlet.

• Check that the charge status lamp () glows.
• Charging is completed after approx. 1 hour.

3 Disconnect the adaptor after charging is completed.

While charging

The charge status lamp () glows.

The battery capacity lamp will blink in order of "LOW", "MID", and "HIGH" while the charging progresses.

After charging is completed

The battery capacity lamp and the charge status lamp () will light up and then turn off after 5 seconds.

Notes

• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.
• The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.
• The charging time may differ when using the appliance for the first time, or if it has not been used for more than 6 months. The lamp on the appliance may not glow for several minutes when first starting charging, but will glow when continuing to charge.
• Recommended ambient temperature for charging is 10^ - 35^ ( 50^ - 95^ ). It may take longer to charge, or the charge status lamp () will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.
• When the charge status lamp () is blinking rapidly (twice every second), there is a charging malfunction. Please charge the battery in the recommended ambient temperature range.

• 1 full charge will provide approximately 60 minutes of continuous operation. (Based on dry using at 20^ - 30^ ( 68^ - 86^)) The operating time may differ depending on the frequency of use and the operating method.

• The battery used is a lithium-ion, so charging after every use will have no effect on battery life.

• If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration.

How to use

• Turn the appliance off.
• Apply the oil to the blade before and after each use. (See page 14.)
• The appliance may not operate in an ambient temperature lower than approximately 5^ (41°F).
• Do not use with shaving foam applied or when the beard is wet. A wet beard may stick to the skin or bunch up, making it difficult to trim.
• Before trimming, comb your moustache with a comb.

1 Mount the desired attachment and adjust the trimming height as needed.

2 Press ① and trim.

• The power cannot be turned on when the switch lock lamp (B) blinks, as the power switch is locked.

Press the power switch for more than 2 seconds to unlock. (See page 11.)

Using the trimming height comb attachment

(See page 12.)

Using without the attachment

(See page 12.)

When the battery capacity is low "LOW" blinks when operating the appliance.

The appliance beeps twice after switched off. You can trim approx. 5 minutes after "LOW" blinks.

(This will differ depending on usage.)

Press ① when finished.

Locking/unlocking the power switch

Locking the power switch

1. Press for more than 2 seconds.

2. The switch lock lamp (A) will light up for 5 seconds and turn off.
   The appliance will stop operating.

3. Release ①

Unlocking the power switch

1. Press ① for more than 2 seconds.

2. The switch lock lamp (A) will turn off.

3. Once the appliance starts operating, release

AC operation

If you connect the AC adaptor to the appliance in the same way as for charging, and turn on the power, you can use it.

• If the remaining battery is too low, the blades may move slowly or stop, even with the AC operation. In this case, charge the battery for 1 minute or more.
• The battery will be discharged, even with the AC operation.

Removing and mounting the attachments

• Take care not to injure hands, etc., with the blade when removing or mounting the attachment.
• Turn the appliance off.

Mounting the attachment

Mount the attachment to the main body until it clicks.
- If the attachment is not attached correctly, it may shift and end up cutting too much during use.

Removing the attachment

Hold the main body securely and remove the attachment from the main body.

Trimming height comb attachment

(Trimming height: approx. 1 mm (1/32") to 10 mm (13/32"))
- Actual hair length will be a little longer than the height you set.

How to adjust the trimming height Turn the dial and adjust the trimming height indication mark (包) to the desired height.

Indicator		1	•	2	•	3	•	4	•	5	•
Trimming height (estimate)	mm	1	1.5	2	2.5	3	3.5	4	4.5	5	5.5
	inch	1/32	1/16	5/64	3/32	1/8	9/64	5/32	11/64	3/16	7/32

Indicator		6	•	7	•	8	•	9	•	10
Trimming height (estimate)	mm	6	6.5	7	7.5	8	8.5	9	9.5	10
	inch	15/64	1/4	9/32	19/64	5/16	11/32	23/64	3/8	13/32

• Trimming to an even length
• Holding the appliance with the power switch facing outwards, trim by bringing the blade in contact with the skin and moving the appliance against the flow of the beard.
• Hair trimmings may collect inside the attachment when a large volume of beard is cut, so discard hair trimmings after each use.

Without the attachment

(Trimming height: approx. 0.5mm (1/64"))

• The appliance cannot trim hair to lengths less than 0.5 mm( 1/64) .

Trimming the downy hair

Holding the appliance with the power switch facing outwards, trim by bringing the blade in contact with the skin.

Design precise lines
1 Place the blade at a right angle on the edge of where you want to make a precise line.
2 Move the blade away and down from the area you want to leave, and cut the remaining beard.

Cleaning

• Clean the main body, blade and the attachment after each use. (If not cleaned, the motion will become poor and the sharpness will worsen.)
• Turn the appliance off.
• Remove the main body from the AC adaptor.

With water

Main body, blade and the attachment

To remove light dirt

1. Remove the attachment and turn the appliance on.
2. Run water down the water inlet at the front of the main body, rinse thoroughly for approximately 20 seconds, and then turn the appliance off.

• Rinse with water and shake up and down several times to remove the water.

To remove heavy dirt

1. Remove the attachment and blade. (See pages 11 and 14.)
2. Clean the main body, the blade and the attachments with running water.

• Rinse with water and shake up and down several times to remove the water.

• Wipe off the water with a towel and let it dry naturally.

• It will dry faster with the blade removed.

• Apply the oil to the blade after drying. (See page 14.)

• Attach the blade and attachment to the main body.

The mark on the left means suitable for cleaning under an open water tap.

With the brush

Main body and blade

1. Remove the blade. (See page 14.)
2. Brush off any hair trimmings from the main body and from around the blade.
3. Brush off the hair trimmings from the blade edge.
4. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever (⑥) to raise the moving blade.
5. Apply the oil to the blade. (See page 14.)
6. Attach the blade and attachment to the main body.

Lubrication

• Apply the oil to the blade before and after each use.

1 Remove the blade. (See this page.)
2 Apply a drop of the oil to each indicated point.
3 Attach the blade to the main body, turn on the power and allow to run for approximately 5 seconds.

Removing and mounting the blade

Removing the blade

Hold the main body with the switch facing upward and push the blade with your thumb while catching the blade in your other hand.

Mounting the blade

Fit the mounting hook (B) into the blade mounting (A) on the main body and then push in until you hear a click.

Troubleshooting

Perform the following actions. If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Problem

The power switch does not turn ON.

The appliance has become blunt.

Operating time is short.

Appliance stopped functioning.

The blade gets hot.

The appliance cannot be charged.

Makes a loud sound.

Action

Unlock the switch lock. (See page 11.)
Until problems are solved, please follow each procedure as follows;
1. Charge the appliance. (See page 9.)
2. Clean the blade and apply oil. (See pages 13 and 14.)
3. Replace the blade. (See page 14.)
4. Have the battery replaced by an authorized service center.
Insert the appliance plug into the appliance firmly.
Apply oil. (See page 14.)
Confirm that the blade is properly attached.

Blade life

Blade life varies according to the frequency and period of use of the appliance.

For example, the blade life is approximately 3 years when using the appliance for 5 minutes 10 times a month. Replace the blades if cutting efficiency reduces substantially despite proper maintenance.

Battery life

Battery life will vary according to the frequency and length of use. If the battery is charged once a month, the service life will be approximately 3 years.

If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life.

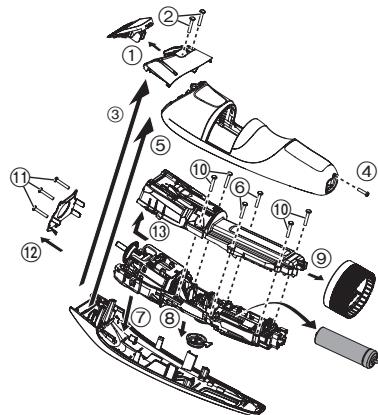

Removing the built-in rechargeable battery

ATTENTION:

A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Remove the built-in rechargeable battery before disposing the appliance.

This figure must only be used when disposing the appliance, and must not be used to repair it. If you dismantle the trimmer yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the appliance from the AC adaptor.

• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.

• Perform steps ① to ⑬ and lift the battery, and then remove it.

• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time	Approx. 1 hour

This product is intended for household use only.

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, install and use in accordance with provided instructions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Personal Care & Beauty Care Products

FOR USA ONLY

30-Day Quality Satisfaction Guarantee

If you are dissatisfied with any Panasonic Personal Care & Beauty Care Products for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 1-800-338-0552.

Abuse or misapplication of this product voids the guarantee.

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368.

Panasonic®

Mode d'emploi

Crear lines as precisas

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

IN CANADA CONTACT:

AU CANADA, COMMUNIQUEZ AVEC:

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

EN MÉXICO CONTACTE CON:

Panasonic de Mexico S.A. de C.V.

Felix Cuevas No. 6 Piso 2 y 3

Col. Tlacoquemecati Del Valle

Del. Benito Juarez

www.panasonic.ca/english/support (In Canada)

www.panasonic.ca/french/support (Au Canada)

http://www.panasonic.com

© Panasonic Corporation 2017

EN, CA, ES
