USER MANUAL OV-1422 TRISTAR

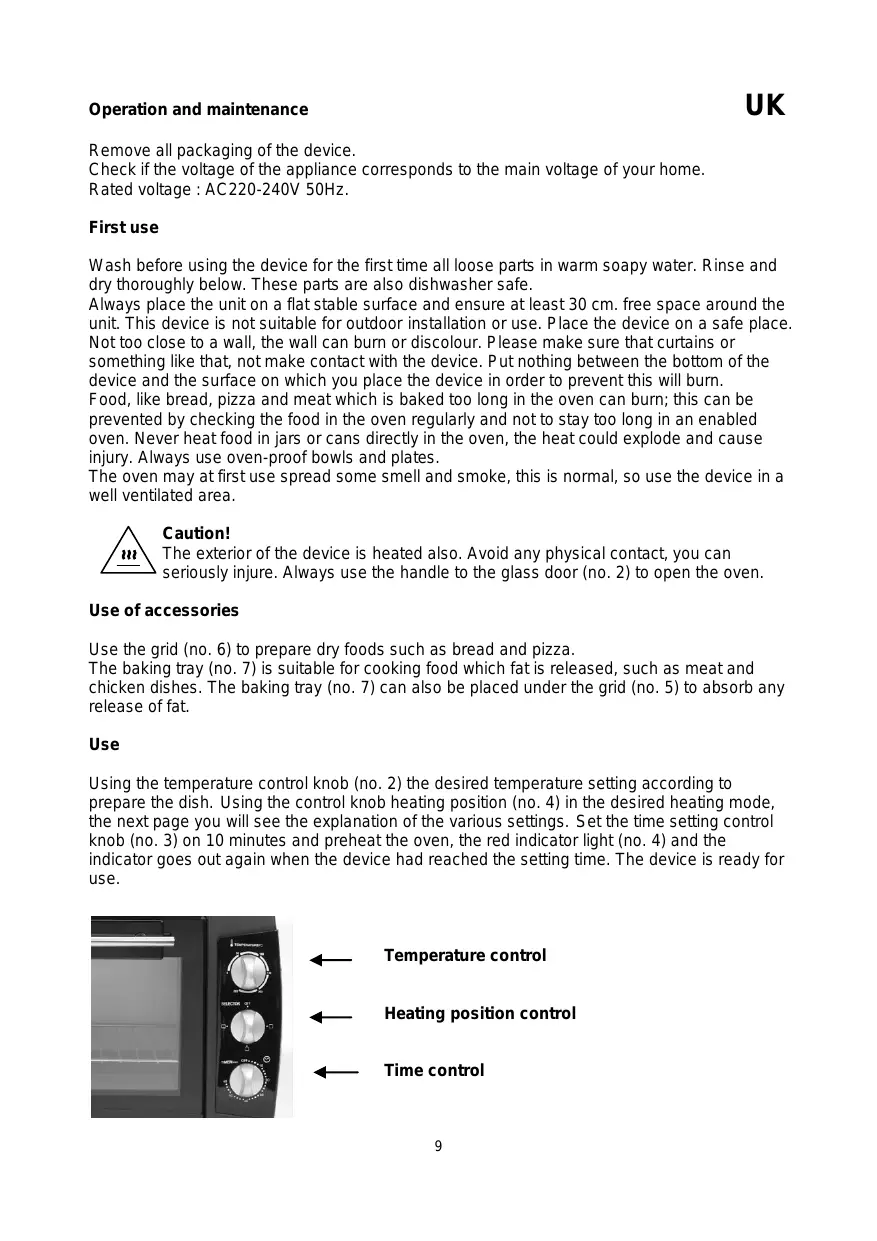

Operation and maintenance Remove all packaging of the device. Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage : AC220-240V 50Hz. First use Wash before using the device for the first time all loose parts in warm soapy water. Rinse and dry thoroughly below. These parts are also dishwasher safe. Always place the unit on a flat stable surface and ensure at least 30 cm. free space around the unit. This device is not suitable for outdoor installation or use. Place the device on a safe place. Not too close to a wall, the wall can burn or discolour. Please make sure that curtains or something like that, not make contact with the device. Put nothing between the bottom of the device and the surface on which you place the device in order to prevent this will burn. Food, like bread, pizza and meat which is baked too long in the oven can burn; this can be prevented by checking the food in the oven regularly and not to stay too long in an enabled oven. Never heat food in jars or cans directly in the oven, the heat could explode and cause injury. Always use oven-proof bowls and plates. The oven may at first use spread some smell and smoke, this is normal, so use the device in a well ventilated area. Caution! The exterior of the device is heated also. Avoid any physical contact, you can seriously injure. Always use the handle to the glass door (no. 2) to open the oven. Use of accessories Use the grid (no. 6) to prepare dry foods such as bread and pizza. The baking tray (no. 7) is suitable for cooking food which fat is released, such as meat and chicken dishes. The baking tray (no. 7) can also be placed under the grid (no. 5) to absorb any release of fat. Use Using the temperature control knob (no. 2) the desired temperature setting according to prepare the dish. Using the control knob heating position (no. 4) in the desired heating mode, the next page you will see the explanation of the various settings. Set the time setting control knob (no. 3) on 10 minutes and preheat the oven, the red indicator light (no. 4) and the indicator goes out again when the device had reached the setting time. The device is ready for use. Temperature control Heating position control Time control

Heating position control button (no. 3) OFF Switch off the oven. The top heating element is switched on. Only the lower heating element is switched on. Both, the top and lower heating element are switched on. Place the grid (no. 6), the baking tray (no. 7) or both in the oven. These can be placed at three positions. On the inside of the oven are three conductors. Use the temperature control knob (no. 4) to set the desired temperature, for the time setting use the time control knob (no. 3), depending on the dish to prepare. Select the desired heating position by switching the heating position button (no. 4).The maximum time setting is 60 minutes, the minimum time setting is 2 minutes. The maximum temperature setting is 250°C, the minimum temperature setting 100°C. The red indicator light illuminates. When the device has reached the setting time, the indicator light turns off and the device gives an audio signal. Always use the provided handle (no. 8) to the grid or the baking tray to get it out of the oven.

A For use with the baking tray (No. 7) Clip upper terminal of the handle on top of the baking tray (No. 7). B For use with the grid (No. 6) Clip lower terminal of the handle on top of the grid (No. 6).

Cleaning the unit Remove the plug from the outlet and let the device cool down. Wash all parts in warm soapy water. Rinse and dry thoroughly. These parts are also dishwasher safe. Clean the exterior with a damp cloth. Clean the inside of the device with a mild detergent or dedicated oven cleaner. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device. Never immerse the device in water or other liquid. Do not place the device in the dishwasher to clean. If the inside of the oven is contaminated, boil and bake process can take longer time than normal.

Cooking tips Your oven is exceptionally suited to the most wonderful dishes to prepare them. In the chart below you will find some tips on preparation time, and the oven temperature settings for different dishes. The indicated temperatures and times are indicative only. The baking results vary depending on the recipes, the dishes and the ingredients used. For the exact cooking time, the heating position and the baking time of your recipe, please refer to the packaging, if the preparation time is mentioned. Heating position

Time Fresh pizza 400 g 200 °C 25 min. Heating position

Salted cake 600 g 200 °C 35 min.

Frozen pizza 450 g 220 °C 15 min.

Lasagne 1500 g 200 °C 40 min.

Whole chicken 1500 g 220 °C 90 min.

Meatballs 1000 g 200 °C 60 min.

Aubergines with cheese Grilled meat 1700 g 200 °C 30 min.

1000 g 220 °C 20 min

Scallopped patatoes Apple pie 1500 g 200 °C 40 min.

1000 g 190 °C 90 min,

Trout in a package 800 g 190 °C 40 min.

Add to the cooking time approximately 10 minutes for the pre-heating of the oven.

IMPORTANT SAFEGUARDS

Read all instructions before use. Do not touch hot surfaces. Use handles or knobs. To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid. Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have. Do not use outdoors, or on or near direct heat sources Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc. This appliance is for household use only and only for the purpose it is made for. The appliance must be placed on a stable, level surface. This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision. This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. This device is not intended for use with an external timer or a remote control system. Note: To avoid danger by the accidental resetting thermal protection, the device may not be powered through an external switching device, such as a timer, or connected to a circuit and is turned regularly by the subject.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing , as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. Guidelines for protection of the environment This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection Packaging The packaging is 100% recyclable, return the packaging separated. Product This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health. EC declaration of conformity This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

MISES EN GARDES IMPORTANTES

Recept Färsk pizza Mängd 400 g Temp. 200 °C Saltkaka 600 g Fryst pizza

Tid 25 min. Uppvärmningsposition

450 g 220 °C 15 min.

Lasagne 1500 g 200 °C 40 min.

Hel kyckling 1500 g 220 °C 90 min.

Köttbullar 1000 g 200 °C 60 min.
