USER MANUAL OV1410 TRISTAR

We would particularly advise you to carefully read the operating instructions before attempting to operate the unit.

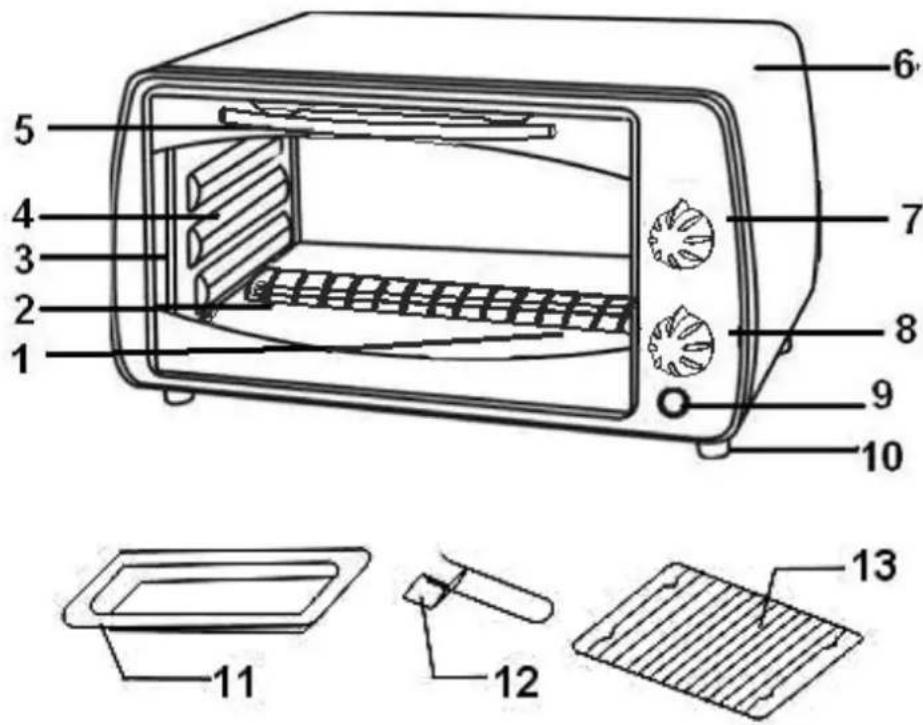

PARTS IDENTIFICATION

1. Heating element 2.Glass 3. Inner case 4.Rack support
   5.Door handle 6.Outer case 7.Thermo knob 8.Timer knob
   9.Indicator light 10.Oven stand 11.Baking Tray 12.Tray holder
   13.Wire rack

PARAMETER DATA

MODEL No.	OV-1410
POWER SUPPLY	220-240V 50Hz
POWER CONSUME	650W
SPECIFICATION	380*260*200mm
NET WT.	3.2KGS

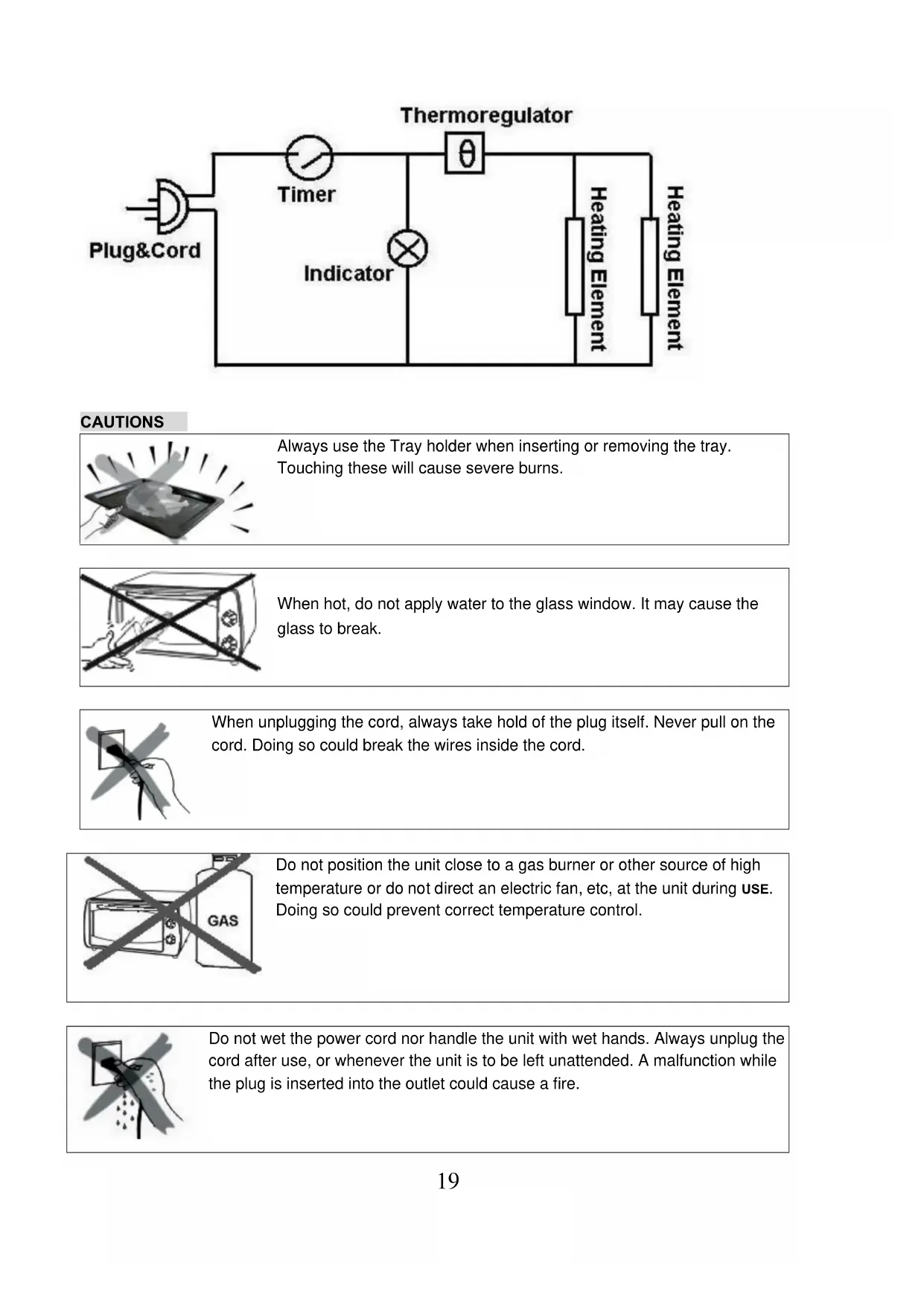

CAUTIONS

Always use the Tray holder when inserting or removing the tray. Touching these will cause severe burns.

When hot, do not apply water to the glass window. It may cause the glass to break.

When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.

Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during USE. Doing so could prevent correct temperature control.

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction while the plug is inserted into the outlet could cause a fire.

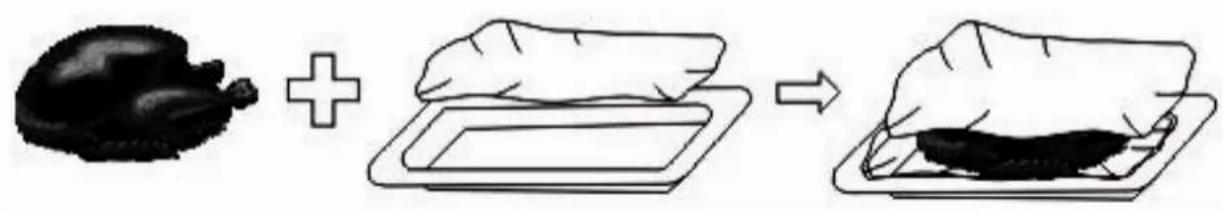

When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one on a tray. Then oil will drip to a gap between foils.

USE INDICATION

Special indication: the parts and accessory varies from different models. Please refer the image to the real item you buy.

Baking tray and wire rack

Baking tray

How to use

e Tray holder

Roast Chicken,

Hamburg steak, Gratin,

Sponge cake, almost all

other oven-cooked foods

Wire rack

Baked potatoes, Dry food

Baking tray and Wire rack

For food which will drip/boiled fish, etc

The trays are not perfectly square.

Note:

Be careful when removing pudding and other hot liquids.

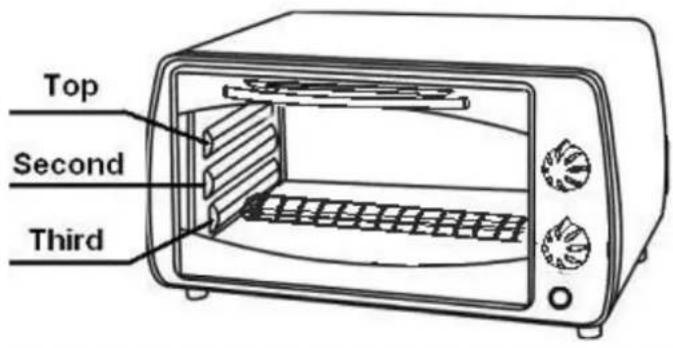

Rack Support

You can adjust the Tray at 2 different positions according to the dishes you want to cook. For instance, when making macaroni gratin and you want to have the top part cooked the most, use the second or the second rack support.

METHOD OF CLEANING

Take off the plug and cool down before cleaning.

When cleaning, wash the interior and exterior surface, tray, grid, and tray holder with soft cotton (or sponge) with neutral cleaner. Then wash with clean water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protect the tray, the net and the tray holder.

Do not use the toxic and abrasive cleaners such as gasoline, polishing powder solvent.

BAKING REFERENCE OF COMMON FOOD

Type of food Number	or thickness	Timer (min.)
Pizza	1 cm	3-4
Toast	2-3 pcs	2-3
Hamburger	2-3 pcs	6-8
Fish	/	10-12
Ham	2 cm	5-10
Sausage	3-4 pcs	8-10
Steak	1-2 cm	10-12

OPERATING INSTRUCTIONS

Before using the unit for the first time:

Heat the empty oven.

(1) Insert the tray and wire rack.
(2) Heat the empty oven for about 10 minutes.

Note:

There may be some smoke and a burning smell at first, but this is not a malfunction.

1. Set the arrow on the timer knob to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.
2. Set the Timer by turning it clockwise. The oven will turn off automatically at the end of the selected time and a bell will ring
3. When setting the Timer to less than 5 min, turn it to more than 6 min. and then back to the selected time.
4. The oven can be turned off manually during cooking by turning the Timer counter-clockwise to the "0FF" position.

Note:

If the inside of the oven is dirty, cooking may take slightly longer than usual.

CAUTIONS

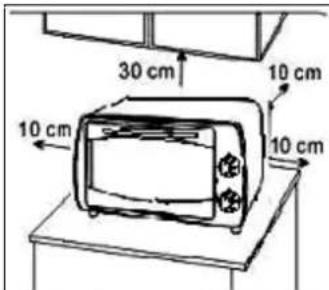

If the oven is positioned too close to a wall, the wall will be burned or stained. Be sure the curtain, etc. are not in contact with the body.

Do not put anything between the bottom of the body and the surface on which it is set. An object so placed could be burned

Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.

Any bottled or tinned food can not be heated directly as the bottle or tin would be broken out and scald the person

Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.

AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. If it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet

WARNING:

If the supply cord or the plug is damaged, the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard must replace it. Check regularly for damages.

****

FORNO ELETTRICO

OV-1410

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
