USER MANUAL OV1412 TRISTAR

Exterior view of a modern cooktop oven with open lid and control knobs (no visible text or symbols)

OV-1412

ALLEEN VOOR HUISHOUDELIJK GEBRUIK

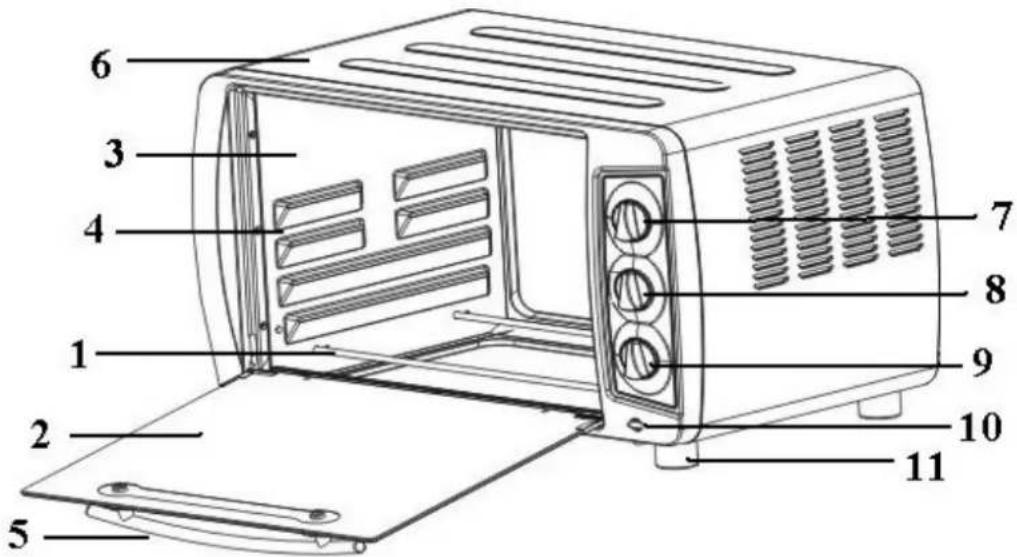

IDENTIFICATIE VAN ONDERDELEN

Labeled diagram of a microwave oven with numbered parts for identification

14

12

1. Verwarmingselement 5. Handvat deur 9. Timer-knop 13. Bakblikhouder
   2.Glas 6.Behuizing 10.Indicatielampje 14.Bakblik
2. Opening 7. Thermostaat 11. Pootjes

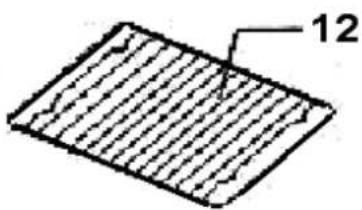

   4.Roosterondersteuning 8.Functieregelingsknop 12.Rooster

PARAMETER GEGEVENS

MODEL NR. OV-1412
VOEDING	220-240V 50Hz
STROOMVERBRUIK	1500W
SPECIFICATIES	540*370*358mm
NETTO GEWICHT	9.5Kgs

Illustration of a tray with a glowing object and radiating lines, no text or symbols present

Simple line drawing of a toaster with a crossed-out X mark, no text or symbols present

Simple wire mesh grid with no text or symbols

Hand holding a pen writing on a lined paper surface (no text or symbols visible)

Line drawing of a microwave oven with ventilation grilles and heat exchangers (no text or symbols)

REINIGINGSMETHODE

Line drawing of a microwave oven with a hand holding a tray (no text or symbols)

Simple line drawing of a microwave oven with a crossed-out X mark (no text or symbols)

Line drawing of a microwave oven with a crossed-out battery and 'Tin' label (no text or symbols on the device itself)

Line drawing of a microwave oven with a black X mark on top (no text or symbols)

Simple line drawing of a pair of wires on a base, no text or symbols present

Illustration of a tray with a lid and radiating lines, no text or symbols present

Illustration of a hand using a microwave to clean or smoke, with a crossed-out black mark on the screen (no text or symbols)

Diagram illustrating the preparation process of a chicken, showing addition and cutting steps

INDICATIONS D'UTILISATION

Simple wire mesh grid with no text or symbols

Hand holding a pen writing on a lined paper (no text or symbols visible)

Black metal grate with parallel slats (no text or symbols visible)

Simple line drawing of a microwave oven with a crossed-out X mark on top (no text or symbols)

Line drawing of a microwave oven with crossed-out wires (no text or symbols)

Line drawing of a microwave oven with a black X mark on the front panel (no text or symbols)

Illustration of two pliers on a base with black wires, no text or symbols present

Illustration of a tray with a lid and radiating lines, no text or symbols present

Illustration of a toaster with a crossed-out black X mark, no text or symbols present

Illustration of a hand spraying water with a spray bottle (no text or symbols)

Diagram illustrating the preparation process of a chicken, showing addition to a tray and resulting in a single dish.

BEDIENUNGSHINWEISE

Technical diagram of a microwave oven with labeled parts, showing internal structure and ventilation slots

REINIGUNG

Line drawing of a hand cleaning a microwave oven with a handle (no text or symbols)

Simple line drawing of a microwave oven with a crossed-out black X mark (no text or symbols)

Line drawing of a microwave oven with a crossed-out Tin (no text or symbols on the device itself)

Line drawing of a microwave oven with a hand holding a black X mark (no text or symbols)

Simple line drawing of a clamp or wire being inserted into a socket (no text or symbols)

1. Rack support 8. Function regulator

PARAMETER DATA

MODEL NO.	OV-1412
POWER SUPPLY	220-240V 50Hz
POWER CONSUME	1500W
SPECIFICATION	540*370*358mm
NET WT.	9.5Kgs

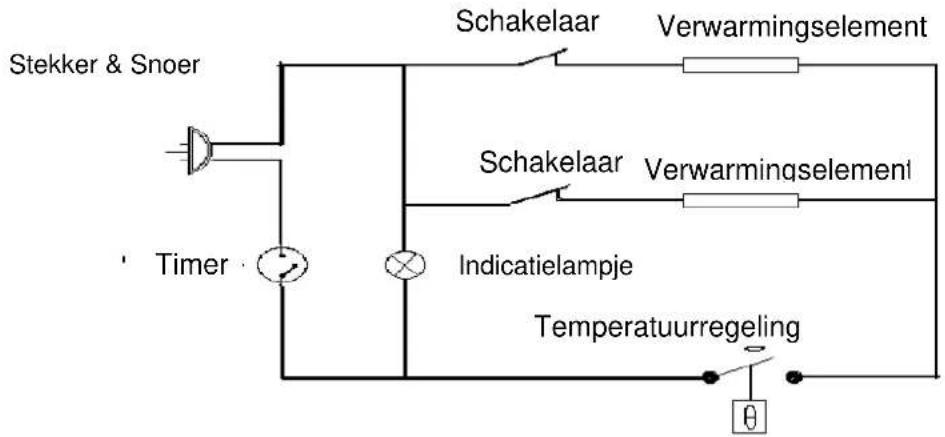

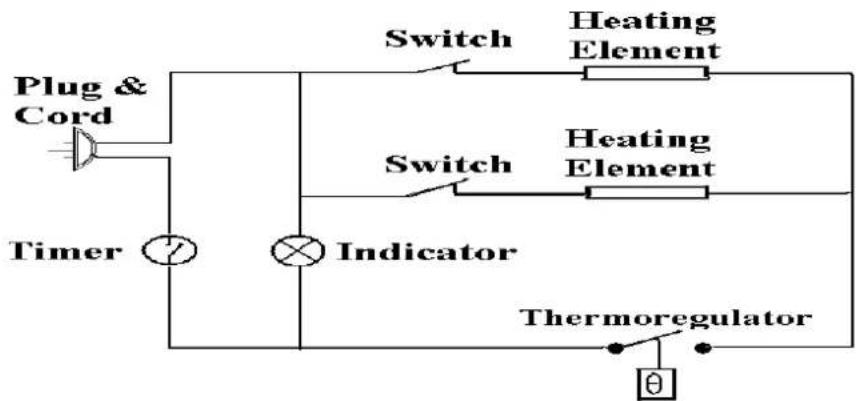

Plug & Cord Timer Switch Heating Element Switch Heating Element Indicator Thermoregulator

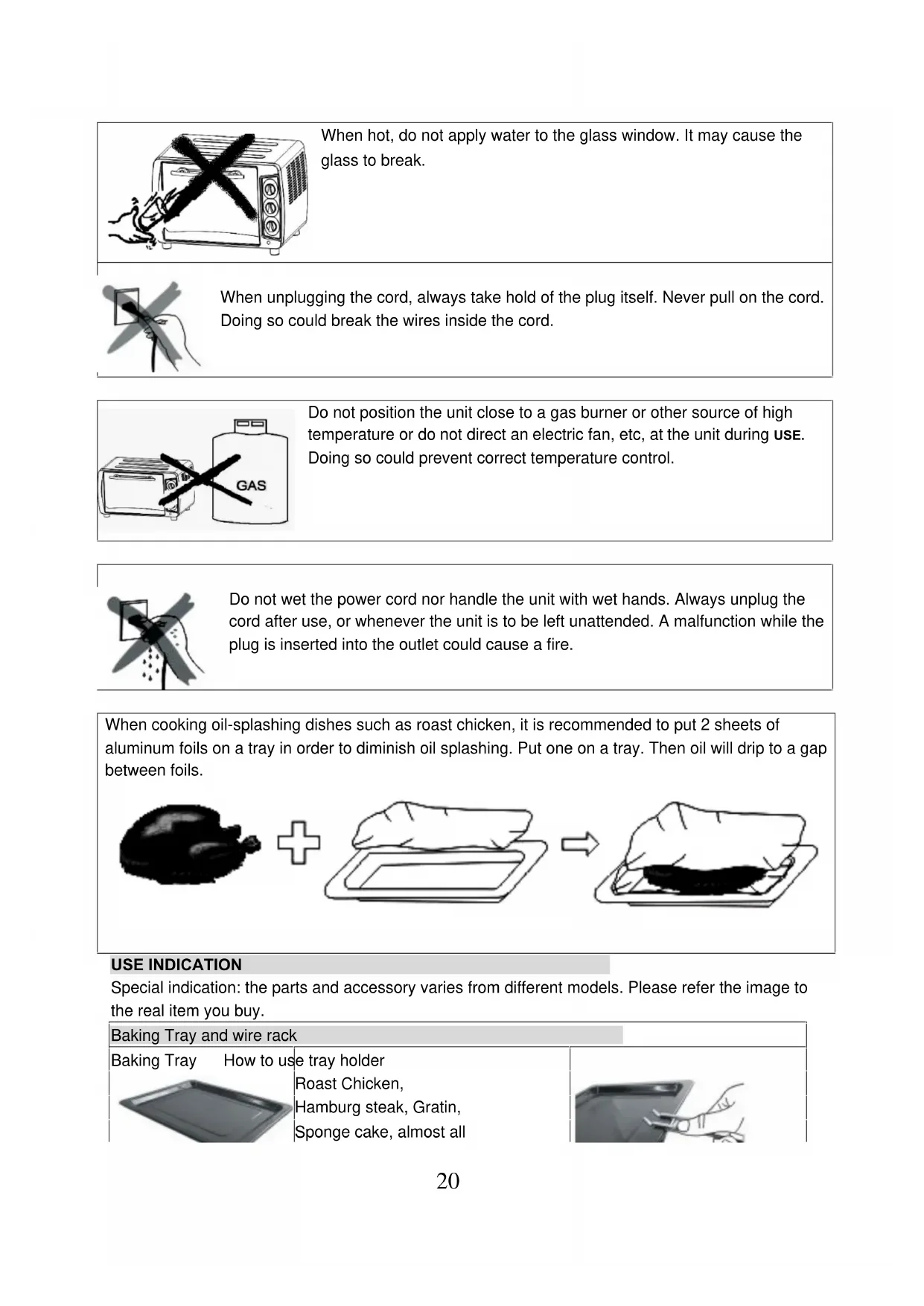

CAUTIONS

Illustration of a tray with a globe and radiating lines, no text or symbols present

Always use the tray holder when inserting or removing the tray. Touching these will cause severe burns.

Illustration of a hand using a grater to cut a microwave oven with a crossed-out X mark (no text or symbols)

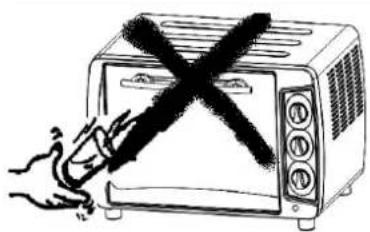

When hot, do not apply water to the glass window. It may cause the glass to break.

When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.

GAS

Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during USE. Doing so could prevent correct temperature control.

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction while the plug is inserted into the outlet could cause a fire.

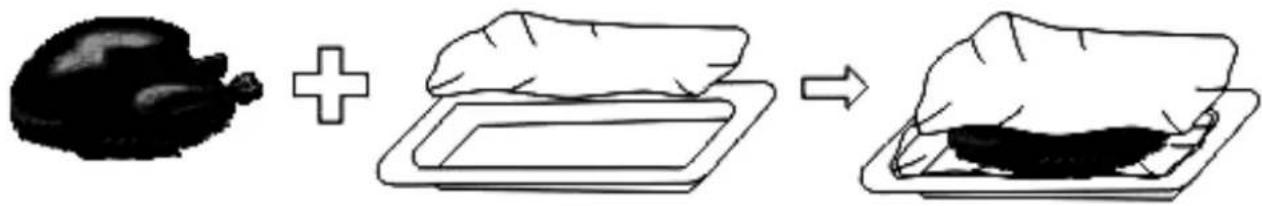

When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one on a tray. Then oil will drip to a gap between foils.

Diagram illustrating the preparation process of a chicken, showing whole and cross preparation with a final step.

USE INDICATION

Special indication: the parts and accessory varies from different models. Please refer the image to the real item you buy.

Baking Tray and wire rack

Baking Tray

How to use tray holder

Roast Chicken,

Hamburg steak, Gratin,

Sponge cake, almost all

Illustration of a hand inserting a small object into a device (no text or symbols visible)

	other oven-cooked foods
Wire rack	Baked potatoes, Dry food
Baking Tray and Wire rack		For food which will drip/boiled fish, etc.

The trays are not perfectly square.

Note:

Be careful when removing pudding and other hot liquids.

Rack Support

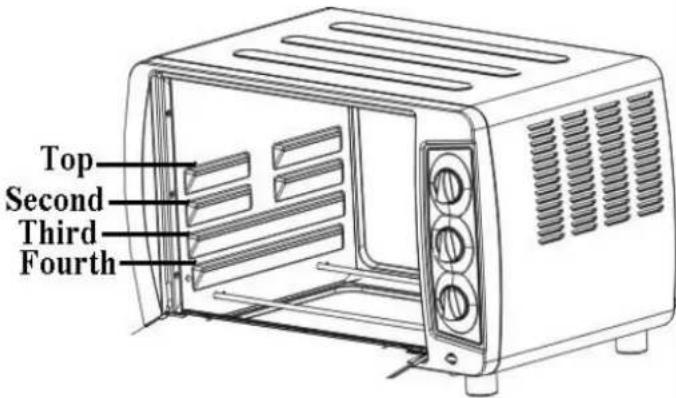

You can adjust the Tray at 4 different positions according to the dishes you want to cook. For instance, when making macaroni gratin and you want to have the top part cooked the most, use the second or the second rack support. For roasting a chicken, use the fourth or the bottom rack support.

Top Second Third Fourth

METHOD OF CLEANING

Take off the plug and cool down before cleaning.

Line drawing of a microwave oven with a hand touching it (no text or symbols)

When cleaning, wash the interior and exterior surface, tray, grid, and tray holder with soft cotton (or sponge) with neutral cleaner. Then wash with clean water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protect the tray, the net and the tray holder.

Do not use the toxic and abrasive cleaners such as gasoline, polishing powder solvent.

BAKING REFERENCE OF COMMON FOOD

Type of food	Number or thickness	Temperature(°C)	Timer«(min.)
Sandwich	2-3 pcs	200	2-3
Toast	2-4 pcs	250	2-5
Hamburger	2-3 pcs	200	3-5
Fish	/	200	7-10
Ham	2 cm	200	7-12
Sausage	3-4 pcs	200-250	8-10
Cake	/	150	20-30
Steak	1-2 cm	250	10-15
Chicken	Half chicken	175-200	30-40

OPERATING INSTRUCTIONS

Before using the unit for the first time:

Heat the empty oven.

(1) Insert the tray and wire rack.

(2) Set the heater operating switch to "UPPER & LOWER", set the temperature control dial to "250°C" and heat the empty oven for about 10 minutes.

Note:

There may be some smoke and a burning smell at first, but this is not a malfunction.

Temperature control dial:

Set the Temperature Control Dial for the dishes which you are going to cook

Heat Operating Switch:

Select "Upper" "Lower" or "Upper and Lower" according to the dishes you are going to cook. You can observe whether the heaters are working or not by observing the front Indicator light.

UPPER( ), LOWER( ), UPPER & LOWER( )

1. Set the arrow on the timer knob to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.

2. Set the Timer by turning it clockwise. The oven will turn off automatically at the end of the selected time and a bell will ring

- When setting the Timer to less than 5 min, turn it to more than 6 min. and then back to the selected time.

1. The oven can be turned off manually during cooking by turning the Timer counter-clockwise to the "0FF" position.

10 20 30 40 50 60 OFF

Note:

If the inside of the oven is dirty, cooking may take slightly longer than usual.

CAUTIONS

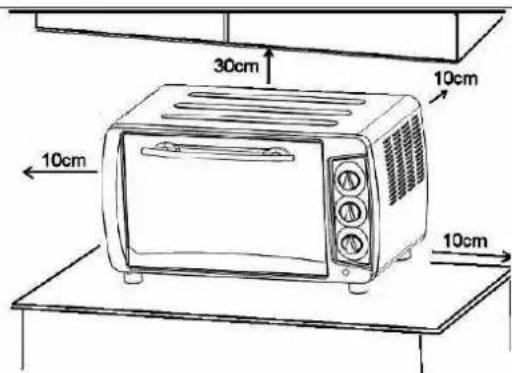

30cm 10cm 10cm 10cm

If the oven is positioned too close to a wall, the wall will be burned or stained. Be sure the curtain, etc. are not in contact with the body.

Do not put anything between the bottom of the body and the surface on which it is set. An object so placed could be burned

Simple line drawing of a microwave oven with a crossed-out X mark (no text or symbols)

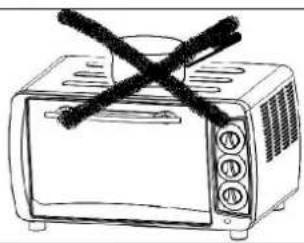

Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.

Illustration of a microwave oven with crossed-out kitchen panes (no text or symbols)

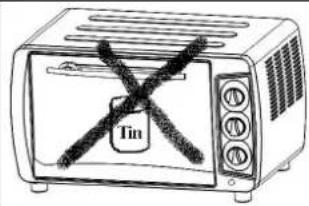

Any bottled or tinned food can not be heated directly as the bottle or tin would be broken out and scald the person

Line drawing of a microwave oven with a black X mark on the lid (no text or symbols)

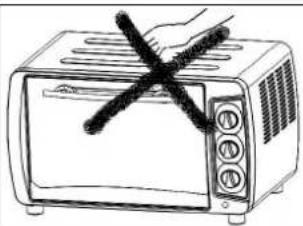

Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.

Simple line drawing of a clamp or wire being inserted into a base (no text or symbols)

AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. If it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet

WARNING:

If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard must replace it. Check regularly for damages.

*****

Illustration of a tray with a globe and radiating lines, no text or symbols present

Simple line drawing of a microwave oven with a crossed X mark above it, no text or symbols present.

Diagram illustrating the preparation process of a chicken, showing whole and cross preparation with a final step.

Appoggio griglia

Simple line drawing of a microwave oven with a crossed-out black X mark on top (no text or symbols)

Line drawing of a microwave oven with a black X mark on top (no text or symbols)

Illustration of a pliers on a base with black bands (no text or symbols)

Illustration of a tray with a tray and light rays, no text or symbols present

Illustration of a hand using a microwave to clean food (no text or symbols)

Diagram illustrating the preparation process of a chicken, showing whole and cross-sections with a final cut.

INDICACIONES DE USO

Black metal grate with parallel slats on a white background (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a handle (no text or symbols)

Simple line drawing of a microwave oven with a crossed-out black X mark (no text or symbols)

Line drawing of a microwave oven with a black X mark on top (no text or symbols)

Simple line drawing of a clamp or bracket with metal clamps (no text or symbols)

APENAS PARA USO DOMÉSTICO

DESCRIÇÃO DAS PEÇAS

1. Elemento de

Illustration of a tray with a heart-shaped object and radiating lines, no text or symbols present

Simple line drawing of a toaster with a crossed-out X mark and smoke, no text or symbols present.

Diagram illustrating the process of adding a cross, showing a rectangular object being placed on top before being folded into a tray with a dark interior.

Line drawing of a microwave oven with ventilation grilles and lid (no text or symbols)

MÉTODOS DE LIMPEZA

Line drawing of a microwave oven with control knobs and a handle (no text or symbols)

Simple line drawing of a microwave oven with a crossed-out black X mark (no text or symbols)

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
