USER MANUAL MX-4142 TRISTAR

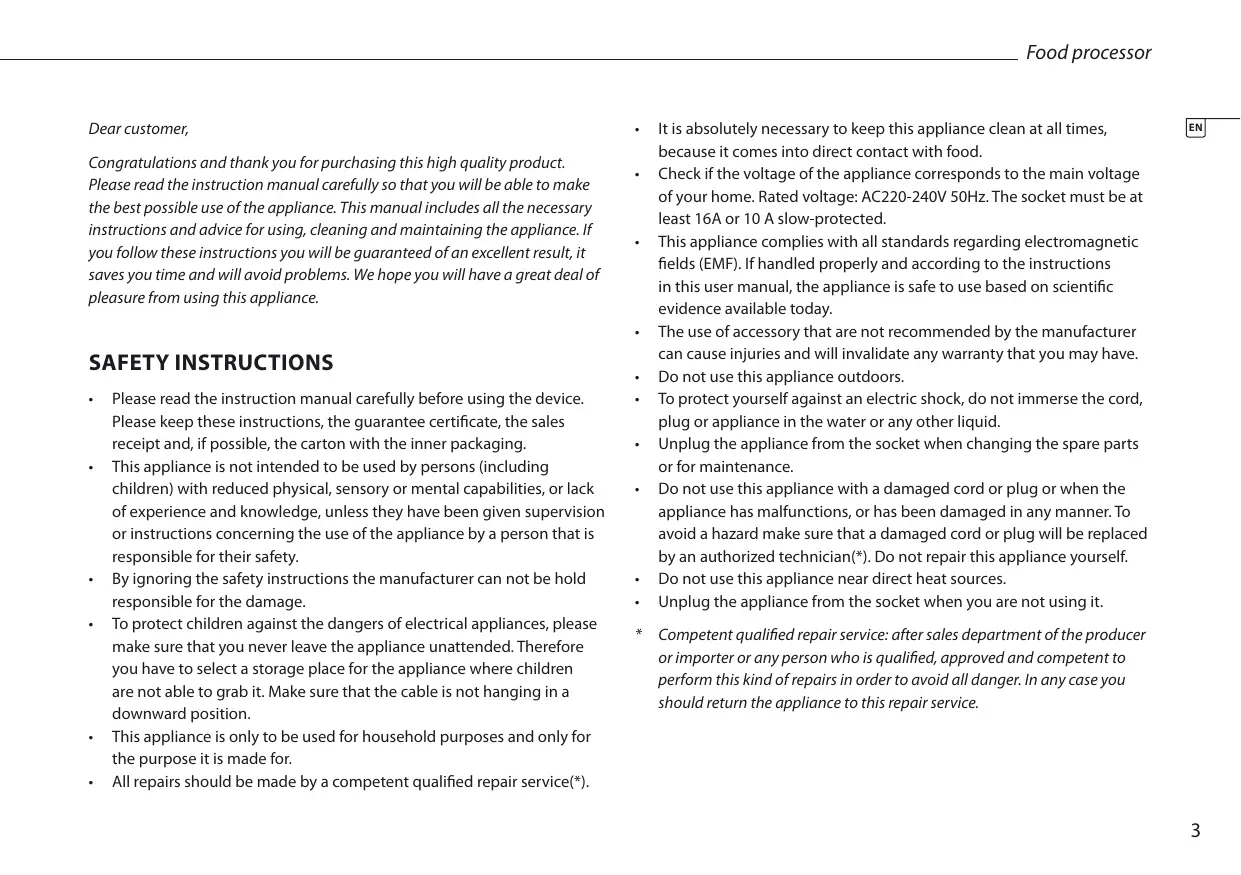

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SAFETY INSTRUCTIONS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• To protect children against the dangers of electrical appliances, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• All repairs should be made by a competent qualified repair service(*)

It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.
- Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16A or 10 A slow-protected.
- This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
- The use of accessory that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.
- Do not use this appliance outdoors.
- To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Unplug the appliance from the socket when changing the spare parts or for maintenance.
- Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician (^) . Do not repair this appliance yourself.
- Do not use this appliance near direct heat sources.
- Unplug the appliance from the socket when you are not using it.
Competent qualified repair service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this repair service.

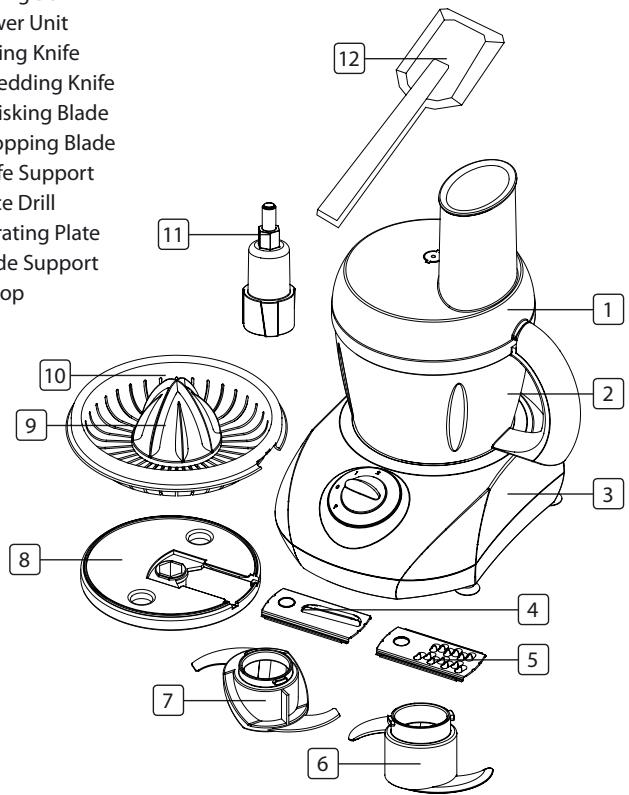

PARTS DESCRIPTION

1. Bowl Cover (Plastic)
2. Mixing Bowl
3. Power Unit
4. Slicing Knife
5. Shredding Knife
6. Whisking Blade
7. Chopping Blade
8. Knife Support
9. Juice Drill
10. Filtrating Plate
11. Blade Support
12. Scoop

BEFORE THE FIRST USE

• Remove all packaging of the device.
• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz.
• Always place the device on a flat stable surface and allow at least 10cm free space around the unit. This device is not suitable for integration or outdoor use.
  The device may spread some smell and smoke at first use, this is normal.

USE

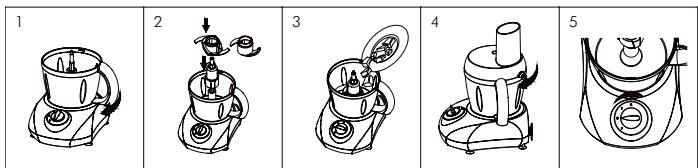

Chopping Function

• Put the plastic bowl on the power unit and turn the handle in clockwise direction.
• Put the blade support on the axis in the middle of the bowl, and press it to the bottom. Then fix the chopping blade to the blade support, as shown in Diagram 2.

Warning: The blade in sharp. Please only hold the plastic part while using.

• Put the food (eg. vegetables) into the bowl, as shown in Diagram 3. Big piece food needs to be cut into small pieces. (cut 2CM × 2CM × 2CM ).
• Put the cover on the bowl, and turn it until hearing the chattering sound, as shown in Diagram 4.

NOTE: The mixer is equipped with two safety switches, make sure the bowl and cover are fixed properly, if one of those parts isn't fixed properly the mixer will not operate.

Fix the plug to the electric socket, turn on the switch to choose the level, as shown in Diagram 5. (1-2 The power increases by degree, PULSE is touch switch, used for intermittent operation)
- When the chopping is finished, turn the switch to "0". After the blade stops, pure out the food.

Whisking Function

Mixing function has almost the same operating steps as chopping function. Only change the chopping blade to shredding blade. It is used for mixing and whisking of food, egg.

6

7

8

9

Slicing and Shredding Function

Fix the slicing/shredding knife to the knife support, as shown in Diagram 6. Slicing knife makes the food into slices. Shredding knife make the food into shreds.
- Put the bowl on the power unit first, then turn the bowl in clock-wise direction, until hearing the chattering sound. Then put the knife support on the axis in the middle of the bowl, as shown in Diagram 7.
- Put the cover on the bowl, and turn it until hearing the chattering sound. Then fix the plug to the electric socket, turn the switch to choose the level. Put into the clean food in strip from the entrance of the cover, and push the food down slowly, As shown in Diagram 8.

• When the food strip is short, push them down with the measuring cup, as shown in Diagram 9.
• When the operation is finished, turn the switch to "0". After the blade stops completely, take the food out.

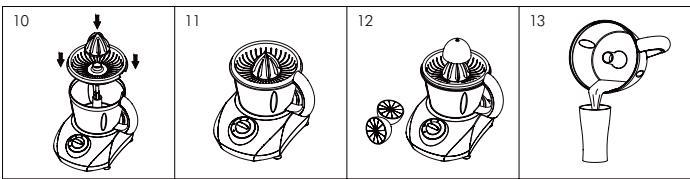

Juicing Function

• Put the bowl on the power unit first, then turn the bowl in clockwise direction, until hearing the chattering sound. Then fix the filtrating plate and juice drill to the bowl, as shown in Diagram 10 & 11.
  Fix the plug to the electric socket, turn the switch to 1,
• Cut the orange into halves, the push down the cut orange slowly, opposite to the juice drill, as shown in Diagram 12.
  Pure out the juice, and mix with seasoning as you like.

INGREDIENTS LIST

FUNCTION	INGREDIENT	MAX QUANTITIES	MAXIMUM TIMES (s)
			Slicing	shredd
SLICING & SHREDDING	MURPHY	400g	50s	30s
	MELON	400g	50s	30s
	CARROT	400g	50s	30s
CHOPPING & WHISKING	MEAT	300g (about 10g/piece)	30s
	HAM	300g (about 15g/piece)	30s
	ONIONS	400g (about 20g/piece)	30s
	EGG	six yolks	25s
	STRAWBERRY	200g	25s
	CHEESE	100g	20s
	ALMONDS	100g	20s
	HAZELNUTS	100g	20s
	WALNUTS	100g	20s

CLEANING

Always unplug before cleaning.
- Please clean the appliance after every time use so that to avoiding food stick on the bowl.

• To clean, wipe with surface of the appliance with a damp cloth, if necessary add a little washing up liquid, then dry thoroughly. Never immerse it into water and d not sue any proprietary cleaner.
• To not immerse or rinse power unit, wipe only with damp cloth.
• Blade can be washed under warm running water, the bowl and plated with warm water and dish wash liquid.

GUARANTEE

• Tristar is not liable for damages occurred through:

o In case the appliance has fallen.
o In case the appliance has been technically changed by the owner or another third party.
o In case of improper use of the appliance.
o In case of normal wear of the appliance.

• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.
• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.
• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.
• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.

This appliance may not be amended or changed.
- If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
- For questions or compliances please contact your retailer "point of purchase."
- This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
- Only material or manufacturing defects are included in this warranty.
If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
- Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
- Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
The guarantee lapses in case of unauthorized tampering.
- After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage

at the end of its durability, but must be offered at a central

point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Geachte klant,

FONCTION	INGRÉDIENT	QUANTITÉS MAX	NÔMBRE DE FOIS
			COUPER	HACHER
COUPER & HACHER	POMME DE TERRE	400g	50s	30s
	MELON	400g	50s	30s
	CAROTTE	400g	50s	30s
TRANCHER & BATTRE	VIANDE	300g(environ 10g/piece)	30s
	JAMBON	300g(environ 15g/piece)	30s
	ONIONS	400g(environ 20g/piece)	30s
	OEUFS	six yolks	25s
	FRAISES	200g	25s
	FROMAGE	100g	20s
	AMANDES	100g	20s
	NOISETTES	100g	20s
	NOIX	100g	20s

NETTOYAGE

FUNÇÃO	INGREDIENTE	QUANTIDADES MÁX.	TEMPOS MÁXIMOS(s)
			FATIAR	RALA
FATIAR & RALAR	BATATA	400g	50s	30s
	MELÉO	400g	50s	30s
	CENOURA	400g	50s	30s
PICAR & BATER	CARNE	300g (about 10g/piece)	30s
	FIAMBRE	300g (about 15g/piece)	30s
	CEBOLA	400g (about 20g/piece)	30s
	OVO	six yolks	25s
	MORANGOS	200g	25s
	QUEIJO	100g	20s
	AMÉNDOAS	100g	20s
	AVELÁS	100g	20s
	NOZES	100g	20s

LIMPEZA
