Product type	Extractor hood
Brand	HOOVER
Model	HBP60
Width	60 cm
Weight	15 kg (estimated)
Electrical supply	220-240 V, 50 Hz
Total power	200 W (estimated)
Lighting	2 bulbs of 40 W max, type E14
Number of motor speeds	Multiple speeds (min. 3)
Air outlet diameter	120 mm (extraction version)
Use version	Extraction (external venting) or recirculation (charcoal filter)
Grease filter	Washable (needle felt or stretched aluminum)
Charcoal filter	Active, non-washable, replace every 4 months
Minimum distance to cooking surface	65 cm (electric), 70 cm (gas or mixed)
Maximum length of exhaust duct	4 meters with few bends
Installation	Wall-mounted or under-element, with drilling templates provided
Exterior cleaning	Cloth soaked with alcohol or neutral liquid detergent
Safety instructions	Do not flambé under the hood, disconnect before maintenance
Repairability	Filters and bulbs replaceable by the user

Frequently Asked Questions - HBP60 HOOVER

What is the difference between the extraction version and the recirculation version?

The extraction version expels air outside via a duct. The recirculation version filters the air through an activated charcoal filter and returns it to the room. For recirculation, you need to add one or two charcoal filters depending on the number of motors.

How to install the HOOVER HBP60 hood?

Use the provided templates to drill holes in the wall. Attach the hooks and anchors, hang the hood, then adjust the height with the screws. For mounting to wall elements, use the side template. Follow the diagrams in the manual.

How to clean the grease filters?

The aluminum or washable fiber grease filters can be cleaned in the dishwasher or with soapy water. Let them dry completely before reassembling. Clean at least once a month.

When should the charcoal filter be replaced?

The activated charcoal filter is neither washable nor regenerable. It must be replaced at least every 4 months. Remove the grille and turn the filter counterclockwise to remove it.

How to change the lighting bulbs?

First, unplug the appliance. Remove the suction grille. Use bulbs of 40 W max, type E14. Replace the grille after replacement. Check that the bulbs are firmly pushed in if the lighting does not work.

What is the minimum distance between the hood and the cooker?

The minimum distance is 65 cm for an electric cooker and 70 cm for a gas or mixed cooker. Respect these distances for optimal safety.

Can I use a duct of a different diameter?

The recommended diameter for the exhaust duct is 120 mm (100 mm for 1-motor models). Using another diameter may reduce performance.

What to do if the hood does not turn on?

First check the electrical outlet and connection. The hood is equipped with a micro-switch connected to the flap: if the flap is closed, the motor turns off. Open the flap to restore power.

Is it possible to fry under the hood?

Yes, but with caution. Never let the oil overheat and never flambé food under the hood. An open flame can damage the filters and cause a fire.

How to improve the efficiency of the hood?

Use the extraction version if possible. Keep the exhaust duct short (max 4 m) and with few bends. Turn on the hood before cooking and leave it running for 10 minutes after cooking.

USER MANUAL HBP60 HOOVER

D	MONTAGE- UND GEBRAUCHSANWEISUNG
GB	INSTRUCTION ON MOUNTING AND USE
F	PRESCRIPTIONS DE MONTAGE ET MODE D'EMPLOI
E	MONTAJE Y MODO DE EMPLEO
P	INSTRUÇÕES PARA MONTAGEM E UTILIZAÇÃO
I	ISTRUZIONI DI MONTAGGIO E D'USO
NL	MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIIZING
RU	ИНСТРУКЦИμ ПО МОНТАЖУ У ЭКСПЛУАТАЦИИ
CZ	NÁVOD NA MONTÁŽ A POUŽÍVÁNÍ
GR	ΟΔΗΓΙΕΣ ΤΟΠΟΘΕΤΗΣΗΣ ΚΑΙ ΧΡΗΣΗΣ

4 5

Technical diagram of a 3D printer or scanner with labeled parts, showing internal mesh structure and component indicators.

A B Fig. 1

3D technical diagram of a mechanical device with internal components and mounting holes, labeled Fig. 2 (no text or symbols on the diagram itself)

Fig. 3 A B

D C F

Fig. 4

D C I F

Fig. 5 E F L I 0-90 54-100 0-54 J H M N Fig. 8

N1

Fig. 6

Fig. 7

P Fig. 9 O

N3 Fig. 10

Fig. 11

B1 N2 B → B2 Fig. 12

C1 ← C N2 C2 Fig. 13

R Fig. 14

Isometric diagram of a bed with labeled panel V and caption 'Fig. 15' (no text or symbols on the diagram itself)

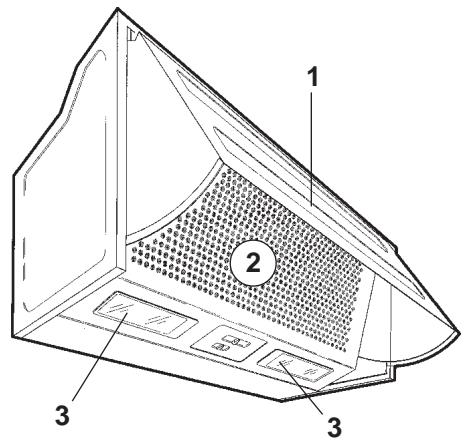

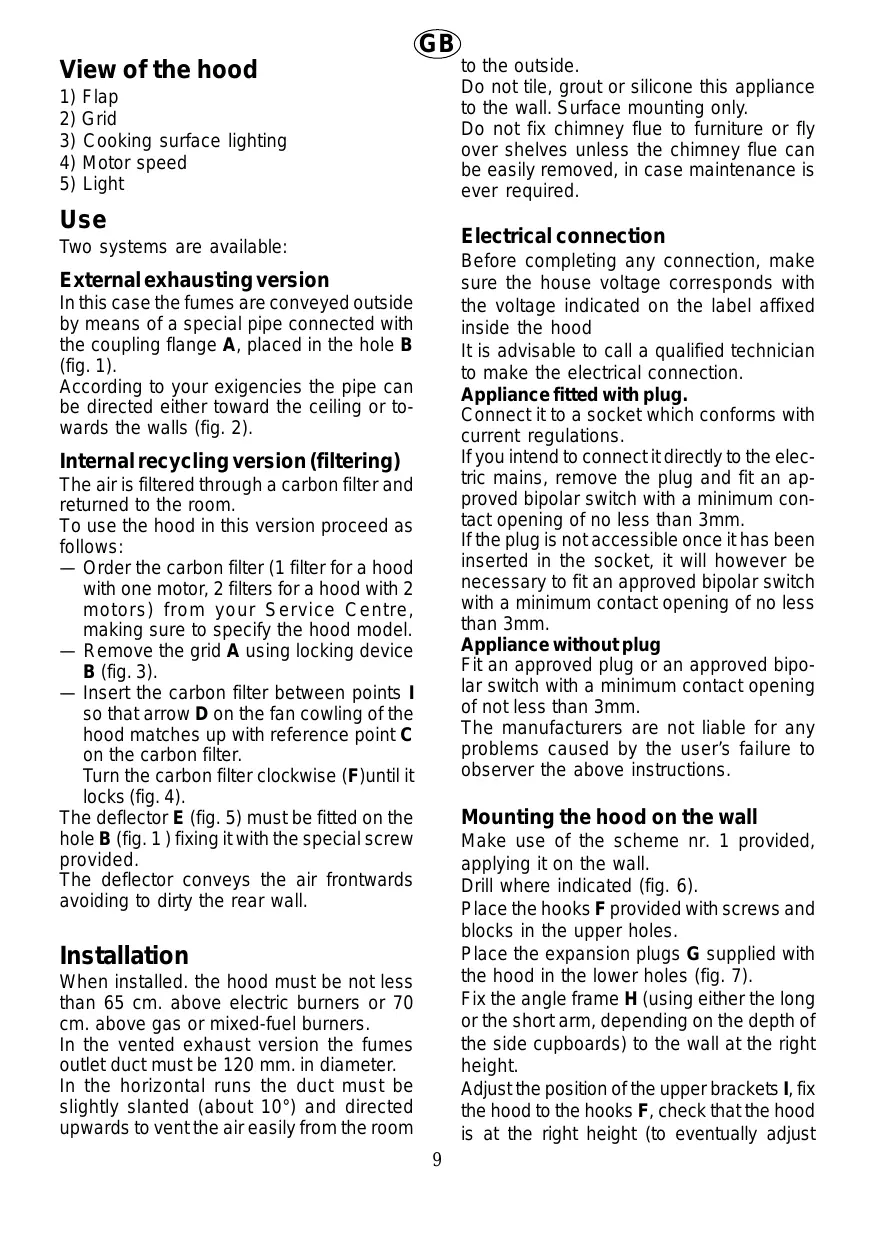

Gerateansicht

Two systems are available:

External exhausting version

In this case the fumes are conveyed outside by means of a special pipe connected with the coupling flange A, placed in the hole B (fig. 1).

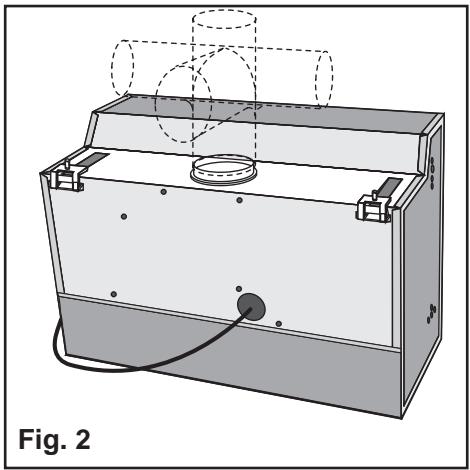

According to your exigencies the pipe can be directed either toward the ceiling or towards the walls (fig. 2).

Internal recycling version (filtering)

The air is filtered through a carbon filter and returned to the room.

To use the hood in this version proceed as follows:

— Order the carbon filter (1 filter for a hood with one motor, 2 filters for a hood with 2 motors) from your Service Centre, making sure to specify the hood model.

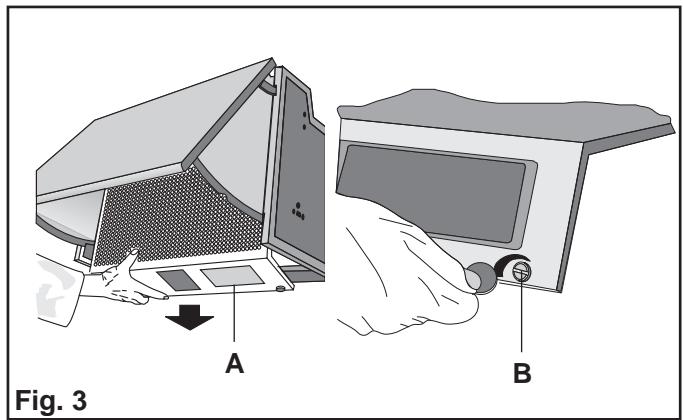

— Remove the grid A using locking device B (fig. 3).

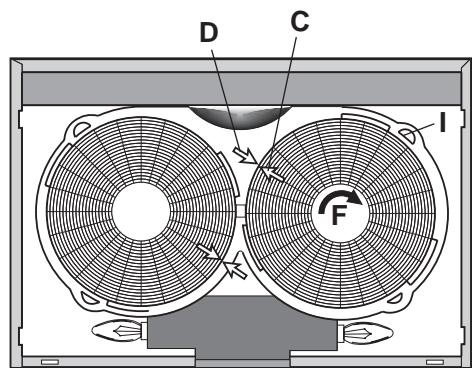

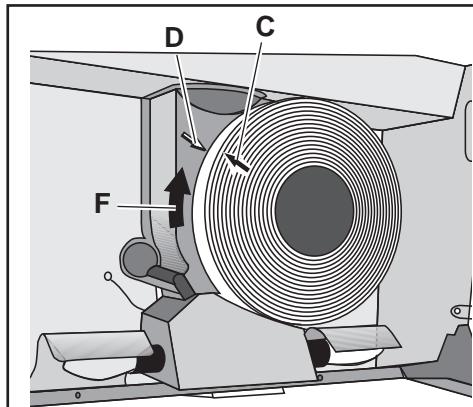

— Insert the carbon filter between points I so that arrow D on the fan cowling of the hood matches up with reference point C on the carbon filter.
Turn the carbon filter clockwise (F) until it locks (fig. 4).

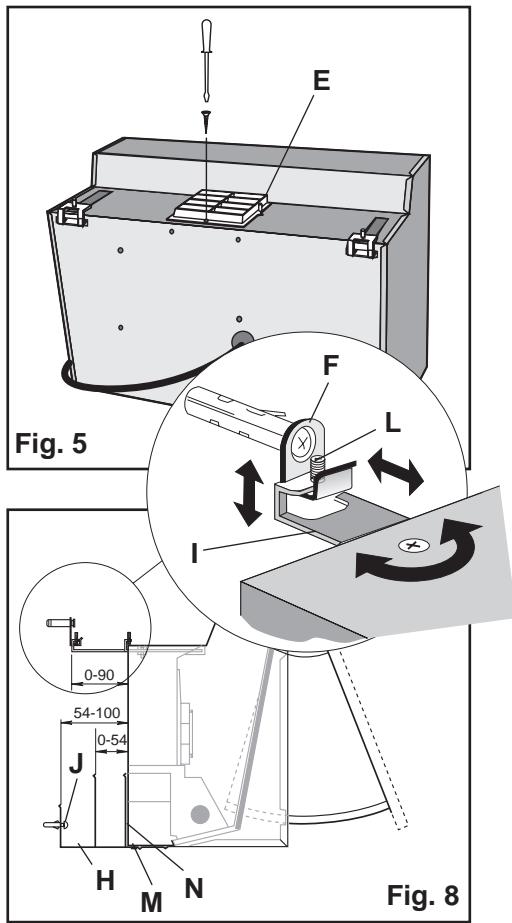

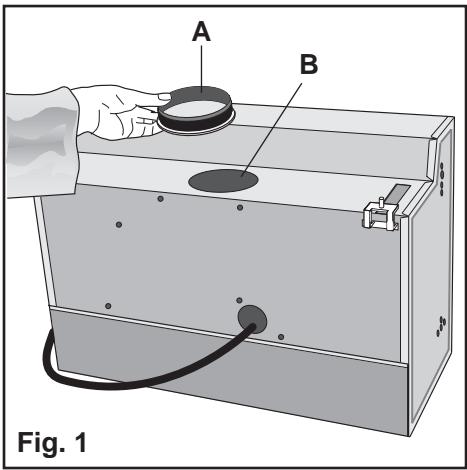

The deflector E (fig. 5) must be fitted on the hole B (fig. 1) fixing it with the special screw provided.

The deflector conveys the air frontwards avoiding to dirty the rear wall.

Installation

When installed. the hood must be not less than 65 cm. above electric burners or 70 cm. above gas or mixed-fuel burners.

In the vented exhaust version the fumes outlet duct must be 120 mm. in diameter.

In the horizontal runs the duct must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room

to the outside.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

Electrical connection

Before completing any connection, make sure the house voltage corresponds with the voltage indicated on the label affixed inside the hood

It is advisable to call a qualified technician to make the electrical connection.

Appliance fitted with plug.

Connect it to a socket which conforms with current regulations.

If you intend to connect it directly to the electric mains, remove the plug and fit an approved bipolar switch with a minimum contact opening of no less than 3mm.

If the plug is not accessible once it has been inserted in the socket, it will however be necessary to fit an approved bipolar switch with a minimum contact opening of no less than 3mm.

Appliance without plug

Fit an approved plug or an approved bipolar switch with a minimum contact opening of not less than 3mm.

The manufacturers are not liable for any problems caused by the user's failure to observer the above instructions.

Mounting the hood on the wall

Make use of the scheme nr. 1 provided, applying it on the wall.

Drill where indicated (fig. 6).

Place the hooks F provided with screws and blocks in the upper holes.

Place the expansion plugs G supplied with the hood in the lower holes (fig. 7).

Fix the angle frame H (using either the long or the short arm, depending on the depth of the side cupboards) to the wall at the right height.

Adjust the position of the upper brackets I, fix the hood to the hooks F, check that the hood is at the right height (to eventually adjust

the height work on the screws L, fig. 8).

Fix the hood to the lower angle frame by means of the screws M.

For a further adjustment act on the screws J through the holes N (fig. 8).

Fixing the front panel

Remove the grid.

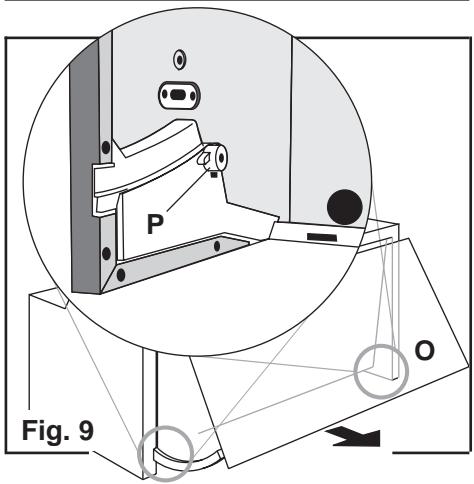

Take off the door O (fig. 9) turning the rear locking knobs P.

Apply the scheme nr. 3 on the rear side of the front panel, considering that the arrow indicates the upper side (fig. 10), drill where indicated by the scheme.

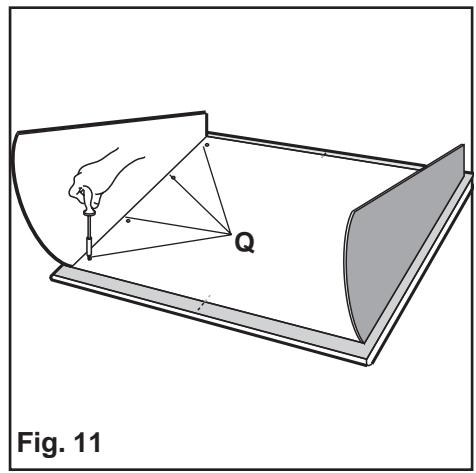

Then fix the door to the front panel by means of the screws Q (fig. 11).

Fixing

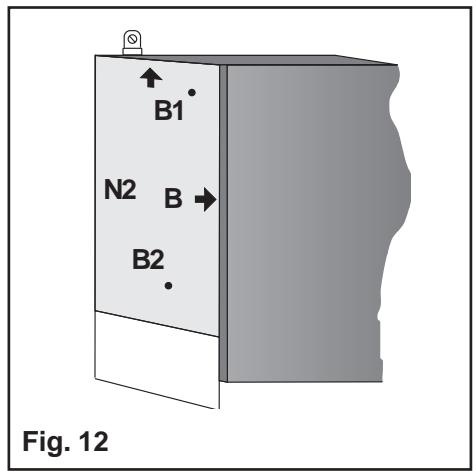

Apply the scheme nr. 2 on the side of the right cupboard, so that the side B matches the front part of the cupboard (disregard the thickness of the flap) and drill two holes 2,5 mm diameter in the points B1 and B2 (fig. 12).

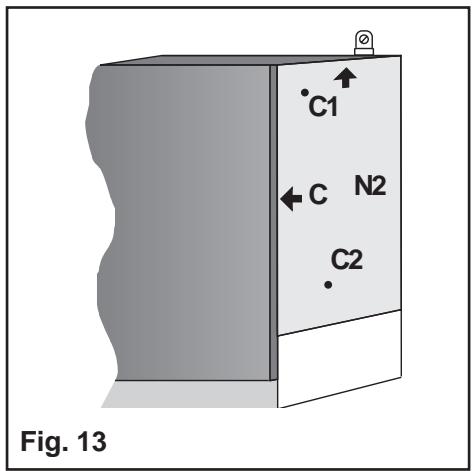

Then apply the same scheme on the side of the left cupboard, matching the side C with the front part of the cupboard (disregard the thickness of the flap) and drill two holes 2,5 mm diameter in the points C1 and C2 (fig. 13).

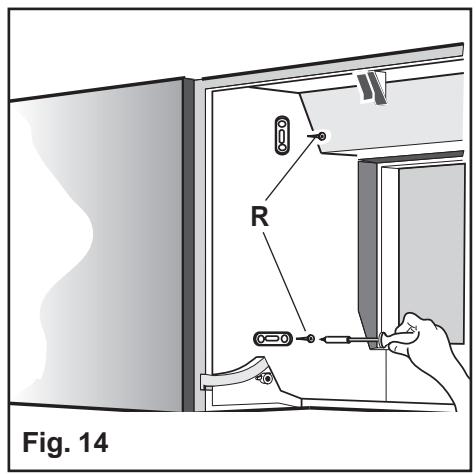

Fix the hood to the cupboards by means of the screws R (fig. 14).

Replace the door, inserting it first in the upper then in the lower slides, turn the rear locking knobs P and then mount the metal filters, following in revers, the operations described under paragraph “Internal recycling version”.

Adjust the angle frame tightly to the wall, making use of the apposite screws M (fig. 8).

The angle frame has one long arm and one short arm, to be used in alternative depending on the depth of the cupboards.

Using the hood

— The hood is provided with several speeds. For the best performance, we recommend using the low speeds in normal

conditions and the high speeds in particular cases of strong odour and vapour concentration. The hood is fitted with a microswitch connected to the flap: with the flap pushed in, the motors switch off; with the flap pulled out, the function previously set will be reactivated.

— It is advisable to switch on the extractor hood a few minutes before starting cooking and then to leave it running for approximately 15 minutes afterwards to ensure that all odours are extracted.

Warning!

— The hood cannot be connected to flues of other appliances that run on energy sources other than electricity.

— When the hood is used at the same time of other appliances that run on energy sources other than electricity, provision must be made for an adequate supply of air.

— No food must be cooked flambé underneath the hood.

The use of an unprotected flame is dangerous for the filters and could cause fires.

Therefore, never use an open flame under the hood. When frying foods, never leave the pan alone because the cooking oil could flare up.

— Please, keep to the provisions of official directives regarding the question of fume discharge.

— The manufacturers refuse to accept any responsibility for damage to the hood or its catching on fire because of failure to observe the above instructions.

Suggestions for the installation and use of the hood

— The horizontal sections of the pipe must be slanted slightly upwards (about 10%) to ensure an easy flow of the air outwards.

— The best performance of the unit is obtained in the external exhaust model (suction), therefore in the limits of the possibilities it is advised to use the ex-

ternal exhaust (suction) type.

— The best performances are obtained with short pipes (max. 4 m) and with few curves.

Maintenance

Before performing any maintenance operation, disconnect the hood from the electricity.

Grease filter

The grease filter traps the suspended grease particles.

There are three different types of grease filter:

1) Synthetic grease filter - washable (10/15 mm thick): With normal domestic use, the synthetic filter should be washed in lukewarm water at least every 30 days. Do not wring after washing.

2) Special paper filter - not washable (approx. 1 mm thick with pink diagonal stripes): The filter should be replaced when the stripes become visible through the holes of the grid.

3) Filters in layers of stretched aluminium: Should be washed in the dishwasher or in soapy water at least once every 30 days of normal use or at more or less frequent intervals, depending on the use of the appliance. Let the filter dry thoroughly before refitting it.

To remove the grease filters, proceed as follows:

To remove the filter, proceed as follows:

a) Remove the grid (fig.3).

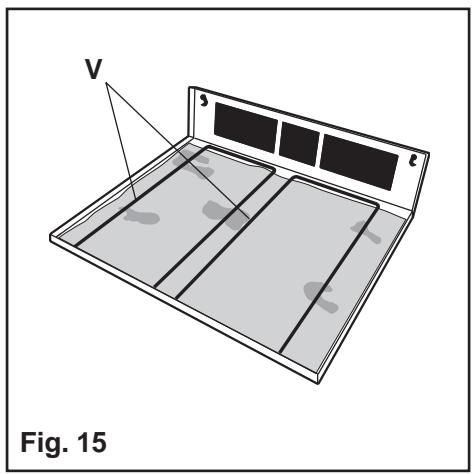

b) Extract the filter after removing clips V (fig.15).
c) It is advisable to clean the grill whenever the filter is washed.
d) Ensure that the grill is completely dry before refitting it.

Carbon Filter

The active carbon filter serves to dissolve odours from food that is cooking.

It cannot be washed or regenerated.

Replace it every four months.

To dismount the carbon filters refer to what is described on paragraph "Internal recycling version".

Attention

Failure to observe the rules for cleaning the appliance and changing and cleaning the filters may cause fires. Therefore, we recommend observing these instructions.

Replacement of lamps

Disconnect the appliance from the mains. Remove the metal filters.

For the lighting, use a normal commercially obtainable lamp of 40 W (E 14).

— Before calling for technical assistance because the hood fails to light up, make sure the lamps are well mounted.

Cleaning

To clean the outside of the hood use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.
