USER MANUAL CYCLONIC BAGLESS CANISTER HOOVER

OPERATING AND SERVICING INSTRUCTIONS

Please read these instructions carefully before using your vacuum.

HOOVER CYCLONIC BAGLESS CANISTER - 1

TABLE OF CONTENTS

Safety instructions 3

1 FEATURES 5
2. CARTON CONTENTS 6
3. HOW TO ASSEMBLE 7

Connect Hose 7
Connect Wand 7
Connect Nozzle. 7

  1. HOW TO OPERATE 8

Carrying Handle 8
Cord Release/Rewind 8
Vacuum Controls. 9
Carpet Cleaning 10
Hard Floor Cleaning 10
Edge Cleaning 10
Stair Cleaning 10
Select Proper Cleaning Tools 11
Attaching Tools 11

  1. GENERAL MAINTENANCE.... 12

Dirt Cup 12
Umbrella Tube. 12
Primary Filter 13
HEPA Filter 14
Brushroll. 15
Turbine Hand Tool. 16

  1. TROUBLESHOOTING 18
  2. SERVICE 19
  3. WARRANTY 20

OWNER'S INSTRUCTIONS

English pp. 1-20

Espanol pag. E1-E15

Français p. F1-F15

WARNING:

Product assembly may

include small parts. Small parts can present a choking hazard.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

  • READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
    WARNING: THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR REPRODUCTIVE HARM. WASH HANDS AFTER USING.
  • AVOID PICKING UP HARD, SHARP OBJECTS WITH THE CARPET CLEANER. THEY MAY DAMAGE THE MACHINE.
  • STORE IN A DRY PLACE. DO NOT EXPOSE MACHINE TO FREEZING TEMPERATURES.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

  • Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
  • Do not use outdoors or on wet surfaces.
  • Do not allow children to operate or play with cleaner or be near unit when in operation.
  • Use only as described in this manual. Use only manufacturer's recommended attachments.
  • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water.
  • Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
  • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

  • Do not handle plug or appliance with wet hands.

  • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
  • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
  • Turn off all controls before unplugging.
  • Use extra care when cleaning on stairs. Do not place carpet cleaner on stairs.
  • Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
  • The hose contains electrical wires. Do not use when damaged, cut or punctured. Avoid picking up sharp objects.

  • Always turn off this appliance before connecting or disconnecting either hose or motorized nozzle.

  • Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
  • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
  • Do not use without Dirt Cup and / or Filters in place.
  • Unplug before connecting Turbine Hand Tool.
  • The use of an extension cord is not recommended.
  • Do not point tools toward people or pets.
  • Do not operate cleaner in bare feet or when wearing open toe shoes or sandals.

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

THERMAL PROTECTOR: An internal thermal protector has been designed into your cleaner to protect it from overheating.

When the thermal protector activates, the cleaner will stop running. If this happens, proceed as follows:

  1. Turn the cleaner OFF and disconnect it from the electrical outlet.
  2. Check Primary Filter, HEPA Filter, and Umbrella Tube for dirt accumulation.
  3. Refer to "Troubleshooting" section.
  4. When cleaner is unplugged and the motor cools for 30 minutes, the thermal protector automatically resets and cleaning may continue. If the thermal protector continues to activate after following the above steps, your cleaner may need servicing (see "Service" section).

1. FEATURES

Canister

1 Hose Inlet (Front Of Canister)
2 Dirt Cup
3 Dirt Cup Handle/Carry Handle
4 Dirt Cup Release Button
5 Auto Cord Rewind Pedal
6 Power Ready Light
7 Power Cord
8 Exhaust Filter Cover

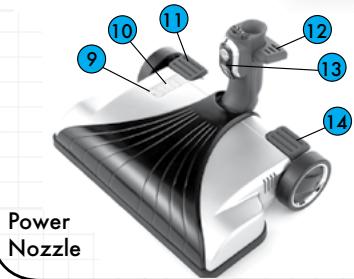

Power Nozzle

9 Reset Button
10 Floor Selector Indicator Light
11 Floor Selector Pedal
12 Wand Release Pedal
13 Headlight
14 Handle Release Pedal

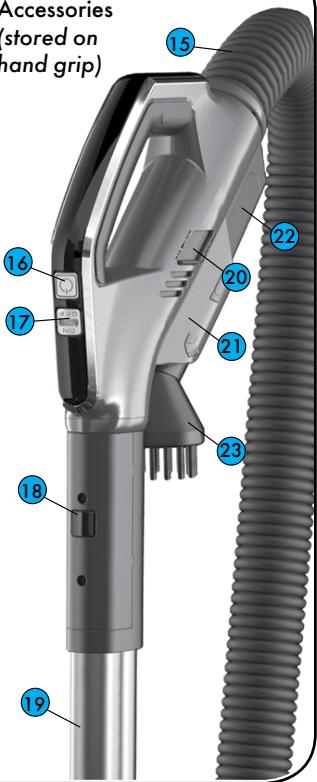

Hose/Hand Grip/Wand

15 Hose
16 Power On/Off Button
17 Brushroll On/Off Button
18 Wand Release Button
19 Telescopic/Bidirectional Wand
20 Suction Control Valve
21 Tool Storage

Accessories

22 Crevice Tool
23 Dusting Brush
24 Hard Floor Brush
25 Turbine Hand Tool (Included in all models)

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 1
1.1

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 2

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 3

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 4

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 5

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 6

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 7

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 8

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 9

Hose/Hand Grip/Wand/ Accessories (stored on 15 hand grip)

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 10

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 11
Accessories

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 12

HOOVER CYCLONIC BAGLESS CANISTER - Accessories - 13

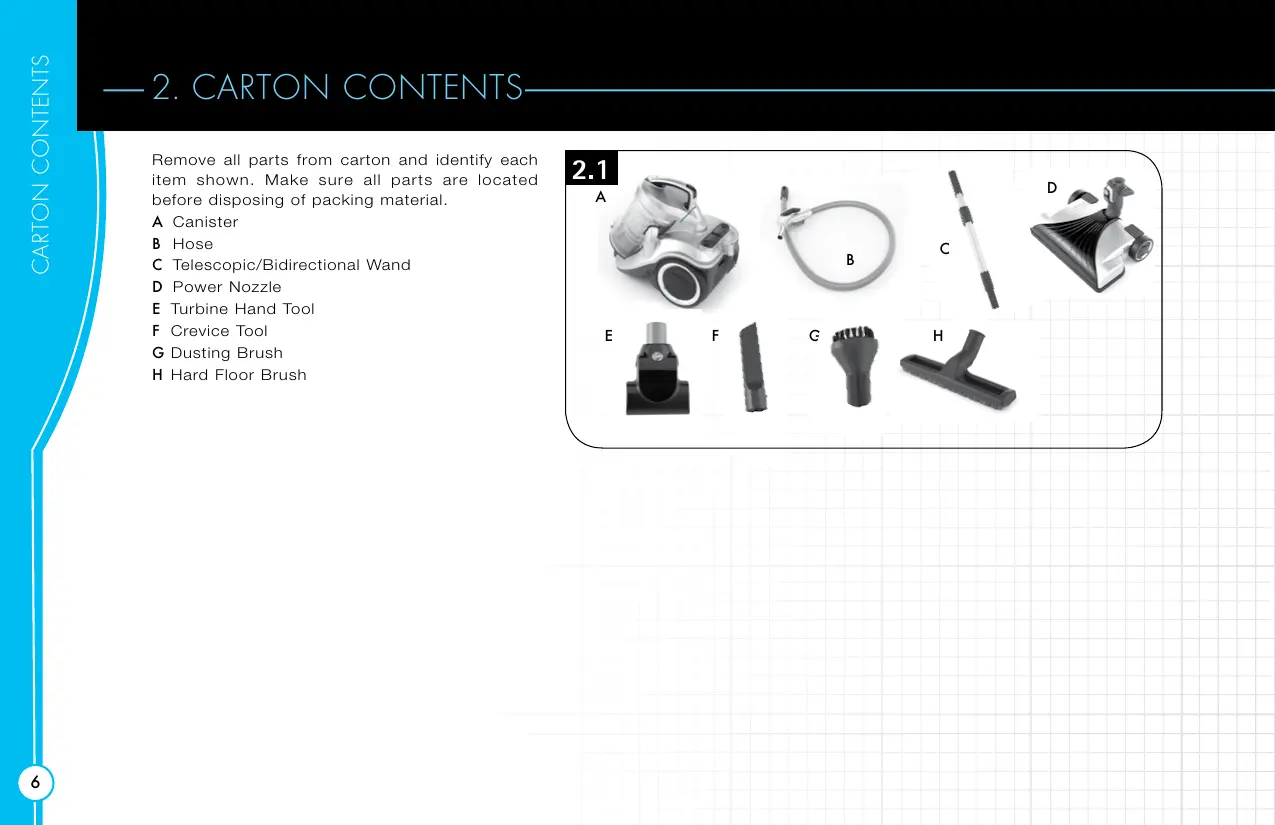

2. CARTON CONTENTS

Remove all parts from carton and identify each item shown. Make sure all parts are located before disposing of packing material.

A Canister
B Hose
C Telescopic/Bidirectional Wand
D Power Nozzle
E Turbine Hand Tool
F Crevice Tool
G Dusting Brush
H Hard Floor Brush

2.1

HOOVER CYCLONIC BAGLESS CANISTER - 2.1 - 1
A

HOOVER CYCLONIC BAGLESS CANISTER - 2.1 - 2

HOOVER CYCLONIC BAGLESS CANISTER - 2.1 - 3

HOOVER CYCLONIC BAGLESS CANISTER - 2.1 - 4

HOOVER CYCLONIC BAGLESS CANISTER - 2.1 - 5
E
1

HOOVER CYCLONIC BAGLESS CANISTER - 2.1 - 6

HOOVER CYCLONIC BAGLESS CANISTER - 2.1 - 7
G

HOOVER CYCLONIC BAGLESS CANISTER - 2.1 - 8

3. HOW TO ASSEMBLE

Connect Hose

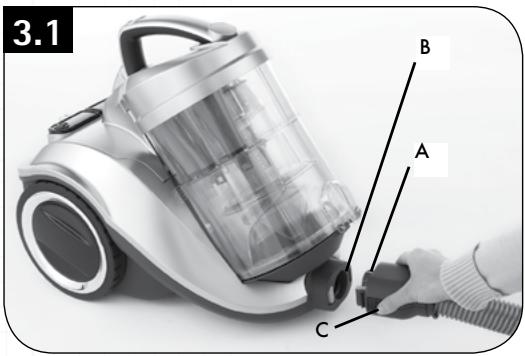

3.1 Push Hose Connector end (A) into opening (B) on front of cleaner. To disconnect hose from cleaner, press release buttons (C) on sides of Hose Connector and pull out.

NOTE: The flexible hose contains electrical wires for connection to the Power Nozzle and should not be used if damaged, cut or punctured.

Connect Wand

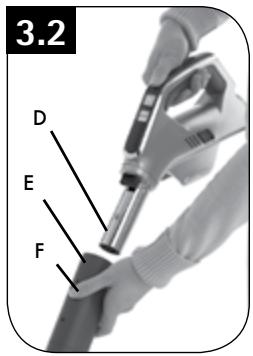

3.2 Push Hand Grip (D) firmly into end of Wand (E) until Latch clicks. To remove Wand from Hose, press on Wand Releases Button (F) on end of Wand and pull apart.

Connect Nozzle

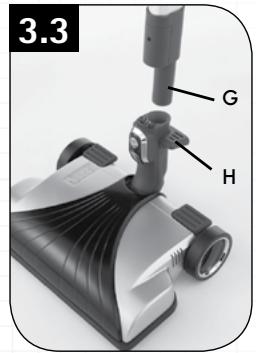

3.3 Push the opposite end of Wand (G) firmly into Power Nozzle.

To Release, step on Wand Release Pedal (H) and pull to disconnect from nozzle.

HOOVER CYCLONIC BAGLESS CANISTER - Connect Nozzle - 1

HOOVER CYCLONIC BAGLESS CANISTER - Connect Nozzle - 2

HOOVER CYCLONIC BAGLESS CANISTER - Connect Nozzle - 3

4. HOW TO OPERATE

Carry Handle

Cord Release/Rewind

HOOVER CYCLONIC BAGLESS CANISTER - Cord Release/Rewind - 1

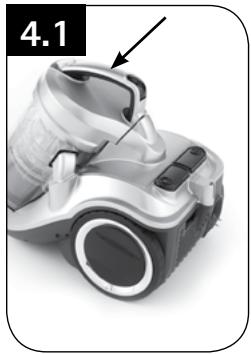

Use the Carry Handle located on top the Dirt Cup to move vacuum cleaner from room to room.

NOTE: Make sure Dirt Cup is securely fastened before moving unit.

HOOVER CYCLONIC BAGLESS CANISTER - Cord Release/Rewind - 2

To unwind Power Cord from Vacuum, pull out to desired length.

NOTE: A YELLOW mark on the Power Cord indicates the maximum recommended cord length. Do not exceed the cord length beyond the RED mark.

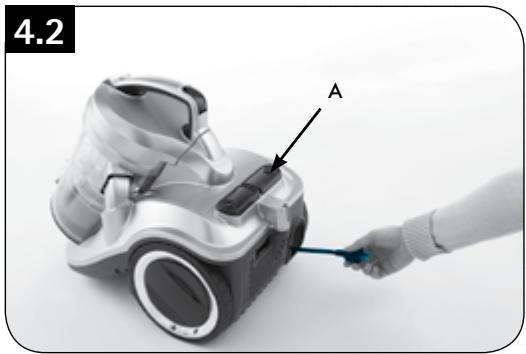

To rewind the Power Cord, press the Cord Rewind Pedal (A), located on the top of the vacuum cleaner, and guide the Power Cord with one hand. This will prevent the cord from whipping which could cause damage or injury.

4. HOW TO OPERATE

NOTE: Operate cleaner only at voltage specified on the data plate on the underside of the cleaner.

Vacuum Controls

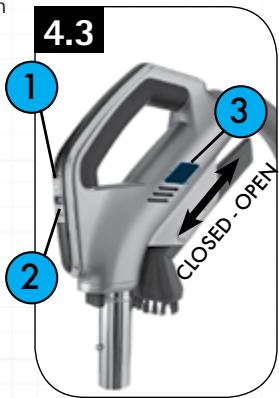

Handle/Hose Grip

1 Power Button

Push to turn cleaner on and off.

2 Brushroll On/Off Button

Push to turn Brushroll on and off.

3 Suction Control Valve

To clean delicate fabrics, slide the Suction Control Valve to the open position to lower the suction.

Slide as shown to open and close the Valve.

HOOVER CYCLONIC BAGLESS CANISTER - Handle/Hose Grip - 1

Nozzle

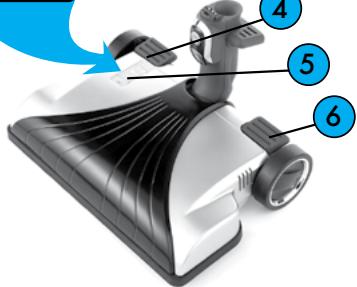

4 Floor Selector Pedal

Push the Floor Selector Pedal to raise and lower the Nozzle to clean bare floors and various carpet pile heights. For maximum cleaning performance, the following carpet height settings are recommended:

  • Low and Medium settings: for low to medium pile carpets.
  • High setting: for very deep pile carpet where easier pushing effort is desired, while maintaining good cleaning performance.

NOTE: If the cleaner is difficult to push, change floor selector push button to the next highest setting.

NOTE: In Bare Floor mode brushroll will automatically shut off.

5 Floor Selector Indicator Light

Indicates the carpet height selected by the Floor Selector Pedal.

4.4

7

HOOVER CYCLONIC BAGLESS CANISTER - Floor Selector Indicator Light - 1

Indicator Light FLOOR SELECTION

Very High Pile Carpets.

Low to Mid Pile Carpets.

Bare Floors. (Brushroll off)

CARPET

HOOVER CYCLONIC BAGLESS CANISTER - Floor Selector Indicator Light - 2

6 Handle Release Pedal

Step on the Handle Release Pedal to lower hand grip into cleaning position.

NOTE: Brushroll will not run until handle is released.

7 Reset Button

This power nozzle is equipped with an electrical reset button. If the brushroll is jammed, the rest button will automatically shut off the brushroll motor. If this happens, unplug cleaner and clear jam from brushroll. Press the reset button, plug in the cleaner and resume use.

4. HOW TO OPERATE

Carpet Cleaning

Hard Floor Cleaning

HOOVER CYCLONIC BAGLESS CANISTER - Hard Floor Cleaning - 1

HOOVER CYCLONIC BAGLESS CANISTER - Hard Floor Cleaning - 2

HOOVER CYCLONIC BAGLESS CANISTER - Hard Floor Cleaning - 3

After attaching the Power Nozzle, set the Floor Selector to the proper setting for your carpet type. Reference the "Vacuum Controls" section under "How to Operate" for carpet settings of Power Nozzle. (pg. 9)

The Hard Floor Brush is recommended for vacuuming wood, laminate coverings and ceramic floor surfaces.

Power Nozzle may also be used for hard floor cleaning, by simply setting the Floor Selector to Bare Floor.

NOTE: In Bare Floor mode brushroll will automatically shut off.

Edge Cleaning

HOOVER CYCLONIC BAGLESS CANISTER - Edge Cleaning - 1

Guide side of Nozzle parallel to edge of carpet or furniture as shown.

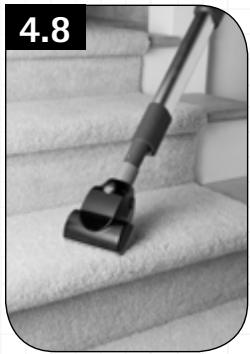

Stair Cleaning

HOOVER CYCLONIC BAGLESS CANISTER - Stair Cleaning - 1

Clean stairs from bottom to top.

NOTE: Take extra care when vacuuming stairs. Do not store canister in vertical position.

4. HOW TO OPERATE

Select the Proper Tool

4.9

HOOVER CYCLONIC BAGLESS CANISTER - 4.9 - 1
A

HOOVER CYCLONIC BAGLESS CANISTER - 4.9 - 2
B

HOOVER CYCLONIC BAGLESS CANISTER - 4.9 - 3
C

HOOVER CYCLONIC BAGLESS CANISTER - 4.9 - 4
D

HOOVER CYCLONIC BAGLESS CANISTER - 4.9 - 5
E

Attaching Tools

4.10

HOOVER CYCLONIC BAGLESS CANISTER - 4.10 - 1

A. Crevice Tool may be used in tight spaces, corners, and along edges in such places as dresser drawers, upholstered furniture, stairs and baseboards. (Tool stored under Hand Grip)
B. Dusting Brush with swivel neck may be used to dust furniture, lamps, lighting fixtures, blinds, baseboards, shutters and registers. May also be used for upholstered furniture, draperies, tapestries and mattresses. (Tool stored under Hand Grip)
C. Hard Floor Brush may be used for hard surface floors such as tile and slate.

D. Turbine Hand Tool may be used for upholstered furniture and carpeted stairs.
E. Power Nozzle may be used for carpets, rugs and hard floor surfaces. (See "Hard Floor Cleaning" section for instructions)

Tools may be attached directly to the hand grip or to the wand. Firmly push tool into the hand grip or wand. Twist tool slightly to tighten or loosen connection.

5. GENERAL MAINTENANCE

HOOVER CYCLONIC BAGLESS CANISTER - GENERAL MAINTENANCE - 1

IMPORTANT

Maintenance Instructions

Always unplug the vacuum cleaner from the electrical outlet before performing any general maintenance.

Do not use cleaner without Dirt Cup, Umbrella Tube or Filters in place.

It is recommended that you clean the Filters every time the Dirt Cup is emptied for consistent cleaning performance of your machine.

CAUTION: Very fine materials, such as face powder or cornstarch, may clog the filter and cause a reduction in performance. When using the cleaner for this type of dust, empty the cup and clean the filters often.

Dirt Cup

When to Clean

Empty the Dirt Cup at the end of each cleaning session and before the dirt reaches the fill line.

How to Clean

Disconnect cleaner from electrical outlet.

5.1 Press button on the handle located on the Dirt Cup Lid and pull Dirt Cup Out.
5.2 Holding Dirt Cup over trash receptacle, press Dirt Cup Door Release Button to open and empty Dirt Cup. When all the dirt has fallen, close the Dirt Cup Door and replace.

Umbrella Tube

When to Clean

Check Umbrella Tube on a monthly basis and clean when it is wrapped with debris. Check more frequently if cleaning up pet hair or you have family members with long hair.

How to Clean

Disconnect cleaner from electrical outlet.

Remove Dirt Cup as described in Fig. 5.1.

5.3 Press red Dirt Cup Door Release Button to open Dirt Cup Door.
5.4 Twist Umbrella Tube left and remove from bottom of the Dirt Cup and remove debris.

Replace Umbrella Tube in bottom of Dirt Cup and twist right.

HOOVER CYCLONIC BAGLESS CANISTER - How to Clean - 1
5.1

HOOVER CYCLONIC BAGLESS CANISTER - How to Clean - 2
5.2

HOOVER CYCLONIC BAGLESS CANISTER - How to Clean - 3
5.3

HOOVER CYCLONIC BAGLESS CANISTER - How to Clean - 4

5. GENERAL MAINTENANCE

Lifetime Primary Filter

NOTE: This is located on the canister behind the Dirt Cup bin.

When to Clean

It is recommended that the Primary Filter be checked and cleaned periodically depending on the frequency of use and volume of dirt being picked up on each cleaning.

How to Clean

5.5 Release the Primary Filter Cover by lifting up the tab.
5.6 Lift off the Filter Cover to gain access to the Filter Assembly. Separate the Filter from Filter Frame and remove.
5.7 Hold Filter under cold running water to remove dirt and debris. Squeeze Filter to remove excess water.

NOTE: Allow Filter to dry completely before replacing, which may take up to 24 hours. Do not use any detergents or boiling water to wash the Filters.

Once completely dry, return the Lifetime Primary Filter to the Filter Frame, replace Filter Assembly into canister and replace cover.

HOOVER CYCLONIC BAGLESS CANISTER - How to Clean - 1

HOOVER CYCLONIC BAGLESS CANISTER - How to Clean - 2

HOOVER CYCLONIC BAGLESS CANISTER - How to Clean - 3

What to Buy

To assure cleaning effectiveness, use only Hoover® service part only, #302445001. It is important that you use only genuine HOOVER® parts to assure your cleaner operates at peak performance. To order Filters please visit www.hoover.com. HOOVER® parts can be identified by the trademark-

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 1

5. GENERAL MAINTENANCE

HEPA Exhaust Filter

When to Clean

The HEPA Filter is intended to be a lifetime Filter. Inspect HEPA Filter at the same time Primary Filter is cleaned. Over time, it is normal for the Filter to turn gray. If HEPA Filter appears visibly dirty, follow cleaning instructions.

How to Clean

NOTE: This is located on the rear of the vacuum cleaner.
5.8 Release the HEPA Filter Cover and remove the Cover as shown. Remove the Filter by pulling the tab towards you.
5.9 Gently tap the Pleated Filter on the inside of a trash receptacle to remove excess dust and dirt.

NOTE: Be careful not to damage Filter pleats.

WARNING: DO NOT WASH OR APPLY WATER TO PLEATED FILTER.

NOTE: Replace Filter if any sign of damage.

Once cleaned, return the HEPA Filter to the vacuum cleaner. Replace the HEPA Filter Cover before restarting the vacuum cleaner.

What to Buy

To assure cleaning effectiveness, use only Hoover® service or aftermarket, #303017001. It is important that you use only genuine HOOVER® parts to assure your cleaner operates at peak performance. To order Filters please visit www.hoover.com. HOOVER® parts can be identified by the trademark

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 1

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 2
5.8

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 3
5.9

5. GENERAL MAINTENANCE

Brushroll

When to Replace

WARNING - Risk of personal injury - Brushroll may suddenly restart - unplug before cleaning or servicing. When Brushroll brushes are worn, it should be replaced.

5.10 To check condition of brushes, move edge of a card across Bottom Plate while turning Brushroll. To maintain cleaning effectiveness, replace Brushroll if brushes do not touch card.

HOOVER CYCLONIC BAGLESS CANISTER - When to Replace - 1

How to Remove

Disconnect cleaner from electrical outlet.

5.11 Turn cleaner over and remove 9 Screws as indicated in photo.
5.12 Remove Bottom Plate.
5.13 Remove Brushroll.

How to Replace

5.14 Align new Brushroll and Belt.
5.15 Replace Brushroll.
5.16 Replace Bottom Plate and Screws.

What to Buy

To assure cleaning effectiveness, use only Hoover Brushroll part #59143012.

It is important that you use only genuine HOOVER® parts to assure your cleaner operates at peak performance. To order Filters please visit www.hoover.com. HOOVER® parts can be identified by the trademark-

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 1

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 2

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 3

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 4

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 5

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 6

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 7

5. GENERAL MAINTENANCE

Turbine Hand Tool

When to Replace Brushroll

When Brushroll brushes are worn, the Brushroll should be replaced.

How to Replace Brushroll

Disconnect cleaner from electrical outlet.

5.17 Remove Tool from Hose and turn it so bottom faces up. Press the Latches on either side of Tool and remove Bottom Plate (A).

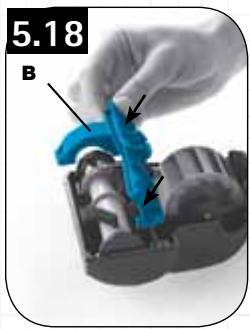

5.18 Unscrew the two Phillips Screws (indicated by arrows) and remove Belt Guard (B).
5.19 Remove Brushroll including End Plates (C) and discard.

Inspect Belt to ensure that it is in good condition. If Belt is cracked, gouged or broken, replace it. (See the following section for instructions)

Insert Brushroll through Belt and position Belt over Gear Teeth (D) on Brushroll.

With curved ends down, slide End Plates (C) of Brushroll into slots (E) on Tool.

5.20 Replace Belt Guard (B) making sure not to pinch brush bristles in Guard.

Turn Brushroll, making sure it rotates freely. Replace and tighten Screws.

5.21 To replace Bottom Plate, insert the four tabs (F) on edge of Bottom Plate into slots on front of Tool.

Pivot Bottom Plate down and snap closed.

HOOVER CYCLONIC BAGLESS CANISTER - Disconnect cleaner from electrical outlet. - 1

HOOVER CYCLONIC BAGLESS CANISTER - Disconnect cleaner from electrical outlet. - 2

HOOVER CYCLONIC BAGLESS CANISTER - Disconnect cleaner from electrical outlet. - 3

HOOVER CYCLONIC BAGLESS CANISTER - Disconnect cleaner from electrical outlet. - 4

HOOVER CYCLONIC BAGLESS CANISTER - Disconnect cleaner from electrical outlet. - 5

What to Buy

To assure cleaning effectiveness, use only Hoover® Turbine Tool Brushroll part #48414088.

It is important that you use only genuine HOOVER® parts to assure your cleaner operates at peak performance. To order Filters please visit www.hoover.com.

HOOVER® parts can be identified by the trademark

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 1

5. GENERAL MAINTENANCE

Turbine Hand Tool

Inspecting the Belt

The Turbine Hand Tool Belt is designed to last a long time and is not normally replaced. However, if the Belt is cracked, gouged or broken, it should be replaced.

5.22 Remove Tool from Hose and turn it so bottom faces up. Press the Latches on either side of Tool and remove Bottom Plate (A).

Replacing Belt

5.23 Remove Bottom Plate, Belt Guard and Brushroll as described in Figs. 5.17 through 5.19.

Grasp Turbine (E) and pull firmly to remove.

Remove Belt (F) from Turbine Pulley.

Replace with new Belt.

5.24 With flat sides of Turbine Retainers (G) pointing down, slide Retainers into grooves (H) on both sides of Tool Housing and snap into place.

Replace Brushroll, Belt Guard, and Bottom Plate as described in Figs. 5.19 through 5.21.

What to Buy

To assure cleaning effectiveness, use only Hoover® Belt #38528037.

It is important that you use only genuine HOOVER® parts to assure your cleaner operates at peak performance. To order Filters please visit www.hoover.com. HOOVER® parts can be identified by the trademark-

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 1

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 2

HOOVER CYCLONIC BAGLESS CANISTER - What to Buy - 3

6. TROUBLESHOOTING

WARNING: TO REDUCE RISK OF PERSONAL INJURY - UNPLUG CLEANER BEFORE SERVICING

PROBLEMPOSSIBLE CAUSEPOSSIBLE SOLUTION
Cleaner won't run.Switch not "ON" at Hand Grip. Power Cord not firmly plugged in. No Voltage in wall plug. Motor Thermal Protector has tripped. Needs Service.Turn switch "ON" at Hand Grip. Plug Power Cord in firmly. Replace Fuse or reset Circuit Breaker in Home. Switch off and unplug the vacuum cleaner. Leave for 30 min. before plugging in and switching the cleaner back "ON". See "Service" section in manual.
Low suction: Canister / Power NozzleDirt Cup full or blocked. Dirt Cup not installed properly. Blockage in Nozzle Connector, Hose or Wands. Filters dirty or clogged. Suction Control Valve is open. Needs Service.Empty Dirt Cup and/or remove blockage. Review Dirt Cup replacement section in manual. Remove blockage. Clean or replace Filters. Close Suction Control Valve on Hand Grip. See "Service" section in manual.
Power Nozzle won't runSwitch not "ON" at Hand Grip. Brushroll reset has tripped. Floor selector pedal is on bare floor mode. Handle is not released and in stored upright position. Brushroll is automatically shut off in the upright storage position. Needs Service.Turn switch "ON" at Hand Grip. Depress Reset Button located on top of Power Nozzle. Switch to desired carpet setting. Step on Wand Release Pedal to lower Handle and start Brushroll. See "Service" section in manual.
Power Nozzle won't pickupLow cleaner suction. Blockage in the Nozzle or Nozzle Connector. Brushroll not running. Brushroll bristles worn. Needs Service.See "Low suction" section above. Remove blockage. See "Power Nozzle won't run" section above. Replace Brushroll. See Brushroll replacement section in manual. See "Service" section in manual.
Brushroll reset has been trippedPossible jam in brushroll.See "Vacuum Controls" section, number 7 on pg. 9.

ANY OTHER SERVICING SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE.

Exclusive Hoover Platinum Collection™ Member Services Line 1.877.MYPLTNM (1.877.697.5866)

In the event that further assistance is required, see your Yellow Pages for an authorized HOOVER® Dealer or visit our website at www.hoover.com. Costs of any transportation to and from any place of repair are to be paid by the owner. The service parts used in this unit are easily replaced and readily available from an authorized HOOVER® Dealer or retailer. Always identify your cleaner by the model number and manufacturing code when requesting information or ordering replacement parts. (The model number appears on the bottom of the cleaner.)

7. SERVICE

Service Information

To obtain approved Hoover® service and genuine Hoover® parts, locate the nearest Authorized Hoover® Warranty Service Dealer (Depot) by:

  • Checking the Yellow Pages under Vacuum Cleaners - Household OR
  • Visit our website at hoover.com (U.S. Customers) or hoover.ca (Canadian Customers). Follow the service center link to find the service outlet nearest you.
  • Calling The Exclusive Hoover Platinum Collection™ Member Services Line 1.877.MYPLTNM (1.877.697.5866) for an automated referral of authorized service outlet locations (U.S. only).

Do not send your cleaner to Hoover, Inc., in Glenwillow for service, this will only result in delay.

If further assistance is needed, contact the Exclusive Hoover Platinum Collection™ Member Services Line 1.877.MYPLTNM (1.877.697.5866), Mon-Fri 8am-5pm EST.

In Canada, contact Hoover® Canada, Toronto: 755 Progress Ave Scarborough, ON M1H 2W7 OR Hoover® Canada, Edmonton: 18129-111 Ave Edmonton, AB T5W 2P2, Phone: 1-800-263-6376, Mon-Fri 8am-7pm EST.

Always identify your cleaner by the complete model number when requesting information or ordering parts. (The model number appears on the back of the cleaner.)

Please do not return this product to the store.

8. WARRANTY

Limited SIX Year Warranty for Hoover Platinum Collection™ Bagless Cyclonic Canister

(Domestic Use)

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use, and in accordance with the Owner's Manual, your Hoover Platinum Collection™ Bagless Cyclonic Canister is warranted against original defects in material and workmanship for a full six years from date of purchase (the "Warranty Period"). During the Warranty Period, Hoover® will provide, as described in this warranty, labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take the product to a Hoover® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets, phone: 1.800.944.9200 OR visit Hoover® online at hoover.com (U.S. Customers) or hoover.ca (Canadian customers). For additional assistance or information concerning this warranty or the availability of warranty service outlets, phone The Exclusive Hoover Platinum Collection™ Member Services Line, Phone 1.877.697.5866, Mon-Fri 8am-5pm EST. In Canada, contact Hoover® Canada, Toronto: 755 Progress Ave Scarborough, ON M1H 2W7 OR Hoover Canada, Edmonton: 18129-111 Ave Edmonton, AB T5W 2P2, Phone:1.877.697.5866, Mon-Fri 8am-5pm EST. For assistance in French or Spanish, call 1.800.263.6376, Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This warranty does not cover: Brushroll, primary Filter, HEPA Filter, use of the product in a commercial operation (such as maid, janitorial and equipment rental services), improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Hoover®, owner's acts or omissions, use outside the country in which the product was initially purchased and resale of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls. This warranty does not apply to products purchased: 1. Outside the United States, including its territories and possessions, 2. Outside a U.S. Military Exchange, or 3. Outside Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Hoover® products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this warranty.

THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY. ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL HOOVER BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

HOOVER CYCLONIC BAGLESS CANISTER - OTHER IMPORTANT TERMS - 1

PLATINUM Collection

ASPIRADORATRINEOSIN BOLSACYCLONIC

Tuyau/Poignée Manche/Rallonge

©2009 Healthy Gain Investments, Ltd. All rights reserved # 59143005-R0 5/09

©2009 Healthy Gain Investments, Ltd. Todos los derechos reservados. #59143005-R0 5/09

©2009 Healthy Gain Investments, Ltd. Tous droits réservés. #59143005-R0 5/09

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HOOVER

Model : CYCLONIC BAGLESS CANISTER

Category : Vacuum without a bag
