ACENTA BAGLESS - Vacuum without a bag HOOVER - Free user manual and instructions

Product type	Bagless vacuum cleaner
Brand	HOOVER
Model	ACENTA BAGLESS
Power supply	220-240 V ~ 50/60 Hz
Power	800 W (estimated)
Tank capacity	2 L (EcoBox tank)
Weight	5.5 kg (estimated)
Dimensions (L x D x H)	30 x 40 x 50 cm (estimated)
Filter type	Pre-motor filter + exhaust filter (washable)
Collection system	EcoBox tank (porous plastic, dishwasher safe)
Main functions	Power control, fill indicator, shoulder strap, optional electric brush
Included accessories	Flexible hose, extension tube, round brush, crevice tool, furniture brush, floor/carpet nozzle (with pedal), delicate floor brush, turbo brush
Maintenance and cleaning	Empty the EcoBox tank when full (red indicator); clean the tank every 5 empties; wash the filters with lukewarm water every 5 empties and dry for 24 h
Safety	Double insulation, do not use outdoors, do not vacuum liquids or hot objects, unplug before maintenance
Spare parts	Pre-motor filter (S57), portable kit (C48), carpet/floor nozzle (G28), parquet nozzle (G87PC), turbo brush (J29TN)
Repairability	Repair exclusively by a HOOVER approved technician; wear parts available
Warranty	Terms defined by local representative, upon presentation of the invoice
General information	Compliant with WEEE directive; recycling at approved center

Frequently Asked Questions - ACENTA BAGLESS HOOVER

How to empty the EcoBox tank ?

Remove the front door, lift out the EcoBox tank, open it and empty it. Replace the tank and then the front door. The fill indicator turns red when it is full.

How to clean the filters of my Acenta Bagless vacuum cleaner ?

Remove the EcoBox tank, then the pre-motor filter. For the exhaust filter, lift the cover and remove it. Rinse both filters with lukewarm water (do not brush them), wipe them and let them air dry for 24 hours before reinstalling.

What to do if suction power decreases ?

Check if the EcoBox tank is full, if the intake opening is blocked, or if the filters are clogged. Clean or empty the relevant parts. Make sure the power control is set to maximum.

Can I vacuum liquids with this vacuum cleaner ?

No, never use the vacuum cleaner to pick up liquids or wet materials. This could damage the appliance and pose an electrical risk.

How to assemble the handle on the vacuum cleaner ?

Remove the holding screw, slide the handle onto the top of the vacuum cleaner, then tighten the screw. If using the shoulder strap, you can remove the main handle.

What accessories are supplied with the Acenta Bagless ?

Accessories include: flexible hose, extension tube, round brush, crevice tool, furniture brush, floor/carpet nozzle (with pedal), delicate floor brush and turbo brush. The electric brush is optional.

How to use the shoulder strap ?

Remove the current accessory, pass one end of the shoulder strap over the tube at the base of the vacuum cleaner and clip it on. Remove the main handle and attach the other end of the shoulder strap to the top of the short handle using the clip.

How to store the power cord ?

Wind the cord around the hooks provided at the back of the vacuum cleaner. Secure it with the built-in clip. To release it, undo the clip and turn the hooks inward.

What is the EcoBox tank and how to maintain it ?

The EcoBox tank is a porous plastic container that retains dust while allowing air to pass through. To clean it, empty it, brush the inside, wash with lukewarm water and dish soap (or in the dishwasher up to 75°C), rinse, dry and let air dry for 24 hours.

Where can I find spare parts for my Hoover vacuum cleaner ?

Use only Hoover parts. References are: pre-motor filter S57, portable kit C48, carpet/floor nozzle G28, parquet nozzle G87PC, turbo brush J29TN. Contact an authorized dealer or Hoover service.

USER MANUAL ACENTA BAGLESS HOOVER

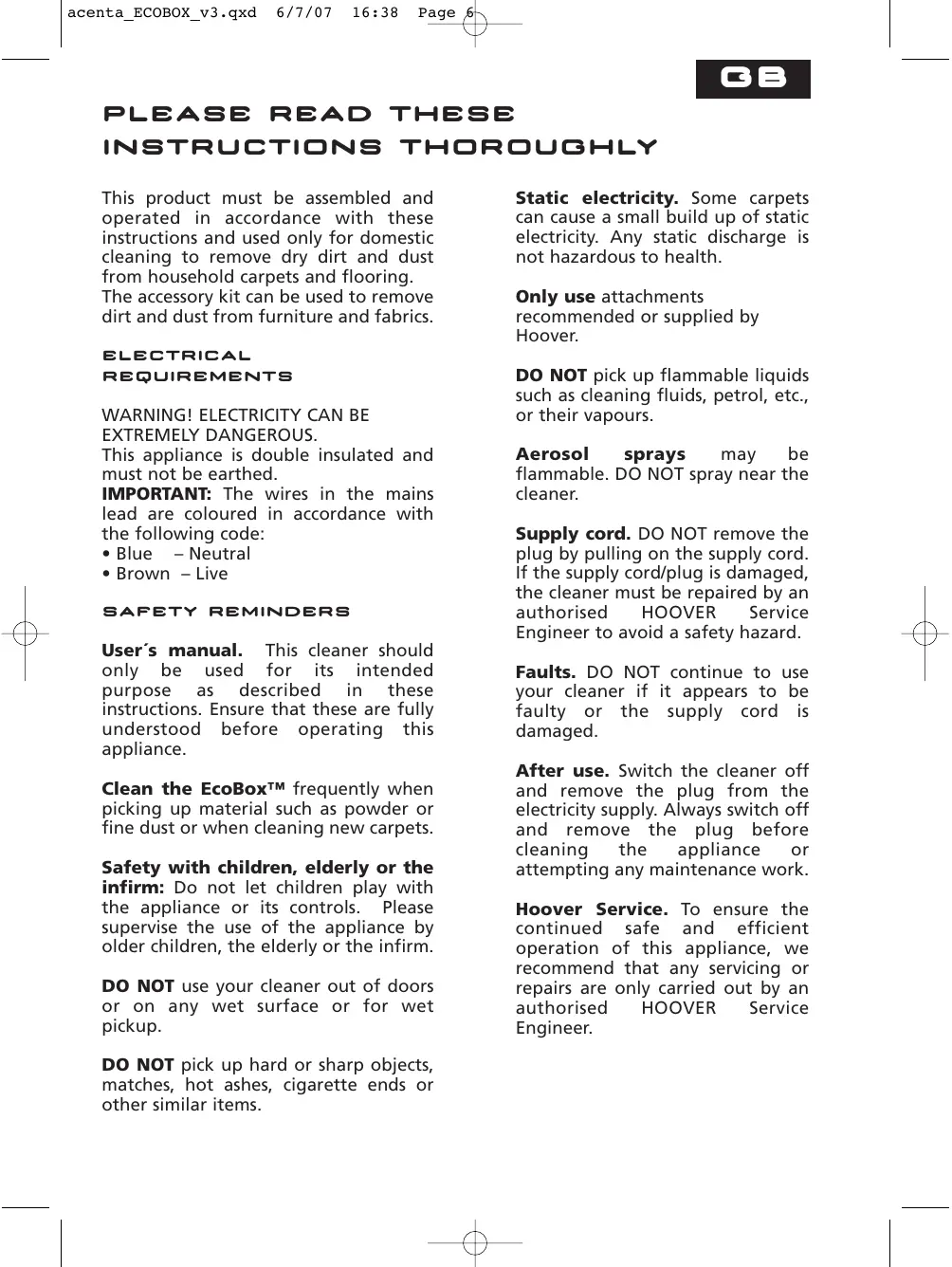

PLEASE READ THESE INSTRUCTIONS THOROUGHLY

This product must be assembled and operated in accordance with these instructions and used only for domestic cleaning to remove dry dirt and dust from household carpets and flooring.

The accessory kit can be used to remove dirt and dust from furniture and fabrics.

ELECTRICAL REQUIREMENTS

WARNING! ELECTRICITY CAN BE EXTREMELY DANGEROUS.

This appliance is double insulated and must not be earthed.

IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:

• Blue - Neutral

• Brown - Live

SAFETY REMINDERS

User's manual. This cleaner should only be used for its intended purpose as described in these instructions. Ensure that these are fully understood before operating this appliance.

Clean the EcoBox™ frequently when picking up material such as powder or fine dust or when cleaning new carpets.

Safety with children, elderly or the infirm: Do not let children play with the appliance or its controls. Please supervise the use of the appliance by older children, the elderly or the infirm.

DO NOT use your cleaner out of doors or on any wet surface or for wet pickup.

DO NOT pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

Static electricity. Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Only use attachments recommended or supplied by Hoover.

DO NOT pick up flammable liquids such as cleaning fluids, petrol, etc., or their vapours.

Aerosol sprays may be flammable. DO NOT spray near the cleaner.

Supply cord. DO NOT remove the plug by pulling on the supply cord. If the supply cord/plug is damaged, the cleaner must be repaired by an authorised HOOVER Service Engineer to avoid a safety hazard.

Faults. DO NOT continue to use your cleaner if it appears to be faulty or the supply cord is damaged.

After use. Switch the cleaner off and remove the plug from the electricity supply. Always switch off and remove the plug before cleaning the appliance or attempting any maintenance work.

Hoover Service. To ensure the continued safe and efficient operation of this appliance, we recommend that any servicing or repairs are only carried out by an authorised HOOVER Service Engineer.

HANDLE ASSEMBLY (1)

The handle must be assembled to the cleaner before use, unless being used with the shoulder strap - see (6).

1. Remove hand-screw from handle.
2. Slide handle over top of cleaner.
3. Tighten hand-screw.

CORD STORAGE (2)

a) Wind cord around hooks.
Secure cord with integrated clip.
b) Undo integrated clip.
Turn both hooks inwards as shown to release cord.

ACCESSIONS (3)†

a) Shoulder strap†
b) Flexible hose†
c) Dusting brush†
d) Extension tube
e) Furniture nozzle
f) Crevice tool

NOZZLES (3)

g) Carpet & Floor nozzle: press pedal to bring brushes in contact with hard floor.
h) Delicate Floor nozzle: for wooden floors and all delicate floors.
i) Turbonozzzle: especially for carpets.
I) Electric Power nozzle*: for deep cleaning of large areas of carpet.

CONTROLS (4)

a) ON/OFF switch

Push to switch on.

Push again to switch off.

b) Power control*

Slide to the right to increase.

Slide to the left to decrease.

POWER NOZZLE (5)

When using Electric Power nozzle* insert nozzle electric plug into socket on back of cleaner (behind control panel).

SHOULDER STRAP (6)†

a) With nozzle removed, slide one end of shoulder strap over tube at base of cleaner. Slide the strap end past the locking tab and rotate as shown. Refit with accessories depending on use.
b) With main handle removed - see (1) clip other end of the shoulder strap to top of stub handle.
c) Carry the cleaner over the shoulder as shown.

IMPORTANT: SWITCH CLEANER OFF AND REMOVE PLUG FROM ELECTRICITY SUPPLY BEFORE EMPTYING THE ECOBOX™ OR REMOivating ANY FILTERS.

HOOVER RECOMMEND THAT THE FILTERS ARE WASHED AFTER FIVE FULL ECOBOX CONTAINERS.

EMPTYING THE ECOBOXTM (7 & 8)

The EcoBoxTM check indicator will show red when the EcoBoxTM needs emptying. For true EcoBoxTM check indication the power control must be set to maximum (fully to the right).

To empty the EcoBoxTM:

1. Remove front door.
2. Lift EcoBoxTM out of cleaner.
3. Open and empty EcoBoxTM.
4. Re-assemble EcoBoxTM.
5. Refit assembled EcoBoxTM in cleaner (reverse of 2).
6. Locate tabs on front door. Close front door.

WASHING THE PRE-MOTOR FILTER (9)

With EcoBox™ removed:

take out the filter from the housing.
Rinse the filter under hand warm water. Do not scrub the filter.
Remove excess water with a dry cloth and leave to air dry for 24 hours or until fully dry.
- Refit the clean filter and the EcoBox™.

WASHING THE EXHAUST FILTER (10)

Lift off filter cover.
Remove filter.
- Rinse the filter under hand warm water. Do not scrub the filter.
Remove excess water with a dry cloth and leave to air dry for 24 hours or until fully dry.
- Refit the clean filter and the cover.

DO NOT use the cleaner without EcoBoxTM in place.

CALLING FOR SERVICE

A charge will be made if the cleaner is found to be in working order or has not been assembled in accordance with these instructions or has been used incorrectly. Before calling a HOOVER Service Engineer run through the following checklist:

1. Is there a working electricity supply to the cleaner? Check with another appliance.
2. Is the EcoBoxTM full?
3. Is the inlet blocked?
4. Are the filters blocked?

If there is any doubt call your local HOOVER Service Office for advice, they may be able to assist you over the telephone.

CONSUMABLES AND SPARE PARTS*

Use only original Hoover consumables and spare parts.

CONSUMABLES & SPARE PARTS	CODE
Acenta EcoBox™ pre-motor filter	S57 - 03875059
Portable kit (1 shoulder strap + 1 hose + 1 dusting brush)	C48 - 35600191
Carpet & Floor nozzle	G28 - 09185554
Parquet caresse nozzle	G87PC -35600655
Turbo nozzle	J29TN -35600705

• Feature varies according to model

GUARANTEE STATEMENT

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice.

Registered Trade Mark

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

ECOBOX™ SYSTEM

Hoovers unique EcoBox™ is made from a special porous plastic material which allows air to pass through whilst retaining most of the dirt and fine dust.

To maintain the best performance from the system we would recommend that you wash the EcoBox™ every five full EcoBox™ containers to remove the fine dust that your machine has picked up and retained inside the EcoBox™.

To wash and optimise the performance the following simple steps should be taken:

1. Shake out the EcoBox™ to remove large dirt and debris.

1. Brush the inside of EcoBox™ to remove the fine dust that has formed on the walls of the box.

1. Wash thoroughly the inside and outside of the EcoBox™ using warm water and washing up liquid. At this point if desired the EcoBox™ can be placed in a dishwasher and washed on a full wash and dry cycle at up to 75^ .

1. If not placed in a dishwasher rinse thoroughly inside and outside making sure no detergent is left on the EcoBox™.

Remove excess water with a dry cloth and leave to air dry for 24 hours or until fully dry.

FILTER MAINTENANCE

The pre-motor and the exhaust filter should be washed every five full EcoBox™ containers. Please refer to your user manual to find how to access the filters.

To maintain best performance please follow these simple steps:

1. Rinse both filters under hand warm water do not scrub the filters.
2. Remove excess water with a dry cloth and leave to air dry for 24 hours or until fully dry.

After completing the washing operations, return the EcoBox™ and filters to their original positions in the cleaner.
