Owner's Manual

KC-110

STEREO KEYBOARD AMPLIFIER

A compact, high-efficiency 30 W stereo keyboard amp that provides stereo playback in a single unit

• The ideal compact size for use at home.
  • Built-in high-efficiency stereo 30 W power amp (15 W + 15 W) (when using the AC adaptor).
• Delivers wide-range stereo sound using two 6.5 inch (16 cm) speakers and two tweeters.

Dual power design allows operation using eight AA batteries or the AC adaptor (p. 4)

• Dual power design lets you use the unit anywhere.
  When used with a battery-powered musical instrument, you can perform outdoors.
• Rechargeable (nickel-metal hydride) batteries are supported.
  Running time is approximately 7 hours when using alkaline batteries, or approximately 8 hours when using nickel-metal hydride batteries.

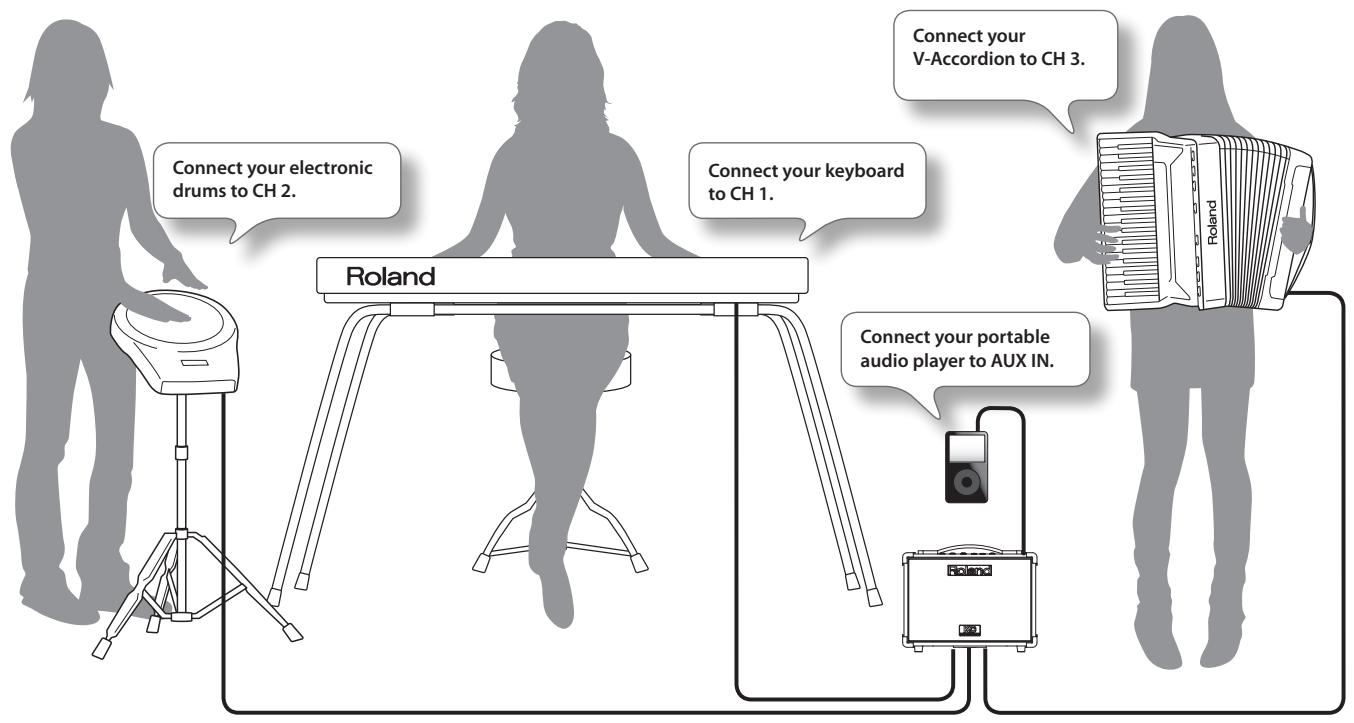

A full complement of input/output jacks supports stereo devices, microphones, portable audio players, and more (p. 7)

• In addition to one microphone/instrument input and two stereo inputs, there are AUX IN jacks for connecting your CD/portable audio player, as well as LINE OUT jacks.
  This is an ideal amp for a keyboardist/singer, or for use as a small mixing monitor or PA system.
• A convenient headphone jack is provided for night-time practice or sound checks (p. 6).

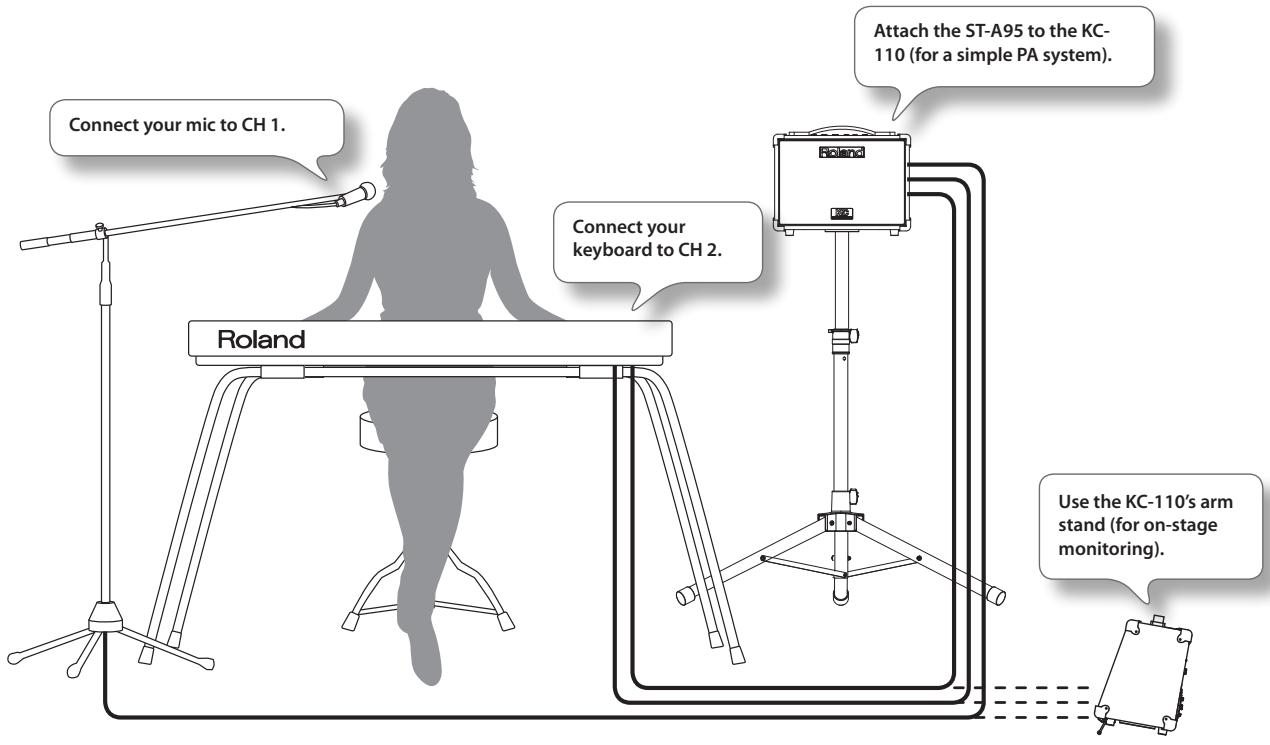

Use in a variety of situations with a speaker stand or the KC-110's own arm stand (p. 9)

• You can use the KC-110 with a separately sold speaker stand (ST-A95) as a simple PA or monitor.
• An "arm stand" is built into the KC-110, allowing it to be placed on the floor at a convenient angle for monitoring.

High-quality stereo digital effects (p. 5)

• Stereo reverb and stereo chorus are built in (p. 6).
  The chorus effect combines the chorused signals in the air, and also provides a "WIDE" mode, which delivers an effect with an enveloping sense of spaciousness made possible thanks to the stereo specifications.
• A foot switch (sold separately) can be connected, allowing you to turn the effect on/off with your foot (p. 7).

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (p. 2; p. 3). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

Copyright © 2009 ROLAND CORPORATION

All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About ⚠️ WARNING and ⚠️ CAUTION Notices

⚠ WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
⚠ CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The △symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The ⬇symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The ●symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING
Connect mains plug of this model to a mains socket outlet with a protective earthing connection.
Do not open (or modify in any way) the unit or its AC adaptor.
Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.
Never install the unit in any of the following locations.Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or areDamp (e.g., baths, washrooms, on wet floors); or areExposed to steam or smoke; or areSubject to salt exposure; or areHumid; or areExposed to rain; or areDusty or sandy; or areSubject to high levels of vibration and shakiness.
This unit should be used only with a rack or stand that is recommended by Roland.
When using the unit with a rack or stand recommended by Roland, the rack or stand must be carefully placed so it is level and sure to remain stable. If not using a rack or stand, you still need to make sure that any location you choose for placing the unit provides a level surface that will properly support the unit, and keep it from wobbling.
Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor’s body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.
Use only the attached power-supply cord. Also, the supplied power cord must not be used with any other device.
Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!
This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

WARNING
Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.
Immediately turn the power off, remove the AC adaptor from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page when:The AC adaptor, the power-supply cord, or the plug has been damaged; orIf smoke or unusual odor occursObjects have fallen into, or liquid has been spilled onto the unit; orThe unit has been exposed to rain (or otherwise has become wet); orThe unit does not appear to operate normally or exhibits a marked change in performance.
In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.
Protect the unit from strong impact.(Do not drop it!)
Do not force the unit’s power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord’s outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.
Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.
Batteries must never be recharged, heated, taken apart, or thrown into fire or water.
Never expose Battery to excessive heat such as sunshine, fire or the like.
CAUTION
The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.

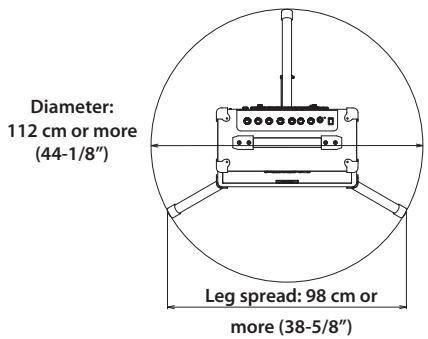

This (KC-110) for use only with Roland stand ST-A95. Use with other stands (or carts) is capable of resulting in instability causing possible injury.
Always grasp only the plug on the AC adaptor cord when plugging into, or unplugging from, an outlet or this unit.

! CAUTION

CAUTION
At regular intervals, you should unplug the AC adaptor and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.
Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.
Never climb on top of, nor place heavy objects on the unit.
Never handle the AC adaptor or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.
Before moving the unit, disconnect the AC adaptor and all cords coming from external devices.
Before cleaning the unit, turn off the power and unplug the AC adaptor from the outlet (p. 4).
Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet.
If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following precautions (p. 4).Carefully follow the installation instructions for batteries, and make sure you observe the correct polarity.Avoid using new batteries together with used ones. In addition, avoid mixing different types of batteries.Remove the batteries whenever the unit is to remain unused for an extended period of time.If a battery has leaked, use a soft piece of cloth or paper towel to wipe all remnants of the discharge from the battery compartment. Then install new batteries. To avoid inflammation of the skin, make sure that none of the battery discharge gets onto your hands or skin.Exercise the utmost caution so that none of the discharge gets near your eyes. Immediately rinse the affected area with running water if any of the discharge has entered the eyes.Never keep batteries together with metallic objects such as ballpoint pens, necklaces, hairpins, etc.
Used batteries must be disposed of in compliance with whatever regulations for their safe disposal that may be observed in the region in which you live.
Do not remove the speaker grille and speaker by any means. Speaker not user replaceable. Shock hazardous voltages and currents are present inside the enclosure.

Power Supply: Use of Batteries

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
• The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern.
• When installing or replacing batteries, always turn off the power on this unit and disconnect any other devices you may have connected. This way, you can prevent malfunction and/or damage to speakers or other devices.
• Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Also, do not allow lighting devices that normally are used while their light source is very close to the unit (such as a piano light), or powerful spotlights to shine upon the same area of the unit for extended periods of time. Excessive heat can deform or discolor the unit.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Do not allow rubber, vinyl, or similar materials to remain on the unit for long periods of time. Such objects can discolor or otherwise harmfully affect the finish.
• Do not paste stickers, decals, or the like to this instrument. Peeling such matter off the instrument may damage the exterior finish.
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface. You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.
• For routine care of the carpeted surfaces, use a brush with stiff bristles.

Additional Precautions

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you (especially when it is late at night).
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

The KC-110 can be operated using either an AC adaptor or batteries. Use the type of power that's appropriate for your situation.

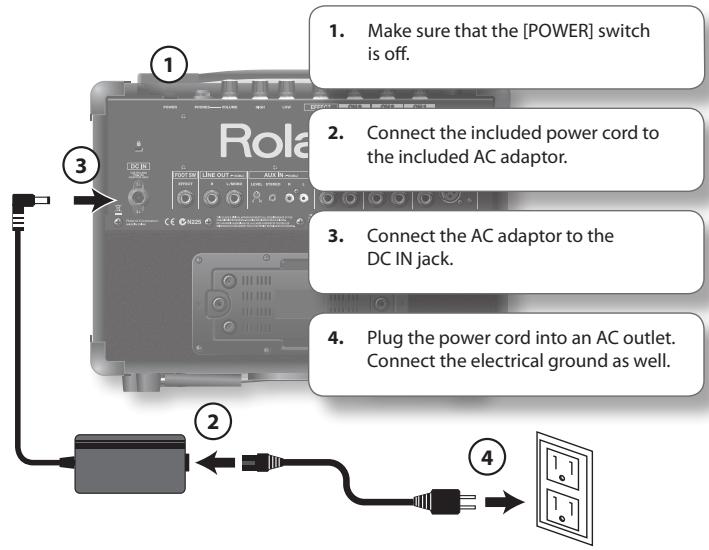

Connecting the AC adaptor

* Use only the AC adaptor that is supplied with the KC-110.

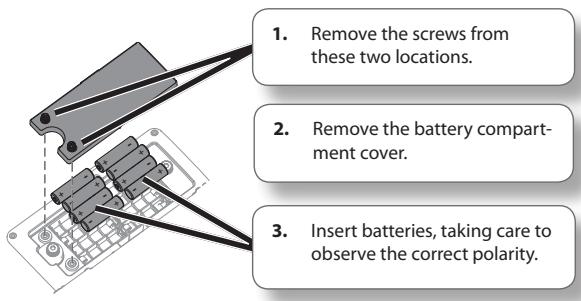

Installing batteries

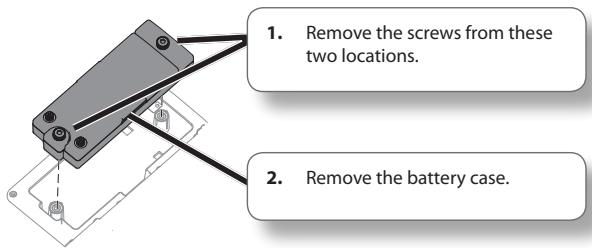

Removing the battery case

Although it is possible to replace the batteries without removing the battery case, battery replacement will be easier if you remove the battery case.

* We recommend that you keep batteries installed in the unit even though you'll be powering it with the AC adaptor. That way, you'll be able to continue a performance even if the cord of the AC adaptor gets accidentally disconnected from the unit.
* To prevent malfunction and speaker damage, make sure to switch off the KC-110's power before you insert or replace its batteries, and before connecting it to other devices.
* Take care that no metal object touches the contacts of the battery case. This can short-circuit the batteries, causing the case to overheat or burn.

About batteries

Batteries that can be used

The KC-110 uses eight AA alkaline or nickel-metal hydride batteries.

* Nickel-metal hydride batteries cannot be recharged by the KC-110 itself. You'll need to use a commercially available battery manufacturer.
* When using nickel-metal hydride batteries, please be aware that the battery life will normally shorten each time they are recharged.

Caution regarding batteries

• Insert the batteries as directed, taking care to observe the correct polarity (+/- orientation).
• Do not mix new and used batteries, or batteries of different types.
• Carefully read and observe the cautions and handling instructions that accompany the batteries.

When using nickel-metal hydride batteries, you must use the charger that is specified by the battery manufacturer.

• Remove the batteries if you won't be using the unit for several months.
• If any electrolyte leaks from a battery, use a dry cloth to carefully wipe off any electrolyte that might be on the battery case, and then install new batteries. Battery electrolyte that contacts your skin may cause a rash. Battery electrolyte is hazardous to your eyes; if any electrolyte gets into your eyes, flush them immediately with water.
• Do not carry or store batteries together with metallic objects such as pens, necklaces, or hairpins.

Turning the power on/off

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

1. Make sure that the power to all equipment is turned off.
2. Connect your external equipment.

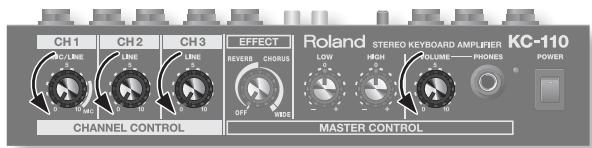

3. Set each of the KC-110's level knobs and the [VOLUME] knob to 0.

1. Switch on the power to any external equipment connected to CH 1–3 or AUX IN jacks.

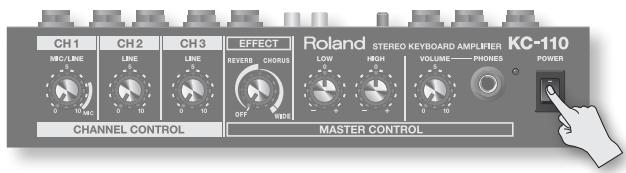

2. Switch on the KC-110's power.

1. Power up the equipment connected to the LINE OUT jack.

To turn the power off, reverse these steps.

NOTE

• To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.
• This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.
• Always make sure to have the volume level turned down before switching on power. Even with the volume all the way down, you may still hear some sound when the power is switched on, but this is normal, and does not indicate a malfunction.
• If you're operating the KC-110 only on batteries, the POWER indicator will become dim as the batteries run low.

When the batteries run even lower, the POWER indicator will blink. Replace the batteries as soon as possible.

• If the batteries are extremely low, the sound will be more likely to distort, and you may hear distortion at high volume levels. This is not a malfunction. Either replace the batteries, or use the included AC adaptor.
• Expected battery life under continuous use:

• Alkaline batteries approximately 7 hours
- Nickel-metal hydride batteries approximately 8 hours

- Howling could be produced depending on the location of microphones relative to speakers. This can be remedied by:

1. Changing the orientation of the microphone(s).
2. Relocating microphone(s) at a greater distance from speakers.
3. Lowering volume levels.

Adjusting the volume and tone

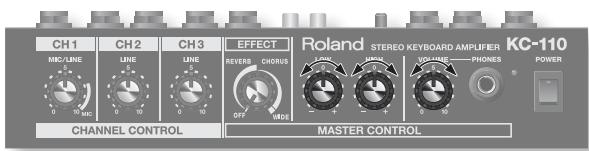

1. Set the level knob of each channel to 5 (center).

Lower the knobs of any channels you're not using.

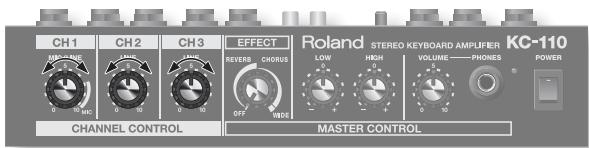

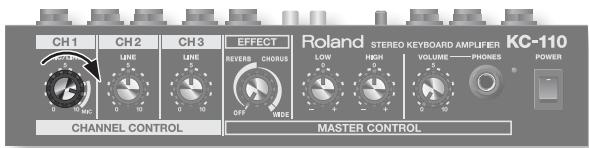

1. If you're using a microphone, turn the CH 1 level knob to the MIC range.

1. While you produce sound on the connected device, turn the [VOLUME] knob to adjust the overall volume.

1. Use the level knobs of each channel to adjust the volume balance of the connected devices.

1. Use the [VOLUME] knob to adjust the overall volume, and use the [LOW] (low range) knob and [HIGH] (high range) knob to adjust the tone.

Applying an effect

1. Use the [EFFECT] knob to select an effect and adjust its depth.

The left half of the knob's range produces reverb (p. 6) and the right half produces chorus (p. 6). Turning the knob all the way to the right produces a wide chorus effect (p. 6).

Within each range, turning the knob toward the right will increase the effect.

* The effect is not applied to the sound that's being input from AUX IN jack.

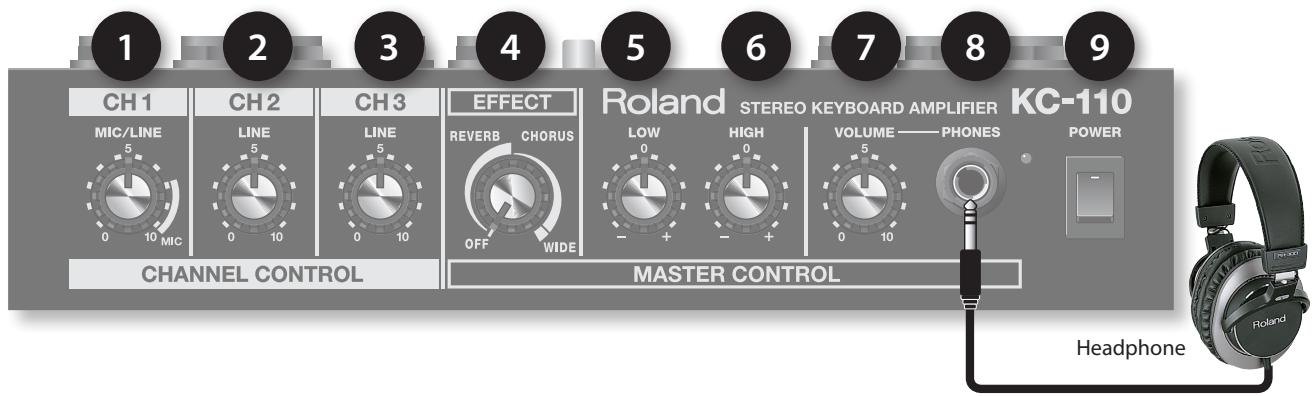

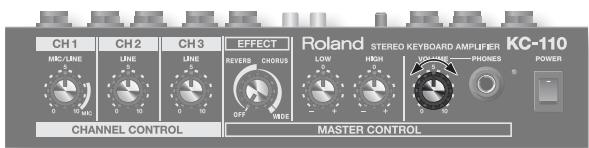

Control panel

CHANNEL CONTROL

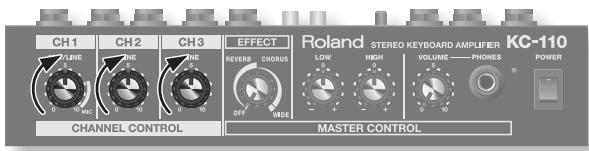

1 2 3 Level Knobs 1–3

These knobs adjust the volume of the devices connected to the channels.

Turning the knob toward the right will increase the volume.

A microphone can be connected to CH 1.

If you connect a microphone, turn the knob to the range indicated as MIC.

* If you're not using a channel, leave its level knob set to 0.

MASTER CONTROL

4 [EFFECT] Knob

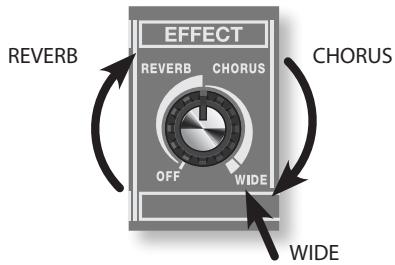

The position of this knob lets you switch between three effects, and adjust the effect depth.

REVERB:

This effect produces the reverberation of a concert hall.

It is a stereo reverb with a spacious feeling.

The position of the knob adjusts the volume of the reverb.

This is also ideal for a microphone connected to CH 1.

CHORUS:

This effect adds depth and spaciousness to the sound.

The position of the knob adjusts the depth of the effect.

This is particularly suitable for sounds such as strings.

WIDE:

This is a stereo chorus that processes the three frequency bands independently, creating a spacious, embracing effect.

The low range remains firmly localized in the center, and the sound will become more spacious as you go from the mid to the high range.

* The effect is not applied to the sound that's being input from AUX IN jack.

5 6 Equalizer

This adjusts the tone of the speaker output and headphone output.

Normally, you should place these knobs at 0.

* These knobs do not affect the output from LINE OUT jack.

[LOW] Knob

This adjusts the tonal character of the low-frequency range.

[HIGH] Knob

This adjusts the tonal character of the high-frequency range.

7 VOLUME

[VOLUME] Knob

This adjusts the overall volume that is output by the KC-110's speakers. If headphones are connected, this adjusts the headphone volume.

* The [VOLUME] knob does not affect the output from LINE OUT.

8 PHONES

PHONES Jack

You can connect stereo headphones to this jack.

* If headphones are connected, sound will not be output from the speakers.

* You must set the [VOLUME] knob to 0 before connecting headphones.

9 POWER

[POWER] Switch

This turns the KC-110's power on/off (p. 5).

POWER Indicator

This will light when the power is on.

* The POWER indicator will become dim when the batteries run low. If the batteries become even lower, the POWER indicator will blink.

Please replace the spent batteries with fresh ones.

POWER Indicator

Jack panel

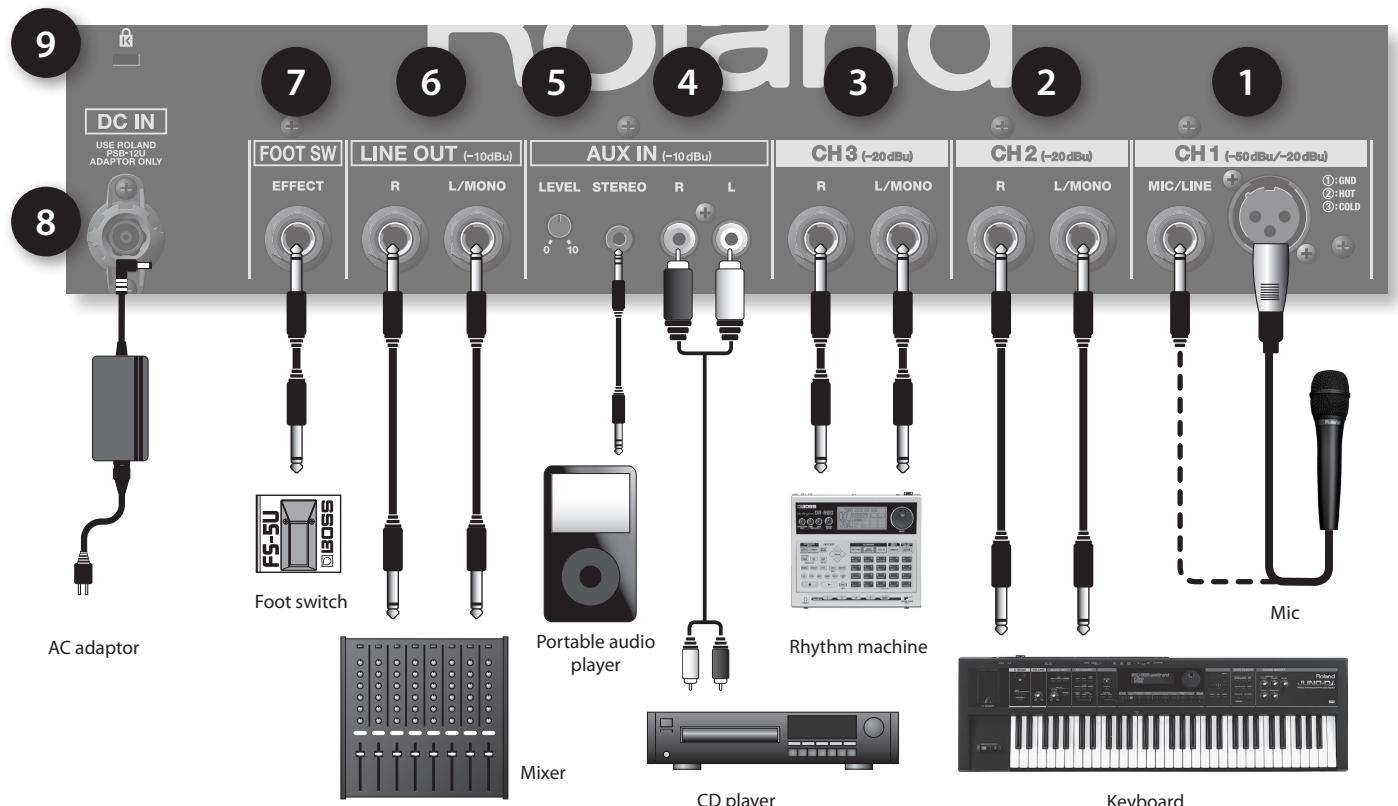

1 2 3 CH 1–CH 3 Inputs

Here you can connect up to three devices, such as a keyboard or other electronic musical instrument, a CD player, or a microphone (CH 1 only).

CH 1 BALANCED (XLR) Input Connector CH 1 Input Jacks

These provide both a 1/4" phone jack and an XLR connector for conveniently connecting a microphone.

This input supports a range from microphone input level (-50 dBu) to the line input level (-20 dBu) typical of a keyboard.

This instrument is equipped with balanced (XLR) type jacks. Wiring diagrams for these jacks are shown below. Make connections after first checking the wiring diagrams of other equipment you intend to connect..

* This jack does not supply phantom power.

CH 2, 3 Input Jacks

Here you can connect a keyboard or other electronic musical instrument, or you can connect audio devices such as a CD player (-20 dBu).

If your device uses a monaural output, connect it to L/MONO.

4 AUX IN Jacks

Here you can connect a device such as a CD or portable audio player (-10 dBu).

Two types of jacks are provided (RCA phono jacks and a stereo mini jack), and the signals are mixed internally.

You may use the two types of jacks simultaneously, but this may cause the volume to be lower than if they are used separately.

* The effect is not applied to the sound that's input from AUX IN jack.

5 AUX IN [LEVEL] Knob

This adjusts the level of the input from AUX IN jack.

6 LINE OUT Jacks

You can connect these jacks to your mixer or recorder.

Use L/MONO jack if you're outputting in mono.

The equalizer knobs and [VOLUME] knob do not affect LINE OUT.

7 FOOT SW Jack

If you connect a foot switch here, you'll be able to turn the internal effect on/off with your foot. You'll need a separately sold momentary type foot switch (BOSS FS-5U; sold separately) and a connection cable.

Set the polarity switch toward the jack.

Polarity Switch

8 DC IN Jack

Connect the included AC adaptor here.

You must use only the AC adaptor that is supplied with the KC-110.

9 Security Slot ( 🔒 )

http://www.kensington.com/

* When connection cables with resistors are used, the volume level of equipment connected to the inputs (CH 1–CH 3, AUX IN) may be low. If this happens, use connection cables that do not contain resistors.

Keyboardist/singer

You can connect your keyboard in stereo, and sing/narrate while you perform.

With various instruments

Multiple instruments such as keyboard or electronic drums (up to four) can be connected to the KC-110 and mixed.

Using a separately available speaker stand (ST-A95)

By using the KC-110 with the ST-A95 speaker stand (sold separately), it can be positioned at the ideal height for monitoring or use as a simple PA system.

Attaching the ST-A95 stand

* You must obtain the assistance of at least one other person when attaching the KC-110 to the speaker stand, or when adjusting the height of the speaker stand with the KC-110 attached.
* When setting up, take care not to pinch your fingers.

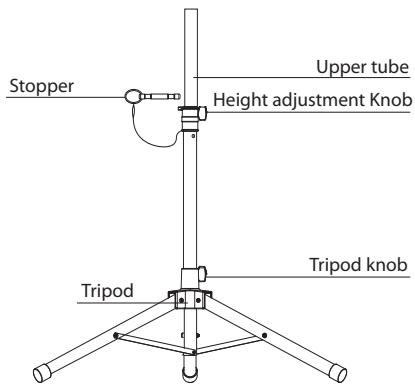

1. Loosen the tripod knob, and open the tripod.

After you've opened the tripod sufficiently, tighten the tripod knob.

* As shown in the illustration below, open the tripod so that its feet are 98 cm apart. The tripod will be unstable if it is not opened wide enough.

1. Loosen the height adjustment knob, and extend the upper pipe.
2. Insert the stopper into the upper tube to obtain the desired height, up to a maximum height of 145 cm for the stand.

* The stopper must be inserted when using the system.

1. Tighten the height adjustment knob.
2. Insert the KC-110 onto the upper tube.

WARNING

• The KC-110 is designed to be used only in combination with a Roland-manufactured speaker stand (ST-A95). Do not use it with any other stand.
• As shown in the illustration below, adjust the speaker stand to a height of no more than 140 cm, and open the tripod to a spread of 98 cm or more.
• Adjusting the speaker stand to a height greater than 140 cm or the tripod to a spread of less than 98 cm may allow the system to fall over, resulting in damage or personal injury.
• If you use the KC-110 with a speaker stand, do not place it on an unstable or tilted location. You must place the system on a stable, horizontal location.
• Cables connected to the KC-110 should have enough slack, so that they will not cause an accident if someone trips over them.
• To prevent accidents caused by falling objects, do not place anything on top of a KC-110 that is mounted on a speaker stand.

Using the KC-110's arm stand

When using the KC-110 at a low position such as on the floor, extending the arm stand will make the sound from the speakers easier to hear.

Simple line drawing of a flatboard with a clip, resting on a surface (no text or symbols)

NOTE

• If you use the arm stand, you must place the KC-110 on a horizontal surface.
• Fold the arm stand if you're not using it.

NOTE

• Do not lift or carry the KC-110 by grasping its arm stand.
• When using the arm stand, do not place objects on the KC-110, or sit or stand on the KC-110.
  • Take care not to pinch your fingers when folding the arm stand.

If the system does not work as you expect, check the following points first.

Symptom	Cause	Page
Power will not turn on	Are the AC adaptor and AC cord connected correctly?	p. 4
	Is the AC cord correctly connected to an AC outlet?	p. 5
	Are the batteries installed correctly?Could the batteries have run low?	p. 4
No sound	Is the external equipment connected correctly?	p. 7
	If headphones are connected, no sound will be output from the speakers.	p. 6
	Are each channel's level knob and the [VOLUME] knob adjusted correctly?	p. 5
	Is the AUX IN [LEVEL] knob adjusted correctly?	p. 7
	Could the batteries have run low?The POWER indicator will dim when the batteries run low. If the batteries run even lower, the POWER indicator will blink.Please install fresh batteries.	p. 6
Sound is distorted Noise is heard	Could each channel's level knob or the [VOLUME] knob be raised excessively?	p. 5
	Are the knobs of unused channels set to zero?	p. 6
	Is the input level from a device connected to an external mixer appropriate?	p. 5
Insufficient volume	Are each channel's level knob and the [VOLUME] knob adjusted correctly?	p. 5
	Is the input level from a device connected to an external mixer appropriate?	p. 5
	Could multiple devices be connected to AUX IN jack?	p. 7
	Could the batteries have run low?The POWER indicator will dim when the batteries run low. If the batteries run even lower, the POWER indicator will blink.Please install fresh batteries.	p. 6
Effect not applied	Is the [EFFECT] knob adjusted correctly?	p. 5
	Could you have used a foot switch to turn off the effect?	p. 7
	Effects cannot be applied to AUX IN.	p. 7

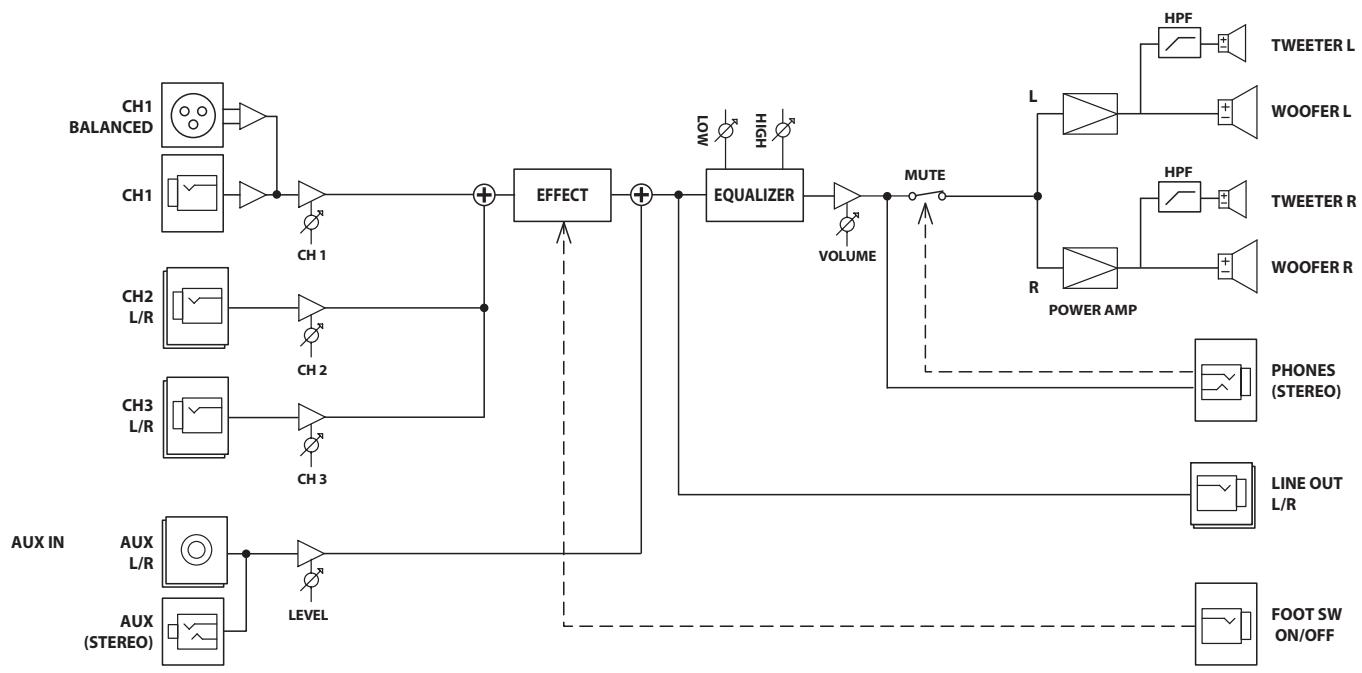

Block Diagram

KC-110: BATTERY POWERED STEREO KEYBOARD AMPLIFIER

Rated Power Output	30 W (15 W + 15 W) (when using the AC adaptor)20 W (10 W + 10 W) (when using the Alkaline batteries)
Nominal Input Level (1 kHz)	Input	CH 1 (MIC/LINE)	-50--20 dBu
		CH 2, 3 (LINE)	-20 dBu
	AUX IN		-10 dBu
Nominal Output Level	LINE OUT		-10 dBu
Speakers	16 cm (6.5 inches) × 2
	Tweeter × 2
Controls	CH 1 (MIC/LINE) Level Knob
	CH 2 (LINE) Level Knob
	CH 3 (LINE) Level Knob
	EFFECT Knob
	EQUALIZER: LOW Knob, HIGH Knob
	VOLUME Knob
	AUX IN LEVEL Knob
	POWER Switch
Indicator	POWER
Connectors	CH 1 Input Connector (XLR type)CH 1 Input Jack (1/4" phone type)
	CH 2 Input (L/MONO, R) Jacks (1/4" phone type)
	CH 3 Input (L/MONO, R) Jacks (1/4" phone type)
	AUX IN Jacks (RCA phono type, Stereo miniature phone type)
	LINE OUT (L/MONO, R) Jacks (1/4" phone type)
	PHONES Jack (Stereo 1/4" phone type)
	FOOT SW Jack (TRS phone type)
	DC IN Jack
Power Supply	DC 13 V: AC Adaptor or Dry Battery (LR6 (AA) type) x 8
Current Draw	550 mA
Expected battery life under continuous use:(These figures will vary depending on the actual conditions of use.)	Alkaline batteries	approximately 7 hours
	Nickel-metal hydride batteries	approximately 8 hours
Dimensions	420 (W) x 244 (D) x 320 (H) mm16-9/16 (W) x 9-5/8 (D) x 12-5/8 (H) inches
Weight	7.3 kg16 lbs 2 oz(Excluding Battery)
Accessory	Owner's Manual, AC Adaptor, AC Cord
Options	Speaker Stand: ST-A95Foot Switch: BOSS FS-5U (EFFECT)

* 0 dBu = 0.775 Vrms
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Roland

Bedienungsanleitung

KC-110

STEREO KEYBOARD AMPLIFIER

Simple line drawing of a flatboard with supports and a vertical guide, resting on a surface (no text or symbols)

HINWEIS

Technical illustration of a mechanical assembly with clamps and components (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and connecting rods (no text or symbols)

Simple line drawing of a flatboard with supports and a vertical guide, resting on a surface (no text or symbols)

REMARQUE

Diagram of a mechanical assembly with clamps and connectors (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and connecting rods (no text or symbols)

Simple line drawing of a flatboard with supports and a vertical guide, resting on a surface (no text or symbols)

NOTA

Technical illustration of a mechanical assembly with clamps and components (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and connecting rods (no text or symbols)

Simple line drawing of a flatboard with supports and a vertical guide bar, resting on a surface (no text or symbols)

NOTA

Simple line drawing of a flatboard with supports and a vertical guide, resting on a surface (no text or symbols)

OBSERVAÇÃO


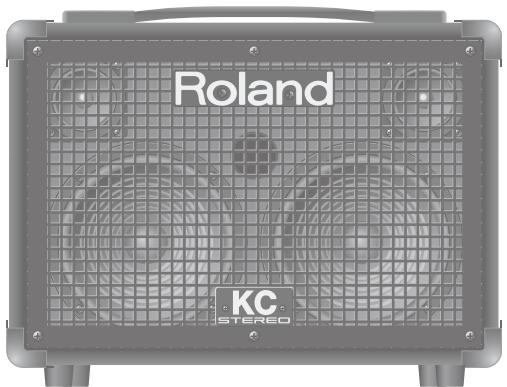

KC-110: AMPLIFICADOR DE TECLADO ESTÉREO ALIMENTADO POR PILHAS

Simple line drawing of a flatboard with supports and a vertical guide bar, resting on a surface (no text or symbols)

OPMERKING

When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below.

AFRICA

EGYPT

Al Fanny Trading Office

1. EBN Hagar Al Askalany Street.

ARD E1 Golf. Heliopolis.

Cairo 11341, EGYPT

TEL: [phone]

REUNION

Royal Cape Park, Unit 24

Londonderry Road, Ottery 7800

Cape Town, SOUTH AFRICA

TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics

Co.,Ltd.

5F. No.1500 Pingliang Road

Shanghai 200090, CHINA

TEL:[phone]

Roland Shanghai Electronics

Co., Ltd.

(BEIJING OFFICE)

10F. No.18 3 Section Anhuaxili

Chaoyang District Beijing 100011

CHINA

TEL: [phone]

HONG KONG

Tom Lee Music Co., Ltd. Service

Division

22-32 Pun Shan Street, Tsuen

Wan, New Territories,

HONG KONG

TEL: [phone]

Parsons Music Ltd.

8th Floor, Railway Plaza, 39

Chatham Road South, T.S.T,

Kowloon, HONG KONG

TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd.

411, Nirman Kendra Mahalaxm

Flats Compound Off. Dr. Edwin

Moses Road, Mumbai-400011,

INDIA

TEL: [phone]

INDONESIA

PT Citra IntiRama

VIET THUONG CORPORATION

386 CACH MANG THANG TAM ST.

DIST.3,

HO CHI MINH CITY

VIET NAM

TEL: [phone]

PHILIPPINES

G.A. Yupangco & Co. Inc.

339 Gil J. Puyat Avenue

Makati, Metro Manila 1200,

PHILIPPINES

TEL:[phone]

SINGAPORE

Theera Music Co., Ltd.

100-108 Soi Verng Nakornkasem,

New Road, Sumpantawongse,

Bangkok 10100 THAILAND

TEL: [phone]

OCEANIA

AUSTRALIA/

NEW ZEALAND

Roland Corporation

Australia Pty.,Ltd.

38 Campbell Avenue

Dee Why West. NSW 2099

AUSTRALIA

For Australia

Tel:[phone]

For New Zealand

Tel: [phone]

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A.

Av.Santa Fe 2055

(1123) Buenos Aires

ARGENTINA

TEL:[phone]

BARBADOS

A&B Music Supplies LTD

12 Webster Industrial Park

Wildey, St.Michael, Barbados

TEL: [phone]

BRAZIL

Roland Brasil Ltda.

Rua San Jose, 211

Parque Industrial San Jose

Cotia - Sao Paulo - SP, BRAZIL

TEL: [phone]

CHILE

Comercial Fancy II S.A.

Rut.: 96.919.420-1

Nataniel Cox #739, 4th Floor

Santiago - Centro, CHILE

TEL: [phone]

COLOMBIA

Centro Musical Ltda.

Cra 43 B No 25 A 41 Bododega 9

Medellin, Colombia

TEL:[phone]

COSTA RICA

JUAN Bansbach Instrumentos

Musicales

Ave.1. Calle 11, Apartado 10237,

San Jose, COSTA RICA

TEL: [phone]

CURACAO

Zeelandia Music Center Inc.

Orionweg 30

Curacao, Netherland Antilles

TEL:[phone]

DOMINICAN REPUBLIC

Instrumentos Fernando Giraldez

Boulevard Andrews, Albrook,

Panama City, REP. DE PANAMA

TEL: [phone]

PARAGUAY

155, New National Road

Patras 26442, GREECE

TEL: [phone]

HUNGARY

Roland East Europe Ltd.

有关产品中所含有害物质的说明

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.
