USER MANUAL FSV-125 FAGOR

INSTRUCTIONS FOR USE

BETJENINGSVEJLEDNING ÍNDICE

REMPLACEMENT DE L’AMPOULE

4 / MESSAGES PA RTICULIERS, INCIDENTS

• Safety recommendations ________________________________________ 26

1 / INSTALLING THE APPLIANCE ______________________________________

• Electrical connection____________________________________________
• Before connecting the appliance __________________________________
• Protecting the environmental _____________________________________
• Recycling ____________________________________________________

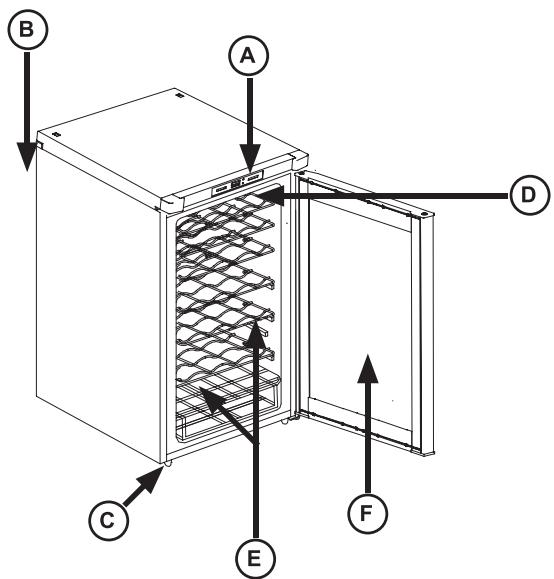

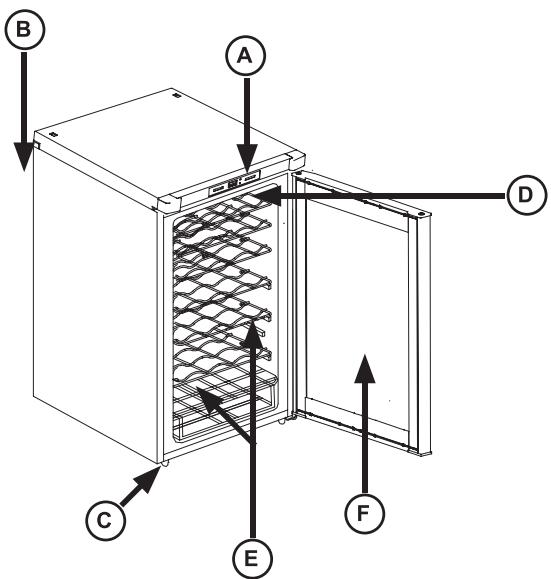

• Description of your appliance _____________________________________

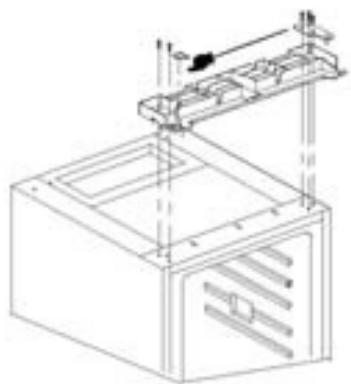

• Reversing the door opening direction_______________________________

2 / USING THE APPLIANCE ___________________________________________ 29

• Advice _______________________________________________________ 29

3 / RUNNING MAINTENANCE FOR THE APPLIANCE_______________________ 30

• Cleaning and maintenance_______________________________________ 30

4 / SPECIFIC MESSAGES, INCIDENTS __________________________________ 31

• Operation problems ____________________________________________ 31

5 / TECHNICAL ASSISTANCE SERVICE _________________________________ 32

SAFETY RECOMMENDATIONS This appliance has been designed to store wine. Any other usage, fundamentally conserving food, could be dangerous as

WKHWHPSHUDWXUHLVQRWVXI¿FLHQWO\ORZ

Installation must be made by following the instructions in this manual; incorrect installation could damage the appliance. For any operation problems which could occur with the appliance, DOZD\VDQGH[FOXVLYHO\UHIHUWRWKH7HFKQLFDO6HUYLFHRUTXDOL¿HG personnel. In order to carry out any maintenance operations, disconnect the appliance beforehand, but do not pull on the power cable. If this appliance if going to substitute another one which has a closing device with a bolt, spring, lock or other, do not forget to eliminate the closing device or even better, dismantle the door of the former appliance to prevent anyone getting locked inside (children playing, animals, etc). When removing the packaging from the appliance, make sure that it has not been damaged. If it has, the vendor must be informed of this damage within 24 hours of delivery. The materials used for packaging are totally

UHF\FODEOH FDUGERDUGEXEEOHZUDS(36« .HHSWKLVPDWHULDO

out of reach of children. The appliance’s cooling circuit contains cooling isobutene, which is a low contamination natural gas, DOWKRXJKLWLVÀDPPDEOH During transport and installation, make sure that none of the FRROLQJFLUFXLWFRPSRQHQWVKDYHEHHQGDPDJHG If damage is observed, keep the appliance away from naked ÀDPHVRUVRXUFHVRI¿UHDQGYHQWLODWHWKHSUHPLVHVZKHUHLW ZLOOEHORFDWHG In order to achieve optimum operation for the appliance, install it away from heat sources and make sure that air can circulate around it (see appliance installation).

1 / INSTALLING THE APPLIANCE

Important: Before starting the installation, read the

UHFRPPHQGDWLRQVFDUHIXOO\WRDYRLGDQ\SUREOHPV

Install the appliance in a place with no humidity and which is well ventilated, far from a heat source. Leave of minimum distance of 10 cm between the top of the appliance and any furniture on top of it. If its installation does not permit this, leave 5 cm between the top part of the chassis and any other piece of kitchen furniture ZKLFKLV¿[HGWRWKHZDOODQGDGLVWDQFHRIFPRQERWKVLGHV of the appliance. ,I WKH DSSOLDQFH PXVW EH LQVWDOOHG QH[W WR D IULGJHIUHH]HU RU a freezer, do not put them right next to each other to prevent condensation forming on the outside. This appliance does not contain cooling gases which are harmful for the ozone layer in its cooling circuit and insulating materials. It must not be thrown away with urban waste or scrap metal, to prevent damage to the cooling circuit, particularly the rear part of the appliance. Ask in your town hall for information on collecting this type of appliance. RECYCLING The packaging materials used for this appliance are recyclable. Participate in recycling them and contribute to protecting the environment by taking it to the appropriate municipal containers. The climatic category of your wine cellar is indicated on the characteristic plate. This determines the ambient temperature range for which the fridge has been designed, guaranteeing correcting operation of the appliance. Category

Your appliance also contains many recyclable materials and so it has been marked with this logo which indicates that the old appliances should not be mixed with other waste. Therefore, recycling the appliance, which is organised by the manufacturer, can be done in the best possible conditions, in accordance with the European directive 2002/96/CE on electrical and electronic equipment waste. Ask your town hall or vendor about collection points for old appliances close to your home. Thank you for your collaboration in protecting the environment. ELECTRICAL CONNECTION &KDUDFWHULVWLFVRIWKHFRQQHFWLRQ9ZLWKHDUWK Avoid using adaptors or extension cords. Make sure that the cable is not in contact with the compressor. Make sure that the cable is not trapped under the appliance. The appliance’s electrical installation is earthed. For your safety, connect the appliance to a power socket with HI¿FLHQW HDUWKLQJ LQ DFFRUGDQFH ZLWK WKH VWDQGDUGV LQ IRUFH regarding electrical installation safety). The manufacturer will not assume any responsibilities in the event of damage produced by an earthing fault.

BEFORE CONNECTING IT

• Clean inside the appliance with warm water and bicarbonate. Rinse and dry it carefully.
• Wait two hours before switching it on to guarantee stabilisation RIWKHPRWRUFRPSUHVVRUOXEULFDQWV

3 / RUNNING MAINTENANCE ON THE APPLIANCE

POWER CUTS AND PROVISIONAL STOPPAGE

In the event of a long power cut or the appliance being switched off (holidays...), you should: Caution: 'LVFRQQHFWWKHZLQHFHOODUEHIRUHFOHDQLQJLW

• remove all the bottles,

• Clean inside with warm water and bicarbonate, using a sponge or a cloth, to avoid unpleasant odours.

• disconnect the appliance and clean inside it,
• leave the door open to prevent condensation and unpleasant odours.

• Clean the grilles with a neutral detergent solution. This solution can also be used to clean the outside of the appliance.
• Dry the lower part of the appliance carefully to stop condensation forming.

MOVING THE APPLIANCE

• Do not use abrasive detergents, as they can damage the inside of the appliance. Do not wash the internal accessories in the dishwasher. If you have to move your cellar, follow these instructions to perform the operation in the best possible conditions:

• It is recommended to wipe the back of the appliance with a cloth once a year, as when it is dirty its performance is reduced and energy consumption increases.

• remove all the bottles from the appliance, ‡ ¿[WKHLQWHUQDODFFHVVRULHVWRVWRSWKHPEUHDNLQJ
• screw the adjustable feet in the low position and lock the door closed.

CHANGING THE LIGHT BULB

• during transport, make sure that the appliance is always vertical. Caution: Disconnect the wine cellar before starting to change the EXOE

‡5HPRYHWKH¿[LQJVFUHZV

• Remove the grille A from the lower part.
• Remove the bulb B by unscrewing it.
• Fit another bulb with the same wattage as before, replace the

JULOOHDQG¿[LWZLWKWKH¿[LQJVFUHZV

4 / SPECIFIC MESSAGES, INCIDENTS

OPERATION PROBLEMS There are noises which are totally normal in a wine cellar:

• The cooling gas can bubble as it moves round the circuits.
• The compressor can produce a purring noise which can be stronger when it starts up.
• The “crack” caused by the materials used dilating. Before calling the Technical service, use the table below to check that you cannot solve the problem yourself: PROBLEM SOLUTION The appliance does not work. Check that it is properly plugged in, that the fuse has not blown or that a circuit breaker has not been tripped. The temperature is too high. Check the temperature and adjust it again if necessary. Make sure that the ambient temperature corresponds to what is recommended for optimum operation. Finally, do not open the door more than is strictly necessary. The compressor only works occasionally. Maybe there are too many bottles loaded in it: do not exceed the cellar’s maximum capacity. Make sure that air can circulate freely around the appliance and WKDWWKHVHDOLVSURSHUO\¿WWHG Also check the points given in the event that the temperature is too high.

If you have run all the checks given above and the problem continues, DO NOT CARRY OUT ANY REPAIRS YOURSELF. Call the closest Technical Assistance Service. Achtung: 'DV*HUlWYRP1HW]WUHQQHQEHYRUHVJHUHLQLJWZLUG
