TributeCollection FS 3000 - Rice cooker BRAUN - Free user manual and instructions

Product type	Rice cooker
Brand	Braun
Model	TributeCollection FS 3000
Capacity	1.8 L (10 cups cooked rice)
Power	650 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	25 x 25 x 28 cm
Weight	1.8 kg
Bowl material	Non-stick coating
Main functions	Rice cooking, keep warm
Steam function	Yes (with included steam basket)
Operation indicator light	Yes (indicator light)
Automatic shut-off	Yes (switches to keep warm)
Cleaning	Removable bowl, dishwasher safe
Maintenance	Wipe exterior with a damp cloth
Safety	Overheat protection
Replacement parts available	Yes (bowl, lid, steam basket, cable)
Repairability	Repairability index: 8.2/10 (according to manufacturer)
Color	White with silver accents
Included accessories	Bowl, steam basket, rice spatula, measuring cup

Frequently Asked Questions - TributeCollection FS 3000 BRAUN

What is the capacity of the Braun TributeCollection FS 3000 rice cooker?

The cooker has a capacity of 1.8 liters, allowing it to cook up to 10 cups of cooked rice (about 1 kg of uncooked rice).

How to cook rice with this cooker?

Rinse the rice, place it in the bowl with the corresponding amount of water (measuring cup provided), close the lid, then press the switch. The cooking indicator light turns on and the appliance automatically switches to keep warm once cooking is complete.

Can I use the steam basket to cook vegetables?

Yes, place the vegetables in the steam basket above the rice during cooking. The steam from the rice will cook them simultaneously.

How to clean the non-stick bowl?

Allow to cool, remove the bowl and wash it with warm soapy water or in the dishwasher. Avoid abrasive sponges to preserve the coating.

What to do if the rice sticks to the bottom?

Make sure to respect the water/rice ratio (usually 1 volume of rice to 1.5 volumes of water). Excess water or too long cooking time can cause sticking. The non-stick coating makes cleaning easier.

Does the appliance turn off automatically?

Yes, once cooking is complete, the cooker automatically switches to keep warm mode (approx. 65°C). It does not turn off completely; unplug it or turn it off manually.

What is the power of the appliance?

The Braun TributeCollection FS 3000 rice cooker has a power of 650 watts.

Is the bowl removable?

Yes, the inner bowl is removable for easy cleaning. It can be removed after cooling.

Where to find replacement parts?

Replacement parts (bowl, lid, steam basket, power cord) are available from Braun customer service or on specialized websites. Refer to the manual for part numbers.

What is the warranty on this appliance?

Braun generally offers a 2-year warranty for manufacturing defects. Keep your receipt for any claims.

USER MANUAL TributeCollection FS 3000 BRAUN

Deutsch	4
English	9
Français	14
Español	19
Português	24
Italiano	29
Nederlands	34
Dansk	39
Norsk	44
Svenska	49
Suomi	54
Polski	59
Český	64
Slovenský	69
Magyar	74
Hrvatski	79
Slovenski	84
Română (MD) 89
Türkçe	94
Ελληνικά	99
Κασακ	105
Русский	112
Українська	119

De'Longhi-Braun-Household GmbH

Deutsch

Our products are engineered to meet the highest standards of quality, functionality, and design. We hope you thoroughly enjoy your new Braun product.

Your Braun FS 3000 is particularly well suited for steaming vegetables, rice, fish, meat and poultry. Steaming is a most gentle and healthy way of preparing food. Vitamins, minerals, natural taste and colour will be retained to a large extent.

Read all instructions carefully before using the appliance.

Important safeguards

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• Children younger than 8 years shall be kept away from the appliance and its mains cord.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Never immerse the base ① into water.
• This appliance is designed for household use only and for processing normal household quantities.
• Use the steam basket ⑤ only together with the drip pan ④.
• Always use the black insert ⑤a when steaming food with colour (e. g. carrots, paprika, tomatoes, etc.), in order to

minimize permanent colouring of the white steam basket ⑤.

• Remove the black rice bowl ⑤b or the black insert ⑤a only together with the steam basket ⑤ from the drip pan ④.
• Never touch the appliance without potholders or kitchen gloves, and do not use the appliance without the cover ⑥. When lifting the cover, always hold it so that you do not come in touch with escaping steam or dripping hot water. Be careful with hot liquids in the drip pan(s).
• When using the appliance ensure sufficient room over and beside the appliance, in order to prevent damage to e. g. cabinets or other objects.
• When using the appliance place it on a dry, level, heat-resistant surface.
• Never place the appliance on a hot surface or over an open flame.
• Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorised service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.

Maximum capacity: 1.2 l water

Description

① Base
② Maximum water fill line
③ Minimum water fill line
④ Drip pan
⑤ Steam basket with slots
⑤a Black insert (with slots) for the steam basket ⑤
⑤b Black rice bowl (without slots) for the steam basket
⑥ Cover (transparent)
⑦ Steam accelerator (removable)
⑧ Heating element
⑨ On/off switch with timer (60 minutes)
⑩ Pilot light for switch ⑨
⑪ Cord store for unused length of cord

Notice: Clean all parts before the first use as described under «Cleaning».

Steaming

1. Fill the base ① with cold tap water and put the steam accelerator ⑦ in place. Do not add any spices, sauces, wine etc. to the water. The water quantity needed (maximum or minimum water fill line) depends on the selected steaming time.

Steaming in the steam basket ⑤ (e.g. vegetables, fish)

Put the food into the steam basket with slots ⑤. Add spices when steaming is finished.

Always use the black insert ⑤a when steaming food with colour (e. g. carrots, paprika, tomatoes, etc.), in order to minimize permanent colouring of the white steam basket ⑤. When using both steam baskets ⑤ the black insert ⑤a or the black rice bowl ⑤b can only be used in the upper steam basket.

Steaming in the black rice bowl ⑤b (e. g. rice, bakes)

Put the rice/grains with a liquid if necessary into the rice bowl. Place the rice bowl into the steam basket.

1. Place the filled steam basket onto the drip pan ④ in the base ① and set the cover ⑥ onto the steam basket. Without the cover in place, both consumption of electrical power and steaming time increase. When using both steam baskets, place the second steam basket with its drip pan on the lower steam basket.

2. When using the steamer ensure sufficient vertical and horizontal space to other objects (shelves etc.).

3. Plug the cord into a mains socket.

4. Set the timer ⑨. To do this first turn the knob to 60 minutes and then back to the desired steaming time. The pilot light ⑩ illuminates and steaming begins.

5. After the selected steaming time is over, the appliance switches off automatically, the pilot light turns off and the bell of the timer is ringing.

6. Check whether the food is cooked. Put on long kitchen gloves. Switch the appliance off by turning the knob back to «0». Lift the cover ⑥ being careful of escaping steam. Do not touch any hot parts. Check the food using a long fork. If you want to continue steaming put on the cover and switch the appliance on again by turning the knob and setting the remaining time.

When using both steam baskets:

To check whether the food is cooked in the lower steam basket proceed as follows. Switch the appliance off and remove the cover ⑥.

Carefully lift off the upper steam basket (with the black insert) and place it on the reverse side of the cover. Then, using kitchen gloves, carefully remove the drip pan from the lower steam basket and check whether the food is cooked.

If you want to continue steaming in both steam baskets, first place the drip pan onto the lower steam basket and then put on the upper steam basket with the cover. Switch on the appliance again.

1. When the appliance switches itself off and the food is sufficiently cooked pull the plug and let the appliance cool off slightly. Then remove the steam basket, the black rice bowl or the black insert together with the steam basket, using kitchen gloves. The reserve side of the cover ⑥ serves as stand for the steam basket. Remove the food from the steam basket or the rice bowl and spice it as desired. For disassembling see Point 7.

2. The liquids which have dripped into the drip pan ④ can be used for sauces or soup.

3. Before you pour out remaining water from the base ①, disassemble or clean the appliance, always let it cool off. Pull the plug.

Water quantities

The water quantity needed depends on the steaming time. When steaming up to 20 minutes fill the base up to the minimum water fill line ③. When you are steaming longer than 20 minutes, fill to the maximum water fill line ②. Ensure a sufficient water level, especially if the steaming time was extended. Should no more steam develop, please check the water level. To do so, pull the plug and let the appliance cool off somewhat. Lift the steam basket and the drip pan carefully, and add water.

Notice: All parts are designed for use in the Braun FS 3000 only. Do not put them into a conventional oven or a microwave oven.

Steaming in the steam basket ⑤ and in the black rice bowl ⑥

Notice: The quantities and processing times are approximate for steaming in one steam basket.

The steaming times listed in the charts also apply when steaming smaller quantities.

When steaming larger quantities the steaming times may be somewhat longer if there is not enough space to permit sufficient steam circulation.

The steaming times in the upper steam basket are longer. Therefore,

• steam larger pieces or food with longer steaming times in the lower steam basket.
• When steaming different kinds of food with different steaming times: Steam food with a longer steam time in the lower steam basket. After some time place the steam basket containing food with a shorter steaming time on top of the lower steam basket for steaming.

Vegetables and fruits

• Cut off thick stems from cauliflower, broccoli and cabbage.
• Steam leafy, green vegetables for the shortest possible time as they lose colour easily.
• Frozen vegetables should not be thawed before steaming.

Food Type Ca. quantity Steam times

Artichokes fresh 4 (medium) 40–45 min.

Asparagus fresh 500 g 30–40 min.

Beans, runner fresh, whole or sliced 500 g 25–35 min.

Broccoli fresh, florets 500 g 15–20 min.

Brussels sprouts fresh 500 g 20–25 min.

Cabbage fresh, sliced 500 g 25–30 min.

Carrots fresh, sliced 500 g 20–25 min.

Cauliflower fresh, florets 500 g 20–25 min.

Courgettes fresh, sliced 500 g 15–20 min.

Fennel fresh, sliced 500 g 15–20 min.

Kohlrabi fresh, in cubes 500 g 20–25 min.

Leeks fresh, cut 500 g 15–20 min.

Mushrooms, button fresh, whole or sliced 500 g 20–25 min.(sliced 5 min. less)

Potatoes sliced 500 g 20–25 min.

Potatoes unpeeled 500 g 30–40 min.

Sweetcorn fresh 2 pieces 55–60 min. (turn frequently)

Apples fresh, 1/8 pieces 500 g 10–15 min.

Pears fresh, 1/6 pieces 500 g 10–15 min.

Fish and Seafood

- Frozen fish may be steamed without defrosting if separated before steaming, and the steaming time is extended by approximately 10 %.

Food Type Ca. quantity Steam times
Trout fresh 2 pieces, each 150 g 18–25 min.
Tuna steaks fresh 2 pieces, each 200 g 25–30 min.
Bream fresh, whole 1 piece, 400 g 18–25 min.
Rosefish fillets fresh 2 pieces, each 200 g 15–18 min.
Pollack fillets fresh 2 pieces, each 140 g 15–18 min.
Shrimps frozen 450 g 15–20 min.
Mussels in the shells	1000 g	18–25 min.
Squid	frozen 600 g 20–25 min.
Lobsters	in the shells	2 pieces 30–35 min.

• Tender meat with a little fat ist suited best.
• The meat should be well washed and dabbed dry, so that as little juice as possible drips out.
• Puncture eggs first.

Food Type Ca. quantity Steam times
Turkey cutlets	fresh 2 pieces, each 150 g 25–30 min.
Chicken legs	fresh 2 pieces, each 150 g 25–30 min.
Veal cutlets	fresh 2 pieces, each 150 g 30–35 min.
Lamb chops	fresh 2 pieces, each 120 g 25–30 min.
Frankfurter sausages	fresh	2–8 (pierce skins)	8–10 min.
Beef sausages	fresh	2–8 (pierce skins)	8–12 min.
Eggs soft-boiled	in the eggshell 2–10 medium size		10–12 min.
Eggs hard-boiled	in the eggshell 2–10 medium size		15–20 min.

Rice, grains, bakes

• Use the black rice bowl ⑤ and add the required quantity of liquid together with the rice, grains, etc.
• If you are using both steam baskets please proceed as follows. Pre-steam the rice etc. with its long steaming time in the rice bowl ⑤ – placed into the lower steam basket with the cover ⑥ in place. After some time place the other steam basket filled with different food on the base ① (i. e. on the bottom) and continue steaming the rice etc. by moving the steam basket to the top.

Food	Ca. quantity	Water level in the base 1	Liquid level in the rice bowl 5b	Steam times
Basmati rice	250 g	max.	300–400 ml water	35–40 min.
Long-grain rice	250 g	max.	300–400 ml water	35–40 min.
Brown rice	250 g	max.	300–400 ml water	45–50 min.
Pudding rice	250 g	max.	750 ml milk	60 min.
Indian meal (maize)	250 g	max.	750–1000 ml water	20–25 min.

Cleaning

Always pull the plug before you clean the appliance. Except the base ①, all parts can be cleaned in the dishwasher or by hand with a commercially available detergent. The steam accelerator ⑦ can be removed for cleaning. Wipe the base ① with a damp cloth.

Storage

For easy storage after use, the baskets can be stacked inside each other ¹² .

Please see the corresponding marks (I & II); basket I fits into basket II.

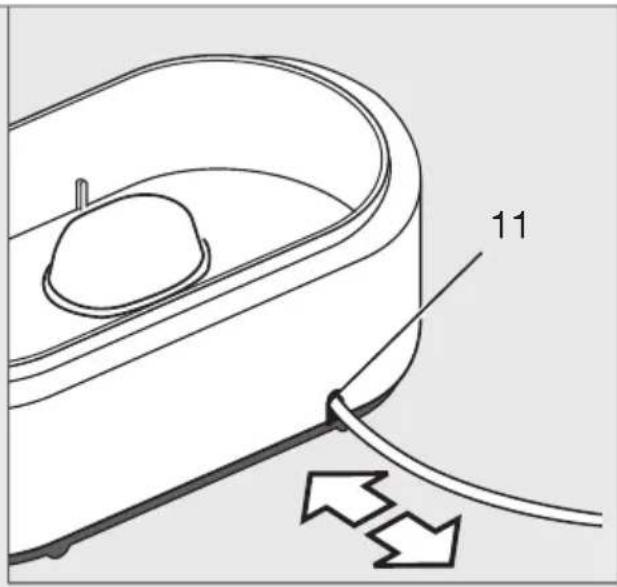

The power cord can be stored as shown in pic. ⑪.

Decalcifying

After you have used your steamer several times (depending on the water hardness in your housing area), the heater ⑧ in the base ① is covered by a layer. The appliance should now be decalcified. Fill the base with white household vinegar (5 %) so that the heating element is just covered. Put the steam accelerator ⑦ in place. Close the appliance, connect it to the mains and set the time to 15 minutes. Should there still be a layer visible after the 15 minutes are over, repeat the procedure. After the vinegar and the appliance have sufficiently cooled off empty the base. Rinse the base ① 3 to 4 times with warm water. Any remaining calcium can be removed from the steam accelerator with a brush.

Subject to change without notice.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two year. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

02392 392333

For service in the Republic of Ireland please call:

012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect.
• The product is used and maintained in accordance with the User Instructions.
• The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.
• No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
• Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.
• The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

Français

Country of origin: China

Year of manufacture

To determine the year of manufacture, refer to the 5-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next 2 digits refer to the calendar week in the year of manufacture.

And the last 2 digits show the print date automatically calculated since 1992.

Example : 30421 - The product was manufactured in week 4 of 2013.
