USER MANUAL ZHC 94 X ZANUSSI

INSTALLATION, USE AND MAINTENANCE HANDBOOK

MANUEL D'INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN

MANUAL DE INSTRUÇÕES

Gentile Signora, Caro Signore,

Ingombro

Componenti

Filtro antiodore (Versione Filtrante)

SOSTITUZIONE FILTRO ANTIODORE AL CARBONE ATTIVO

Dear Customer,

If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performance and will remain efficient for many years to come.

CONTENTS

RECOMMENDATIONS AND SUGGESTIONS 10

CHARACTERISTICS 11

INSTALLATION 12

USE 14

MAINTENANCE 15

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

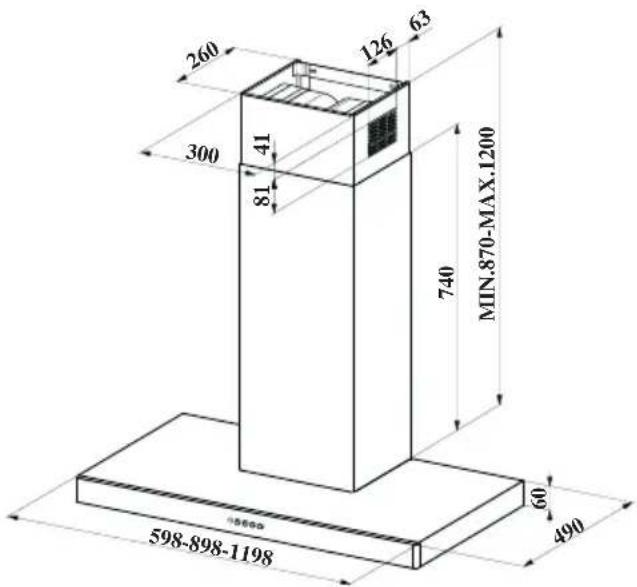

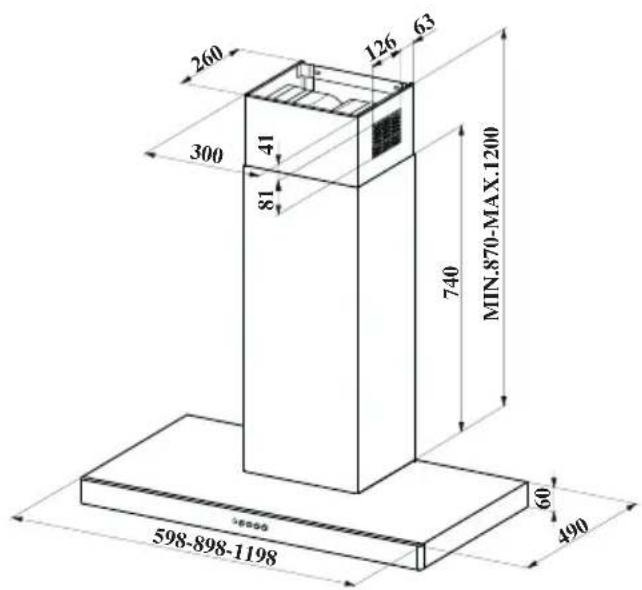

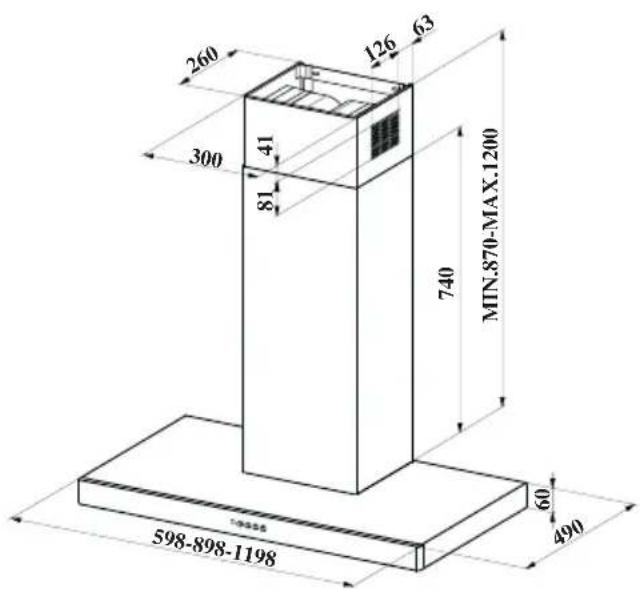

Dimensions

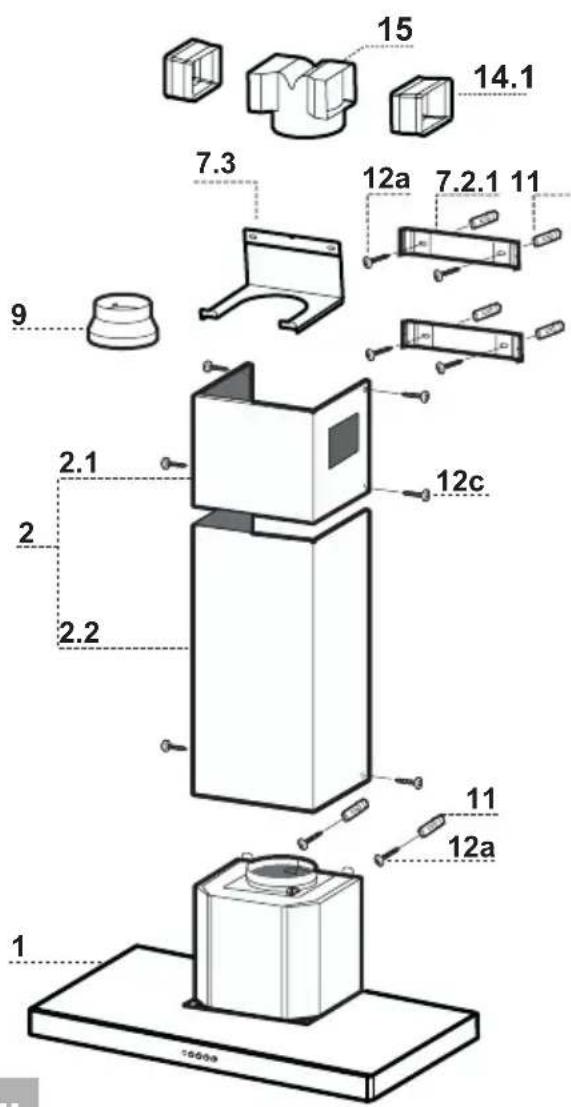

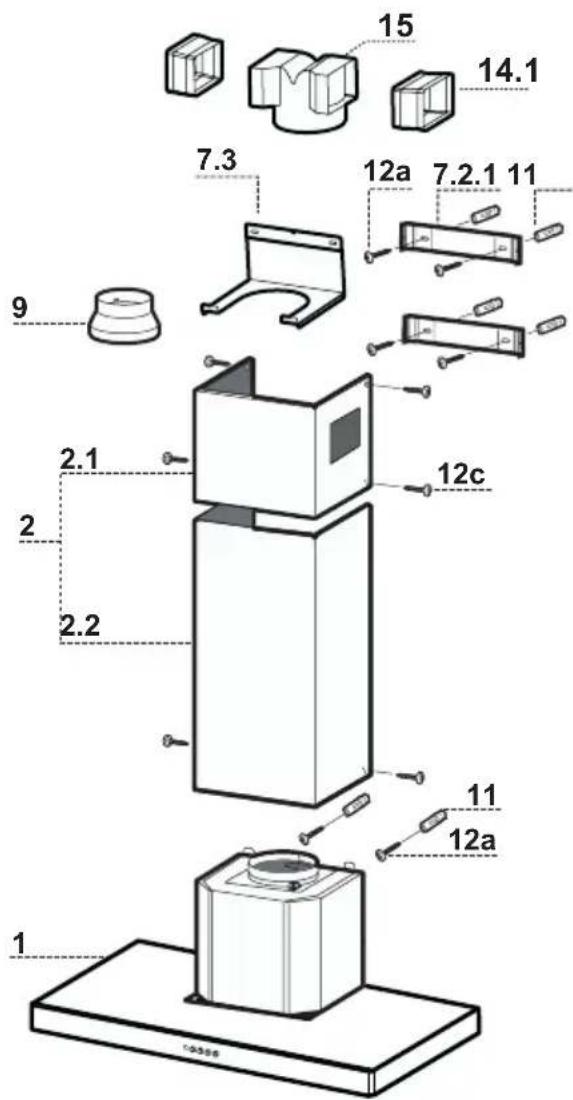

Components

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower, Filters

2 1 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

9 1 Reducer Flange ø 150-120 mm

14.1 2 Air Outlet Connection Extension

15 1 Air Outlet Connection

Ref. Q.ty Installation Components

7.2.1 2 Upper Chimney Section Fixing Brackets

7.3 1 Air Outlet Connection Support

11 6 Wall Plugs

12a 6 Screws 4,2 x 44,4

12c 6 Screws 2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

1 Warranty

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill φ 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a
  • Fully tighten support screws 12a
• Adjust screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe φ 150 or 120 mm, the choice of which is left to the installer.

• To install a φ 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

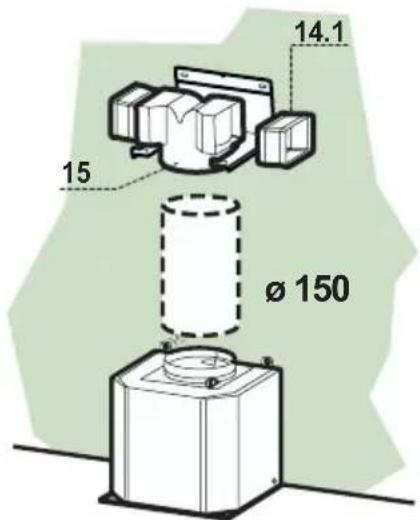

RECIRCULATION VERSION AIR OUTLET

• Put connection 15 into the connection support 7.3.
• Insert the connection extension pieces laterally 14.1 in connection 15.
  • Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe φ 150 or 120mm , the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.

USE

Control panel

L Light Switches the lighting system on and off.

S Led Motor running led.
V1	Motor	Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours.
V2	Speed	Medium speed, suitable for most operating conditions given the optimum treated air flox/noise level ratio.
V3	Intensive Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

- The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

- Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.

- Wash the filters, taking care not to bend them. Allow them to dry before refitting.

- When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

- The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

- Remove the metal grease filters

- Remove the saturated activated carbon filter by releasing the fixing hooks

• Fit the new filter by hooking it into its seating

- Replace the metal grease filters.

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

- Remove the screw fixing the Lighting support.

- Extract the lamp and replace with another of the same type.

- Replace the lighting support.

Chère Madame, Cher Monsieur,

Encombrement

Composants

7.3 1 Bride Support Raccord

11 6 Chevilles

12a 6 Vis 4,2 x 44,4

12c 6 Vis 2,9 x 9,5

Q. té Documentation

Filtre anti-odeur (Version filtrante)

REPLACEMENT FILTRE AU CHARBON ACTIF

Eclairage

REPLACEMENT LAMPES

Platzbedarf

Komponenten

Geruchsfilter (Umluftversion)

Beleuchtung

AUSWECHSELN DER LAMPEN

Glühlampen 40 W

Buitenafmetingen

Onderdelen

Ref. Productonderdelen

Ref. Installatieonderdelen

Geurfilter (filterversie)

VERVANGING FILTER MET ACTIEVE KOOLSTOF

Arvoisa Asiakas,

Ulkomitat

Osat

F

Valaistus

LAMPPUJEN VAIHTAMINEN

40 watin hehkulamput.

Kære Kunde,

Overflademål

Komponenter

Ref. Antal Produktets komponenter

1 1 Selve emhætten forsynet med betjeningspanel, belysning, ventilationsgruppe, filtre

2 1 Teleskopskorsten, som består af:

2.1 1 ∅vre skorsten

2.2 1 Nedre skorsten

SYSTEM MED RECIRKULATION GENNEM FILTER

Lugtabsorberende filter (Recirkulation gennem filter)

UDSKIFTNING AF LUGTABSORBERENDE KULFILTER

Belysning

UDSKIFTNING AF PÆRE

40W glødepære.

ΣΥΝΤΗΡΗΣΗ

Φωτισμός

Αλλαγή λάμπας

40W λαμπτήρας

Dimensiones

Componentes

Iluminación

as melhores performances.

ÍNDICE

CONSELHOS E SUGESTÕES 68

CARACTERÍSTICAS 69

INSTALAÇÃO 70

USO 73

MANUTENÇÃO 73

INSTALAÇÃO

Dimensões

Componentes

Iluminação

CE

This appliance complies with European regulations on low voltages, EEC Directive 73/23 on electrical safety, and with the following European regulations: EEC Directive 89/336 on electromagnetic compatibility and EEC Directive 93/68 on EC marking.
