USER MANUAL HB 0705 AB0 HOTPOINT

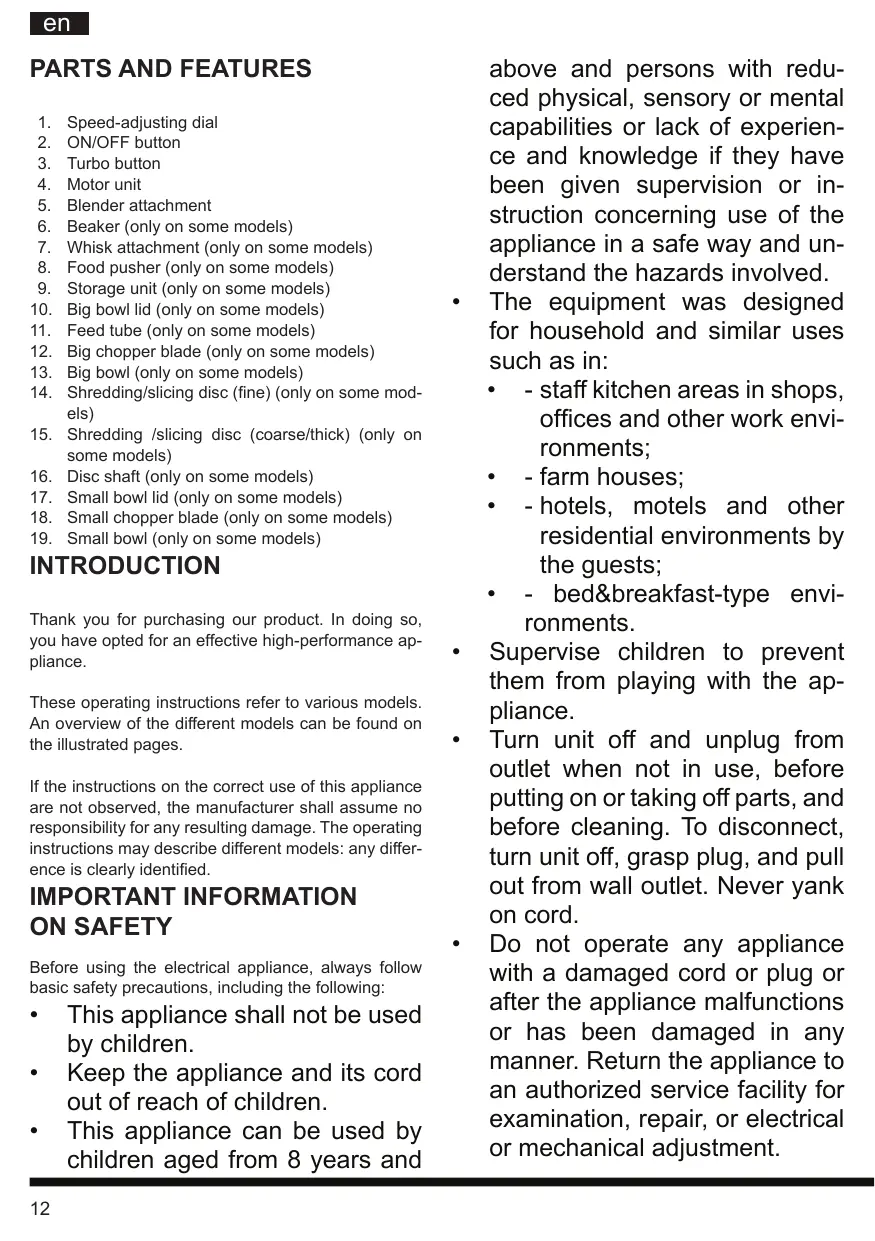

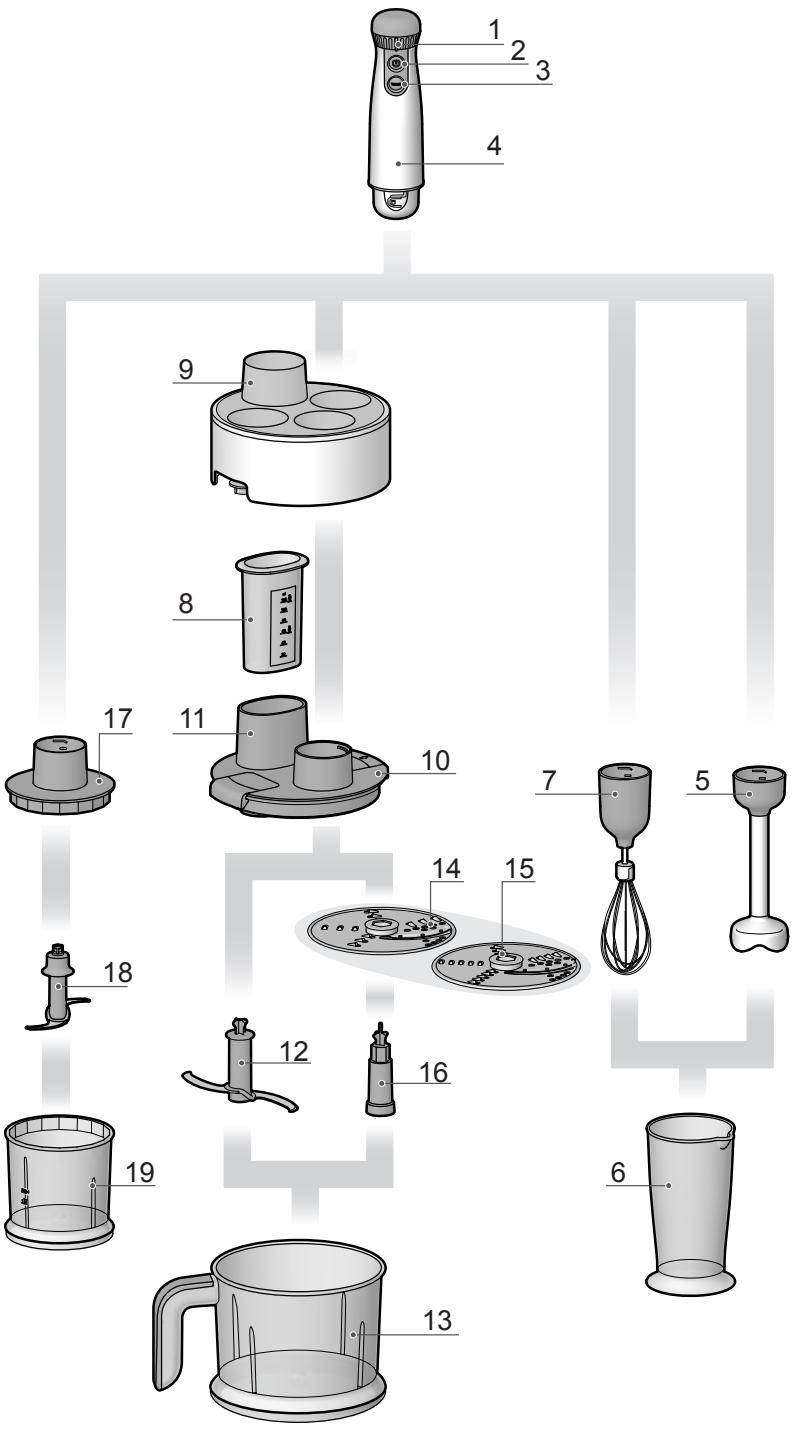

Speed-adjusting dial ON/OFF button Turbo button Motor unit Blender attachment Beaker (only on some models) Whisk attachment (only on some models) Food pusher (only on some models) Storage unit (only on some models) Big bowl lid (only on some models) Feed tube (only on some models) Big chopper blade (only on some models) Big bowl (only on some models) Shredding/slicing disc (fine) (only on some models) Shredding /slicing disc (coarse/thick) (only on some models) Disc shaft (only on some models) Small bowl lid (only on some models) Small chopper blade (only on some models) Small bowl (only on some models)

INTRODUCTION Thank you for purchasing our product. In doing so, you have opted for an effective high-performance appliance.

These operating instructions refer to various models. An overview of the different models can be found on the illustrated pages.

If the instructions on the correct use of this appliance are not observed, the manufacturer shall assume no responsibility for any resulting damage. The operating instructions may describe different models: any difference is clearly identified. IMPORTANT INFORMATION ON SAFETY Before using the electrical appliance, always follow basic safety precautions, including the following:

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. The equipment was designed for household and similar uses such as in:

• - staff kitchen areas in shops, offices and other work environments;
• - hotels, motels and other residential environments by the guests;
• - bed&breakfast-type environments. Supervise children to prevent them from playing with the appliance. Turn unit off and unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To disconnect, turn unit off, grasp plug, and pull out from wall outlet. Never yank on cord. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to an authorized service facility for examination, repair, or electrical or mechanical adjustment.

Do not leave the appliance unattended while it is running. The metal blades and disc are extremely sharp: handle with care. Always hold the blade attachments away from the cutting edges, both when handling and cleaning the unit. Read all the instructions. Save these instructions. Before using it, check that the voltage of the wall outlet corresponds to the voltage shown on the rating plate. Do not operate any appliance with a damaged cord / plug. If the appliance malfunctions or is dropped or damaged in any manner return the appliance to the nearest authorised service facility for examination, repairs or electrical / mechanical adjustment. If the supply cord is damaged, have it replaced by the manufacturer, an authorised service agent or a qualified technician in order to avoid hazards. Unplug it from the outlet when not in use, before installing / removing any parts and before cleaning it. Do not let the cord hang over the edge of a table / counter or touch any hot surfaces. Do not immerse the motor unit of the blender in water, as this would give rise to electric shocks. Avoid contacting moving parts. Keep your hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used when the food processor is not running. To avoid blunting the blade, do not use on dry or hard substances Make sure the lids are securely locked in place before operating the appliance. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries or damage. Do not operate the appliance for anything other than its intended use. Never insert food by hand. Always use the food pusher. Before disassembling the appliance, switch off the unit and wait until the blades have come to a complete stop. Always remove the blade assembly before

pouring any contents from the bowl. Be sure to switch off the appliance after each use of your food processor. Make sure the motor stops completely before disassembling. Do not put your fingers or other objects into the unit opening while it is in operation. If any food gets stuck in the opening, use the food pusher or another piece of fruit / vegetable to push it down. When this method is not possible, turn the motor off and disassemble the unit to remove the remaining food. Do not attempt to tamper with the lid interlock mechanism. Do not use outdoors. Always make sure that the appliance is in good working order and that all its removable parts are secure. Regularly check the power supply cord and plug for cuts or damage. Be sure your hands are completely dry before touching the switch.

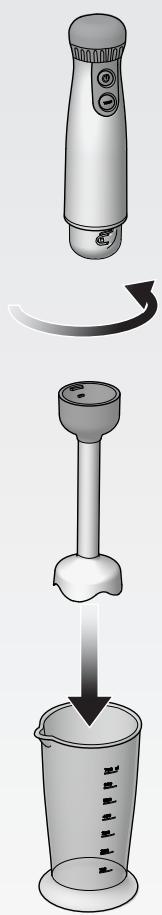

Carefully wipe the outside of the appliance to remove any dust that may have accumulated. Dust with a dry cloth. Do not immerse the supply cord in water or other liquids. Blades and discs are very sharp: handle with care. The speed-adjusting dial is not suitable for the TURBO button. Max operation at high speed each time shall not last longer than 30 seconds. Instead of the beaker, you can use any kitchen container with a suitable shape. The mixture amount should not exceed the max capacity of the bowl. Never remove the lid until the blade has come to a complete stop. USING YOUR BLENDER (A) The blender attachment is suitable for blending juices and vegetables.

To assemble the blender attachment to the motor unit, turn the stem clockwise until tightened. Peel or core the fruits and then cut them into small pieces. Then put the fruit pieces or vegetables into the beaker. Usually a certain amount of water has to be added to facilitate smooth running, the proportion of food and water being 2:3. The mixture amount should not

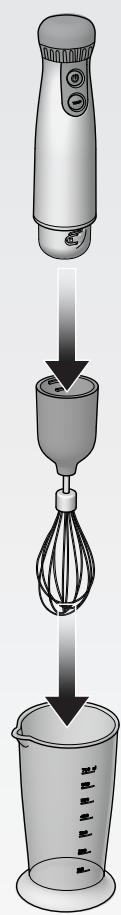

exceed the max capacity of the cup. Plug the appliance into the power outlet. Lower the hand blender into the food and rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the blender starts blending immediately. For maximum-speed blending use the TURBO button for a short time. USE THE WHISK ATTACHMENT (only on some models) (B)

PROCESSOR ATTACHMENT (D) To use the chopping bowl (only on some models):

The whisk attachment is mainly suitable for whisking egg whites.

To assemble the whisk attachment to the motor unit, turn the stem clockwise until tightened. Place the food into the beaker. Plug the appliance into the power outlet. Lower the whisk into the food and rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the attachment starts whisking immediately. For maximum-speed whisking use the TURBO button for a short time.

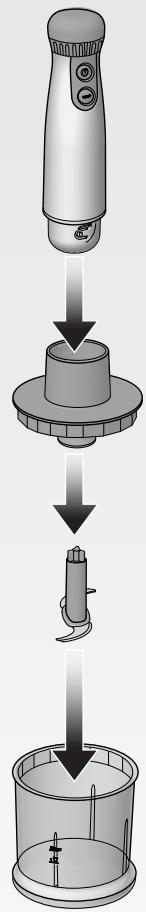

USE THE SMALL BOWL FOR FINE

CHOPPING (only on some models) (C)

First of all make sure the non-slip ring is fixed to the bottom of the bowl. Fit the knife blade on the pin in the bowl - always fit the knife blade before adding the ingredients. Cut the food into small pieces and put them into the bowl. A small amount of water can facilitate the smooth running of the appliance. Never introduce very hard foods (e.g. hard chocolate), ice or frozen foods when using fine chopping attachments. A small amount of water can facilitate the smooth running of the appliance.

Close with the lid. Assemble the motor unit into the bowl lid and turn it clockwise to lock them. Plug the appliance into the power outlet. Rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/ OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time. Remove the knife blade first before pouring out the mixture. Align the two fasteners of the bowl lid with the two clip positions of the bowl and push down to lock them in place. Be sure to align the arrow on the lid and the arrow on the bowl. The fasteners must be locked in the two clip positions, otherwise during operating the bowl lid may rotate as the motor rotates. Make sure the food pusher is properly fitted into its housing on the cover.

Assemble the motor unit into the bowl lid and turn it clockwise to lock them. Plug the appliance into the power outlet. Rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/ OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time. Remove the knife blade first before pouring out the mixture. Using the bowl and shredding/slicing discs for processing (only on some models) (E).

First of all make sure the non-slip ring is fixed to the bottom of the bowl. Fit the knife blade on the pin in the bowl - always fit the knife blade before adding the ingredients. Cut the food into small pieces and put them into the bowl.

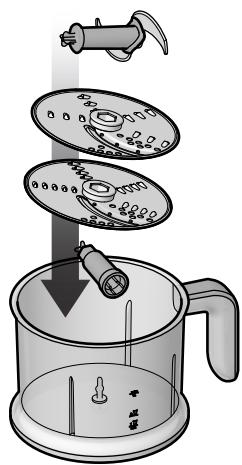

First of all make sure the non-slip base is fixed to the bottom of the bowl. Then insert the disc shaft into the pin on the bottom of the bowl, select the desired shredding/ slicing disc (fine or coarse) and assemble the shredding /slicing disc onto the shaft with the appropriate side upwards (one side is for shredding, the other side is for slicing). Extreme caution must be taken when handling discs as they are very sharp.

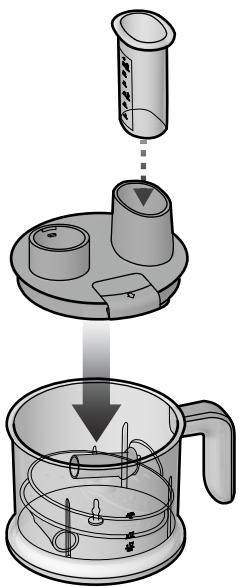

Pull the two fasteners towards the outside to fit the lid onto the bowl, making sure the lid arrow is aligned with the bowl arrow. The fasteners must be locked in the two clip positions, otherwise during operating the bowl lid may rotate as the motor rotates.

Insert the bottom part of the motor unit into the opening on the bowl lid, and turn it clockwise to lock. Plug the appliance into the power outlet. Put the food inside the feeding tube and push it slowly with the food pusher. Do not push heavily. Rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/ OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time. Never introduce very hard foods (e.g. hard chocolate), ice or frozen foods when using shredding or slicing attachments. TIPS

Use the shredding side for carrots, potatoes and foods of a similar texture. Use the slicing side for food items such as carrots, potatoes, cabbages, cucumbers, courgettes and onions. Use fresh ingredients. Do not cut food too small. Fill the feed tube uniformly. This prevents the food from pouring out during processing. STORAGE SYSTEM (F) When not in use, the detachable stem, whisk and motor unit can be stored on the bowl lid. When placing the discs inside the bowl for storage, make sure the cutting edges do not scratch the bowl walls.

CLEANING AND MAINTENANCE

To prevent any damage to the appliance do not use harsh solvents or abrasive cleansers when cleaning. Unplug the appliance from the power supply before cleaning.

Wash the blender attachments and lids under running water without any abrasive cleaners or detergents. After cleaning, place them upright so that any water that may have got in can drain out. Do not immerse the blender and lids in water, as the lubrication on the bearings may be washed away over time.

Wash the containers and whisk in warm soapy water. All removable parts can be washed in warm soapy water and then carefully rinsed and dried. If necessary, use a nylon-bristle brush to complete the cup cleaning operation. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning purposes, as electric shocks may occur. The non-slip base on the bottom of the bowl can be removed and cleaned. Make sure it is replaced correctly before using it again. Dry all detachable parts thoroughly. TIP For quick cleaning between processing tasks, fill the cup or bowl with water halfway, assemble the hand-held blender according to the description in the operation section and start the blending / chopping function for a few seconds. Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
