USER MANUAL FH 538 0 HOTPOINT

FH 538 0 (BK)/HA S Français Mode d’emploi FOUR Sommaire Mode d’emploi,1 Avertissements,3 Assistance,7 Description de l’appareil,9 Description de l’appareil,11 Installation,26 Mise en marche et utilisation,28 Le programmateur électronique,28 Programmes,29 Précautions et conseils,31 Nettoyage et entretien,31 Italiano Español Istruzioni per l’uso FORNO Sommario Istruzioni per l’uso,1 Avvertenze,3 Assistenza,7 Descrizione dell’apparecchio,9 Descrizione dell’apparecchio,11 Installazione,12 Avvio e utilizzo,14 Il programmmatore di cottura elettronico,14 Programmi,15 Precauzioni e consigli,17 Manutenzione e cura,17 English Operating Instructions,1 Warnings,3 Assistance,7 Description of the appliance,9 Description of the appliance,11 Installation,19 Start-up and use,21 The electronic programmer,21 Cooking modes,22 Precautions and tips,24 Maintenance and care,24 HORNO Sumario Manual de instrucciones,1 Advertencias,4 Asistencia,7 Descripción del aparato,9 Descripción del aparato,11 Instalación,33 Puesta en funcionamiento y uso,35 El programador electrónico,35 Programas,36 Precauciones y consejos,38 Mantenimiento y cuidados,38 Portuges Operating Instructions OVEN Manual de instrucciones Contents Instruções para a utilização FORNO Instruções para a utilização,1 Advertências,4 Assistência,8 Descrição do aparelho,9 Descrição do aparelho,11 Instalação,40 Início e utilização,42 O programador electrónico,42 Programas,43 Precauções e conselhos,45 Manutenção e cuidados,45 Índice Deutsch Polski Bedienungsanleitung BACKOFEN Inhaltsverzeichnis Bedienungsanleitung,2 Hinweise,5 Kundendienst,8 Beschreibung Ihres Gerätes,10 Beschreibung Ihres Gerätes,11 Installation,47 Inbetriebsetzung und Gebrauch,49 Der elektronische Garzeitprogrammierer,49 Programme,50 Vorsichtsmaßregeln und Hinweise,52 Reinigung und Pflege,52 Nederlands Gebruiksaanwijzing OVEN Inhoud Gebruiksaanwijzing,2 Belangrijk,5 Service,8 Beschrijving van het apparaat,10 Beschrijving van het apparaat,11 Het installeren,54 Starten en gebruik,56 Elektronische programmering,56 Programma’s,57 Voorzorgsmaatregelen en advies,59 Onderhoud en verzorging,59 Română Instrucţiuni de folosire CUPTOR Sumar Instrucţiuni de folosire,2 Avertizări,5 Asistenţă,8 Descrierea aparatului,10 Descrierea aparatului,11 Instalare,61 Pornire şi utilizare,63 Programator de coacere electronic,63 Programe,64 Măsuri de precauţie şi recomandări,66 Întreţinerea şi îngrijirea aparatului,66 Instrukcja obsługi PIEKARNIK Spis treści Instrukcja obsługi,2 Ostrzezenia,6 Serwis Techniczny,8 Opis urządzenia,10 Opis urządzenia,11 Instalacja,68 Uruchomienie i użytkowanie,70 Programator elektroniczny,70 Programy,71 Zalecenia i środki ostrożności,73 Konserwacja i utrzymanie,73 Avvertenze ATTENZIONE: Questo apparecchio e le sue parti accessibili diventano molto caldi durante l’uso. Bisogna fare attenzione ed evitare di toccare gli elementi riscaldanti. Tenere lontani i bambini inferiori agli 8 anni se non continuamente sorvegliati. Il presente apparecchio può essere utilizzato dai bambini a partire dagli 8 anni e da persone con ridotte capacità fisiche, sensoriali o mentali oppure con mancanza di esperienza e di conoscenza se si trovano sotto adeguata sorveglianza oppure se sono stati istruiti circa l’uso dell’apparecchio in modo sicuro e se si rendono conto dei pericoli correlati. I bambini non devono giocare con l’apparecchio. Le operazioni di pulizia e di manutenzione non devono essere effettuate dai bambini senza sorveglianza. Non utilizzare prodotti abrasivi né spatole di metallo taglienti per pulire lo sportello in vetro del forno in quanto potrebbero graffiare la superficie, provocando, così, la frantumazione del vetro. Non utilizzare mai pulitori a vapore o ad alta pressione per la pulizia dell’apparecchio. ATTENZIONE: Assicurarsi che l’apparecchio sia spento prima di sostituire la lampada per evitare la possibilità di scosse elettriche. ! Quando si inserisce la griglia assicurarsi che il fermo sia rivolto verso l’alto e nella parte posteriore della cavità. Warnings

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Never use steam cleaners or pressure cleaners on the appliance.

WARNING: Ensure that the appliance is switched

off before replacing the lamp to avoid the possibility of electric shock. ! When you place the rack inside, make sure that the stop is directed upwards and in the back of the cavity. Avertissements ATTENTION : Cet appareil ainsi que ses parties accessibles deviennent très chauds pendant leur fonctionnement. Il faut faire attention à ne pas toucher les éléments chauffants. Ne pas faire approcher les enfants de moins de 8 ans à moins qu’ils ne soient sous surveillance constante. Le présent appareil peut être utilisé par des enfants de plus de 8 ans et par des personnes présentant des capacités physiques, sensorielles ou mentales réduites ou n’ayant pas l’expérience ou les connaissances indispensables, à condition qu’ils soient sous bonne surveillance ou qu’ils aient reçu les instructions nécessaires pour une utilisation de l’appareil en toute sécurité et à condition qu’ils se rendent compte des dangers encourus. Les enfants ne doivent pas jouer avec l’appareil. Les opérations de nettoyage et d’entretien ne doivent pas être effectuées par des enfants non surveillés. Ne pas utiliser de produits abrasifs ni de spatules métalliques coupantes pour nettoyer la porte du four

• il numero di serie (S/N) Queste ultime informazioni si trovano sulla targhetta caratteristiche posta sull’apparecchio Please have the following information to hand:
• the type of problem encountered.
• the appliance model (Mod.).
• the serial number (S/N). The latter two pieces of information can be found on the data plate located on the appliance. ! Non ricorrere mai a tecnici non autorizzati. ! Never use the services of an unauthorised technician. Assistenza Attiva 7 giorni su 7 Se nasce il bisogno di assistenza o manutenzione basta chiamare il Numero Unico Nazionale 199.199.199* per essere messi subito in contatto con il Centro Assistenza Tecnica più vicino al luogo da cui si chiama. È attivo 7 giorni su 7, sabato e domenica compresi, e non lascia mai inascoltata una richiesta. Assistance ! Ne jamais faire appel à des techniciens non agréés. Lui indiquer :

5. Infine incastrare la guida sul

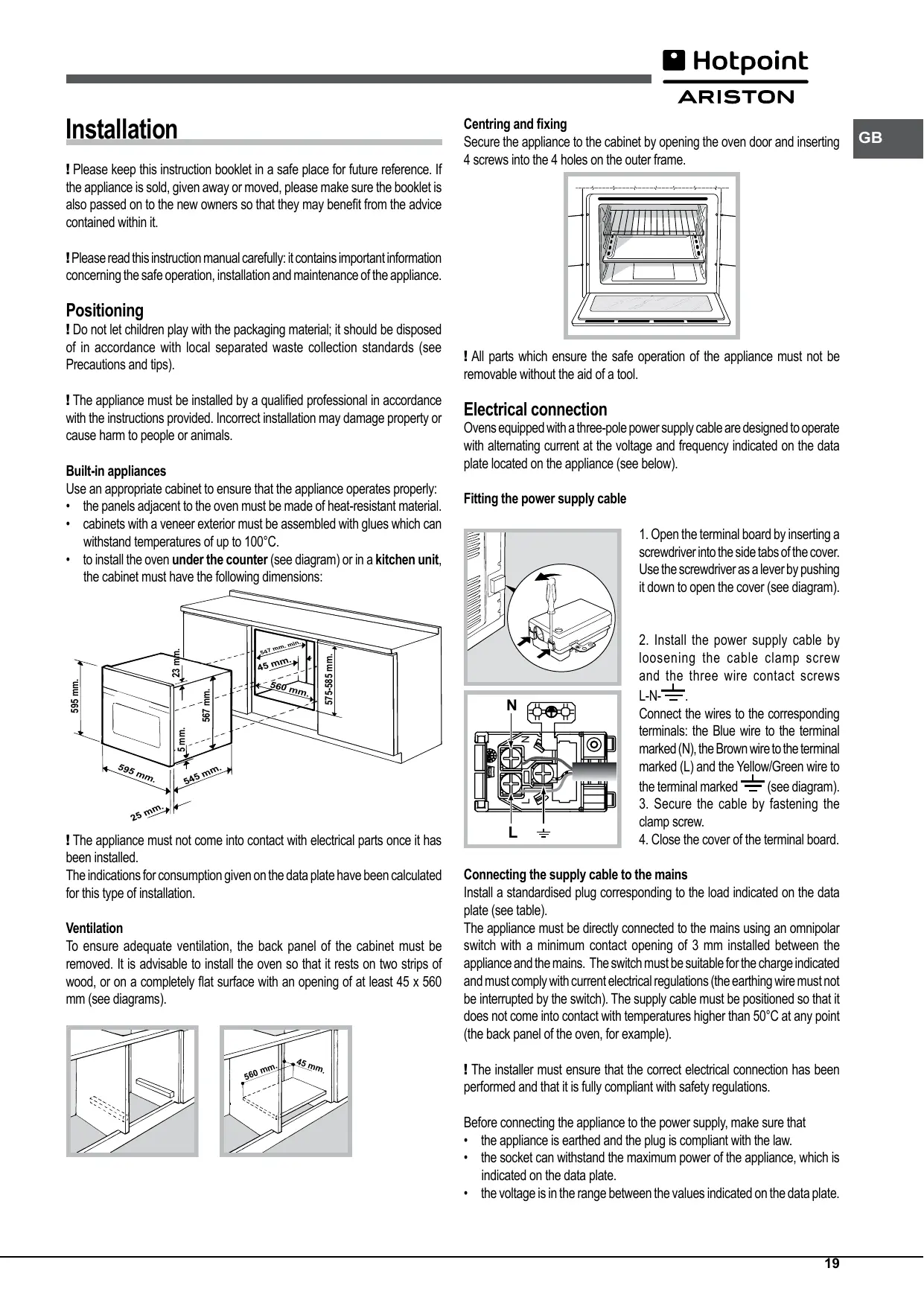

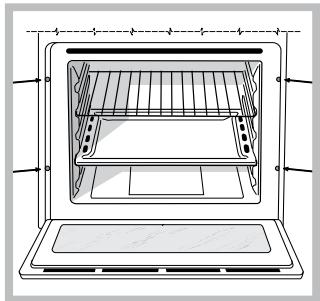

distanziere C. ! Non inserire le guide scorrevoli alla posizione 5. Installation ! Please keep this instruction booklet in a safe place for future reference. If the appliance is sold, given away or moved, please make sure the booklet is also passed on to the new owners so that they may benefit from the advice contained within it. Centring and fixing Secure the appliance to the cabinet by opening the oven door and inserting 4 screws into the 4 holes on the outer frame. ! Please read this instruction manual carefully: it contains important information concerning the safe operation, installation and maintenance of the appliance. Positioning ! Do not let children play with the packaging material; it should be disposed of in accordance with local separated waste collection standards (see Precautions and tips). ! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may damage property or cause harm to people or animals. Built-in appliances Use an appropriate cabinet to ensure that the appliance operates properly:

• the panels adjacent to the oven must be made of heat-resistant material.
• cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

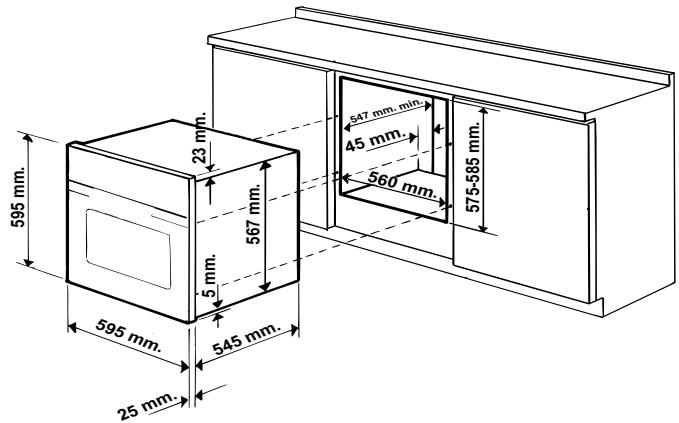

• to install the oven under the counter (see diagram) or in a kitchen unit, the cabinet must have the following dimensions:

Fitting the power supply cable

1. Open the terminal board by inserting a

screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram). mm.

5 mm. 567 mm. Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below).

! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

! The appliance must not come into contact with electrical parts once it has been installed. The indications for consumption given on the data plate have been calculated for this type of installation. Ventilation To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

2. Install the power supply cable by

loosening the cable clamp screw and the three wire contact screws L-N. Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the terminal marked (L) and the Yellow/Green wire to (see diagram). the terminal marked

3. Secure the cable by fastening the

4. Close the cover of the terminal board.

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see table). The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point (the back panel of the oven, for example). ! The installer must ensure that the correct electrical connection has been performed and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that

• the appliance is earthed and the plug is compliant with the law.
• the socket can withstand the maximum power of the appliance, which is indicated on the data plate.
• the voltage is in the range between the values indicated on the data plate.

• the socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed. APPLIANCE SPECIFICATIONS Dimensions* width 43.5 cm height 32,4 cm depth 41.5 cm Volume* 59 l Dimensions** width 45.5 cm height 32,4 cm depth 41.5 cm Volume** 62 l Electrical connections voltage: 220-240V~ 50/60Hz or 50 Hz (see data plate) maximum power absorbed 2250 W Energy Label e Ecodesign EU Directive no 65/2014 supplementing Directive 2010/30/EU. EU Regulation no 66/2014 implementing Directive 2009/125/EC. Standard EN 60350-1 Standard EN 50564 Energy consumption for Natural convection – heating mode: Traditional mode Declared energy consumption for Forced convection Class – heating mode: Fan assisted. This appliance conforms to the following European Economic Community directives: - 2006/95/EC of 12/12/06 (Low Voltage) and subsequent amendments; - 2004/108/EC of 15/12/04 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/EEC of 22/07/93 and subsequent amendments. - 2002/96/EU and subsequent amendments. 1275/2008 Stand-by/off mode

• Only for models with drawn rails. ** Only for models with wire rails.

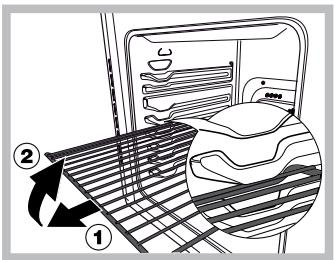

Start-up and use Setting the clock WARNING! The oven is provided with a stop system to extract the racks and prevent them from coming out of the oven (1). As shown in the drawing, to extract them completely, simply lift the racks, holding them on the front part, and pull (2). ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away. Starting the oven

1. Select the desired cooking mode by turning the SELECTOR knob.

2. Select the desired temperature with the THERMOSTAT knob. See

the Cooking advice table for cooking modes and the suggested cooking temperatures (see Cooking Modes).

3. When lit, the THERMOSTAT indicator light indicates that the oven is heating

up to the temperature set.

4. You may do the following during cooking:

- change the cooking mode by turning the SELECTOR knob. - change the temperature by turning the THERMOSTAT knob. - stop cooking by turning the SELECTOR knob to the “0” position. ! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged. ! Always place cookware on the rack(s) provided. Cooling ventilation In order to cool down the external temperature of the oven, some models are fitted with a cooling fan that blows out air between the control panel and the oven door. ! Once cooking has been completed, the cooling fan continues to operate until the oven has cooled down sufficiently. Oven light It goes on when selecting a cooking mode is selected. with the SELECTOR knob. It stays on when The electronic programmer DISPLAY END OF COOKING icon CLOCK icon DURATION icon TIMER icon DECREASE TIME button INCREASE TIME button SET TIME button ! The clock may be set when the oven is switched off or when it is switched on, provided that a the end time of a cooking cycle has not been programmed previously. After the appliance has been connected to the mains, or after a blackout, the icon and the four numerical digits on the DISPLAY will begin to flash.

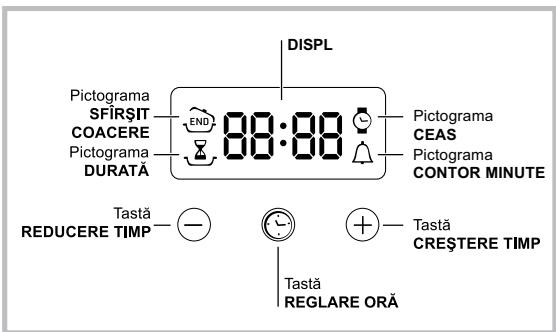

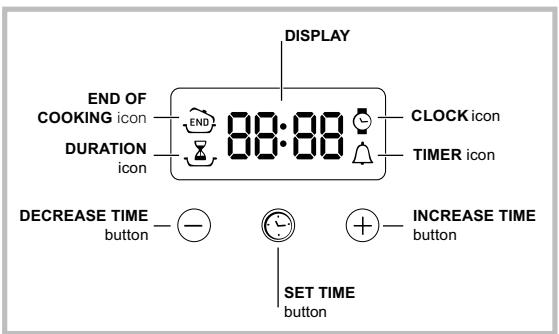

button several times until the icon and the four digits on the display begin to flash.

2. Use the “ ” and “ ” buttons to adjust the time; if you press and hold either

button, the display will scroll through the values more quickly, making it quicker and easier to set the desired value.

3. Wait for 10 seconds or press the

button again to finalise the setting. Setting the timer ! This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed.

button several times until the icon and the three digits on the display begin to flash.

2. Use the “ ” and “ ” buttons to set the desired time; if you press and hold either

button, the display will scroll through the values more quickly, making it quicker and easier to set the value.

3. Wait for 10 seconds or press the

button again to finalise the setting. The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated. Programming cooking ! A cooking mode must be selected before programming can take place. Programming the cooking duration

button several times until the icon and the three digits on the DISPLAY begin to flash.

2. Use the “ ” and “ ” buttons to set the desired duration; if you press and

hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the value.

3. Wait for 10 seconds or press the

button again to finalise the setting.

4. When the set time has elapsed, the text END appears on the DISPLAY,

the oven will stop cooking and a buzzer sounds. Press any button to stop it.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. Setting the end time for a cooking mode ! A cooking duration must be set before the cooking end time can be scheduled.

1. Follow steps 1 to 3 to set the duration as detailed above.

button until the icon and the four digits on the DISPLAY begin to flash.

3. Use the “ ” and “ ” buttons to adjust the cooking end time; if you press

and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the desired value.

4. Wait for 10 seconds or press the

button again to finalise the setting.

5. When the set time has elapsed, the text END appears on the DISPLAY,

the oven will stop cooking and a buzzer sounds.Press any button to stop it. and buttons are illuminated. The Programming has been set when the DISPLAY shows the cooking end time and the cooking duration alternately.

• For example: It is 9:00 a.m. and a duration of 1 hour has been programmed. 12:30 is scheduled as the end time. The programme will start automatically at 11:30 a.m.

Cancelling a programme To cancel a programme:

• press the button until the icon corresponding to the setting you wish to cancel and the digits on the display are no longer flashing. Press the “ ” button until the digits 00:00 appear on the display.
• press and hold the “ ” and “ ” buttons; this will cancel all the settings selected previously, including timer settings. Cooking modes ! A temperature value can be set for all cooking modes between 60°C and Max, except for
• GRILL (recommended: set only to MAX power level);
• GRATIN (recommended: do not exceed 200°C). TRADITIONAL OVEN mode Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only; if more than one rack is used, the heat will be distributed unevenly. MULTI-COOKING mode All the heating elements (top and bottom), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time. Top oven mode The top heating element comes on. This mode can be used to brown food at the end of cooking. GRILL mode The top heating element comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: such as beef steaks, veal, rib steak, filets, hamburgers etc... Some grilling examples are included in the “Practical Cooking Advice” paragraph. Always cook in this mode with the oven door closed. GRATIN mode The top heating element, as well as the fan, will come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed. Practical cooking advice ! Do not place racks in position 1 and 5 during fan-assisted cooking. Excessive direct heat can burn temperature sensitive foods. ! In the GRILL and GRATIN cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTI-COOKING
• Use position 2 and 4, placing the food that requires more heat on 2.
• Place the dripping pan on the bottom and the rack on top.

• Insert the rack in position 3 or 4. Place the food in the centre of the rack.
• We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on. PIZZA
• For best results when cooking pizza, use the MULTI-COOKING mode.
• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).
• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process. Cooking advice table Cooking modes Convection Oven Multi-cooking Top oven Grill Gratin Foods Weight (in kg) Rack position Pre-heating time (min) Recommended temperature Duck Roast veal or beef Pork roast Biscuits (short pastry) Tarts Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Plum cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies

2 and 4 2 and 4 2 and 4

Soles and cuttlefish Squid and prawn kebabs Cod filet Grilled vegetables Veal steak Cutlets Hamburgers Mackerels Toasts Grilled chicken Cuttlefish

Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• When moving or positioning the appliance, always use the handles provided on the sides of the oven.
• Do not touch the appliance while barefoot or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held responsible for any damage caused as a result of improper, incorrect and unreasonable use of the appliance.
• Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance.
• Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
• The ventilation and heat dispersal openings must never be obstructed.
• Always grip the oven door handle in the centre: the ends may be hot.
• Always use oven gloves when placing cookware in the oven or when removing it.
• Do not use aluminium foil to line the bottom of the oven.
• Do not place flammable materials in the oven: if the appliance is switched on accidentally, the materials could catch fire.
• Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
• Do not perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.
• If the event of malfunctions, under no circumstances should you attempt to perform the repairs yourself. Contact an authorised Service Centre (see Assistance).
• Do not rest objects on the open oven door.
• Do not let children play with the appliance.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system. Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order

to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment

• Whenever possible, avoid pre-heating the oven and always try to fill it. Open the oven door as little as possible because heat is lost every time it is opened. To save a substantial amount of energy, simply switch off the oven 5 to 10 minutes before the end of your planned cooking time and use the heat the oven continues to generate.
• Automatic programmes are based on standard food product.
• Keep gaskets clean and tidy to prevent any door energy losses
• If you have a timed tariff electricity contract, the “delay cooking” option will make it easier to save money by moving operation to cheaper time periods. ! This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. Maintenance and care Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance

• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.
• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.
• All accessories - with the exception of the sliding racks - can be washed like everyday crockery, and are even dishwasher safe. ! Never use steam cleaners or pressure cleaners on the appliance. Cleaning the oven door Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. For more thorough cleaning purposes, the oven door may be removed:

1. Open the oven door fully (see diagram);

2. Lift up and turn the small levers located on the two hinges (see diagram);

Grip the door on the two external sides and close it approximately half way.Pull the door towards you lifting it out of its seat (see diagram).

To replace the door, reverse this sequence. Inspecting the seals Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest Service Centre (see Assistance). We recommend that the oven is not used until the seals have been replaced.

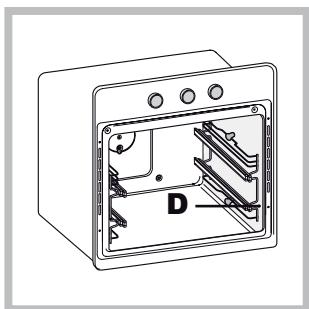

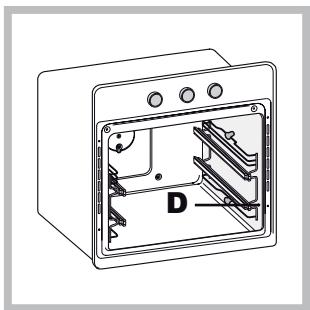

4. Secure the two joints D of the guide

rail in the holes provided on the oven walls (see diagram). The holes for the left guide rail are situated at the top, while the holes for the right one are at the bottom.

5. Finally, fit the guide rail on the

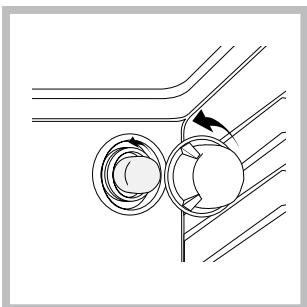

spacer C. ! Do not place the sliding racks in position 5. Replacing the light bulb To replace the oven light bulb:

1. Remove the glass cover of the

2. Remove the light bulb and replace

it with a similar one: Wattage 25 W, cap E 14.

3. Replace the glass cover (see

diagram). ! Do not use the oven lamp as/for ambient lighting. Sliding Rack Kit assembly*

To assemble the sliding racks:

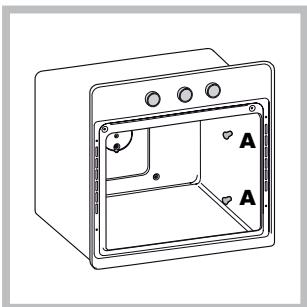

1. Loosen the two screws A (see

diagram). If the oven is fitted with selfcleaning panels, these will have to be temporarily disassembled.

2. Replace the screws A with the

screws and spacers (B + C) supplied with the kit.

3. Tighten the new screws B and the

corresponding spacers C, fitting the self-cleaning panels on again.

• Only on certain models.
