Product Type	Outdoor Access Point (CPE - Customer Premises Equipment)
Brand	TP-Link
Model	CPE220
Dimensions (L x W x H)	Approximately 200 x 110 x 45 mm
Weight	Approximately 0.5 kg (without bracket)
Power Supply	Passive PoE (Power over Ethernet) 24 V, adapter included
Power Consumption	Up to 12 W
Wi-Fi Frequencies	2.4 GHz (up to 300 Mbps)
Wireless Standards	IEEE 802.11 b/g/n
Antenna	Built-in directional antenna (gain ~10 dBi)
Ports	1 Ethernet port 10/100 Mbps with PoE
Main Functions	Access point, bridge, repeater, wireless client
Power Mode	Passive PoE (injector included)
Protection Rating	IP65 (weather resistant)
Operating Temperature	-30 °C to 70 °C
Management	Web interface, TP-Link Pharos Control software
Wireless Security	WPA/WPA2, MAC filtering, WPS
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Installation Safety	Install out of reach of children, avoid heat sources and excessive humidity.
Spare Parts and Repairability	No user-replaceable parts. In case of failure, contact support.
General Information	Use only the provided PoE adapter. Follow local regulations.

Frequently Asked Questions - CPE220 TP-LINK

How to configure the TP-Link CPE220 access point?

Connect the device to your computer via Ethernet, access the web interface (192.168.1.1), log in (admin/admin), then follow the quick setup wizard. Choose Access Point or Bridge mode according to your need.

Does the CPE220 support PoE?

Yes, it uses passive 24 V PoE. A PoE injector is included in the box. Do not use a standard 48 V PoE switch.

What is the maximum speed of the CPE220?

The theoretical maximum speed is 300 Mbps on 2.4 GHz, but in practice it is around 100-150 Mbps due to the limitations of the 10/100 Ethernet port.

Can I use the CPE220 outdoors?

Yes, the device has an IP65 certification, protecting it against dust and water jets. It can operate from -30 °C to 70 °C.

How to reset the CPE220 to factory settings?

Press and hold the Reset button (on the back) for about 10 seconds until the LEDs flash. The device will reboot with default settings.

Can the CPE220 act as a repeater?

Yes, it can work in Repeater (or WDS) mode. You must select this mode in the management interface and associate the device with a base station.

What is the maximum coverage distance?

With its 10 dBi directional antenna, the CPE220 can cover up to 1 km in line-of-sight in a point-to-point scenario. Performance depends on the environment.

How to install the CPE220 on a pole?

Use the included mounting bracket. Securely attach the bracket to the pole, then screw the device onto it. Orient the antenna toward the target station. Tighten the bolts to prevent movement.

What to do if the device does not power on?

Check that the PoE injector is plugged in and the Ethernet cable is properly connected. Try another outlet. If the problem persists, contact TP-Link support.

How to update the firmware of the CPE220?

Download the latest firmware from the TP-Link website. Log in to the web interface, go to System Tools > Firmware Upgrade, select the file and click 'Upgrade'. Do not power off during the update.

USER MANUAL CPE220 TP-LINK

Hardwareinstallation

Diagram showing a mechanical assembly with a cylindrical component and a bracket, no text or symbols present.

Note: The image may differ from the actual product.

Typical Network Topology

■ Managed Mode

Via Centralized Management Software

A computer running the centralized management software, which can be in the same or different subnet with the APs, is used to centrally manage the APs.

You can get the corresponding software from our website http://www.tp-link.com

Via Hardware Controller (For certain devices)


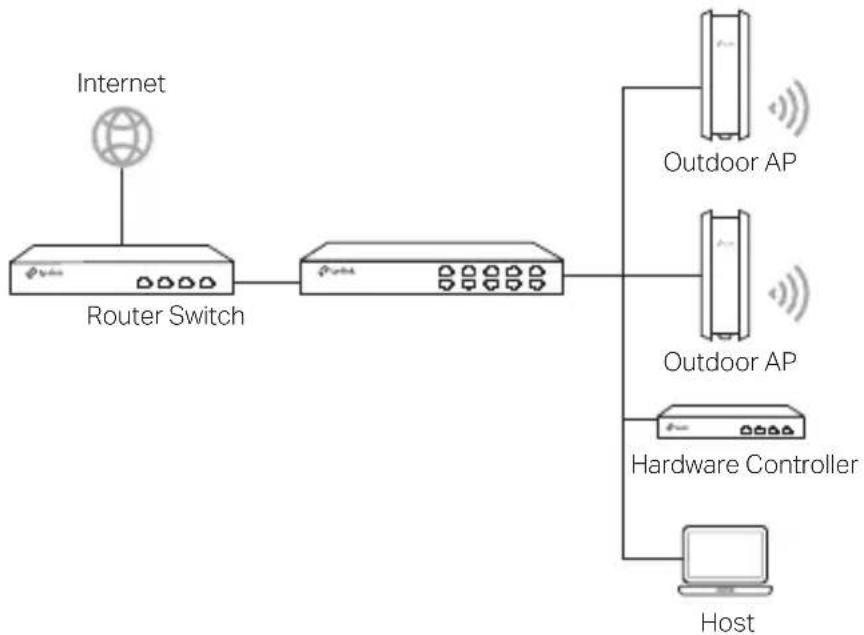

The hardware controller can be in the same or different subnet with the APs. The management host is used to log in to the hardware controller to centrally manage the APs

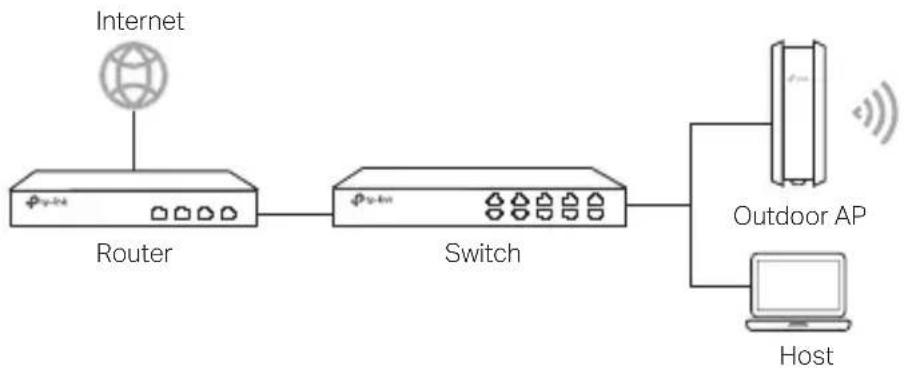

■ Standalone Mode

Hardware Connection

Choose a method to connect your device according to the accessories.

■ Via PoE Switch

Some APs can be powered via the PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) of IEC 62368-1.

Note: Availability depends on the actual product. Please refer to the product specifications.

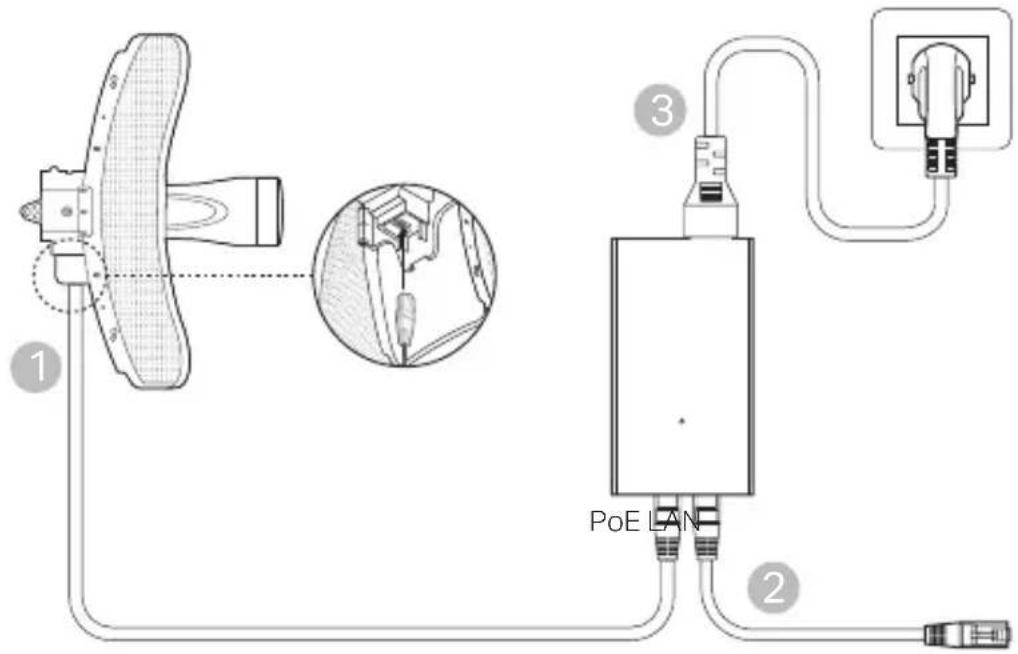

■ Via PoE Adapter

Some APs can be powered via the PoE adapter

Note: Availability depends on the actual product. Please refer to the product specifications.

Or

Hardware Installation

1 Choose a method to mount the device

■ Mounting the Device on a Pole

At the selected site, attach the device to a suitable point of the pole and then approximately align the device to the direction that you have oriented.

■ Mounting the Device on the Wall (for the product with mounting brackets)

Mount the mounting bracket to the preferred position in the wall Push and slide the device to lock it into place Then connect the antennas to the device

Diagram of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

2 Install the waterproof seal (For certain devices)

Before installing, fit the Ethernet cable through the spiral cover, bracket, and O-ring Then follow the steps as shown in the picture:

(1) Connect the Ethernet cable to the port
(2) Fit the O-Ring to the head of the bracket, and screw the bracket to the body of the device.
(3) Fit the Ethernet cable through the seal's slit with the thicker side towards the bracket
(4) Plug the seal to the bracket
(5) Screw the spiral cover to the bracket

Technical diagram showing two mechanical assembly configurations with labeled components and directional arrows (no text or symbols present)

Diagram showing a mechanical assembly with a cylindrical component and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a lever and shaft, no text or symbols present

Technical diagram showing two mechanical assembly configurations with labeled components and directional arrows (no text or symbols present)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram showing a mechanical or electrical component with an arrow indicating motion, no visible text or symbols

Diagram showing a mechanical assembly with a lever and a cylindrical component, no text or symbols present

Diagram of a mechanical device with a lever and shaft, showing motion direction (no text or symbols)

Technical diagram showing a cable being inserted into a door panel and then assembled into a device with a mesh cover (no text or symbols present)

Diagram showing a mechanical assembly with a cylindrical component and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a lever and a cylindrical component, no text or symbols present.

Diagram showing a mechanical assembly with a lever and a vertical component, no text or symbols present

Diagram showing a mechanical assembly with a lever and a cylindrical component, no text or symbols present

• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us
• Do not use damaged charger or USB cable to charge the device
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed
• Adapter shall be installed near the equipment and shall be easily accessible.
• Adapter should be used indoors where the ambient temperature is lower than or equal to 40 °C
• The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of device. Please use this product with care and operate at your own risk.
