USER MANUAL MWHA 2824 X HOTPOINT

A-8 Dolci A-9 Pizza a-10 Pollo 800g d’acqua)

100% Preheat at 160 degrees 200 g

SETTING UP YOUR OVEN

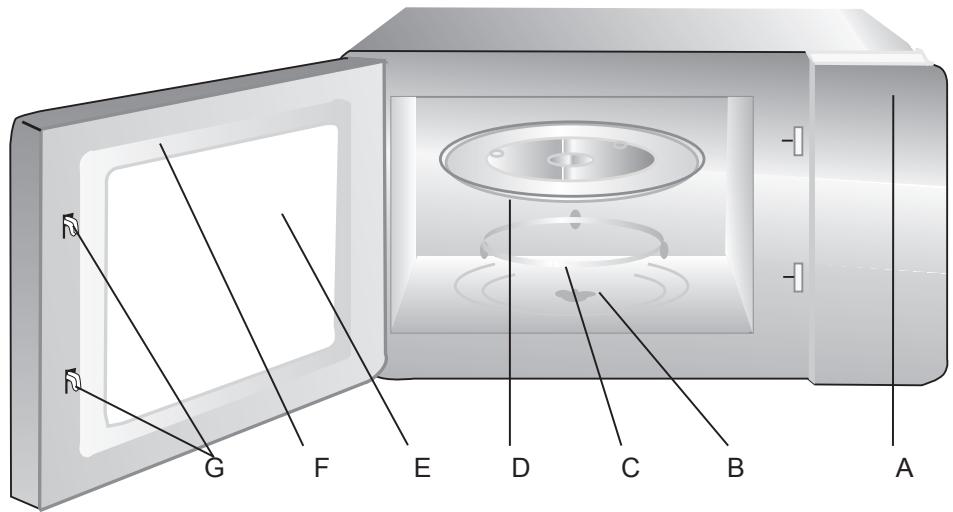

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity.

Grill Rack (To be used in grill modeonly and placed on the glass tray)

A) Control panel B) Turntable spindle C) Turntable ring support D) Glass turntable E) See-through oven window F) Door assembly G) Door safety interlock system INTRODUCTION Please read these instructions carefully before using this product, and save this manual for future use. Failure to follow these instructions could affect the life of the appliance and reduce oven performance.

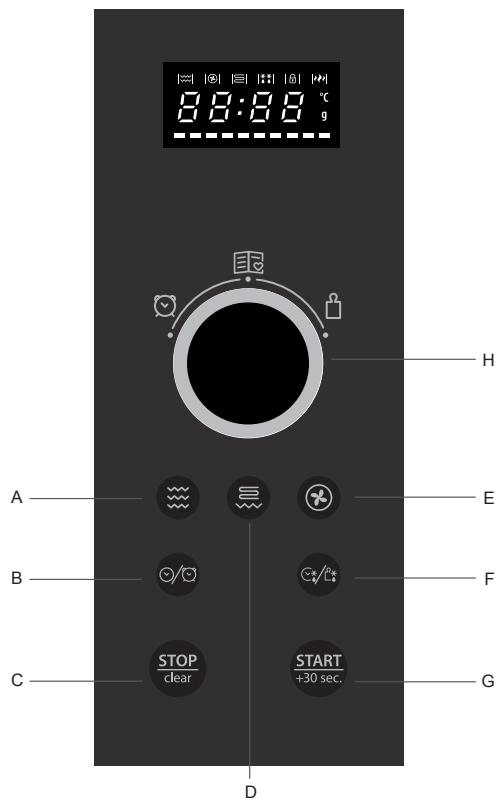

READ THESE INSTRUCTIONS CAREFULLY

E) Convection F) Weight/Time Defrost

1) Microwave cooking

2) Convection cooking

3) Grill cooking

1) ± 2) ± 3) Combination cooking

1) + 4) Defrost

5) Child Lock

6) High Power

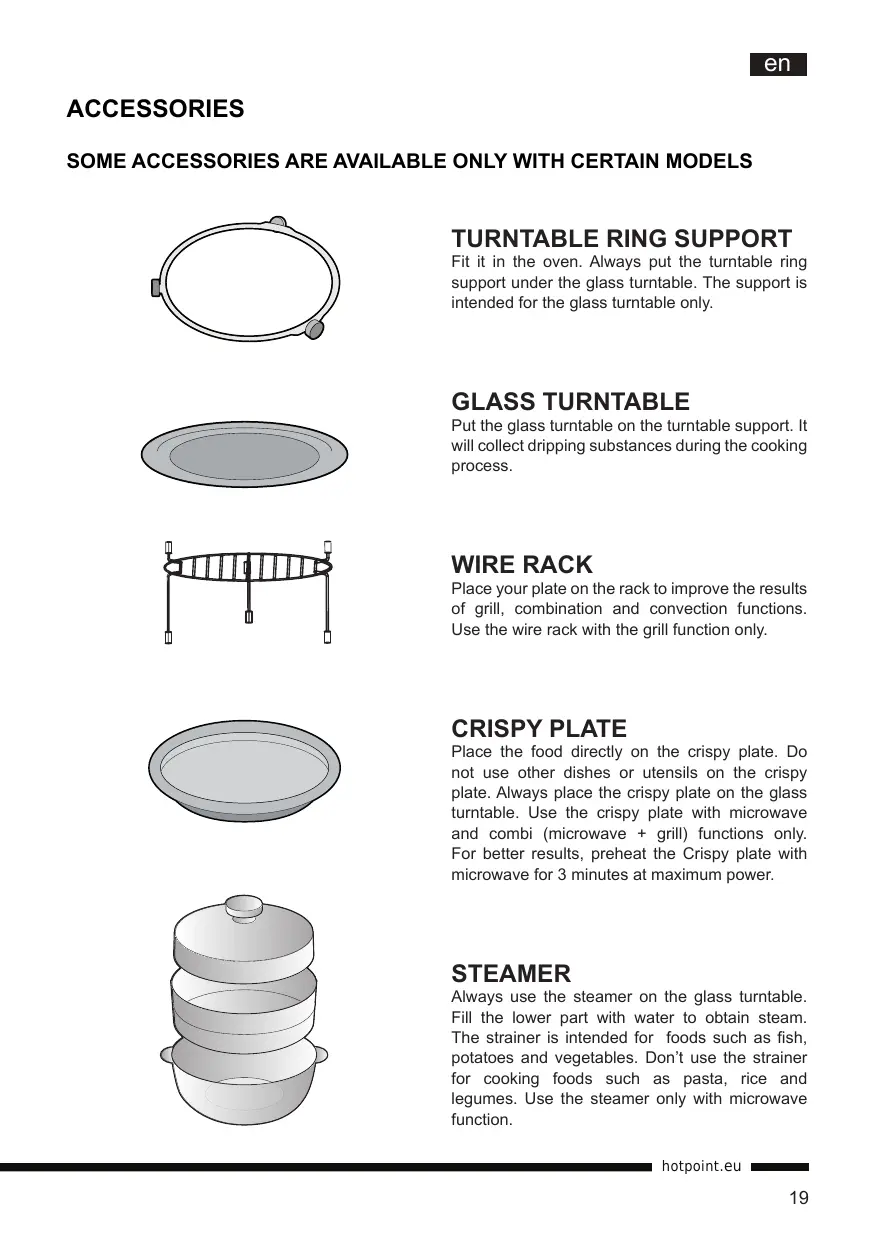

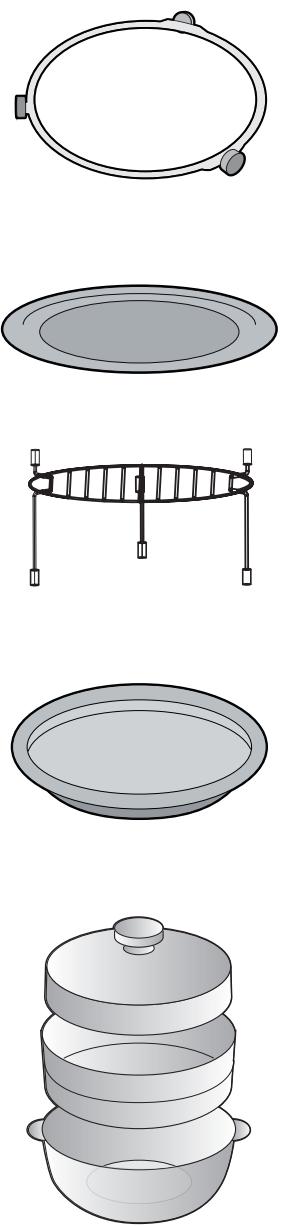

Accessories Some accessories are available only with certain models Turntable RING support Fit it in the oven. Always put the turntable ring support under the glass turntable. The support is intended for the glass turntable only. Glass turntable Put the glass turntable on the turntable support. It will collect dripping substances during the cooking process. Wire Rack Place your plate on the rack to improve the results of grill, combination and convection functions. Use the wire rack with the grill function only. Crispy Plate Place the food directly on the crispy plate. Do not use other dishes or utensils on the crispy plate. Always place the crispy plate on the glass turntable. Use the crispy plate with microwave and combi (microwave + grill) functions only. For better results, preheat the Crispy plate with microwave for 3 minutes at maximum power. Steamer Always use the steamer on the glass turntable. Fill the lower part with water to obtain steam. The strainer is intended for foods such as fish, potatoes and vegetables. Don’t use the strainer for cooking foods such as pasta, rice and legumes. Use the steamer only with microwave function. hotpoint.eu

1. To reduce the risk of fire,

burns, electric shock, and injury to persons or overexposure to microwave energy when using this appliance, please follow basic safety precautions, including the following:

Warning: Liquids or

other food must not be heated in sealed containers since they are liable to explode.

Warning: It is hazardous for anyone other

than a qualified person to carry out any service or repair operation which requires the removal of the anti-radiation protective cover of the microwave oven.

4. This appliance is not intended

for use by children older than 8 and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance so that they are able to use the oven in a safe way and understand the hazards of im20 proper use. Children shall not play with the appliance. Do not allow children under 8 years of age to perform cleaning and maintenance operations without supervision.

5. Keep the appliance and power supply cord out of reach

of children under 8 years of age.

6. Only use utensils suitable for

7. Clean the oven at regular intervals and remove any food

8. Read and follow the specific:

PRECAUTIONS TO PREVENT POSSIBLE OVEREXPOSURE TO MICROWAVE ENERGY

9. Carefully attend appliance

when paper, plastic, or other combustible materials are used to heat food in order to prevent the risk of fire.

10. In case of smoke emission,

switch off or unplug the appliance and keep the door closed in order to stifle any flames.

11. Do not overcook food.

12. Do not use the oven cavity for

storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

13. Remove wire twist-ties and

metal handles from paper or plastic containers/bags before placing them in the oven.

14. Follow the installation instructions strictly to finish installation or store the oven.

15. Do not heat eggs in the shell

and whole hard-boiled eggs in the microwave oven as they may explode even after microwave heating has ended.

16. This appliance is intended for

household use and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - guest rooms in hotels, motels and other residential type environments; - farm houses; - bed and breakfast environments.

17. In case of damage, power

supply cord must be replaced by the manufacturer, any service technician or similarly qualified personnel in order to prevent any hazard.

18. Do not store or use the appliance outdoors.

19. Do not use the appliance near

water, on a wet basement or near a swimming pool.

20. The temperature of accessi-

ble surfaces may be high during appliance operation. The surfaces are likely to get hot during use. Keep cord away from hot surfaces, and do not cover any oven vent openings.

21. Do not let cord hang over

edge of table or counter.

22. Failure to maintain the oven

in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

23. The contents of feeding bottles and baby food jars shall

be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

24. Microwave heating of beverages can result in delayed

eruptive boiling, therefore extra care must be taken when handling the container.

25. The appliance is not intended

for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person hotpoint.eu

responsible for their safety.

26. Children should be supervised to ensure that they do not

play with the appliance.

27. The appliance is not intended

to be operated by means of an external timer or separate remote-control system.

28. Accessible parts may become hot during use. Young

children should be kept away from appliance.

29. Do not use Steam cleaners to

30. The oven becomes hot during

use. Care should be taken to avoid touching heating elements inside the oven.

31. Only use the temperature

probe recommended for this oven (for ovens provided with temperature-sensing probe tools.)

WARNING: The appliance and its accessible

parts become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age shall be kept away unless continuously supervised.

33. The microwave oven must be

operated with the decorative door open (for ovens with a decorative door).

34. The rear surface of appliance

shall be placed against a wall.

35. The microwave oven shall not

be placed in a cabinet unless it has been tested in a cabinet.

PRECAUTIONS TO PREVENT

POSSIBLE OVEREXPOSURE

TO MICROWAVE ENERGY

1. Do not attempt to operate this

oven with the door open as this can result in harmful exposure to microwave energy. Never tamper with or deactivate the interlocking devices on the door.

2. Do not place any object

between the oven front face and the door or allow any dust or cleaner deposits on sealing surfaces.

WARNING: If the door or

door seals are damaged, the oven must not be operated until it has been repaired by a qualified service technician. Specifications Model: MWHA 2824 B MWHA 2824 X Rated Voltage: 230V~ 50Hz Rated Input Power(Microwave): 1450W Rated Output 900W Power(Microwave): Rated Input Power(Grill): 1100W Rated Input Power(Convection): 2500W Oven Capacity: 28 L Turntable Diameter: 315 mm Outer Dimensions: 520 x 479 x 341 cm Net Weight: Approx. 18.88 kg Grounding Installation DANGER Electrical Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electrical Shock Hazard Improper use of the grounding can result in electrical shock. Do not plug into an outlet until the appliance is properly installed and earthed. This appliance must be earthed. In the event of an electrical short circuit, this reduces the risk of electrical shock through an appropriate current-carrying wire discharging any static charge. This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

The plug must be plugged into an outlet that is properly installed and earthed. Consult a qualified electrician or service technician if the instructions are not completely understood or to ensure the appliance has been properly earthed. If required, use a 3-wire extension cord, only.

1. A short power-supply cord is

provided to reduce the risks of entanglement or trippingover a longer cord.

2. If a long cord set or

extension cord is used:

1) The marked electrical

rating of the cord set orextension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must

be a earthed type 3-wire cord.

3) The long cord should

never drape over the counter-top or tabletop where it can be pulled on by children or tripped over unintentionally. Installation

1. Select a level surface that

provide enough open space for the intake and/or outlet opening vents. hotpoint.eu

(1) The minimum installation height is 85cm. (2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven; a minimum clearance of 20cm is required between the oven and any adjacent walls. (3) Do not remove legs from the bottom of the oven. (4) Blocking the intake and/or outlet openings can damage the oven. (5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception. Turntabl e Installation Hub (underside) Glass turntable Turntable ring support Turntable spindle a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring support must always be used during cooking. c. Food and food containers must always be placed on the glass tray for cooking. d. If glass tray or turntable ring support cracks or breaks, please contact your nearest authorized

2. Plug your oven into a standard service centre.

household outlet. Be sure the voltage and the frequency is Countertop Installation the same as the voltage and the Remove all packaging matefrequency on the rating label. rial and accessories. Inspect the oven for damages such as Do not install oven over any cooktop/hob or other heat- dents or broken door. Do not inproducing appliance. If installed in stall if oven is damaged. Cabinet: Remove any proproximity of or over sources of tective film from the microwaheat, the oven could be damaged oven cabinet surface. and the warranty would be void. The accessible surface may be hot during operation.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

OPERATION INSTRUCTION This microwave oven uses modern electronic controls to adjust cooking parameters and meet your cooking needs. Clock Setting When the microwave oven is Powered ON, the oven will display “0:00”. The buzzer will ring once.

1) Press “TIMER/CLOCK” once, until “00:00”

2) Turn the KNOB to adjust the hour figures, the

input time should be within 0--23.

3) Press “TIMER/CLOCK “, the minute figures will

4) Turn the KNOB to adjust the minute figures,

the input time should be within 0--59.

5) Press “TIMER/CLOCK” to finish clock setting.

“:” will flash. Note:1) The timer function cannot be used if the clock is not set.

2) During clock setting, the oven will

automatically go back to the previous status after 1 minute of inactivity. Note:The upper and lower rows of the display will show the icons related to specific active functions. Timer (1) Press “TIMER/CLOCK“ twice, until the LED will display 00:00. (2) Turn the KNOB and enter time on the timer. (The maximum cooking time is 95 minutes). (3) Press “START/+30SEC./CONFIRM“ to confirm setting. (4) When the time ends, the buzzer rings 5 times. If the clock has been set (24-hour system), the LED will display the current time. While the timer is in operation, no other program can be set. Note:The upper and lower rows of the display will show the icons related to specific active functions. Microwave Cooking Press “Microwave“, the LED will display “P100”. Press “Microwave“ repeatedly to choose the power you want, and “P100”, “P 80” “P 50”, “P 30” or “P 10” will display for each options, respectively. Then press “START/+30SEC./CONFIRM” to confirm, and turn the KNOB to adjust the cooking time (the maximum cooking time is 95 minutes). Press “START/+30SEC./CONFIRM“ to start cooking. Example: follow the steps below to cook food for 20 minutes with 80% microwave power:

1) Press “Microwave“ once, the screen displays

2) Press “Microwave“ once again to choose 80%

3) Press “Start/+30Sec./Confirm“ to confirm, and

the screen displays “P 80”.

4) Turn the KNOB to adjust the cooking time until

the oven displays “20:00”.

5) Press “Start/+30Sec./Confirm “ to start

cooking. Note: the time intervals when adjusting the cooking time with the timer knob are as follows: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes Microwave Power Chart Microwave Power 100% 80% 50% 30% 10% Display P100 P80 P50 P30 P10 Note:The upper and lower rows of the display will show the icons related to specific active functions. GRILL COOKING Press “Grill/Combi”, the LED will display “G1”. Then press “START/+30SEC./CONFIRM” to confirm, and turn the KNOB to adjust cooking time (The maximum cooking time is 95 minutes). Press “Start/+30Sec./Confirm” again to start cooking. Example: follow the steps below to grill food for 10 minutes:

1) Press “Grill/Combi“ once, the screen

2) Press “Start/+30Sec./Confirm” to confirm.

3) Turn the KNOB to adjust the cooking time until

the oven displays “10:00”.

4) Press “Start/+30Sec./Confirm“ to start

cooking. Note: When half the grill time has passed, the oven buzzer rings twice. This is normal. In order to have better grilled food turn the food over, close the door, and then press ”START/+30 SEC./CONFIRM” to continue cooking. If no other action is \ taken, cooking will continue. CONVECTION COOKING PREHEATING FUNCTION) (WITH The convection cooking allows to cook food as in a traditional oven. The microwave function is not used. The oven should be preheated up to the appropriate temperature before placing the food.

1) Press the “CONVECTION“ button once, “140”

2) Keep pressing “CONVECTION” or turn the

KNOB to select the convection function. Note: Temperature ranges from 140 degrees to 230 degrees.

3) Press the “START/+30SEC./CONFIRM“ to

confirm the temperature.

4) Press the “START/+30SEC./CONFIRM“ to start

preheating. When the preheating temperature is reached, the buzzer will ring twice; food can now be placed into the oven. The preheated temperature will be displayed and flash.

5) Put the food into the oven and close the door.

Turn the KNOB to adjust the cooking time. (The maximum cooking time is 95 minutes.)

6) Press the “START/+30SEC./CONFIRM“ key to

start cooking. Note: a. The cooking time cannot be programmed until the oven gets to the preheated temperature. When the oven gets to the preheated temperature, the door must be open to enter the cooking time. b. If the time is not entered within 5 minutes, the oven will stop preheating. The buzzer will ring five times and then switch back to stand-by mode. Note: The upper and lower rows of the display will show the icons related to specific active functions.

CONVECTION COOKING (WITHOUT

PRE-HEATING FUNCTION)

1) Press the “CONVECTION“ key once, “140”

2) Keep pressing “CONVECTION” or turn the

KNOB to select the convection function. Note: Temperature ranges from 140 degrees to 230 degrees.

3) Press the “START/+30SEC./CONFIRM“ to

confirm the temperature.

4) Turn the KNOB to adjust the cooking time. The

maximum cooking time is 95 minutes.

3) Press “START/+30SEC./CONFIRM“ key to

start defrosting. Note: The upper and lower rows of the display will show the icons related to specific active functions. COMBINATION COOKING

1) Press “Grill/Combi“ the LED will display

2) Press “Grill/Combi” repeatedly or turn the

KNOB to choose the power you want, and “G-1”, “C-1”, “C-2”, “C-3” or “C-4” will display for each option, respectively.

3) Press “Start/+30Sec./Confirm” to confirm

the desired combination setting.

4) Turn the KNOB to adjust the cooking time. (The

maximum cooking time is 95 minutes.)

5) Press “Start/+30Sec./Confirm” again to

start cooking. Note: Combination instructions Instructions Display Microwave

Multi-Stage Cooking The maximum cooking stage number is two. Always select defrost as first cooking stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as part of the multi-stage. Example: follow the steps below to defrost food for 5 minutes, and then cook with 80% microwave power for 7 minutes:

1) Press “W.T./TIME DEFROST“ twice, the screen

2) Turn the KNOB to adjust defrost time by 5

3) Press “Microwave” once;

4) Turn the KNOB to choose 80% microwave

power until “P80” is displayed;

5) Press “START/+30SEC./CONFIRM” to confirm;

6) Turn the KNOB to adjust the cooking time by

7) Press “START/+30SEC./CONFIRM” to start

cooking. SPEEDY Cooking

1) When in stand-by mode, press the

“START/+30SEC./CONFIRM“ button to cook with 100% power level for 30 seconds. Each additional press will increase the cooking time by another 30 seconds. The maximum cooking time is 95 minutes.

2) During microwave heating or defrost-by-time

process, press “START/+30SEC./CONFIRM” to increase the cooking time.

3) When in stand-by mode, turn the KNOB left to

choose the cooking time directly. After choosing the time, press “START/+30SEC./CONFIRM” to start cooking. The microwave power is 100%. Note: This function is not available for defrost, multi-stage and auto menu cooking. Defrost By Time

1) Press “TIME DEFROST” twice, the screen will

2) Turn the KNOB to select the cooking time. The

maximum time is 95 minutes.

3) Press “START/+30SEC./CONFIRM“ button to

start defrosting. Defrost By Weight

1) Press “W.T./TIME DEFROST“ once, the screen

2) Turn the KNOB to select the food weight. The

range of weight is 100-2000g.

3) Press “START/+30SEC./CONFIRM“ button to

start defrosting. Auto Menu

1) When in stand-by mode, turn the KNOB right to

choose from “A1” to “A10”;

2) Press “START/+30SEC./CONFIRM “ to confirm

3) Turn the KNOB to choose the food weight, and

“G” indicator will light-up.

4) Press “START/+30SEC./CONFIRM“ to start

cooking. CAUTION: When using the A8 function, do not place the cake into the oven until it has reached full temperature. The oven needs to be preheated up to 160 degree. After a few minutes, the buzzer will ring twice to remind to put the cake into the oven. Place the cake in the oven, and press start again. The timer will count down, and the cake will be cooked perfectly. Note: The upper and lower rows of the display will show the icons related to specific active functions. Note: Auto Menu Menu Weight Display 150g

POTATO 2(about 460g)

Power 100% 100% Note:The upper and lower rows of the display will show the icons related to specific active functions. hotpoint.eu

1) While cooking, press “CLOCK/KITCHEN TIMER” to check the current time. It will be displayed

2) While cooking, press “MICROWAVE”, “GRILL/

COMBI” or “ CONVECTION”, the current power will be displayed for 2-3 seconds.

Children Safety Lock VEGETA 350g

MEAT 50g(with 450g cold water) PASTA 800g cold 0g cold water)

Lock: When in stand-by mode, press “STOP/ CLEAR” for 3 seconds; a long “beep” will notify activation of the children safety lock mode and screen will display “ 0:00 “ and “ “ indicator will light. Unlock: When in safety lock mode, press “STOP/ CLEAR” for 3 seconds: a long “beep”will notify the lock is released, and “ “ indicator will disappear. Specifications 80% 150g

80% 100g(with 150g(with120 CHICKEN 100%

water) A10 100% 100% (1) The buzzer will ring once when turning the knob back to starting position; (2) “START/+30SEC./CONFIRM” must be pressed to continue cooking if the door is opened during cooking; (3) Once the cooking program has been set, “START/+30SEC./CONFIRM” must be pressed within 5 minutes. If no action is taken, the current time will be displayed and any programmed setting will be cancelled. (4) The buzzer will ring once when the key is properly pressed. The buzzer will not ring if the key is improperly pressed. (5) The buzzer will ring five times to notify the termination of cooking. UTENSILS CAUTION Preheat at 160 degree C-4 Personal Injury Hazard It is hazardous for anyone other than a qualified personnel to carry out any service or repair operation which requires the removal of the antiradiation protective cover of the microwave oven. See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” Some non-metallic utensils may not be intended for microwaving use. If in doubt, test the utensil following the procedure below. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil. Cook on maximum power for 1 minute. Carefully feel the utensil. Do not use empty warm utensils for microwave cooking.

Do not exceed 1 minute cooking time. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled “Microwave Safe”. Some plastic containers may softenas the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package instructions. Thermometers Microwave-safe thermometers only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. microwave oven Utensils Remarks Browning Dishes Aluminium foil Follow manufacturer’s instructions. The bottom of browning dishes must be at least 3/16 inch (5mm) above the turntable. Improper use may cause the turntable to break. Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped glasses. Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to pour out. Paper plates and cups Use for short-term cooking/ warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Materials to be avoided in microwave oven Utensils Remarks Aluminium tray May cause arcing. Transfer food into a microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into a microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. hotpoint.eu

CLEANING Ensure the appliance is unplugged from the power supply.

1. Clean the oven cavity after use with a

slightly damp cloth.

2. Clean the accessories always with soapy

3. The door frame, seal and surrounding

surfaces must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or

sharp metal scrapers to clean the oven door glass since they can scratch the surface and the glass may break. Cleaning Tip- To easily clean the oven cavity walls that the cooked food can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) of water and heat at 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. TROUBLE SHOOTING EVENT POSSIBLE CAUSE REMEDY Oven cannot be started. (1) Power cord not plugged in tightly. Unplug. Then plug again after 10 seconds. (2) Fuse blowing or circuit breaker in function. Replace fuse or reset circuit breaker (repaired by professional personnel of our company) (3) Trouble with outlet. Test outlet with other electrical appliances. Oven does not heat. (4) Door not closed well. Close door well. Glass turntable makes noise when microwave oven operates. (5) Roller wheel and / or oven bottom is dirty. Refer to “Maintenance of Microwave Oven” to clean dirty parts.

Microwave oven interference with TV Radio and TV signals may be interfered during microwave oven operation. It is similar to the interference of small electrical appliances, like mixers, vacuum cleaners, and electric fans. It is normal. Oven light is dim In low power microwave cooking, oven light may become dim. It is normal. Steam accumulating on door, hot air out of vent openings. While cooking, steam may come out of food. Most steam will get out from vent openings. Anyway, some may accumulate on cool place like oven door. It is normal. Oven started accidentally with no food in. Do not operate the appliance without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. MWHA 2824 B MWHA 2824 X 230V~ 50Hz 1450W water) 150g(with120 0g cold water) 200ml

CHICKEN СПЕЦИФИКАЦИИ 150g

A10 80% Preheat at 160 degree C-4 C-4 ФУНКЦИЯ ЗАПИТВАНЕ

BEWAAR DEZE INSTRUCTIES ZORGVULDIG

AARDING INSTALLATIE GEVAAR

SNELLE BEREIDING 50g(with 450g cold water) PASTA 100g(with 800g cold 150g(with120 0g cold water)

water) A10 Preheat at 160 degree C-4 C-4 INFORMATIEFUNCTIE In low power microwave cooking, oven light may become dim. It is normal. Test outlet with other electrical appliances. (5) Roller wheel and / or oven bottom is dirty. Refer to “Maintenance of Microwave Oven” to clean dirty parts. Glass turntable makes noise when microwave oven operates.

TYTO POKYNY PEČLIVĚ UCHOVEJTE

U Ž I V A T E L S K É ROZHRANÍ 50g(with 450g cold water) PASTA 100% 100% 150g(with120 0g cold water) CAKE 475g

CHICKEN 100% 150g C-4 C-4 100% Preheat at 160 degree

FUNKCE DOTÁZÁNÍ

Power 100% 80% In low power microwave cooking, oven light may become dim. It is normal. DOBRE SI USCHOVAJTE TENTO NÁVOD NA POUŽITIE hotpoint.eu

U Ž Í VAT E Ľ S K É

ROZHRANIE 50g(with 450g cold water) PASTA 100% 100% 80% 100g(with 800g cold

water) 150g(with120 0g cold water) 200ml

100% Preheat at 160 degree C-4 C-4

MATERIÁLY, KTORÉ MÔŽETE

POUŽÍVAŤ V MIKROVLNNEJ RÚRE

Kuchynský riad Pripomienky hotpoint.eu

MATERIÁLY, KTORÉ NESMIETE

POUŽÍVAŤ V MIKROVLNNEJ RÚRE

Kuchynský riad Pripomienky In low power microwave cooking, oven light may become dim. It is normal. 50g(with 450g cold water) PASTA 150g(with120 0g cold water)

POTATO 2(about 460g)

A10 CHICKEN 80% 150g Display 100% 80% 100g(with Weight 100% 100%

water) Power 100% 100% Preheat at 160 degree C-4 C-4 hotpoint.eu

SPECYFIKACJA MWHA 2824 B MWHA 2824 X

GOTOWANIE KONWEKCYJNE (BEZ

50g(with 450g cold water) PASTA Power

100% A10 CHICKEN 100% 100% 100% 80%

water) 150g(with120 0g cold water) 150g Preheat at 160 degree C-4 C-4 In low power microwave cooking, oven light may become dim. It is normal. 50g(with 450g cold water) PASTA 0g cold water)

POTATO 2(about 460g)

MEAT 800g cold 150g(with120 Preheat at 160 degree C-4 C-4 50g(with 450g cold water) PASTA Power 100%

150g(with120 0g cold water) 200ml

BEWAHREN SIE DIESE ANWEISUNGEN GUT AUF

50g(with 450g cold water) PASTA Power 100% 100% 100% 100% 80%

water) 150g(with120 0g cold water) 150g 80%

A10 CHICKEN 100% Preheat at 160 degree C-4 C-4 ABFRAGE FUNKTION 50g(with 450g cold water) PASTA 800g cold

water) 150g(with120 0g cold water)

Power 100% 80% 80% 150g

Display 100% 100g(with 475g Weight 100%

CAKE Menu 100% 100% Preheat at 160 degree C-4

FUNCIÓN INFORMATIVA

In low power microwave cooking, oven light may become dim. It is normal.

CONSERVER CES INSTRUCTIONSATTENTIVEMENT

CUISSON AU GRIL

50g(with 450g cold water) PASTA Power 100% 100% 100% 100% 80%

water) 150g(with120 0g cold water) 150g 80%

A10 CHICKEN 100% Preheat at 160 degree C-4 USTENSILES C-4

FONCTION D’ENQUÊTE

50g(with 450g cold water) PASTA 800g cold

water) 150g(with120 0g cold water)

POTATO 2(about 460g)

Power 100% A10 CHICKEN 100% 80% 150g 475g Display 80% 100g(with

CAKE Menu 100% 100% Preheat at 160 degree C-4 C-4 Небезпечно — Електрошок Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

50g(with 450g cold water) PASTA Power 100% 100% 100% 100%

150g(with120 0g cold water) 475g

CHICKEN Preheat at 160 degree C-4 C-4 ФУНКЦІЯ ЗАПИТУ Indesit Company SpA Viale Aristide Merloni, 47 60044 Fabriano (AN), Italy
