Product Type	Outdoor Access Point
Brand	TP-Link
Model	WBS510
Dimensions	200 x 200 x 70 mm
Weight	1.2 kg
Power Supply	PoE (Power over Ethernet) 802.3af
Power Consumption	12 W max
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency Bands	5 GHz
Maximum Wireless Data Rate	867 Mbps (5 GHz)
Ports	1 Gigabit Ethernet port (PoE)
Antennas	2 integrated omnidirectional antennas
Protection Rating	IP65 (weather resistant)
Main Functions	Access Point, Wireless Bridge (WDS), Repeater
Management	Web interface, TP-Link Pharos Control utility
Security	WPA/WPA2-PSK, WPA2-Enterprise, MAC filtering
Maintenance and Cleaning	Clean with a dry cloth, avoid solvents
Spare Parts	Power adapter (not included), mounting kit
Repairability	No user-serviceable parts
Operating Temperature	-30°C to 70°C

Frequently Asked Questions - WBS510 TP-LINK

How to configure the TP-Link WBS510 for the first time?

Connect the access point to your network via PoE, open a browser and enter the default IP address (192.168.0.100). Use the default username and password 'admin/admin'. Follow the quick configuration wizard.

Does the WBS510 support wireless bridge mode?

Yes, the WBS510 supports WDS (Wireless Distribution System) mode to function as a wireless bridge between two networks.

What is the maximum range of the WBS510?

Outdoors, the range can reach up to 2 km in line-of-sight, depending on environment and configuration.

Can I use the WBS510 with a non-TP-Link router?

Yes, the WBS510 is compatible with any standard router using Ethernet and PoE. No specific brand is required.

How to reset the WBS510 to factory settings?

Press and hold the Reset button on the back of the device for about 10 seconds until the LED flashes. The settings will be restored.

Is the WBS510 compatible with 802.3af PoE standard?

Yes, it is compatible with 802.3af PoE. Use a PoE injector or PoE switch to power it.

How to secure my wireless network on the WBS510?

In the web interface, go to Wireless > Security. Choose WPA2-PSK with a strong password. You can also enable MAC filtering.

Can the WBS510 be mounted on a pole?

Yes, it comes with a suitable mounting kit for a pole. Make sure to secure the device and position it for optimal coverage.

What to do if the WBS510 web interface is inaccessible?

Check that your computer is on the same subnet (e.g., 192.168.0.x). Try resetting the device. Make sure the PoE is working properly.

Does the WBS510 support repeater mode?

Yes, repeater mode is available. In the interface, select 'Repeater' as the operation mode and choose the network to extend.

USER MANUAL WBS510 TP-LINK

Hardwareinstallation

Diagram showing a mechanical assembly with a piston and connecting rod (no text or symbols)

Note: The image may differ from the actual product.

Typical Network Topology

■ Managed Mode

Via Centralized Management Software

A computer running the centralized management software, which can be in the same or different subnet with the APs, is used to centrally manage the APs.

You can get the corresponding software from our website http://www.tp-link.com

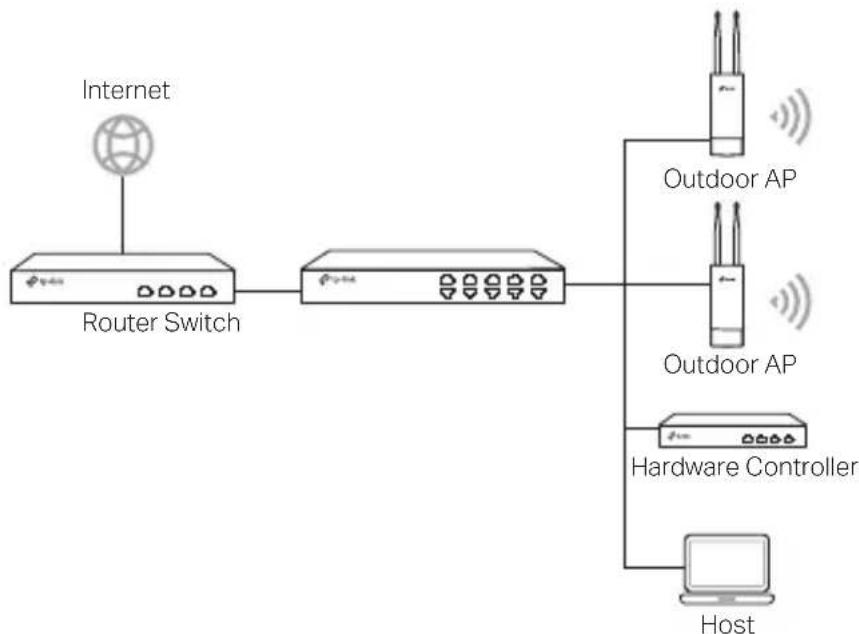

Via Hardware Controller (for Omada APs)

The hardware controller can be in the same or different subnet with the APs. The management host is used to log in to the hardware controller to centrally manage the APs

■ Standalone Mode

Hardware Connection

Choose a method to connect your device according to the accessories.

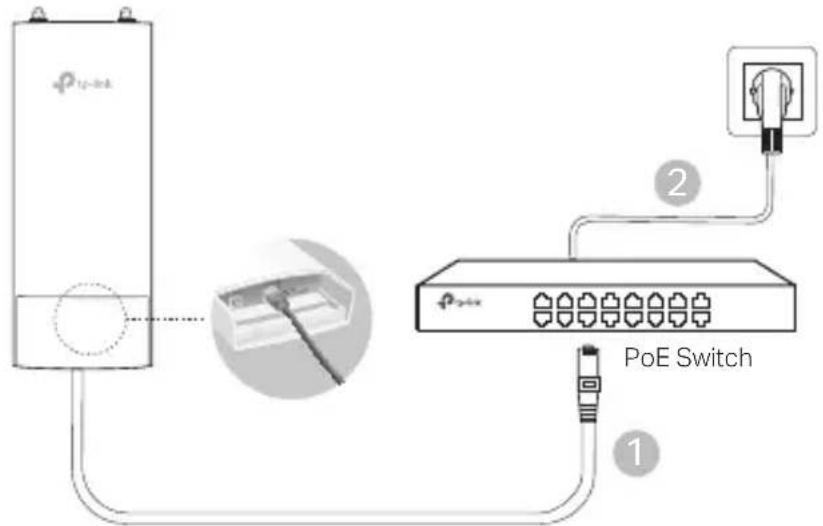

■ Via PoE Switch

Some APs can be powered via the PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) of IEC 62368-1 Note: Availability depends on the actual product. Please refer to the product specifications.

■ Via PoE Adapter

Some APs can be powered via the PoE adapter Note: Availability depends on the actual product. Please refer to the product specifications.

Or

Hardware Installation

1 Choose a method to mount the device

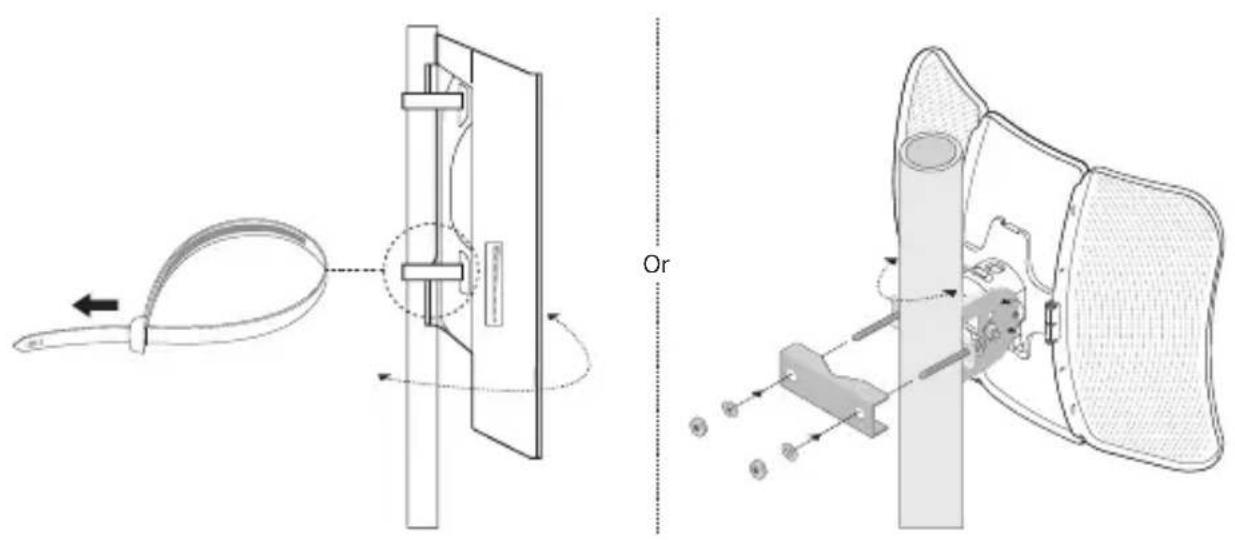

■ Mounting the Device on a Pole

At the selected site, attach the device to a suitable point of the pole and then approximately align the device to the direction that you have oriented.

■ Mounting the Device on the Wall (for the product with mounting brackets)

Mount the mounting bracket to the preferred position in the wall Push and slide the device to lock it into place Then connect the antennas to the device

Diagram showing a mechanical assembly with a cylindrical component and a vertical rod, no text or symbols present.

2 Install the waterproof seal (For certain devices)

Before installing, fit the Ethernet cable through the spiral cover, bracket, and O-ring Then follow the steps as shown in the picture:

(1) Connect the Ethernet cable to the port
(2) Fit the O-Ring to the head of the bracket, and screw the bracket to the body of the device.
(3) Fit the Ethernet cable through the seal's slit with the thicker side towards the bracket
(4) Plug the seal to the bracket
(5) Screw the spiral cover to the bracket

Software Configurations

■ Managed Mode

To configure mass devices via a centralized management software or a wireless controller, please refer to the corresponding User Guide You can download the User Guide from our website http://www.tp-link.com

■ Standalone Mode

To configure a device through a web-based management system, please follow the steps below

1. Launch a web browser and enter the IP address of your device in the address bar and press Enter

Note:

• For Omada APs, you can check the IP address through the product label.

• For other products, the default IP address is 192.168.0.254 and the IP address of your computer should be set as 192.168.0.x ("x" is any number from 1 to 253).

• Enter admin for both User Name and Password for login

• Change the default User Name and Password to protect your device, then start configuring the device.

Technical diagram showing two mechanical assembly configurations with labeled components and directional arrows (no text or symbols present)

Diagram showing a mechanical assembly with a tool and a vertical component, no text or symbols present

Technical diagram showing two mechanical assembly configurations with labeled components and motion indicators (no text or symbols present)

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

Diagram showing a mechanical assembly with a cylindrical component and a vertical rod, no text or symbols present.

Diagram showing a mechanical assembly with a lever and pin, no text or symbols present

Diagram showing a mechanical assembly with a lever and pin, no text or symbols present

Diagram showing a mechanical assembly with a piston and connecting rod (no text or symbols)

Diagram showing a mechanical assembly with a lever and a cylindrical component, no text or symbols present

Diagram showing a mechanical assembly with a tool and a vertical component, no text or symbols present

Diagram showing a mechanical assembly with a piston and lever mechanism (no text or symbols)

• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us
• Do not use damaged charger or USB cable to charge the device
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed
• Adapter shall be installed near the equipment and shall be easily accessible.
• Adapter should be used indoors where the ambient temperature is lower than or equal to 40 °C
• The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of device. Please use this product with care and operate at your own risk.
