Product Type	Flash macro twin
Brand	Sony
Model	Macro Twin Flash Kit
Category	Flash
Power Supply	4 AA batteries (LR6) or external power supply
Dimensions (controller)	Approx. 100 x 75 x 70 mm
Dimensions (each flash)	Approx. 70 x 50 x 30 mm
Weight (controller)	Approx. 200 g (without batteries)
Weight (each flash)	Approx. 100 g
Number of Flashes	2
Guide Number (ISO 100/m)	24
Control Mode	TTL, manual
Synchronization	High speed up to 1/8000 s
Recycle Time	Approx. 3 s with fresh batteries
Compatibility	Sony Alpha cameras with multi-interface shoe
Contact	Sony multi-interface shoe
Main Functions	Macro lighting, ratio control, modeling lights, exposure compensation
Maintenance and Cleaning	Wipe with a soft, dry cloth. Avoid humidity and dust.
Safety	Do not touch the flash tube during or after use. Keep out of reach of children.
Spare Parts and Repairability	Contact an authorized Sony service center for any repair or replacement.
General Information	2-year warranty. Made in Japan.

Frequently Asked Questions - Macro Twin Flash Kit SONY

How do I install the Macro Twin Flash Kit on my Sony camera?

Attach the control unit to the multi-interface shoe of your camera. Connect the flash cables to the corresponding outputs. Insert the batteries (4x AA) into the compartment provided for this purpose.

What type of batteries should I use?

Use alkaline AA batteries (LR6) or Ni-MH rechargeable batteries. Avoid lithium batteries or other non-recommended types.

How do I synchronize the flash with the shutter?

The flash synchronizes automatically via TTL connection. For high-speed synchronization, activate HSS (High Speed Sync) mode on the flash or camera.

How do I adjust the power of the flashes?

Use the adjustment dials on the control unit to adjust the power of each flash independently (from 1/1 to 1/64). TTL mode adjusts power automatically.

Can I use this flash with a macro lens?

Yes, this kit is specially designed for macro photography. The flashes attach to the lens using an adapter ring (not included).

What is the recommended working distance?

For a 1:1 subject, the working distance is approximately 100-150 mm. Adjust the power based on distance and aperture.

How do I clean the flashes?

Gently wipe the surfaces with a soft, dry cloth. Do not use solvents or abrasive products. Protect the contacts from dirt.

What should I do if the flash does not fire?

Check the batteries, connections, and synchronization mode. Ensure the flash is properly mounted on the shoe. Consult the manual if the problem persists.

Is it possible to use only one flash?

Yes, you can disconnect one flash and use the other alone. Adjust the power via the controller.

Where can I find spare parts?

Contact an authorized Sony service center or check the official website to order spare parts (cables, batteries, etc.).

USER MANUAL Macro Twin Flash Kit SONY

© 2006 Sony Corporation Printed in China

危险

安全のために

(60～62ページも合わせて

お読みください。)

Technical line drawing of a mechanical component with two parallel grooves and mounting holes (no text or symbols)

ホルダー取り付け部

アダプターリング (12)

∅ 49mm / ∅ 55mm

Illustration of two interlocked rings (no text or symbols)

ディフューザー* (42)

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

ワイドパネル* (40)

Technical line drawing of a mechanical component with no visible text or symbols

コードリール* (16)

Illustration of a mechanical clamp or interlocking component with no visible text or symbols

*2個同梱されています。

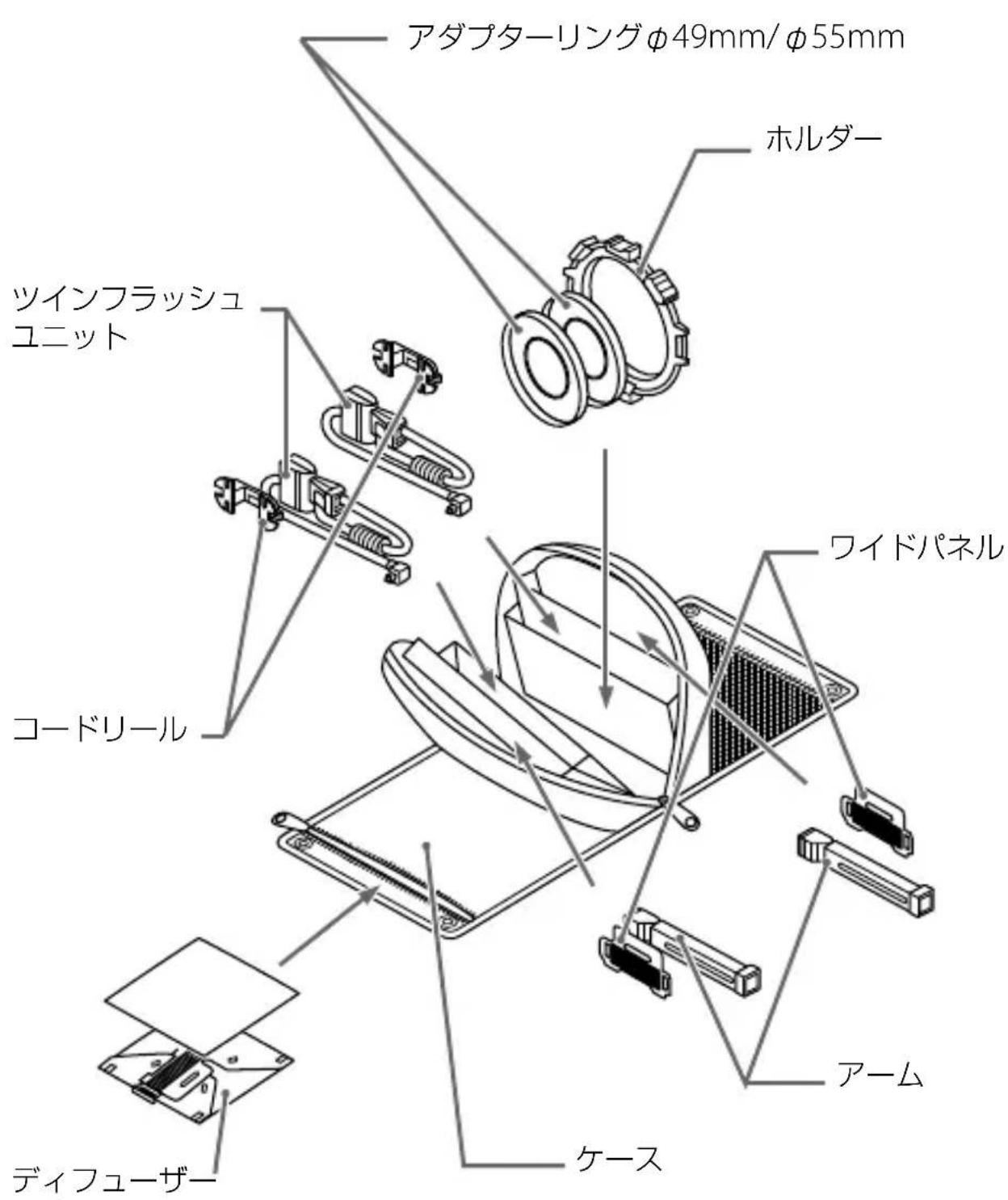

ケース収納例

Illustration of a battery pack with three batteries and one open lid (no text or symbols)

3 電池ふたを閉める。

Diagram of a DSLR camera with an attached display screen and control buttons (no text or symbols)

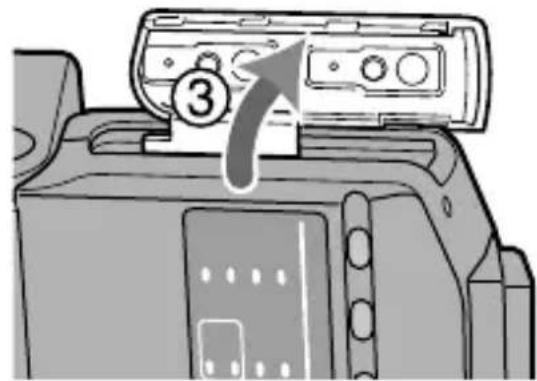

取りはずしかた

マクロツインフラッシュの取り付けかた

Technical line drawing of a DSLR camera with lens and aperture (no text or symbols)

Technical illustration of a mechanical component with gear and mounting features (no text or symbols)

Illustration of a portable camera with buttons and a close-up view of the camera (no text or symbols)

Mechanical assembly diagram showing a lever interacting with a tractor (no text or symbols visible)

Illustration of a camera device with two buttons and an external plug, no text or symbols present

次ページにつづく

Technical line drawing of a mechanical device with adjustment knobs and a handle (no text or symbols)

Diagram of a mechanical device with directional arrows indicating rotation or movement (no text or symbols)

Top-down schematic of a mechanical component with three arms and directional arrows indicating flow or movement (no text or symbols)

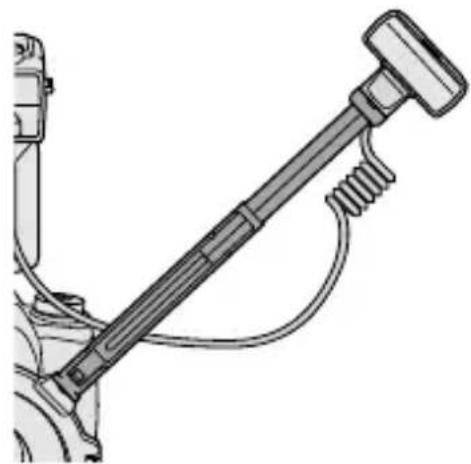

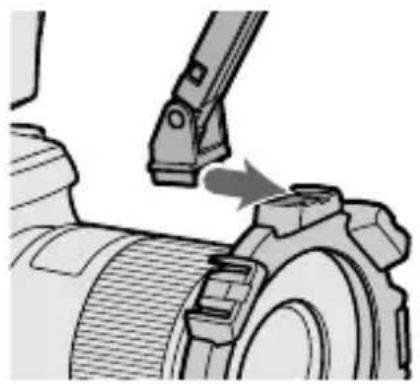

アームの取り付けかた

Mechanical assembly diagram showing a lever interacting with a cam or tire component (no text or symbols visible)

Technical line drawing of a mechanical device with a lever and cable (no text or symbols)

次ページにつづく

Mechanical assembly diagram showing a lever mechanism interacting with a gear (no text or symbols visible)

60^ 位置

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

90^ 位置

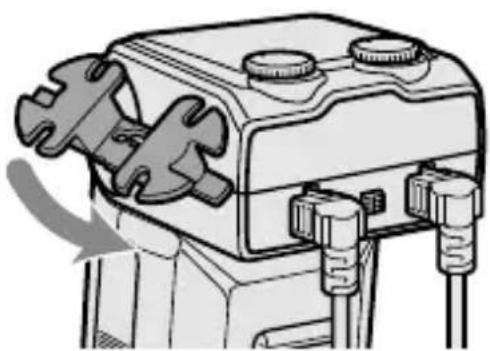

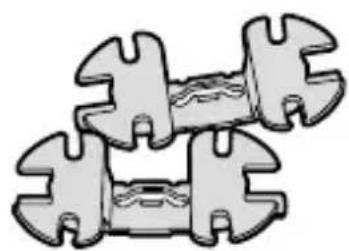

コードリールの使いかた

Technical illustration of a mechanical device with no visible text or symbols

巻きつけかた例

Mechanical assembly diagram showing a tool inserted into a component with a magnified inset detail (no text or symbols)

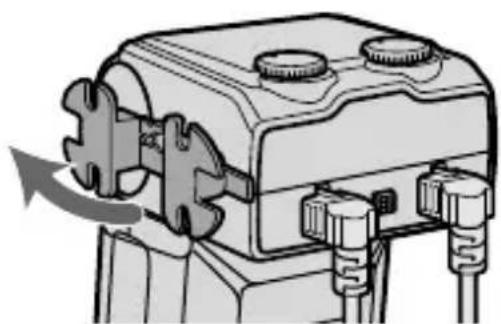

取りはずしかた

下側を先にはずす。

Mechanical assembly diagram showing a gear mechanism with rotating components (no text or symbols)

次ページにつづく

Mechanical assembly diagram showing a vehicle suspension system with hoses and components (no text or labels)

Technical line drawing of a mechanical assembly with a spring and linkage (no text or symbols)

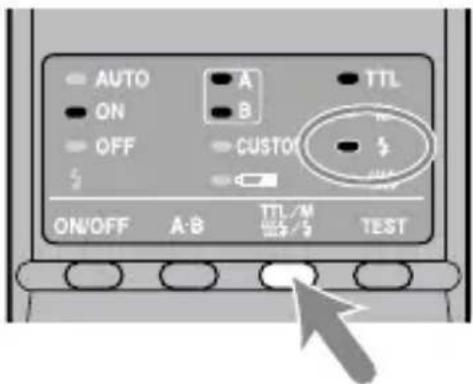

マニュアルフラッシュ撮影

Two identical diagrams of a lampshade with two stands and three wires, no text or symbols present.

Illustration of a robotic arm holding a laptop, showing the screen and keyboard (no text or symbols present)

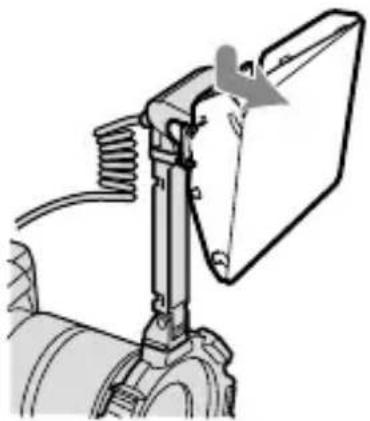

取りはずしかた

Illustration of a mechanical device with a grid-patterned cover and attached cable (no text or symbols)

Close-up of a tiled metal surface with grid pattern, no visible text or symbols

ディフューザーあり

Close-up of a tennis racket with mesh grille and ball (no visible text or symbols)

ディフューザーなし

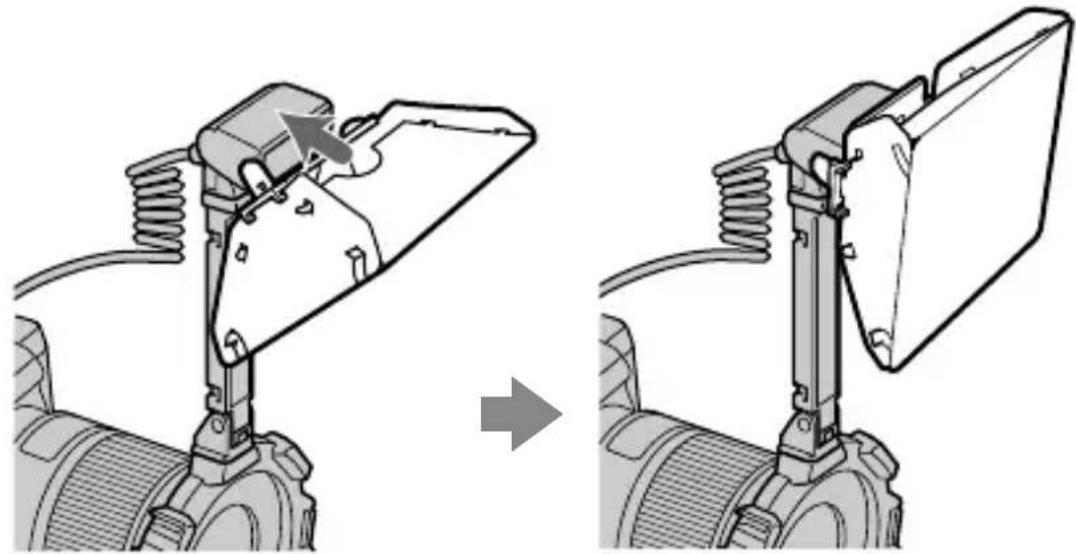

取り付けかた

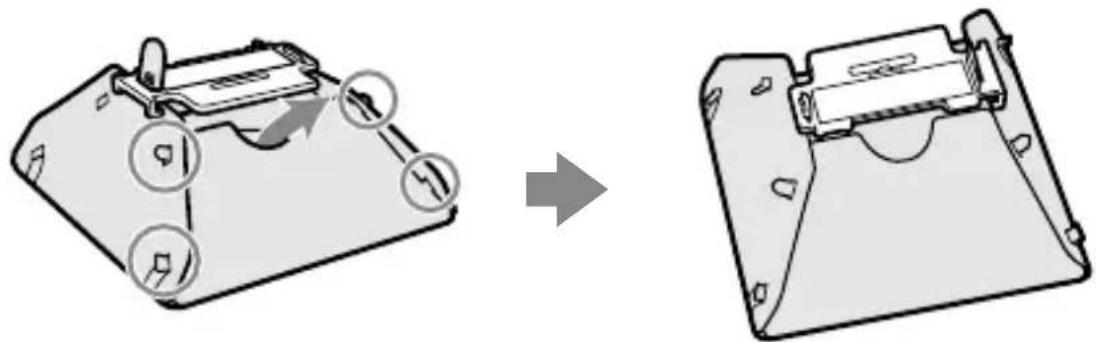

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Diagram showing a device being processed from a base to a final assembled component (no text or symbols present)

Diagram of a device with arrows indicating flow or movement, showing internal components (no text or symbols)

ご注意

Mechanical assembly diagram showing a lever mechanism before and after change (no text or symbols)

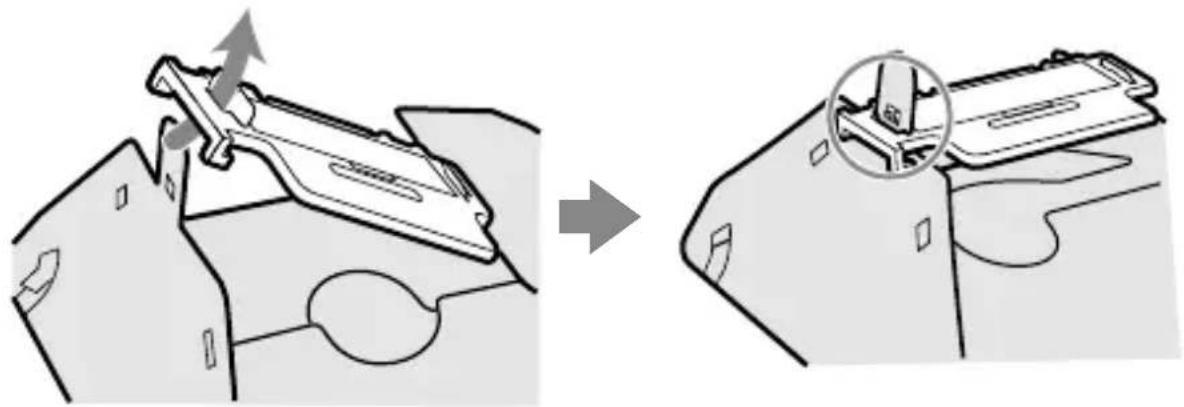

ディフューザー撮影時の注意

Mechanical device with lever and spring mechanism (no visible text or symbols)

Diagram of a mechanical component with an arrow indicating force or movement (no text or symbols present)

Diagram showing a mechanical component being inserted into a housing, with arrows indicating direction (no text or symbols present)

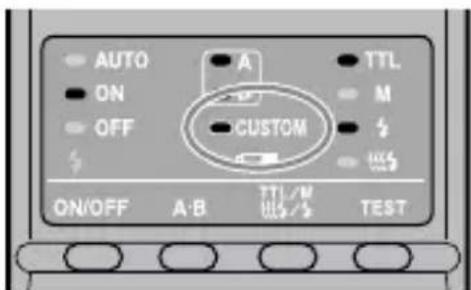

カスタム設定

Black-and-white photo of two patterned tiger figurines with black and white dot patterns (no text or symbols)

上方からのみの照射

Black-and-white photo of two patterned tiger figurines with black spots, no text or symbols visible

右側からのみの照射

Black-and-white photo of two patterned tiger figurines with black and white dot patterns (no text or symbols)

上方・右側両方からの 照射

Black-and-white close-up of two patterned tiger figurines with dot patterns (no text or symbols)

上方からディフューザーを使用した照射

次ページにつづく

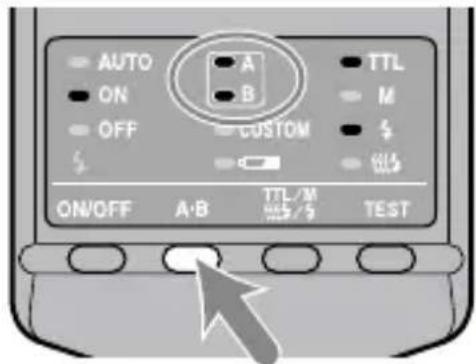

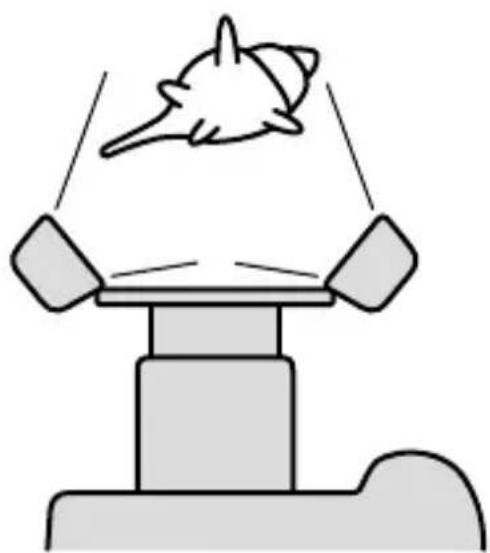

アームを使用した2灯撮影

Black-and-white close-up of white flower buds with leaves against a dark background (no text or symbols)

Diagram showing three light sources projecting a curved object onto a platform, with no text or symbols present.

アームなしで前面から照射

Black-and-white close-up of white flower buds with stems and leaves against a dark background (no text or symbols)

Simple line drawing of a mechanical device with a curved component above a base (no text or symbols)

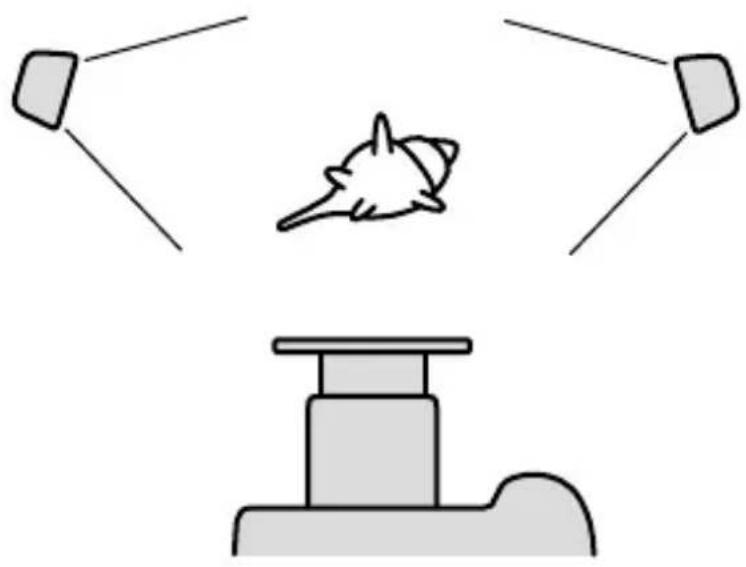

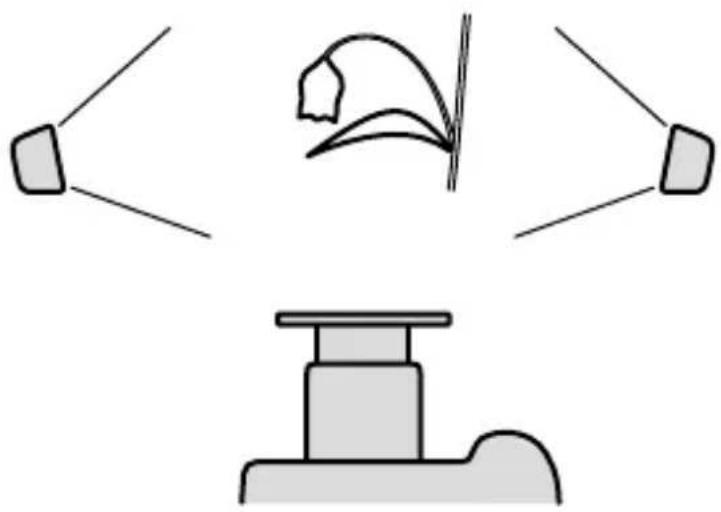

ご注意

Black-and-white close-up of a seashell with spiky fronds and a circular container on its side (no text or symbols visible)

Simple diagram showing two radar units projecting a central object to a platform, with no text or symbols present.

アームなしで前面から照射

Black-and-white photo of a spiky seashell and a circular stone artifact (no text or symbols visible)

Simple line drawing of a mechanical device with a gear-like object above it (no text or symbols)

絞り設定範囲表

Before operating the product, please read this manual thoroughly and retain it for future reference.

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

Tape over lithium battery contacts to avoid short-circuit when disposing of batteries, and follow local regulations for battery disposal.

Keep batteries or things that could be swallowed away from young children. Contact a doctor immediately if an object is swallowed.

Immediately remove the batteries and discontinue use if...

• the product is dropped or subjected to an impact in which the interior is exposed.
• the product emits a strange smell, heat, or smoke.

Do not disassemble. Electric shock may occur if a high voltage circuit inside the product is touched.

IMPORTANT SAFETY INSTRUCTIONS

When using your photographic equipment, basic safety precautions should always be followed, including the following:

Read and understand all instructions before using.

Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use.

Care must be taken as burns can occur from touching hot parts.

Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged- until it has been examined by a qualified serviceman.

Let appliance cool completely before putting away. Loop cord loosely around appliance when storing.

To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.

To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified serviceman when service or repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subsequently.

The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock, or injury to persons.

Batteries may become hot or explode due to improper use.

Use only the batteries specified in this instruction manual.

Do not install the batteries with the polarity (+/-) reversed.

Do not subject batteries to fire or high temperatures.

Do not attempt to recharge (except for rechargeable batteries), short or disassemble.

Do not mix, batteries of different types, brands or ages.

SAVE THESE INSTRUCTIONS

CAUTION

Do not touch the flashtube during operation, it may become hot when the flash fires.

Do not expose the batteries to excessive heat such as sunshine, fire or the like.

For customers in Europe

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

< Notice for the customers in the countries applying EU Directives >

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

For the customers in the U.S.A.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Table of contents

Features 6

Name of parts 7

Preparations

Inserting batteries .... 11

Attachment and removal of the macro flash controller .... 13

Attaching the macro twin flash 14

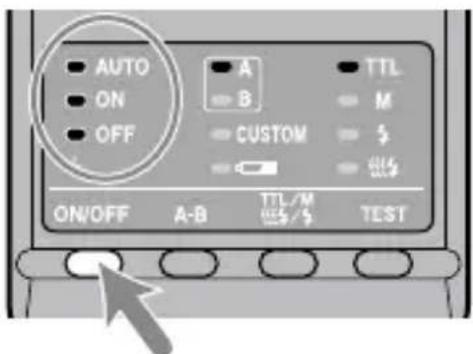

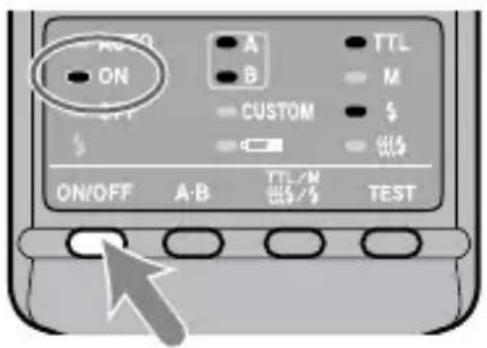

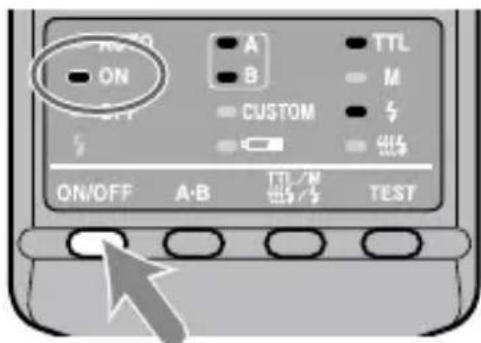

Auto power ON/OFF 21

Basics

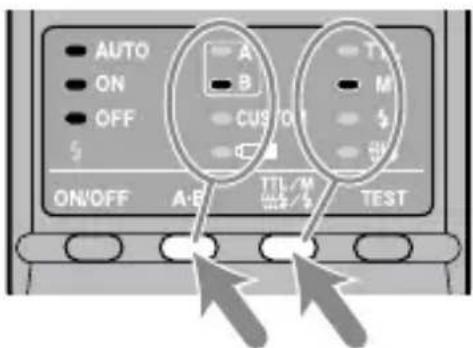

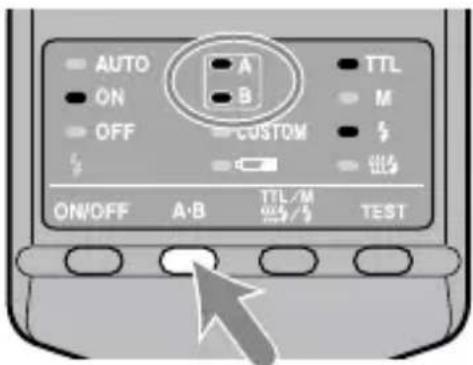

Basic flash modes (A mode/M mode) ...... 22

Program auto flash (The basics) 30

Detailed operations

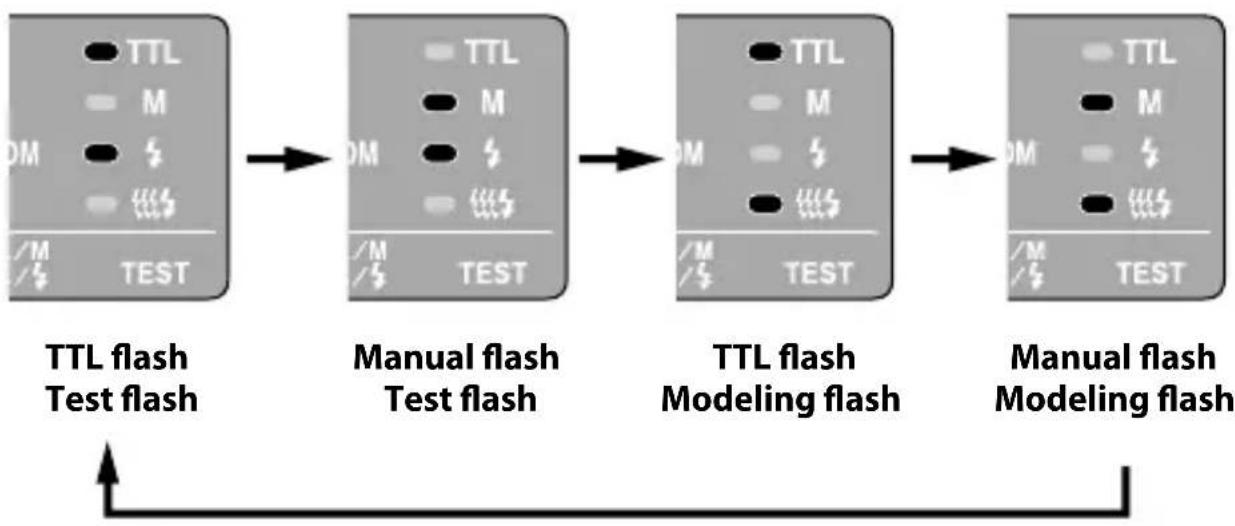

Manual flash (M) 32

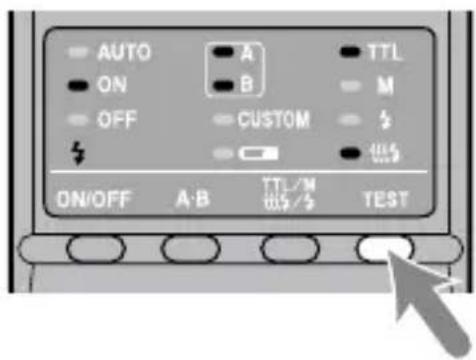

Test flash 40

Modeling flash 41

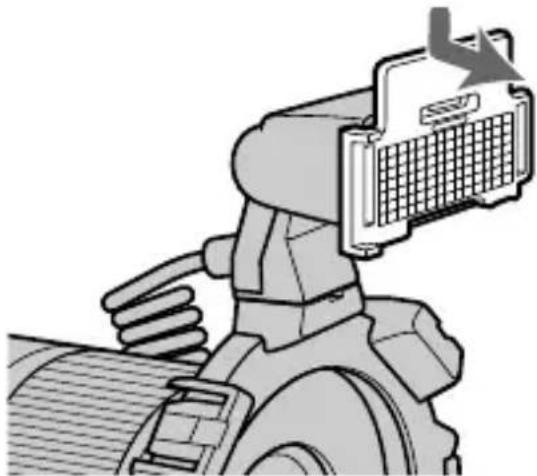

Wide panel 42

Diffuser 44

Custom setting 48

Additional Information

Examples of macro twin flash photography .... 51

Aperture range graph .... 54

Compatibility with other products .... 56

Notes on use 57

Maintenance 58

Specifications.... 59

Before use

For details, refer to the operating instructions supplied with your camera.

This flash is not dust-proof, splash-proof or waterproof.

Do not place this flash in the following locations

Regardless of whether this unit is in use or in storage, do not place it in any of the following locations. Doing so may lead to a malfunction.

• Placing this flash in locations subject to direct sunlight such as on dashboards or near a heater may cause this unit to deform or malfunction.
• Locations with excessive vibration
• Locations with strong electromagnetism
• Locations with excessive sand In locations such as the seashore and other sandy areas or where dust clouds occur, protect the unit from sand and dust. This may lead to a malfunction.

Features

The macro twin flash kit provides flexible lighting for macro nature photography. It is ideal for close-up photography of flowers, insects, small objects, and so on.

• Freedom to change the attachment position and angle of the flashtube enables more expressive photography.
• Attaching two-length adjustable arms between the twin flash units and holders makes it possible to change the lighting for high magnification close-up photography.
• Using the supplied diffuser enables softer lighting.
• The supplied wide panel expands flash coverage to a focal length of 24 mm.
• Modeling flash function can check shadows before photographing.

Name of parts

Macro Flash Controller

* Do not touch directly.

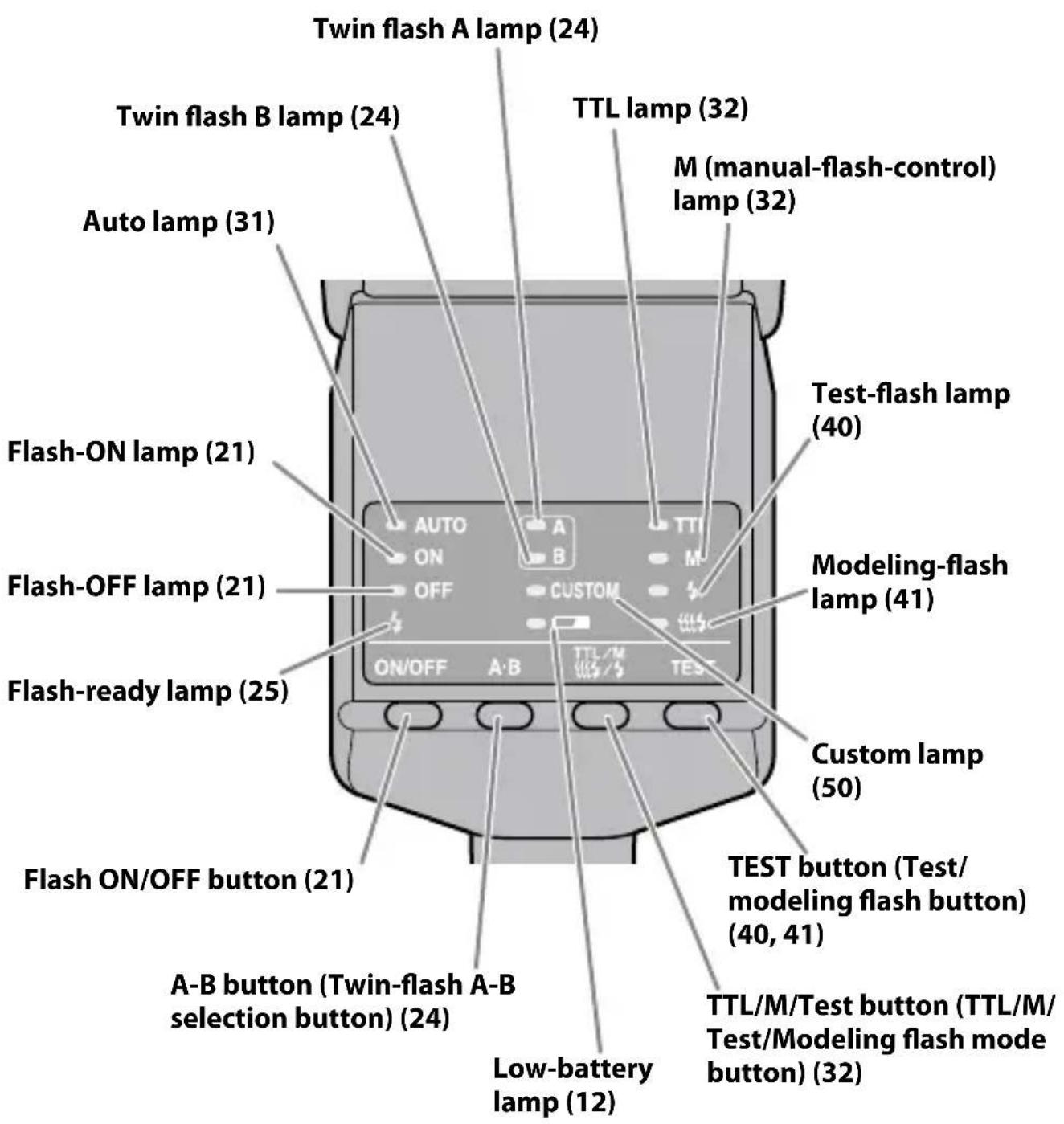

Control Panel

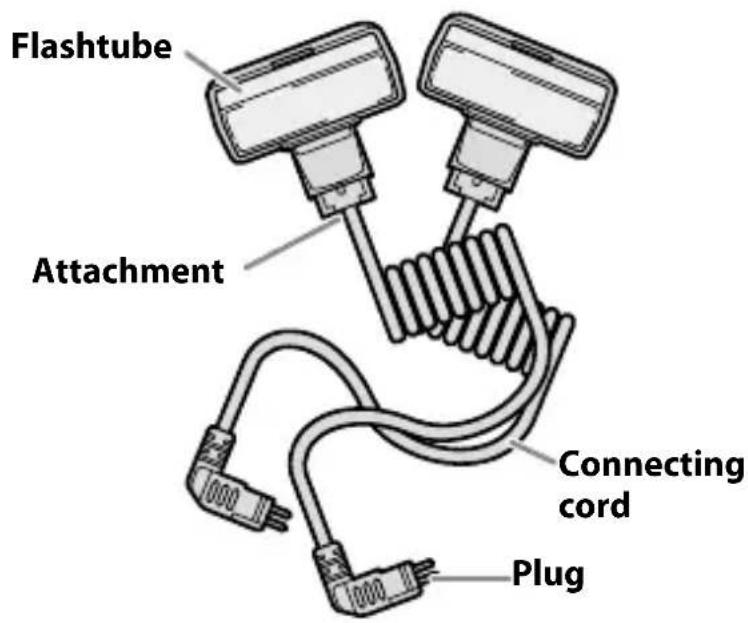

Macro Twin Flash

Twin Flash Unit*

Holder (14)

Arm* (17)

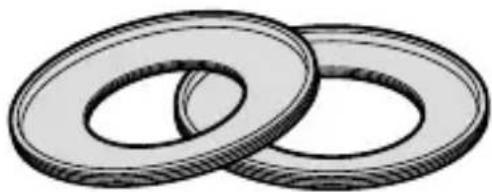

Adaptor ring (14)
∅49mm, ∅55mm

Illustration of two overlapping rings (no text or symbols)

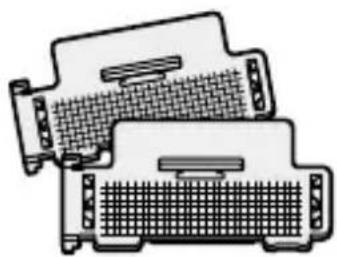

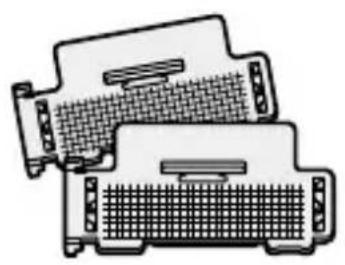

Diffuser* (44) Wide panel* (42) Cord reel* (18)

Technical line drawing of a mechanical component with mounting holes and a central connector (no text or symbols)

Illustration of a computer keyboard layout with no text or symbols

Illustration of a mechanical component with interlocking parts and internal channels (no text or symbols)

* Two supplied

Example of storage

Inserting batteries

The HVL-MT24AM may be powered by :

* Batteries are not supplied.
• Four AA-size alkaline batteries
• Four AA-size lithium batteries
- Four AA-size rechargeable nickel-metal hydride (Ni-MH) batteries Always ensure that rechargeable nickel-metal hydride batteries are charged in the specified charger unit.

1 Open the battery-chamber door as shown.

2 Insert the batteries in the battery chamber as in the diagram.

Diagram of a camera module with four batteries and labeled terminals (no text or symbols)

3 Close the battery-chamber door.

• Follow the reverse steps when opening the battery-chamber door.
• The lamp on the control panel comes on. If it does not come on, press the flash ON/OFF button.

Continuedonthenextpage

Checking Batteries

The clamp on the control panel comes on or blinks when the batteries are low.

lamp on

Changing the batteries is recommended. The flash can still be used in this state if (Flash-ready lamp) on the rear of the unit is lit.

Only tap blinking

Flash cannot be used. Insert new batteries.

- If nothing comes on when the flash ON/OFF button of the macro flash controller is pressed, check the orientation of the batteries.

Attachment and removal of the macro flash controller

Attaching the macro flash controller to the camera

Push the mounting foot firmly onto the camera until it stops.

• The macro flash controller is locked in place automatically.
• If the built-in flash in the camera is protruding, lower it before attaching the macro flash controller.

Diagram of a DSLR camera with an attached digital display and control buttons (no text or symbols)

Removing the macro flash controller from the camera

While pressing the mounting foot release button ①, remove the macro flash controller ②.

Attaching the macro twin flash

1 Screw the appropriate adaptor ring clockwise onto the lens.

49mm and 55mm diameter adaptors are supplied.

Line drawing of a DSLR camera with a coiled lens and scroll wheel (no text or symbols)

2 While pressing the tabs on each side of the holder, place the holder over the adaptor, and then release both tabs.

Technical illustration of a mechanical component with gear and adjustment arrows (no text or symbols)

3 Remove the protective socket caps of the macro flash controller.

• For safe-keeping, place the caps in the case.
• Replace caps after use.

Illustration of a portable camera with adjustment knobs and a button, no text or symbols present

4 Place the twin flash unit into the shoe of one of the holders.

Use of an arm is also possible (p. 17).

Mechanical assembly diagram showing a tractor with a belt drive and gear (no text or symbols)

5 Insert the plug of the twin flash unit into the twin-flash-cord socket on the macro flash controller.

Illustration of a camera device with ports and an external plug, no text or symbols present

Continuedonthenextpage

When removing the plug, press the twin flash-cord release button on the macro flash controller and pull the plug straight out of the socket.

Do not remove the plug by pulling on the connecting cord.

Technical line drawing of a mechanical device with adjustment knobs and a scroll wheel (no text or symbols)

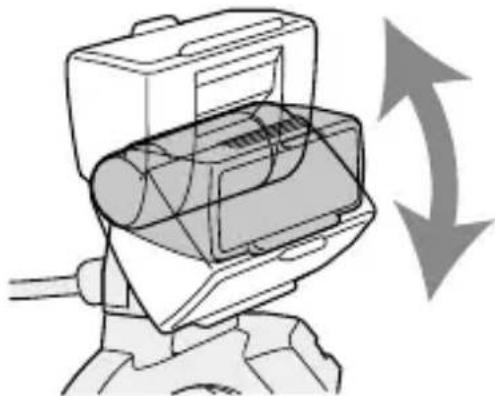

6 Adjust positions of the flashtubes as desired.

- Each flashtube of the twin flash unit can be attached to any of the holder's four shoes.

• Each fl ashtube of the twin flash unit can be tilted.

Diagram of a mechanical device with directional arrows indicating rotation or movement (no text or symbols)

- The holder can be rotated. Press the release tabs when removing or rotating the holder.

Top-down schematic of a mechanical component with three arms and directional arrows indicating flow or movement (no text or symbols)

Attaching the arm

You can use an arm to position the flash unit away from the lens.

1 Attach the arm by sliding its base into one of the four shoes on the holder.

Mechanical assembly diagram showing a lever interacting with a gear (no text or symbols visible)

2 Attach the flashtube of the twin flash unit to the shoe of the arm.

3 Set the arm at either of two lengths.

Technical line drawing of a mechanical device with lever and cable (no text or symbols)

Continuedonthenextpage

4 When changing the angle to 60^ position, hold both ends of the arm and move it so that it clicks twice into place.

• The angle of the arm can be adjusted to either of two positions, 60^ or 90^ position.
• Although the arm can be moved past the 60^ and 90^ positions to prevent breakage, only use in these two positions. Also, do not attach the two arms in combination. Doing so may damage the arms.

Mechanical assembly diagram showing two views of a mechanical linkage mechanism (no text or symbols)

60° position 90° position

Using the cord reel

The cord reel can be attached to the side of the macro flash controller to take up slack in the connecting cord of the twin flash unit.

Attaching the cord reel to the macro flash controller

As illustrated, first check the up-down direction of the cord reel, and then attach the top of the cord reel followed by the bottom of the cord reel to the reel-attachment points on the side of the macro flash controller.

Mechanical component diagram showing a lever mechanism with no visible text or symbols

Example of taking up the connecting cord

Secure the connecting cord slack by wrapping it around the reel and using the outer notches, as illustrated.

Mechanical component with coiled spring and plug assembly, showing magnified detail (no text or symbols)

Removing the cord reel

Pull the bottom of the cord reel away from the macro flash controller to remove it.

Mechanical component diagram showing a lever mechanism with no visible text or symbols

Continuedonthenextpage

- By attaching the wide panel to the flashtube, the flash coverage angle can be increased (p. 42).

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

- By using the diffuser attached to the flashtube, strong shadows can be softened. Always use the diffuser with an arm (p. 44).

Technical line drawing of a mechanical linkage or robotic arm with a rectangular component attached (no text or symbols)

• Make sure the flashtube is pointing at the subject. Do not allow the cord to get in front of the flashtube or lens.
  • See page 51 for photographic examples.
• If an arm is used when taking extreme close-ups with a 50mm F2.8 Macro lens, the subject may not receive sufficient lighting (p. 53).

Auto power ON/OFF

Press the flash ON/OFF button on the back of the macro flash controller.

Power of the macro flash controller comes on.

When the power of the macro flash controller is turned on, the flash-ON lamp on the control panel comes on.

If you press the flash ON/OFF button while the macro flash controller is turned on, the macro flash controller switches off and the flash-OFF lamp on the control panel comes on.

- The flash-OFF lamp goes out after about 10 seconds.

Auto power off

If the camera or macro flash controller is not used for four minutes, the power switches off and control panel indicators disappear automatically to save the batteries.

- You can disable auto power off or change the auto power off time by changing the customized settings (p. 48).

Basic flash modes (A mode/M mode)

Camera's exposure mode should be set to either A (aperture priority) mode ^1 , or M (manual) mode ^2 .

• In general close-up photography, the depth-of-field ^*3 must be quite shallow, which usually requires a smaller aperture when shooting. It is therefore better to select A or M mode, which enable you to select the aperture.
  Using a macro lens is also recommended.

In this section, the basic flash operation in A or M mode with TTL metering (TTL lamp on) is described.

The following instructions from the next page assume that you are using one of the following cameras and macro lenses.

Camera: A camera with A (aperture priority) mode or M (manual) mode.

Lens: 50mm F2.8 Macro

100mm F2.8 Macro

If you photograph in P mode, refer to page 30. If using a different lens, see the aperture range graph on page 54.

^1 A mode: In A mode, you select the aperture and the camera automatically sets the shutter speed required for proper exposure.
^2 M mode: You can select both aperture and shutter speed. You can select a shutter speed that is slower than the camera's sync speed.
*3 Depth-of-field: The range behind and in front of the subject that is sharply focused. In close-up photography, this range is shallower and the out-of-focus range is wider.

1 Set the POWER switch of the camera to ON and select A or M mode.
2 Press the flash ON/OFF button to turn on the flash-ON lamp on the control panel.

3 Focus your subject and check the magnification ratio.

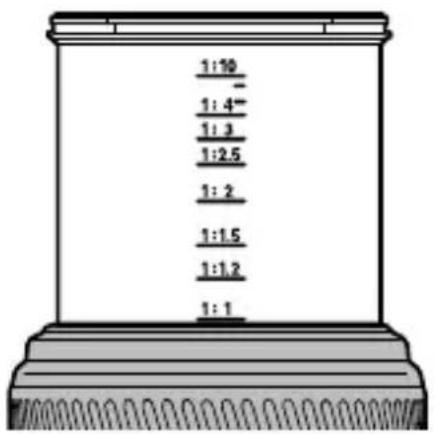

You can check the magnification ratio with the magnification ratio scale on the lens. (The location of the magnification ratio scale differs depending on the lens.)

4 When using M mode, select a shutter speed.

You cannot select the shutter speed faster than the camera's sync speed.

5 Select the aperture.

To find the correct aperture number, refer to pages 26 to 29.

Continuedonthenextpage

6 Select the flash.

Press the A-B button on the back of the macro flash controller to turn on the twin flash A lamp, twin flash B lamp or both twin flash lamps. (The lit lamps indicate which flash will go off.)

As viewed from the rear (control panel side), the A flash is connected to the left side socket and the B flash to the right side socket.

- For the effect of selecting the flash, see from page 51 to 53.

7 When the macro flash controller is charged, press the shutter button to take a photo.

The macro flash controller is charged when the flash-ready lamp on the control panel of the macro flash controller and the indicator in the camera viewfinder are both on.

When the correct exposure has been obtained for the photo just taken, the flash-ready lamp ↓ on the control panel blinks.

• The photo will be under-exposed if taken before charging is complete.
• The use of a tripod or remote cord is recommended to reduce camera shake.
• A camera-to-subject distance of less than 0.5m, and a magnification ratio of more than 0.15X (greater than 1:7), are recommended to get the best results from the macro flash units.
• Always turn off the macro flash controller if the twin flash unit is not connected. If the twin flash unit is not attached, but the controller is on, the camera flash sync will be in effect and the resulting ambient exposures will be incorrect.
• The camera's AF illuminator is blocked by the adaptor ring or twin flash unit and cannot be used for focusing.

Continuedonthenextpage

Selecting Apertures in TTL Flash

- The following tables show values when ISO 100 is used without the wide panel or diffuser. For other ISO speeds, or if you use the wide panel or diffuser, adjust the aperture settings according to the tables on page 28.

- The aperture ranges given in the tables are calculated values. The actual lens will have its own usable aperture range.

Example: Using a 50mm F2.8 Macro lens when ISO 100, with a pair of twin flash units with no arm, at a magnification ratio of 1:1

→ The range of acceptable apertures is calculated to be from f/4 to f/90 (refer to the following table).

However, the lens aperture range is f/2.8 to f/32, so the actual range possible with this lens is f/4 to f/32.

- The following tables show data for certain lenses and magnification ratios. For other lenses and magnification ratios, see page 54.

50mm F2.8 Macro (Lens aperture range : f/2.8 - f/32)

Magnification ratio	1:1 1:1.5	1:2 1:3 1:4
Without arm	4 ~ 902.8 ~ 64	5.6 ~ 1284 ~ 90	8 ~ 1805.6 ~ 128	5.6 ~ 1284 ~ 90	4.5 ~ 1083.5 ~ 76
Arm (short)60° position	2.4 ~ 541.7 ~ 38	2.8 ~ 642 ~ 45	4 ~ 902.8 ~ 64	4 ~ 902.8 ~ 64	4.5 ~ 1083.5 ~ 76
Arm (long)90° position	1.4 ~ 321 ~ 22	1.4 ~ 321 ~ 22	2 ~ 451.4 ~ 32	2.4 ~ 541.7 ~ 38	2.8 ~ 642 ~ 45

Upper set of numbers is for two twin flash units.

Lower set is for one twin flash unit.

100mm F2.8 Macro (Lens aperture range : f/2.8 - f/32)

Magnification ratio	1:1 1:1.5	1:2 1:3
Without arm	3.5 ~ 76	3.5 ~ 76	2.8 ~ 64	2.4 ~ 54
	2.4 ~ 54	2.4 ~ 54	2 ~ 45	1.7 ~ 38
Arm (short)	2 ~ 45	2.8 ~ 64	2.8 ~ 64	2.8 ~ 64
60° position	1.4 ~ 32	2 ~ 45	2 ~ 45	2 ~ 45
Arm (long)	1.2 ~ 27	1.7 ~ 38	2 ~ 45	2 ~ 45
90° position	0.85 ~ 19	1.2 ~ 27	1.4 ~ 32	1.4 ~ 32

Upper set of numbers is for two twin flash units. Lower set is for one twin flash unit.

When using other than ISO 100, or when using the wide panel or diffuser

An additional adjustment must be applied to the previous tables.

	Without wide panel or diffuser (Exposure adjustment)	With wide panel (Exposure adjustment)	With diffuser (Exposure adjustment)
ISO 25 +	2 Stop +3.5 Stop +4.5 Stop
ISO 50 +	1 Stop +2.5 Stop +3.5 Stop
ISO 100 No change +1.5 Stop +2.5 Stop
ISO 200 -1 Stop +0.5 Stop +1.5 Stop
ISO 400 -2 Stop -0.5 Stop +0.5 Stop
ISO 800 -3 Stop -1.5 Stop -0.5 Stop
ISO 1600 -4 Stop -2.5 Stop -1.5 Stop

f/stop scale

Using the f/stop scale

Using the f/stop scale at the left, moving one step vertically is equal to a full-stop change. Moving one step diagonally is equal to a half-stop change.

Half a stop is basic for setting the aperture in this step. When using a 0.3 stop setting camera, adjust the aperture by a value as close as possible to a value in the above table and use the aperture around the f/stop scale.

For precise photography, bracketing is recommended.

Example:

Starting at f/8, if you decrease the exposure by a full stop, you get f/11. If you increase by half a stop, you get f/6.7.

Selecting the aperture when using other than ISO 100, or when using the wide panel or diffuser

1 Check the calculated acceptable aperture range under the same condition with ISO 100 by using the table on page 27.
2 Check the additional adjustment when using other than ISO 100 or when using the wide panel or diffuser by using the table on page 28.
3 Check the calculated acceptable aperture range by using the f/stop scale using the results of step1 and step2.
4 Apply the result of step3 to the actual aperture range for this particular lens and select the usable range for satisfactorily results.

Example: Using a 50mm F2.8 Macro lens, two twin flash units, no arm, magnification ratio of 1:2, and ISO 200

1 Check the calculated acceptable aperture range when using a 50mm F2.8 Macro lens, two twin flash units, no arm, magnification ratio of 1:2, and ISO 100.
→f/8 - f/180 (refer to the table on page 27)

2 Check the additional adjustment when using ISO 200 and diffuser by using the table on page 28.

→Increase the aperture by +1.5 stops (refer to the table on page 28).

3 The aperture increased by +1.5 stops from f/8 is equal to f/4.5, and the aperture increased by +1.5 stops from f/180 is equal to f/108.

4 The ac tual aperture range for a 50mm F2.8 Macro lens is f/2.8 - f/32, so the upper limit of the adjusted f/4.5 - f/108 range, i.e. f/108, is beyond the range that can be set. The usable range for satisfactorily results is therefore f/4.5 - f/32.

Program auto flash (The basics)

The procedure for P mode, including subject program selection, is the same as that for A or M mode, except that the aperture is set automatically.

1 Set the POWER switch of the camera to ON and select P mode.
2 Press the flash ON/OFF button to turn on flash-ON lamp on the control panel.

3 Focus your subject and check the magnification ratio.

4 Select the flash.

5 When the macro flash controller is charged, press the shutter button to take a photo.

- With some cameras, the flash will fire automatically in P mode. In this case, the auto lamp on the macro flash unit comes on and the flash may not fire if the surrounding conditions are bright.

- The P mode flash program is designed for general subjects, not macro subjects. When taking macro photos, the depth-of-field may be very shallow. If the aperture selected by the camera is outside the allowable range, the proper exposure cannot be obtained (p. 26 - 29).

Manual flash (M)

Normal TTL flash metering automatically adjusts the flash intensity to provide the proper exposure for the subject. Manual flash provides a fixed flash intensity irrespective of the brightness of the subject and the camera setting.

• In manual flash mode, the maximum flash power is when the manual flash control is set to 1/1. Each step of the flash power level corresponds to one aperture stop. Changing the setting by one stop, for example from 1/1 to 1/2, is equivalent to decreasing the aperture one stop, for example from f/4 to f/5.6.
• Manual flash can only be used when the camera is in the M mode. In other modes, TTL measuring is automatically selected.
• As manual flash is not affected by the reflectivity of the subject, it is convenient for use with subjects with extremely high or low reflectivity.

TTL flash metering Manual flash metering

1 Select M mode on the camera.
2 Press the TTL/M/Test button to light on the M (manual-flash control) lamp.

The modes change in the following order. (Test flash (p. 40), Modeling flash (p. 41))

3 Select shutter speed and aperture (p. 34 - 39).

4 Turn the appropriate manual-flash-control dial and select the desired power level (p. 34 - 39).

- When viewed from the rear (control panel side), the manual-flash-control dial for twin flash A is on the left, and that for twin flash B is on the right. You can select any power level setting on the upper scale from 1/1 to 1/64.

• In manual flash mode, if a proper exposure has been obtained, the flash-ready lamp will not blink on the control panel after a photo is taken.
• Using customized functions, manual flash may be selected without setting the camera in M mode. The size of the steps on the manual-flash-control dials can also be changed from full-stop increments to half-stop increments (p. 48).

Continuedonthenextpage

Selecting apertures and power level in manual flash

• The following tables show the values when ISO 100 is used without the wide panel or diffuser. For other ISO speeds, or if you use the wide panel or diffuser, adjust the aperture settings according to the table on page 38. When using the twin flash units, the data assumes that the power lever is the same for both units. If they are set at different power levels, see page 37.
• The aperture values given in the tables are calculated values. The actual lens will have its own usable aperture range.

Example: Using a 50mm F2.8 Macro lens when ISO 100, with a pair of twin flash units with no arm, power level of 1/1, and a magnification ratio of 1:1

→ The aperture is calculated at f/90 (refer to the following table). However, the smallest actual aperture possible with this lens is f/32. Therefore, if you set the power level to 1/1, the picture will be overexposed. But if you set the power level to 1/8, you will get a correct exposure at f/32.

• These following tables show the apertures where the proper exposure of the illuminated area is obtained. Actual exposure varies according to the subject's shape or position (p. 53). Test photographs or bracketing is recommended especially when the subject is illuminated from side or behind.
• The following tables show data for certain lenses and magnification ratios. For other lenses and magnification ratios, see page 55.

50mm F2.8 Macro (Lens aperture range: f/2.8 - f/32)

	Magnification ratio	1:1 1:1.5	1:2 1:3 1:4
	Power level
Without arm	1/1 90 (64)	128 (90) 1	80 (128) 12	8 (90) 108	(76)
	1/2 64 (45)	90 (64) 12	8 (90) 90 (64)	76 (54)
	1/4 45 (32)	64 (45) 90	(64) 64 (45)	54 (38)
	1/8 32 (22)	45 (32) 64	(45) 45 (32)	38 (27)
	1/16 22 (16)	32 (22) 45	(32) 32 (22)	27 (19)
	1/32 16 (11)	22 (16) 32	(22) 22 (16)	19 (13)
	1/64 11 (8)	16 (11) 22	(16) 16 (11)	13 (9.5)
Arm(short) 60^ position	1/1 54 (38)	64 (45) 90	(64) 90 (64)	108 (76)
	1/2 38 (27)	45 (32) 64	(45) 64 (45)	76 (54)
	1/4 27 (19)	32 (22) 45	(32) 45 (32)	54 (38)
	1/8 19 (13)	22 (16) 32	(22) 32 (22)	38 (27)
	1/16 13 (9.5)	16 (11) 2	2 (16) 22 (16)	27 (19)
	1/32 9.5 (6.7)	11 (8) 16	(11) 16 (11)	19 (13)
	1/64 6.7 (4.5)	8 (5.6) 1	1 (8) 11 (8)	13 (9.5)
Arm(long) 90^ position	1/1 32 (22)	32 (22) 45	(32) 54 (38)	64 (45)
	1/2 22 (16)	22 (16) 32	(22) 38 (27)	45 (32)
	1/4 16 (11)	16 (11) 22	(16) 27 (19)	32 (22)
	1/8	11 (8) 11	(8) 16 (11)	19 (13) 22	(16)
	1/16	8 (5.6) 8	(5.6) 11 (8)	13 (9.5)	16 (11)
	1/32	5.6 (4) 5.6	(4) 8 (5.6)	9.5 (6.7)	11 (8)
	1/64	4 (2.8) 4	(2.8) 5.6 (4)	6.7 (4.5)	8 (5.6)

Use aperture values inside ( ) when only one twin flash unit is used.

100mm F2.8 Macro (Lens aperture range: f/2.8 - f/32)

	Magnification ratio	1:1 1:1.5	5 1:2 1:3
	Power level
Without arm	1/1 76 (54)	76 (54) 64	(45) 54 (38)
	1/2 54 (38)	54 (38) 45	(32) 38 (27)
	1/4 38 (27)	38 (27) 32	(22) 27 (19)
	1/8 27 (19)	27 (19) 22	(16) 19 (13)
	1/16 19 (13)	19 (13) 16	(11) 13 (9.5)
	1/32 13 (9.5)	13 (9.5)	11 (8) 9.5 (6.7)
	1/64 9.5 (6.7)	9.5 (6.7)	8 (5.6) 6.7	(4.5)
Arm(short) 60^ position	1/1 45 (32)	64 (45) 64	(45) 64 (45)
	1/2 32 (22)	45 (32) 45	(32) 45 (32)
	1/4 22 (16)	32 (22) 32	(22) 32 (22)
	1/8 16 (11)	22 (16) 22	(16) 22 (16)
	1/16 11 (8)	16 (11) 16	(11) 16 (11)
	1/32 8 (5.6)	11 (8) 11	(8) 11 (8)
	1/64 5.6 (4)	8 (5.6) 8 (5.6)	8 (5.6)
Arm(long) 90^ position	1/1 27 (19)	38 (27) 45	(32) 45 (32)
	1/2 19 (13)	27 (19) 32	(22) 32 (22)
	1/4 13 (9.5)	19 (13) 22	(16) 22 (16)
	1/8 9.5 (6.7)	13 (9.5)	16 (11) 16 (11)
	1/16 6.7 (4.5)	9.5 (6.7)	11 (8) 11 (8)
	1/32 4.5 (3.5)	6.7 (4.5)	8 (5.6) 8 (5.6)
	1/64 3.5 (2.4)	4.5 (3.5)	5.6 (4) 5.6	(4)

Use aperture values inside ( ) when only one twin flash unit is used.

When twin flash units are at different power level settings

The values given in the preceding tables for the twin flash units assume that both twin flash units are set at the same flash level.

When they are set to different flash power levels, the aperture needed for correct exposure can be calculated using the following equation:

Aperture*

$$ = \sqrt {(\mathrm{Aflashaperture}) ^ {2} + (\mathrm{Bflashaperture}) ^ {2}} $$

Example:

Using a 100mm F2.8 Macro lens with a pair of twin flash units with no arm, "A" flash is set at a power level of 1/8, "B" flash unit is set at 1/16, and the magnification ratio is 1:1

The A flash aperture set at a power level of 1/8 is f/19 and the B flash aperture set at a power level of 1/16 is f/13 (refer to the table on 36 page).

Apply these results in the above equation.

$$ \sqrt {1 9 ^ {2} + 1 3 ^ {2}} = \sqrt {3 6 1 + 1 6 9 = 5 3 0 2 2} \quad \div $$

Therefore, in the above example, an aperture setting of f/22 will give proper exposure.

* When both twin flash units are used.

When using other than ISO 100, or when using the wide panel or diffuser

An additional adjustment must be applied to the previous tables.

	Without wide panel or diffuser (Exposure adjustment)	With wide panel (Exposure adjustment)	With diffuser (Exposure adjustment)
ISO 25 +	2 Stop +3.5 Stop +4.5 Stop
ISO 50 +	1 Stop +2.5 Stop +3.5 Stop
ISO 100 No change +1.5 Stop +2.5 Stop
ISO 200 -1 Stop +0.5 Stop +1.5 Stop
ISO 400 -2 Stop -0.5 Stop +0.5 Stop
ISO 800 -3 Stop -1.5 Stop -0.5 Stop
ISO 1600 -4 Stop -2.5 Stop -1.5 Stop

f/stop scale

Using the f/stop scale

Using the f/stop scale at the left, moving one step vertically is equal to a full-stop change. Moving one step diagonally is equal to a half-stop change.

Half a stop is basic for setting the aperture in this step. When using a 0.3 stop setting camera, adjust the aperture by a value as close as possible to a value in the above table and use the aperture around the f/stop scale.

For precise photography, bracketing is recommended.

Example:

Starting at f/8, if you decrease the exposure by a full stop, you get f/11. If you increase by half a stop, you get f/6.7.

Selecting the aperture when using other than ISO 100, or when using the wide panel or diffuser

1 Check the calculated acceptable aperture under the same condition with ISO 100 by using the table on pages 35 and 36.
2 Check the additional adjustment when using other than ISO 100 or when using the wide panel or diffuser by using the table on page 38.
3 Select the c calculated acceptable aperture by using the f/stop scale using the results of step1 and step2.

Example: Using a 100mm F2.8 Macro lens, two twin flash units, no arm, a power level of 1/4, magnification ratio of 1:1, ISO 200 with the diffuser

1 Check the calculated acceptable aperture when using a 100mm F2.8 Macro lens, two twin flash units, no arm, a power level of 1/4, magnification ratio of 1:1, and ISO 100.
→f/38 (refer to the table on page 36)

2 Check the additional adjustment when using ISO 200 and diffuser by using the table on page 38.

→Increase the aperture by +1.5 stops (refer to the table on page 38).

3 The aperture increased by +1.5 stops from f/38 is equal to f/22.

Test flash

You can try one test flash before shooting. Use test flash mode when using a flash meter in manual-flash mode.

1 Press the TTL/M/Test button to turn on the test-flash lamp ♣.

Each time the TTL/M/Test button is pressed to change the TTL and M lamp be sure to check that the appropriate lamp is on. (See page 33 for the display sequence.)

2 Press the TEST button (test/modeling flash button).

- With TTL flash metering, the test flash will fire at full power when the TEST button is pressed.

- In manual flash mode, the test flash will fire at the selected power level when the TEST button is pressed. When using a flash meter, use manual flash mode.

Modeling flash

You can try continuous flash to check for shadows on the subject before shooting. The flash will fire for two seconds at a rate of 40 flashes per second.

1 Press the TTL/M/Test button to turn on the modeling-flash lamp.

Each time the TTL/M/Test button is pressed to change the TTL and M lamp be sure to check that the appropriate lamp is on. (See page 33 for the display sequence.)

2 Press the TEST button (test/modeling flash button).

• Do not press the shutter button while the flash is in use.
• The strength of shadows will differ from that during actual photography.
• When using the flash in a bright place or outdoors or when using a bounce flash, shadows are lighter so verification is more difficult.

Wide panel

The twin flash unit has a coverage of 60^ horizontally and 45^ vertically (equivalent to a lens with a 35mm focal length). By attaching the wide panel, the angles are increased to 78^ horizontally and 60^ vertically (equivalent to a lens with a 24mm focal length).

Attaching the wide panel

1 Check the front side of the wide panel.

2 Align the lower edge of the wide panel to the projection on the side of the flashtube and press the wide panel.

Press the wide panel until it clicks into place.

Two grayscale illustrations of a robotic arm with a keyboard and a grid-patterned device, no text or symbols present.

Removing the wide panel

Hold the top tab of the wide panel and remove it forwards while pressing downward slightly.

Illustration of a mechanical component with a grid-patterned connector and cable (no text or symbols)

The flash output is reduced when using the wide panel. See page 28 for TTL flash metering and page 38 for manual flash metering.

Diffuser

Strong shadows can be softened by attaching the diffuser to the flashtube. Always use the diffuser with an arm to prevent it appearing in the image.

Example:

Close-up of tennis netting and grid pattern on a surface (no text or symbols visible)

With diffuser Without diffuser

Using the diffuser

1 Unclip the panel from the diffuser.

2 As illustration, slide the tab through the slot near the clip. The dimple above the slot should slide fit into the hole in the tab.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

3 Place the four side tabs into the slot on the side of the diffuser.

On the other side, in the same way, place the four side tabs into the slots.

Diagram showing a device being processed from a left-side to the right-side view, with no visible text or symbols.

- If it is difficult to assemble the diffuser, fold it up and try again.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Note

Do not force or pull hard on the diffuser. Do not fold the diffuser inside out.

Continuedonthenextpage

4 While holding the diffuser by its panel's top tab, press it against the face of the twin flash unit.

Press the diffuser until it clicks into place.

Mechanical assembly diagram showing a lever mechanism before and after assembly (no text or symbols)

Notes on using the diffuser

• If the arm is set at the 60^ position and used with a wide angle lens, the diffuser may appear in the image. It is recommended that you always use the diffuser with the arm set at the 90^ position.
• The flash output is reduced when using the diffuser. See page 28 for TTL flash metering, or page 38 for manual flash metering.

Removing the diffuser

1 Remove the diffuser while holding its panel's top tab.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

2 Pull the tab off the dimple as illustration. The diffuser can now be easily removed.

Diagram of a mechanical component with an arrow indicating force or movement, no visible text or symbols

3 Refold the diffuser and secure it by clipping the panel to it.

Diagram showing a mechanical component being processed into a housing, with arrows indicating motion (no text or symbols present)

Custom setting

The various flash settings can be changed as necessary.

The following three items may be changed.

• Time to auto power off (4 minutes/15 minutes/60 minutes/None)
- Recording modes in which manual flash may be set (M mode only/All modes)
- Manual-flash power-level steps (1EV increments / 1/2EV increments)

1 Press the flash ON/OFF button for three seconds.

The auto lamp, flash-ON lamp and flash-OFF lamp all come on together, and the item (time to auto power off) is displayed.

2 Press the A-B button (twin-flash A-B selection button) to select the item, and press the TTL/M/Test button to select the desired setting.

Each time the A-B button is pressed, the above three items appear on the control panel (see following page).

SelectusingtheTTL/M/Testbutton

1.Timetoautopoweroff

4minutes15minutes

60minutesNone

2. Recording modes in which manual flash may be set

MmodeonlyAllmodes

3. Manual-flashpower-levelsteps

1EVincrements1/2EVincrements

Continuedonthenextpage

3 After making your selections, press the flash ON/OFF button to return to exit the custom mode.

- When a setting other than the default setting is selected in custom mode, the custom lamp on the control panel comes on.

- When “All modes” is selected (see 2. Recording modes in which manual flash may be set), manual flash may be used in all recording modes.* * The proper exposure may not be obtained in modes other than M mode. Using M mode is therefore recommended.

- If “1/2 EV steps” is selected in item 3, use the gray power values provided on the lower scale of the manual-flash-control dials. The half-stop values are not written on the scale. The power values are 1/1, 1/1.4, 1/2, 1/2.8, 1/4, 1/5.6, and 1/8.

- The selected settings are maintained even when the flash unit is turned off or the battery removed.

Examples of macro twin flash photography

By using this macro twin flash, you can change the position and angle of the twin flash unit to achieve more expressive lighting.

Example:

Top light only Side light only Top and side light

Strong shadows of the subjects can be softened by using the diffuser attached to the flashtube (p. 44).

Example:

Black-and-white close-up of patterned tiger figurines with dot patterns (no text or symbols)

Top light with diffuser

Continuedonthenextpage

Two twin flash shooting with arms

To accent detail and give depth, illuminate the subject from the sides using the arms.

Example:

With arms from the sides

Black-and-white close-up of white flowers with leaves against a black background (no text or symbols)

Diagram showing three light sources projecting a car silhouette, with a base structure below (no text or symbols)

Without arms from the front

Black-and-white close-up of white flowers with green leaves, no text or symbols visible

Simple line drawing of a mechanical device with a curved component above it, no text or symbols present.

Note

If a close-up subject is illuminated from the side using an arm, strong shadows may occur. Strong flash illumination from behind the subject can cause flaring.

- This condition is particularly likely to occur with a 50mm F2.8 Macro lens with flashtubes mounted on arms.

Example:

With arms from the sides

Black-and-white artistic photo of a seashell with spiky fronds and a circular base (no text or symbols)

Simple line drawing of a spacecraft with two ground stations and a base station, no text or symbols present.

Without arms from the front

Black-and-white photo of a seashell with spiky shell and a circular decorative object beside it (no text or symbols visible)

Simple line drawing of a mechanical setup with a gear and base components (no text or symbols)

Aperture range graph

The aperture range for macro lenses is displayed on page 26 (TTL), and page 34 (Manual flash). The aperture ranges described here are for lenses other than macro lenses, or when the subject distance is large.

TTL flash metering

The following explains how to obtain the aperture range using the two twin flash units with a 1.5 m flash-to-subject distance and at ISO 100.

1 Draw a vertical line upwards from the flash-to-subject distance until it reaches the minimum aperture line (A).
2 Draw a horizontal line leftwards from Ⓐ until it reaches the vertical ISO line corresponding to the camera used (B).
3 Draw a diagonal line from Ⓑ upwards and leftwards. The result indicates the minimum aperture that will provide the proper exposure (C).
4 The maximum aperture can be obtained in the same way by using the maximum aperture line (D). The results of both calculations will give the usable aperture range for obtaining the proper exposure (E).

In this case, the proper exposure can be obtained by setting the camera's aperture from maximum to f/16.

- The dot ted lines are employed when only one twin flash unit is used.

Manual flash metering

The following explains how to obtain the aperture using the two twin flash units with a power level of 1/1 at 1.5 m flash-to-subject distance and at ISO 100.

1 Draw a vertical line upwards from the flash-to-subject distance until it reaches the flash power line that corresponds to the set power level (A).
2 Draw a horizontal line leftwards from Ⓐ until it reaches the vertical ISO line corresponding to the camera used (B).
3 Draw a diagonal line from Ⓑ upwards and leftwards. The result indicates the aperture that will provide the proper exposure (C).

In this case, the proper exposure can be obtained by setting the camera's aperture to f/16.

- The figures in parenthesis are employed when only one twin flash unit is used.

Compatibility with other products

Lens

• 49 mm and 55 mm adaptor rings are supplied.
• Lenses whose barrels rotate when auto-focusing cannot be used.
• When a wide angle lens is used, part of the holder may appear in the image. Do not use lenses whose focal length is shorter than 24 mm. If the focal length is between 24 mm and 27 mm, contact an authorized Sony dealer.
• If using a filter at a focal length of less than 50 mm, part of the holder may appear in the image.

Notes on use

While shooting

- This flash unit generates strong light, so it should not be used directly in front of the eyes.

Batteries

• Do not store the macro flash controller with the alkaline batteries inside it. Leakage from the batteries may damage the battery chamber.
• Depending on the temperature or storage conditions, the battery level displayed may be lower than the actual battery capacity. The displayed battery level is restored to the correct value after the flash has been used a few times. When lamp blinks to indicate that the flash cannot be used, pressing the flash ON/OFF button a number of times may result in restoration of the correct battery level display. If the battery level is still not restored, replace the battery.
• When using lithium batteries, if the batteries become hot due to high temperature or continuous use, lamp may blink and the flash may not work for a while. Wait for the batteries to cool down before using the flash again.
• Nick el-metal hydride batteries can lose power suddenly. If lamp starts blinking or the flash can no longer be used while taking pictures, change or recharge the batteries.
• The flash frequency and number of flashes provided by new batteries may vary from the values shown in the table, depending on the time elapsed since manufacture of the batteries.

Continuedonthenextpage

Temperature

• The flash unit may be used over a temperature range of 0 °C to 40 °C .
• Do not expose the flash unit to extremely high temperatures (e.g. in direct sunlight inside a vehicle) or high humidity.
• To prevent condensation forming on the flash, place it in a sealed plastic bag when bringing it from a cold environment into a warm environment. Allow it to reach room temperature before removing it from the bag.
• Battery capacity decreases at colder temperatures. Keep your camera and spare batteries in a warm inside pocket when shooting in cold weather. □ lamp may light on even when there is some power left in the batteries in cold weather. Batteries will regain some of their capacity when warmed to normal operating temperature.
• This flash unit is not waterproof. Be careful not to bring it into contact with water or sand when using it at the seashore, for example. Contact with water, sand, dust, or salt may result in a malfunction.

Maintenance

Remove this unit from the camera. Clean the flash with a dry soft cloth. If the flash has been in contact with sand, wiping will damage the surface, and it should therefore be cleaned gently using a blower. In the event of stubborn stains, use a cloth lightly dampened with a mild detergent solution, and then wipe the unit clean with a dry soft cloth. Never use strong solvents, such as thinner or benzene, as these damage the surface finish.

Specifications

Guide number

Normal flash (ISO 100)

Power level	1 tube 2 tubes	Wide panel	Diffuser
1/1 17 24 11 7
1/2 12 17 8 5
1/4 8.5 12 5.6 3.5
1/8 6 8.5 4 2.5
1/16 4.2 6 2.8 1.8
1/32 3 4.2 2 1.3
1/64 2.1 3 1.4 0.9

Wide panel and diffuser is for one tube.

Frequency/Repetition

	Alkaline Lithium			Nickel-hydride (1550 mAh)
Frequency (sec) 0.2~6	0.2~6	0.2~5
Repetition (times) 2	00~4000	500~10000	1	50~3000

- Repetition is the approximate number of times that are possible before a new battery is completely dead.

Flash coverage

Flash coverage	Twin flash	Wide panel	Diffuser
Vertical 45°	60°	90°
Horizontal	60°	78°	90°

Continuous flash performance

40 flashes at 5 flashes per second

(Pow er level 1/32, nickel-metal hydride battery)

Flash control Flash control using pre-flash, TTL direct metering,

Manual flash

Dimension (Approx.)

Macro flash controller

68 × 123 × 91 ~mm (2 3/4 × 47/8 × 35/8 in.) (w × h × d)

Twin fl ash unit

43 × 41 × 37 ~mm (1 3 / 4 × 15 / 8 × 11 / 2 in.) (w × h × d)

Mass (Approx.) Macro flash controller 235 g (8.3 oz.) (without batteries)

Twin flash unit 33 g (1.2 oz.) (per twin flash unit)

Operating temperature

0^ to 40^ (32°F to 104°F)

Included items Macro flash controller (1), Twin flash unit (2), Holder (1),

Arm (2), Adaptor ring 49mm (1),

Ada ptor ring 55mm (1), Wide panel (2), Diffuser (2),

Cor d reel (2), Controller case (1), Flash case (1),

Set of p printed documentation

Functions in these operating instructions depend on testing conditions at our firm. Design and specifications are subject to change without notice.

Trademark

α is a trademark of Sony Corporation.

Français

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Bagues adaptatrice (13) ø 49 mm, ø 55 mm

Illustration of two overlapping rings (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Illustration of two computer monitors with ventilation grilles (no text or symbols)

Illustration of a mechanical clamp or spring with two interlocking parts (no text or symbols)

* Deux fournis

Exemple de stockage

Insertion des piles

Illustration of a camera module with four batteries and a display panel (no text or symbols)

3 Refermez le compartiment.

Diagram of a DSLR camera with an LCD screen and adjustment knob (no text or symbols)

Line drawing of a DSLR camera with lens and aperture (no text or symbols)

Technical illustration of a mechanical component with gear and adjustment arrows (no text or symbols)

Line drawing of a portable device with a button and scroll, no text or symbols present

Mechanical assembly diagram showing a tractor with gear and a valve, no text or symbols present

Illustration of a camera device with ports and an external plug, no text or symbols present

Technical line drawing of a mechanical device with adjustment knobs and a directional arrow (no text or symbols)

Mechanical component diagram showing a rotating assembly with directional arrows (no text or symbols)

Technical diagram of a mechanical component with three arms and directional arrows indicating flow or movement (no text or symbols)

Mechanical assembly diagram showing a lever interacting with a gear (no text or symbols visible)

Technical line drawing of a mechanical device with attached components (no text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with no visible text or symbols

Technical illustration of a mechanical clamp or connector assembly (no text or symbols visible)

Mechanical component with coiled spring and plug assembly, showing magnified detail (no text or symbols)

Mechanical assembly diagram showing a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Technical line drawing of a mechanical assembly with a spring and linkage (no text or symbols)

Simple line drawing of a container with two vertical lines extending upward (no text or symbols)

Simple line drawing of a box with two vertical lines above it, no text or symbols present.

Illustration of a robot arm holding a laptop, with no visible text or symbols

Illustration of a computer monitor with a grid screen and cable (no text or symbols)

Illustration of a mechanical device with a grid-patterned connector and cable (no text or symbols)

Diagram showing a car interior with a handle and seat, before and after assembly (no text or symbols)

Diagram showing a device being processed from a base to a final component, with no visible text or symbols.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Remarque

Mechanical assembly diagram showing a lever mechanism before and after assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Diagram of a mechanical component with an arrow indicating force or movement, no visible text or symbols

Mechanical assembly diagram showing a lever mechanism and a close-up of a component (no text or symbols)

Black-and-white photo of two patterned tiger-shaped objects with black and white stripes (no text or symbols visible)

Black-and-white photo of two patterned tiger figurines with spotted skin and stylized eyes (no text or symbols)

Black-and-white photo of two patterned tiger figurines with black and white stripes (no text or symbols)

Close-up of two patterned tiger figurines with black-and-white designs (no text or symbols visible)

Black-and-white close-up of white flowers with leaves against a dark background (no text or symbols)

Diagram showing three abstract geometric shapes: a fan-like structure with curved lines, a vertical line, and a base-like structure (no text or symbols)

Black-and-white close-up of three translucent, bell-shaped flowers with stems and leaves against a dark background (no text or symbols)

Simple line drawing of a mechanical device with a curved component and base (no text or symbols)

Black-and-white photo of a seashell with spiky fronds and a circular container on the side (no text or symbols visible)

Simple diagram showing a rocket launch with two radar units and a base station (no text or symbols)

Black-and-white photo of a textured, spiky seashell and a circular container (no text or symbols visible)

Simple line drawing of a mechanical device with a gear-like top and base, no text or symbols present.
